基于多角度成像与机器学习的水稻叶面积精确估算

doi:10.3864/j.issn.0578-1752.2025.09.004

Abstract

Abstract:

【Objective】 Rice leaf area is a critical physiological metric that indicates photosynthetic efficiency, energy conversion, and dry matter accumulation capacity. This study aimed to develop a simple and efficient rice leaf area imaging system and prediction method, so as to provide a theoretical foundation and technical support for rapid and accurate leaf area measurement.【Method】 The study utilized representative rice varieties—Xiushui 134 (indica), Huanghuazhan (japonica), and Yongyou 1540 (indica-japonica hybrid)—as experimental materials. Leaf area data were collected from the aboveground parts during critical growth periods, and both flat-overhead-view and side-view images were captured. Using the PlantScreen high-throughput modular plant phenotyping platform, morphological and color feature information was extracted. Based on these data, various feature selection methods(Pearson correlation coefficient, maximal information coefficient (MIC), and recursive feature elimination (RFE)) combined with machine learning models (support vector regression (SVR), random forest regression (RFR), and XGBoost) and deep learning models (ResNet50, AlexNet, VGG, and SeNet) were employed to develop a simplified and efficient rice leaf area prediction model.【Result】 (1) An imaging approach that integrated flat-overhead and multi-angle side views significantly outperformed single-view methods for leaf area prediction, with R² values of 0.76-0.82 and coefficients of variation (CV) of 5.5%-13.7%, compared with R² values of 0.51-0.78 and CVs of 9.7%-27.5% for single views. The optimal system used one flat-overhead-view and one side-view image, achieving R² = 0.79, root mean square error (RMSE) = 95.3, mean absolute error (MAE) = 77.02, and CV = 6.5%. (2) Using MIC algorithm for key feature selection combined with the random forest regression model achieved excellent results (R² = 0.84, RMSE = 81.8, and MAE = 63.3), noticeably outperforming other machine learning models. The deep learning model SeNet (R² = 0.80, RMSE = 98.1, and MAE = 74.7) outperformed traditional ResNet50 and AlexNet models but showed no significant advantage over the MIC-RFR model. (3) Feature analysis indicated that the projected area and plant height from side-view images, as well as leaf perimeter and green-yellow characteristics from flat-overhead-view images, significantly contributed to leaf area prediction. The contribution of the side-view projected area (+117.4) was substantially greater than that of other features (ranging from 1.48 to 18.87).【Conclusion】 This study employed a simple and efficient leaf area prediction imaging system (one flat-overhead-view combined with one side-view image), integrated with the MIC-RFR model, to meet the high-precision and stable prediction requirements for individual rice leaf area. This method provided a powerful tool and technical support for precision agriculture and crop breeding.

Key words: multi-angle RGB image, morphological feature, color feature, leaf area prediction, machine learning, rice

WANG AiDong, LI RuiJie, FENG XiangQian, HONG WeiYuan, LI ZiQiu, ZHANG XiaoGuo, WANG DanYing, CHEN Song. Multi-Angle Imaging and Machine Learning Approaches for Accurate Rice Leaf Area Estimation[J].Scientia Agricultura Sinica, 2025, 58(9): 1719-1734.

0
/ / Recommend

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

URL: https://www.chinaagrisci.com/EN/10.3864/j.issn.0578-1752.2025.09.004

https://www.chinaagrisci.com/EN/Y2025/V58/I9/1719

Figures/Tables 13

Fig. 1

Fig. 2

Table 1

Fig. 3

Table 2

Fig. 4

Table 3

Fig. 5

Fig. 6

Table 4

Table 5

Fig. 7

Fig. 8

References 62

[1]	王伟康, 张嘉懿, 汪慧, 曹强, 田永超, 朱艳, 曹卫星, 刘小军. 基于固定翼无人机多光谱影像的水稻长势关键指标无损监测. 中国农业科学, 2023, 56(21): 4175-4191. doi: 10.3864/j.issn.0578-1752.2023.21.004.
	WANG W K, ZHANG J Y, WANG H, CAO Q, TIAN Y C, ZHU Y, CAO W X, LIU X J. Non-destructive monitoring of rice growth key indicators based on fixed-wing UAV multispectral images. Scientia Agricultura Sinica, 2023, 56(21): 4175-4191. doi: 10.3864/j.issn.0578-1752.2023.21.004. (in Chinese)
[2]	FANG H L, BARET F, PLUMMER S, SCHAEPMAN-STRUB G. An overview of global leaf area index (LAI): methods, products, validation, and applications. Reviews of Geophysics, 2019, 57(3): 739-799.
[3]	刘帅兵, 金秀良, 冯海宽, 聂臣巍, 白怡, 余汛. 基于无人机多源遥感的玉米LAI垂直分布估算. 农业机械学报, 2023, 54(5): 181-193, 287.
	LIU S B, JIN X L, FENG H K, NIE C W, BAI Y, YU X. Vertical distribution estimation of maize LAI using UAV multi-source remote sensing. Transactions of the Chinese Society for Agricultural Machinery, 2023, 54(5): 181-193, 287. (in Chinese)
[4]	CASADESÚS J, VILLEGAS D. Conventional digital cameras as a tool for assessing leaf area index and biomass for cereal breeding. Journal of Integrative Plant Biology, 2014, 56(1): 7-14. doi: 10.1111/jipb.12117
[5]	BLANCON J, BUET C, DUBREUIL P, TIXIER M H, BARET F, PRAUD S. Maize green leaf area index dynamics: Genetic basis of a new secondary trait for grain yield in optimal and drought conditions. Theoretical and Applied Genetics, 2024, 137(3): 68. doi: 10.1007/s00122-024-04572-6 pmid: 38441678
[6]	FU H Y, LU J N, CHEN J F, WANG W, CUI G X, SHE W. Influence of structure and texture feature on retrieval of ramie leaf area index. Agronomy, 2023, 13(7): 1690.
[7]	YUAN W S, MENG Y, LI Y, JI Z G, KONG Q M, GAO R, SU Z B. Research on rice leaf area index estimation based on fusion of texture and spectral information. Computers and Electronics in Agriculture, 2023, 211: 108016.
[8]	谷晓博, 程智楷, 周智辉, 常甜, 李汶龙, 杜娅丹. 基于特征降维和机器学习的覆膜冬小麦LAI遥感反演. 农业机械学报, 2023, 54(6): 148-157, 167.
	GU X B, CHENG Z K, ZHOU Z H, CHANG T, LI W L, DU Y D. Remote sensing inversion of film-mulched winter wheat LAI based on feature dimension reduction and machine learning. Transactions of the Chinese Society for Agricultural Machinery, 2023, 54(6): 148-157, 167. (in Chinese)
[9]	REES W G, GOLUBEVA E I, TUTUBALINA O V, ZIMIN M V, DERKACHEVA A A. Relation between leaf area index and NDVI for subarctic deciduous vegetation. International Journal of Remote Sensing, 2020, 41(22): 8573-8589.
[10]	ZHANG Y, JIANG Y Y, XU B, YANG G J, FENG H K, YANG X D, YANG H, LIU C B, CHENG Z D, FENG Z H. Study on the estimation of leaf area index in rice based on UAV RGB and multispectral data. Remote Sensing, 2024, 16(16): 3049.
[11]	ZHANG W, LI Z J, PU Y, ZHANG Y T, TANG Z J, FU J Y, XU W J, XIANG Y Z, ZHANG F C. Estimation of the leaf area index of winter rapeseed based on hyperspectral and machine learning. Sustainability, 2023, 15(17): 12930.
[12]	QIN G X, WU J, LI C B, MENG Z Y. Comparison of the hybrid of radiative transfer model and machine learning methods in leaf area index of grassland mapping. Theoretical and Applied Climatology, 2024, 155(4): 2757-2773.
[13]	MANSARAY L R, WANG F M, KANU A S, YANG L B. Evaluating Sentinel-1A datasets for rice leaf area index estimation based on machine learning regression models. Geocarto International, 2022, 37(5): 1225-1236.
[14]	石浩磊, 曹红霞, 张伟杰, 朱珊, 何子建, 张泽. 基于无人机多光谱的棉花多生育期叶面积指数反演. 中国农业科学, 2024, 57(1): 80-95. doi: 10.3864/j.issn.0578-1752.2024.01.007.
	SHI H L, CAO H X, ZHANG W J, ZHU S, HE Z J, ZHANG Z. Leaf area index inversion of cotton based on drone multi-sdpectral and multiple growth stages. Scientia Agricultura Sinica, 2024, 57(1): 80-95. doi: 10.3864/j.issn.0578-1752.2024.01.007. (in Chinese)
[15]	史丰智, 王瑞燕, 李玉环, 闫宏, 张晓鑫. LAI无人机多光谱遥感估测及其在盐渍土改良中的应用. 中国农业科学, 2020, 53(9): 1795-1805. doi: 10.3864/j.issn.0578-1752.2020.09.008.
	SHI F Z, WANG R Y, LI Y H, YAN H, ZHANG X X. LAI estimation based on multi-spectral remote sensing of UAV and its application in saline soil improvement. Scientia Agricultura Sinica, 2020, 53(9): 1795-1805. doi: 10.3864/j.issn.0578-1752.2020.09.008. (in Chinese)
[16]	周晓雪, 李楠, 潘耀忠, 孙莉昕. 人工蜂群算法优化SVR的叶面积指数反演. 遥感学报, 2022, 26(4): 766-780.
	ZHOU X X, LI N, PAN Y Z, SUN L X. Optimized SVR based on artificial bee colony algorithm for leaf area index inversion. National Remote Sensing Bulletin, 2022, 26(4): 766-780. (in Chinese)
[17]	APOLO-APOLO O E, PÉREZ-RUIZ M, MARTÍNEZ-GUANTER J, EGEA G. A mixed data-based deep neural network to estimate leaf area index in wheat breeding trials. Agronomy, 2020, 10(2): 175.
[18]	LIU S B, JIN X L, NIE C W, WANG S Y, YU X, CHENG M H, SHAO M C, WANG Z X, TUOHUTI N, BAI Y, LIU Y D. Estimating leaf area index using unmanned aerial vehicle data: Shallow vs. deep machine learning algorithms. Plant Physiology, 2021, 187(3): 1551-1576.
[19]	CASTRO-VALDECANTOS P, APOLO-APOLO O E, PÉREZ-RUIZ M, EGEA G. Leaf area index estimations by deep learning models using RGB images and data fusion in maize. Precision Agriculture, 2022, 23(6): 1949-1966.
[20]	李云霞, 马浚诚, 刘红杰, 张领先. 基于RGB图像与深度学习的冬小麦田间长势参数估算系统. 农业工程学报, 2021, 37(24): 189-198.
	LI Y X, MA J C, LIU H J, ZHANG L X. Field growth parameter estimation system of winter wheat using RGB digital images and deep learning. Transactions of the Chinese Society of Agricultural Engineering, 2021, 37(24): 189-198. (in Chinese)
[21]	WANG Z B, MA Y K, ZHANG Y N. Review of pixel-level remote sensing image fusion based on deep learning. Information Fusion, 2023, 90: 36-58.
[22]	XU K, ZHANG J C, LI H M, CAO W X, ZHU Y, JIANG X P, NI J. Spectrum- and RGB-D-based image fusion for the prediction of nitrogen accumulation in wheat. Remote Sensing, 2020, 12(24): 4040.
[23]	杭艳红, 苏欢, 于滋洋, 刘焕军, 官海翔, 孔繁昌. 结合无人机光谱与纹理特征和覆盖度的水稻叶面积指数估算. 农业工程学报, 2021, 37(9): 64-71.
	HANG Y H, SU H, YU Z Y, LIU H J, GUAN H X, KONG F C. Estimation of rice leaf area index combining UAV spectrum, texture features and vegetation coverage. Transactions of the Chinese Society of Agricultural Engineering, 2021, 37(9): 64-71. (in Chinese)
[24]	张东彦, 韩宣宣, 林芬芳, 杜世州, 张淦, 洪琪. 基于多源无人机影像特征融合的冬小麦LAI估算. 农业工程学报, 2022, 38(9): 171-179.
	ZHANG D Y, HAN X X, LIN F F, DU S Z, ZHANG G, HONG Q. Estimation of winter wheat LAI based on multi-source UAV image feature fusion. Transactions of the Chinese Society of Agricultural Engineering, 2022, 38(9): 171-179. (in Chinese)
[25]	WANG X W, LIU J, LIU G X. Diseases detection of occlusion and overlapping tomato leaves based on deep learning. Frontiers in Plant Science, 2021, 12: 792244.
[26]	FAN J C, ZHANG Y, WEN W L, GU S H, LU X J, GUO X Y. The future of Internet of Things in agriculture: Plant high-throughput phenotypic platform. Journal of Cleaner Production, 2021, 280: 123651.
[27]	田罗, 屈永华, LAURI K, ILKKA K, JANNE H. 考虑目标光谱差异的机载离散激光雷达叶面积指数反演. 遥感学报, 2020, 24(12): 1450-1463.
	TIAN L, QU Y H, LAURI K, ILKKA K, JANNE H. Estimation of forest leaf area index based on spectrally corrected airborne LiDAR pulse penetration index by intensity of point cloud. Journal of Remote Sensing, 2020, 24(12): 1450-1463. (in Chinese)
[28]	ROSSI R, LEOLINI C, COSTAFREDA-AUMEDES S, LEOLINI L, BINDI M, ZALDEI A, MORIONDO M. Performances evaluation of a low-cost platform for high-resolution plant phenotyping. Sensors, 2020, 20(11): 3150.
[29]	PAVICIC M, MOUHU K, WANG F, BILICKA M, CHOVANČEK E, HIMANEN K. Genomic and phenomic screens for flower related RING type ubiquitin E3 ligases in Arabidopsis. Frontiers in Plant Science, 2017, 8: 416.
[30]	臧少龙, 刘淋茹, 高越之, 吴珂, 贺利, 段剑钊, 宋晓, 冯伟. 基于无人机影像多时相的小麦品种氮效率分类识别. 中国农业科学, 2024, 57(9): 1687-1708. doi: 10.3864/j.issn.0578-1752.2024.09.006.
	ZANG S L, LIU L R, GAO Y Z, WU K, HE L, DUAN J Z, SONG X, FENG W. Classification and identification of nitrogen efficiency of wheat varieties based on UAV multi-temporal images. Scientia Agricultura Sinica, 2024, 57(9): 1687-1708. doi: 10.3864/j.issn.0578-1752.2024.09.006. (in Chinese)
[31]	WU S, DENG L, GUO L J, WU Y J. Wheat leaf area index prediction using data fusion based on high-resolution unmanned aerial vehicle imagery. Plant Methods, 2022, 18(1): 68. doi: 10.1186/s13007-022-00899-7 pmid: 35590377
[32]	HUANG F, LI Y M, LIU Z X, GONG L, LIU C L. A method for calculating the leaf area of pak choi based on an improved mask R-CNN. Agriculture, 2024, 14(1): 101.
[33]	HUANG X, LIN D, MAO X M, ZHAO Y. Multi-source data fusion for estimating maize leaf area index over the whole growing season under different mulching and irrigation conditions. Field Crops Research, 2023, 303: 109111.
[34]	冯子恒, 宋莉, 张少华, 井宇航, 段剑钊, 贺利, 尹飞, 冯伟. 基于无人机多光谱和热红外影像信息融合的小麦白粉病监测. 中国农业科学, 2022, 55(5): 890-906. doi: 10.3864/j.issn.0578-1752.2022.05.005.
	FENG Z H, SONG L, ZHANG S H, JING Y H, DUAN J Z, HE L, YIN F, FENG W. Wheat powdery mildew monitoring based on information fusion of multi-spectral and thermal infrared images acquired with an unmanned aerial vehicle. Scientia Agricultura Sinica, 2022, 55(5): 890-906. doi: 10.3864/j.issn.0578-1752.2022.05.005. (in Chinese)
[35]	YAMAGUCHI T, TANAKA Y, IMACHI Y, YAMASHITA M, KATSURA K. Feasibility of combining deep learning and RGB images obtained by unmanned aerial vehicle for leaf area index estimation in rice. Remote Sensing, 2021, 13(1): 84.
[36]	GAN Y, WANG Q, MATSUZAWA T, SONG G M, IIO A. Multivariate regressions coupling colorimetric and textural features derived from UAV-based RGB images can trace spatiotemporal variations of LAI well in a deciduous forest. International Journal of Remote Sensing, 2023, 44(15): 4559-4577.
[37]	LU N, ZHOU J, HAN Z X, LI D, CAO Q, YAO X, TIAN Y C, ZHU Y, CAO W X, CHENG T. Improved estimation of aboveground biomass in wheat from RGB imagery and point cloud data acquired with a low-cost unmanned aerial vehicle system. Plant Methods, 2019, 15(1): 17.
[38]	LIANG Y Y, SUN Y K, KOU W L, XU W H, WANG J, WANG Q H, WANG H, LU N. Rubber tree recognition based on UAV RGB multi-angle imagery and deep learning. Drones, 2023, 7(9): 547.
[39]	WANG Q, PANG Y, JIA W W, ZHANG H W, WANG C Y. Effective and universal pre-processing for multi-angle CHRIS/PROBA images. Journal of the Indian Society of Remote Sensing, 2021, 49(7): 1581-1591.
[40]	DAS CHOUDHURY S, SAMAL A, AWADA T. Leveraging image analysis for high-throughput plant phenotyping. Frontiers in Plant Science, 2019, 10: 508. doi: 10.3389/fpls.2019.00508 pmid: 31068958
[41]	MÜLLER-LINOW M, PINTO-ESPINOSA F, SCHARR H, RASCHER U. The leaf angle distribution of natural plant populations: Assessing the canopy with a novel software tool. Plant Methods, 2015, 11: 11.
[42]	FAREK L, BENAIDJA A. Feature redundancy removal for text classification using correlated feature subsets. Computational Intelligence, 2024, 40(1): e12621.
[43]	CAI J, LUO J W, WANG S L, YANG S. Feature selection in machine learning: A new perspective. Neurocomputing, 2018, 300: 70-79.
[44]	ZHENG W, CHEN S, FU Z Y, ZHU F, YAN H, YANG J. Feature selection boosted by unselected features. IEEE Transactions on Neural Networks and Learning Systems, 2022, 33(9): 4562-4574.
[45]	MOSLEMI A. A tutorial-based survey on feature selection: Recent advancements on feature selection. Engineering Applications of Artificial Intelligence, 2023, 126: 107136.
[46]	QIAO L, GAO D H, ZHAO R M, TANG W J, AN L L, LI M Z, SUN H. Improving estimation of LAI dynamic by fusion of morphological and vegetation indices based on UAV imagery. Computers and Electronics in Agriculture, 2022, 192: 106603.
[47]	JIANG N, YANG W N, DUAN L F, CHEN G X, FANG W, XIONG L Z, LIU Q. A nondestructive method for estimating the total green leaf area of individual rice plants using multi-angle color images. Journal of Innovative Optical Health Sciences, 2015, 8(2): 1550002.
[48]	DONG T F, LIU J G, SHANG J L, QIAN B D, MA B L, KOVACS J M, WALTERS D, JIAO X F, GENG X Y, SHI Y C. Assessment of red-edge vegetation indices for crop leaf area index estimation. Remote Sensing of Environment, 2019, 222: 133-143.
[49]	JING L L, WEI X H, SONG Q, WANG F. Research on estimating rice canopy height and LAI based on LiDAR data. Sensors, 2023, 23(19): 8334.
[50]	GUO Z W, LIN H, CHEN S L, YANG Q P. Altitudinal patterns of leaf traits and leaf allometry in bamboo Pleioblastus amarus. Frontiers in Plant Science, 2018, 9: 1110.
[51]	GUO R C, XIE J L, ZHU J X, CHENG R F, ZHANG Y, ZHANG X H, GONG X J, ZHANG R W, WANG H, MENG F F. Improved 3D point cloud segmentation for accurate phenotypic analysis of cabbage plants using deep learning and clustering algorithms. Computers and Electronics in Agriculture, 2023, 211: 108014.
[52]	ZHANG X, SUN H, QIAO X X, YAN X B, FENG M C, XIAO L J, SONG X Y, ZHANG M J, SHAFIQ F, YANG W D, WANG C. Hyperspectral estimation of canopy chlorophyll of winter wheat by using the optimized vegetation indices. Computers and Electronics in Agriculture, 2022, 193: 106654.
[53]	CHENG J P, YANG H, QI J B, SUN Z D, HAN S Y, FENG H K, JIANG J Y, XU W M, LI Z H, YANG G J, ZHAO C J. Estimating canopy-scale chlorophyll content in apple orchards using a 3D radiative transfer model and UAV multispectral imagery. Computers and Electronics in Agriculture, 2022, 202: 107401.
[54]	RICCARDI M, MELE G, PULVENTO C, LAVINI A, D’ANDRIA R, JACOBSEN S E. Non-destructive evaluation of chlorophyll content in quinoa and amaranth leaves by simple and multiple regression analysis of RGB image components. Photosynthesis Research, 2014, 120(3): 263-272. doi: 10.1007/s11120-014-9970-2 pmid: 24442792
[55]	ZHANG Y H, TANG L, LIU X J, LIU L L, CAO W X, ZHU Y. Modeling dynamics of leaf color based on RGB value in rice. Journal of Integrative Agriculture, 2014, 13(4): 749-759.
[56]	HE J Y, ZHANG N, SU X, LU J S, YAO X, CHENG T, ZHU Y, CAO W X, TIAN Y C. Estimating leaf area index with a new vegetation index considering the influence of rice panicles. Remote Sensing, 2019, 11(15): 1809.
[57]	DE MAGALHÃES L P, ROSSI F. Use of indices in RGB and random forest regression to measure the leaf area index in maize. Agronomy, 2024, 14(4): 750.
[58]	HOUBORG R, MCCABE M F. A hybrid training approach for leaf area index estimation via Cubist and random forests machine-learning. ISPRS Journal of Photogrammetry and Remote Sensing, 2018, 135: 173-188.
[59]	LEE G Y, DAM T, FERDAUS M M, POENAR D P, DUONG V N. Unlocking the capabilities of explainable few-shot learning in remote sensing. Artificial Intelligence Review, 2024, 57(7): 169.
[60]	WANG D S, CAO W J, ZHANG F, LI Z L, XU S, WU X Y. A review of deep learning in multiscale agricultural sensing. Remote Sensing, 2022, 14(3): 559.
[61]	WEISS K, KHOSHGOFTAAR T M, WANG D D. A survey of transfer learning. Journal of Big Data, 2016, 3(1): 9.
[62]	LI X L, DONG Y Y, ZHU Y N, HUANG W J. Enhanced leaf area index estimation with CROP-DualGAN network. IEEE Transactions on Geoscience and Remote Sensing, 2022, 61: 5514610.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

Comments

Recommended 0

No Suggested Reading articles found!

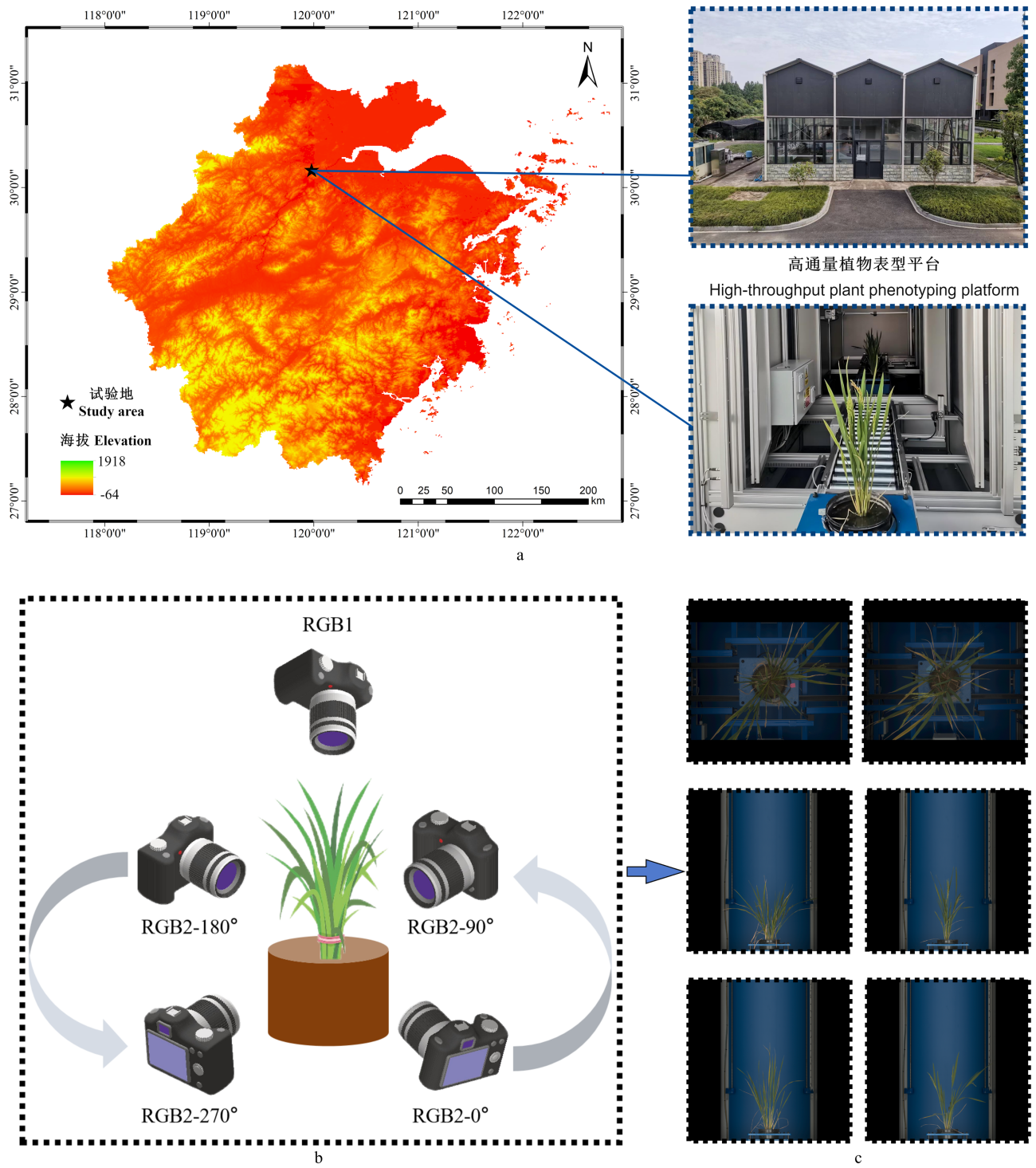

高通量模块化植物表型组平台 High-throughput modular plant phenotyping platform
形态学特征 Morpho feature		颜色特征 Color feature
俯拍图像 FP	侧拍图像 SP	颜色 Color	展示 Show
投影面积 Area	投影面积 Area	RGB1
叶周长 Perimeter	叶周长 Perimeter	RGB2
紧密度 Compactness	紧密度 Compactness	RGB3
植株圆度 Roundness	植株高度 Height	RGB4
植株旋转质量对称 RMS	植株宽度 Width	RGB5
偏心率 Eccentricity		RGB6
叶片细长度 SOL		RGB7
各向同性 Isotropy		RGB8
		RGB9

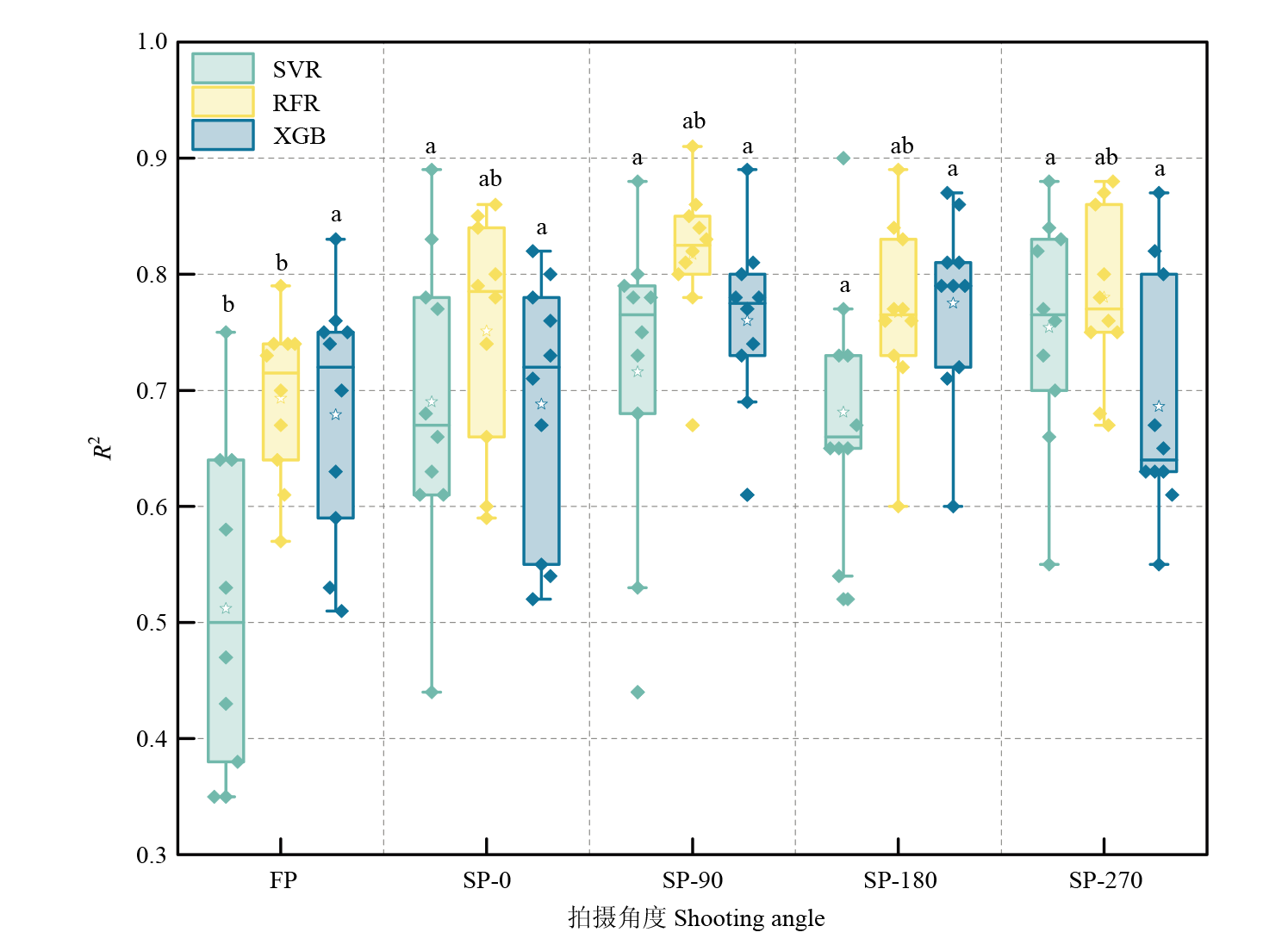

组合 Combination	模型 Model	决定系数 R²	均方根误差 RMSE	平均绝对误差 MAE	变异系数 CV (%)
FP	SVR	0.51	147.3	108.1	27.5
	RF	0.69	113.9	91.7	9.7
	XGBoost	0.68	116.1	92.3	15.8
SP	SVR	0.71	107.8	81.4	16.6
	RF	0.78	92.5	73.5	10.4
	XGBoost	0.73	107.4	81.6	13.7
FP+SP	SVR	0.76	104.2	80.7	13.7
	RF	0.82	88.2	69.1	5.5
	XGBoost	0.76	96.4	73.4	9.2

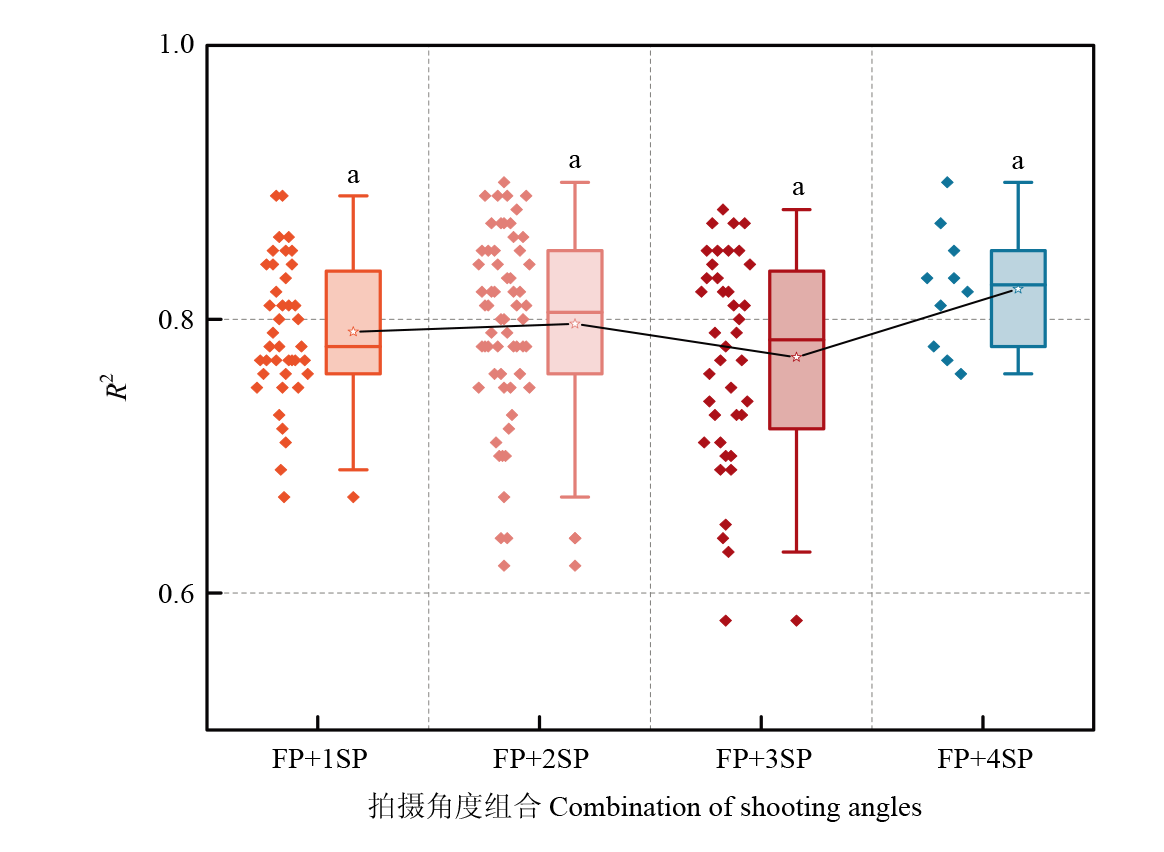

组合 Combination	决定系数 R²	均方根误差 RMSE	平均绝对误差 MAE	变异系数 CV (%)
FP+1SP（n=40）	0.79	95.30	77.02	6.5
FP+2SP（n=60）	0.80	92.70	72.41	8.4
FP+3SP（n=40）	0.78	95.84	75.86	9.8
FP+4SP（n=10）	0.82	88.20	69.10	5.5

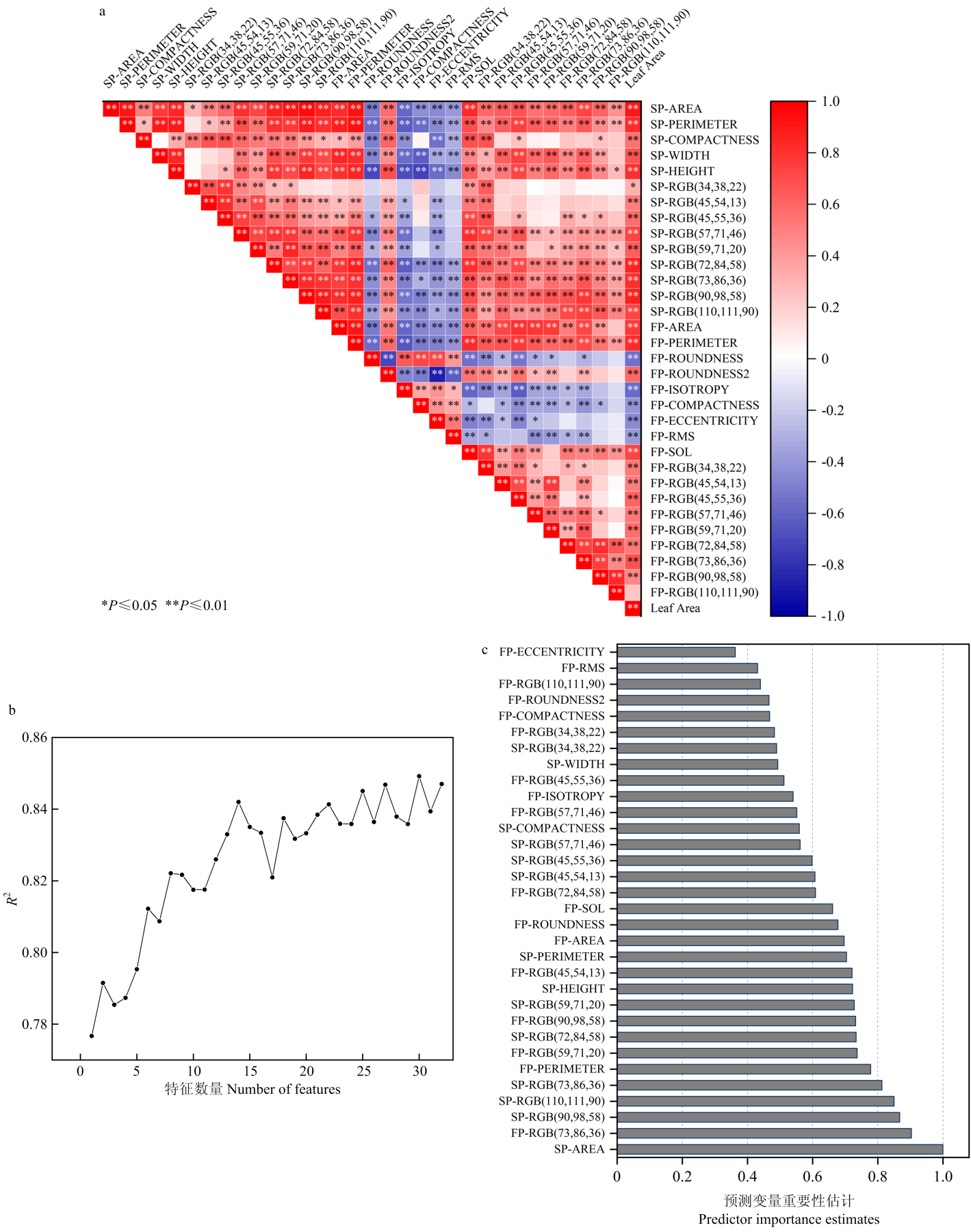

特征选择 Feature selection	模型 Model	决定系数 R²	均方根误差 RMSE	平均绝对误差 MAE	变异系数 CV (%)
Full Feature	SVR	0.78	97.9	78.4	11.8
	RF	0.79	95.4	76.7	4.6
	XGBoost	0.78	96.0	76.8	13.5
Pearson	SVR	0.77	92.1	71.9	27.5
	RF	0.79	102.9	91.7	9.7
	XGBoost	0.79	94.2	75.0	8.0
MIC	SVR	0.82	85.2	67.1	7.2
	RF	0.84	81.8	63.3	7.4
	XGBoost	0.80	96.6	73.4	5.8
RFE	SVR	0.81	93.3	69.1	5.7
	RF	0.82	90.7	72.7	7.1
	XGBoost	0.81	92.9	74.8	8.8

模型 Model	原始 Original			掩膜 Eye masked
模型 Model	决定系数 R²	均方根误差 RMSE	平均绝对误差 MAE	决定系数 R²	均方根误差 RMSE	平均绝对误差 MAE
ResNet50	0.73	105.9	84.47	0.76	103.2	80.78
AlexNet	0.75	105.3	84.66	0.76	102.5	80.46
VGG	0.77	102.3	77.43	0.78	100.4	80.20
SeNet	0.76	103.2	80.83	0.80	98.3	73.73

Multi-Angle Imaging and Machine Learning Approaches for Accurate Rice Leaf Area Estimation
