基于多元统计分析的小麦低温冻害评价及水分效应差异研究

doi:10.3864/j.issn.0578-1752.2022.07.004

中国农业科学 ›› 2022, Vol. 55 ›› Issue (7): 1301-1318.doi: 10.3864/j.issn.0578-1752.2022.07.004

• 耕作栽培·生理生化·农业信息技术 • 上一篇下一篇

基于多元统计分析的小麦低温冻害评价及水分效应差异研究

王洋洋^1,²(),刘万代^1,²,贺利^1,²(),任德超³,段剑钊^1,²,胡新³,郭天财^1,²,王永华^1,²,冯伟^1,²()

¹河南农业大学农学院/作物生长发育调控教育部重点实验室,郑州 450046
²国家小麦工程技术研究中心,郑州 450046
³商丘市农林科学院小麦研究所,河南商丘 476000

收稿日期:2021-06-09 接受日期:2021-10-08 出版日期:2022-04-01 发布日期:2022-04-18
通讯作者: 贺利,冯伟
作者简介:王洋洋,E-mail： wyy65wyy@163.com。
基金资助:
“十三五”国家重点研发计划“粮食丰产增效科技创新”(2017YFD0300204)

Evaluation of Low Temperature Freezing Injury in Winter Wheat and Difference Analysis of Water Effect Based on Multivariate Statistical Analysis

WANG YangYang^1,²(),LIU WanDai^1,²,HE Li^1,²(),REN DeChao³,DUAN JianZhao^1,²,HU Xin³,GUO TianCai^1,²,WANG YongHua^1,²,FENG Wei^1,²()

¹College of Agronomy, Henan Agriculture University/Key Laboratory of Regulating and Controlling Crop Growth and Development, Ministry of Education, Zhengzhou 450046
²National Engineering Research Center for Wheat, Zhengzhou 450046
³Wheat Research Institute, Shangqiu Academy of Agriculture and Forestry Sciences, Shangqiu 476000, Henan

Received:2021-06-09 Accepted:2021-10-08 Online:2022-04-01 Published:2022-04-18
Contact: Li HE,Wei FENG

摘要/Abstract

摘要：

【目的】明确不同水分条件下低温胁迫引起的小麦冻害程度,筛选冻害鉴定指标并建立冻害定量评估模型,为小麦生产科学防控低温冻害提供理论支撑。【方法】以弱春性品种偃展4110、兰考198和半冬性品种郑麦366、丰德存麦21为试验材料,在模拟冻害发生前一周进行灌水（W）和不灌水（D）处理,于雌雄蕊分化期将盆栽小麦移到低温模拟室进行处理,设置的温度为-2℃（T1）、-4℃（T2）、-6℃（T3）、-8℃（T4）和-10℃（T5）以及对照（CK为当天大田温度）,低温胁迫后的第2天测定小麦生理生化指标,将标准化后的各个生理指标进行主成分、隶属函数、聚类分析和逐步回归等多元统计分析。【结果】不同品种、水分、温度下的各单项生理生化指标之间大多存在着显著相关性,通过主成分分析将19个生理生化指标转化为6个相互独立的综合指标,其贡献度分别为55.972%、11.93%、7.168%、5.075%、4.236%和3.079%,代表了全部原始数据的87.459%的信息量,并根据隶属函数算法求出各处理的冻害程度综合评价值（F值）。以F值作为因变量,通过逐步回归分析筛选出7个关键指标,分别为叶绿素a、叶片含水量、脯氨酸、F_v/F_m、可溶性蛋白、MDA和SOD,并确立了定量估算F值的数学模型。同时,将F预测值与产量损失率进行相关性分析,线性方程决定系数R²= 0.898,表明该F预测模型能够很好地评价冻害程度。进一步对F预测值进行聚类分析,可将不同冻害处理划分为5类：未受冻（D-CK、W-CK）、轻度受冻（D-T1、W-T1）、中度受冻（D-T2、W-T2、W-T3）、重度受冻（D-T3、W-T4）以及特重受冻（D-T4、W-T5、D-T5）,其产量损失率分别为0、0—10%、10%—30%、30%—50%及50%以上,相同的温度和水分条件下弱春性品种的冻害程度重于半冬性品种,相同的品种和温度条件下不灌水处理的冻害程度重于灌水处理。具体考察所筛选的生理评价指标,随着低温胁迫的加重,叶绿素a、叶片含水量、Fv/Fm表现下降趋势,而脯氨酸、可溶性蛋白和SOD活性表现先升后降的特征,MDA则为相反趋势。【结论】生产中在晚霜冻易发地区应选用半冬性品种,且依据天气预报寒流来临前加强灌水管理,并可在冻害发生时通过冻害评价指标及定量模型及时准确评估冻害发生程度,这有利于晚霜冻害的科学防控,为灾后产量恢复及决策管理提供依据。

关键词: 冬小麦, 晚霜冻害, 灌水, 综合评价, 评估模型

Abstract:

【Objective】In order to clarify the freezing injury degree of wheat under different water conditions caused by low temperature stress, the identification indexes and quantitative evaluation model of freezing injury were screened and established, which provided the theoretical support for prevention and control of freezing injury in wheat production. 【Method】 Weak spring cultivars of Yanzhan 4110 and Lankao 198, semi-winter cultivars of Zhengmai 366 and Fengdecunmai 21 were used as experimental materials. They were treated with irrigation (W) or no irrigation (D) one week before the freezing injury, respectively. Pot experiments were moved to a low-temperature simulation room during the female and male ear differentiation stages. The temperatures were set as -2℃ (T1), -4℃ (T2), -6℃ (T3), -8℃ (T4), -10℃ (T5) and control (CK is the field temperature on the same day). Physiological and biochemical indexes of wheat were measured on the second day after low temperature stress. The standardized physiological indexes were analyzed by multivariate statistical analysis, such as principal component, membership function, cluster analysis and step wise regression. 【Result】 There were significant correlations among the individual physiological and biochemical indexes under different cultivars, water contents and temperatures. Through principal component analysis, 19 physiological and biochemical indexes were transformed into 6 mutually independent comprehensive indexes, whose contribution degrees were 55.972%, 11.93%, 7.168%, 5.075%, 4.236% and 3.079%, respectively, representing 87.459% information of all original data. According to the membership function algorithm, the comprehensive evaluation value ( F value ) of freezing injury degree of each treatment was calculated. Take F value as the dependent variable, the seven key indexes were selected by stepwise regression analysis, namely chlorophyll a, leaf water content, proline, F_v/F_m, soluble protein, MDA and SOD, and the mathematical model for quantitative estimation of F value was established. At the same time, the correlation between F prediction value and yield loss rate was analyzed, and the linear equation determination coefficient R ²= 0.898, indicating that the F prediction model could well evaluate the freezing injury degree. F predicted value could be divided into five categories by further cluster analysis: non-freezing (D-CK, W-CK), mild frozen (D-T1, W-T1), moderate frozen (D-T2, W-T2, W-T3), severe frozen (D-T3, W-T4), and extremely severe frozen (D-T4, W-T5, D-T5). Corresponding yield loss rate were 0, 0-10%, 10%-30%, 30%-50% and more than 50%, respectively. Under the same temperature and moisture conditions, the freezing injury degree of weak spring varieties was heavier than that of semi-winter varieties, and the freezing injury degree of no irrigation treatment was heavier than that of irrigation treatment under the same varieties and temperature conditions. With the increasing of low temperature stress, chlorophyll a, leaf water content and F_v/F_m showed a decreasing trend, the activities of proline, soluble protein and SOD increased first and then decreased, while MDA showed an opposite trend. According to the clustering results, under the same temperature and water conditions, the freezing injury degree of weak spring cultivars was more serious than that of semi-winter cultivars. Under the same variety and temperature conditions, the freezing damage degree without irrigation was worse than that under irrigation. 【Conclusion】Therefore, the semi-winter varieties should be selected in the areas prone to late frost in production, and the irrigation management should be strengthened before a cold wave according to the weather forecast. When freezing injury happened, the injury degree could be accurately assessed in timely through the evaluation index and quantitative model, which was conducive to prevention and control of late frost injury, and provides technology basis for production recovery and decision management after freezing disaster.

Key words: winter wheat, frost damage degree, irrigation, comprehensive evaluation, estimation model

王洋洋,刘万代,贺利,任德超,段剑钊,胡新,郭天财,王永华,冯伟. 基于多元统计分析的小麦低温冻害评价及水分效应差异研究[J]. 中国农业科学, 2022, 55(7): 1301-1318.

WANG YangYang,LIU WanDai,HE Li,REN DeChao,DUAN JianZhao,HU Xin,GUO TianCai,WANG YongHua,FENG Wei. Evaluation of Low Temperature Freezing Injury in Winter Wheat and Difference Analysis of Water Effect Based on Multivariate Statistical Analysis[J]. Scientia Agricultura Sinica, 2022, 55(7): 1301-1318.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2022.07.004

https://www.chinaagrisci.com/CN/Y2022/V55/I7/1301

图/表 11

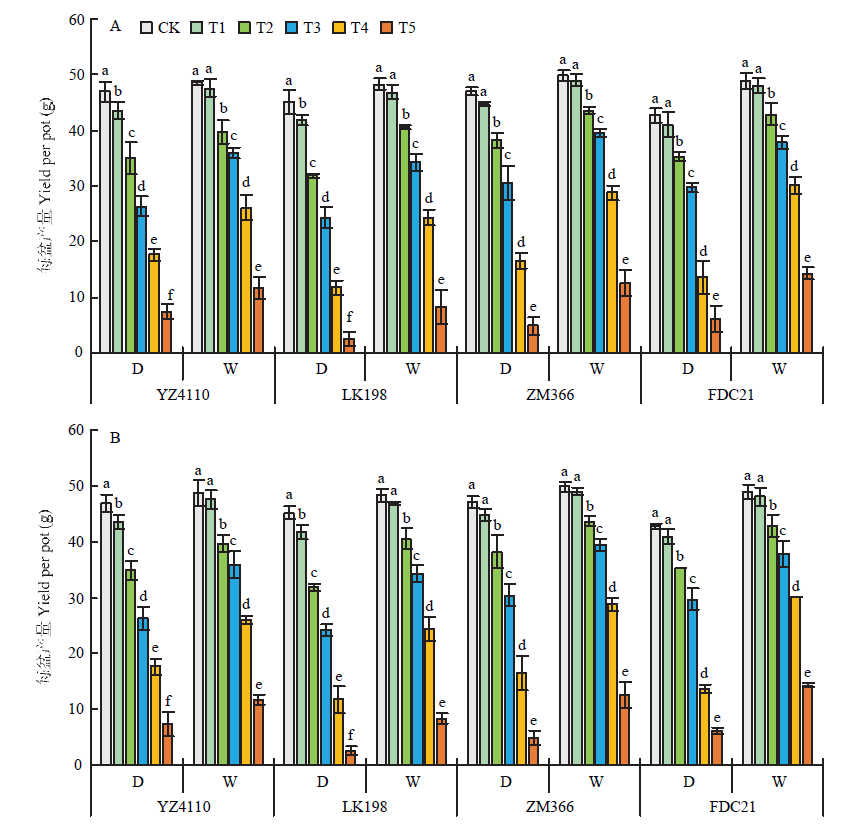

图1

图2

表1

表2

表3

图3

图4

图5

图6

图7

图8

参考文献 45

[1]	KODRA E, STEINHAEUSER K, GANGULY A R. Persisting cold extremes under 21st-century warming scenarios. Geophysical Research Letters, 2011, 38(8):1-5.
[2]	ZHENG B Y, CHENU K, FERNANDA D M, CHAPMAN S C. Breeding for the future: What are the potential impacts of future frost and heat events on sowing and flowering time requirements for Australian bread wheat (Triticum aestivium) varieties?. Global Change Biology, 2012, 18(9):2899-2914. doi: 10.1111/j.1365-2486.2012.02724.x
[3]	张永阁. 柘城县小麦冻害发生原因及防治措施. 河南农业, 2016, 1:45.
	ZHANG Y G. Reasons and protective measures of wheat frost damage in Zhecheng. Agriculture of Henan, 2016, 1:45. (in Chinese)
[4]	BALI A S, SIDHU G P S. Abiotic stress-induced oxidative stress in wheat//HASANNZZAMAN M, NAHAR K, HOSSAIN M A. Wheat Production in Changing Environments. Singapore: Springer, 2019: 225-239
[5]	UPADHYAYA H, SAHOO L, PANDA S K. Molecular physiology of osmotic stress in plants//ROUT G R, DAS A B. Molecular Stress Physiology of Plants. India: Springer, 2013: 179-192.
[6]	GALIBA G, VANKOVÁ R, TARI I, BÁNFALVI Z, MSC P P, DOBREV P, BOLDIZSÁR A, VÁGÚJFALVI A, KOCSY G. Hormones, NO, antioxidant and metabolites as key players in plant cold acclimation//IMAI R, YOSHIDA M, MASTUMOTO N. Plant and Microbe Adaptations to Cold in a Changing World. New York: Springer, 2013: 73-87.
[7]	陈思思, 李春燕, 杨景, 徐雯, 朱新开, 郭文善, 封超年. 拔节期低温冻害对扬麦16光合特性及产量形成的影响. 扬州大学学报(农业与生命科学版), 2014, 35(3) : 59-64.
	CHEN S S, LI C Y, YANG J, XU W, ZHU X K, GUO W S, FENG C N. Effect of low temperature at jointing stage on photosynthetic characteristics and yield in wheat cultivar Yangmai 16. Journal of Yangzhou University(Agricultural and Life Science Edition), 2014, 35(3):59-64. (in Chinese)
[8]	刘蕾蕾, 纪洪亭, 刘兵, 马吉锋, 肖浏骏, 汤亮, 曹卫星, 朱艳. 拔节期和孕穗期低温处理对小麦叶片光合及叶绿素荧光特性的影响. 中国农业科学, 2018, 51(23) : 4434-4448.
	LIU L L, JI H T, LIU B, MA J F, XIAO L J, TANG L, CAO W X, ZHU Y. Effects of jointing and booting low temperature treatments on photosynthetic and chlorophyll fluorescence characteristics in wheat leaf. Scientia Agricultura Sinica, 2018, 51(23):4434-4448. (in Chinese)
[9]	王树刚, 王振林, 王平, 王海伟, 李府, 黄玮, 武玉国, 尹燕枰. 不同小麦品种对低温胁迫的反应及抗冻性评价. 生态学报, 2011, 31(4):1064-1072.
	WANG S G, WANG Z L, WANG P, WANG H W, LI F, HUANG W, WU Y G, YIN Y P. Evaluation of wheat freezing resistance based on the responses of the physiological indices to low temperature stress. Acta Ecologica Sinica, 2011, 31(4):1064-1072. (in Chinese)
[10]	张笑笑, 潘映红, 任富莉, 蒲伟军, 王道平, 李玉斌, 陆平, 李桂英, 朱莉. 基于多重表型分析的准确评价高粱抗旱性方法的建立. 作物学报, 2019, 45(11) : 1735-1745. doi: 10.3724/SP.J.1006.2019.94022
	ZHANG X X, PAN Y H, REN F L, PU W J, WANG D P, LI Y B, LU P, LI G Y, ZHU L. Establishment of an accurate evaluation method for drought resistance based on multilevel phenotype analysis in sorghum. Acta Agronomica Sinica, 2019, 45(11):1735-1745. (in Chinese) doi: 10.3724/SP.J.1006.2019.94022
[11]	秦岭, 张艳亭, 陈二影, 杨延兵, 黎飞飞, 管延安. 谷子萌发期耐盐种质筛选及其保护酶系统对盐胁迫的响应. 中国农业科学, 2019, 52(22) : 4027-4038.
	QIN L, ZHANG Y T, CHEN E Y, YANG Y B, LI F F, GUAN Y A. Screening for germplasms tolerant to salt at germination stage and response of protective enzymes to salt stress in foxtail millet. Scientia Agricultura Sinica, 2019, 52(22):4027-4038. (in Chinese)
[12]	邹成林, 谭华, 黄开建, 吴永升, 郑德波, 黄爱花, 莫润秀, 韦新兴. 广西玉米品种苗期生理生化指标与其抗旱性的综合评价. 南方农业学报, 2015, 46(3) : 408-414.
	ZOU C L, TAN H, HUANG K J, WU Y S, ZHENG D B, HUANG A H, MO R X, WEI X X. Comprehensive evaluation of physiological and biochemical indexes and drought resistance of maize varieties during seedling stage in Guangxi. Journal of Southern Agriculture, 2015, 46(3):408-414. (in Chinese)
[13]	袁雨豪, 杨清华, 党科, 杨璞, 高金锋, 高小丽, 王鹏科, 陆平, 刘敏轩, 冯佰利. 糜子资源耐盐性评价与盐胁迫生理响应. 中国农业科学, 2019, 52(22) : 4066-4078.
	YUAN Y H, YANG Q H, DANG K, YANG P, GAO J F, GAO X L, WANG P K, LU P, LIU M X, FENG B L. Salt-tolerance evaluation and physiological response of salt stress of broomcorn millet (Panicum miliaceum L.). Scientia Agricultura Sinica, 2019, 52(22):4066-4078. (in Chinese)
[14]	李春喜, 郭雪妮, 张黛静, 刘雪晴, 刘安琪, 王艳杰. 轻度干旱胁迫下黄淮麦区不同基因型小麦的响应分析. 生态环境学报, 2016, 25(9):1446-1452.
	LI C X, GUO X N, ZHANG D J, LIU X Q, LIU A Q, WANG Y J. Response of different genotypes wheat to light drought stress in the Huang-Huai Plain. Ecology and Environmental Sciences, 2016, 25(9):1446-1452. (in Chinese)
[15]	卢广超, 许建新, 薛立, 张柔, 吴彩琼, 邵怡若. 低温胁迫对4种幼苗的叶绿素荧光特性的影响. 中南林业科技大学学报, 2014, 34(2):44-49.
	LU G C, XU J X, XUE L, ZHANG R, WU C Q, SHAO Y R. Effects of low temperature stress on chlorophyll fluorescence characteristics of four types of tree species seedlings. Journal of Central South University of Forestry & Technology, 2014, 34(2):44-49. (in Chinese)
[16]	徐澜, 高志强, 安伟, 原亚琦, 李彦良. 冬麦春播小麦穗分化阶段对低温胁迫的响应及耐寒性. 应用生态学报, 2015, 26(6):1679-1686.
	XU L, GAO Z Q, AN W, YUAN Y Q, LI Y L. Low-temperature response and cold tolerance at spike differentiation stage of winter wheat varieties sowed in spring. Chinese Journal of Applied Ecology, 2015, 26(6):1679-1686. (in Chinese)
[17]	姜丽娜, 张黛静, 宋飞, 刘佩, 樊婷婷, 余海波, 李春喜. 不同品种小麦叶片对拔节期低温的生理响应及抗寒性评价. 生态学报, 2014, 34(15) : 4251-4261.
	JIANG L N, ZHANG D J, SONG F, LIU P, FAN T T, YU H B, LI C X. Evaluation of cold resistance of different wheat varieties based on physiological responses of leaves to low temperature at the jointing stage. Acta Ecologica Sinica, 2014, 34(15):4251-4261. (in Chinese)
[18]	李合生. 植物生理生化实验原理和技术. 北京: 高等教育出版社, 2000: 184-185, 195-197.
	LI H S. The Experiment Principle and Technique on Plant Physiology and Biochemistry. Beijing: Higher Education Press, 2000: 184-185, 195-197. (in Chinese)
[19]	中国科学院上海植物生理研究所, 上海植物生理学会. 现代植物生理学实验指南. 北京: 科学出版社, 1999: 303.
	Shanghai Institute of Plant Physiology, Chinese Academy of Sciences, Plant Physiology Academy of Shanghai. Modern Plant Physiology Experiment of Directory. Beijing: Science Press, 1999: 303. (in Chinese)
[20]	侯福林. 植物生理学实验教程. 北京: 科学出版社, 2004: 91.
	HOU F L. Plant Physiology Experimental Course. Beijing: Science Press, 2004: 91. (in Chinese)
[21]	张志良, 瞿伟菁. 植物生理学实验指导. 第3版. 北京: 高等教育出版社, 2003.
	ZHANG Z L, QU W J. The Experimental Guide for Plant Physiology. 3rd edition. Beijing: Higher Education Press, 2003. (in Chinese)
[22]	ZOU J, HU W, LI Y X, HE J Q, ZHU H H, ZHOU Z G. Screening of drought resistance indices and evaluation of drought resistance in cotton (Gossypium hirsutum L.). Journal of Integrative Agriculture, 2020, 19(2):495-508. doi: 10.1016/S2095-3119(19)62696-1
[23]	王秀田, 卢秋巍, 苍晶, 包雨卓, 孟德义, 于晶, 徐庆华, 赵虎, 李想, 相智也, 谢波. 低温驯化对冬小麦叶绿素荧光特性及抗氧化酶活性的影响. 植物生理学报, 2016, 52(12):1959-1969.
	WANG X T, LU Q W, CANG J, BAO Y Z, MENG D Y, YU J, XU Q H, ZHAO H, LI X, XIANG Z Y, XIE B. Effects of cold acclimation on chlorophyll fluorescence characteristics and antioxidant enzyme activity in winter wheat. Plant Physiology Journal, 2016, 52(12):1959-1969. (in Chinese)
[24]	李春燕, 陈思思, 徐雯, 李东升, 顾骁, 朱新开, 郭文善, 封超年. 苗期低温胁迫对扬麦16叶片抗氧化酶和渗透调节物质的影响. 作物学报, 2011, 37(12) : 2293-2298. doi: 10.3724/SP.J.1006.2011.02293
	LI C Y, CHEN S S, XU W, LI D S, GU X, ZHU X K, GUO W S, FENG C N. Effects of low temperature at seedling stage on antioxidant enzymes and cytoplasmic osmoticum of leaves in wheat cultivar Yangmai 16. Acta Agronomica Sinica, 2011, 37(12):2293-2298. (in Chinese) doi: 10.3724/SP.J.1006.2011.02293
[25]	赵慧, 赵一博, 郭江波, 辛翠花. 植物耐受低温胁迫研究进展. 种子, 2017, 36(5):47-50.
	ZHAO H, ZHAO Y B, GUO J B, XIN C H. Research progress of plant under low temperature stress. Seed, 2017, 36(5):47-50. (in Chinese)
[26]	刘海卿, 孙万仓, 刘自刚, 武军艳, 钱武, 王志江, 郭仁迪, 马骊, 侯献飞, 刘林波. 北方寒旱区白菜型冬油菜抗寒性与抗旱性评价及其关系. 中国农业科学, 2015, 48(18) : 3743-3756.
	LIU H Q, SUN W C, LIU Z G, WU J Y, QIAN W, WANG Z J, GUO R D, MA L, HOU X F, LIU L B. Evaluation of drought resistance and cold resistance and research of their relationship at seedling stage of winter rapeseed (Brassica campestris L.) in cold and arid regions in North China. Scientia Agricultura Sinica, 2015, 48(18):3743-3756. (in Chinese)
[27]	RUBIO M C, JAMES E K, CLEMENTE M R, BUCCIARELLI B, FEDOROVA M, VANCE C P, BECANA M. Localization of superoxide dismutases and hydrogen peroxide in legume root nodules. Molecular Plant-Microbe Interactions, 2004, 17(12):1294-1305. doi: 10.1094/MPMI.2004.17.12.1294
[28]	王晓楠, 付连双, 李卓夫, 孙艳丽, 王玉波, 刘灿, 王金伟, 陈禹兴. 低温驯化及封冻后不同抗寒性小麦品种的形态建成及生理基础分析. 作物学报, 2009, 35(7):1313-1319. doi: 10.3724/SP.J.1006.2009.01313
	WANG X N, FU L S, LI Z F, SUN Y L, WANG Y B, LIU C, WANG J W, CHEN Y Y. Morphogenesis and physiological basis in wheat cultivars with different levels of cold-resistance during cold acclimation and freezing period. Acta Agronomica Sinica, 2009, 35(7):1313-1319. (in Chinese) doi: 10.3724/SP.J.1006.2009.01313
[29]	刘立军, 陈为峰, 王凯, 张呈祥. 不同灌水量下限对高羊茅绿期及抗寒性生理指标的影响. 应用生态学报, 2012, 23(1):38-44.
	LIU L J, CHEN W F, WANG K, ZHANG C X. Effects of different irrigation minima on green period and cold-resistance physiological indices of Festuca arundinacea. Chinese Journal of Applied Ecology, 2012, 23(1):38-44. (in Chinese)
[30]	谭孟祥, 景元书, 薛杨, 曾文全. 水层深度对早稻幼穗分化期遭遇低温过程时叶片生理特性的影响. 中国农业气象, 2015, 36(5):553-560.
	TAN M X, JING Y S, XUE Y, ZENG W Q. Effects of different water depth on leaf physiological characteristics of early rice during panicle primordium suffered to low temperature. Chinese Journal of Agrometeorology, 2015, 36(5):553-560. (in Chinese)
[31]	曹娜, 熊强强, 陈小荣, 贺浩华, 朱昌兰, 傅军如, 才硕, 徐涛. 幼穗分化期低温条件下灌水对早稻温度调节、产量形成及相关生理特性的影响. 核农学报, 2018, 32(4):760-770.
	CAO N, XIONG Q Q, CHEN X R, HE H H, ZHU C L, FU J R, CAI S, XU T. Effects of irrigation on temperature regulation, yield formation and related physiological characteristics in early rice under low temperature conditions during panicle primordium differentiation stage. Journal of Nuclear Agricultural Sciences, 2018, 32(4):760-770. (in Chinese)
[32]	曹娜, 陈小荣, 贺浩华, 朱昌兰, 才硕, 徐涛, 谢亨旺, 刘方平. 抽穗扬花期不同灌水处理对晚稻抵御低温、产量和生理特性的影响. 应用生态学报, 2017, 28(12):3935-3944.
	CAO N, CHEN X R, HE H H, ZHU C L, CAI S, XU T, XIE H W, LIU F P. Effects of different irrigation treatments during heading and flowering stage on cold resistance, yield and physiological characteristics of late rice. Chinese Journal of Applied Ecology, 2017, 28(12):3935-3944. (in Chinese)
[33]	单旭东, 高娅楠, 张桐瑞, 程锦, 许立新. 保温和浇水处理对结缕草冬季胁迫的缓解作用. 草地学报, 2021, 29(1):202-210.
	SHAN X D, GAO Y N, ZHANG T R, CHENG J, XU L X. Alleviating effects of heat preservation and watering treatments on winter stress of zoysia japonica. Acta Agrestia Sinica, 2021, 29(1):202-210. (in Chinese)
[34]	曹倩, 王显国, 张尚雄, 刘博文, 金美艳, 宁亚明. 抗寒锻炼前土壤水分含量对苜蓿抗寒性的影响. 中国草地学报, 2021, 43(3):1-9.
	CAO Q, WANG X G, ZHANG S X, LIU B W, JIN M Y, NING Y M. The effect of soil water content before cold hardening on cold resistance of alfalfa. Chinese Journal of Grassland, 2021, 43(3):1-9. (in Chinese)
[35]	汪灿, 周棱波, 张国兵, 张立异, 徐燕, 高旭, 姜讷, 邵明波. 薏苡种质资源苗期抗旱性鉴定及抗旱指标筛选. 中国农业科学, 2017, 50(15) : 2872-2887.
	WANG C, ZHOU L B, ZHANG G B, ZHANG L Y, XU Y, GAO X, JIANG N, SHAO M B. Drought resistance identification and drought resistance indices screening of Job's Tears (Coxi lacryma-jobi L.) germplasm resources at seedling stage. Scientia Agricultura Sinica, 2017, 50(15):2872-2887. (in Chinese)
[36]	NAROUI RAD M R, ABBASI M R, FANAEI H R. Evaluation of drought stress tolerance with use of stress tolerance indexes in sorghum collected germplasms national plant gene bank of Iran. Agronomy, 2009, 22(1):11-18.
[37]	张军, 鲁敏, 孙树贵, 杜万里, 刘洋, 武军, 陈新宏. 拔节期低温胁迫对小麦生理生化特性和产量的影响. 西北农业学报, 2014, 23(2) : 73-79.
	ZHANG J, LU M, SUN S G, DU W L, LIU Y, WU J, CHEN X H. Changes of physiological and biochemical parameters and grain yield at jointing stage of wheat under low temperature stress. Acta Agriculturae Boreali-Occidentalis Sinica, 2014, 23(2):73-79. (in Chinese)
[38]	刘建新, 欧晓彬, 刘秀丽, 王金成. 过氧化氢缓解裸燕麦幼苗低温胁迫的主成分和隶属函数分析. 植物研究, 2018, 38(5):748-756.
	LIU J X, OU X B, LIU X L, WANG J C. Principal component and subordinate function of the alleviating effects of hydrogen peroxide (H₂O₂) on low-temperature stress in naked oat (Avena nuda) seedlings. Bulletin of Botanical Research, 2018, 38(5):748-756. (in Chinese)
[39]	邵怡若, 许建新, 薛立, 张柔, 吴彩琼, 卢广超. 低温胁迫时间对4种幼苗生理生化及光合特性的影响. 生态学报, 2013, 33(14):4237-4247. doi: 10.5846/stxb201301150100
	SHAO Y R, XU J X, XUE L, ZHANG R, WU C Q, LU G C. Effects of low temperature stress on physiological-biochemical indexes and photosynthetic characteristics of seedlings of four plant species. Acta Ecologica Sinica, 2013, 33(14):4237-4247. (in Chinese) doi: 10.5846/stxb201301150100
[40]	胡廷会, 成良强, 王军, 吕建伟, 饶庆琳. 不同基因型花生耐荫性评价及其鉴定指标的筛选. 中国农业科学, 2020, 53(6) : 1140-1153.
	HU T H, CHENG L Q, WANG J, LÜ J W, RAO Q L. Evaluation of shade tolerance of peanut with different genotypes and screening of identification indexes. Scientia Agricultura Sinica, 2020, 53(6):1140-1153. (in Chinese)
[41]	陈二影, 王润丰, 秦岭, 杨延兵, 黎飞飞, 张华文, 王海莲, 刘宾, 孔清华, 管延安. 谷子芽期耐盐碱综合鉴定及评价. 作物学报, 2020, 46(10):1591-1604.
	CHEN E Y, WANG R F, QIN L, YANG Y B, LI F F, ZHANG H W, WANG H L, LIU B, KONG Q H, GUAN Y A. Comprehensive identification and evaluation of foxtail millet for saline-alkaline tolerance during germination. Acta Agronomica Sinica, 2020, 46(10):1591-1604. (in Chinese)
[42]	王涛, 王晓楠, 王明芳, 孙莹璐, 李卓夫, 付连双. 低温下冬小麦水分含量的变化与抗寒性鉴定. 作物杂志, 2015(1):61-66.
	WANG T, WANG X N, WANG M F, SUN Y L, LI Z F, FU L S. Moisture content changes and cold resistance identification by winter wheat varieties at low temperature. Crops, 2015(1):61-66. (in Chinese)
[43]	赵瑞玲, 赵勇, 徐渴, 李嘉豪, 张树华, 杨学举. 室内冷冻法鉴定小麦抗寒性的研究. 植物遗传资源学报, 2019, 20(2):284-296.
	ZHAO R L, ZHAO Y, XU K, LI J H, ZHANG S H, YANG X J. Identification of cold resistance wheat varieties by laboratory freezing method. Journal of Plant Genetic Resources, 2019, 20(2):284-296. (in Chinese)
[44]	张自阳, 王智煜, 王斌, 王志伟, 朱启迪, 霍云风, 茹振钢, 刘明久. 春季穗分化阶段低温处理对不同小麦品种幼穗结实性及生理特性的影响. 华北农学报, 2019, 34(4):130-139.
	ZHANG Z Y, WANG Z Y, WANG B, WANG Z W, ZHU Q D, HUO Y F, RU Z G, LIU M J. Effects of low temperature treatment at spring spike differentiation stage on young ear fruiting and physiological characteristics of different wheat varieties. Acta Agriculturae Boreali-Sinica, 2019, 34(4):130-139. (in Chinese)
[45]	吴青霞, 杨林, 邵慧, 冉从福, 杨子博, 余静, 李立群, 李学军. 药隔期低温胁迫对小麦生理及产量的影响. 麦类作物学报, 2013, 33(4):752-757.
	WU Q X, YANG L, SHAO H, RAN C F, YANG Z B, YU J, LI L Q, LI X J. Effects of low temperature stress at anther connective formation phase on physiological characteristics and yield of wheat. Journal of Triticeae Crops, 2013, 33(4):752-757. (in Chinese)

指标 Index	不灌水 No irrigation (D)			灌水 Irrigation (W)			曼-惠特尼 U Mann-Whitney U
指标 Index	平均值 Mean	变化范围 Variation range	变异系数 Coefficient of variance	平均值 Mean	变化范围 Variation range	变异系数 Coefficient of variance	U值 U value	P
Chla	1.76	0.8-2.53	29.58	2.05	1.26-2.68	20.24	189.5	0.042
Chlb	0.55	0.32-0.80	24.54	0.58	0.43-0.75	15.77	170.5	0.015
Car	0.36	0.15-0.49	29.3	0.4	0.23-0.49	19.52	232.5	0.252
Chla+b	2.32	1.12-3.33	27.8	2.64	1.69-3.44	18.77	184	0.032
Chla/b	3.15	2.07-4.19	16.11	3.52	2.91-4.24	11.48	259	0.550
SWC	83.67	69.98-87.49	4.09	84.51	79.66-88.98	2.53	259	0.55
LWC	77.46	57.14-85.17	10.08	80.22	69.24-84.90	5.84	187	0.037
SSC	22.65	10.53-34.78	30.76	28.72	14.74-47.63	28	166	0.012
Pro	312.49	190.30-448.28	21.85	344.47	243.53-480.63	18.5	192	0.048
Y (II)	0.34	0.1-0.46	38.56	0.39	0.20-0.51	18.03	264	0.621
ETR	25.92	2.20-36.20	44.5	30.09	10.90-40.60	20.77	260	0.564
qP	0.41	0.11-0.63	42.56	0.49	0.19-0.63	30.02	187.5	0.038
F_v/F_m	0.59	0.10-0.84	46.72	0.65	0.28-0.84	32.72	160	0.008
F_v/F_o	3.38	0.64-5.31	46.06	3.59	1.43-5.42	32.41	190	0.043
SPC	24.65	12.45-33.16	25.63	27.96	18.87-38.76	17.37	187	0.037
CAT	2759.58	1549.16-4386.36	29.25	3147.65	1949.11-4782.55	26.71	191	0.045
MDA	22.43	12.99-47.60	52.12	19.5	11.35-39.77	44.59	190	0.043
POD	624.92	431.41-70.54	13.24	669.88	573.11-801.92	9.35	209	0.103
SOD	382.21	200.91-505.89	21.65	431.19	302.13-582.87	17.84	185	0.034

指标 index	Chla	Chlb	Car	Chla+b	a/b	SWC	LWC	SSC	Pro	Y (II)	ETR	qP	Fv/Fm	Fv/Fo	BCA	CAT	MDA	POD	SOD
Chla	1.000
Chlb	0.476**	1.000
Car	0.872**	0.34**	1.000
Chla+b	0.505**	0.237**	0.455**	1.000
Chla/b	0.825**	0.094	0.872**	0.442**	1.000
SWC	0.392**	0.362**	0.352**	0.112	0.257**	1.000
LWC	0.804**	0.361**	0.733**	0.518**	0.666**	0.488**	1.000
SSC	0.527**	0.07	0.524**	0.322**	0.591**	0.047	0.501**	1.000
Pro	0.659**	0.143	0.666**	0.277**	0.739**	0.217*	0.591**	0.702**	1.000
Y (II)	0.751**	0.134	0.813**	0.267**	0.782**	0.304**	0.669**	0.521**	0.71**	1.000
ETR	0.740**	0.12	0.801**	0.264**	0.778**	0.286**	0.657**	0.522**	0.711**	0.995**	1.000
qP	0.829**	0.264**	0.875**	0.411**	0.8**	0.362**	0.759**	0.57**	0.704**	0.917**	0.908**	1.000
Fv/Fm	0.838**	0.248**	0.85**	0.419**	0.826**	0.36**	0.805**	0.557**	0.697**	0.914**	0.904**	0.922**	1.000
Fv/Fo	0.805**	0.235**	0.826**	0.371**	0.784**	0.407**	0.708**	0.423**	0.631**	0.902**	0.887**	0.912**	0.907**	1.000
BCA	0.292**	-0.161	0.338**	0.017	0.422**	0.09	0.201*	0.278**	0.36**	0.407**	0.399**	0.347**	0.431**	0.406**	1.000
CAT	0.251**	0.04	0.243**	0.282**	0.349**	-0.047	0.274**	0.509**	0.415**	0.199*	0.192*	0.294**	0.32**	0.232*	0.367**	1.000
MDA	-0.827**	-0.336**	-0.819**	-0.352**	-0.761**	-0.416**	-0.786**	-0.572**	-0.72**	-0.734**	-0.724**	-0.795**	-0.798**	-0.78**	-0.391**	-0.367**	1.000
POD	0.394**	-0.105	0.378**	0.222*	0.540**	0.044	0.37**	0.362**	0.489**	0.43**	0.417**	0.393**	0.499**	0.472**	0.519**	0.492**	-0.526**	1.000
SOD	0.373**	-0.11	0.33**	0.252**	0.500**	-0.164	0.302**	0.764**	0.612**	0.41**	0.413**	0.462**	0.44**	0.368**	0.333**	0.634**	-0.469**	0.465**	1.000

主要因素Principal factor	第一主成分CI1	第二主成分CI2	第三主成分CI3	第四主成分CI4	第五主成分CI5	第六主成分CI6
特征值 Eigen value	10.635	2.267	1.362	0.964	0.805	0.585
方差百分比 Contributive ratio (%)	55.972	11.93	7.168	5.075	4.236	3.079
累积 Cumulative contributive ratio (%)	55.972	67.902	75.069	80.144	84.38	87.459
隶属函数权重 U (X) weight	0.64	0.14	0.08	0.06	0.05	0.04
