有效积温与不同供氮水平夏玉米干物质和氮素积累定量化研究

doi:10.3864/j.issn.0578-1752.2022.15.009

摘要/Abstract

摘要：

【目的】探究基于有效积温的不同供氮水平夏玉米干物质和氮素积累动态预测模型及其特征参数,以期为利用有效积温预测夏玉米干物质和氮素积累提供理论依据。【方法】在河北廊坊进行两年大田试验（2019—2020年）,以郑单958为试验材料,利用归一化法,通过模型筛选拟合不同供氮水平夏玉米干物质和氮素积累基于播种后有效积温的归一化Gompertz模型,并利用增长速率曲线及其特征参数定量分析夏玉米干物质和氮素积累特征。【结果】（1）在本试验条件下,当磷钾肥适量时,随施氮量的增加夏玉米最大干物质和氮素积累量持续增加。（2）以有效积温为自变量建立的夏玉米干物质和氮素积累量的归一化Gompertz模型具有较好的生物学意义,方程的决定系数分别为0.9962—0.9988和0.9887—0.9922。利用第2年数据进行模型验证,模拟值和实测值的相关系数分别0.9933—0.9959和0.9830—0.9923,标准化的均方根误差分别为6.64%—16.86%和7.31%—12.68%,预测效果达到良好水平。（3）不同供氮水平夏玉米干物质和氮素积累的增长速率均表现为“单峰曲线”,其变化与供氮水平关系密切,在处理间表现为：适量施肥条件下,增长速率曲线呈现上升快下降也快的特点,减肥处理增长速率曲线呈现上升慢下降也慢的特点。（4）夏玉米播种后干物质和氮素积累快增期有效积温范围分别为709.35—1 722.54 ℃·d和482.50—1 507.61 ℃·d,氮素积累达最大速率所需有效积温为995.05 ℃·d,小于干物质积累达最大速率对积温的需求（1 215.94 ℃·d）。供氮水平明显影响夏玉米干物质和氮素积累进入快增期、缓增期、达到最大增长速率所需积温,同时还影响最大增长速率和快增期平均增长速率;与不施氮肥处理相比,适量氮肥处理夏玉米进入各关键期所需有效积温明显减少,关键期增长速率明显增加。【结论】归一化Gompertz模型不仅能够很好地模拟和预测不同供氮水平夏玉米干物质和氮素积累随有效积温的动态变化,还明确了有效积温与干物质和氮素积累的定量化关系。基于有效积温的Gompertz模型可以用来预测作物长势和最佳施肥时期,具有较强的应用价值。

关键词: 有效积温, 供氮水平, 夏玉米, 干物质积累, 氮素积累, 定量化

Abstract:

【Objective】This paper explored the dynamic prediction model and characteristic parameters of dry matter and nitrogen accumulation in summer maize with different nitrogen supply levels based on effective accumulated temperature, in order to provide a theoretical basis for using effective accumulated temperature to predict summer maize dry matter and nitrogen accumulation.【Method】This study was based on a two-year field experiment in Langfang, Hebei Province (2019-2020), using Zhengdan 958 as the test material, and using the normalization method to fit the dry matter and nitrogen accumulation of summer maize with different nitrogen supply levels through model screening. Based on the normalized Gompertz model of effective accumulated temperature after sowing, and using the growth rate curve and its characteristic parameters, the dry matter and nitrogen accumulation characteristics of summer maize were quantitatively analyzed.【Result】(1) Under the experimental conditions, when the amount of phosphorus and potassium fertilizer was appropriate, the maximum dry matter and nitrogen accumulation of summer maize continued to increase with the increase of nitrogen application rate. (2) The normalized Gompertz model of summer maize dry matter and nitrogen accumulation established with effective accumulated temperature as the independent variable had the good biological significance. The coefficients of determination of the equation were 0.9962-0.9988 and 0.9887-0.9922, respectively. Using the second-year data for model verification, the correlation coefficients of the simulated and measured values were 0.9933-0.9959 and 0.9830-0.9923, and the standardized root mean square errors were 6.64%-16.86% and 7.31%-12.68%, respectively. The prediction effect was good. (3) The growth rate of dry matter and nitrogen accumulation of summer maize at different nitrogen supply levels all showed a “single peak curve”, and its change was closely related to the nitrogen supply level. The performance between treatments was: under the condition of moderate fertilization, the growth rate curve had the characteristics of fast rising and falling, and the growth rate curve of weight loss treatment had the characteristics of slow rising and falling. (4) The effective accumulated temperature ranges of dry matter and nitrogen accumulation during the rapid increase period of summer maize after sowing were 709.35-1 722.54 and 482.50-1 507.61 ℃·d, respectively, and the effective accumulated temperature required for the maximum rate showed that nitrogen accumulation (995.05 ℃·d) was less than dry matter accumulation (1 215.94 ℃·d). Nitrogen supply level obviously affected the accumulation of dry matter and nitrogen in summer maize to enter the accumulation temperature required for the rapid increase period, the accumulated temperature required for the slow increase period, the accumulated temperature required for the maximum increase rate, the maximum increase rate, and the average increase rate during the rapid increase period. Compared with nitrogen fertilizer treatment, the effective accumulated temperature required for summer maize to enter each critical period was significantly reduced, and the growth rate during the critical period increased significantly.【Conclusion】The normalized Gompertz model could not only simulate and predict the dynamic changes of summer maize dry matter and nitrogen accumulation with effective accumulated temperature with different nitrogen supply levels, but also clarify the quantitative relationship between effective accumulated temperature and dry matter and nitrogen accumulation. The Gompertz model based on effective accumulated temperature could be used to predict crop growth and optimal fertilization period, and had strong application value..

Key words: effective accumulated temperature, nitrogen supply level, summer maize, dry matter accumulation, nitrogen accumulation, quantification

陈杨,徐孟泽,王玉红,白由路,卢艳丽,王磊. 有效积温与不同供氮水平夏玉米干物质和氮素积累定量化研究[J]. 中国农业科学, 2022, 55(15): 2973-2987.

CHEN Yang,XU MengZe,WANG YuHong,BAI YouLu,LU YanLi,WANG Lei. Quantitative Study on Effective Accumulated Temperature and Dry Matter and Nitrogen Accumulation of Summer Maize Under Different Nitrogen Supply Levels[J]. Scientia Agricultura Sinica, 2022, 55(15): 2973-2987.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2022.15.009

https://www.chinaagrisci.com/CN/Y2022/V55/I15/2973

图/表 11

表1

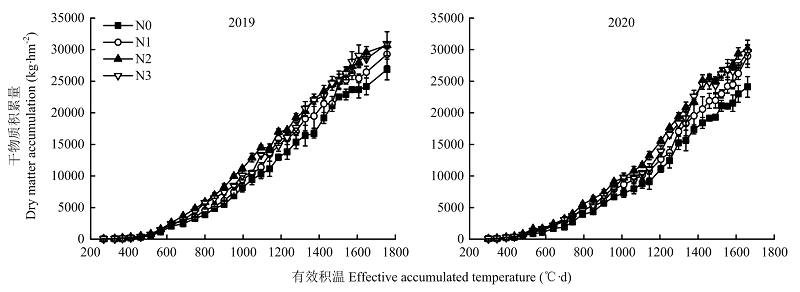

图1

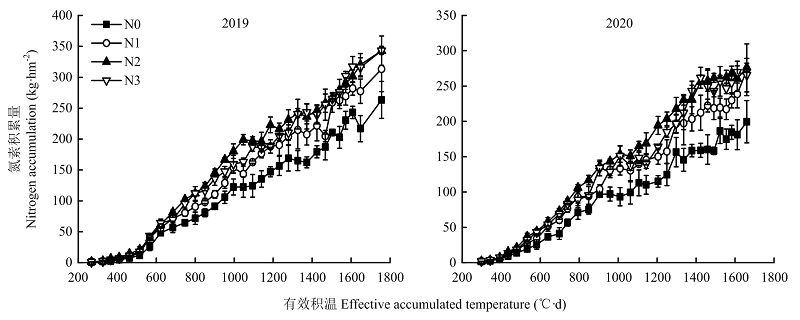

图2

表2

表3

表4

表5

表6

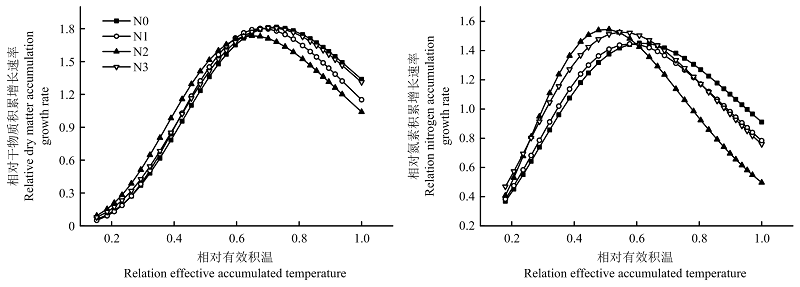

图3

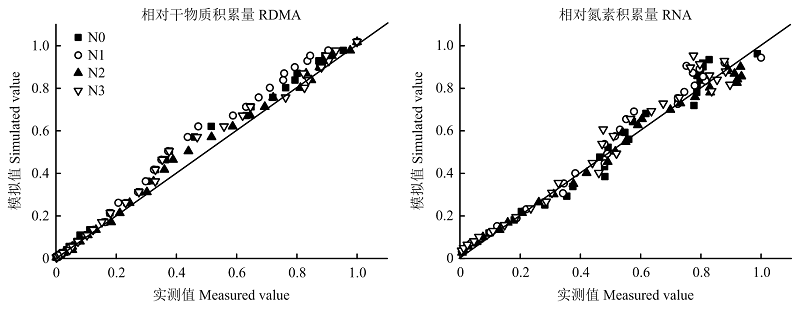

图4

表7

参考文献 51

[1]	孔丽红, 赵玉路, 周福平. 简述小麦干物质积累运转与高产的关系. 山西农业科学, 2007, 35(8): 6-8.
	KONG L H, ZHAO Y L, ZHOU F P. The relations of the high production and the wheat dry matter accumulation and the revolution. Journal of Shanxi Agricultural Sciences, 2007, 35(8): 6-8. (in Chinese)
[2]	LECOEUR J, GUILIONI L. Rate of leaf production in response to soil water deficits in field pea. Field Crops Research, 1998, 57(3): 319-328. doi: 10.1016/S0378-4290(98)00076-8
[3]	严美春, 曹卫星, 李存东, 王兆龙. 小麦发育过程及生育期机理模型的检验和评价. 中国农业科学, 2000, 33(2): 43-50.
	YAN M C, CAO W X, LI C D, WANG Z L. Validation and evaluation of a mechanistic model of phasic and phenological development of wheat. Scientia Agricultura Sinica, 2000, 33(2): 43-50. (in Chinese)
[4]	张琪, 唐婕, 冯一淳, 张艺璇, 蔡成良. 基于积温产量模型确定山东夏玉米拔节前后的极端高温阈值. 中国农业气象, 2017, 38(12): 795-800.
	ZHANG Q, TANG J, FENG Y C, ZHANG Y X, CAI C L. Determination of extreme high temperature thresholds before and after summer corn jointing stage in Shandong based on accumulated temperature-yield model. Chinese Journal of Agrometeorology, 2017, 38(12): 795-800. (in Chinese)
[5]	吕新. 生态因素对玉米生长发育影响及气候生态模型与评价系统建立的研究[D]. 泰安: 山东农业大学, 2002.
	LÜ X. Studies on effects of ecological factors on growth of maize and establishment of climate ecology model and appraisement system[D]. Taian: Shandong Agricultural University, 2002. (in Chinese)
[6]	李立昆. 水分、氮素对设施厚皮甜瓜果实品质的影响效应及模拟研究[D]. 杨凌: 西北农林科技大学, 2010.
	LI L K. Effect and simulation of water and nitrogen on fruit quality of muskmelon in greenhouse[D]. Yangling: Northwest A & F University, 2010. (in Chinese)
[7]	齐维强. 积温对日光温室番茄生长发育效应的研究以及模型初探[D]. 杨凌: 西北农林科技大学, 2004.
	QI W Q. Effects of accumulation temperature on growth and development of tomato in solar greenhouse and primary research of growth modeling[D]. Yangling: Northwest A & F University, 2004. (in Chinese)
[8]	赵新华, 束红梅, 王友华, 陈兵林, 周治国. 施氮量对棉铃干物质和氮累积及分配的影响. 植物营养与肥料学报, 2011, 17(4): 888-897.
	ZHAO X H, SHU H M, WANG Y H, CHEN B L, ZHOU Z G. Effects of nitrogen fertilization on accumulation and distribution of dry weight and nitrogen of cotton bolls. Plant Nutrition and Fertilizer Science, 2011, 17(4): 888-897. (in Chinese)
[9]	孙仕军, 姜浩, 陈志君, 朱振闯, 张旭东, 迟道才. 不同颜色地膜覆盖下春玉米主要生长性状对耕层积温的响应. 草业学报, 2019, 28(2): 61-72.
	SUN S J, JIANG H, CHEN Z J, ZHU Z C, ZHANG X D, CHI D C. Effects of surface-layer accumulated temperature on major growth traits of spring maize when un-mulched or under clear or black plastic film mulches. Acta Prataculturae Sinica, 2019, 28(2): 61-72. (in Chinese)
[10]	蔡甲冰, 常宏芳, 陈鹤, 张宝忠, 魏征, 彭致功. 基于不同有效积温的玉米干物质累积量模拟. 农业机械学报, 2020, 51(5): 263-271.
	CAI J B, CHANG H F, CHEN H, ZHANG B Z, WEI Z, PENG Z G. Simulation of maize dry matter accumulation in normalized logistic model with different effective accumulated temperatures in field. Transactions of the Chinese Society for Agricultural Machinery, 2020, 51(5): 263-271. (in Chinese)
[11]	苏李君, 刘云鹤, 王全九. 基于有效积温的中国水稻生长模型的构建. 农业工程学报, 2020, 36(1): 162-174.
	SU L J, LIU Y H, WANG Q J. Rice growth model in China based on growing degree days. Transactions of the Chinese Society of Agricultural Engineering, 2020, 36(1): 162-174. (in Chinese)
[12]	王全九, 蔺树栋, 苏李君. 马铃薯主要生长指标对有效积温响应的定量分析. 农业机械学报, 2020, 51(3): 306-316.
	WANG Q J, LIN S D, SU L J. Quantitative analysis of response of potato main growth index to growing degree days. Transactions of the Chinese Society for Agricultural Machinery, 2020, 51(3): 306-316. (in Chinese)
[13]	乔嘉, 朱金城, 赵姣, 郑志芳, 王璞, 廖树华. 基于Logistic模型的玉米干物质积累过程对产量影响研究. 中国农业大学学报, 2011, 16(5): 32-38.
	QIAO J, ZHU J C, ZHAO J, ZHENG Z F, WANG P, LIAO S H. Study on the effect of dry matter accumulation process on maize yield based on Logistic model. Journal of China Agricultural University, 2011, 16(5): 32-38. (in Chinese)
[14]	赵姣, 郑志芳, 方艳茹, 周顺利, 廖树华, 王璞. 基于动态模拟模型分析冬小麦干物质积累特征对产量的影响. 作物学报, 2013, 39(2): 300-308. doi: 10.3724/SP.J.1006.2013.00300
	ZHAO J, ZHENG Z F, FANG Y R, ZHOU S L, LIAO S H, WANG P. Effect of dry matter accumulation characteristics on yield of winter wheat analyzed by dynamic simulation model. Acta Agronomica Sinica, 2013, 39(2): 300-308. (in Chinese) doi: 10.3724/SP.J.1006.2013.00300
[15]	何萍, 金继运, 林葆, 王秀芳, 张宽. 不同氮磷钾用量下春玉米生物产量及其组分动态与养分吸收模式研究. 植物营养与肥料学报, 1998, 4(2): 123-130.
	HE P, JIN J Y, LIN B, WANG X F, ZHANG K. Dynamics of biomass and its components and models of nutrients absorption by spring maize under different nitrogen, phosphorous and potassium application rates. Plant Natrition and Fertilizen Science, 1998, 4(2): 123-130. (in Chinese)
[16]	肖强, 闫连波, 朱欣宇, 张怀文, 曹兵, 倪小会, 李丽霞, 杨俊刚, 黄德明, 衣文平. 夏玉米植株干物质、氮磷钾养分积累速度和时间的动态分析. 植物营养与肥料学报, 2014, 20(3): 606-612.
	XIAO Q, YAN L B, ZHU X Y, ZHANG H W, CAO B, NI X H, LI L X, YANG J G, HUANG D M, YI W P. Dynamic analysis of dry matter and NPK accumulation with time in summer maize. Journal of Plant Nutrition and Fertilizer, 2014, 20(3): 606-612. (in Chinese)
[17]	王雪, 苗泽兰, 孙志梅, 马文奇, 薛澄. 冀中平原主栽山药品种的生长发育和养分累积特征. 植物营养与肥料学报, 2019, 25(3): 510-518.
	WANG X, MIAO Z L, SUN Z M, MA W Q, XUE C. Growth and nutrient efficiency of the main yam varieties in central Hebei plain. Journal of Plant Nutrition and Fertilizers, 2019, 25(3): 510-518. (in Chinese)
[18]	聂军军, 秦都林, 刘艳慧, 王双磊, 张美玲, 李金埔, 赵娜, 毛丽丽, 宋宪亮, 孙学振. 不同基因型抗虫棉氮磷钾养分吸收与分配特征. 植物营养与肥料学报, 2019, 25(10): 1690-1701.
	NIE J J, QIN D L, LIU Y H, WANG S L, ZHANG M L, LI J P, ZHAO N, MAO L L, SONG X L, SUN X Z. Characteristics on uptake and distribution of nitrogen, phosphorus and potassium in different genotypes of Bt cotton. Journal of Plant Nutrition and Fertilizers, 2019, 25(10): 1690-1701. (in Chinese)
[19]	孟天瑶, 葛佳琳, 张徐彬, 韦还和, 陆钰, 李心月, 陶源, 丁恩浩, 周桂生, 戴其根. 甬优中熟籼粳杂交稻栽后植株氮素积累模型与特征. 作物学报, 2020, 46(5): 798-806. doi: 10.3724/SP.J.1006.2020.92046
	MENG T Y, GE J L, ZHANG X B, WEI H H, LU Y, LI X Y, TAO Y, DING E H, ZHOU G S, DAI Q G. A dynamic model and its characteristics for nitrogen accumulation after transplanting in medium-maturity types of Yongyou Japonica/indica hybrids. Acta Agronomica Sinica, 2020, 46(5): 798-806. (in Chinese) doi: 10.3724/SP.J.1006.2020.92046
[20]	王贺, 白由路, 杨俐苹, 卢艳丽, 王磊. 利用有效积温建立夏玉米追肥时期决策模型. 中国生态农业学报, 2012, 20(4): 408-413. doi: 10.3724/SP.J.1011.2012.00408
	WANG H, BAI Y L, YANG L P, LU Y L, WANG L. A summer maize dressing decision-making model based on effective accumulated temperature. Chinese Journal of Eco-Agriculture, 2012, 20(4): 408-413. (in Chinese) doi: 10.3724/SP.J.1011.2012.00408
[21]	白由路. 高效施肥技术研究的现状与展望. 中国农业科学, 2018, 51(11): 2116-2125.
	BAI Y L. The situation and prospect of research on efficient fertilization. Scientia Agricultura Sinica, 2018, 51(11): 2116-2125. (in Chinese)
[22]	张兵兵, 吴航, 杨璐, 吕晓, 张放, 张慧, 高全, 杨扬. 基于归一化法模拟分析东北地区春玉米干物质积累对播期和品种的动态响应. 中国农业气象, 2019, 40(6): 357-367.
	ZHANG B B, WU H, YANG L, LÜ X, ZHANG F, ZHANG H, GAO Q A, YANG Y. Simulation of the dynamic response of dry matter accumulation of spring maize in northeast China to sowing dates and varieties based on normalization method. Chinese Journal of Agrometeorology, 2019, 40(6): 357-367. (in Chinese)
[23]	付雪丽, 赵明, 周宝元, 崔国美, 丁在松. 小麦、玉米粒重动态共性特征及其最佳模型的筛选与应用. 作物学报, 2009, 35(2): 309-316.
	FU X L, ZHAO M, ZHOU B Y, CUI G M, DING Z S. Optimal model for dynamic characteristics of grain weight commonly used in wheat and maize. Acta Agronomica Sinica, 2009, 35(2): 309-316. (in Chinese)
[24]	沈杰, 蔡艳, 何玉亭, 李启权, 杜宣延, 王昌全, 罗定棋. 基于归一化法的烤烟干物质积累建模与特征分析. 作物学报, 2017, 43(3): 442-453. doi: 10.3724/SP.J.1006.2017.00442
	SHEN J, CAI Y, HE Y T, LI Q Q, DU X Y, WANG C Q, LUO D Q. Dynamic simulation of dry matter accumulation in flue-cured tobacco and analysis of its characteristics based on normalized method. Acta Agronomica Sinica, 2017, 43(3): 442-453. (in Chinese) doi: 10.3724/SP.J.1006.2017.00442
[25]	BANNAYAN M, HOOGENBOOM G. Using pattern recognition for estimating cultivar coefficients of a crop simulation model. Field Crops Research, 2009, 111(3): 290-302. doi: 10.1016/j.fcr.2009.01.007
[26]	王军保, 刘新荣, 李鹏, 郭建强. MMF模型在采空区地表沉降预测中的应用. 煤炭学报, 2012, 37(3): 411-415.
	WANG J B, LIU X R, LI P, GUO J Q. Study on prediction of surface subsidence in mined-out region with the MMF model. Journal of China Coal Society, 2012, 37(3): 411-415. (in Chinese)
[27]	宋海星, 李生秀. 玉米生长量、养分吸收量及氮肥利用率的动态变化. 中国农业科学, 2003, 36(1): 71-76.
	SONG H X, LI S X. Dynamics of nutrient accumulation in maize plants under different water and N supply conditions. Scientia Agricultura Sinica, 2003, 36(1): 71-76. (in Chinese)
[28]	王雪蓉, 张润芝, 李淑敏, 许宁, 牟尧, 张春怡. 不同供氮水平下玉米/大豆间作体系干物质积累和氮素吸收动态模拟. 中国生态农业学报(中英文), 2019, 27(9): 1354-1363.
	WANG X R, ZHANG R Z, LI S M, XU N, MU Y, ZHANG C Y. Simulation of dry matter accumulation and nitrogen absorption in a maize/soybean intercropping system supplied with different nitrogen levels. Chinese Journal of Eco-Agriculture, 2019, 27(9): 1354-1363. (in Chinese)
[29]	何雪银, 文仁来, 吴翠荣. 隆玉2号玉米干物质积累与养分吸收特性研究. 西南农业学报, 2006, 19(5): 853-856.
	HE X Y, WEN R L, WU C R. Study on laws of dry matter accumulation and nutrient uptake of maize Longyu No.2. Southwest China Journal of Agricultural Sciences, 2006, 19(5): 853-856. (in Chinese)
[30]	ZHAO R F, CHEN X P, ZHANG F S, ZHANG H L, SCHRODER J, RÖMHELD V. Fertilization and nitrogen balance in a wheat-maize rotation system in North China. Agronomy Journal, 2006, 98(4): 938-945. doi: 10.2134/agronj2005.0157
[31]	赵营, 同延安, 赵护兵. 不同供氮水平对夏玉米养分累积、转运及产量的影响. 植物营养与肥料学报, 2006, 12(5): 622-627.
	ZHAO Y, TONG Y N, ZHAO H B. Effects of different N rates on nutrients accumulation, transformation and yield of summer maize. Plant Nutrition and Fertilizer Science, 2006, 12(5): 622-627. (in Chinese)
[32]	李青军, 张炎, 胡伟, 孟凤轩, 冯广平, 胡国智, 刘新兰. 氮素运筹对玉米干物质积累、氮素吸收分配及产量的影响. 植物营养与肥料学报, 2011, 17(3): 755-760.
	LI Q J, ZHANG Y, HU W, MENG F X, FENG G P, HU G Z, LIU X L. Effects of nitrogen management on maize dry matter accumulation, nitrogen uptake and distribution and maize yield. Plant Nutrition and Fertilizer Science, 2011, 17(3): 755-760. (in Chinese)
[33]	李格. 华北地区夏玉米滴灌施肥的肥料效应研究[D]. 北京: 中国农业科学院, 2019.
	LI G. Effects of drip fertigation on summer maize in North China[D]. Beijing: Chinese Academy of Agricultural Sciences, 2019. (in Chinese)
[34]	李佳, 曹国军, 耿玉辉, 叶青, 王聪宇, 张鹰. 不同供氮水平对春玉米干物质积累及氮素吸收利用的影响. 中国农学通报, 2014, 30(27): 208-212.
	LI J, CAO G J, GENG Y H, YE Q, WANG C Y, ZHANG Y. Effects of different nitrogen application rates on dry matter accumulation, nitrogen absorption and utilization of spring maize. Chinese Agricultural Science Bulletin, 2014, 30(27): 208-212. (in Chinese)
[35]	陆景陵. 植物营养学(上册). 北京: 北京农业大学出版社, 1994: 33-35.
	LU J L. Plant Nutrition (Volume One). Beijing: Beijing Agricultural University Press, 1994: 33-35. (in Chinese)
[36]	王平. 温室番茄干物质积累与养分吸收模拟模型的研究[D]. 哈尔滨: 东北农业大学, 2004.
	WANG P. Study on the simulation model of dry matter accumulation and nutrient absorption of tomato in greenhouse[D]. Harbin: Northeast Agricultural University, 2004. (in Chinese)
[37]	YU Q A, LIU J D, ZHANG Y Q, LI J. Simulation of rice biomass accumulation by an extended logistic model including influence of meteorological factors. International Journal of Biometeorology, 2002, 46(4): 185-191. doi: 10.1007/s00484-002-0141-3
[38]	张迪, 王冀川, 陈慧, 黄振江, 孙婷. 密度对夏玉米干物质积累的影响及其归一化模拟模型的建立. 玉米科学, 2018, 26(5): 58-64, 70.
	ZHANG D, WANG J C, CHEN H, HUANG Z J, SUN T. Effect of density on dry matter accumulation of summer maize and establishment of normalized simulation model. Journal of Maize Sciences, 2018, 26(5): 58-64, 70. (in Chinese)
[39]	刘娟, 熊淑萍, 杨阳, 翟清云, 王严峰, 王静, 马新明. 基于归一化法的小麦干物质积累动态预测模型. 生态学报, 2012, 32(17): 5512-5520. doi: 10.5846/stxb201112041853
	LIU J, XIONG S P, YANG Y, ZHAI Q Y, WANG Y F, WANG J, MA X M. A model to predict dry matter accumulation dynamics in wheat based on the normalized method. Acta Ecologica Sinica, 2012, 32(17): 5512-5520. (in Chinese) doi: 10.5846/stxb201112041853
[40]	侯玉虹, 陈传永, 郭志强, 侯立白, 董志强, 赵明. 作物高产群体干物质积累动态模型的构建及生长特性分析. 玉米科学, 2008, 16(6): 90-95.
	HOU Y H, CHEN C Y, GUO Z Q, HOU L B, DONG Z Q, ZHAO M. Establishment of dry matter accumulation dymamic simulation model and analysis of growth characteristic for high-yielding population of spring maize. Journal of Maize Sciences, 2008, 16(6): 90-95. (in Chinese)
[41]	李向岭, 赵明, 李从锋, 葛均筑, 侯海鹏, 李琦, 侯立白. 播期和密度对玉米干物质积累动态的影响及其模型的建立. 作物学报, 2010, 36(12): 2143-2153. doi: 10.3724/SP.J.1006.2010.02143
	LI X L, ZHAO M, LI C F, GE J Z, HOU H P, LI Q, HOU L B. Effect of sowing-date and planting density on dry matter accumulation dynamic and establishment of its simulated model in maize. Acta Agronomica Sinica, 2010, 36(12): 2143-2153. (in Chinese) doi: 10.3724/SP.J.1006.2010.02143
[42]	李艳大, 汤亮, 陈青春, 张玉屏, 曹卫星, 朱艳. 水稻地上部干物质积累动态的定量模拟. 应用生态学报, 2010, 21(6): 1504-1510.
	LI Y D, TANG L, CHEN Q C, ZHANG Y P, CAO W X, ZHU Y. Dry matter accumulation in rice aboveground part: Quantitative simulation. Chinese Journal of Applied Ecology, 2010, 21(6): 1504-1510. (in Chinese)
[43]	沈杰, 蔡艳, 何玉亭, 李启权, 杜宣延, 王昌全, 罗定棋. 基于归一化法的烤烟干物质积累建模与特征分析. 作物学报, 2017, 43(3): 442-453. doi: 10.3724/SP.J.1006.2017.00442
	SHEN J, CAI Y, HE Y T, LI Q Q, DU X Y, WANG C Q, LUO D Q. Dynamic simulation of dry matter accumulation in flue-cured tobacco and analysis of its characteristics based on normalized method. Acta Agronomica Sinica, 2017, 43(3): 442-453. (in Chinese) doi: 10.3724/SP.J.1006.2017.00442
[44]	高伟, 金继运, 何萍, 李书田. 我国北方不同地区玉米养分吸收及累积动态研究. 植物营养与肥料学报, 2008, 14(4): 623-629.
	GAO W, JIN J Y, HE P, LI S T. Dynamics of maize nutrient uptake and accumulation in different regions of Northern China. Plant Nutrition and Fertilizer Science, 2008, 14(4): 623-629. (in Chinese)
[45]	李国强, 汤亮, 张文宇, 曹卫星, 朱艳. 不同株型小麦干物质积累与分配对氮肥响应的动态分析. 作物学报, 2009, 35(12): 2258-2265. doi: 10.3724/SP.J.1006.2009.02258
	LI G Q, TANG L, ZHANG W Y, CAO W X, ZHU Y. Dynamic analysis on response of dry matter accumulation and partitioning to nitrogen fertilizer in wheat cultivars with different plant types. Acta Agronomica Sinica, 2009, 35(12): 2258-2265. (in Chinese) doi: 10.3724/SP.J.1006.2009.02258
[46]	纪洪亭, 冯跃华, 何腾兵, 潘剑, 范乐乐, 李云, 武彪, 肖铭, 梁显林. 超级杂交稻群体干物质和养分积累动态模型与特征分析. 中国农业科学, 2012, 45(18): 3709-3720.
	JI H T, FENG Y H, HE T B, PAN J, FAN L L, LI Y, WU B, XIAO M, LIANG X L. A dynamic model of dry matter and nutrient accumulation in super hybrid rice and analysis of its characteristics. Scientia Agricultura Sinica, 2012, 45(18): 3709-3720. (in Chinese)
[47]	田景山, 张煦怡, 虎晓兵, 随龙龙, 张鹏鹏, 王文敏, 勾玲, 张旺锋. 新疆产棉区高强棉纤维形成的纤维素累积特征及适宜温度. 中国农业科学, 2018, 51(22): 4252-4263.
	TIAN J S, ZHANG X Y, HU X B, SUI L L, ZHANG P P, WANG W M, GOU L, ZHANG W F. Cellulose deposition characteristics of high strength cotton fiber and optimal temperature requirements in Xinjiang region. Scientia Agricultura Sinica, 2018, 51(22): 4252-4263. (in Chinese)
[48]	SCHNYDER H, BAUM U. Growth of the grain of wheat (Triticum aestivum L.). The relationship between water content and dry matter accumulation. European Journal of Agronomy, 1992, 1(2): 51-57. doi: 10.1016/S1161-0301(14)80001-4
[49]	刘奎. 施肥对夏玉米养分代谢及光合特性的效应研究[D]. 郑州: 河南农业大学, 2001.
	LIU K. Application on nutrient metabolism and characteristics of photosynthesis in summer maize[D]. Zhengzhou: Henan Agricultural University, 2001. (in Chinese)
[50]	BUNTING E S. Accumulated temperature and maize development in England. The Journal of Agricultural Science, 1976, 87(3): 577-583. doi: 10.1017/S0021859600033207
[51]	姜会飞, 郭勇, 张玉莹, 姜少杰, 闫梦玲, 王晓晨, 王潇潇, 张子源, 温德永, 廖树华. 不同下限基点温度对积温模型模拟效果的影响. 中国农业大学学报, 2018, 23(5): 131-141.
	JIANG H F, GUO Y, ZHANG Y Y, JIANG S J, YAN M L, WANG X C, WANG X X, ZHANG Z Y, WEN D Y, LIAO S H. Impact of base temperature on the growing degree-day and simulation effect of GDD model. Journal of China Agricultural University, 2018, 23(5): 131-141. (in Chinese)

编号Number	方程Equation	公式Formula	参数个数Number of parameters
1	MMF方程 MMF equation	y=(ab+cx^d)/(b+x^d)	4
2	Gompertz方程 Gompertz equation	y=ae^-exp(^b-cx⁾	3
3	Richards方程 Richards equation	y=a/(1+e^b-cx)^1/^d	4
4	余弦函数 Cosine function	y=a+b×cos(cx+d)	4
5	有理方程 Rational equation	y=(a+bx)/(1+cx+dx²)	4
6	三次方程 Cubic equation	y=a+bx+cx²+dx³	4

处理 Treatment	最大干物质积累量 Maximum dry matter accumulation (kg·hm^-2)		最大氮素积累量 Maximum nitrogen accumulation (kg·hm^-2)
处理 Treatment	2019	2020	2019	2020
N0	26862.31±1634.69b	24111.16±1880.32b	264.87±29.92b	201.84±17.84b
N1	29271.52±1806.12ab	28996.05±340.83a	314.32±26.66ab	273.14±23.92a
N2	30714.31±580.10a	30089.04±1831.44a	342.93±5.98a	280.08±23.28a
N3	30936.35±1896.94a	29624.14±313.14a	343.09±23.74a	292.98±30.90a
平均 Average	29446.12	28205.1	316.3	262.01

编号 Number	模型 Simulation model	参数 Parameter				标准差 SD	决定系数 R²
编号 Number	模型 Simulation model	a	b	c	d	标准差 SD	决定系数 R²
1	y=(ab+cx^d)/(b+x^d)	-0.0055	0.4904	1.5119	3.5484	0.0095	0.9996
2	y=ae^-exp(^b-cx⁾	1.4484	2.3009	3.3307		0.0098	0.9996
3	y=a/(1+e^b-cx)^1/^d	1.3829	0.1135	3.6825	0.0884	0.0101	0.9996
4	y=a+b×cos(cx+d)	0.6370	0.6553	2.6040	2.7469	0.0148	0.9992
5	y=(a+bx)/(1+cx+dx²)	-0.0524	0.2708	-1.7309	0.9534	0.0163	0.9990
6	y=a+bx+cx²+dx³	0.0334	-0.8299	3.1237	-1.2881	0.0181	0.9987

编号 Number	模型 Simulation model	参数 Parameter				标准差 SD	决定系数 R²
编号 Number	模型 Simulation model	a	b	c	d	标准差 SD	决定系数 R²
1	y=(ab+cx^d)/(b+x^d)	-0.0453	0.7468	1.6946	2.1874	0.0300	0.9959
2	y=a+bx+cx²+dx³	-0.0350	-0.1294	2.4306	-1.3177	0.0320	0.9953
3	y=a+b×cos(cx+d)	0.4984	0.5434	2.5225	3.1609	0.0329	0.9951
4	y=ae^-exp(^b-cx⁾	1.1717	1.8794	3.3462		0.0341	0.9945
5	y=a/(1+e^b-cx)^1/^d	1.1435	-0.6146	3.5800	0.0715	0.0357	0.9942
6	y=(a+bx)/(1+cx+dx²)	-0.0949	0.6130	-1.0822	0.6260	0.0377	0.9935

指标 Indicator	处理 Treatment	参数Parameter			标准差 SD	相关系数 R²
指标 Indicator	处理 Treatment	a	b	c	标准差 SD	相关系数 R²
相对干物质积累量 Relative dry matter accumulation	N0	1.53	2.32	3.22	0.0268	0.9969**
	N1	1.39	2.40	3.52	0.0298	0.9962**
	N2	1.36	2.26	3.48	0.0174	0.9988**
	N3	1.54	2.26	3.19	0.0253	0.9975**
相对氮素积累量 Relative nitrogen accumulation	N0	1.32	1.84	2.99	0.0481	0.9887**
	N1	1.22	1.86	3.22	0.0460	0.9893**
	N2	1.05	2.01	4.01	0.0412	0.9922**
	N3	1.26	1.82	3.29	0.0451	0.9907**
