中国农业科学 ›› 2020, Vol. 53 ›› Issue (12): 2331-2339.doi: 10.3864/j.issn.0578-1752.2020.12.002

• 作物遗传育种·种质资源·分子遗传学 • 上一篇    下一篇

绿小米和白小米谷子籽粒叶绿素合成途径结构基因的表达分析

张彬,李萌,刘晶,王俊杰,侯思宇,李红英,韩渊怀()

  1. 山西农业大学农学院,山西太谷 030800
  • 收稿日期:2019-11-03 出版日期:2020-06-16 发布日期:2020-06-25
  • 通讯作者: 韩渊怀
  • 作者简介:张彬,E-mail:abingood@126.com。
  • 基金资助:
    国家自然科学基金(31971906);国家自然科学基金(31601369);山西省主要农作物种质创新与分子育种重点科技创新平台(201605D151002);山西省优秀青年项目(201901D211382);山西省高等学校科学研究优秀成果培育项目(2019KJ019)

Expression Analysis of the Chlorophyll Biosynthesis Structural Genes in Green and White Foxtail Millet [Setaria italica (L.) Beauv]

ZHANG Bin,LI Meng,LIU Jing,WANG JunJie,HOU SiYu,LI HongYing,HAN YuanHuai()

  1. College of Agriculture, Shanxi Agricultural University, Taigu 030800, Shanxi
  • Received:2019-11-03 Online:2020-06-16 Published:2020-06-25
  • Contact: YuanHuai HAN

摘要:

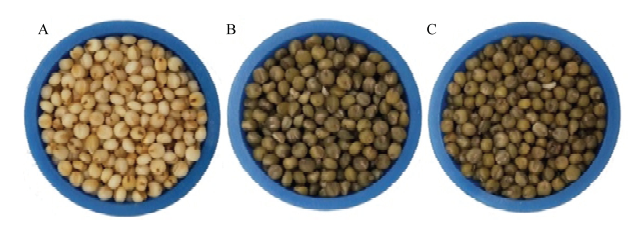

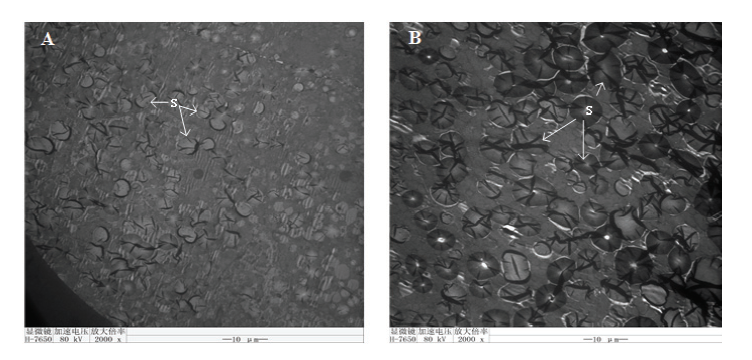

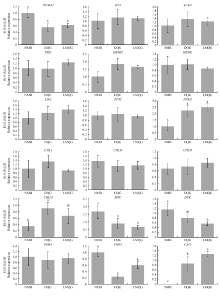

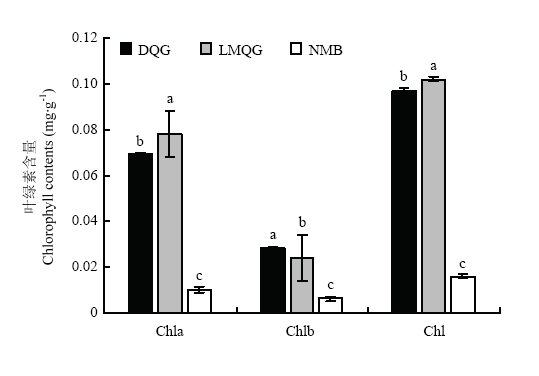

【目的】不同种类色素积累使小米呈现出不同的颜色性状。通过对比绿色小米和白色小米间的米色表型差异、不同色差指标值、叶绿素含量、籽粒内部超微结构和叶绿素合成途径结构基因的表达差异,找出导致绿色和白色小米颜色差异的关键酶基因,探索绿色小米米色形成的分子机制。【方法】利用色差仪对米色(L*、a*、b*)值进行测定;采用紫外分光光度计法分别对绿小米和白小米籽粒中叶绿素a、b及总叶绿素含量进行测定;通过透射电镜观察分析处于灌浆中期的小米籽粒内部淀粉体和质体小球的大小和数量;同时采用qRT-PCR方法对叶绿素合成途径上游和下游共18个结构基因在不同米色表型的3个品种中的表达模式进行了分析;并以谷子幼苗叶片DNA为模板,对不同米色品种谷子中SiCAO全长进行克隆及序列比对分析。【结果】大青谷和露米青谷脱壳后的小米颜色为绿色,牛毛白的小米颜色为白色,且色差仪检测结果显示绿色小米的绿度指标a*值低于白色小米;2个绿色小米籽粒中的Chla、Chlb和Chl含量均显著高于白色小米籽粒,且在白色小米籽粒中仅检测到0.006 mg·g-1的Chlb;qRT-PCR结果显示,SiCAO在白米品种籽粒中几乎不表达,而其在2个绿小米品种籽粒中都有高峰度表达,SiCAO在不同米色品种中的极显著差异表达是它们呈现米色表型差异的主要原因;从3个品种中分别克隆出开放阅读框架为1 626 bp的SiCAO,它们分别在第171、184、195、286、318个氨基酸处存在差异;超微结构观察表明,谷子籽粒胚乳层主要由单粒淀粉体构成,绿小米较白小米中的淀粉体个体较大、着色深,且绿小米淀粉体周围充满了质体小球及圆球体,这种差异可能对籽粒中色素积累产生影响。【结论】SiCAO在绿米品种籽粒中的过量表达和在白米品种籽粒中的不表达是导致绿色和白色小米籽粒叶绿素含量差异,进而使得它们分别呈现绿色和白色表型的主要原因之一。

关键词: 小米, 叶绿素, 生物合成, SiCAO, 超微结构

Abstract:

【Objective】 The phenotypic differences of millet color in foxtail millet is caused by the different kinds of pigment accumulation in grains. The phenotype of millet color, the indicators from color system, the chlorophyll contents, the ultra-structure of inner grains, and the expression profile of chlorophyll biosynthesis related genes were compared and analyzed between the green and white millet varieties. Our main objectives are to find the key gene causing the millet color difference between green and white millet, and to explore the mechanism for the formation of green millet color. 【Method】 In this study, the millet color indicators (L*, a*, b*)were determined using the color system. The Chla, Chlb, and Chl contents in grains were measured by spectrophotometer separately, and the inner ultra-structure including the size and numbers of the starch and chromoplast in the foxtail millet grains were observed and analyzed at mid stage of grouting by transmission electron microscope. Meanwhile, the expression patterns of 18 genes distributing in the upstream and downstream of the chlorophyll biosynthesis were analyzed among three varieties with different millet color by qRT-PCR. The SiCAO gene was separately cloned from three varieties with the DNA of seedling leaves as templates, and then were compared with each other. 【Result】 Hunted millet of Daqinggu and Lumiqinggu were green colors, and the a* color indicators of them were lower than Niumaobai with white millet color. The Chla, Chlb and Chlcontains in the grains of green varieties were all significantly higher than white variety, and only 0.006 mg·g-1 Chlb were detected in white variety. The results of qRT-PCR showed that the expression of SiCAO gene couldn’t be detected in white variety, but it had high expression levels in two green varieties. The significant different expression level of SiCAO was one of the important reasons leading to the color difference between two millet color millet varieties. The SiCAO gene with an open reading frame of 1626 bp was separately cloned from three varieties, and their sequences showed differences at 171, 184, 195, 286 and 318 amino acid sites. Simultaneously, ultra-structural observations indicated that the endosperm layer of the grain is mainly consisting of the single-amyloplast. Compared with the white variety, the starch in green varieties were bigger and darker, and surrounded by more chromoplasts and spherosomes, and these differences might affect the pigments accumulations in grains. 【Conclusion】 SiCAO, which is over-expressed in green varieties but not expressed in white variety, is one of the important reasons that causing different amount of chlorophyll contents accumulation leading to green and white millet colors.

Key words: foxtail millet, chlorophyll, biosynthesis, SiCAO, ultra-structure
