低温胁迫对番茄幼苗不同叶龄叶片叶绿素荧光成像特性的影响

doi:10.3864/j.issn.0578-1752.2022.24.014

摘要/Abstract

摘要：

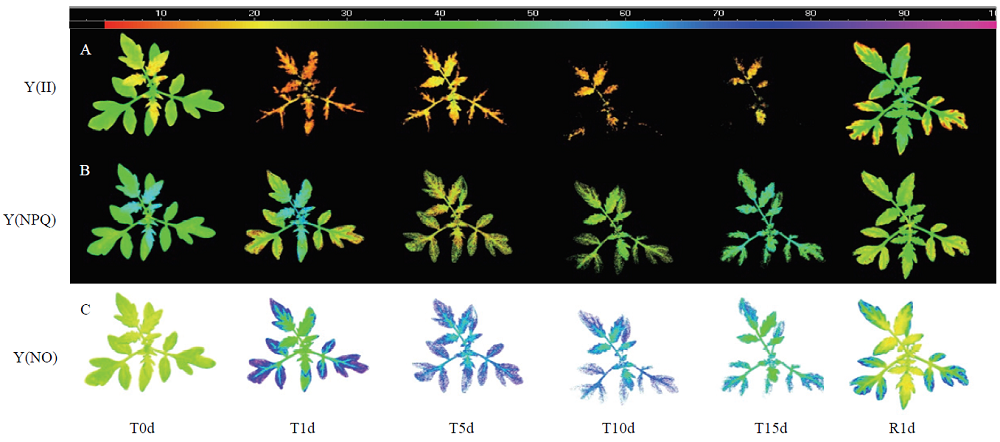

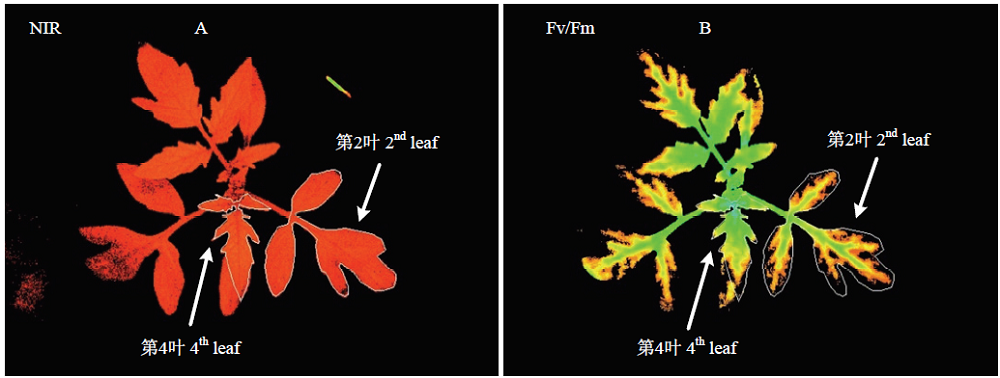

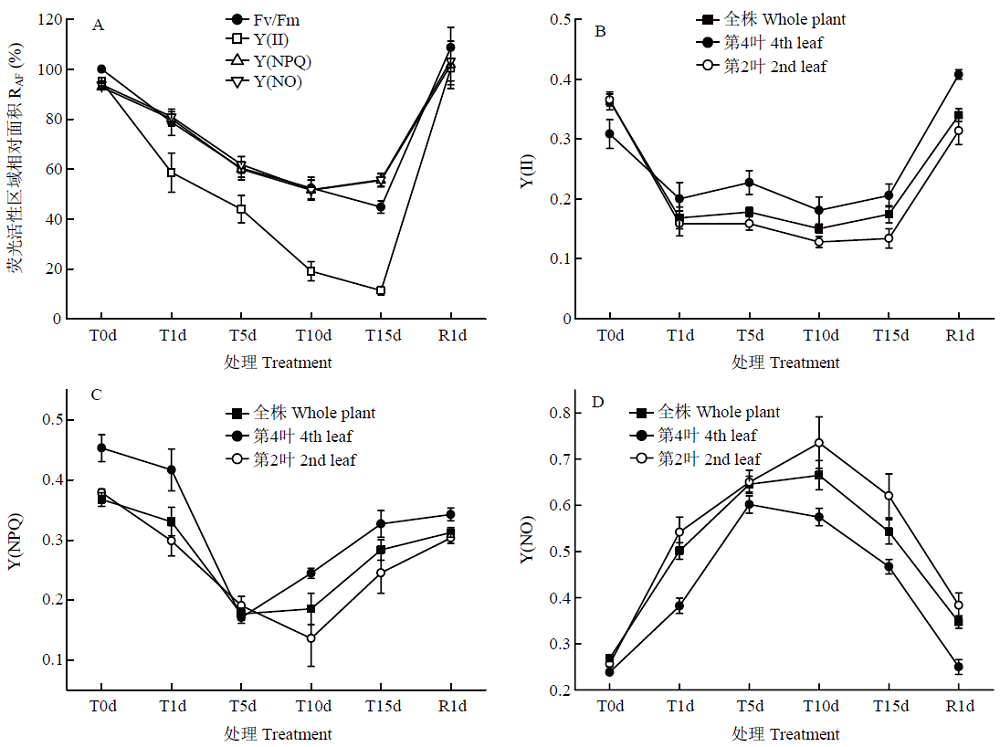

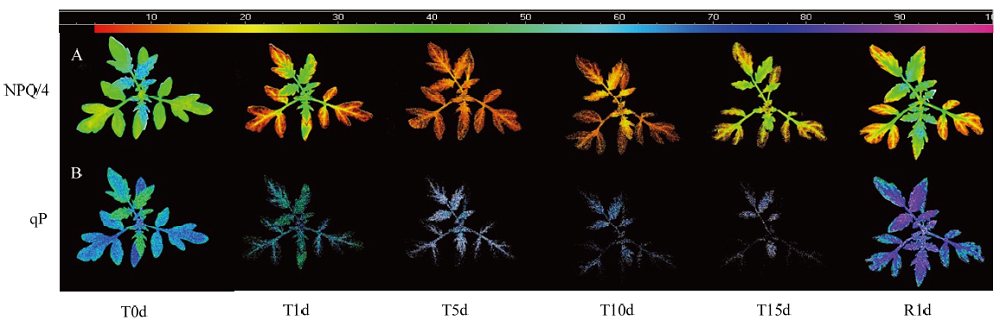

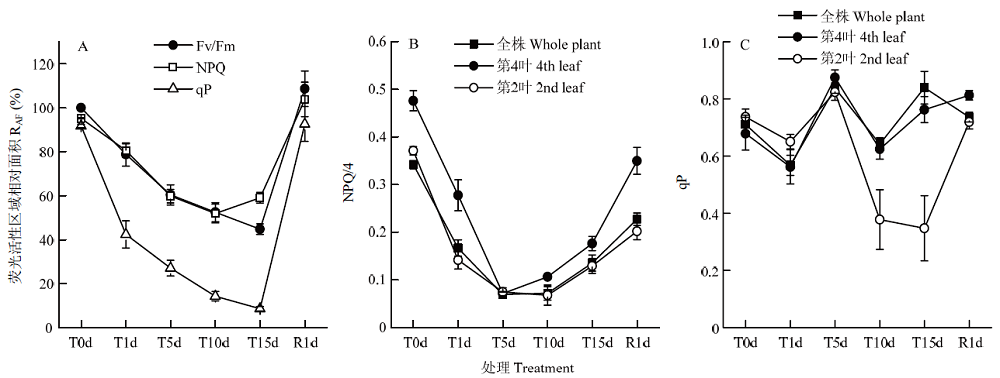

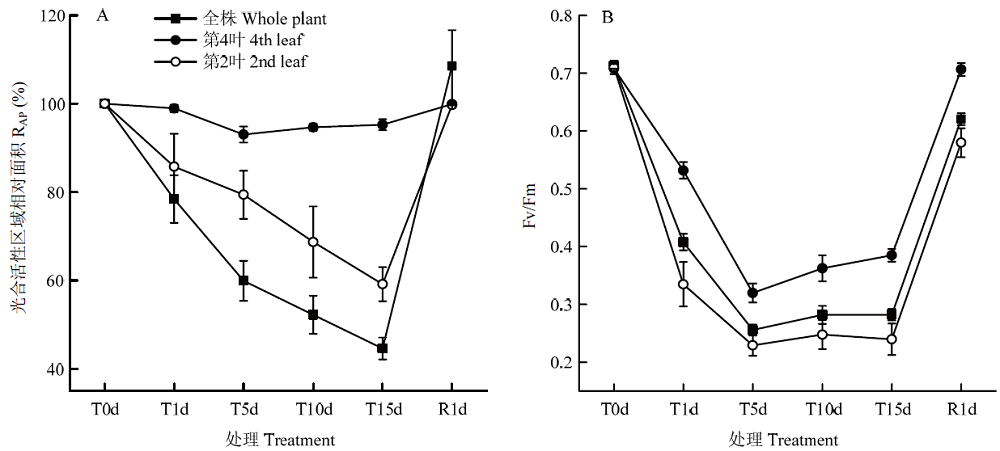

【目的】研究番茄幼苗第2叶（成熟叶）和第4叶（新生叶）叶绿素荧光成像特性对低温胁迫的响应，并分析低温胁迫下番茄不同叶龄叶片光合活性区域相对面积及荧光参数值的变化，以探明番茄幼苗不同叶龄叶片对低温胁迫的适应机制。【方法】以番茄品种‘中蔬4号’（Solanum lycopersicum L. cv Zhongshu No.4）4叶期幼苗为材料，对番茄幼苗进行低温（8℃、200 μmol·m^-2·s^-1）处理15 d后常温（26℃白天/20℃夜晚，500 μmol·m^-2·s^-1）恢复1 d，于处理不同时期对幼苗全株进行叶绿素荧光成像，并比较第2叶和第4叶的叶绿素荧光成像特性。【结果】低温处理期间，第4叶的光合活性区域相对面积（R_AP）仅在处理前期（5 d）有所下降，而全株和第2叶的R_AP则随处理时间的延长持续下降，但常温1 d即可完全恢复。低温处理下PSII调节性能量耗散的量子产量（Y(NPQ)）、PSII非调节性能量耗散的量子产量（Y(NO)）和非光化学猝灭（NPQ）的荧光活性区域相对面积（R_AF）与R_AP基本一致，但PSII实际光化学效率（Y(II)）和光化学猝灭（qP）的R_AF则显著低于R_AP。低温处理前期（5 d），番茄幼苗光合活性区域的PSII最大光化学效率（Fv/Fm）、Y(NPQ)、NPQ急剧下降和Y(NO)急剧上升，随后，Fv/Fm保持不变，但Y(NPQ)和NPQ有所上升，Y(NO)则下降。但是，低温处理1 d即导致光合活性区域Y(II)的急剧下降，随后维持不变。另外，番茄全株和第4叶的光合活性区域qP仅表现在处理第1天时小幅下降，随后则维持高于处理前的水平，而第2叶qP则在第5天有明显上升后又迅速下降。总体上，第4叶光合活性区域的Fv/Fm、Y(II)、Y(NPQ)、NPQ和qP明显高于第2叶，Y(NO)低于第2叶。【结论】番茄幼苗可通过主动降低叶片光合活性区域面积来适应低温胁迫，而叶片热耗散能力在低温处理前期受到抑制，直到处理后期才逐渐发挥其光保护作用；低温胁迫下番茄幼苗优先保护生长点和新生叶，成熟叶主要通过可逆降低光合活性区域面积来适应低温胁迫，而新生叶则主要通过维持相对较高的PSII反应中心光化学和热耗散能力防御低温光抑制；低温导致新生叶光合活性区域中部分有活性的PSII反应中心关闭的同时，刺激了剩余有活性PSII反应中心开放程度的提高，这将有利于低温胁迫解除后光合活性的恢复。

关键词: 番茄, 低温胁迫, 叶绿素荧光成像, 光抑制, 叶龄

Abstract:

【Objective】This study analyzed the characteristics of chlorophyll fluorescence imaging of the 2nd (mature) and 4th (newly born) leaves of tomato seedlings in response to chilling stress, aiming to probe the mechanism of leaves with different ages adapted to chilling stress in tomato seedlings. 【Method】In this study, Solanum lycopersicum L. cv Zhongshu No. 4 was used as the research material. The tomato seedlings in the 4-leaf stage were treated at chilling (8℃, 200 μmol·m^-2·s^-1) for 15 d and then recovered at normal temperature (26℃ day/20℃ night, 500 μmol·m^-2·s^-1) for 1 d. The Chlorophyll fluorescence imagings of the whole seedlings were measured at different stages under different treatments, and the characteristics of chlorophyll fluorescence imaging of the 2nd and 4th leaves were compared. 【Result】The results showed that the relative area of photosynthetically active regions (R_AP) on the 4th leaves decreased slowly during the first 5 d of the chilling stress, while the R_AP on the 2nd leaves and the whole plants decreased steadily during the whole chilling treatment. The R_AP recovered completely after 1 d of recovery. Under chilling treatment, the relative area of fluorescence active regions (R_AF) for quantum yield of regulatory energy dissipation (Y(NPQ)), quantum yield of nonregulatory energy dissipation (Y(NO)), and nonphotochemical quenching (NPQ) showed similar changes as that of R_AP. However, the R_AF of effective PSII quantum yield (Y(II)) and coefficient of photochemical quenching (qP) were significantly lower than that of R_AP. The maximum PSII quantum yield (Fv/Fm), Y(NPQ), and NPQ decreased while Y(NO) increased sharply in the photosynthetically active region in tomato seedlings during the first 5 d of the chilling treatment. In the following days, the Fv/Fm remained unchanged, whereas Y(NPQ) and NPQ increased and Y(NO) decreased. However, Y(II) declined sharply 1 d after chilling stress and then remained unchanged. Interestingly, qP in the photosynthetic active region of the 4th leaves decreased only slightly after 1 d of chilling treatment, and then maintained higher than that before treatment. However, qP of the 2nd leaves increased significantly on the 5th day and then decreased rapidly. Overall, the Fv/Fm, Y(II), Y(NPQ) and qP in the 4th leaves were higher than those in the 2nd leaves, whereas the Y(NO) were relatively lower in the 4th leaves. 【Conclusion】The study found that tomato seedlings responded to chilling stress by decreasing the area of photosynthetically active regions. The regulatory nonphotochemical quenching, which played a central role in photoprotection, was inhibited in the early stage, but gradually increased during the later stage under chilling treatment. The mature leaves adapted to chilling stress likely by decreasing the size of photosynthetically active regions, while higher capacities of PSII photochemistry and thermal dissipation were maintained in the newly born leaves in response to chilling stress. The protection of shoot apex and newly born leaves might be the priority of tomato seedlings in response to chilling stress. For newly born leaves, the chilling induced the closure of some active PSII reaction centers, but improved the operating efficiency of the remaining active PSII reaction centers, which was potentially beneficial for the recovery of photosynthetic activity.

Key words: tomato (Solanum lycopersicum L.), chilling stress, chlorophyll fluorescence imaging, photoinhibition, leaf age

胡雪华,刘宁宁,陶慧敏,彭可佳,夏晓剑,胡文海. 低温胁迫对番茄幼苗不同叶龄叶片叶绿素荧光成像特性的影响[J]. 中国农业科学, 2022, 55(24): 4969-4980.

HU XueHua,LIU NingNing,TAO HuiMin,PENG KeJia,XIA Xiaojian,HU WenHai. Effects of Chilling on Chlorophyll Fluorescence Imaging Characteristics of Leaves with Different Leaf Ages in Tomato Seedlings[J]. Scientia Agricultura Sinica, 2022, 55(24): 4969-4980.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2022.24.014

https://www.chinaagrisci.com/CN/Y2022/V55/I24/4969

图/表 7

图1

图2

图3

图4

图5

图6

图7

参考文献 37

[1]	罗鑫辉, 刘明月, 黄科, 刘玉兵, 彭淼, 王军伟. 不同品种番茄幼苗低温适应性评价及光合特性分析. 中国瓜菜, 2021, 34(8): 49-55.
	LUO X H, LIU M Y, HUANG K, LIU Y B, PENG M, WANG J W. Evaluation of low temperature adaptability and analysis of photosynthetic characteristics in different tomato varieties. China Cucurbits and Vegetables, 2021, 34(8): 49-55. (in Chinese)
[2]	PARK E J, JEKNIĆ Z, SAKAMOTO A, DENOMA J, YUWANSIRI R, MURATA N, CHEN T H H. Genetic engineering of glycinebetaine synthesis in tomato protects seeds, plants, and flowers from chilling damage. Plant Journal, 2004, 40: 474-487. doi: 10.1111/j.1365-313X.2004.02237.x
[3]	ALLEN D J, ORT D R. Impacts of chilling temperatures on photosynthesis in warm-climate plants. Trends of Plant Science, 2001, 6(1): 36-42. doi: 10.1016/S1360-1385(00)01808-2
[4]	胡文海, 喻景权. 低温弱光对番茄叶片光合作用和叶绿素荧光参数的影响. 园艺学报, 2001, 41(1): 41-46.
	HU W H, YU J Q. Effects of chilling under low light on photosynthesis and chlorophyll fluorescence characteristic in tomato leaves. Acta Horticulturae Sinica, 2001, 28(1): 41-46. (in Chinese)
[5]	王春萍, 雷开荣, 李正国, 林清, 吴红. 低温胁迫对水稻幼苗不同叶龄叶片叶绿素荧光特性的影响. 植物资源与环境学报, 2012, 21(3): 38-43.
	WANG C P, LEI K R, LI Z G, LIN Q, WU H. Effects of chilling stress on chlorophyll fluorescence characteristics of seedling leaves with different leaf ages of Oryza sativa. Journal of Plant Resources and Environment, 2012, 21(3): 38-43. (in Chinese)
[6]	BRÜGGEMANN W, KLAUCKE S, MAAS-KANTEL K. Long-term chilling of young tomato plants under low light. V. kinetic and molecular properties of two key enzymes of the Calvin cycle in Lycopersicon esculentum Mill and L. peruvianum Mill. Planta, 1994, 194: 160-168. doi: 10.1007/BF01101674
[7]	BYRD G T, ORT D R, OGREN W L. The effects of chilling in the light on ribulose-1,5-bisphosphate carboxylase/oxygenase activation in tomato (Lycopersicon esculentum Mill.). Plant Physiology, 1995, 107: 585-591. doi: 10.1104/pp.107.2.585
[8]	ARTUSO A, GUIDI L, SOLDATINI G F, PARDOSSI A, TOGNONI F. The influence of chilling on photosynthesis and activities of some enzymes of sucrose metabolism in Lycopersicon esculentum Mill. Acta Physiologiae Plantarum, 2000, 22(2):95-101. doi: 10.1007/s11738-000-0062-x
[9]	DING F, WANG M L, ZHANG S X, AN X Z. Changes in SBPase activity influence photosynthetic capacity, growth, and tolerance to chilling stress in transgenic tomato plants. Scientific Reports, 2016, 6: 32741. doi: 10.1038/srep32741 pmid: 27586456
[10]	KEE S C, MARTIN B, ORT D R. The effects of chilling in the dark and in the light on photosynthesis of tomato: Electron transfer reactions. Photosynthesis Research, 1986, 8: 41-51. doi: 10.1007/BF00028475 pmid: 24443165
[11]	HU W H, ZHOU Y H, DU Y S, XIA X J, YU J Q. Differential response of photosynthesis in greenhouse- and field-ecotypes of tomato to long-term chilling under low light. Journal of Plant Physiology, 2006, 163: 1238-1246. pmid: 16300855
[12]	陈静, 陈启林, 程智慧, 徐春和. 花青苷对低温弱光处理的番茄(L. esculentum Mill.)幼苗光合机构的保护作用. 中国农业科学, 2007, 40(4): 788-793.
	CHEN J, CHEN Q L, CHENG Z H, XU C H. Protective effect of anthocyanin on photosynthetic apparatus of tomato (L. esculentum Mill.) seedling leaves exposed to low temperature and low irradiance. Scientia Agricultura Sinica, 2007, 40(4): 788-793. (in Chinese)
[13]	ZUSHI K, KAJIWARA S, MATSUZOE N. Chlorophyll a fluorescence OJIP transient as a tool to characterize and evaluate response to heat and chilling stress in tomato leaf and fruit. Scientia Horticulturae, 2012, 148: 39-46. doi: 10.1016/j.scienta.2012.09.022
[14]	胡文海, 胡雪华, 闫小红, 周升团. 低温胁迫及恢复对番茄快速叶绿素荧光诱导动力学特征的影响. 中国农业气象, 2021, 42(10): 859-869.
	HU W H, HU X H, YAN X H, ZHOU S T. Response of chlorophyll fluorescence transient in leaves of tomato under chilling stress and subsequent recovery. Chinese Journal of Agrometeorology, 2021, 42(10): 859-869. (in Chinese)
[15]	RALPH P J, MACINNIS-NG C M O, FRANKART C. Fluorescence imaging application: Effect of leaf age on seagrass photokinetics. Aquatic Botany, 2005, 81(1): 69-84. doi: 10.1016/j.aquabot.2004.11.003
[16]	樊大勇, 付增娟, 谢宗强, 李荣贵, 张淑敏. 调制式荧光影像新技术: 叶片内部最大光化学量子效率及其异质性的活体测定. 植物生态学报, 2016, 40(9): 942-951. doi: 10.17521/cjpe.2016.0001
	FAN D Y, FU Z J, XIE Z Q, LI R G, ZHANG S M. A new technology of modulated Chl a fluorescence image: In vivo measurement of the PSII maximum photochemical efficiency and its heterogeneity within leaves. Chinese Journal of Plant Ecology, 2016, 40(9): 942-951. (in Chinese) doi: 10.17521/cjpe.2016.0001
[17]	KRAUSE G H, WEIS E. Chlorophyll fluorescence and photosynthesis: The basics. Annual Review of Plant Physiology and Plant Molecular Biology, 1991, 42: 313-349. doi: 10.1146/annurev.pp.42.060191.001525
[18]	DONG Z F, MEN Y H, LI Z M, ZOU Q Y, JI J W. Chlorophyll fluorescence imaging as a tool for analyzing the effects of chilling injury on tomato seedlings. Scientia Horticulturae, 2019, 246: 490-497. doi: 10.1016/j.scienta.2018.11.019
[19]	王恒. 应用于植物生理检测的高通量叶绿素荧光成像系统研究[D]. 杭州: 浙江大学, 2018.
	WANG H. Research on high throughput chlorophyll fluorescence imaging system applied in plant physiology detection[D]. Hangzhou: Zhejiang University, 2018. (in Chinese)
[20]	董贞芬. 低温胁迫下番茄幼苗叶绿素荧光成像的分析及研究[D]. 沈阳: 沈阳农业大学, 2019.
	DONG Z F. Analysis and study on chlorophyll fluorescence imaging of tomato seedlings under low temperature stress[D]. Shenyang: Shenyang Agricultural University, 2019. (in Chinese)
[21]	BRESSON J, VASSEUR F, DAUZAT M, KOCH G, GRANIER C, VILE D. Quantifying spatial heterogeneity of chlorophyll fluorescence during plant growth and in response to water stress. Plant Methods, 2015, 11: 23. doi: 10.1186/s13007-015-0067-5 pmid: 25870650
[22]	HOGEWONING S W, HARBINSON J. Insights on the development, kinetics, and variation of photoinhibition using chlorophyll fluorescence imaging of a chilled, variegated leaf. Journal of Experimental Botany, 2007, 58(3): 453-463. pmid: 17132711
[23]	XIA X J, FANG P P, GUO X, QIAN X J, ZHOU J, SHI K, ZHOU Y H, YU J Q. Brassinosteroid-mediated apoplastic H₂O₂-glutaredoxin 12/14 cascade regulates antioxidant capacity in response to chilling in tomato. Plant, Cell & Environment, 2018, 41(5): 1052-1064.
[24]	ALAM B, JACOB J. Overproduction of photosynthetic electrons is associated with chilling injury in green leaves. Photosynthetica, 2002, 40(1): 91-95. doi: 10.1023/A:1020110710726
[25]	ORT D R, BAKER N R. A photoprotective role for O₂ as an alternative electron sink in photosynthesis? Current Opinion in Plant Biology, 2002, 5(3): 193-198. doi: 10.1016/S1369-5266(02)00259-5
[26]	HU W H, YAN X H, YU J Q. Importance of the mitochondrial alternative oxidase (AOX) pathway in alleviating photoinhibition in cucumber leaves under chilling injury and subsequent recovery when leaves are subjected to high light intensity. The Journal of Horticultural Science and Biotechnology, 2017, 92(1): 31-38. doi: 10.1080/14620316.2016.1219239
[27]	杨再强, 张波, 张继波, 彭晓丹, 张婷华, 张静. 低温胁迫对番茄光合特性及抗氧化酶活性的影响. 自然灾害学报, 2012, 21(4): 168-174.
	YANG Z Q, ZHANG B, ZHANG J B, PENG X D, ZHANG T H, ZHANG J. Effects of low temperature stresses on photosynthetic charateristics and activity of antioxidant enzymes of tomatos. Journal of Natural Disasters, 2012, 21(4): 168-174. (in Chinese)
[28]	SHU S, TANG Y Y, YUAN Y H, SUN J, ZHONG M, GUO S R. The role of 24-epibrassinolide in the regulation of photosynthetic characteristics and nitrogen metabolism of tomato seedlings under a combined low temperature and weak light stress. Plant Physiology and Biochemistry, 2016, 107: 344-353. doi: S0981-9428(16)30242-X pmid: 27362298
[29]	WEI D D, ZHANG T P, WANG B Q, ZHANG H L, MA M Y, LI S F, CHEN T H H, BRESTIC M, LIU Y, YANG X H. Glycinebetaine mitigates tomato chilling stress by maintain high-cyclic electron flow rate of photosystem I and stability of photosystem II. Plant Cell Reports, 2022, 41: 1087-1101. doi: 10.1007/s00299-022-02839-0
[30]	DING F, WANG M L, LIU B, ZHANG S X. Exogenous melatonin mitigates photoinhibition by accelerating non-photochemical quenching in tomato seedlings exposed to moderate light during chilling. Frontiers in Plant Science, 2017, 8: 244. doi: 10.3389/fpls.2017.00244 pmid: 28265283
[31]	胡文海, 张斯斯, 肖宜安, 闫小红. 两种杜鹃花属植物对长期遮阴后全光照环境的生理响应及其光保护机制. 植物生态学报, 2015, 39(11): 1093-1100. doi: 10.17521/cjpe.2015.0106
	HU W H, ZHANG S S, XIAO Y A, YAN X H. Physiological responses and photo-protective mechanisms of two Rhododendron plants to natural sunlight after long term shading. Chinese Journal of Plant Ecology, 2015, 39(11): 1093-1100. (in Chinese) doi: 10.17521/cjpe.2015.0106
[32]	KRAMER D M, JOHNSON G, KIIRATS O, EDWARDS G E. New fluorescence parameters for the determination of Q_A redox state and excitation energy fluxes. Photosynthesis Research, 2004, 79:209-218. doi: 10.1023/B:PRES.0000015391.99477.0d
[33]	MAXWELL K, JOHNSON G N. Chlorophyll fluorescence- a practical guide. Journal of Experimental Botany, 2000, 51(345): 659-668. doi: 10.1093/jexbot/51.345.659
[34]	许大全. 光合作用效率. 上海: 上海科学技术出版社, 2002: 29-37.
	XU D Q. Photosynthetic Efficiency. Shanghai: Shanghai Scientific and Technical Publishers, 2002: 29-37. (in Chinese)
[35]	XU C, WANG M T, YANG Z Q, ZHENG Q T. Low temperature and low irradiation induced irreversible damage of strawberry seedlings. Photosynthetica, 2020, 58(1): 156-164. doi: 10.32615/ps.2020.001
[36]	LIU P, MENG Q W, ZOU Q, ZHAO S J, LIU Q Z. Effects of cold-hardening on chilling-induced photoinhibition of photosynthesis and on xanthophyll cycle pigments in sweet pepper. Photosynthetica, 2001, 39(3): 467-472. doi: 10.1023/A:1015155032135
[37]	ZHOU J, WANG J, SHI K, XIA X J, ZHOU Y H, YU J Q. Hydrogen peroxide is involved in the cold acclimation-induced chilling tolerance of tomato plants. Plant Physiology and Biochemistry, 2012, 60: 141-149. doi: 10.1016/j.plaphy.2012.07.010 pmid: 22935478
