中国农业科学 ›› 2021, Vol. 54 ›› Issue (12): 2666-2674.doi: 10.3864/j.issn.0578-1752.2021.12.016

• 畜牧·兽医·资源昆虫 • 上一篇    下一篇

蜡样芽孢杆菌致吐毒素的毒性作用与生物合成研究进展

崔一芳1(),郑敏2,丁双阳2,朱奎2()

  1. 1北京市农林科学院畜牧兽医研究所/畜禽疫病防控技术北京市重点实验室,北京 100097
    2中国农业大学动物医学院/国家兽药安全评价中心,北京 100193
  • 收稿日期:2020-05-06 接受日期:2020-09-27 出版日期:2021-06-16 发布日期:2021-06-24
  • 通讯作者: 朱奎
  • 作者简介:崔一芳,Tel:010-51503195;E-mail:cuiyf_baafs@163.com
  • 基金资助:
    国家重点研发计划(2017YFC1600305);奶牛产业技术体系北京市创新团队;北京市农林科学院创新能力建设项目(KJCX20161503)

Advances of Biosynthesis and Toxicity of Cereulide Produced by Emetic Bacillus cereus

CUI YiFang1(),ZHENG Min2,DING ShuangYang2,ZHU Kui2()

  1. 1Beijing Key Laboratory for Prevention and Control of Infectious Diseases in Livestock and Poultry/Institute of Animal Husbandry and Veterinary Medicine, Beijing Academy of Agricultural and Forestry Sciences, Beijing 100097
    2National Center for Veterinary Drug Evaluation/College of Veterinary Medicine, China Agricultural University, Beijing 100193
  • Received:2020-05-06 Accepted:2020-09-27 Online:2021-06-16 Published:2021-06-24
  • Contact: Kui ZHU

摘要:

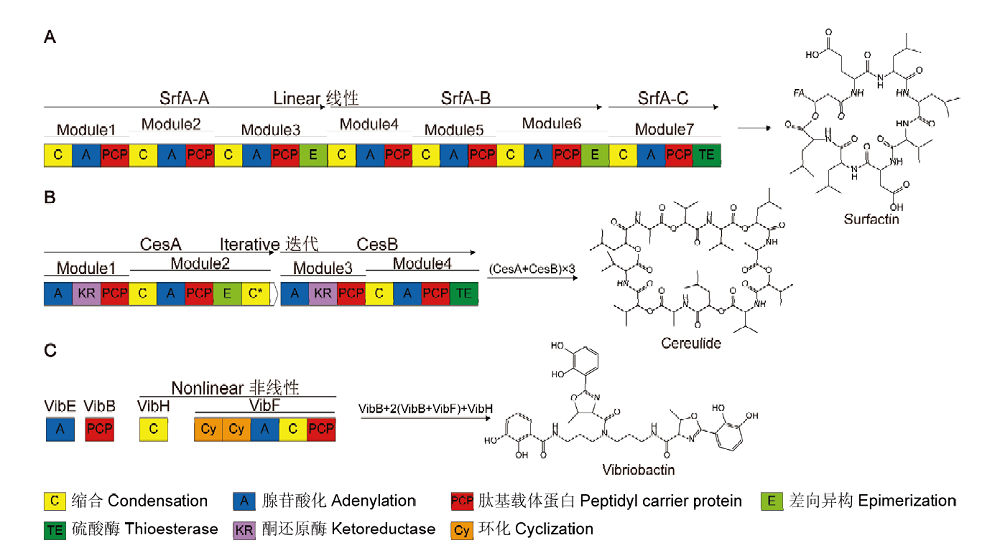

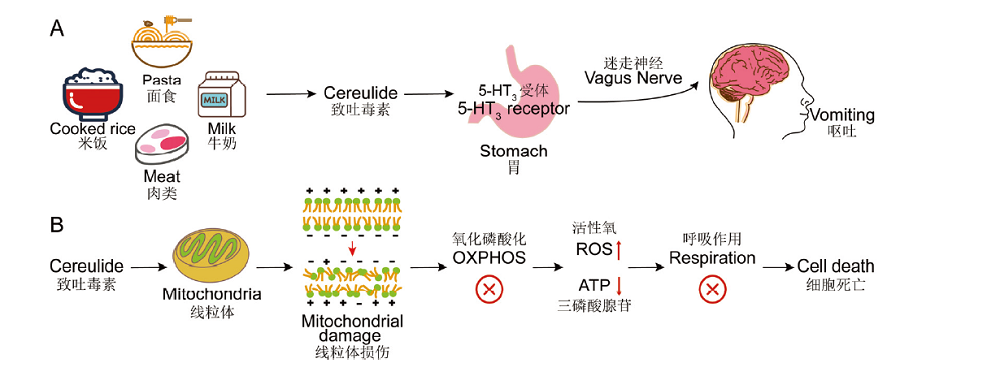

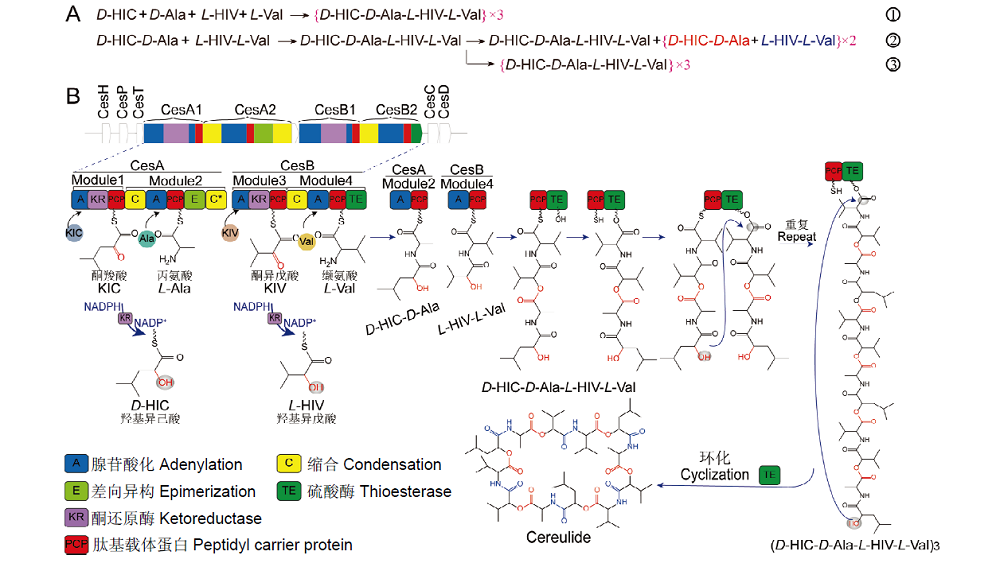

蜡样芽孢杆菌是一类兼性厌氧的革兰氏阳性杆菌,可以产生芽孢抵抗不良环境,并广泛存在于土壤、水、空气和多种食物中。致病性蜡样芽孢杆菌是常见的食源性条件致病菌之一,其引发的食物中毒主要是由其产生的毒素导致的。致吐毒素cereulide是致病性蜡样芽孢杆菌产生的重要毒素之一,是一种小分子亲脂性十二环肽,结构性质十分稳定。Cereulide能够引起恶心、呕吐等轻微的食物中毒症状,也可导致如肝性脑病、急性肝脏衰竭等严重致死的疾病。当前对于cereulide的毒性作用机制研究局限于其刺激传入迷走神经引起呕吐症状,以及作为钾离子载体,诱导线粒体膜电位丧失,并最终导致细胞死亡,而对于其导致的严重肝脏和脑部病变的毒性作用机制研究仍十分不足。Cereulide是由cereulide合成酶基因簇(ces)编码,非核糖体肽合成酶(nonribosomal peptide-synthetase, NRPS)系统控制合成的。Cereulide由两个羟基酸和两个氨基酸残基[-D-HIC-D-Ala-L-HIV-L-Val-]经3次迭代组成三聚体缩酚酞,其结构特殊并有很强的代表性,但因NRPS合成系统的灵活性会产生许多变体,因此cereulide的毒性与其生物合成过程息息相关。文章在现有文献报道和研究数据的基础上,总结并提出了cereulide的生物合成机理:首先,cereulide合成基因簇的CesA和CesB结构域分别识别D-α-酮羧酸、L-丙氨酸、L-α-酮异戊酸和L-缬氨酸,通过共价结合形成cereulide的主要合成单元二肽;其次,依照上述过程重复合成四肽;再通过重复反应合成第二个四肽,两个四肽通过酯化形成八肽;再次重复上述反应,形成三元络合的产物肽;最后,由于ces-NRPS的硫酯酶结构域活性中心表面结构阻止外部水分子进入,并诱导内部亲核攻击反应,最终释放出环状cereulide。目前,由产cereulide的蜡样芽孢杆菌引起的食物中毒风险被低估。并且,本团队前期研究发现部分芽孢杆菌微生态制剂中混有产cereulide的蜡样芽孢杆菌菌株。因此,产cereulide蜡样芽孢杆菌的存在对食品安全和公共健康均构成了潜在风险。文章综述了cereulide的毒性作用及机制,为进一步研发cereulide防控措施提供科学依据;总结并提出了cereulide的生物合成机理,强调了催化酮酸形成酯的酮还原酶域(KR),及形成重复单元和环肽的硫酯酶域(TE)在其合成中的重要作用,为阐明类似结构的非核糖体肽合成提供新的思路。

关键词: 蜡样芽孢杆菌, 致吐毒素cereulide, 生物合成, 非核糖体肽合成酶, 毒性

Abstract:

Bacillus cereus (B. cereus) is a gram-positive facultative anaerobe that can produce spores to survive adverse environments. And it is widely present in soil, water, air and a variety of foods. Pathogenic B. cereus is one of the most common food-borne pathogens, and the toxins produced by B. cereus are the main cause of food poisoning. Cereulide is a major toxin produced by pathogenic B. cereus, which is a small molecule lipophilic cyclic dodecadepsipeptide with stable structural properties. Cereulide can cause mild food poisoning with emetic symptoms, such as nausea and vomiting, and it may induce severe fatal diseases such as hepatic encephalopathy or acute liver failure. Current researches believed that cereulide caused vomiting by stimulating the vagus nerve, and induced the loss of mitochondrial membrane potential by acting as a potassium ionophore, which ultimately led to cell death. However, the toxic mechanism of hepatic encephalopathy or acute liver failure caused by cereulide remains unclear. Cereulide is encoded by the cereulide synthetase gene cluster (ces) and is synthesized by the non-ribosomal peptide synthetase (NRPS) system. Cereulide is composed by two hydroxy acids and two amino acid residues [-D-HIC-D-Ala-L-HIV-L-Val-], which forms a trimer phenolphthalein after three iterations and shows a structural specificity and representativeness. However, isocereulides may be produced due to the flexibility of the NRPS system. Therefore, the toxicity of cereulide is closely related to its biosynthesis process. Based on previous studies, this review summarized and proposed the biosynthesis mechanism of cereulide. Firstly, the CesA and CesB domained in ces recognize D-α-ketocarboxylic acid, L-alanine, L-α-ketoisovalerate and L-valine, respectively, which formed the main synthetic unit dipeptide of cereulide by covalent bonding. Secondly, a tetrapeptide was synthesized by repeating the above process. Thirdly, the second tetrapeptide was synthesized through repeated reactions, and the two tetrapeptides formed an octapeptide through esterification. Fourthly, the above reaction was repeated to form a ternary complex product peptide. Lastly, because the surface structure of the active center of the thioesterase domain in ces-NRPS prevented external water molecules from entering, it induced an internal nucleophilic attack reaction and finally released a circular cereulide. The risk of food poisoning caused by cereulide producing B. cereus was underestimated. In addition, our previous studies have found that some probiotic Bacillus products were contaminated with cereulide-producing B. cereus strains. This posed a potential risk to food safety and public health. This review briefly summarized the characteristics and toxic mechanisms of cereulide, which would provide a scientific basis for the prevention of cereulide. This review also summarized and proposed the biosynthesis process of cereulide. Functions of two domains in the synthesis process need to be focused. The main function of ketoreductase (KR) domain was that it could catalyze the formation of esters of keto acid at the beginning of the biosynthesis processes. The important role of thioesterase (TE) domain was to form repeating units and the cyclic peptide in the last link of synthesis. These could serve as a model for other cyclic peptides synthesized by the non-ribosomal peptide synthetase system.

Key words: Bacillus cereus, cereulide, biosynthesis, non-ribosomal peptide synthetase, toxicity
