柑橘果实囊衣发育与化渣性的形成

doi:10.3864/j.issn.0578-1752.2023.02.010

摘要/Abstract

摘要：

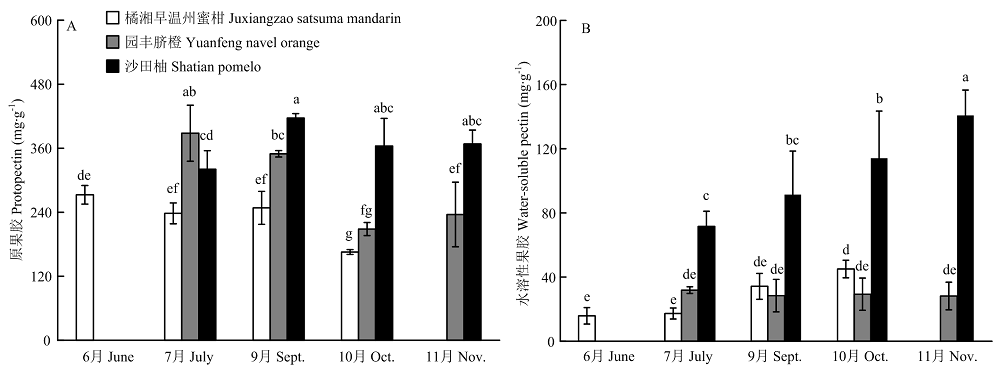

【目的】揭示柑橘果实囊衣发育和化渣性形成的规律，为改良柑橘果实化渣性品质提供理论依据。【方法】以‘爱媛30’杂柑、‘诺瓦’杂柑、‘兴津’温州蜜柑、‘园丰’脐橙、‘纽荷尔’脐橙、‘安江’香柚和‘江永’香柚等不同类型柑橘果实为材料，在细胞及生理生化水平通过比较不同类型柑橘果实囊衣的超微结构、发育过程中囊衣的发育规律，分析囊衣细胞壁主要生理生化指标。【结果】不同类型柑橘果实囊衣均表现出外侧面粗糙而内侧面光滑的特征；囊衣内侧面表面蜡质层明显，其下1—2层细胞排列整齐、细胞壁增厚，囊衣细胞排列致密度由内侧面向外侧面逐渐降低。内侧面蜡质层及其下1—2层细胞形态变化、排列特征的显现是囊衣发育成熟的标志。柚类果实囊衣最厚、化渣性最差，主要原因是其囊衣细胞层数多、细胞体积大、果胶含量高。果实发育过程中，不同柑橘类型果实在花蕾至落花期，其子房内部已分化出心室，未来形成囊衣的心室间隔细胞大小一致且排列紧密，尚无明显的囊衣细胞排列特征。随着果实的膨大及成熟，‘沙田柚’（Citrus grandis Osbeck cv. Shatianyou）果实囊衣发育成熟后细胞壁增厚期最长，厚度最厚且细胞层数多，果胶含量显著高于‘园丰’脐橙（Citrus sinensis Osbeck cv. Yuanfeng）和‘橘湘早’温州蜜柑（Citrus unshiu Marc. cv. Juxiangzao）；‘园丰’脐橙囊衣成熟后细胞壁增厚期较长、细胞层数中等，原果胶含量高于‘橘湘早’温州蜜柑；‘橘湘早’温州蜜柑囊衣成熟后细胞壁增厚期最短，厚度最薄、细胞层数最少。10月，温州蜜柑成熟时，‘沙田柚’‘园丰’脐橙和‘橘湘早’温州蜜柑的原果胶含量分别为364.22、208.48和165.39 mg·g^-1，‘沙田柚’分别较其他两个品种高74.7%和120.2%。【结论】柑橘果实囊衣厚度、细胞层数和细胞壁增厚程度影响果实化渣性，果胶含量可以反映果实囊衣化渣性程度。

关键词: 柑橘, 囊衣, 化渣性, 超微结构, 细胞壁成分

Abstract:

【Objective】 This study aimed to reveal the development of segment membrane, which contributed to citrus fruit mastication, so as to provide the theoretical basis for fruit mastication trait improvement. 【Method】 Using different citrus types (hybrid citruses including Ehime No. 30 and Nova, Okitsu Wase satsuma mandarin, navel oranges including Yuanfeng and Newhall, and pumeloes including Anjiang and Jiangyong) as reseach materials, the main physiological and biochemical properties of segment membrane were analyzed by comparisons in tissue development and cell ultrastructure. 【Result】 The rough outside but smooth inside of segment membrane occurred in all citrus types. Obviously waxy layer grew on the inside of segment membrane under which one or two cell layers with thickened cell wall arranged neatly. Cell density decreased gradually from inside to outside in segment membrane. Occurrence of wax layer in the inside and morphological changes of cells under the wax layer emblematized the maturation of citrus segment membrane. For pomelo, the thickest segment membrane linked with the worst mastication was caused from a large number of cell layers, enlarged cell size and more pectin in segment membrane. At early fruit development from squaring stage to flower withering stage, the ventricles differentiated already in the ovary, and the intervals between ventricles would develop into segment membranes. In the period, parenchyma cells in the intervals exhibited equal cell size and arranged neatly, having no segment membrane characteristics. With fruit enlargement and maturation, the segment membranes of Shatian pomelo had the most cell layers and the longest cell wall thickening period. Segment membranes of Shatian pomelo showed significantly higher pectin content than that of Yuanfeng navel orange and Juxiangzao Satsuma mandarin. Segment membranes of Yuanfeng navel orange had medium cell layers and moderate cell wall thickening period, in which protopectin was higher than that of Juxiangzao Satsuma mandarin. The segment membranes of Juxiangzao exposed the least cell layers and the shortest cell wall thickening period. In October when Juxiangzao matured, segment membrane protopectins in Shatian pomelo, Yuanfeng navel orange and Juxiangzao Satsuma mandarin were 364.22, 208.48 and 165.39 mg·g^-1, respectively, with Shatian pomelo reaching 74.7% and 120.2% higher than another two varieties. 【Conclusion】 Segment membrane thickness, cell layers in segment membrane and degree of cell wall thickening associated with citrus fruit mastication. Pectin content could reflect the mastication of citrus segment membranes.

Key words: citrus, segment membrane, mastication, ultrastructure, cell wall

李菲菲, 廉雪菲, 尹韬, 常媛媛, 金燕, 马小川, 陈岳文, 叶丽, 李云松, 卢晓鹏. 柑橘果实囊衣发育与化渣性的形成[J]. 中国农业科学, 2023, 56(2): 333-344.

LI FeiFei, LIAN XueFei, YIN Tao, CHANG YuanYuan, JIN Yan, MA XiaoChuan, CHEN YueWen, YE Li, LI YunSong, LU XiaoPeng. The Relationship Between Mastication and Development of Segment Membranes in Citrus Fruits[J]. Scientia Agricultura Sinica, 2023, 56(2): 333-344.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2023.02.010

https://www.chinaagrisci.com/CN/Y2023/V56/I2/333

图/表 6

图1

表1

图2

图3

图4

图5

参考文献 27

[1]	张丽芳. 南丰蜜橘果胶代谢与化渣性关系研究[D]. 南昌: 江西农业大学, 2014.
	ZHANG L F. Correlation analysis on pectic metabolism and mastication of Nanfeng tangerine fruit[D]. Nanchang: Jiangxi Agricultural University, 2014. (in Chinese)
[2]	魏清江, 汪妙秋, 曾知富, 杨成泉, 彭抒昂, 刘永忠. 南丰蜜橘化渣性评价及不同结果习性果实的品质比较. 中国农业科学, 2014, 47(6): 1162-1170.
	WEI Q J, WANG M Q, ZENG Z F, YANG C Q, PENG S A, LIU Y Z. Evaluation of the mastication and comparison of fruit quality with different bearing habits in Nanfeng tangerine (Citrus reticulata Blanco cv. Kinokuni). Scientia Agricultura Sinica, 2014, 47(6): 1162-1170. (in Chinese)
[3]	LIU Y Z, DONG T, LEI Y, DENG X X, GU Q Q. Isolation of a polygalacturonase gene from Citrus sinensis fruit and its expression relative to fruit mastication trait, fruit development, and calcium or boron treatments. Plant Molecular Biology Reporter, 2011, 29(1): 51-59. doi: 10.1007/s11105-010-0206-0. doi: 10.1007/s11105-010-0206-0
[4]	雷莹. 柑橘果实化渣性研究[D]. 华中农业大学, 2010.
	LEI Y. Mastication of citrus fruit[D]. Wuhan: Huazhong Agricultural University, 2010. (in Chinese)
[5]	曾秀丽, 张光伦, 李春燕. 三类生境下脐橙果实膳食纤维的变化研究. 安徽农学通报, 2007, 13(16): 19-22, 104.
	ZENG X L, ZHANG G L, LI C Y. Study on changes of dietary fiber in three habitats on navel orange [Citrus sinesis (L.) Osb.] fruits. Anhui Agricultural Science Bulletin, 2007, 13(16): 19-22, 104. (in Chinese)
[6]	唐红英. 南丰蜜橘纤维素、半纤维素代谢与化渣性关系研究[D]. 南昌: 江西农业大学, 2015.
	TANG H Y. Study on the relationship between cellulose, hemicellulose metabolism and mastication of Nanfeng tangerine[D]. Nanchang: Jiangxi Agricultural University, 2015. (in Chinese)
[7]	古湘. 南丰蜜橘木质素代谢与化渣的关系研究[D]. 南昌: 江西农业大学, 2016.
	GU X. Study on the relationship between lignin metabolism and mastication of Nanfeng tangerine[D]. Nanchang: Jiangxi Agricultural University, 2016. (in Chinese)
[8]	曾秀丽, 张光伦, 李春燕, 汪志辉, 罗楠, 胡强. 脐橙果实膳食纤维的动态变化研究. 四川农业大学学报, 2006, 24(1): 69-72.
	ZENG X L, ZHANG G L, LI C Y, WANG Z H, LUO N, HU Q. The studying on the dietary fiber of navel orange [Citrus sinesis (L.) Osb.] fruit. Journal of Sichuan Agricultural University, 2006, 24(1): 69-72. (in Chinese)
[9]	辜青青, 唐红英, 魏清江, 古湘, 冯芳芳, 罗正荣. 南丰蜜橘果实纤维素代谢与化渣的关系研究. 园艺学报, 2016, 43(5): 867-875.
	GU Q Q, TANG H Y, WEI Q J, GU X, FENG F F, LUO Z R. Studies on the relationship between cellulose metabolism and fruit mastication trait of Nanfeng tangerine. Acta Horticulturae Sinica, 2016, 43(5): 867-875. (in Chinese)
[10]	张丽芳, 魏清江, 辜青青, 古湘, 冯芳芳, 姚鹏. 柑桔果实中囊衣果胶含量与化渣性关系研究. 现代园艺, 2017(9): 3-4.
	ZHANG L F, WEI Q J, GU Q Q, GU X, FENG F F, YAO P. Study on the relationship between the pectin content of the encapsulated pectin in citrus fruit and its slagging property. Xiandai Horticulture, 2017(9): 3-4. (in Chinese)
[11]	高婧斐, 汪志辉, 熊博, 石冬冬, 张婷婷, 曾海琼, 廖玲, 曹淑燕, 古咸杰, 李清南. 细胞壁组分及酶活性与清见果实囊衣绵韧的相关性. 食品科学, 2015, 36(23): 131-135.
	GAO J F, WANG Z H, XIONG B, SHI D D, ZHANG T T, ZENG H Q, LIAO L, CAO S Y, GU X J, LI Q N. Correlations of albedo fracture toughness with cell wall substances and enzyme activities in kiyomi fruits. Food Science, 2015, 36(23): 131-135. (in Chinese)
[12]	WANG X, LIN L J, TANG Y, XIA H, ZHANG X C, YUE M L, QIU X, XU K, WANG Z H. Transcriptomic insights into citrus segment membrane's cell wall components relating to fruit sensory texture. BMC Genomics, 2018, 19(1): 280. doi: 10.1186/s12864-018-4669-y. doi: 10.1186/s12864-018-4669-y pmid: 29685103
[13]	严敏. 营养元素与柑橘果实化渣性关系探究[D]. 武汉: 华中农业大学, 2020.
	YAN M. Study on the relationship between nutrition elements and mastication in citrus fruit[D]. Wuhan: Huazhong Agricultural University, 2020. (in Chinese)
[14]	LU X P, LI F F, XIONG J, CAO X J, MA X C, ZHANG Z M, CAO S Y, XIE S X. Transcriptome and metabolome analyses provide insights into the occurrence of peel roughing disorder on satsuma mandarin (Citrus unshiu Marc.) fruit. Frontiers in Plant Science, 2017, 8: 1907. doi: 10.3389/fpls.2017.01907
[15]	熊艺. 温州蜜柑隔年交替结果果实品质分析[D]. 武汉: 华中农业大学, 2013.
	XIONG Y. Analysis of the quality of alternate bearing fruit of Satsuma[D]. Wuhan: Huazhong Agricultural University, 2013. (in Chinese)
[16]	LIAN X F, LI F F, CHANG Y Y, ZHOU T, CHEN Y W, YIN T, LI Y S, YE L, JIN Y, LU X P. Physiological and ultrastructural alterations linked to intrinsic mastication inferiority of segment membranes in Satsuma mandarin (Citrus unshiu marc.) fruits. Plants, 2021, 11(1): 39. doi: 10.3390/plants11010039. doi: 10.3390/plants11010039
[17]	董肖昌. 不同柑橘砧木对缺硼的响应差异及结构变化与代谢机制[D]. 武汉: 华中农业大学, 2016.
	DONG X C. Different response and structure change and metabolic mechanism of different Citrus rootstock under boron deficiency[D]. Wuhan: Huazhong Agricultural University, 2016. (in Chinese)
[18]	BU J W, YU Y C, AISIKAER G, YING T J. Postharvest UV-C irradiation inhibits the production of ethylene and the activity of cell wall-degrading enzymes during softening of tomato (Lycopersicon esculentum L.) fruit. Postharvest Biology and Technology, 2013, 86(3): 337-345. doi: 10.1016/j.postharvbio.2013.07.026
[19]	DENG J J, BI Y, ZHANG Z K, XIE D F, GE Y H, LI W H, WANG J J, WANG Y. Postharvest oxalic acid treatment induces resistance against pink rot by priming in muskmelon (Cucumis melo L.) fruit. Postharvest Biology & Technology, 2015, 106: 53-61.
[20]	魏张奎. 基于质构特性的夏橙化渣性研究[D]. 武汉: 华中农业大学, 2013.
	WEI Z K. Research on mastication of late orange base on textural properties[D]. Wuhan: Huazhong Agricultural University, 2013. (in Chinese)
[21]	郑苍松. 南丰蜜橘果实品质与土壤—树体营养的关系及其调控[D]. 武汉: 华中农业大学, 2015.
	ZHENG C S. Relationships between fruit quality and soil-plant nutrients of Nanfeng tangerine and regulation by fertilization application[D]. Wuhan: Huazhong Agricultural University, 2015. (in Chinese)
[22]	邓秀新, 彭抒昂. 柑橘学. 北京: 中国农业出版社, 2013: 194.
	DENG X X, PENG S A. Citrology. Beijing: Chinese Agriculture Press, 2013: 194. (in Chinese)
[23]	BUGGENHOUT S V, SILA D N, DUVETTER T, LOEY A V, HENDRICKX M. Pectins in processed fruits and vegetables: Part III-texture engineering. Comprehensive Reviews in Food Science and Food Safety, 2010, 8(2): 105-117. doi: 10.1111/j.1541-4337.2009.00072.x
[24]	ZHENG C S, LAN X, TAN Q L, ZHANG Y, GUI H P, HU C X. Soil application of calcium and magnesium fertilizer influences the fruit pulp mastication characteristics of Nanfeng tangerine (Citrus reticulata Blanco- cv. Kinokuni). Scientia Horticulturae, 2015, 191: 121-126. doi: 10.1016/j.scienta.2015.05.008
[25]	严敏, 罗丽娟, 韩忠星, 袁野, 李江波, 杜威, 刘永忠. 南丰蜜橘和南丰蜜广果实质构特性、细胞壁成分及营养元素比较研究. 农业科学, 2019, 9(8): 689-696. doi: 10.12677/HJAS.2019.98098
	YAN M, LUO L J, HAN Z X, YUAN Y, LI J B, DU W, LIU Y Z. Comparative study on fruit texture, cell wall structural components and nutrient content between “nanfengmiju” and “nanfengmiguang”. Hans Journal of Agricultural Sciences, 2019, 9(8): 689-696. (in Chinese) doi: 10.12677/HJAS.2019.98098
[26]	LEI Y, LIU Y Z, GU Q Q, YANG X Y, DENG X X, CHEN J Y. Comparison of cell wall metabolism in the pulp of three cultivars of ‘Nanfeng’ tangerine differing in mastication trait. Journal of the Science of Food and Agriculture, 2012, 92(3): 496-502. doi: 10.1002/jsfa.4554. doi: 10.1002/jsfa.4554
[27]	LEI Y, LIU Y Z, ZENG W F, DENG X X. Physicochemical and molecular analysis of cell wall metabolism between two navel oranges (Citrus sinensis) with different mastication traits. Journal of the Science of Food and Agriculture, 2010, 90(9): 1479-1484. doi: 10.1002/jsfa.3970. doi: 10.1002/jsfa.3970 pmid: 20549800

品种 Cultivar	细胞层数（层） Number of cell layer (layers)
爱媛30杂柑Ehime No.30 hybrid citrus	7.0±3.61b
诺瓦杂柑Nova hybrid citrus	8.7±3.21b
兴津温州蜜柑Okitus wase satsuma mandarin	5.0±0.00b
园丰脐橙Yuanfeng navel orange	5.0±2.00b
纽荷尔脐橙Newhall navel orange	8.3±1.53b
安江香柚Anjiang pomelo	23.3±2.52a
江永香柚Jiangyong pomelo	22.0±1.73a
