Scientia Agricultura Sinica ›› 2020, Vol. 53 ›› Issue (1): 55-64.doi: 10.3864/j.issn.0578-1752.2020.01.005

• PLANT PROTECTION • Previous Articles     Next Articles

FliZ Regulated the Biofilm Formation of Bacillus subtilis Bs916 and Its Biocontrol Efficacy on Rice Sheath Blight

HuaFei ZHOU1,2,HongFu YANG1,KeBing YAO1,YiQing ZHUANG1,ZhaoLin SHU1,ZhiYi CHEN3()

  1. 1 Zhenjiang Institute of Agricultural Sciences in Hilly Region of Jiangsu, Jurong 212400, Jiangsu
    2 College of Plant Protection, Nanjing Agricultural University, Nanjing 210095
    3 Institute of Plant Protection, Jiangsu Academy of Agricultural Sciences, Nanjing 210014
  • Received:2019-07-01 Accepted:2019-08-04 Online:2020-01-01 Published:2020-01-19
  • Contact: ZhiYi CHEN E-mail:njaujaas@163.com

Abstract:

【Objective】The objective of this study is to discover and identify new regulatory genes on biofilm formation of Bacillus subtilis Bs916, detect its effect on biofilm formation of Bs916 and biocontrol efficacy on rice sheath blight.【Method】The single knockout mutant of Bs916 at fliZ was construct by homologous recombination, and its defects in biofilm formation were verified by dry weight analysis. The anti-bacterial effect of fliZ mutant and Bs916 on rice sheath blight pathogen (Rhizoctonia solani) was detected by flat panel. The relative production of 3 lipopeptide antibiotics (LPs) surfactin, bacillomycin L, and fengycin in fliZ mutant and Bs916 was detected by HPLC. The GFP-labeled strains of Bs916 and fliZ mutant were constructed by green fluorescent labeling, the colonization ability of them in rice stalks was observed, and the biocontrol efficacy of fliZ mutant and Bs916 on rice sheath blight was detected.【Result】The single knockout mutant of Bs916 at fliZ was successfully constructed. Compared with the three-dimensional structure biofilm of the control group Bs916, fliZ mutant only formed a planar two-dimensional structure biofilm, appeared broken form, which proved that it had significant defects in biofilm formation. Quantitative analysis of the dry weight of biofilms showed that the biofilm dry weight of fliZ mutant was only 23% of the control group Bs916, which further verified that the biofilm formation ability of fliZ mutant was significantly decreased. The motility test found that the expanded diameter of fliZ mutant was only 32% of Bs916, which proved that the swimming ability of fliZ mutant was significantly reduced. The bacteriostatic test showed that the antibacterial bandwidth of the two strains was basically the same, and it is proved that the antibacterial activity of fliZ mutant against R. solani was not significantly different from that of Bs916. The relative production of three LPs bacillomycin L, surfactin, and fengycin in fliZ mutant and Bs916 was successfully detected. Compared with Bs916, the relative production of bacillomycin L was significantly increased by 1 time in fliZ mutant, but the relative production of surfactin and fengycin was not significantly different from that of Bs916. The colonization test of rice stalks showed that the number of fliZ mutant was significantly lower than that of Bs916, and there was no significant aggregation effect near the rice sheath blight lesions, and presented an unordered state, which proved that the colonization ability of fliZ mutant on rice stalks was significantly lower than that of Bs916. The field biocontrol trials against rice sheath blight showed that biocontrol efficacy of fliZ mutant ranged from 6.0% to 20.7% on days 6-15, which was significantly lower than that of Bs916 (36.0%-57.6%). It was proved that the biocontrol efficacy of fliZ mutant on rice sheath blight was significantly reduced.【Conclusion】The new regulatory gene fliZ of Bs916 biofilm identified in this study is located in the signal pathway controlling flagellar movement, directly acts on swimming and expansion of the bacteria, and can significantly control the biofilm formation and its biocontrol efficacy on rice sheath blight.

Key words: Bacillus subtilis Bs916, regulated genes, biofilm, lipopeptide antibiotics (LPs), colonization, rice sheath blight, biocontrol efficacy

Table 1

Primers used in this study"

引物Primer 序列Sequence (5′-3′) 来源Source
SpecF TTTGGATCCCTGCAGCCCTGGCGAATG 本试验This study
SpecR TTTGAATTCAGATCCCCCTATGCAAGG 本试验This study
FliZF TTTAAGCTTTACATCCGTTCCCTGCTTTT 本试验This study
FliZR TTTGGATCCGGCCTTTCTTCTTTCCTTCA 本试验This study

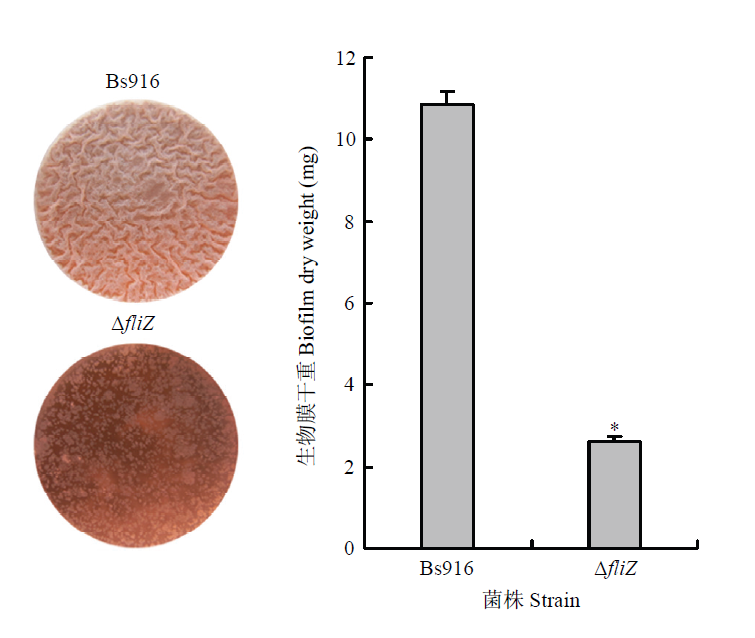

Fig. 1

Verification of biofilm formation defects of ΔfliZ mutant"

Fig. 2

Swimming detection of ΔfliZ mutant and Bs916"

Fig. 3

Antibacterial ability detection of ΔfliZ mutant and Bs916"

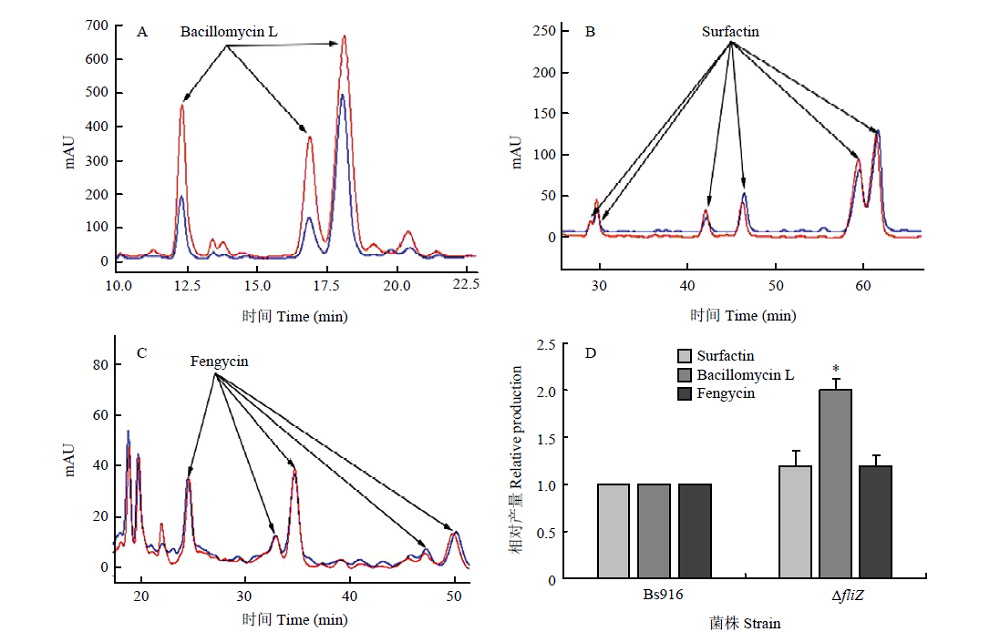

Fig. 4

Relative production of 3 lipopeptide antibiotics of ΔfliZ mutant and Bs916"

Fig. 5

Observation on the colonization ability of rice stalk of ΔfliZ mutant and Bs916"

Table 2

Biocontrol efficacy on rice sheath blight of ΔfliZ mutant and Bs916 (%)"

菌株Strain 6 d 9 d 12 d 15 d
Bs916 57.6a 51.2a 43.0a 36.0a
ΔfliZ 20.7b 11.9b 7.3b 6.0b
[1] KUMAR K V K, REDDY M S, KLOEPPER J W, LAWRENCE K S, GROTH D E, MILLER M E . Sheath blight disease of rice (Oryza sativa L.)-An overview. Biosciences, Biotechnology Research Asia, 2009,6(2):465-480.
[2] CHOUDHURY D, ANAND Y R, KUNDU S, NATH R, KOLE R K, SAHA J . Effect of plant extracts against sheath blight of rice caused by Rhizoctonia solani. Journal of Pharmacognosy and Phytochemistry, 2017,6(4):399-404.
[3] BONANOMI G, CESARANO G, ANTIGNANI V, DI MAIO C, DE FILIPPIS F, SCALA F . Conventional farming impairs Rhizoctonia solani disease suppression by disrupting soil food web. Journal of Phytopathology, 2018,166(9):663-673.
[4] ZHENG A, LIN R, ZHANG D, QIN P, XU L, AI P, DING L, WANG Y, CHEN Y, LIU Y, SUN Z, FENG H, LIANG X, FU R, TANG C, LI Q, ZHANG J, XIE Z, DENG Q, LI S, WANG S, ZHU J, WANG L, LIU H, LI P . The evolution and pathogenic mechanisms of the rice sheath blight pathogen. Nature Communications, 2013,4:1424.
[5] LUO C, ZHOU H, ZOU J, WANG X, ZHANG R, XIANG Y, CHEN Z . Bacillomycin L and surfactin contribute synergistically to the phenotypic features of Bacillus subtilis 916 and the biocontrol of rice sheath blight induced by Rhizoctonia solani. Applied Microbiology and Biotechnology, 2015,99(4):1897-1910.
[6] SHRESTHA B K, KARKI H S, GROTH D E, JUNGKHUN N, HAM J H . Biological control activities of rice-associated Bacillus sp. strains against sheath blight and bacterial panicle blight of rice. PLoS ONE, 2016,11(1):e0146764.
[7] QI Z, YU J, SHEN L, YU Z, YU M, DU Y, ZHANG R, SONG T, YIN X, ZHOU Y, LI H, WEI Q, LIU Y . Enhanced resistance to rice blast and sheath blight in rice (Oryza sativa L.) by expressing the oxalate decarboxylase protein Bacisubin from Bacillus subtilis. Plant Science, 2017,265:51-60.
[8] ALETI G, LEHNER S, BACHER M, COMPANT S, NIKOLIC B, PLESKO M, SCHUHMACHER R, SESSITSCH A, BRADER G . Surfactin variants mediate species‐specific biofilm formation and root colonization in Bacillus. Environmental Microbiology, 2016,18(8):2634-2645.
[9] XU Z, ZHANG H, SUN X, LIU Y, YAN W, XUN W, SHEN Q, ZHANG R . Bacillus velezensis wall teichoic acids are required for biofilm formation and root colonization. Applied and Environmental Microbiology, 2019,85(5):e02116-18.
[10] GUTTENPLAN S B, BLAIR K M, KEARNS D B . The EpsE flagellar clutch is bifunctional and synergizes with EPS biosynthesis to promote Bacillus subtilis biofilm formation. PLoS Genetics, 2010,6(12):e1001243.
[11] CZACZYK K, MYSZKA K . Biosynthesis of extracellular polymeric substances (EPS) and its role in microbial biofilm formation. Polish Journal of Environmental Studies, 2007,16(6):799-806.
[12] MARVASI M, VISSCHER P T, CASILLAS MARTINEZ L . Exopolymeric substances (EPS) from Bacillus subtilis: Polymers and genes encoding their synthesis. FEMS Microbiology Letters, 2010,313(1):1-9.
[13] DIEHL A, ROSKE Y, BALL L, CHOWDHURY A, HILLER M, MOLIÈRE N, KRAMER R, STÖPPLER D, WORTH C L, SCHLEGEL B, LEIDERT M, CREMER N, ERDMANN N, LOPEZ D, STEPHANOWITZ H, KRAUSE E, VAN ROSSUM B J, SCHMIEDER P, HEINEMANN U, TURGAY K, AKBEY Ü, OSCHKINAT H . Structural changes of TasA in biofilm formation of Bacillus subtilis. Proceedings of the National Academy of Sciences of the United States of America, 2018,115(13):3237-3242.
[14] ZHOU H, LUO C, FANG X, XIANG Y, WANG X, ZHANG R, CHEN Z . Loss of GltB inhibits biofilm formation and biocontrol efficiency of Bacillus subtilis Bs916 by altering the production of γ-polyglutamate and three lipopeptides. PLoS ONE, 2016,11(5):e0156247.
[15] BISCHOFF D S, WEINREICH M D, ORDAL G W . Nucleotide sequences of Bacillus subtilis flagellar biosynthetic genes fliP and fliQ and identification of a novel flagellar gene, fliZ. Journal of Bacteriology, 1992,174(12):4017-4025.
[16] XU S J, PENG Z, CUI B, WANG T, SONG Y, ZHANG L, WEI G, WANG Y, SHEN X . FliS modulates FlgM activity by acting as a non-canonical chaperone to control late flagellar gene expression, motility and biofilm formation in Yersinia pseudotuberculosis. Environmental Microbiology, 2014,16(4):1090-1104.
[17] 杨丙烨, 付丹, 胡方平, 蔡学清 . 西瓜细菌性果斑病菌鞭毛基因fliS的功能分析. 中国农业科学, 2017,50(15):2946-2956.
YANG B Y, FU D, HU F P, CAI X Q . Function analysis of flagellar gene fliS in Acidovorax citrulli. Scientia Agricultura Sinica, 2017,50(15):2946-2956. (in Chinese)
[18] BRANDA S S, VIK Å, FRIEDMAN L, KOLTER R . Biofilms: the matrix revisited. TRENDS in Microbiology, 2005,13(1):20-26.
[19] BRANDA S S, CHU F, KEARNS D B, LOSICK R, KOLTER R . A major protein component of the Bacillus subtilis biofilm matrix. Molecular Microbiology, 2006,59(4):1229-1238.
[20] ROMERO D, AGUILAR C, LOSICK R, KOLTER R . Amyloid fibers provide structural integrity to Bacillus subtilis biofilms. Proceedings of the National Academy of Sciences of the United States of America, 2010,107(5):2230-2234.
[21] KOBAYASHI K, IWANO M . BslA (YuaB) forms a hydrophobic layer on the surface of Bacillus subtilis biofilms. Molecular Microbiology, 2012,85(1):51-66.
[22] KEARNS D B, CHU F, BRANDA S S, KOLTER R, LOSICK R . A master regulator for biofilm formation by Bacillus subtilis. Molecular Microbiology, 2005,55(3):739-749.
[23] DELOUGHERY A, DENGLER V, CHAI Y, LOSICK R . Biofilm formation by Bacillus subtilis requires an endoribonuclease-containing multisubunit complex that controls mRNA levels for the matrix gene repressor SinR. Molecular Microbiology, 2016,99(2):425-437.
[24] KAMPF J, GERWIG J, KRUSE K, CLEVERLEY R, DORMEYER M, GRÜNBERGER A, KOHLHEYER D, COMMICHAU F M, LEWIS R J, STÜLKE J, . Selective pressure for biofilm formation in Bacillus subtilis: Differential effect of mutations in the master regulator SinR on bistability. MBio, 2018,9(5):e01464-18.
[25] HAMON M A, STANLEY N R, BRITTON R A, GROSSMAN A D, LAZAZZERA B A . Identification of AbrB-regulated genes involved in biofilm formation by Bacillus subtilis. Molecular Microbiology, 2004,52(3):847-860.
[26] MURRAY E J, STRAUCH M A, STANLEY-WALL N R . σ X is involved in controllingBacillus subtilis biofilm architecture through the AbrB homologue Abh. Journal of Bacteriology, 2009,191(22):6822-6832.
[27] CHU F, KEARNS D B, BRANDA S S, KOLTER R, LOSICK R . Targets of the master regulator of biofilm formation in Bacillus subtilis. Molecular Microbiology, 2006,59(4):1216-1228.
[28] STRAUCH M A, BOBAY B G, CAVANAGH J, YAO F, WILSON A, LE BRETON Y . Abh and AbrB control of Bacillus subtilis antimicrobial gene expression. Journal of Bacteriology, 2007,189(21):7720-7732.
[29] FUJITA M, LOSICK R . Evidence that entry into sporulation in Bacillus subtilis is governed by a gradual increase in the level and activity of the master regulator Spo0A. Genes and Development, 2005,19(18):2236-2244.
[30] HAMON M A, LAZAZZERA B A . The sporulation transcription factor Spo0A is required for biofilm development in Bacillus subtilis. Molecular Microbiology, 2001,42(5):1199-1209.
[31] DUBNAU E J, CARABETTA V J, TANNER A W, MIRAS M, DIETHMAIER C, DUBNAU D . A protein complex supports the production of Spo0A‐P and plays additional roles for biofilms and the K‐state in Bacillus subtilis. Molecular Microbiology, 2016,101(4):606-624.
[32] BANSE A V, CHASTANET A, RAHN-LEE L, HOBBS E C, LOSICK R . Parallel pathways of repression and antirepression governing the transition to stationary phase inBacillus subtilis. Proceedings of the National Academy of Sciences of the United States of America, 2008,105(40):15547-15552.
[33] SAIFUDDIN N, WONG C W, YASUMIRA A A . Rapid biosynthesis of silver nanoparticles using culture supernatant of bacteria with microwave irradiation. Journal of Chemistry, 2009,6(1):61-70.
[34] 周华飞, 罗楚平, 王晓宇, 张荣胜, 陈志谊 . 枯草芽胞杆菌Bs916突变体库的构建和抑制水稻细菌性条斑病菌相关基因的克隆. 中国农业科学, 2013,46(11):2232-2239.
ZHOU H F, LUO C P, WANG X Y, ZHANG R S, CHEN Z Y . Construction of Bacillus subtilis Bs916 mutant libraries by transposon tagging and cloning the genes to the organism’s anti-bacterial activities. Scientia Agricultura Sinica, 2013,46(11):2232-2239. (in Chinese)
[35] GRABA M, SAUVAGE S, MOULIN F Y, URREA G, SABATER S, SANCHEZ-PÉREZ J M . Interaction between local hydrodynamics and algal community in epilithic biofilm. Water Research, 2013,47(7):2153-2163.
[36] LUO C, LIU X, ZHOU H, WANG X, CHEN Z . Nonribosomal peptide synthase gene clusters for lipopeptide biosynthesis in Bacillus subtilis 916 and their phenotypic functions. Applied and Environmental Microbiology, 2015,81(1):422-431.
[37] 周而勋, 曹菊香, 杨媚, 朱西儒 . 我国南方六省(区)水稻纹枯病菌遗传多样性的研究. 南京农业大学学报, 2002,25(3):36-40.
ZHOU E X, CAO J X, YANG M, ZHU X R . Studies on the genetic diversity of Rhizoctonia solani AG-1-IA from six provinces in the southern China. Journal of Nanjing Agricultural University, 2002,25(3):36-40. (in Chinese)
[38] 邹成佳, 唐芳, 杨媚, 贺晓霞, 李献军, 周而勋 . 华南3省(区)水稻纹枯病菌的生物学性状与致病力分化研究. 中国水稻科学, 2011,25(2):206-212.
ZOU C J, TANG F, YANG M, HE X X, LI X J, ZHOU E X . Studies on biological characteristics and pathogenicity differentiation of rice sheath blight pathogen from three provinces in South China. Chinese Journal of Rice Science, 2011,25(2):206-212. (in Chinese)
[39] 向亚萍, 陈志谊, 罗楚平, 周华飞, 刘永锋 . 芽孢杆菌的抑菌活性与其产脂肽类抗生素的相关性. 中国农业科学, 2015,48(20):4064-4076.
XIANG Y P, CHEN Z Y, LUO C P, ZHOU H F, LIU Y F . The antifungal activities of Bacillus spp. and its relationship with lipopeptide antibiotics produced by Bacillus spp. Scientia Agricultura Sinica, 2015,48(20):4064-4076. (in Chinese)
[40] BIANCIOTTO V, ANDREOTTI S, BALESTRINI R, BONFANTE P, PEROTTO S . Mucoid mutants of the biocontrol strain Pseudomonas fluorescens CHA0 show increased ability in biofilm formation on mycorrhizal and nonmycorrhizal carrot roots. Molecular Plant-Microbe Interactions, 2001,14(2):255-260.
[41] BAIS H P, FALL R, VIVANCO J M . Biocontrol of Bacillus subtilis against infection of Arabidopsis roots by Pseudomonas syringae is facilitated by biofilm formation and surfactin production. Plant Physiology, 2004,134(1):307-319.
[42] TIMMUSK S, GRANTCHAROVA N, WAGNER E G H . Paenibacillus polymyxa invades plant roots and forms biofilms. Applied and Environmental Microbiology, 2005,71(11):7292-7300.
[43] CHEN Y, CAO S, CHAI Y, CLARDY J, KOLTER R, GUO J H, LOSICK R . A Bacillus subtilis sensor kinase involved in triggering biofilm formation on the roots of tomato plants. Molecular Microbiology, 2012,85(3):418-430.
[44] 陈志谊, 刘永锋, 陆凡 . 水稻纹枯病生防菌Bs-916产业化生产关键技术. 植物保护学报, 2004,31(3):230-234.
CHEN Z Y, LIU Y F, LU F . Study on key technology in the industrialized production of Bacillus subtilis Bs-916, the rice sheath blight control agent. Acta Phytophylacica Sinica, 2004,31(3):230-234. (in Chinese)
[45] WANG X, LUO C, CHEN Z . Genome sequence of the plant growth-promoting rhizobacterium Bacillus sp. strain 916. Journal of Bacteriology, 2012,194(19):5467-5468.
[46] IYODA S, KAMIDOI T, HIROSE K, KUTSUKAKE K, WATANABE H . A flagellar gene fliZ regulates the expression of invasion genes and virulence phenotype in Salmonella enterica serovar Typhimurium. Microbial Pathogenesis, 2001,30(2):81-90.
[47] KUTSUKAKE K, IKEBE T, YAMAMOTO S . Two novel regulatory genes, fliT and fliZ, in the flagellar regulon of Salmonella. Genes and Genetics Systems, 1999,74(6):287-292.
[48] WANG Y, DING L S, HU Y B, ZHANG Y, YANG B Y, SHEN S Y . The flhDC gene affects motility and biofilm formation in Yersinia pseudotuberculosis. Science in China Series C: Life Sciences, 2007,50(6):814-821.
[49] ZHUO T, WEI R, SONG X, GUO J, FAN X, KAMAU G G, ZOU H . Molecular study on the carAB operon reveals that carB gene is required for swimming and biofilm formation in Xanthomonas citri subsp. citri. BMC Microbiology, 2015,15:225.
[50] SANCHEZ-TORRES V, HU H, WOOD T K . GGDEF proteins YeaI, YedQ, and YfiN reduce early biofilm formation and swimming motility in Escherichia coli. Applied and Microbiology Biotechnology, 2011,90(2):651-658.
[51] 高学文, 姚仕义, PHAM H, VATER J, 王金生, . 基因工程菌枯草芽孢杆菌GEB3产生的脂肽类抗生素及其生物活性研究. 中国农业科学, 2003,36(12):1496-1501.
GAO X W, YAO S Y, PHAM H, VATER J, WANG J S . Lipopeptide antibiotic produced by the engineered strain Bacillus subtilis GEB3 and detection of its bioactivity. Scientia Agricultura Sinica, 2003,36(12):1496-1501. (in Chinese)
