光谱对水稻灌浆期剑叶光合及叶绿素荧光特性的影响

doi:10.3864/j.issn.0578-1752.2019.16.003

摘要/Abstract

摘要：

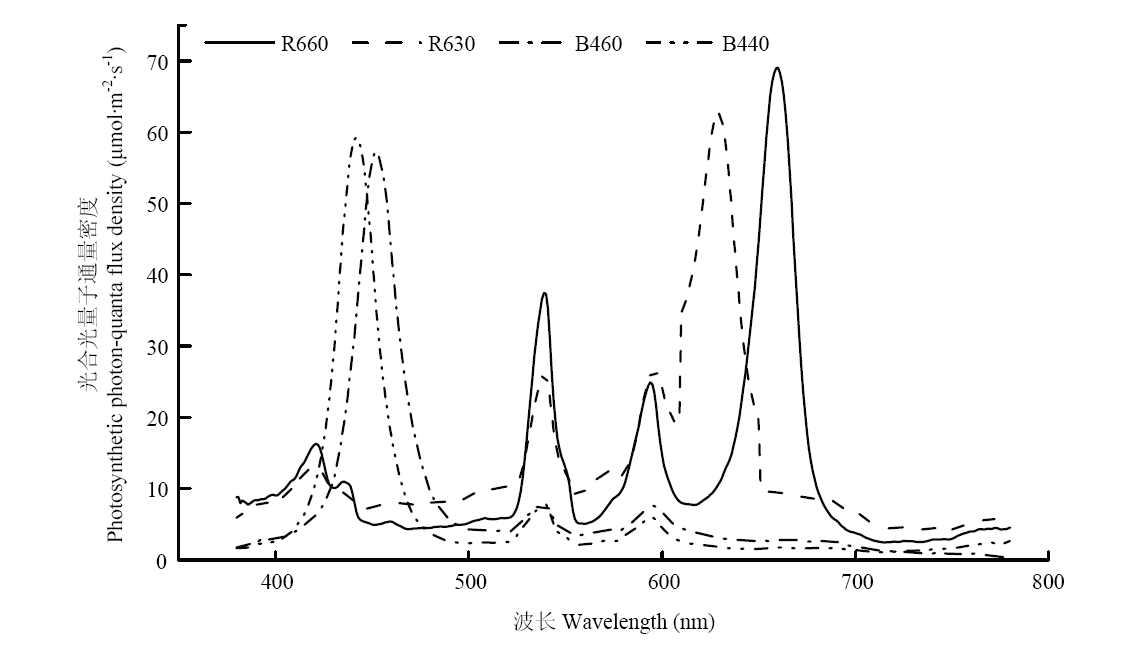

【目的】探讨光谱对水稻剑叶光合及叶绿素荧光特性的影响。【方法】以华粳5号为材料,采用660 nm（R660）和630 nm（R630）的红光及460 nm（B460）和440 nm（B440）的蓝光分别与专用植物灯（W）组成不同光谱,设R660+W、R630+W、B460+W及B440+W 4种光谱处理,于水稻灌浆期测定剑叶光合特性及叶绿素荧光特性。【结果】蓝光能提高水稻剑叶的最大光化学效率（F_v/F_m）、实际光化学效率（ΦPSⅡ）、电子传递速率（ETR）、非光化学猝灭系数（NPQ）和光化学猝灭系数（qP）;灌浆后期,B460+W处理水稻剑叶的净光合速率显著高于红光处理,R660+W处理的单位面积穗数最多,B460+W处理的千粒重和结实率高于其他处理。光响应曲线拟合表明,B460+W处理能提高水稻剑叶的最大净光合速率（Pn_max）、光响应曲线初始斜率（α）、暗呼吸量子效率、补偿点量子效率、捕光色素分子的本征光能吸收截面（σ_ik）和捕光色素分子数（N_o）。【结论】B460+W处理能改善水稻剑叶光系统Ⅱ的性能,使其在灌浆后期维持一个较高的水平,进而促进干物质积累,最终提高千粒重和结实率,即在白光背景中添加460 nm蓝光是人工环境水稻栽培灌浆期的适宜光谱。

关键词: 光谱, 光响应拟合, 水稻, 千粒重, 荧光参数, 光系统Ⅱ

Abstract:

【Objectives】 The study was aimed to explore the effects of different spectra on the photosynthetic and chlorophyll fluorescence characteristics of flag leaves in rice at grain filling stage. 【Method】 The rice (Oryza sativa L. cv. Huageng 5) was planted under four different light conditions, including red light of 660 nm (R660) and 630 nm (R630), blue light of 460 nm (B460) and 440 nm (B440) combined with a special plant lamp (W), and the photosynthetic and chlorophyll fluorescence characteristics of rice leaves were determined at grain filling stage. 【Result】 Compared with red light (R660+W and R630+W), blue light (B460+W and B440+W) could increase the maximum photochemistry efficiency (F_v/F_m), actual photochemical efficiency (ΦPSⅡ), electron transfer efficiency (ETR), non-photochemistry quenching (NPQ) and photochemical quenching (qP). The net photosynthetic rate in the late stage of grain filling under B460+W was higher than that under red light. Compared to those of other treatments, the panicles per unit area under R660+W were the greatest, but the 1000-grain weight and seed setting rate were both higher under B460+W. In addition, B460+W also increased the maximum net photosynthetic rate (Pn_max), initial slope of light response curve (α), quantum efficiency of dark respiration, compensation point quantum efficiency, eigen-absorption cross-section of photosynthetic pigment molecule (σ_ik) and number of light-harvesting pigment molecule (N_o). 【Conclusion】 The stable in photosynthetic rate of flag leaves under the addition of 460 nm blue light conditions was mainly attributed to increase ФPSII, contributing to accumulate dry matter, finally improved the 1000-grain weight and seed setting rate of rice.

Key words: spectral distribution, fitting of light response curve, rice 1000-grain weight, fluorescence parameter, photosystems II

李江鹏,刘海俊,黄志午,刘晓英,尤杰,徐志刚. 光谱对水稻灌浆期剑叶光合及叶绿素荧光特性的影响[J]. 中国农业科学, 2019, 52(16): 2768-2775.

LI JiangPeng,LIU HaiJun,HUANG ZhiWu,LIU XiaoYing,YOU Jie,XU ZhiGang. Effects of Spectral Distribution on Photosynthetic and Chlorophyll Fluorescence Characteristics of Flag Leaves at Grain Filling Stage in Rice[J]. Scientia Agricultura Sinica, 2019, 52(16): 2768-2775.

图/表 6

图1

表1

图2

表2

表3

图3

参考文献 34

[1]	国家统计局. 国家统计局关于2017年粮食产量的公告, 2017. . http://www.stats.gov.cn
	National Bureau of Statistics. Announcement of the National Bureau of Statistics on Food Production in 2017. (in Chinese ) http://www.stats.gov.cn.
[2]	HU S, HU X, HU J, SHANG L, DONG G, ZENG D, GUO L, QIAN Q . Xiaowei, a new rice germplasm for large-scale indoor research. Molecular Plant, 2018,11:1418-1420.
[3]	魏艳, 曲宝涵, 郝双红 . 基于农学类的智能人工气候室建设. 课程教育研究, 2016(4):256.
	WEI Y, QU B H, HAO S H . Construction of intelligent artificial climate chamber based on agronomy. Course Education Research, 2016, ( 4):256. (in Chinese)
[4]	尤杰, 耿博, 郑梦影, 孔乐, 苗辰, 龙家焕 . 设施园艺生产中LED灯与高压钠灯的应用差异性分析. 农业工程技术, 2018,38(7):17-21.
	YOU J, GENG B, ZHENG M Y, KONG L, MIAO C, LONG J H . Application difference analysis of LED lamp and high pressure sodium lamp in facility horticultural production. Agriculture Engineering Technology, 2018,38(7):17-21. (in Chinese)
[5]	蒲高斌, 刘世琦, 刘磊, 任丽华 . 不同光质对番茄幼苗生长和生理特性的影响. 园艺学报, 2005,32(3):420-425.
	PU G B, LIU S Q, LIU L, REN L H . Effects of different light qualities on growth and physiological characteristics of tomato seedings. Acta Horticultrae Sinica, 2005,32(3):420-425. (in Chinese )
[6]	许莉, 刘世琦, 齐连东, 梁庆玲, 于文艳 . 不同光质对叶用莴苣光合作用及叶绿素荧光的影响. 中国农学通报, 2007,23(1):96-100.
	XU L, LIU S Q, QI L D, LIANG Q L, YU W Y . Effect of light quality on leaf lettuce photosynthesis and chlorophyll fluorescence. Chinese Agricultural Science Bulletin, 2007,23(1):96-100. (in Chinese )
[7]	张善平, 冯海娟, 马存金, 李耕, 刘鹏, 董树亭, 赵斌, 张吉旺, 杨今胜 . 光质对玉米叶片光合及光系统性能的影响. 中国农业科学, 2014,47(20):3973-3981. doi: 10.3864/j.issn.0578-1752.2014.20.005
	ZHANG S P, FENG H J, MA C J, LI G, LIU P, DONG S T, ZHAO B, ZHANG J W, YANG J S . Effect of light quality on photosynthesis and photosystem of maize(Zea mays L.) leaves. Scientia Agricultura Sinica, 2014,47(20):3973-3981. (in Chinese ) doi: 10.3864/j.issn.0578-1752.2014.20.005
[8]	柯学, 李军营, 李向阳, 邬春芳, 徐超华, 晋艳, 龚明 . 不同光质对烟草叶片生长及光合作用的影响. 植物生理学报, 2011,47(5):512-520.
	KE X, LI J Y, LI X Y, WU C F, XU C H, JIN Y, GONG M . Effects of different light quality on growth and photosynthesis of tobacco (Nicotiana tabacum L.) leaves. Plant Physiology Journal, 2011,47(5):512-520. (in Chinese )
[9]	郭银生, 张晓燕, 邬奇, 崔瑾 . 光质对‘抗优63’杂交水稻幼苗器官结构及光合特性的影响. 南京农业大学学报, 2013,36(2):38-44.
	GUO Y S, ZHANG X Y, WU Q, CUI J . Effects of light quality on the organs structure and photosynthesis characteristics of the hybrid rice ‘Kangyou 63’ seedlings. Journal of Nanjing Agricultural University, 2013,36(2):38-44. (in Chinese )
[10]	闫萌萌, 王铭伦, 王洪波, 王月福, 赵长星 . 光质对花生幼苗叶片光合色素含量及光合特性的影响. 应用生态学报, 2014,25(2):483-487.
	YAN M M, WANG M L, WANG H B, WANG Y F, ZHAO C X . Effects of light quality on photosynthetic pigment contents and photosynthetic characteristics of peanut seedling leaves. Chinese Journal of Applied Ecology, 2014,25(2):483-487. (in Chinese )
[11]	LOBIUC A, VASILACHE V, OROIAN M, STOLERU T, BURDUCEA M, PINTILIE O, ZAMFIRACHE M . Blue and red illumination improves growth and bioactive compounds contents in acyanic and cyanic Ocimum basilicum L. Microgreens. Molecules, 2017,22(12):2111.
[12]	HOGEWONING S W, TROUWBORST G, MALJAARS H, POORTER H, IEPEREN W V, HARBINSON J . Blue light dose- responses of leaf photosynthesis, morphology, and chemical composition of Cucumis sativus grown under different combinations of red and blue light. Journal of Experimental Botany, 2010,61(11):3107-3117.
[13]	KANERVO E, MURATA N, ARO E M . Massive breakdown of the photosystem II polypeptides in a mutant of the cyanobacterium Synechocystis sp. PCC 6803. Photosynthesis Research, 1998,57(1):81-91.
[14]	郑洁 . 不同光质对橘橙光合作用的影响及机理研究[D]. 杭州: 浙江大学, 2008.
	ZHENG J . Effect of different light qualities on photosnthesis and its mechanism in citrus plants. Hangzhou: Zhejiang University, 2008. (in Chinese)
[15]	马旭, 林超辉, 齐龙, 江立凯, 谭永炘, 梁仲维, 鹿芳媛 . 不同光质与光照度对水稻温室立体育秧秧苗素质的影响. 农业工程学报, 2015,31(11):228-233.
	MA X, LIN C H, QI L, JIANG L K, TAN Y X, LIANG Z W, LU F Y . Effect of different lighting quality and intensities on quality of rice seedling by greenhouse stereoscopic nursing. Transactions of the Chinese Society of Agricultural Engineering, 2015,31(11):228-233. (in Chinese )
[16]	许仁良, 张国良, 闫元景, 石专平, 胥帅帅, 雷思, 李加伟, 程军军 . LED蓝红光及其组合对水稻秧苗素质的影响. 淮阴工学院学报, 2016,25(5):39-44.
	XU R L, ZHANG G L, YAN Y J, SHI Z P, XU S S, LEI S, LI J W, CHENG J J . Effects of LED blue, red and its combinations on rice seedlings quality. Journal of Huaiyin Institute of Technology, 2016,25(5):39-44. (in Chinese )
[17]	叶子飘, 康华靖 . 植物光响应修正模型中系数的生物学意义研究. 扬州大学学报(农业与生命科学版), 2012,33(2):51-57.
	YE Z P, KANG H J . Study on biological significance of coefficients in modified model of photosynjournal irradiance.[J] ournal of Yangzhou University (Agricultural and Life Science Edition), 2012,33(2):51-57. (in Chinese )
[18]	叶子飘 . 光响应模型在超级杂交稻组合-Ⅱ优明86中的应用. 生态学杂志, 2007,26(8):1323-1326.
	YE Z P . Application of light-response model in estimating the photosynthesis of super-hybrid rice combination-Ⅱ Youming 86. Chinese Journal of Ecology, 2007,26(8), 1323-1326. (in Chinese)
[19]	YE Z P, SUGGETT D J, ROBAOWSKI P, KANG H J . A mechanistic model for the photosynthesis-light response based on the photosynthetic electron transport of photosystem II in C₃ and C₄ species. New Phytologist, 2013,199(1):110-120.
[20]	YE Z P, ROBAKOWSKI P, SUGGETT D J . A mechanistic model for the light response of photosynthetic electron transport rate based on light harvesting properties of photosynthetic pigment molecules. Planta, 2013,237(3):837-847.
[21]	吕川根, 李霞, 陈国祥 . 超级杂交稻两优培九高产的光合特性及其生理基础. 中国农业科学, 2017,50(21):4055-4071. doi: 10.3864/j.issn.0578-1752.2017.21.001
	LÜ C G, LI X, CHEN G X . Photosynthetic characteristics and its physiological basis of super high-yielding hybrid rice Liangyoupeijiu. Scientia Agricultura Sinica, 2017,50(21):4055-4071. doi: 10.3864/j.issn.0578-1752.2017.21.001
[22]	唐永康, 郭双生, 艾为党, 秦利锋 . 不同比例红蓝LED光照对油麦菜生长发育的影响. 航天医学与医学工程, 2010,23(3):206-212.
	TANG Y K, GUO S S, AI W D, QIN L F . Effcets of red and blue light emitting diodes(LEDs) on the growth and development of lettuce. Space Medicine & Medical Engineering, 2010,23(3):206-212. (in Chinese )
[23]	SAVVIDES A, FANOURAKIS D, VAN IEPEREN W . Co-ordination of hydraulic and stomatal conductances across light qualities in cucumber leaves. Journal of Experimental Botany, 2012,63(3):1135-1143.
[24]	STRASSER R J, TSIMILLI-MICHAEL M, SRIVASTAVA A . Analysis of the Chlorophyll a Fluorescence Transient. Dordrech: Springer Netherlands, 2004: 321-362.
[25]	OUZOUNIS T O T, PARJIKOLAEI B P B R, FRETTE X F X, ROSENQVIST E R E, OTTOSEN C O C . Predawn and high intensity application of supplemental blue light decreases the quantum yield of PSII and enhances the amount of phenolic acids, flavonoids, and pigments in Lactuca sativa. Frontiers in Plant Science, 2015,6(19):1-14.
[26]	OUZOUNIS T O T, FRETTE X F X, OTTOSEN C O C, ROSENQVIST E R E . Spectral effects of LEDs on chlorophyll fluorescence and pigmentation in Phalaenopsis ‘Vivien’ and ‘Purple Star’. Physiologia Plantarum, 2015,154(2):314-327.
[27]	李雯琳, 郁继华, 张国斌, 杨其长 . LED光源不同光质对叶用莴苣幼苗叶片气体参数和叶绿素荧光参数的影响. 甘肃农业大学学报, 2010,45(1):47-51.
	LI W L, YU J H, ZHANG G B, YANG Q C . Effects of light quality on parameters of gas exchange and chlorophyII fluorescence in lettuce leaves by using LED. Journal of Gansu Agricultural University, 2010,45(1):47-51. (in Chinese )
[28]	叶子飘, 闫小红, 段世华 . 高产水稻剑叶的叶绿素含量、捕光色素分子的内禀特性与饱和光强关系的研究. 井冈山大学学报(自然科学版), 2015,36(2):25-32, 53.
	YE Z P, YAN X H, DUAN S H . Investigation on the relationship between saturation irradiance and chlorophyll contents of flag leaves and intrinsic characteristics of light-harvesting pigment molecules in high-yielding rice. Journal of Jinggangshan University (Natural Science), 2015,36(2):25-32, 53.
[29]	邓江明, 蔡群英, 潘瑞炽 . 光质对水稻幼苗蛋白质、氨基酸含量的影响. 植物学通报, 2000,17(5):419-423.
	DENG J M, CAI Q Y, PAN R Z . Effect of light quality on the contents of protein and free amino acids in rice seedlings. Chinese Bulletin of Botany, 2000,17(5):419-423. (in Chinese )
[30]	李霞, 阎秀峰, 于涛 . 滤光膜对黄檗幼苗生物量及初级氮同化酶活性的影响. 应用生态学报, 2006,17(11):2020-2023.
	LI X, YAN X F, YU T . Effects of color films shading on Phellodendron amurense seedlings biomass and primary nitrogen- assimilation enzyme activities. Chinese Journal of Applied Ecology, 2006,17(11):2020-2023. (in Chinese )
[31]	樊小雪, 宋波, 徐海, 陈龙正, 徐志刚, 袁希汉 . LED光源对不结球白菜和番茄内源激素含量的影响. 浙江农业学报, 2015,27(11):1927-1931.
	FAN X X, SONG B, XU H, CHEN L Z, XU Z G, YUAN X H . Effects of light-emitting diodes on contents of endogenous hormones in non-heading Chinese cabbage and tomato. Acta Agriculturae Zhejiangensis, 2015,27(11):1927-1931. (in Chinese )
[32]	WANG H, GU M, CUI J, SHI K, ZHOU Y, YU J . Effects of light quality on CO₂ assimilation, chlorophyll-fluorescence quenching, expression of Calvin cycle genes and carbohydrate accumulation in Cucumis sativus. Journal of Photochemistry and Photobiology B: Biology, 2009,96(1):30-37.
[33]	ZEIGER E, ZHU J X . Role of zeaxanthin in blue light photoreception and the modulation of light-CO₂ interactions in guard cells. Annual Meeting of the Society-for-Experimental-Biology on Stomatal Biology. Journal of Experimental Botany, 1998,49(49):433-442.
[34]	SHIN K S, MURTHY H N, HEO J W, HAHN E J, PAEK K Y . The effect of light quality on the growth and development of in vitro cultured doritaenopsis plants. Acta Physiologiae Plantarum, 2008,30(3):339-343.

处理 Treatment	穗数 Spike number (m^-2)	穗粒数 Grain number per spike	千粒重 1000-grain weight (g)	结实率 Seed setting rate (%)	产量 Yield (kg·m^-2)
R660	129.38±9.31a	42.6±2.58a	28.6±0.10a	90.23±0.22c	0.142
R630	106.99±4.98b	36.8±3.02a	28.0±0.20b	93.68±0.29a	0.103
B460	104.50±3.05b	41.3±2.58a	28.9±0.12a	94.57±0.33a	0.118
B440	114.45±7.25ab	41.8±2.94a	27.9±0.12b	92.79±0.34b	0.124

光合参数 Photosynthesis parameter	处理 Treatment
光合参数 Photosynthesis parameter	R660	R630	B460	B440
光响应曲线初始斜率 Initial slope of light response curve, α, mol·mol^-1 (×10^-2)	4.73	4.14	5.81	3.03
光抑制项 Photo-inhibition term, β, (m²·s)/天线色素分子^-1 (×10^-5)	5.75	5.23	6.65	13.5
光饱和项 Photo-saturation term, γ, (m²·s)/天线色素分子^-1 (×10^-3)	1.90	1.70	1.50	0.90
暗呼吸的量子效率 Quantum efficiency of dark respiration (×10^-2)	5.03	4.44	6.16	3.22
补偿点的量子效率 Compensation point quantum efficiency (×10^-2)	4.45	3.86	5.48	2.85
捕光色素分子的本征光能吸收截面 Eigen-absorption cross-section of photosynthetic pigment molecule, σ_ik, m² (×10^-20)	4.25	3.49	4.86	3.46
捕光色素分子数 Number of light-harvesting pigment molecule (N_o) (×10¹⁴)	5.89	6.28	6.33	4.63

指标Index	R660	R630	B460	B440
最大光化学效率F_v/F_m	0.811±0.002b	0.814±0.001ab	0.819±0.002a	0.818±0.002aa
光下最大光化学效率F_v'/F_m'	0.591±0.025aa	0.608±0.018a	0.555±0.005a	0.591±0.010a
实际光化学效率ΦPSⅡⅡ	0.436±0.023ab	0.406±0.010b	0.434±0.003ab	0.469±0.009a
电子传递速率ETR	124.17±6.66abab	115.18±2.95b	123.41±0.89ab	133.17±2.72a
非光化学淬灭NPQ	0.805±0.117bb	1.030±0.150ab	1.238±0.056a	1.008±0.049ab
1-qP	0.263±0.014bb	0.328±0.031a	0.217±0.008bc	0.208±0.006c
光化学淬灭系数qP	0.737±0.014bb	0.672±0.031c	0.783±0.008abb	0.792±0.006a
