中国农业科学 ›› 2023, Vol. 56 ›› Issue (17): 3277-3284.doi: 10.3864/j.issn.0578-1752.2023.17.004

• 专题:转基因、基因编辑技术培育除草剂抗性棉花 • 上一篇    下一篇

转基因抗草甘膦棉花R1-3株系的分子特征鉴定

马燕斌1(), 李换丽1, 文晋1, 周仙婷1,2, 秦欣1, 王霞3, 王新胜1, 李燕娥1

  1. 1山西农业大学棉花研究所,山西运城 044000
    2山西农业大学农学院,山西太谷 030800
    3运城学院生命科学系,山西运城 044000
  • 收稿日期:2023-02-01 接受日期:2023-07-05 出版日期:2023-09-01 发布日期:2023-09-08
  • 通信作者:
    马燕斌,E-mail:
  • 基金资助:
    转基因生物新品种培育重大专项(2016ZX08010-003); 山西省应用基础研究面上项目(202103021224145); 山西省农业科学院农业科技创新研究课题(YGJPY2007)

Identification of Molecular Characterizations for Transgenic Cotton R1-3 Line of Glyphosate Tolerance

MA YanBin1(), LI HuanLi1, WEN Jin1, ZHOU XianTing1,2, QIN Xin1, WANG Xia3, WANG XinSheng1, LI YanE1

  1. 1Institute of Cotton Research, Shanxi Agriculture University, Yuncheng 044000, Shanxi
    2College of Agronomy, Shanxi Agriculture University, Taigu 030800, Shanxi
    3Department of Life Science, Yuncheng University, Yuncheng 044000, Shanxi
  • Received:2023-02-01 Accepted:2023-07-05 Published:2023-09-01 Online:2023-09-08

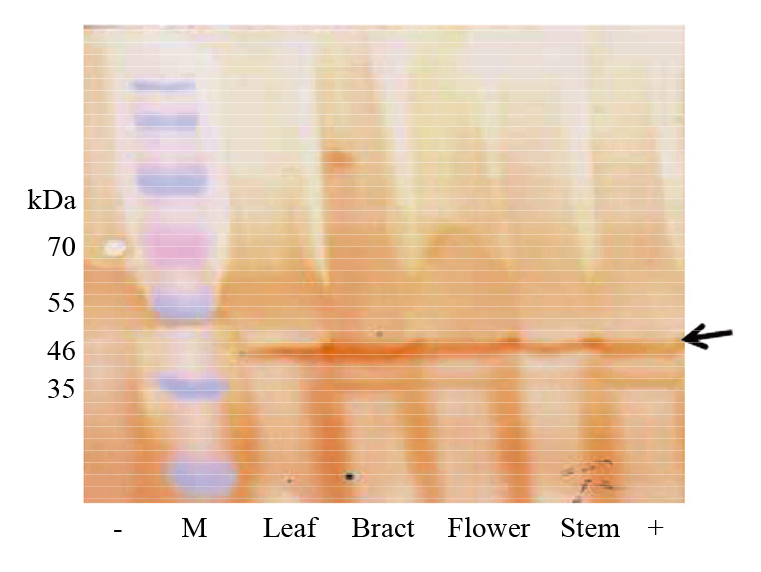

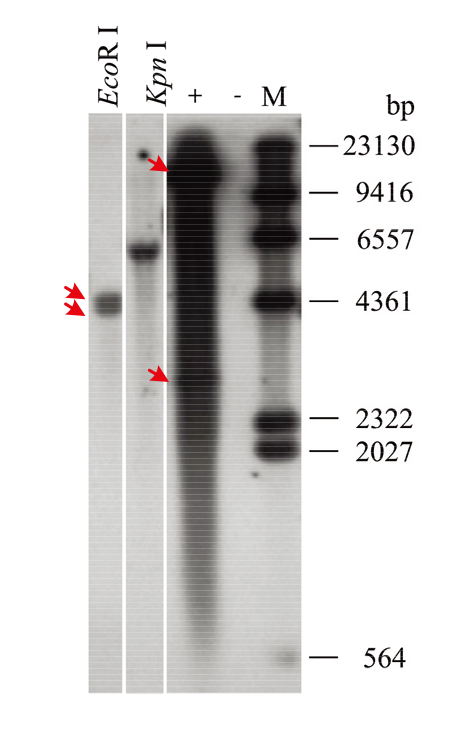

摘要: 【目的】 通过转化抗草甘膦除草剂基因G10aroA获得抗草甘膦除草剂的棉花转基因株系,对其进行分子特征鉴定分析,为今后棉花育种利用该株系提供必要的分子依据。【方法】 利用农杆菌介导法,在草甘膦筛选条件下,通过组织培养获得棉花再生株系,利用Western blot对转基因棉花株系不同组织的外源蛋白表达进行检测;通过Southern blot确定株系中外源G10aroA整合位点的拷贝数;利用TAIL-PCR扩增外源基因整合位点侧翼序列,并通过NCBI BLAST工具比较分析其定位的染色体位置。【结果】 通过草甘膦筛选,利用组织培养获得R1-3棉花再生株系;Western blot结果表明,外源基因在叶、苞叶、花、茎中均可正常表达,其蛋白大小约为46 kDa,与预期目标条带一致;基因组DNA酶切后杂交结果显示,R1-3株系外源序列的整合位点为单拷贝插入,其中,KpnⅠ酶切的杂交条带位于约6 557 bp处,EcoRⅠ酶切的2条杂交带位于略大于4 316 bp处;侧翼序列比对结果显示,外源序列融合到陆地棉A或D基因组的第11号染色体上,且在交换插入的过程中,左右边界的融合位点分别位于该染色体47 525 303和47 525 449处。另外,利用特异引物进行PCR鉴定,可知左侧融合位点可扩增出约300 bp的预期特定目标条带,右侧融合位点可扩增出约600 bp的预期特定目标条带。【结论】 获得具有稳定遗传特征的R1-3转基因棉花株系,不同组织中外源基因编码的蛋白均有表达,提高了该株系对草甘膦的高抗性。含有G10aroA的外源序列为单个位点插入,融合位点位于陆地棉A或D基因组第11号染色体上,该融合位点处缺失约146 bp的核苷酸序列。

关键词: 陆地棉, 抗草甘膦棉花, 拷贝数, 融合位点, 分子特征

Abstract:

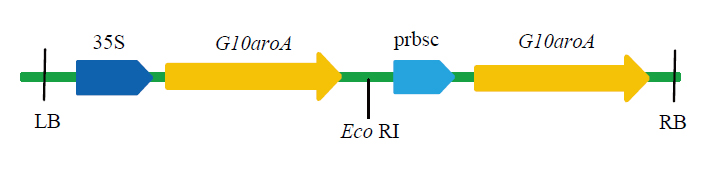

【Objective】 To obtain the transgenic cotton by Agrobacterium-mediated method was the purpose using the new gene G10aroA with high glyphosate tolerance in our laboratory. Meanwhile, it was necessary to provide molecular characteristics of genomic integration of the exogenous gene for breeding utilization in future. 【Method】 The Agrobacterium-mediated method was used for transgenic cotton plants obtained via tissue culture with glyphosate herbicide. Western blot was utilized to detect the expression of exogenous proteins in different organs of transgenic cotton R1-3. The number of loci in cotton genomes were evaluated by Southern blot for detecting integration of the exogenous sequence from the pCAMBIA1300 construct. The flanking sequence near the insertion site was amplified by TAIL-PCR, which the extractions of DNA were cloned and sequenced. The location of the chromosome for the flanking sequences were compared and analyzed on the website of NCBI blast. 【Result】 Regenerated R1-3 cotton plants were successfully obtained by tissue culture depending on glyphosate screening. the specific protein coded by exogenous G10aroA gene could be detected normally via Western blotting in the leaves, bracts, flowers and stems separately, and the size of the exogenous protein around 46 kDa were also observed in this experiment. In addition, the result of Southern-blot confirmed that the exogenous fragment containing G10aroA sequences was single integration in the genome of transgenic cotton R1-3, in which the bands digested severally by KpnⅠ and EcoRⅠ endonucleases were distinctly observed near the position of 6 557 bp and 4 316 bp strips on the nylon membrane respectively. The analysis of flanking sequence alignment for the integration site was predicted to be located on the 11th chromosome of either cotton A or D genome, and the left and right boundaries of the insertion site were further located between 47 525 303 and 47 525 449 of the chromosomes. In addition, the specific identification for the fusion site showed that the target band of approximately 300 bp for testing left border junction, and a specific target band can be amplified about 600 bp for testing the right border fusion site. 【Conclusion】 In this study, we obtained R1-3 transgenic cotton plants that also have exhibited stable genetic characteristics of glyphosate resistance during the process of self-crossing breeding. The protein coded by G10aroA gene was about the size of 46 kDa that could be detected in different tissues of transgenic cotton R1-3 plant. Furthermore, the exogenous fragment including G10aroA gene was identified with a single location by southern blot in the cotton genomes, and the integration site was located at the 11th chromosome. The results of comparative analysis were predicted that a nucleotide sequence about 146 bp length was deleted at the integration of the genome.

Key words: Gossypium hirsutum L., glyphosate-tolerance cotton, copy number, integration site, molecular characterization
