高温胁迫对葡萄幼树生理指标和超显微结构的影响

doi:10.3864/j.issn.0578-1752.2020.07.013

摘要/Abstract

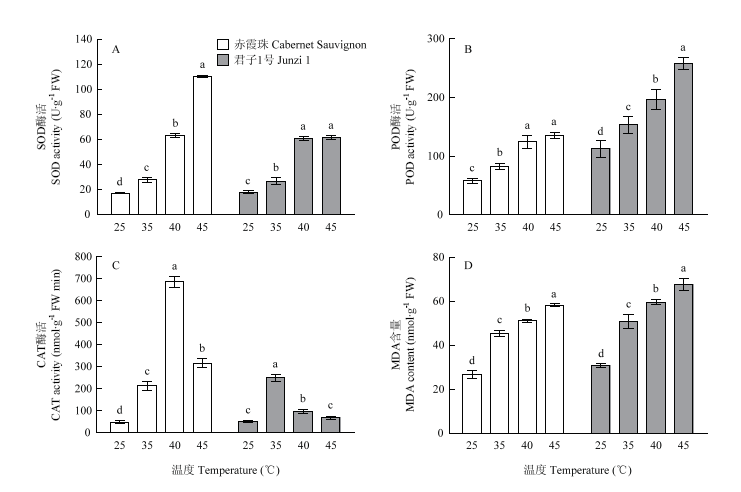

摘要： 【目的】 研究高温胁迫对葡萄生理指标和超显微结构的影响,探讨葡萄在高温胁迫下的生理响应机制。 【方法】 以一年生欧亚种‘赤霞珠’和刺葡萄‘君子1号’扦插苗为试验材料,在35℃、40℃和45℃植物培养箱中连续处理48 h,以25℃培养的植株作为对照,检测葡萄叶片的相对电导率、相对含水量、叶绿素总量、抗氧化酶活性、丙二醛（MDA）/超氧阴离子/过氧化氢含量、叶绿素荧光参数和光合参数,并通过扫描电镜和透射电镜对气孔形态和叶绿体结构进行观察。 【结果】 在35℃和40℃高温处理后,‘赤霞珠’和‘君子1号’的植株形态、相对电导率、相对含水量、叶绿素总量、叶绿素荧光参数均无显著变化,但净光合速率（Pn）、蒸腾速率（Tr）和气孔导度（Gs）显著降低;在45℃高温处理后,‘赤霞珠’和‘君子1号’号均出现胁迫症状,相对电导率显著增加,相对含水量、叶绿素总量、Fv/Fm、ΦPSII、Pn、Tr和Gs显著降低,且‘君子1号’各参数的变化幅度大于‘赤霞珠’。随着处理温度的升高,葡萄叶片中丙二醛/超氧阴离子/过氧化氢含量、超氧化物歧化酶（SOD）和过氧化物酶（POD）活性不断增加,而过氧化氢酶（CAT）在中度高温胁迫下活性最高,且‘赤霞珠’SOD和CAT活性的增加幅度大于‘君子1号’。扫描电镜观察发现,常温下‘赤霞珠’的气孔密度大于‘君子1号’,在高温处理后葡萄叶片的气孔开张度减小,但气孔大小无显著变化。用透射电镜观察发现,高温处理使叶绿体的体积变大、形状变圆,叶绿体膜解体,出现大量巨型淀粉粒,并在‘君子1号’叶绿体上观察到大量嗜锇颗粒。 【结论】 ‘赤霞珠’的气孔密度大,叶绿体结构稳定,高温处理后SOD和CAT活性大幅增加是其耐热性高的重要原因。

关键词: 赤霞珠, 刺葡萄, 高温胁迫, 光合作用, 抗氧化酶, 叶绿体

Abstract: 【Objective】 The objective of this research was to study the effects of heat stress on physiological indexes and ultrastructure of grapevines, and to explore the physiological response mechanism of grapevines to heat stress. 【Method】 One-year cutting seedlings of Vitis vinifera L. cv. Cabernet Sauvignon and Vitis davidii Foex. cv. Junzi 1were used as test materials, which were treated at 35℃, 40℃ and 45℃ for 48 h, with the plants at 25℃ as the control. Relative electrolyte leakage, relative water content, total chlorophyll content, antioxidant enzyme activity, malondialdehyde/super oxygen anion/hydrogen peroxide content, chlorophyll fluorescence and photosynthetic parameters of grape leaves were detected. By the scanning electron microscopy (SEM) and transmission electron microscopy (TEM), stomatal morphology and chloroplast ultrastructure were observed. 【Result】 After heat treatment at 35℃ and 40℃, the plant morphology, relative electrolyte leakage, relative water content, total chlorophyll content and chlorophyll fluorescence of Cabernet Sauvignon and Junzi 1 showed no significant changes, but net photosynthetic rate (Pn), transpiration rate (Tr) and stomatal conductance (Gs) were significantly reduced. After heat treatment at 45℃, Cabernet Sauvignon and Junzi 1 appeared stress symptoms, with relative electrolyte leakage increasing, and relative water content, total chlorophyll content, Fv/Fm, ΦPSII, Pn, Tr and Gs decreasing. The change range of each parameter in Junzi 1 was greater than that in Cabernet Sauvignon. With the increase of temperature, malondialdehyde/superoxide anion/hydrogen peroxide content, SOD and POD activities in grape leaves increased continuously, while CAT activity was the highest under moderate heat stress. The increase of SOD and CAT activities in Cabernet Sauvignon leaves was greater than that in Junzi 1. By SEM, it was found that at room temperature, the stomatal density of Cabernet Sauvignon was higher than that of Junzi 1; after heat treatment, the stomatal opening of grape leaves decreased, but the stomatal size did not change significantly. By TEM, it was found that after heat treatment, the chloroplast became large and round; the chloroplast membrane disintegrated; many giant starch grains appeared; a large number of plastoglobules were observed in the chloroplast of Junzi 1. 【Conclusion】 In Cabernet Sauvignon, stomatal density was high, chloroplast structure was stable, and SOD and CAT activities highly increased after heat treatment, which were the important reasons for its high heat resistance.

Key words: Cabernet Sauvignon, Vitis davidii Foex. cv. Junzi 1, heat stress, photosynthesis, antioxidant enzyme, chloroplast

刘敏,房玉林. 高温胁迫对葡萄幼树生理指标和超显微结构的影响[J]. 中国农业科学, 2020, 53(7): 1444-1458.

Min LIU,Yulin FANG. Effects of Heat Stress on Physiological Indexes and Ultrastructure of Grapevines[J]. Scientia Agricultura Sinica, 2020, 53(7): 1444-1458.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2020.07.013

https://www.chinaagrisci.com/CN/Y2020/V53/I7/1444

图/表 12

图1

图2

图3

图4

图5

图6

图7

图8

图9

表1

图10

表2

参考文献 30

[1]	蒯传化, 刘三军, 吴国良, 杨朝选, 陈勇朋, 王鹏, 刘崇怀, 于巧丽 . 葡萄日灼病阈值温度及主要影响因子分析. 园艺学报, 2009,36(8):1093-1098.
	KUAI C H, LIU S J, WU G L, YANG C X, CHEN Y P, WANG P, LIU C H, YU Q L . Analysis of the main factors and threshold temperature on Vitis berry sunburn. Acta Horticulturae Sinica, 2009,36(8):1093-1098. (in Chinese)
[2]	LIU X Z, HUANG B R . Heat stress injury in relation to membrane lipid peroxidation in creeping bent grass. Crop Science, 2000,40(2):503-510.
[3]	RUELLAND E, ZACHOWSKI A . How plants sense temperature. Environmental & Experimental Botany, 2010,69(3):225-232.
[4]	张俊环, 黄卫东 . 葡萄幼苗在温度逆境交叉适应过程中活性氧及抗氧化酶的变化. 园艺学报, 2007,34(5):1073-1080.
	ZHANG J H, HUANG W D . Changes of active oxygen and antioxidant enzymes in leaves of young grape plants during cross adaptation to temperature stress. Acta Horticulturae Sinica, 2007,34(5):1073-1080. (in Chinese)
[5]	查倩, 奚晓军, 蒋爱丽, 田益华, 黄健 . 高温胁迫对葡萄幼树叶绿素荧光特性和抗氧化酶活性的影响. 植物生理学报, 2016,52(4):525-532.
	ZHA Q, XI X J, JIANG A L, TIAN Y H, HUANG J . Effects of heat stress on chlorophyll fluorescence characteristics and antioxidant activity in grapevines ( Vitis vinifera L. cv. Xiahei). Plant Physiology Journal, 2016,52(4):525-532. (in Chinese)
[6]	ZHANG J, JIANG F W, YANG P, LI L, YAN G J, HU L Y . Responses of canola ( Brassica napus L.) cultivars under contrasting temperature regimes during early seedling growth stage as revealed by multiple physiological criteria. Acta Physiologiae Plantarum, 2015,37(2):7-17.
[7]	MAXWELL K, JOHNSON G N . Chlorophyll fluorescence-A practical guide. Journal of Experimental Botany, 2000,51:659-668.
[8]	BAKER N R, ROSENQVIST E . Applications of chlorophyll fluorescence can improve crop production strategies: An examination of future possibilities. Journal of Experimental Botany, 2004,403:1607-1621.
[9]	FENG B, LIU P, LI G, DONG S T, WANG F H, KONG L A, ZHANG J W . Effect of heat stress on the photosynthetic characteristics in flag leaves at the grain-filling stage of different heat-resistant winter wheat varieties. Journal of Agronomy and Crop Science, 2014,200(2):143-155.
[10]	JIANG C D, JIANG G M, WANG X Z, LI L H, BISWAS D K, LI Y G . Increased photosynthetic activities and thermostability of photosystem II with leaf development of ELM seedlings ( Ulmus pumila) probed by the fast fluorescence rise OJIP. Environmental and Experimental Botany, 2006,58(1-3):261-268.
[11]	MURATA N, TAKAHASHI S, NISHIYAMA Y, ALLAKHVERDIEV S I . Photoinhibition of photosystem II under environmental stress. Biochim Biophys Acta, 2007,1767(6):414-421.
[12]	TAKAHASHI S, MURATA N . How do environmental stresses accelerate photoinhibition. Trends in Plant Science, 2008,13(4):178-182.
[13]	YAN K, CHEN P, SHAO H B, SHAO C Y, ZHAO S J, BRESTIC M . Dissection of photosynthetic electron transport process in sweet sorghum under heat stress. PLoS ONE, 2013,8(5):e62100.
[14]	罗海波, 马苓, 段伟, 李绍华, 王利军 . 高温胁迫对‘赤霞珠’葡萄光合作用的影响. 中国农业科学, 2010,43(13):2744-2750.
	LUO H B, MA L, DUAN W, LI S H, WANG L J . Influence of heat stress on photosynthesis in Vitis vinifera L. cv. Cabernet Sauvignon. Scientia Agricultura Sinica, 2010,43(13):2744-2750. (in Chinese)
[15]	孙永江, 付艳东, 杜远鹏, 翟衡 . 不同温度/光照组合对‘赤霞珠’葡萄叶片光系统II功能的影响. 中国农业科学, 2013,46(6):1191-1200.
	SUN Y J, FU Y D, DU Y P, ZHAI H . Effects of different temperature and light treatments on photosynthetic system II in Vitis vinifera L. cv. Cabernet Sauvignon. Scientia Agricultura Sinica, 2013,46(6):1191-1200. (in Chinese)
[16]	徐洪国 . 葡萄耐热性评价及不同耐热性葡萄转录组研究[D]. 北京: 中国农业大学, 2014.
	XU H G . Evaluation of grape heat tolerance and transcriptome of different heat tolerance of grape[D]. Beijing: China Agricultural University, 2014. (in Chinese)
[17]	ZOU M Q, YUAN L Y, ZHU S D, LIU S, GE J T, WANG C G . Effects of heat stress on photosynthetic characteristics and chloroplast ultrastructure of a heat-sensitive and heat-tolerant cultivar of wucai ( Brassica campestris L.). Acta Physiologiae Plantarum, 2017,39(1):1-10.
[18]	田治国, 王飞, 张文娥, 赵秀明 . 高温胁迫对孔雀草和万寿菊不同品种生长和生理的影响. 园艺学报, 2011,38(10):1947-1954.
	TIAN Z G, WANG F, ZHANG W E, ZHAO X M . Effects of heat stress on growth and physiology of marigold cultivars. Acta Horticulturae Sinica, 2011,38(10):1947-1954. (in Chinese)
[19]	ZHOU R, KONG L P, YU X Q, OTTOSEN C O, ZHAO T M, JIANG F L, WU Z . Oxidative damage and antioxidant mechanism in tomatoes responding to drought and heat stress. Acta Physiologiae Plantarum, 2019,41:1-11.
[20]	孙军利, 赵宝龙, 郁松林 . 外源水杨酸(SA)对高温胁迫下葡萄幼苗耐热性诱导研究. 水土保持学报, 2014,28(3):290-294.
	SUN J L, ZHAO B L, YU S L . Study of exogenous salicylic acid (SA) on the heat tolerance in grape seedlings under high temperature stress. Journal of Soil and Water Conservation, 2014,28(3):290-294. (in Chinese)
[21]	YANG G, GUO Y K, LIN S H, FANG Y Y, BAI J G . Hydrogen peroxide pretreatment alters the activity of antioxidant enzymes and protects chloroplast ultrastructure in heat-stressed cucumber leaves. Scientia Horticulturae, 2010,126(1):20-26.
[22]	HUANG Y W, ZHOU Z Q, YANG H X, WEI C X, WAN Y Y, WANG X J, BAI J G . Glucose application protects chloroplast ultrastructure in heat-stressed cucumber leaves through modifying antioxidant enzyme activity. Biologia Plantarum, 2015,59(1):131-138.
[23]	韩晓, 王海波, 王孝娣, 冀晓昊, 史祥宾, 王宝亮, 郑晓翠, 王志强, 刘凤之 . 不同砧木对‘87-1’葡萄光合特性及荧光特性的影响. 中国农业科学, 2018,51(10):1972-1981.
	HAN X, WANG H B, WANG X D, JI X H, SHI X B, WANG B L, ZHENG X C, WANG Z Q, LIU F Z . Effects of different rootstocks on ‘87-1’ grape photosynthetic and chlorophyll fluorescence characteristics. Scientia Agricultura Sinica, 2018,51(10):1972-1981. (in Chinese)
[24]	朱玉, 郝立华, 黄磊, 王贺新, 党承华, 张运鑫, 程东娟, 王利书, 郑云普, 徐国辉 . 不同温度对3种北高丛蓝莓气孔特征和气体交换参数的影响. 中国农业大学学报, 2016,21(7):43-52.
	ZHU Y, HAO L H, HUANG L, WANG H X, DANG C H, ZHANG Y X, CHENG D J, WANG L S, ZHENG Y P, XU G H . Effects of temperature on leaf stomatal traits and gas exchange of three north highbush blueberry varieties. Journal of China Agricultural University, 2016,21(7):43-52. (in Chinese)
[25]	王光耀, 刘俊梅, 张仪, 余炳生, 沈征言 . 菜豆四个不同抗热性品种的气孔特性. 农业生物技术学报, 1999,7(3):267-270.
	WANG G Y, LIU J M, ZHANG Y, YU B S, SHEN Z Y . Studies on stomatal properties of four common bean cultivars with known different thermoresistance. Journal of Agricultural Biotechnology, 1999,7(3):267-270. (in Chinese)
[26]	SUN W, VAN M M, VERBRUGGEN N . Small heat shock proteins and stress tolerance in plants. Biochim Biophys Acta, 2002,1577(1):1-9.
[27]	黄磊, 孙耀清, 郝立华, 党承华, 朱玉, 王贺新, 程东娟, 张运鑫, 郑云普 . 高温对北高丛越橘叶片结构和生理代谢的影响. 园艺学报, 2016,43(6):1044-1056.
	HUANG L, SUN Y Q, HAO L H, DANG C H, ZHU Y, WANG H X, CHENG D J, ZHANG Y X, ZHENG Y P . Effects of high temperatures on leaf structures and physiological metabolism of north highbush blueberry. Acta Horticulturae Sinica, 2016,43(6):1044-1056. (in Chinese)
[28]	秦玲, 康文怀, 齐艳玲, 蔡爱军 . 盐胁迫对酿酒葡萄叶片细胞结构及光合特性的影响. 中国农业科学, 2012,45(20):4233-4241.
	QIN L, KANG W H, QI Y L, CAI A J . Effects of salt stress on mesophyll cell structures and photosynthetic characteristics in leaves of wine grape (Vitis spp.). Scientia Agricultura Sinica, 2012,45(20):4233-4241. (in Chinese)
[29]	张洁, 李天来 . 日光温室亚高温对番茄光合作用及叶绿体超微结构的影响. 园艺学报, 2005,32(4):614-619.
	ZHANG J, LI T L . Effects of daytime sub-high temperature on photosynthesis and chloroplast ultrastructure of tomato leaves in greenhouse. Acta Horticulturae Sinica, 2005,32(4):614-619. (in Chinese)
[30]	ZHANG R, WISE R R, STRUCK K R, SHARKEY T D . Moderate heat stress of Arabidopsis thaliana leaves causes chloroplast swelling and plastoglobule formation. Photosynthesis Research, 2010,105(2):123-134.

品种 Variety	处理时间 Time after treatment (h)	气孔开张度 Degree of stomatal opening (μm)	气孔长度 Stomatal length (μm)	气孔宽度 Stomatal width (μm)	气孔密度 Stomatal density (No./mm²)
赤霞珠 Cabernet Sauvignon	0	3.44±0.97a	16.59±1.32a	7.23±1.46a	187.35±20.65a
赤霞珠 Cabernet Sauvignon	24	2.11±0.78b	16.52±1.54a	6.33±1.03ab	177.60±17.31a
君子1号Junzi 1	0	1.97±0.54b	15.51±2.06ab	5.82±0.75ab	132.71±7.81b
君子1号Junzi 1	24	1.22±0.77c	13.98±1.42b	5.48±1.10b	122.95±17.31b

品种 Variety	时间 Time (h)	叶绿体Chloroplast			淀粉粒Starch grain
品种 Variety	时间 Time (h)	数目/细胞 (No./cell)	长度 Length (μm)	宽度 Width (μm)	数目/叶绿体 (No./chloroplast)	长度 Length (μm)	宽度 Width (μm)
赤霞珠 Cabernet Sauvignon	0 h	6.4±1.9a	5.83±0.63a	3.03±0.24b	0.6±0.5b	1.21±0.25b	0.68±0.14c
赤霞珠 Cabernet Sauvignon	24 h	5.0±2.2a	5.42±0.98a	3.91±0.76a	1.1±0.8a	1.83±0.54a	1.06±0.21b
君子1号 Junzi 1	0 h	6.3±1.4a	5.41±0.96a	2.46±0.37c	0.7±0.6b	0.87±0.09b	0.42±0.05d
君子1号 Junzi 1	24 h	5.7±0.8a	5.39±0.75a	4.32±0.48a	1.2±0.9a	2.13±0.62a	1.36±0.40a
