作物水肥耦合类型量化方法在华北冬小麦水氮配置中的应用

doi:10.3864/j.issn.0578-1752.2019.17.008

摘要/Abstract

摘要：

【目的】研究一种作物水肥耦合类型量化方法及基于这种方法的华北冬小麦水氮优化配置,丰富作物水肥耦合分析方法,为促进冬小麦水肥协同高效生产提供理论基础和实践依据。【方法】根据作物相对产量的真实值与理论值的差异显著性来判定某一具体水肥组合的耦合类型。2006—2016连续10年在黄淮北部进行了冬小麦季不同水氮处理的大田定位试验。裂区设计,灌水量为主区,设春灌1水（拔节期75 mm,W₁）和2水（拔节期和开花期各75 mm,W₂）两个处理;施氮量为副区,设5个水平,分别为0 （N₀）、60（N₆₀）、120（N₁₂₀）、180（N₁₈₀）、240 kg·hm ^-2（N₂₄₀）,共10对水氮组合。研究冬小麦不同水氮组合的耦合类型及其年际转换特征,确选适宜的水氮配置。【结果】某一水肥组合相对产量真实值经统计检验显著高于其理论值,此水肥组合的水肥耦合类型即为“协同”（水肥互相促进）;真实值显著小于理论值,水肥耦合类型即为“拮抗”（水肥互相限制）;真实值与理论值没有显著差异,水肥耦合类型即为“加和”（水肥互不影响）。冬小麦W₂与不同施氮水平（N_x）组成的水氮组合的耦合类型及其年际变化特征受施氮水平的影响显著。W₂N₆₀水氮耦合类型10年平均为“拮抗”,定位第1—2年灌水限制施氮的增产作用,施氮限制了灌水的增产作用,水氮“拮抗”;定位第3 ^-25年耦合类型转变成“增水促氮,增氮促水”的“协同”;定位第6—10年又转为“拮抗”。W₂N₁₂₀的耦合类型在定位第1—4年为“加和”,第5年起就转为“协同”,10年平均为“协同”。施氮超过120 kg·hm ^-2的两水氮组合W₂N₁₈₀与W₂N₂₄₀的耦合类型各年度均为水氮互不影响的“加和”。【结论】基于作物相对产量真实值与理论值差异的显著性来定量判定某一特定水肥组合的耦合类型具有较强的可行性。黄淮北部冬小麦生产中, W₂N₁₂₀组合水氮协同增产效果显著,耦合类型长期为“协同”,因此,在一定年限内可作为该区冬小麦季适宜的水氮配置,年均产量水平维持在8.5 t·hm ^-2左右。

关键词: 水肥耦合类型, 量化方法, 冬小麦, 华北平原, 水氮配置

Abstract:

【Objective】 A novel method for distinguishing quantitatively irrigation and fertilizer coupling types was introduced, and basing on this method, irrigation and nitrogen combination in winter wheat on North China Plain was to be optimized. The aim of the study was to have a greater understanding of coupling effect of water and fertilizer, and to provide theoretical and practical basis for promoting water and fertilizer synergetic management in crop production. 【Method】 The results showed that the difference between the true value and the theoretical value of crop relative yield was statistically significant (P＜0.05) or not was considered as the critical criterion for distinguishing the coupling type of a specific water-fertilizer combination. The two-factor split plot experiment was persistently carried out in the North China Plain in Hebei province during ten successive winter wheat growing seasons (2016-2016). In this experiment, the two irrigation treatments were the main plots, irrigation one time (75 mm in jointing stage, W₁) and two times (75 mm in jointing and flowering stage respectively, W₂) during wheat growing season, and five N rates were the subplots, consisting of 0 (N₀), 60 (N₆₀), 120 (N₁₂₀), 180 (N₁₈₀), and 240 (N₂₄₀) kg·hm ^-2, respectively. The coupling types of different water-nitrogen combinations and their inter-annual variation characteristics were explored to determine the optimized water-nitrogen combination in winter wheat growing seasons.【Result】 When the true value of the crop relative yield of a water-fertilizer combination was statistically higher than its theoretical value, the water and fertilizer coupling type of this combination was “synergism” (water and fertilizer promote mutually). When the true value was significantly smaller than the theoretical value, the water and fertilizer coupling type was “antagonism” (water and fertilizer restrict mutually). When there was no significant difference between the true value and the theoretical value, the water and fertilizer coupling type of the combination was “additivity” (water and fertilizer no interaction). The water-nitrogen coupling type and inter-annual variation characteristics of the W₂Nx combinations in winter wheat were significantly affected by nitrogen application rate. Generally, the water-nitrogen coupling type of W₂N₆₀ was antagonism basing on the average yield of winter wheat in the 10 years. To be specific, for the W₂N₆₀, water and nitrogen antagonized mutually in the first two experimental years, in the 3rd year the relationship between water and nitrogen changed into collaboration until the 5th experimental year, and the water-nitrogen coupling type of the combination was antagonism in the 6th to 10th year. The water-nitrogen coupling type of W₂N₁₂₀ was additivity in the 1st to 4th year, and then turned into synergism in the 5th to 10th experimental year. The coupling type of W₂N₁₈₀ and W₂N₂₄₀, in which nitrogen application exceed 120 kg·hm ^-2, was additivity in each year in the experiment. 【Conclusion】 It is of great feasibility to identify quantitatively the coupling type of a specific water and fertilizer combination based on the significance of the difference between the actual value and the theoretical value of the crop relative yield. Under the combination of W₂N₁₂₀, water and nitrogen promoted yield increase synergistically for a long time. Therefore, maintaining the annual grain yield of 8.5 t·hm ^-2 or so, W₂N₁₂₀ should be recommended as an optimal combination of water and nitrogen for winter wheat in the northern part of the Huang-Huai Plain over a certain period of time.

Key words: water and fertilizer coupling type, quantization method, winter wheat, North China Plain, water and nitrogen combination

张经廷,吕丽华,张丽华,董志强,姚艳荣,姚海坡,申海平,贾秀领. 作物水肥耦合类型量化方法在华北冬小麦水氮配置中的应用[J]. 中国农业科学, 2019, 52(17): 2997-3007.

ZHANG JingTing,Lü LiHua,ZHANG LiHua,DONG ZhiQiang,YAO YanRong,YAO HaiPo,SHEN HaiPing,JIA XiuLing. A Novel Method for Quantitating Water and Fertilizer Coupling Types and Its Application in Optimizing Water and Nitrogen Combination in Winter Wheat in the North China Plain[J]. Scientia Agricultura Sinica, 2019, 52(17): 2997-3007.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2019.17.008

https://www.chinaagrisci.com/CN/Y2019/V52/I17/2997

图/表 5

表1

Table 2

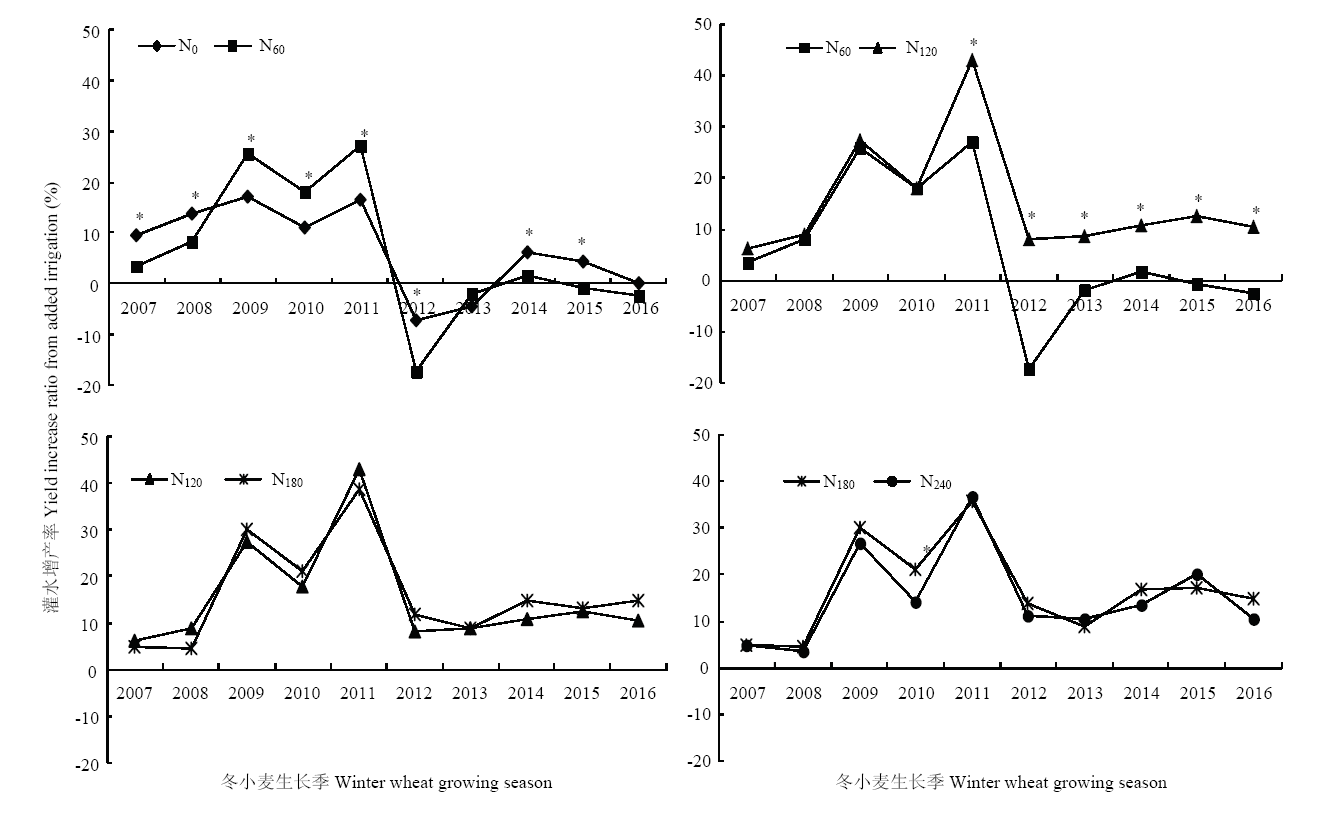

图1

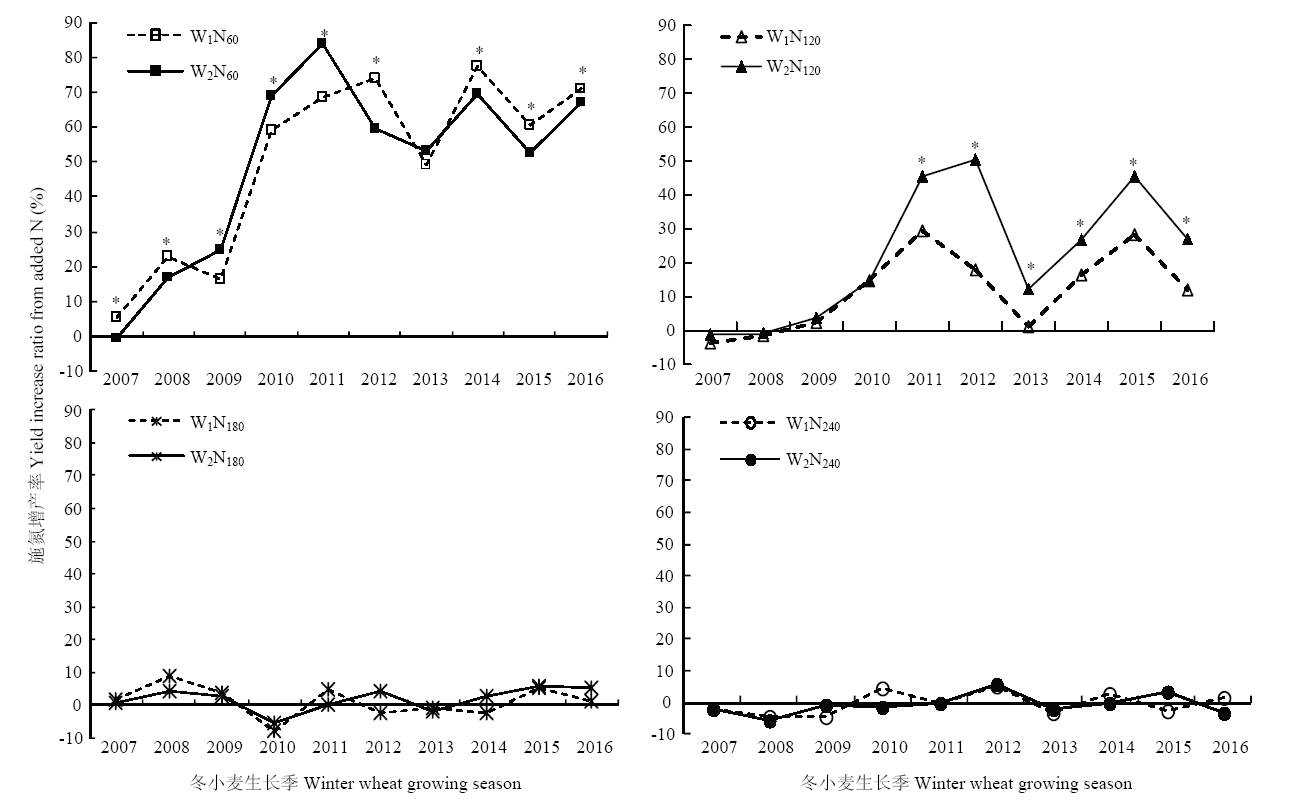

图2

图3

参考文献 36

[1]	武维华 . 植物生理学. 北京: 科学出版社, 2003.
	WU W H . Plant Physiology. Beijing: China Science Press, 2003. (in Chinese)
[2]	WANG Y, FU D L, PAN L L, SUN L T, DING Z T . The coupling effect of water and fertilizer on the growth of tea plants. Journal of Plant Nutrition, 2016,39(5):620-627.
[3]	王绍华, 曹卫星, 丁艳锋, 田永超, 姜东 . 水氮互作对水稻氮吸收与利用的影响. 中国农业科学, 2004,37(4):497-501.
	WANG S H, CAO W X, DING Y F, TIAN Y C, JIANG D . Interactions of water management and nitrogen fertilizer on nitrogen absorption and utilization in rice. Scientia Agricultura Sinica, 2004,37(4):497-501. (in Chinese)
[4]	曹翠玲, 李生秀 . 水分胁迫和氮素有限亏缺对小麦拔节期某些生理特性的影响. 土壤通报, 2003,34(6):505-509.
	CAO C L, LI S X . Effects of water stress and nitrogen deficiency on some physiological characteristics and wheat yield at the jointing stage. Chinese Journal of Soil Science, 2003,34(6):505-509. (in Chinese)
[5]	张秋英, 李发东, 高克昌, 刘孟雨, 欧国强 . 水分胁迫对冬小麦光合特性及产量的影响. 西北植物学报, 2005,25(6):1184-1190.
	ZHANG Q Y, LI F D, GAN K C, LIU M Y, OU G Q . Effects of water stress on the photosynthetic capabilities and yield of winter wheat. Acta Botanica Boreali-Occidentalia Sinica, 2005,25(6):1184-1190. (in Chinese)
[6]	关军峰, 李广敏 . 干旱条件下施肥效应及其作用机理. 中国生态农业学报, 2002,10(1):59-61.
	GUAN J F, LI G M . Effects and mechanism of fertilization under drought. Chinese Journal of Eco-Agriculture, 2002,10(1):59-61. (in Chinese)
[7]	谢英荷, 栗丽, 洪坚平, 王宏庭, 张璐 . 施氮与灌水对夏玉米产量和水氮利用的影响. 植物营养与肥料学报, 2012,18(6):1354-1361. (in Chinese) doi: 10.11674/zwyf.2012.12044
	XIE Y H, LI L, HONG J P, WANG H T, ZHANG L . Effects of nitrogen application and irrigation on grain yield, water and nitrogen utilization of summer maize. Plant Nutrition and Fertilizer Science, 2012,18(6):1354-1361. (in Chinese) doi: 10.11674/zwyf.2012.12044
[8]	WALLANCE A . Interactions of two parameters in crop production and in general biology: sequential additivity, synergism, antagonism. Journal of Plant Nutrition, 1990,13(3/4):327-342.
[9]	LI Q Q, BIAN CY, LIU X H, MA C J, LIU Q R . Winter wheat grain yield and water use efficiency in wide-precision planting pattern under deficit irrigation in North China plain. Agricultural Water Management, 2015,153:71-76.
[10]	BAI Z H, LU J, ZHAO H, VELTHOF G L, OENEMA O, CHADWICK D, WILLIAMS J R, JIN S Q, LIU H B, WANG M R, STROKAL M, KROEZE C, HU CS, MA L . Designing vulnerable zones of nitrogen and phosphorus transfers to control water pollution in China. Environmental Science &Technology, 2018,52:8987-8988.
[11]	ANDRSKI T W, BUNDY L G, BRYE K R . Crop management and corn nitrogen rate effects on nitrate leaching. Journal of Environmental Quality, 2000,29:1095-1103.
[12]	胡春胜, 张喜英, 程一松, 裴冬 . 太行山前平原地下水动态及超采原因分析. 农业系统科学与综合研究, 2002,18(2):89-91.
	HU C S, ZHANG X Y, CHENG Y S, PEI D . An analysis on dynamics of water table and overdraft of groundwater in the piedmont of Mt.Taihang. System Sciences and Comprehensive Study in Agriculture, 2002,18(2):89-91. (in Chinese)
[13]	ZHU Z L, CHEN D L . Nitrogen fertilizer use in China-Contributions to food production, impacts on the environment and best management strategies. Nutrient Cycling in Agroecosystems, 2002,63:117-127.
[14]	张经廷, 陈青云, 吕丽华, 申海平, 贾秀领, 梁双波 . 冬小麦-夏玉米轮作产量与氮素利用最佳水氮配置. 植物营养与肥料学报, 2016,22(4):886-896.
	ZHANG J T, CHEN Q Y, LYV L H, SHEN H P, JIA X L, LIANG S B . Optimum combination of irrigation and nitrogen for yield and nitrogen use efficiency in winter wheat and summer maize rotation system. Journal of Plant Nutrition and Fertilizer, 2016,22(4):886-896. (in Chinese)
[15]	杨莉琳, 裴冬, 胡春胜, 张喜英, 毛任钊 . 水肥配合对太行山山前平原高产区土壤矿质氮分布及作物产量的影响. 植物营养学报, 2005,11(1):1-7.
	YANG L L, PEI D, HU C S, ZHANG X Y, MAO R Z . Effect of treatments with water and fertilization on nitrate leaching loss in the piedmont of Taihang mountain. Plant Nutrition and Fertilizer Science, 2005,11(1):1-7. (in Chinese)
[16]	孙永健, 孙园园, 李旭毅, 张荣萍, 郭翔, 马均 . 水氮互作对水稻氮磷钾吸收、转运及分配的影响. 作物学报, 2010,36(4):655-664. doi: 10.3724/SP.J.1006.2010.00655
	SUN Y J, SUN Y Y, LI X Y, ZHANG R P, GUO X, MA J . Effects of water-nitrogen interaction on absorption, translocation and distribution of nitrogen, phosphorus, and potassium in rice. Acta Agronomica Sinica, 2010,36(4):655-664. (in Chinese) doi: 10.3724/SP.J.1006.2010.00655
[17]	李正鹏, 宋明丹, 冯浩 . 水氮耦合下冬小麦 LAI 与株高的动态特征及其与产量的关系. 农业工程学报, 2017,33(4):195-202.
	LI Z P, SONG M D, FENG H . Dynamic characteristics of leaf area index and plant height of winter wheat influenced by irrigation and nitrogen coupling and their relationships with yield. Transactions of the Chinese Society of Agricultural Engineering, 2017,33(4):195-202. (in Chinese)
[18]	魏廷邦, 柴强, 王伟民, 王军强 . 水氮耦合及种植密度对绿洲灌区玉米光合作用和干物质积累特征的调控效应. 中国农业科学, 2019,52(3):428-444. doi: 10.3864/j.issn.0578-1752.2019.03.004
	WEI T B, CHAI Q, WANG W M, WANG J Q . Effects of coupling of irrigation and nitrogen application as well as planting density on photosynthesis and dry matter accumulation characteristics of maize in oasis irrigated areas. Scientia Agricultura Sinica, 2019,52(3):428-444. (in Chinese) doi: 10.3864/j.issn.0578-1752.2019.03.004
[19]	尹光华, 刘作新, 李桂芳, 梁海军, 蔡崇光 . 水肥耦合对春小麦水分利用效率的影响. 水土保持学报, 2004,18(6):156-158.
	YIN G H, LIU Z X, LI G F, LIANG H J, CAI C G . Water use efficiency of water and fertilizer coupling on spring wheat. Journal of Soil and Water Conservation, 2004,18(6):156-158. (in Chinese)
[20]	路亚, 刘强, 宋希云, 刘树堂 . 非石灰性潮土水肥耦合对夏玉米产量效应的影响. 玉米科学, 2004,18(4):121-124.
	LU Y, LIU Q, SONG X Y, LIU S T . Effects of coupling water and fertilizer on summer maize yield in noncalcareous fluvo-aquic soil. Journal of Maize Sciences, 2004,18(4):121-124. (in Chinese)
[21]	张玉铭, 张佳宝, 胡春胜, 赵炳梓, 朱安宁, 张立周, 宋利娜 . 水肥耦合对华北高产农区小麦-玉米产量和土壤硝态氮淋失风险的影响. 中国生态农业学报, 2011,19(3):532-539. (in Chinese)
	ZHANG Y M, ZHANG J B, HU C S, ZHAO B Z, ZHU A N, ZHANG L Z, SONG L N . Effect of fertilization and irrigation on wheat-maize yield and soil nitrate nitrogen leaching in high agricultural yield region in North China Plain. Chinese Journal of Eco-Agriculture, 2011,19(3):532-539. (in Chinese)
[22]	马伯威, 王红光, 李东晓, 李瑞奇, 李雁鸣 . 水氮运筹模式对冬小麦产量和水氮生产效率的影响. 麦类作物学报, 2015,35(8):1141-1147.
	MA B W, WANG H G, LI D X, LI R Q, LI Y M . Influence of water-nitrogen patterns on yield and productive efficiency of water and nitrogen of winter wheat. Journal of Triticeae Crops, 2015,35(8):1141-1147. (in Chinese)
[23]	李武超, 李磊, 王炜, 李晶晶, 尹钧 . 小麦水氮耦合效应与水肥高效利用研究. 华北农学报, 2018,33(5):232-238.
	LI W C, LI L, WANG W, LI J J, YIN J . Studies on the efficient utilization and coupling effect of nitrogen-water in wheat. Acta Agriculturae Boreali-Sinica, 2018,33(5):232-238. (in Chinese)
[24]	XU X, ZHANG M, LI J P, LIU Z Q, ZHAO Z G, ZHANG Y H, ZHOU S L, WANG Z M . Improving water use efficiency and grain yield of winter wheat by optimizing irrigations in North China Plain. Field Crops Research, 2018,221:219-227.
[25]	吕丽华, 董志强, 张经廷, 张丽华, 梁双波, 贾秀领, 姚海坡 . 水氮对冬小麦-夏玉米产量及氮利用效应研究. 中国农业科学, 2014,47(19):3839-3849. doi: 10.3864/j.issn.0578-1752.2014.19.012
	LYU L H, DONG Z Q, ZHANG J T, ZHANG L H, LIANG S B, JIA X L, YAO H P . Effect of water and nitrogen on yield and nitrogen utilization of winter wheat and summer maize. Scientia Agricultura Sinica, 2014,47(19):3839-3849. (in Chinese) doi: 10.3864/j.issn.0578-1752.2014.19.012
[26]	汪德水 . 旱地农田肥水关系原理与调控技术. 北京: 中国农业科技出版社, 1995.
	WANG D S. Principle and Regulation Technology of Fertilizer and Water Relationship in Dryland Farmland. Beijing: Chinese Agricultural Science and Technology Press, 1995. (in Chinese)
[27]	褚鹏飞, 王东, 张永丽, 王小燕, 王西芝, 于振文 . 灌水时期和灌水量对小麦耗水特性、籽粒产量及蛋白质组分含量的影响. 中国农业科学, 2009,42(4):1306-1315.
	CHU P F, WANG D, ZHANG Y L, WANG X Y, WANG X Z, YU Z W . Effects of irrigation stage and amount on water consumption characteristics, grain yield and content of protein components of wheat. Scientia Agricultura Sinica, 2009,42(4):1306-1315. (in Chinese)
[28]	张胜全, 方保停, 王志敏, 周顺利, 张英华 . 春灌模式对晚播冬小麦水分利用及产量形成的影响. 生态学报, 2009,29(4):2035-2044.
	ZHANG S Q, FANG B T, WANG Z M, ZHOU S L, ZHANG Y H . Influence of different spring irrigation treatments on water use and yield formation of late-sowing winter wheat. Acta Ecologica Sinica, 2009,29(4):2035-2044. (in Chinese)
[29]	王家瑞, 刘卫星, 陈雨露, 康娟, 张艳菲, 徐文俊, 侯阁阁, 李华, 王晨阳 . 不同灌水模式对冬小麦产量及水分利用的调控效应. 麦类作物学报, 2018,38(10):1229-1236.
	WANG J R, LIU W X, CHEN Y L, KANG J, ZHANG Y F, XU W J, HOU G G, LI H, WANG C Y . Regulatory effect of different irrigation regimes on grain yield and water use efficiency of winter wheat. Journal of Triticeae Crops, 2018,38(10):1229-1236. (in Chinese)
[30]	张经廷, 周顺利, 王志敏, 贾秀领 . ¹⁵N同位素在华北冬小麦夏玉米氮营养来源研究中的应用 . 同位素, 2019,32(4):299-307.
	ZHANG J T, ZHOU S L, WANG Z M, JIA X L . Application of ¹⁵N isotope for the identification of nitrogen nutrition sources of winter wheat and summer maize in North China Plain . Journal of Isotopes, 2019,32(4):299-307. (in Chinese)
[31]	张经廷, 王志敏, 周顺利 . 夏玉米不同施氮水平土壤硝态氮累积及对后茬冬小麦的影响. 中国农业科学, 2013,46(6):1182-1190. doi: 10.3864/j.issn.0578-1752.2013.06.011
	ZHANG J T, WANG Z M, ZHOU S L . Soil nitrate N accumulation under different N-fertilizer rates in summer maize and its residual effects on subsequent winter wheat. Scientia Agricultura Sinica, 2013,46(6):1182-1190. (in Chinese) doi: 10.3864/j.issn.0578-1752.2013.06.011
[32]	ZHANG J T, WANG Z M, LIANG S B, ZHANG Y H, LU L Q, WANG R Z, ZHOU S L . Quantitative study on the fate of residual soil nitrate in winter wheat based on a ¹⁵N-labeling method . PLoS ONE, 2017,12(2):e0171014.
[33]	LIU X J, ZHANG Y, TANG A H, SHEN J L, CUI Z L, VITOUSEK P, ERISMN J W, GOULDING K, CHRISTIE P, FANGMEIER A, ZHANG F S . Enhanced nitrogen deposition over China. Nature, 2013,494(7438):459-462.
[34]	郑丹楠, 王雪松, 谢绍东, 段雷, 陈东升 . 2010年中国大气氮沉降特征分析. 中国环境科学, 2014,34(5):1089-1097.
	ZHENG D N, WANG X S, XIE S D, DUAN L, CHEN D S . Simulation of atmospheric nitrogen deposition in China in 2010. China Environmental Science, 2014,34(5):1089-1097. (in Chinese)
[35]	张娟, 武同华, 代兴龙, 王西芝, 李洪梅, 蒋明洋, 贺明荣 . 种植密度和施氮水平对小麦吸收利用土壤氮素的影响. 应用生态学报, 2015,26(6):1727-1734.
	ZHANG J, WU T H, DAI X L, WANG X Z, LI H M, JIANG M Y, HE M R . Effects of plant density and nitrogen level on nitrogen uptake and utilization of winter wheat. Chinese Journal of Applied Ecology, 2015,26(6):1727-1734. (in Chinese)
[36]	张美微, 谢旭东, 王晨阳, 马耕, 卢红芳, 周国勤, 谢迎新, 马冬云 . 不同生态条件下品种和施氮量对冬小麦产量及氮肥利用效率的影响. 麦类作物学报, 2016,36(10):1362-1368.
	ZHANG M W, XIE X D, WANG C Y, MA G, LU H F, ZHOU G Q, XIE Y X, MA D Y . Effect of cultivar and nitrogen fertilizer application on grain yield and nitrogen use efficiency of wheat at different planting environments. Journal of Triticeae Crops, 2016,36(10):1362-1368. (in Chinese)

月份Month	2006-2007	2007-2008	2008-2009	2009-2010	2010-2011	2011-2012	2012-2013	2013-2014	2014-2015	2015-2016
10	0.0	47.0	19.6	3	6.4	13.2	4.1	9.6	9.2	15.5
11	18.2	1.0	0.0	53.4	0.0	32.2	26.4	6.2	4.7	15
12	0.0	2.4	0.0	0.0	3.8	1.1	12.0	0.0	0.0	0.4
1	0.0	0.9	0.0	0.1	0.0	0.0	5.0	0.0	0.6	2.4
2	17.0	0.0	4.1	8.9	13.1	0.0	10.1	5.9	2	13.2
3	34.3	16.5	5.3	14.7	0.0	4.1	0.3	1.0	0.4	0.0
4	13.8	38.4	7.8	12.5	2.2	34.1	24.6	13.9	29.1	12.5
5	42.1	57.2	30.5	14.7	46.0	16.6	12.1	28.2	53.1	16.5
总计Total	125.4	163.4	67.3	107.3	71.5	101.3	94.6	64.8	99.1	75.5

施氮¹⁾ 水平 N rate	10年平均产量 Average yield of 10 years, Y (kg·hm^-2)		W₂N_x的相对产量 Relative yield in W₂N_x, RY (W₂N_x)					W₂N_x水氮耦合类型⁶⁾ Water nitrogen coupling type in W₂N_x	氮增产率 Yield increase derived from N-fertilizer (%)		水增产率 Yield increase derived from irrigation (%)	水氮互作 Water nitrogen interaction
施氮¹⁾ 水平 N rate	1水 W₁	2水 W₂	氮¹⁾ Nitrogen (N)	水²⁾ Water (W)	真实值³⁾ Actual value	理论值⁴⁾ Theoretical value	真实值与理论值差异性⁵⁾ Significance of variance	W₂N_x水氮耦合类型⁶⁾ Water nitrogen coupling type in W₂N_x	1水 W₁	2水 W₂	水增产率 Yield increase derived from irrigation (%)	水氮互作 Water nitrogen interaction
N₀(N₀)	3555.6	3750.5	1.00	1.05							5.48
N₁(N₆₀)	6573.6	6542.9	1.85	1.00	1.84	1.95	*	Ant	84.88	74.45	-0.47	增水限氮,增氮限水 Restrict mutually
N₂(N₁₂₀)	7252.9	8427.6	1.10	1.16	1.28	1.10	*	Syn	10.34	28.80	16.19	增水促氮,增氮促水 Promote mutually
N₃(N₁₈₀)	7350.2	8612.9	1.01	1.17	1.19	1.18	no	Add	1.34	2.20	17.18	no	no
N₄(N₂₄₀)	7369.2	8460.1	1.00	1.15	1.15	1.17	no	Add	0.26	-1.77	14.80	no	no
