不同氮吸收效率水稻品种的苗期铵吸收特性及生长差异分析

doi:10.3864/j.issn.0578-1752.2021.07.011

摘要/Abstract

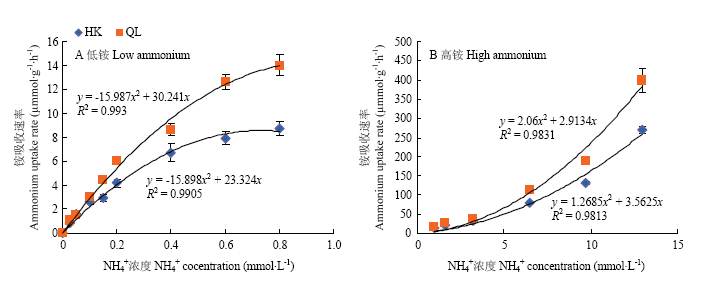

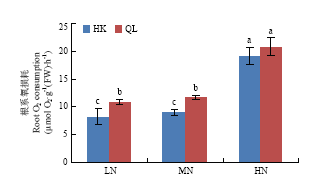

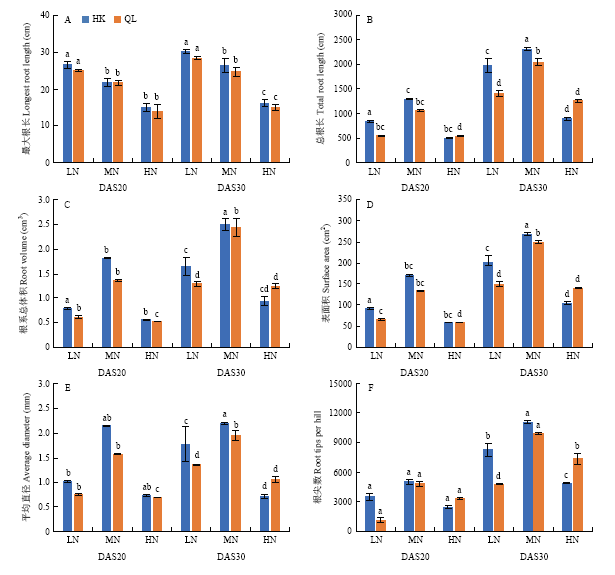

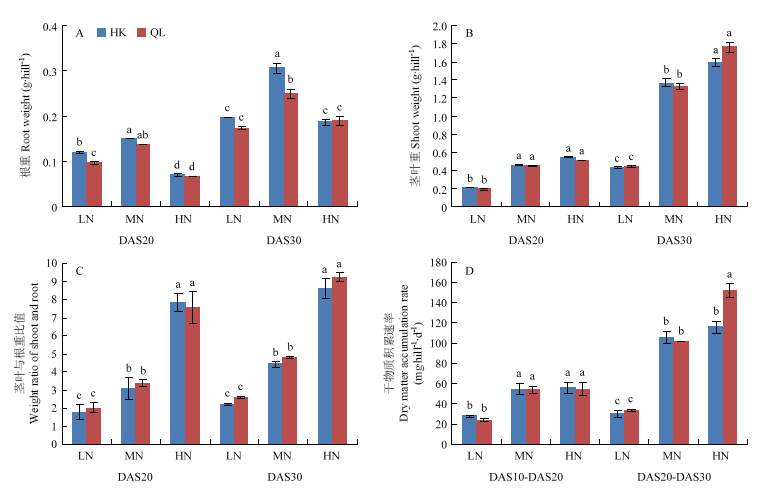

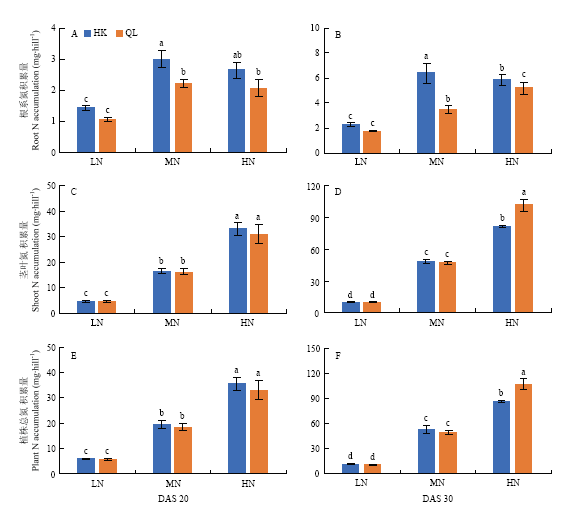

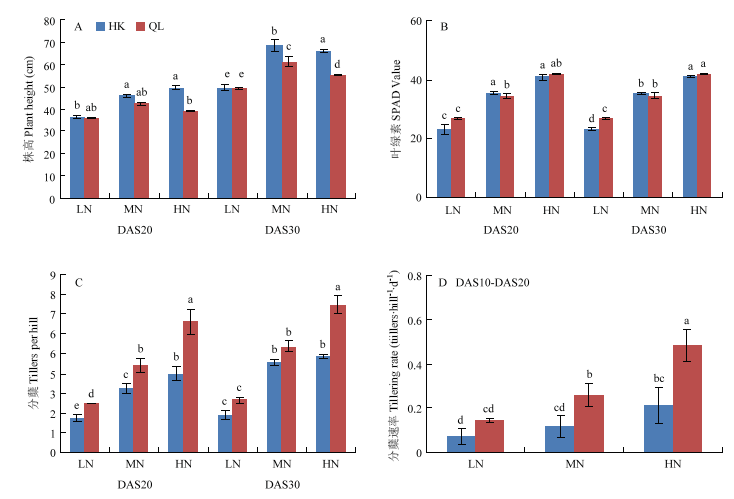

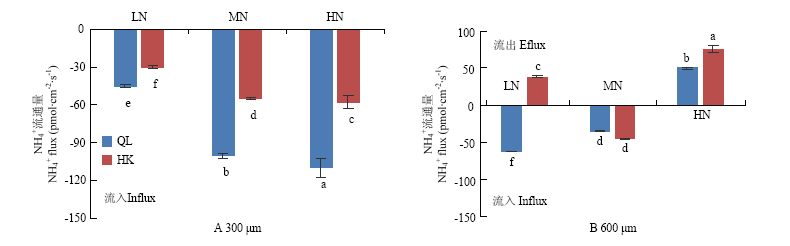

摘要： 【目的】测定不同氮吸收效率品种对外界NH₄ ⁺浓度的响应,解释水稻品种间氮吸收差异的机理。【方法】采用水培法栽培氮吸收高效的水稻品种齐粒丝苗（QL）和氮吸收低效的品种沪科3号（HK）,通过分析水稻幼苗在0—0.80 mmol·L ^-1低铵浓度和1.00—12.96 mmol·L ^-1高铵浓度下的铵吸收速率,计算铵吸收动力学参数V_max和K_m值,比较不同氮吸收效率水稻品种的苗期铵吸收特性;通过比较不同NH₄ ⁺浓度下的水稻苗期株高、分蘖数、叶绿素含量、以及地上和地下部的干物质和氮素积累量,用根系扫描法分析根系形态,包括总根长、根体积、根表面积、平均直径、根尖数等,用非损伤性扫描离子选择电极技术（scanning ion-selective electrode technique,SIET）测量根分生区和伸长区NH₄ ⁺的跨细胞膜运输,用液相氧电极系统分析根系氧损耗,研究不同氮吸收效率水稻品种的苗期生长差异。【结果】（1）在0—0.8 mmol·L ^-1低铵浓度下,2个水稻品种QL和HK幼苗对NH₄ ⁺的吸收符合Michaelich-Menten方程,氮吸收高效品种QL的吸收动力学参数V_max为氮吸收低效品种HK的1.66倍;当NH₄ ⁺的浓度大于1 mmol·L ^-1 时,水稻幼苗对NH₄ ⁺的吸收均随着外界NH₄ ⁺浓度的增加而增大,但同一NH₄ ⁺浓度下,氮吸收高效品种QL对NH₄ ⁺的吸收速率大于氮吸收低效品种HK;（2）水稻根系分生区在外界不同NH₄ ⁺浓度下均表现为NH₄ ⁺的跨细胞膜净流入,且NH₄ ⁺净流入速率随着外界NH₄ ⁺浓度的升高而增加,氮吸收高效品种QL在低铵（LN）、中铵（MN）和高铵（HN）处理下根系分生区NH₄ ⁺净流入速率分别比氮吸收低效品种HK高42.0%、71.8%和63.6%;根系伸长区NH₄ ⁺的跨细胞膜流通品种间存在差异,氮吸收低效品种HK在LN和HN下均出现NH₄ ⁺跨细胞膜净输出,而氮吸收高效的品种QL仅在HN下出现NH₄ ⁺跨细胞膜净输出,且净输出速率比氮吸收低效的HK低34.30%。（3）在LN和MN浓度下,氮吸收高效品种QL的苗期形态和物质积累并不占优势;适量增铵可以增加水稻的株高、分蘖、叶绿素含量、干物质和氮素积累量,但过高的外界铵浓度对水稻生长特别是根系生长有抑制作用;HN下,氮吸收高效的品种QL显示出一定的生长优势,播种后10–20 d的分蘖增加速率和干物质增加速率分别比氮吸收低效的品种HK高65.7%和31.4%;虽然品种QL的根系氮浓度比品种HK低15.1%,但其地上部氮积累量比HK高23.5%,说明QL比HK能更快地将根系吸收的氮转运至地上部供其生长所需。【结论】与氮吸收低效品种相比,氮吸收高效品种根系细胞膜上有更多的NH₄ ⁺运输载体,根系吸收的NH₄ ⁺同化、转运速度快,苗期分蘖速率和干物重积累速率大。

关键词: 水稻, 氮吸收效率, 铵吸收, NH₄ ⁺流通, 苗期形态

Abstract:

【Objective】The aim of this study was to determine the response of different N recovery efficiency (NRE) varieties to external NH₄ ⁺concentration, and to explain the mechanism of N uptake difference among rice varieties.【Method】A high-NRE (QL) and a low-NRE (HK) rice variety were cultivated hydroponically at different NH₄ ⁺concentrations, and the varietal difference of NH₄ ⁺ absorption at seedling stage were compared by analysis of the root NH₄ ⁺ absorption rate at the low NH₄ ⁺ concentration of 0-0.80 mmol·L ^-1 and the high NH₄ ⁺ concentration of 1.00-12.96 mmol·L ^-1, and by calculating the NH₄ ⁺ absorption kinetics parameter V_max and K_m; The difference of seedling growth between varieties were analyzed by comparing the plant height, tiller number, chlorophyll content, dry matter and N accumulation of aboveground and underground part of rice seedlings growing in different NH₄ ⁺concentrations, root morphology including total root length, root volume, root surface area, average root diameter, and root tip number were analyzed using the root scanning instrument; The root net fluxes of NH₄ ⁺ were measured non-invasively using SIET (scanning ion-selective electrode technique), root respiration was measured using a Hansatech oxygen electrode and an oxygraph control system.【Result】(1) In the low NH₄ ⁺ concentration range of 0-0.8 mmol·L ^-1, the uptake of NH₄ ⁺ by QL and HK seedlings stage were in accordance with Michaelich-Menten equation, and the V_max of high-NRE variety QL was 1.66 times higher than that of low-NRE variety HK. In the NH₄ ⁺ concentration higher than 1 mmol·L ^-1, the uptake of NH₄ ⁺ by rice seedlings kept increasing with the increase of NH₄ ⁺concentration, and the uptake rate of NH₄ ⁺ by QL was greater than that of HK at the same NH₄ ⁺level. (2) The root meristematic zone of both varieties showed a net NH₄ ⁺influx, while it increased with the increase of NH₄ ⁺ concentration, and the high-NRE variety QL had greater value than low-NRE variety HK by 42.0%, 71.8% and 63.6% at LN, MN and HN, respectively; The net NH₄ ⁺efflux in the root elongation zone was showed at LN and HN in the low-NRE variety HK, while it was only showed at HN in the high-NRE variety QL, and 34.30% lower than variety HK. (3) Although an appropriate increase of NH₄ ⁺ could increase the plant height, tiller number, leaf chlorophyll content, dry matter and N accumulations, while HN inhibited plant growth, especially root growth. The growth of high-NRE variety QL did not show an advantage compared with low-NRE variety HK in the treatment of LN and MN, however, QL had greater tillering rate and dry matter accumulation rate by 65.7% and 31.4% compared with HK during 10-20 days after seeding in HN, respectively. Although the N concentration of root of variety QL was 15.1% lower than that of variety HK, it’s aboveground N accumulation was 23.5% greater, which indicated that QL was more efficient than HK in transporting the N absorbed by roots to the aboveground. 【Conclusion】 It was concluded that compared with the low-NRE variety, the high-NRE variety had more NH₄ ⁺ transport carriers on the cell membrane of the root system, and the NH₄ ⁺ absorbed by the root system had a fast assimilation and transport speed, as well as a high tiller rate and dry matter accumulation rate in the seedling stage.

Key words: rice, N absorption efficiency, ammonium absorption, NH₄ ⁺ circulation, seedling morphology

黄秀,叶昌,燕金香,李福明,褚光,徐春梅,陈松,章秀福,王丹英. 不同氮吸收效率水稻品种的苗期铵吸收特性及生长差异分析[J]. 中国农业科学, 2021, 54(7): 1455-1468.

HUANG Xiu,YE Chang,YAN JinXiang,LI FuMing,CHU Guang,XU ChunMei,CHEN Song,ZHANG XiuFu,WANG DanYing. Analysis of Ammonium Uptake and Growth Differences of Rice Varieties with Different Nitrogen Recovery Efficiency at Seedling Stage[J]. Scientia Agricultura Sinica, 2021, 54(7): 1455-1468.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2021.07.011

https://www.chinaagrisci.com/CN/Y2021/V54/I7/1455

图/表 10

图1

表1

图2

图3

图4

图5

图6

图7

图8

图9

参考文献 37

[1]	MALCOLM J H, SIMON G . Exploiting genetic variation in nitrogen use efficiency for cereal crop improvement. Current Opinion in Plant Biology, 2019,49:35-42.
[2]	栗方亮, 李忠佩, 刘明, 江春玉. 氮素浓度和水分对水稻土硝化作用和微生物特性的影响. 中国生态农业学报, 2012,20(9):1113-1118.
	LI F L, LI Z P, LIU M, JIANG C Y. Effects of nitrogen concentration and moisture on nitrification and microbial characteristics of rice soil. Chinese Journal of Ecological Agriculture, 2012,20(9):1113-1118. (in Chinese)
[3]	WANG M Y, SIDDIQI M Y, RUTH T J . Glass ADM ammonium uptake by rice roots. II. Kinetics of ¹³NH₄ + influx across the plasmalemma . Plant Physiology, 1993,103(4):1259-1267.
[4]	尹西翔. 水稻氮高效品种的筛选及其机理的初步探讨[D]. 武汉: 华中农业大学, 2005.
	YIN X X. Selection of nitrogen efficient rice varieties and preliminary discussion on their mechanism[D]. Wuhan: Huazhong Agricultural University, 2005. (in Chinese)
[5]	叶全宝, 张洪程, 魏海燕, 张瑛, 汪本福, 夏科, 霍中洋, 戴其根, 许轲. 不同土壤及氮肥条件下水稻氮利用效率和增产效应研究. 作物学报, 2005,31(11):38-44.
	YE Q B, ZHANG H C, WEI H Y, ZHANG Y, WANG B F, XIA K, HUO Z Y, DAI Q G, XU K. Study on nitrogen utilization efficiency and yield increasing effect of rice under different soil and nitrogen fertilizer conditions. Acta Agronomica Sinica, 2005,31(11):38-44. (in Chinese)
[6]	于飞, 施卫明. 近10年中国大陆主要粮食作物氮肥利用率分析. 土壤学报, 2015,52(6):117-130.
	YU F, SHI W M. Analysis on nitrogen utilization efficiency of major grain crops in mainland China in recent 10 years. Acta Pedologica Sinica, 2015,52(6):117-130. (in Chinese)
[7]	CHEN Y T, HOU Y, CUI K H, WANG J, FAHAD S, ZHANG C D, NIE L X, PENG J, HUANG J L, FU P H, PENG S B . Crop management based on multi-split topdressing enhances grain yield and nitrogen use efficiency in irrigated rice in China. Field Crops Research, 2015,184:50-57.
[8]	DING W C, XU X P, HE P, ULLAH S, ZHANG J J, CUI Z L, ZHOU W . Improving yield and nitrogen use efficiency through alternative fertilization options for rice in China: A meta-analysis. Field Crops Research, 2018,227:11-18.
[9]	江琳琳, 赵晗舒, 杨武, 赵明辉, 范淑秀, 曹英丽, 任彬彬, 马殿荣. 水稻氮利用效率评价及其与产量性状的关系. 沈阳农业大学学报, 2019,50(6):641-647.
	JIANG L L, ZHAO H S, YANG W, ZHAO M H, FAN S X, CAO Y L, REN B B, MA D R. Evaluation of nitrogen use efficiency of rice and its relationship with yield traits. Journal of Shenyang Agricultural University, 2019,50(6):641-647. (in Chinese)
[10]	RAKOTOSONA T, DUSSERRE J, LETOURMY P, RAMONTA I R, CAO T V, RAMANANTSONAIRINA A, POUMET P, AHMADI N, RABOIN L M . Genetic variability of nitrogen use efficiency in rainfed upland rice. Field Crops Research, 2017,213:194-203.
[11]	LON S, TAKAYASU W, SHUNJI I . Behavior of N within rice plants, comparing between japonica and indica varieties. Ecology and Environment Sciences, 2004,l3(4):646-650.
[12]	SAMONT S O P, WILSON L T, MEDLEY J C, PINSON S R M, MCCIUNG A M, LALES J S . Nitrogen utilization efficiency: Relationships with grain yield, grain protein, and yield‐related traits in rice. Agronomy Journal, 2006,98(1):168-176.
[13]	张传胜, 龙银成, 周娟, 董桂春, 王余龙. 不同产量类型籼稻品种氮素吸收利用特征的研究. 扬州大学学报, 2004(2):17-21.
	ZHANG C S, LONG Y C, ZHOU J, DONG G C, WANG Y L. Study on nitrogen uptake and utilization characteristics of indica rice varieties with different yield types. Journal of Yangzhou University, 2004(2):17-21. (in Chinese)
[14]	李娜, 杨志远, 代邹, 孙永健, 徐徽, 何艳, 蒋明今, 严田蓉, 郭长春, 马均. 水氮管理对不同氮效率水稻根系性状、氮素吸收利用及产量的影响. 中国水稻科学, 2017,31(5):500-512.
	LI N, YANG Z Y, DAI Z, SUN Y J, XU W, HE Y, JIANG M J, YAN T R, GUO C C, MA J. Effects of water and nitrogen management on root traits, nitrogen accumulation and utilization and yield of rice with different nitrogen efficiencies. Chinese Journal of Rice Science, 2017,31(5):500-512. (in Chinese).
[15]	CHU G, CHEN S, XU C M, WANG D Y, ZHANG X F . Agronomic and physiological performance of indica/japonica hybrid rice cultivar under low nitrogen conditions. Field Crops Research, 2019,243:107625.
[16]	WANG F, PENG S B . Yield potential and nitrogen use efficiency of China’s super rice. Journal of Integrative Agriculture, 2017,16(5):1000-1008.
[17]	张振华, 刘强, 宋海星, 荣湘民 , ISMAIL A M. 水稻生长、根系生理特性和ABA含量的基因型差异与耐盐性的关系. 植物营养与肥料学报, 2011,17(5):1035-1043.
	ZHANG Z H, LIU Q, SONG H X, RONG X M, ISMAIL A M. Relationship between genotype differences in growth, physiological characteristics of roots and ABA content and salinity tolerance in rice. Journal of Plant Nutrition and Fertilizers, 2011,17(5):1035-1043. (in Chinese)
[18]	ZHANG H, XUE Y G, WANG Z Q, YANG J C, ZHANG J H . Morphological and physiological traits of roots and their relationships with shoot growth in “super” rice. Field Crops Research, 2009,113(1):31-40.
[19]	戢林, 李廷轩, 张锡洲, 余海英. 水稻氮高效基因型根系分泌物中有机酸和氨基酸的变化特征. 植物营养与肥料学报, 2012,18(5):1046-1055.
	JI L, LI T X, ZHANG X Z, YU H Y. Changes of organic acids and amino acids in nitrogen efficient rice root exudates. Journal of Plant Nutrition and Fertilizers, 2012,18(5):1046-1055. (in Chinese)
[20]	叶利庭, 吕华军, 宋文静, 图尔迪, 沈其荣, 张亚丽. 不同氮效率水稻生育后期氮代谢酶活性的变化特征. 土壤学报, 2011,48(1):134-142.
	YE L T, LÜ H J, SONG W J, TU E D, SHEN Q R, ZHANG Y L. Change characteristics of nitrogen metabolic enzyme activity in late growth period of rice with different nitrogen efficiency. Acta Pedologica Sinica, 2011,48(1):134-142. (in Chinese)
[21]	CHEN G, GUO S W, KRONZUCKER H J, SHI W M . Nitrogen use efficiency (NUE) in rice links to NH₄ + toxicity and futile NH₄ + cycling in roots. Plant and Soil , 2013,369(1/2):351-363.
[22]	张晓果. 高氮肥用量下水稻根系铵冗余吸收及其与氮肥利用效率的关系[D]. 北京: 中国农业科学院, 2016.
	ZHANG X G. The relationship between ammonium redundancy absorption in rice root system and nitrogen utilization efficiency under high nitrogen fertilizer dosage[D]. Beijing: Chinese Academy of Agricultural Sciences, 2016. (in Chinese)
[23]	刘婷, 尚忠林. 植物对铵态氮的吸收转运调控机制研究进展. 植物生理学报, 2016,52(6):799-809.
	LIU T, SHANG Z L. Advances in the research on the regulation mechanism of plant absorption and transport of ammonium nitrogen. Journal of Plant Physiology, 2016,52(6):799-809. (in Chinese)
[24]	BRITTO D T, KRONZUCKER H J . NH₄ + toxicity in higher plants: A critical review . Journal of Plant Physiology, 2002,159(6):567-584.
[25]	LI Q, LI B H, KRONZUCKER H J, SHI W M . Root growth inhibition by NH₄ + in Arabidopsis is mediated by the root tip and is linked to NH₄ +efflux and GMPase activity. Plant, Cell & Environment, 2010,33(9):1529-1542.
[26]	BRITTO D T, KRONZUCKER H J . Constancy of nitrogen turnover kinetics in the plant cell: Insights into the integration of subcellular N fluxes. Planta, 2001,213(2):175-181.
[27]	张晓果, 徐春梅, 陈松, 计成林, 章秀福, 王丹英. 氮利用效率差异水稻品种的根系铵离子吸收特性. 中国农业科学, 2015,48(22):4428-4436.
	ZHANG X G, XU C M, CHEN S, JI C L, ZHANG X F, WANG D Y. Absorption characteristics of root ammonium ion in different rice varieties with different nitrogen utilization efficiency. Scientia Agricultura Sinica, 2015,48(22):4428-4436. (in Chinese)
[28]	封克, 孙小茗, 汪晓丽, 盛海君. 铵对不同作物根系钾高亲和转运系统的影响. 植物营养与肥料学报, 2007,13(5):877-881.
	FENG K, SUN X M, WANG X L, SHENG H J. Effect of ammonium on potassium affinity transport system in root system of different crops. Journal of Plant Nutrition and Fertilizers, 2007,13(5):877-881. (in Chinese)
[29]	孙小茗, 封克, 汪晓丽. K + 高亲和转运系统吸收动力学特征及其受NH₄ + 影响的研究 . 植物营养与肥料学报, 2007,13(2):208-212.
	SUN X M, FENG K, WANG X L. Characteristics of absorption kinetics and its influence on NH₄ + in K + highly affinity transport systems . Journal of Plant Nutrition and Fertilizers, 2007,13(2):208-212. (in Chinese)
[30]	WANG D Y, XU C M, YAN J X, ZHANG X G, CHEN S, CHAUHAN B S, WANG L, ZHANG X F . ¹⁵N tracer-based analysis of genotypic differences in the uptake and partitioning of N applied at different growth stages in transplanted rice . Field Crops Research, 2017,211:27-36.
[31]	WANG D Y, XU C M, YE C, CHEN S, CHU G, ZHANG X F . Low recovery efficiency of basal fertilizer-N in plants does not indicate high basal fertilizer-N loss from split-applied N in transplanted rice. Field Crops Research, 2018,229:8-16.
[32]	杨肖娥, 孙羲. 不同水稻品种对低氮反应的差异及其机制的研究. 土壤学报, 1992(1):73-79.
	YANG X E, SUN X. Study on the difference and mechanism of response of different rice varieties to low nitrogen. Acta Pedologica Sinica, 1992(1):73-79. (in Chinese)
[33]	LYNCH J . Root architecture and plant productivity. Plant Physiology, 1995,109(1):7-13.
[34]	FAGERIA N K, BALIGAR C, CLARK R B . Micronutrients in crop production. Advances in Agronomy, 2002,77:185-268.
[35]	KRONZUCKER H J, BRITTO D T, DAVENPORT R J, TESTER M . Ammonium toxicity and the real cost of transport. Trends in Plant Science, 2001,6(8):335-337.
[36]	武厥彬. 水稻叶片的奥秘与高产栽培. 农村科技, 1999(9):10.
	WU J B. The mystery of rice leaves and high-yield cultivation. Rural Science and Technology, 1999(9):10. (in Chinese)
[37]	TANAKA A, GARCIA C V, DIEM N T . Studies of the relationship between tillering and nitrogen uptake of the rice plant. Soil Science and Plant Nutrition, 1965,11(1):9-13.

品种 Variety	拟合曲线 Matched curve	V_max	K_m	R²
HK	y=0.0272x+0.0982	10.18	0.277	0.984**
QL	y=0.0256x+0.0591	16.92	0.433	0.995**
