水合环境/磁场对肌红蛋白氧化稳定性的作用机制

doi:10.3864/j.issn.0578-1752.2023.22.013

摘要/Abstract

摘要：

【目的】探究磁场作用下水合环境影响肌红蛋白（myoglobin，Mb）氧化稳定性的作用机制，为改善Mb的氧化稳定性提供依据。【方法】在4 ℃下，设置低强度（3 mT）和高强度（12 mT）两种磁场环境，磁场分别处理Mb水溶液、Mb粉末、去离子水（磁场处理去离子水后再溶解Mb），磁场处理时间为1 h，以未经磁场处理的Mb水溶液作为对照。通过高铁肌红蛋白的相对含量、血红素铁含量以及紫外吸收带的变化情况来分析Mb的氧化稳定特性；同时，利用圆二色谱、拉曼光谱和荧光光谱技术分析Mb二级结构、三级结构及卟啉铁结构的变化，探究磁场对Mb氧化稳定性的作用机理。【结果】磁场直接处理Mb粉以及磁场处理溶剂水，然后再溶解Mb，两种处理方式均对高铁肌红蛋白相对含量无显著影响（P>0.05），而3 mT和12 mT磁场处理Mb水溶液均显著提高了高铁肌红蛋白的相对含量。血红素铁含量和血红素邵氏带紫外吸收结果显示，血红素卟啉环结构对磁场环境很敏感，不同强度的磁场对Mb血红素结构均有显著的破坏，并且高强度的磁场环境对卟啉环结构破坏程度相对更大。Mb三级结构和二级结构结果表明，3 mT磁场先处理溶剂水再溶解Mb，以及3 mT和12 mT磁场处理Mb水溶液均显著促进Mb二级结构的展开和侧链基团色氨酸和酪氨酸残基的氧化损伤。拉曼光谱结果显示，12 mT磁场处理Mb水溶液促使Mb通过二硫键进行交联。【结论】Mb水溶液中水合作用直接影响磁场对肌红蛋白氧化特性的作用效应，磁场处理促进Mb中心铁以及血红素卟啉环的氧化，可能是磁场改变了水分子的介电性、电离程度等物理性质，以及Mb与水之间的氢键状态，进一步影响了Mb的结构，α-螺旋结构展开，侧链基团暴露，加速了血红素结构的破坏和血红素铁的流失，促进了中心铁的氧化。

关键词: 肌红蛋白, 磁场, 水合环境, 氧化, 卟啉

Abstract:

【Objective】To investigate the mechanism of action of hydration environment affecting the oxidative stability of myoglobin (Mb) in the presence of a magnetic field, and to provide a basis for improving the oxidative stability of Mb. 【Method】Two magnetic field environments of low intensity (3 mT) and high intensity (12 mT) were set up at 4 ℃, the magnetic field treated Mb aqueous solution, Mb powder, and deionized water (the magnetic field treated deionized water and then dissolved Mb), respectively, and the magnetic field treatment time was 1 h. The Mb aqueous solution without magnetic field treatment was used as the control. The oxidative stability properties of Mb were analyzed by the relative content of high iron myoglobin, heme iron content and the variation of UV absorption bands, while the changes of Mb secondary structure, tertiary structure and porphyrin iron structure were analyzed by circular dichroism, and Raman spectroscopy and fluorescence spectroscopy techniques were employed to investigate the mechanism of the effect of magnetic field on the oxidative stability of Mb. 【Result】Both magnetic field treatment of Mb powder directly and magnetic field treatment of solvent water followed by dissolution of Mb had no significant effect (P>0.05) on the relative content of methemoglobin, while both 3 mT and 12 mT magnetic field treatment of Mb aqueous solution significantly increased the relative content of methemoglobin. The results of heme iron content and heme Shore band UV absorption showed that the heme porphyrin ring structure was sensitive to the magnetic field environment, and the magnetic field of different intensities had significant damage to the Mb heme structure, while the high intensity magnetic field environment had relatively greater damage to the porphyrin ring structure. Mb tertiary and secondary structure results showed that both 3 mT magnetic field treatment of solvent water before dissolving Mb, and 3 mT and 12 mT magnetic field treatment of Mb aqueous solution significantly promoted the unfolding of Mb secondary structure and oxidative damage of tryptophan and tyrosine residues of side chain groups. Raman spectroscopy results showed that 12 mT magnetic field treatment of Mb aqueous solution induced the cross-linking of Mb through disulfide bonds. 【Conclusion】Hydration in Mb aqueous solution directly affected the effect of magnetic field on the oxidative properties of myoglobin, and magnetic field treatment promoted the oxidation of Mb central iron as well as heme porphyrin ring, probably because the magnetic field changes the physical properties of water molecules, such as dielectricity and degree of ionization, as well as the hydrogen bonding state between Mb and water, which further affected the structure of Mb with the unfolding of α-helix structure and the exposure of side chain groups, accelerating the destruction of heme structure and loss of heme iron, and promoting the oxidation of central iron.

Key words: myoglobin, magnetic field, hydrated environment, oxidation, porphyrin

邓雨诗, 夏民权, 马静, 周元华, 孙卫青. 水合环境/磁场对肌红蛋白氧化稳定性的作用机制[J]. 中国农业科学, 2023, 56(22): 4523-4531.

DENG YuShi, XIA MinQuan, MA Jing, ZHOU YuanHua, SUN WeiQing. Mechanism of Hydration Environment/Magnetic Field Effects on the Oxidative Stability of Myoglobin[J]. Scientia Agricultura Sinica, 2023, 56(22): 4523-4531.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2023.22.013

https://www.chinaagrisci.com/CN/Y2023/V56/I22/4523

图/表 7

图1

图2

图3

图4

图5

图6

表1

参考文献 37

[1]	SHE Z C, HU X, ZHAO X S, REN Z M, DING G J. FTIR investigation of the effects of ultra-strong static magnetic field on the secondary structures of protein in bacteria. Infrared Physics & Technology, 2009, 52(4): 138-142.
[2]	SILVA F L, ZIN G, REZZADORI K, LONGO L C, TIGGEMANN L, SANTOS SOARES L, CUNHA PETRUS J C, VLADIMIR DE OLIVEIRA J, DI LUCCIO M. Changes in the physico-chemical characteristics of a protein solution in the presence of magnetic field and the consequences on the ultrafiltration performance. Journal of Food Engineering, 2019, 242: 84-93. doi: 10.1016/j.jfoodeng.2018.08.016
[3]	刘勇. 磁场对酶及酶促反应过程的影响[D]. 天津: 天津大学, 2007.
	LIU Y. Effect of magnetic field on enzyme and enzymatic reaction process[D]. Tianjin: Tianjin University, 2007. (in Chinese)
[4]	于静波. 磁场对脂肪酶和纤维素酶的影响[D]. 天津: 天津大学, 2009.
	YU J B. Effect of magnetic field on lipase and cellulase[D]. Tianjin: Tianjin University, 2009. (in Chinese)
[5]	ZHONG C W, WAKAYAMA N I. Effect of a high magnetic field on the viscosity of an aqueous solution of protein. Journal of Crystal Growth, 2001, 226(2/3): 327-332. doi: 10.1016/S0022-0248(01)01269-6
[6]	SHOKROLLAHI S, GHANATI F, SAJEDI R H, SHARIFI M. Possible role of iron containing proteins in physiological responses of soybean to static magnetic field. Journal of Plant Physiology, 2018, 226: 163-171. doi: S0176-1617(18)30168-8 pmid: 29778670
[7]	XIA M Q, CHEN Y X, MA J, YIN X L, WANG L, WU W J, XIONG G Q, SUN W Q, ZHOU Y H. Effects of low frequency magnetic field on myoglobin oxidation stability. Food Chemistry, 2020, 309: 125651. doi: 10.1016/j.foodchem.2019.125651
[8]	XIA M Q, CHEN Y X, MA J, YIN X L, LI Z S, XIONG G Q, WANG L, WU W J, SUN W Q, ZHOU Y H. Low frequency magnetic fields modification on hydrogen peroxide oxidized myoglobin-isolate and mechanisms underlying the chain reaction process. Food Chemistry, 2020, 312: 126069. doi: 10.1016/j.foodchem.2019.126069
[9]	ATEF M M, ABD EI-BASET M S, ELL-KAREEM A, AIDA S, FADEL M A. Effects of a static magnetic field on haemoglobin structure and function. International Journal of Biological Macromolecules, 1995, 17(2): 105-111. pmid: 7547716
[10]	柳士鑫. 磁化水性质的变化对蛋白质分子和大肠杆菌蛋白质的影响[D]. 天津: 天津大学, 2007.
	LIU S X. Effects of changes in properties of magnetized water on protein molecules and Escherichia coli protein[D]. Tianjin: Tianjin University, 2007. (in Chinese)
[11]	ZHENG J B, HAN Y R, GE G, ZHAO M M, SUN W Z. Partial substitution of NaCl with chloride salt mixtures: impact on oxidative characteristics of meat myofibrillar protein and their rheological properties. Food Hydrocolloids, 2019, 96: 36-42. doi: 10.1016/j.foodhyd.2019.05.003
[12]	LIU R, LONERGAN S, STEADHAM E, ZHOU G H, ZHANG W G, HUFF-LONERGAN E. Effect of nitric oxide on myofibrillar proteins and the susceptibility to calpain-1 proteolysis. Food Chemistry, 2019, 276: 63-70. doi: S0308-8146(18)31770-9 pmid: 30409642
[13]	UTRERA M, MORCUENDE D, ESTÉVEZ M. Fat content has a significant impact on protein oxidation occurred during frozen storage of beef patties. LWT - Food Science and Technology, 2014, 56(1): 62-68. doi: 10.1016/j.lwt.2013.10.040
[14]	孙攀. 超声波处理对金枪鱼肌原纤维蛋白理化特性、结构和凝胶特性的影响[D]. 锦州: 渤海大学, 2019.
	SUN P. Effects of ultrasonic treatment on physicochemical properties, structure and gel properties of tuna myofibrillar protein[D]. Jinzhou: Bohai University, 2019. (in Chinese)
[15]	TANG J, FAUSTMAN C, HOAGLAND T A. Krzywicki revisited: equations for spectrophotometric determination of myoglobin redox forms in aqueous meat extracts. Journal of Food Science, 2006, 69(9): C717-C720.
[16]	KRZYWICKI K. The determination of haem pigments in meat. Meat Science, 1982, 7(1): 29-36. doi: 10.1016/0309-1740(82)90095-X pmid: 22055066
[17]	张同刚, 罗瑞明, 李亚蕾, 周亚玲. 基于拉曼光谱法测定冷鲜牛肉中肌红蛋白相对含量. 食品科学, 2018, 39(2): 210-214. doi: 10.7506/spkx1002-6630-201802033
	ZHANG T G, LUO R M, LI Y L, ZHOU Y L. Determination of myoglobin in chilled beef based on Raman spectroscopy. Food Science, 2018, 39(2): 210-214. (in Chinese) doi: 10.7506/spkx1002-6630-201802033
[18]	冯哲, 陈辉, 郭丽萍, 熊双丽, 黄业传. 高压结合热处理对猪肉肌红蛋白的影响. 食品工业科技, 2016, 37(2): 160-164, 175.
	FENG Z, CHEN H, GUO L P, XIONG S L, HUANG Y C. Effects of high pressure combined with thermal treatment on myoglobin in pork. Science and Technology of Food Industry, 2016, 37(2): 160-164, 175. (in Chinese)
[19]	BENJAKUL S, BAUER F. Biochemical and physicochemical changes in catfish (Silurus glanis Linne) muscle as influenced by different freeze-thaw cycles. Food Chemistry, 2001, 72(2): 207-217. doi: 10.1016/S0308-8146(00)00222-3
[20]	WANG Z M, HE Z F, EMARA A M, GAN X, LI H J. Effects of malondialdehyde as a byproduct of lipid oxidation on protein oxidation in rabbit meat. Food Chemistry, 2019, 288: 405-412. doi: S0308-8146(19)30492-3 pmid: 30902311
[21]	马君燕, 郑学仿, 郭明, 唐乾, 马静, 高大彬, 胡皆汉. 荧光法研究光诱导肌红蛋白的去氧过程. 中国科学B辑, 2008, 38(1): 55-59.
	MA J Y, ZHENG X F, GUO M, TANG Q, MA J, GAO D B, HU J H. Study on photo-induced deoxygenation of myoglobin by fluorescence method. Scientia Sinica Chimica, 2008, 38(1): 55-59. (in Chinese)
[22]	ZOU Y, XU P P, WU H H, ZHANG M H, SUN Z L, SUN C, WANG D Y, CAO J X, XU W M. Effects of different ultrasound power on physicochemical property and functional performance of chicken actomyosin. International Journal of Biological Macromolecules, 2018, 113: 640-647. doi: S0141-8130(18)30022-9 pmid: 29428384
[23]	BANERJEE S, CHAKRABORTI A S. Structural alterations of hemoglobin and myoglobin by glyoxal: A comparative study. International Journal of Biological Macromolecules, 2014, 66: 311-318. doi: 10.1016/j.ijbiomac.2014.02.034 pmid: 24613676
[24]	ZHU Z H, WANG Y Q, KANG Y J, ZHANG H M, ZHANG Z M, FEI Z H, CAO J. Graphene oxide destabilizes myoglobin and alters its conformation. Carbon, 2017, 114: 449-456. doi: 10.1016/j.carbon.2016.12.053
[25]	XIA M Q, CHEN Y X, GUO J J, FENG X L, YIN X L, WANG L, WU W J, LI Z S, SUN W Q, MA J. Effects of oxidative modification on textural properties and gel structure of pork myofibrillar proteins. Food Research International, 2019, 121: 678-683. doi: S0963-9969(18)30984-0 pmid: 31108795
[26]	XIA W Y, MA L, CHEN X K, LI X Y, ZHANG Y H. Physicochemical and structural properties of composite gels prepared with myofibrillar protein and lecithin at various ionic strengths. Food Hydrocolloids, 2018, 82: 135-143. doi: 10.1016/j.foodhyd.2018.03.044
[27]	LEDWARD D A. Post-slaughter influences on the formation of metyyoglobin in beef muscles. Meat Science, 1985, 15(3): 149-171. doi: 10.1016/0309-1740(85)90034-8 pmid: 22054503
[28]	FAUSTMAN C, SUN Q, MANCINI R, SUMAN S P. Myoglobin and lipid oxidation interactions: Mechanistic bases and control. Meat Science, 2010, 86(1): 86-94. doi: 10.1016/j.meatsci.2010.04.025 pmid: 20554121
[29]	ESTÉVEZ M, CAVA R. Lipid and protein oxidation, release of iron from heme molecule and colour deterioration during refrigerated storage of liver pâté. Meat Science, 2004, 68(4): 551-558. doi: 10.1016/j.meatsci.2004.05.007 pmid: 22062531
[30]	PACE A D, CUPANE A, LEONE M, VITRANO E, CORDONE L. Protein dynamics. Vibrational coupling, spectral broadening mechanisms, and anharmonicity effects in carbonmonoxy heme proteins studied by the temperature dependence of the Soret band lineshape. Biophysical Journal, 1992, 63(2): 475-484. pmid: 1420893
[31]	HERRERO A M. Raman spectroscopy for monitoring protein structure in muscle food systems. Critical Reviews in Food Science and Nutrition, 2008, 48(6): 512-523. doi: 10.1080/10408390701537385 pmid: 18568857
[32]	ZHANG Z Y, YANG Y L, TANG X Z, CHEN Y J, YOU Y. Chemical forces and water holding capacity study of heat-induced myofibrillar protein gel as affected by high pressure. Food Chemistry, 2015, 188: 111-118. doi: 10.1016/j.foodchem.2015.04.129 pmid: 26041172
[33]	王甜甜, 朱逸宸, 谢勇, 周凯, 廖鲜艳, 黄俊逸, 徐宝才. 肌红蛋白在加工贮藏过程中结构与功能特性的变化及其对肉制品色泽的影响研究进展. 食品科学, 2023, 44(3): 393-399.
	WANG T T, ZHU Y C, XIE Y, ZHOU K, LIAO X Y, HUANG J Y, XU B C. Research progress on changes in structure and functional properties of myoglobin during processing and storage and their effect on the quality of meat products. Food Science, 2023, 44(3): 393-399. (in Chinese) doi: 10.7506/spkx1002-6630-20220127-280
[34]	丁振瑞, 赵亚军, 陈凤玲, 陈金忠, 段书兴. 磁化水的磁化机理研究. 物理学报, 2011, 60(6): 432-439.
	DING Z R, ZHAO Y J, CHEN F L, CHEN J Z, DUAN S X. Magnetization mechanism of magnetized water. Acta Physica Sinica, 2011, 60(6): 432-439. (in Chinese)
[35]	朱元保, 颜流水, 曹祉祥, 文陵飞, 陈宗璋. 磁化水的物理化学性能. 湖南大学学报, 1999, 26(1): 21-25, 32.
	ZHU Y B, YAN L S, CAO Z X, WEN L F, CHEN Z Z. Physical and chemical properties of magnetized water. Journal of Hunan University, 1999, 26(1): 21-25, 32. (in Chinese)
[36]	费庆志. 磁化对水性能的影响. 大连铁道学院学报, 1998(1): 85-89.
	FEI Q Z. Influence of water function by magnetizing. Journal of Dalian Railway Institute, 1998(1): 85-89. (in Chinese)
[37]	WANG Y K, WEI H N, LI Z W. Effect of magnetic field on the physical properties of water. Results in Physics, 2018, 8: 262-267. doi: 10.1016/j.rinp.2017.12.022

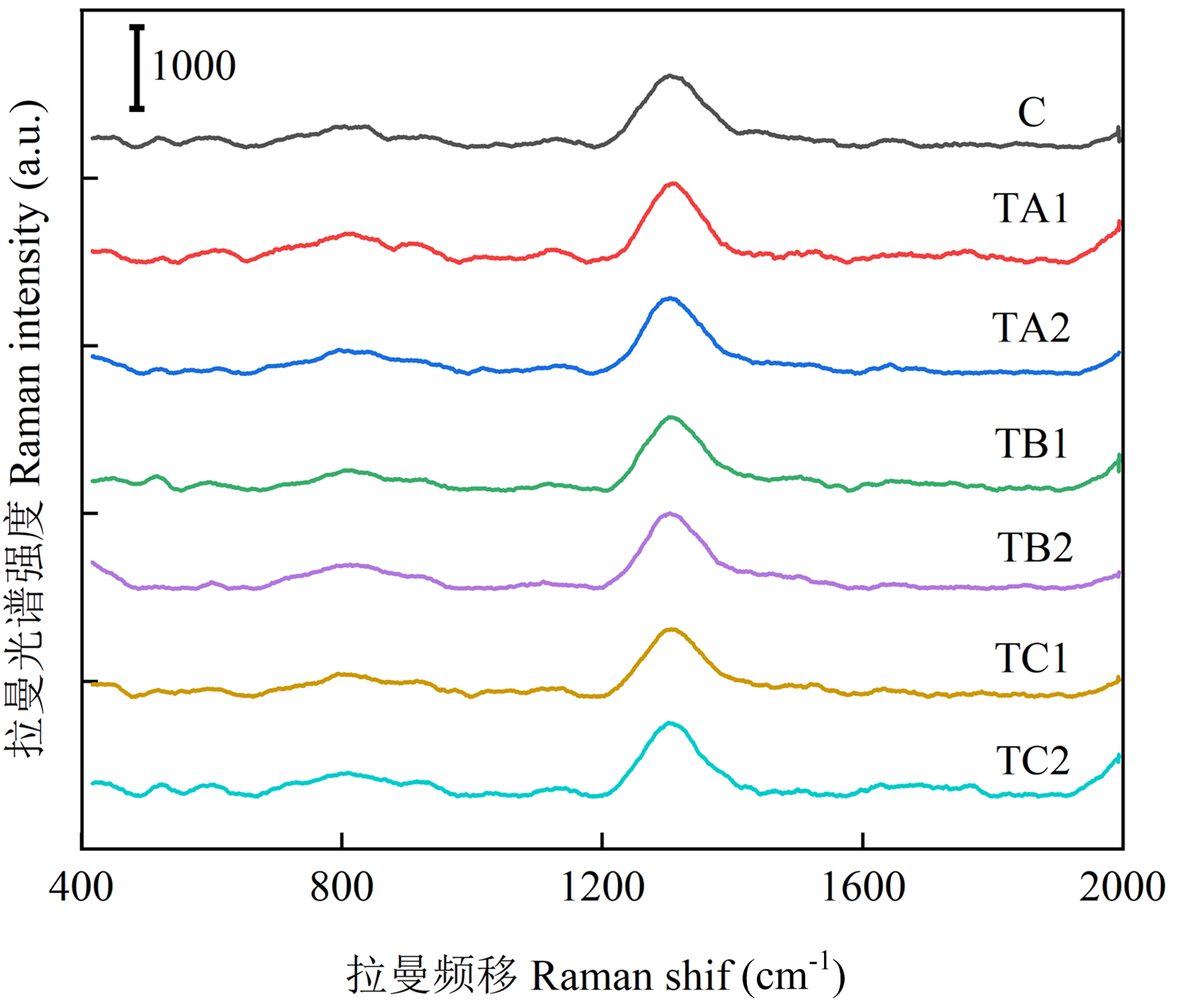

处理 Treatment	I1450/I1003	I1360/I1340	I850/I830	I759/I1003	I510/I1003
C	5.055±2.432ab	0.742±0.020a	0.882±0.077a	4.760±1.207b	1.651±0.448b
TA1	3.426±0.941b	0.673±0.018c	0.814±0.063a	3.744±0.131b	1.733±1.286b
TA2	5.886±1.783ab	0.721±0.016abc	0.853±0.065a	6.470±1.857ab	1.681±0.249b
TB1	4.708±0.349ab	0.707±0.004abc	0.825±0.052a	5.093±0.840b	2.573±2.616ab
TB2	13.706±6.107a	0.739±0.011ab	0.869±0.063a	15.035±7.358a	1.770±0.373b
TC1	9.287±2.048ab	0.725±0.042abc	0.806±0.053a	9.048±1.991ab	4.935±1.638ab
TC2	8.903±5.916ab	0.683±0.015bc	0.823±0.019a	14.269±2.708a	6.157±0.886a
