耐除草剂棉花GGK2的遗传稳定性分析及性状鉴定

doi:10.3864/j.issn.0578-1752.2023.17.002

摘要/Abstract

摘要： 【目的】 明确转基因耐除草剂棉花GGK2的遗传稳定性和营养品质等性状，为其产业化应用提供数据基础和技术支撑。 【方法】 针对实验室培育的新型耐除草剂棉花GGK2，选取其T₃、T₄、T₅代开展试验研究。利用特异性PCR和Southern blot开展基因组整合稳定性分析；利用实时荧光定量PCR、ELISA和胶体金试纸条开展表达稳定性分析；通过田间喷施草甘膦测试其除草剂耐受稳定性，以及依据相关国际或国内行业标准进行棉籽营养成分分析等。 【结果】 抗除草剂基因GR79 EPSPS和GAT，以及筛选标记基因NPTⅡ以单拷贝形式整合到棉花GGK2基因组D10染色体，且能够在T₃、T₄、T₅代转基因棉花中稳定遗传，同时发现基因组中不含有遗传转化载体的骨架片段。表达分析发现GR79 EPSPS、GAT和NPTⅡ 3个基因在棉花GGK2的不同时期、不同组织部位均有表达，其中，叶片中的表达量相对较高。四叶期、盛花期、吐絮期3个蛋白在叶片中表达量分别介于128.7—192.4 µg·g^-1、24.4—35.0 µg·g^-1和17.0—23.9 µg·g^-1鲜重，利用GR79 EPSPS单克隆抗体制备的胶体金试纸条可以对田间棉花GGK2叶片实现快速鉴定。除草剂耐受性分析结果显示，转基因棉花GGK2可耐受4倍生产使用剂量的草甘膦除草剂。T₃—T₅不同世代棉花喷施除草剂后均未发现受害症状，而且整个生育期的生长发育未受影响。棉籽营养成分分析表明，来源于新疆、河北和河南种植的GGK2棉籽中，水分、灰分、蛋白质、脂肪、粗纤维、维生素及脂肪酸含量与非转基因对照之间无显著差异，各指标的含量水平均位于ILSI数据库报道的范围内。 【结论】 转基因棉花新种质GGK2的耐除草剂性状遗传稳定性好、除草剂耐受能力强、籽粒营养成分与非转基因对照之间无显著差异，在耐除草剂棉花生物育种具有重要的应用价值且产业化前景好。

关键词: 棉花, GGK2, 耐除草剂, 草甘膦, 遗传稳定性

Abstract:

【Objective】The objective of this study is to confirm the target traits and genetic stability of transgenic glyphosate- resistant cotton GGK2 and provide technical support for its commercialization. 【Method】T₃, T₄, and T₅ transgenic cotton plants GGK2 were subjected to insertion site-specific PCR, Southern blot, ELISA, bioassays in the laboratory and field, analysis of target herbicide tolerance, and investigation of nutritional constituents. 【Result】The results indicated that the target genes, GR79 EPSPS and GAT, were integrated into the cotton genome as single copies and stably inherited in GGK2 plants. In GGK2 cotton, GR79 EPSPS, GAT, and NPTⅡ proteins were expressed at different stages and in different tissues, with relatively high expression levels in the leaves. At the four-leaf stage, bud stage and boll opening stag, the expression levels in leaves were 128.7-192.4 µg·g^-1, 24.4-35.0 µg·g^-1, and 17.0-23.9 µg·g^-1 fresh weight for GR79 EPSPS, GAT, and NPTⅡ, respectively. In the field, transgenic cotton GGK2 tolerated up to four times the recommended medium dose of glyphosate application. No significant differences were observed in agronomic traits and nutritional constituents compared to the control, Coker312. 【Conclusion】These data demonstrate that transgenic cotton GGK2 is genetically stable and highly resistant to herbicides. Therefore, it can be utilized for breeding high-glyphosate- resistant commercial cotton varieties.

Key words: cotton, GGK2, herbicide tolerance, glyphosate, genetic stability

梁成真, 臧有义, 孟志刚, 王远, MUBASHIR Abbas, 何海焱, 周琪, 魏云晓, 张锐, 郭三堆. 耐除草剂棉花GGK2的遗传稳定性分析及性状鉴定[J]. 中国农业科学, 2023, 56(17): 3251-3260.

LIANG ChengZhen, ZANG YouYi, MENG ZhiGang, WANG Yuan, MUBASHIR Abbas, HE HaiYan, ZHOU Qi, WEI YunXiao, ZHANG Rui, GUO SanDui. Identification of Target Traits and Genetic Stability of Transgenic Cotton GGK2[J]. Scientia Agricultura Sinica, 2023, 56(17): 3251-3260.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2023.17.002

https://www.chinaagrisci.com/CN/Y2023/V56/I17/3251

图/表 6

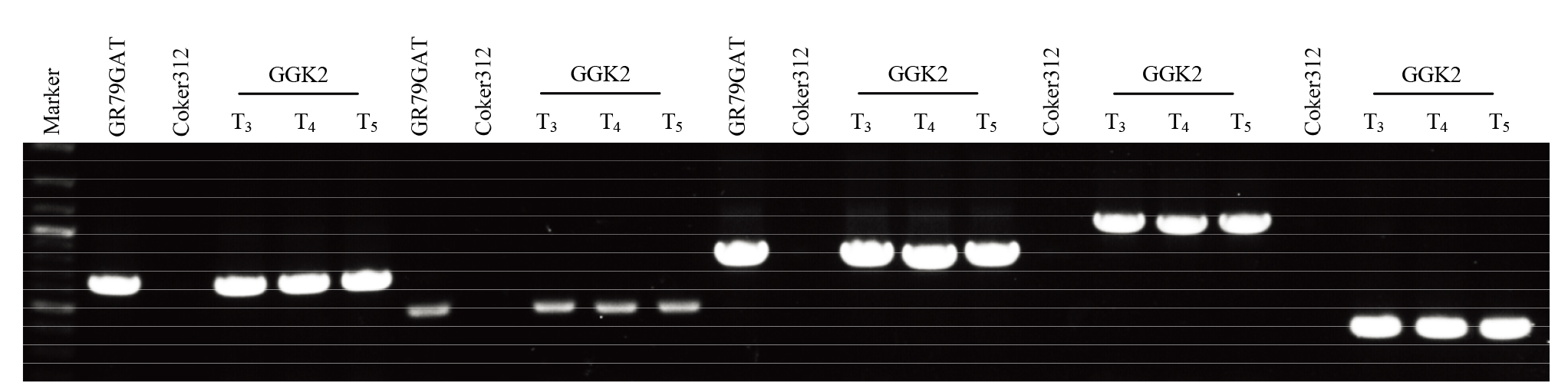

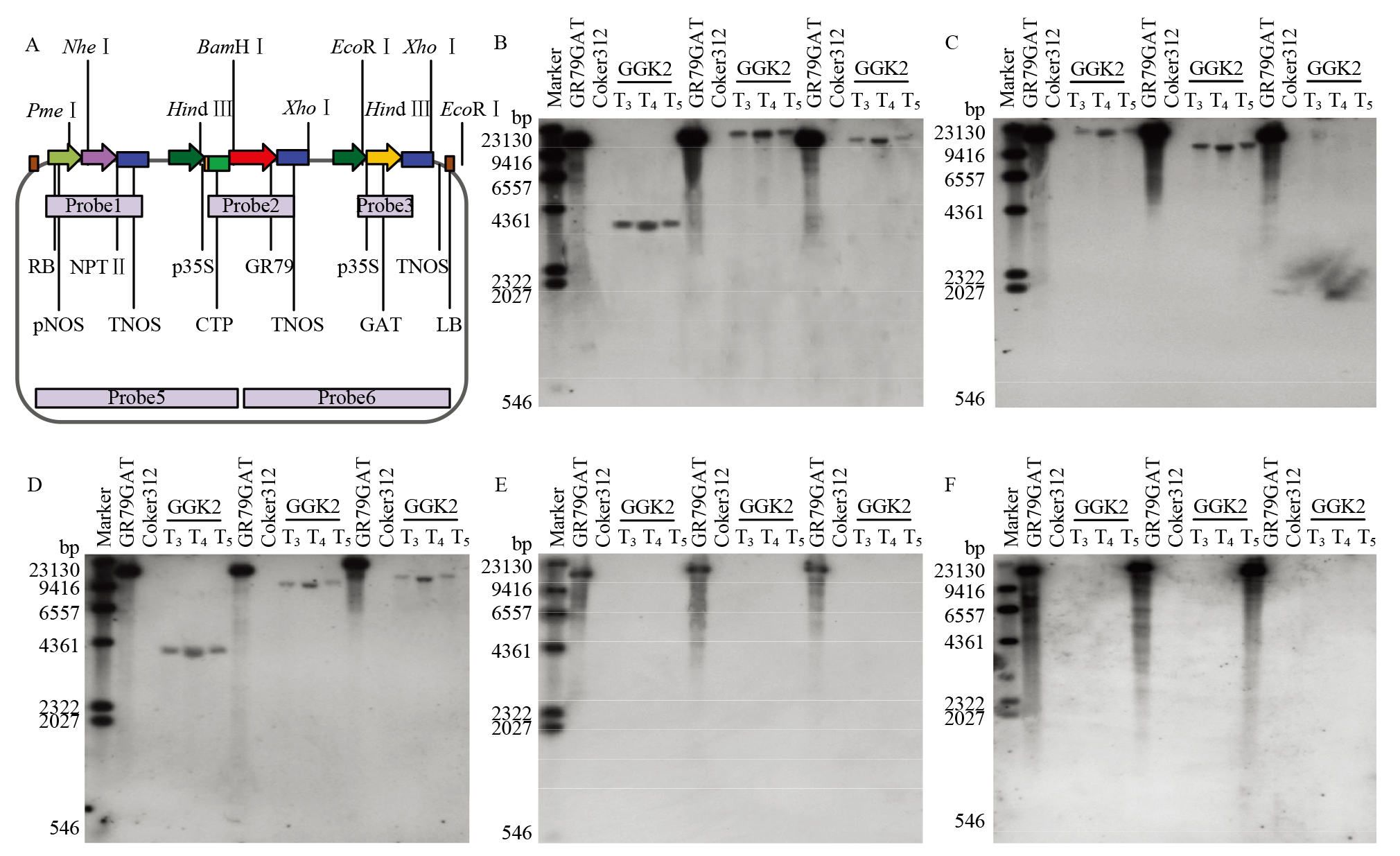

图1

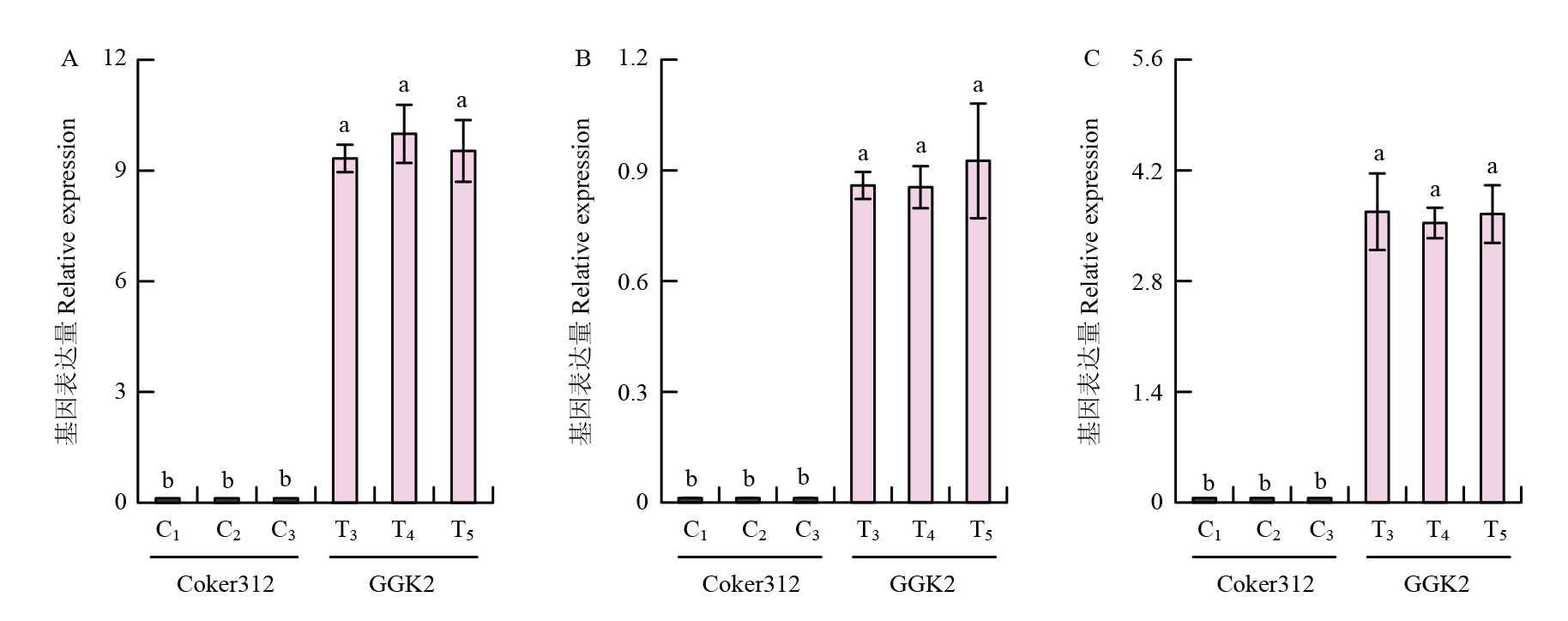

图2

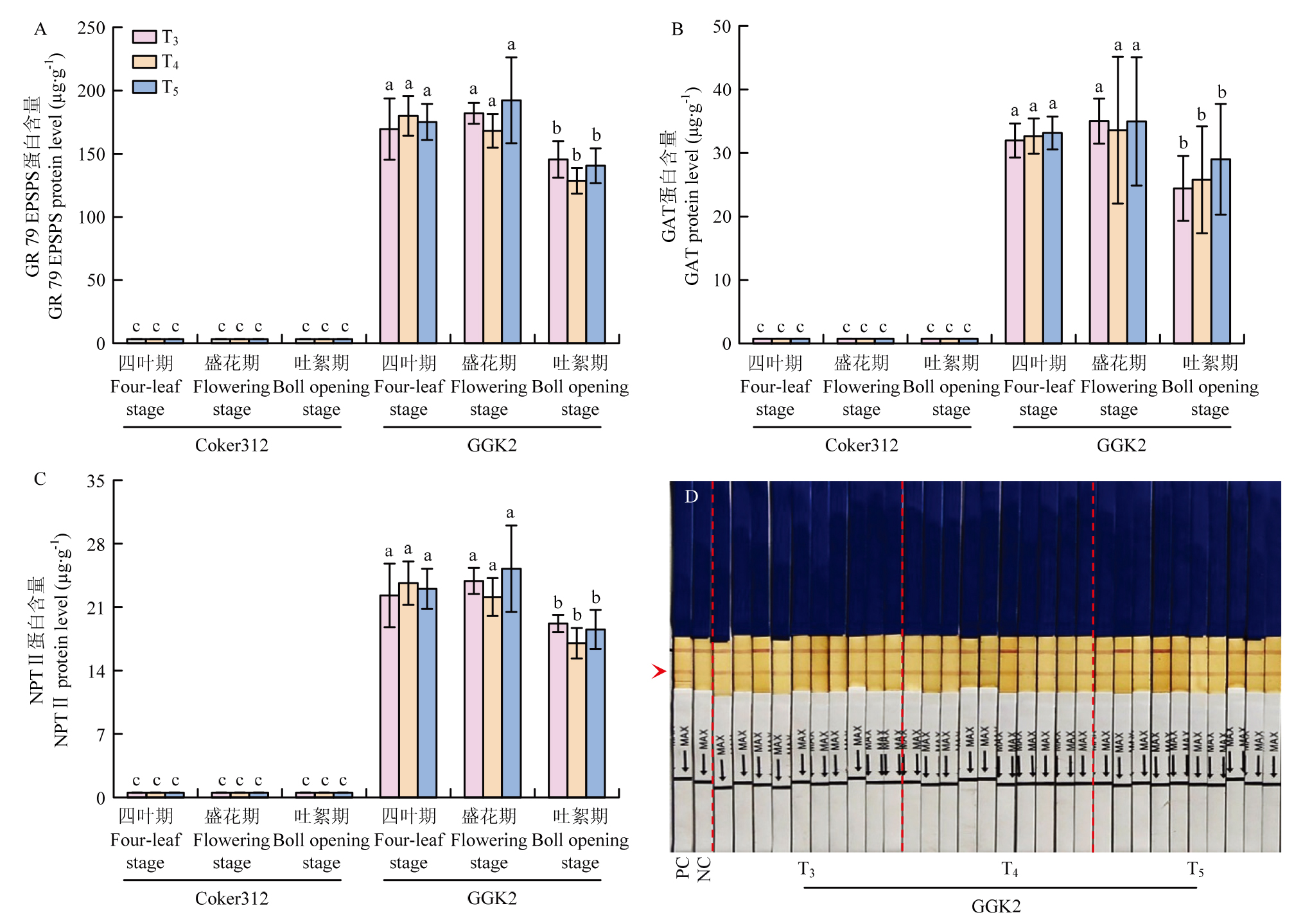

图3

图4

表1

表2

参考文献 35

[1]	郭三堆, 王远, 孙国清, 金石桥, 周焘, 孟志刚, 张锐. 中国转基因棉花研发应用二十年. 中国农业科学, 2015, 48(17): 3372-3387. doi: 10.3864/j.issn.0578-1752.2015.17.005
	GUO S D, WANG Y, SUN G Q, JIN S Q, ZHOU T, MENG Z G, ZHANG R. Twenty years of research and application of transgenic cotton in China. Scientia Agricultura Sinica, 2015, 48(17): 3372-3387. (in Chinese)
[2]	LIANG C Z, SUN B, MENG Z G, MENG Z H, WANG Y, SUN G Q, ZHU T, LU W, ZHANG W, MALIK W, LIN M, ZHANG R, GUO S D. Co-expression of GR79 EPSPS and GAT yields herbicide-resistant cotton with low glyphosate residues. Plant Biotechnology Journal, 2017, 15(12): 1622-1629. doi: 10.1111/pbi.2017.15.issue-12
[3]	GAUR R K, SHARMA P. Weed stress in plants//Approaches to Plant Stress and Their Management. Berlin: Springer, 2014.
[4]	HOLM L, PLUCKNETT D L, PANCHO J V, HERBERGER J P. The World’s Worst Weeds. Distribution and Biology. Hawaii, USA: The University Press of Hawaii, Honolulu, 1977.
[5]	李扬汉. 中国杂草志. 北京: 中国农业出版社, 1998.
	LI Y H. Weeds in China. Beijing: China Agriculture Press, 1998. (in Chinese)
[6]	李香菊. 近年我国农田杂草防控中的突出问题与治理对策. 植物保护, 2018, 44(5): 77-84.
	LI X J. Main problems and management strategies of weeds in agricultural fields in China in recent years. Plant Protection, 2018, 44(5): 77-84. (in Chinese)
[7]	BECKIE H J. Herbicide-resistant weed management: Focus on glyphosate. Pest Management Science, 2011, 67(9): 1037-1048. doi: 10.1002/ps.2195 pmid: 21548004
[8]	HEAP I. Global perspective of herbicide-resistant weeds. Pest Management Science, 2014, 70(9): 1306-1315. doi: 10.1002/ps.3696 pmid: 24302673
[9]	DUKE S O, POWLES S B. Glyphosate: A once-in-a-century herbicide. Pest Management Science, 2008, 64(4): 319-325. doi: 10.1002/ps.1518 pmid: 18273882
[10]	金文涌, 叶凤林, 刘定富, 陆永良, 应继锋. 中美转基因作物产业化最新进展. 中国种业, 2022(9): 1-6.
	JIN W Y, YE F L, LIU D F, LU Y L, YING J F. The latest progress of of genetically modified crops industrialization in China and the United States. China Seed Industry, 2022(9): 1-6. (in Chinese)
[11]	张娟娟. 转基因作物产业化发展现状及法规监管问题. 分子植物育种, 2022, 20(22): 7469-7473.
	ZHANG J J. Current situation of industrialization of genetically modified crops and regulatory issues. Molecular Plant Breeding, 2022, 20(22): 7469-7473. (in Chinese)
[12]	OWEN M D K. Current use of transgenic herbicide-resistant soybean and corn in the USA. Crop Protection, 2000, 19(8/9/10): 765-771. doi: 10.1016/S0261-2194(00)00102-2
[13]	WATRUD L S, LEE E H, FAIRBROTHER A, BURDICK C, REICHMAN J R, BOLLMAN M, STORM M, KING G, VAN DE WATER P K. Evidence for landscape-level, pollen-mediated gene flow from genetically modified creeping bentgrass with CP4 EPSPS as a marker. Proceedings of the National Academy of Sciences of the United States of America, 2004, 101(40): 14533-14538.
[14]	蒋田田, 文君慧. 我国抗除草剂转基因作物面临的机遇和挑战. 安徽农业科学, 2021, 49(22): 239-242.
	JIANG T T, WEN J H. Opportunities and challenges facing genetically modified herbicide-resistant crops in China. Journal of Anhui Agricultural Sciences, 2021, 49(22): 239-242. (in Chinese)
[15]	YANG Z R, QANMBER G, WANG Z, YANG Z E, LI F G. Gossypium genomics: Trends, scope, and utilization for cotton improvement. Trends in Plant Science, 2020, 25(5): 488-500. doi: 10.1016/j.tplants.2019.12.011
[16]	HUANG G, HUANG J Q, CHEN X Y, ZHU Y X. Recent advances and future perspectives in cotton research. Annual Review of Plant Biology, 2021, 72: 437-462. doi: 10.1146/annurev-arplant-080720-113241 pmid: 33428477
[17]	WANG M J, LI J Y, QI Z Y, LONG Y X, PEI L L, HUANG X H, GROVER C E, DU X M, XIA C J, WANG P C, LIU Z P, YOU J Q, TIAN X H, MA Y Z, WANG R P, CHEN X Y, HE X, FANG D D, SUN Y Q, TU L L, JIN S X, ZHU L F, WENDEL J F, ZHANG X L. Genomic innovation and regulatory rewiring during evolution of the cotton genus Gossypium. Nature Genetics, 2022, 54(12): 1959-1971. doi: 10.1038/s41588-022-01237-2
[18]	MA Z Y, ZHANG Y, WU L Q, ZHANG G Y, SUN Z W, LI Z K, JIANG Y F, KE H F, CHEN B, LIU Z W, GU Q S, WANG Z C, WANG G N, YANG J, WU J H, YAN Y Y, MENG C S, LI L H, LI X X, MO S J, WU N, MA L M, CHEN L T, ZHANG M, SI A J, YANG Z W, WANG N, WU L Z, ZHANG D M, CUI Y R, CUI J, LV X, LI Y, SHI R K, DUAN Y H, TIAN S L, WANG X F. High-quality genome assembly and resequencing of modern cotton cultivars provide resources for crop improvement. Nature Genetics, 2021, 53(9): 1385-1391. doi: 10.1038/s41588-021-00910-2 pmid: 34373642
[19]	陈佳, 王燕, 白玉兰. 我国棉花产业现状和产出效率分析及对策. 棉花科学, 2022, 44(5): 3-10.
	CHEN J, WANG Y, BAI Y L. Current situation and output efficiency analysis and countermeasures of Chinese cotton industry. Cotton Sciences, 2022, 44(5): 3-10. (in Chinese)
[20]	朱玉永, 赵冰梅, 王林. 新疆棉田杂草发生与防除现状及对策. 中国棉花, 2021, 48(2): 1-7.
	ZHU Y Y, ZHAO B M, WANG L. Current status of weed occurrence and control in cotton field of Xinjiang and its countermeasures. China Cotton, 2021, 48(2): 1-7. (in Chinese)
[21]	王新玲, 马小艳, 姜伟丽, 任相亮, 马亚杰, 马艳. 杂草与棉花的竞争作用. 棉花学报, 2015, 27(5): 474-480.
	WANG X L, MA X Y, JIANG W L, REN X L, MA Y J, MA Y. Review on competition between weeds and cotton. Cotton Science, 2015, 27(5): 474-480. (in Chinese)
[22]	LIANG A M, SHA J Y, LU W, CHEN M, LI L, JIN D, YAN Y L, WANG J, PING S Z, ZHANG W, WANG Y D, LIN M. A single residue mutation of 5-enoylpyruvylshikimate-3-phosphate synthase in Pseudomonas stutzeri enhances resistance to the herbicide glyphosate. Biotechnology Letters, 2008, 30(8): 1397-1401. doi: 10.1007/s10529-008-9703-8
[23]	DUN B Q, LU W, PING S Z, ZHANG W, CHEN M, XU Y Q, JIN D, ZHAO Z, LIN M. Isolation of a novel glyphosate tolerance N-acetyltransferase gene and expression in E. coli. Chinese High Technology Letter, 2006, 16: 943-947.
[24]	ABID M A, WEI Y X, MENG Z G, WANG Y, YE Y L, WANG Y N, HE H Y, ZHOU Q, LI Y Y, WANG P L, LI X G, YAN L H, MALIK W, GUO S D, CHU C C, ZHANG R, LIANG C Z. Increasing floral visitation and hybrid seed production mediated by beauty mark in Gossypium hirsutum. Plant Biotechnology Journal, 2022, 20(7): 1274-1284. doi: 10.1111/pbi.v20.7
[25]	WANG Y Q, LIANG C Z, WU S J, ZHANG X Y, TANG J Y, JIAN G L, JIAO G L, LI F G, CHU C C. Significant improvement of cotton Verticillium wilt resistance by manipulating the expression of Gastrodia antifungal proteins. Molecular Plant, 2016, 9(10): 1436-1439. doi: 10.1016/j.molp.2016.06.013
[26]	李圣彦, 李香银, 李鹏程, 张明俊, 张杰, 郎志宏. 转基因玉米2HVB5的性状鉴定及遗传稳定性分析. 生物技术通报, 2023, 39(1): 21-30. doi: 10.13560/j.cnki.biotech.bull.1985.2022-0536
	LI S Y, LI X Y, LI P C, ZHANG M J, ZHANG J, LANG Z H. Identification of target traits and genetic stability of transgenic maize 2HVB5. Biotechnology Bulletin, 2023, 39(1): 21-30. (in Chinese)
[27]	CARRIÈRE Y, CRICKMORE N, TABASHNIK B E. Optimizing pyramided transgenic Bt crops for sustainable pest management. Nature Biotechnology, 2015, 33(2): 161-168. doi: 10.1038/nbt.3099 pmid: 25599179
[28]	CARRIÈRE Y, FABRICK J A, TABASHNIK B E. Can Pyramids and seed mixtures delay resistance to bt crops? Trends in Biotechnology, 2016, 34(4): 291-302. doi: S0167-7799(15)00271-1 pmid: 26774592
[29]	SHENG K, SUN Y, LIU M, CAO Y F, HAN Y F, LI C, MUHAMMAD U, DAUD M K, WANG W R, LI H Z, SAMRANA S, HUI Y X, ZHU S J, CHEN J H, ZHAO T L. A reference-grade genome assembly for Gossypium bickii and insights into its genome evolution and formation of pigment glands and gossypol. Plant Communcations, 2023, 4(1): 100421.
[30]	郑曙峰. 棉花的多功能利用: 大自然对人类的馈赠, 超乎想象的棉花. 中国棉花, 2022, 49(1): 7-9.
	ZHENG S F. Multifunctional utilization of cotton: Nature’s gift to humanity, the cotton beyond imagination. China Cotton, 2022, 49(1): 7-9. (in Chinese)
[31]	祁潇哲, 黄昆仑. 转基因食品安全评价研究进展. 中国农业科技导报, 2013, 15(4): 14-19.
	QI X Z, HUANG K L. Research progress on safety assessment of genetically modified food. Journal of Agricultural Science and Technology, 2013, 15(4): 14-19. (in Chinese) doi: 10.3969/j.issn.10080864.2013.04.03
[32]	王友华, 孙国庆, 连正兴. 国内外转基因生物研发新进展与未来展望. 生物技术通报, 2015, 31(3): 223-230. doi: 10.135601j.cnki.biotech.bull.1985.2015.04.033
	WANG Y H, SUN G Q, LIAN Z X. Progress and prospect of the genetically modified organism in the domestic and international. Biotechnology Bulletin, 2015, 31(3): 223-230. (in Chinese)
[33]	BUSI R, VILA-AIUB M M, BECKIE H J, GAINES T A, GOGGIN D E, KAUNDUN S S, LACOSTE M, NEVE P, NISSEN S J, NORSWORTHY J K, RENTON M, SHANER D L, TRANEL P J, WRIGHT T, YU Q, POWLES S B. Herbicide-resistant weeds: From research and knowledge to future needs. Evolutionary Applications, 2013, 6(8): 1218-1221. doi: 10.1111/eva.12098 pmid: 24478803
[34]	DILL G M, CAJACOB C A, PADGETTE S R. Glyphosate-resistant crops: Adoption, use and future considerations. Pest Management Science, 2008, 64(4): 326-331. pmid: 18078304
[35]	余国新, 吕海洋, 甘昶春. 新疆棉花成本收益与价格时变特征研究. 价格理论与实践, 2022(2): 116-119, 201.
	YU G X, LÜ H Y, GAN C C. Research on time-varying characteristics of cost-benefit and price of cotton in Xinjiang. Price: Theory & Practice, 2022(2): 116-119, 201. (in Chinese)

处理时间 Time	性状 Phenotype	喷施物 Spray	柯字棉312 Coker312	GGK2
处理时间 Time	性状 Phenotype	喷施物 Spray	柯字棉312 Coker312	T₃	T₄	T₅
喷施后2周 Two weeks after spraying	株高 Plant height (cm)	草甘膦Glyphosate	/	26.74±1.40	27.44±1.74	28.12±1.41
	株高 Plant height (cm)	清水Water	27.34±2.29	27.11±1.08	26.42±1.84	26.72±1.22
	叶片受害率 Leaf damage rate (%)	草甘膦Glyphosate	100.00±0.00	0.96±0.10	0.71±0.23	0.82±0.07
	叶片受害率 Leaf damage rate (%)	清水Water	0.00±0.00	0.00±0.00	0.00±0.00	0.00±0.00
喷施后4周 Four weeks after spraying	株高 Plant height (cm)	草甘膦Glyphosate	/	46.88±2.54	47.03±1.22	47.23±3.18
	株高 Plant height (cm)	清水Water	47.60±1.92	47.27±0.53	46.93±1.52	48.03±1.39
	叶片受害率 Leaf damage rate (%)	草甘膦Glyphosate	100.00±0.00	1.21±0.26	0.83±0.03	1.13±0.11
	叶片受害率 Leaf damage rate (%)	清水Water	0.00±0.00	0.00±0.00	0.00±0.00	0.00±0.00
/：全部死亡 /: All dead

名称Name	水分 Water content (g/100 g)			灰分 Ash content (g/100 g)			蛋白质 Protein content (g/100 g)			脂肪 Fat content (g/100 g)
名称Name	T₃	T₄	T₅	T₃	T₄	T₅	T₃	T₄	T₅	T₃	T₄	T₅
GGK2	9.10	8.57	8.84	4.10	4.20	4.10	20.80	20.80	23.90	17.30	16.60	18.20
柯字棉312 Coker312	8.15	8.77	8.37	4.00	4.10	4.20	22.10	21.10	23.60	17.20	17.10	18.10
	粗纤维 Coarse fiber content (g/100 g)			维生素E <BOLD>V</BOLD>itamin E content (mg/100 g)			维生素B2 <BOLD>V</BOLD>itamin B2 content (mg/100 g)			肉豆蔻酸 Myristic chemicing (%)
	T₃	T₄	T₅	T₃	T₄	T₅	T₃	T₄	T₅	T₃	T₄	T₅
GGK2	14.40	14.60	17.80	8.48	7.84	7.09	5.96×10^-2	5.85×10^-2	5.68×10^-2	0.59	0.60	0.82
柯字棉312 Coker312	15.50	17.00	15.70	9.71	10.30	13.20	5.75×10^-2	5.57×10^-2	5.65×10^-2	0.69	0.69	0.70
	棕榈酸 Palmitic acid (%)			棕榈油酸 Palmitoleic acid (%)			十七烷酸 Heptacosanoic acid (%)			硬脂酸 Stearine acid (%)
	T₃	T₄	T₅	T₃	T₄	T₅	T₃	T₄	T₅	T₃	T₄	T₅
GGK2	21.30	21.40	25.40	0.64	0.64	0.75	7.39×10^-2	7.56×10^-2	8.17×10^-2	2.20	2.22	2.56
柯字棉312 Coker312	22.10	22.00	22.10	0.61	0.61	0.61	7.91×10^-2	7.80×10^-2	7.85×10^-2	2.35	2.41	2.37
	油酸 Oleic acid (%)			亚油酸 Linoleic acid (%)			十九烷酸 Nonadecanoic acid (%)			亚麻酸 Linolenic acid (%)
	T₃	T₄	T₅	T₃	T₄	T₅	T₃	T₄	T₅	T₃	T₄	T₅
GGK2	15.70	15.30	14.60	57.50	57.80	52.60	0.23	0.24	0.18	0.23	0.22	0.16
柯字棉312 Coker312	14.70	14.70	14.60	57.50	57.50	57.60	0.25	0.28	0.26	0.18	0.19	0.18
	花生酸 Arachic acid (%)			山嵛酸 Behenic acid (%)			棉酚 Gossypol (mg·kg^-1)			植酸酶 Phytase (g·kg^-1)
	T₃	T₄	T₅	T₃	T₄	T₅	T₃	T₄	T₅	T₃	T₄	T₅
GGK2	0.20	0.19	0.26	0.13	0.13	0.13	5.42×10³	5.16×10³	5.45×10³	28.50	29.10	29.10
柯字棉312 Coker312	0.23	0.22	0.22	0.14	0.14	0.14	5.41×10³	5.25×10³	5.39×10³	30.00	26.40	27.70
