冬小麦水分利用效率相关驱动因子及其预测模型构建

doi:10.3864/j.issn.0578-1752.2024.07.006

摘要/Abstract

摘要：

【目的】水分利用效率能够综合反映冬小麦生长适宜度和能量转化效率，筛选并探究冬小麦各生育时期响应标准化水分利用效率（WP*）的驱动因子，构建相关驱动因子的WP*预测模型，对黄淮海平原冬小麦水分利用效率监测及水资源高效利用具有重要意义。【方法】以冬小麦为研究对象，设置3个水分处理，包括水分亏缺处理（W1）：35 mm和（W2）：48 mm，对照处理（W3）：68 mm，获取冬小麦拔节期、孕穗期和灌浆期的冠层温度参数、生理指标和标准化水分利用效率（WP*）。通过逐步回归和通径分析筛选各生育时期响应WP*变化的主要驱动因子，探究WP*与相关驱动因子间关系，最后采用偏最小二乘回归（PLSR）和支持向量机（SVM）方法构建各生育时期基于驱动因子的WP*预测模型。【结果】较对照处理（常规灌溉），水分亏缺处理下冬小麦冠层温度参数、生理指标和WP*均表现出显著差异。基于逐步回归方法筛选出了各生育时期响应WP*的主要驱动因子，并采用通径分析得到各驱动因子响应WP*敏感程度排序，即拔节期依次为冠层温度极差（MTD）、气孔导度（G_s）、叶片含水量（LWC）和POD；孕穗期依次为冠层相对温差（CRTD）、等效水厚度（EWT）、可溶性糖含量（SSC）和作物水分胁迫指数（CWSI）；灌浆期依次为SSC、冠层温度标准差（CTSD）、LWC和G_s。最后，采用偏最小二乘回归（PLSR）和支持向量机（SVM）基于筛选后的驱动因子构建了各生育时期WP*预测模型，其中以SVM构建的孕穗期WP*预测模型精度最优，R²_cal（R²_val）、RMSE_cal（RMSE_val）和nRMSE_cal（nRMSE_val）分别为0.945（0.926）、0.533 g·m^-2（0.580 g·m^-2）和2.844%（3.075%）。【结论】通过筛选冬小麦各生育时期响应WP*的相关驱动因子信息及构建冬小麦水分利用效率预测模型，为黄淮海平原冬小麦水分精准监测与管理提供了理论基础。

关键词: 冬小麦, 标准化水分利用效率（WP*）, 驱动因子, 通径分析, 支持向量机

Abstract:

【Objective】The water use efficiency can comprehensively reflect the growth suitability and energy conversion efficiency of winter wheat. The driving factors of winter wheat in response to standardized water use efficiency (WP*) at different growth stages were screened and explored, and the WP* prediction model of related driving factors was constructed, which was of great significance for the monitoring of water use efficiency and efficient use of water resources in winter wheat in the Huang-Huai-Hai Plain.【Method】Three water treatments were set up, including water deficit treatments (W1:35 mm, and W2:48 mm) and control treatment (W3: 68 mm), and the canopy temperature parameters, physiological indexes and standardized WP* of winter wheat at the jointing, booting and filling stages were measured. Stepwise regression and pathway analysis were used to screen the main driving factors in response to WP* changes at each growth stage, the relationship between WP* and related drivers was explored, and finally the partial least squares regression (PLSR) and support vector machine (SVM) methods were used to construct a driver-based WP* prediction model in each growth stage. 【Result】 Compared with W3, the canopy temperature parameters, physiological indexes and WP* of winter wheat under the water deficit treatments showed significant differences. Based on the stepwise regression method, the main driving factors in response to WP* at each growth stage were screened, and the sensitivity of each driving factor in response to WP* was ranked by pathway analysis, that is, maximum temperature difference (MTD), stomatal conductance (G_s), leaf water content (LWC) and POD were selected at the jointing stage; canopy relative temperature difference (CRTD), equivalent water thickness (EWT), soluble sugar content (SSC) and crop water stress index (CWSI) were selected at the booting stage; SSC, standard deviation of canopy temperature (CTSD), LWC and G_s were selected at the filling stage. Finally, the driver-based WP* prediction model for each growth stage was construct by using PLSR and SVM. Among them, the prediction model of WP* at booting stage constructed by SVM had the best accuracy, with R²_cal(R²_val), RMSE_cal(RMSE_val) and nRMSE_cal(nRMSE_val) of 0.945 (0.926), 0.533 g·m^-2(0.580 g·m^-2) and 2.844% (3.075%), respectively. 【Conclusion】 By screening the relevant driving factors of WP* at each growth stage of winter wheat and constructing a prediction model of winter wheat water use efficiency, this paper provided a theoretical basis for accurate monitoring and management of winter wheat moisture in the Huang-Huai-Hai Plain.

Key words: winter wheat, standardized water use efficiency (WP*), driving factor, pathway analysis, support vector machine

高晨凯, 刘水苗, 李煜铭, 赵志恒, 邵京, 于昊琳, 吴鹏年, 王艳丽, 关小康, 王同朝, 温鹏飞. 冬小麦水分利用效率相关驱动因子及其预测模型构建[J]. 中国农业科学, 2024, 57(7): 1281-1294.

GAO ChenKai, LIU ShuiMiao, LI YuMing, ZHAO ZhiHeng, SHAO Jing, YU HaoLin, WU PengNian, WANG YanLi, GUAN XiaoKang, WANG TongChao, WEN PengFei. The Related Driving Factors of Water Use Efficiency and Its Prediction Model Construction in Winter Wheat[J]. Scientia Agricultura Sinica, 2024, 57(7): 1281-1294.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2024.07.006

https://www.chinaagrisci.com/CN/Y2024/V57/I7/1281

图/表 6

表1

不同水分处理对两个品种小麦冠层温度参数、生理性状和WP*的影响"

植株性状 Plant trait	处理 Treatment	拔节期 Jointing stage		孕穗期 Booting stage		灌浆期 Filling stage
植株性状 Plant trait	处理 Treatment	洛麦22 Luomai 22	周麦27 Zhoumai 27	洛麦22 Luomai 22	周麦27 Zhoumai 27	洛麦22 Luomai 22	周麦27 Zhoumai 27
冠层温度极差 MTD (X1)	W1	10.85-14.14	14.29-15.26	9.43-13.40	9.59-13.67	11.37-12.21	10.70-13.35
	W2	8.03-8.63	8.26-9.52	5.99-6.36	7.15-8.06	7.80-8.38	8.41-9.63
	W3	5.52-7.03	6.24-6.68	4.43-5.71	5.38-6.12	5.99-7.40	7.65-8.52
冠层温度标准差 CTSD (X2)	W1	1.21-1.46	1.09-1.64	1.55-1.94	1.66-2.29	1.72-1.95	1.98-2.53
	W2	0.92-1.00	0.96-1.08	0.73-0.87	0.85-0.93	1.35-1.61	1.29-1.63
	W3	0.83-0.88	0.83-0.87	0.55-0.69	0.64-0.79	0.61-0.89	0.73-1.15
冠层相对温差 CRTD (X3)	W1	0.163-0.184	0.174-0.191	0.179-0.191	0.216-0.244	0.167-0.185	0.173-0.208
	W2	0.136-0.144	0.169-0.178	0.117-0.134	0.131-0.143	0.115-0.146	0.126-0.144
	W3	0.113-0.124	0.134-0.162	0.088-0.116	0.101-0.127	0.085-0.106	0.119-0.123
作物水分胁迫指数 CWSI (X4)	W1	0.41-0.45	0.42-0.49	0.42-0.48	0.41-0.49	0.45-0.51	0.50-0.55
	W2	0.34-0.36	0.40-0.43	0.37-0.39	0.42-0.48	0.42-0.45	0.43-0.46
	W3	0.30-0.32	0.34-0.37	0.29-0.33	0.29-0.39	0.31-0.38	0.37-0.41
POD activity (U·g^-1·min^-1) (X5)	W1	244.99±1.93a	234.58±8.90a	393.81±11.03a	374.91±10.89a	495.31±15.98a	460.67±13.66a
	W2	154.22±7.05b	160.52±7.95b	300.15±13.64b	290.72±18.13b	367.40±14.98b	354.13±14.39b
	W3	129.77±5.43c	122.21±5.30c	214.57±13.67c	203.89±10.58c	282.41±8.77c	270.00±11.47c
SOD activity (U·g^-1·min^-1) (X6)	W1	142.87±11.82a	120.10±6.11a	188.94±10.66a	171.51±15.86a	211.25±6.52a	206.24±4.90a
	W2	123.77±7.64a	111.73±10.64a	142.33±8.57b	137.22±5.08b	195.18±3.83b	194.07±3.10b
	W3	95.17±3.48b	77.70±7.58b	116.52±5.07c	102.29±15.42c	183.81±3.31c	180.47±5.64c
可溶性糖含量 Soluble sugar content (mg·g^-1) (X7)	W1	50.98±3.10a	46.70±4.03a	85.70±8.14a	82.33±8.58a	127.44±9.29a	108.13±3.35a
	W2	38.54±2.11b	36.54±2.01b	66.89±6.78b	53.10±1.54b	109.62±5.76a	91.00±7.33b
	W3	33.35±1.17c	27.16±3.11c	41.16±7.30c	39.52±2.12c	83.47±3.75b	63.75±4.13c
脯氨酸含量 Proline content (mg·g^-1) (X8)	W1	94.37±3.70a	89.09±6.03a	149.61±14.80a	136.49±5.74a	226.20±16.21a	202.54±13.54a
	W2	68.34±4.99b	53.45±5.25b	117.94±0.87b	107.05±6.21b	193.19±5.28b	169.05±6.13b
	W3	38.16±3.78c	35.28±3.94c	96.69±8.67c	74.35±6.42c	153.86±5.84c	136.59±8.42c
叶片含水量 Leaf water content (g·g^-1) (X9)	W1	0.772±0.004c	0.739±0.015b	0.640±0.008c	0.623±0.013c	0.529±0.013c	0.514±0.011c
	W2	0.783±0.001b	0.774±0.003a	0.673±0.009b	0.657±0.012b	0.581±0.002b	0.564±0.008b
	W3	0.800±0.002a	0.790±0.002a	0.730±0.008a	0.693±0.013a	0.658±0.005a	0.629±0.015a
等效水厚度 Equivalent water thickness (g·cm^-2) (X10)	W1	0.14±0.002c	0.13±0.007c	0.09±0.001c	0.09±0.001c	0.06±0.005c	0.05±0.003c
	W2	0.15±0.004b	0.15±0.002b	0.11±0.001b	0.11±0.004b	0.07±0.002b	0.06±0.004b
	W3	0.17±0.004a	0.16±0.003a	0.13±0.006a	0.12±0.003a	0.08±0.006a	0.07±0.004a
气孔导度 Stomatal conductance (mol·m^-2·s^-1) (X11)	W1	0.18±0.018b	0.15±0.007c	0.21±0.003c	0.20±0.014c	0.19±0.005c	0.16±0.014c
	W2	0.21±0.017b	0.26±0.012b	0.24±0.008b	0.23±0.009b	0.21±0.015b	0.21±0.011b
	W3	0.26±0.005a	0.28±0.012a	0.30±0.020a	0.29±0.017a	0.25±0.007a	0.23±0.006a
蒸腾速率 Transpirationrate (mol·m^-2·s^-1) (X12)	W1	2.60±0.015c	2.51±0.086c	3.90±0.042c	3.74±0.125c	3.03±0.083c	3.00±0.135c
	W2	2.98±0.152b	2.97±0.035b	4.54±0.054b	4.42±0.124b	4.20±0.021b	4.08±0.059b
	W3	3.43±0.047a	3.41±0.101a	5.74±0.138a	5.80±0.113a	4.50±0.019a	4.35±0.025a
标准化水分利用效率 WP* (g·m^-2) (Y)	W1	16.19±0.32b	15.97±0.64b	18.18±0.34b	18.23±0.39b	18.56±0.35b	18.62±0.06b
	W2	17.65±0.39a	17.69±0.21a	18.83±0.37b	18.53±0.15b	19.21±0.37b	19.19±0.09b
	W3	18.52±0.22a	18.83±0.18a	19.35±0.13a	19.59±0.18a	19.84±0.12a	19.90±0.06a

表1

表2

表3

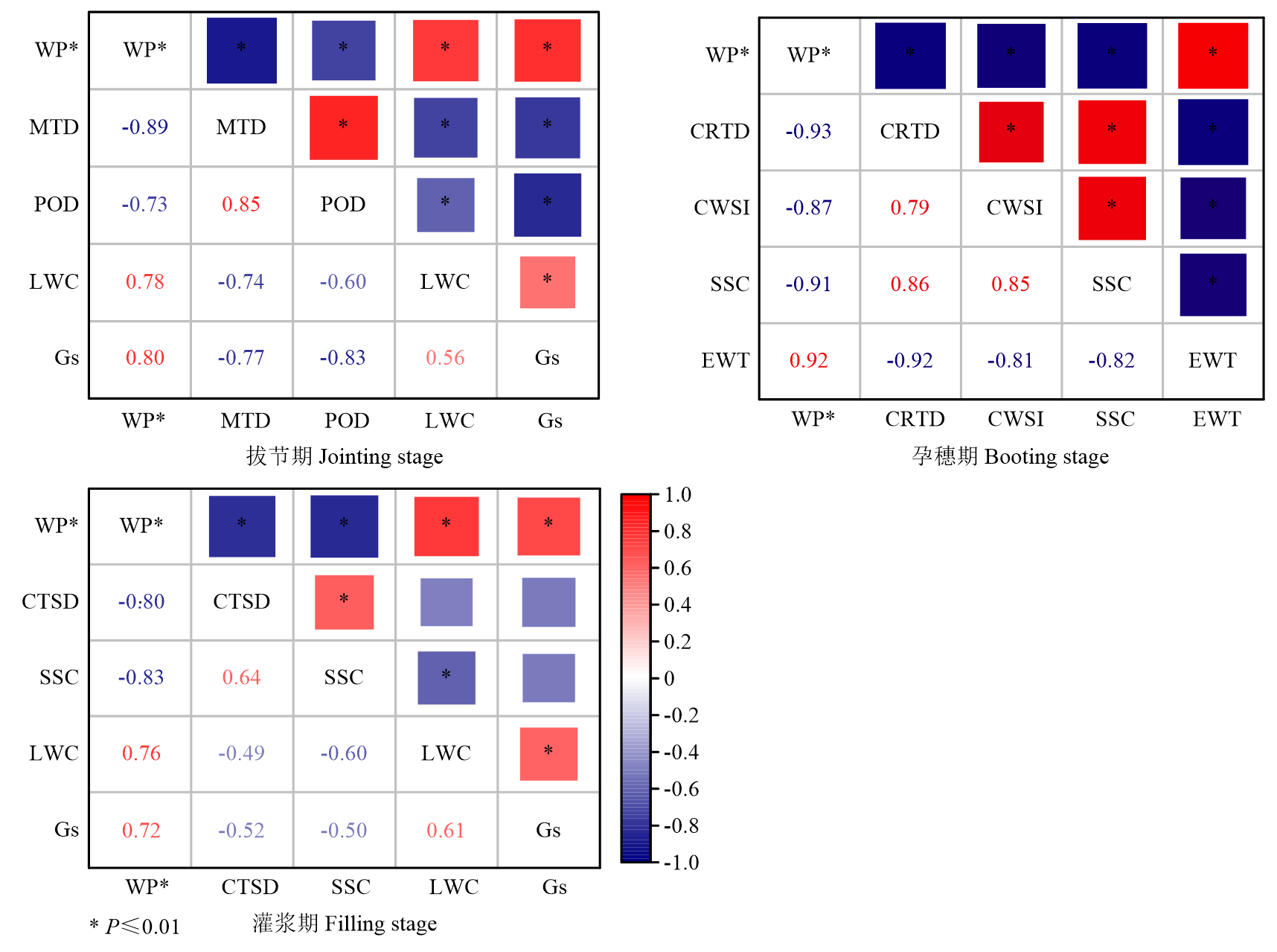

图1

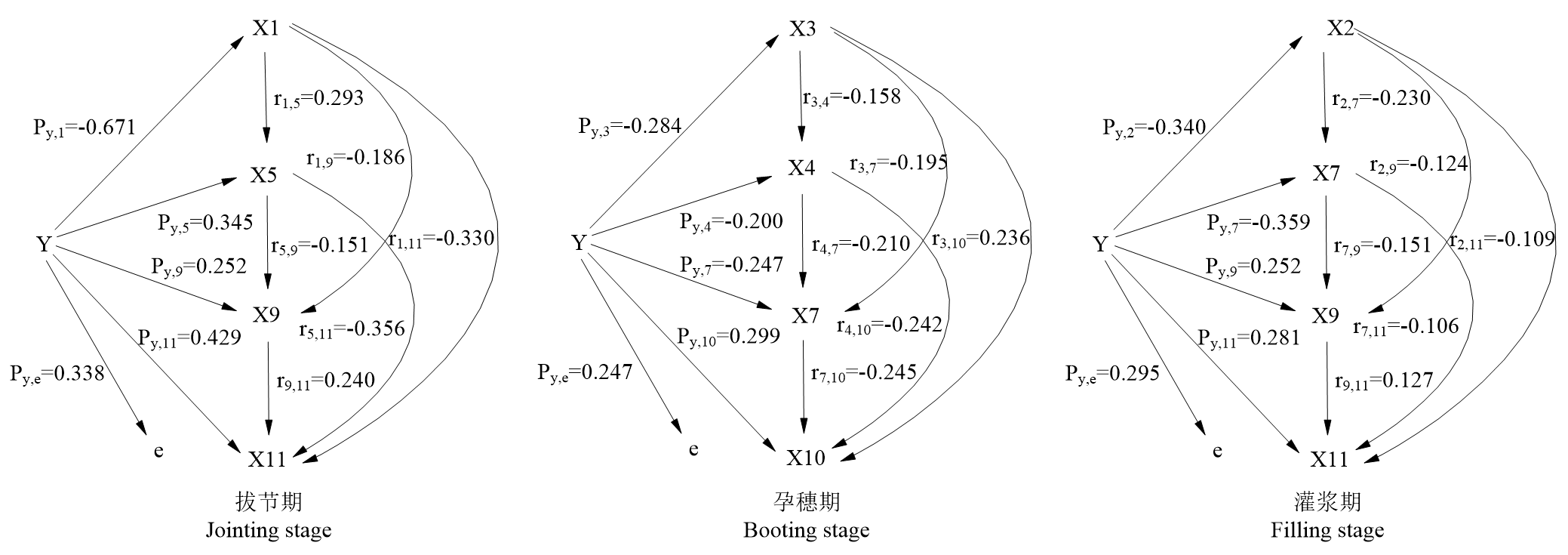

图2

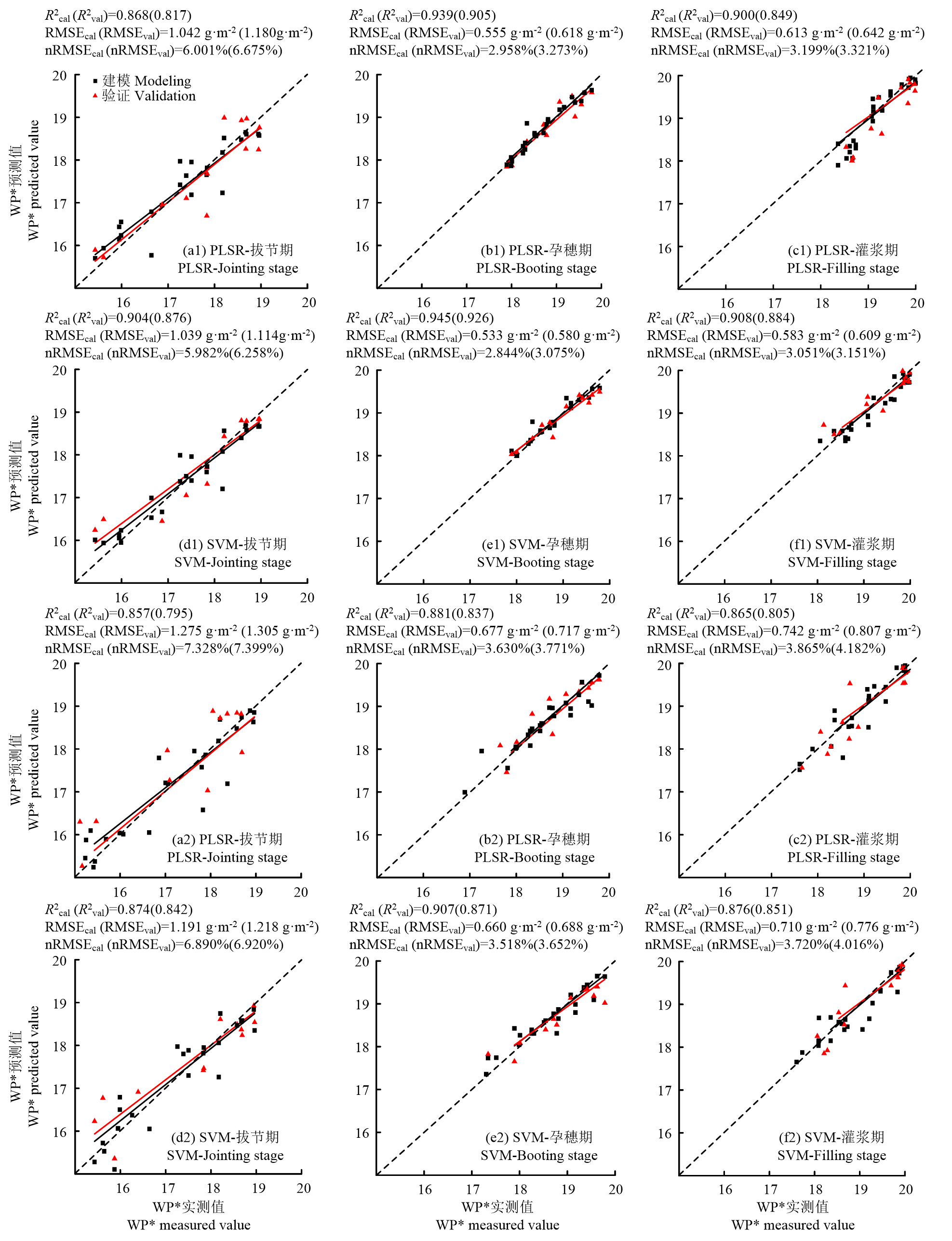

图3

参考文献 51

[1]	杜玲, 徐长春, 尹小刚, 遆晋松, 陈阜. 气候变化对河北低平原冬小麦需水量及水分生态适应性的影响. 中国农业大学学报, 2017, 22(12): 1-9.
	DU L, XU C C, YIN X G, TI J S, CHEN F. Impact of climate change on crop evapotranspiration and water ecological adaptability of winter wheat in Hebei lowland plain. Journal of China Agricultural University, 2017, 22(12): 1-9. (in Chinese)
[2]	PIAO S L, CIAIS P, HUANG Y, SHEN Z H, PENG S S, LI J S, ZHOU L P, LIU H Y, MA Y C, DING Y H, FRIEDLINGSTEIN P, LIU C Z, TAN K, YU Y Q, ZHANG T Y, FANG J Y. The impacts of climate change on water resources and agriculture in China. Nature, 2010, 467(7311): 43-51. doi: 10.1038/nature09364
[3]	杨晓琳, 宋振伟, 王宏, 石全红, 陈阜, 褚庆全. 黄淮海农作区冬小麦需水量时空变化特征及气候影响因素分析. 中国生态农业学报, 2012, 20(3): 356-362.
	YANG X L, SONG Z W, WANG H, SHI Q H, CHEN F, CHU Q Q. Spatio-temporal variations of winter wheat water requirement and climatic causes in Huang-Huai-Hai Farming Region. Chinese Journal of Eco-Agriculture, 2012, 20(3): 356-362. (in Chinese) doi: 10.3724/SP.J.1011.2012.00356
[4]	姚宁, 宋利兵, 刘健, 冯浩, 吴淑芳, 何建强. 不同生长阶段水分胁迫对旱区冬小麦生长发育和产量的影响. 中国农业科学, 2015, 48(12): 2379-2389. doi: 10.3864/j.issn.0578-1752.2015.12.011.
	YAO N, SONG L B, LIU J, FENG H, WU S F, HE J Q. Effects of water stress at different growth stages on the development and yields of winter wheat in arid region. Scientia Agricultura Sinica, 2015, 48(12): 2379-2389. doi: 10.3864/j.issn.0578-1752.2015.12.011. (in Chinese)
[5]	SALLAM A, ALQUDAH A M, DAWOOD M F A, BAENZIGER P S, BÖRNER A. Drought stress tolerance in wheat and barley: Advances in physiology, breeding and genetics research. International Journal of Molecular Sciences, 2019, 20(13): 3137.
[6]	WU J J, CHENG G, WANG N, SHEN H Z, MA X Y. Spatiotemporal patterns of multiscale drought and its impact on winter wheat yield over North China Plain. Agronomy, 2022, 12(5): 1205-1209. doi: 10.3390/agronomy12051205
[7]	张岁岐, 山仑. 植物水分利用效率及其研究进展. 干旱地区农业研究, 2002, 20(4): 1-5.
	ZHANG S Q, SHAN L. Research progress on water use efficiency of plant. Agricultural Reseach in the Arid Areas, 2002, 20(4): 1-5. (in Chinese)
[8]	胡瑾, 隆星月, 邓一飞, 完香蓓, 李斌, 吴华瑞. 基于水分利用率与光合速率的温室作物需水模型研究. 农业机械学报, 2020, 51(10): 362-370.
	HU J, LONG X Y, DENG Y F, WAN X B, LI B, WU H R. Water demand model for greenhouse crops considering water use efficiency and photosynthetic rate. Transactions of the Chinese Society for Agricultural Machinery, 2020, 51(10): 362-370. (in Chinese)
[9]	THORP K, THOMPSON A, HARDERS S, FRENCH A, WARD R. High-throughput phenotyping of crop water use efficiency via multispectral drone imagery and a daily soil water balance model. Remote Sensing, 2018, 10(11): 1682.
[10]	曹生奎, 冯起, 司建华, 常宗强, 卓玛错, 席海洋, 苏永红. 植物叶片水分利用效率研究综述. 生态学报, 2009, 29(7): 3882-3892.
	CAO S K, FENG Q, SI J H, CHANG Z Q, ZHUO M C, XI H Y, SU Y H. Summary on the plant water use efficiency at leaf level. Acta Ecologica Sinica, 2009, 29(7): 3882-3892. (in Chinese)
[11]	刘轩, 粟晓玲, 姜田亮, 刘雨翰. 基于水分利用效率的生态干旱敏感性评估. 西北农林科技大学学报(自然科学版), 2023, 51(6): 81-90.
	LIU X, SU X L, JIANG T L, LIU Y H. Assessment of ecological drought sensitivity based on water use efficiency. Journal of Northwest A & F University (Natural Science Edition), 2023, 51(6): 81-90. (in Chinese)
[12]	崔茜琳, 何云玲, 李宗善. 青藏高原植被水分利用效率时空变化及与气候因子的关系. 应用生态学报, 2022, 33(6): 1525-1532. doi: 10.13287/j.1001-9332.202206.024
	CUI X L, HE Y L, LI Z S. Spatial-temporal variation of vegetation water use efficiency and its relationship with climate factors over the Qinghai-Tibet Plateau, China. Chinese Journal of Applied Ecology, 2022, 33(6): 1525-1532. (in Chinese)
[13]	陈露, 章熙锋, 王艳强, 高美荣, 唐家良. 紫色土坡耕地农田生态系统蒸散发与水分利用效率及其影响因素. 中国生态农业学报(中英文), 2021, 29(6): 991-1007.
	CHEN L, ZHANG X F, WANG Y Q, GAO M R, TANG J L. Temporal characteristics and influencing factors of evapotranspiration and water use efficiency on sloping farmlands with purple soil. Chinese Journal of Eco-Agriculture, 2021, 29(6): 991-1007. (in Chinese)
[14]	庄淏然, 冯克鹏, 许德浩. 蒸散分离的玉米水分利用效率变化及影响因素. 干旱区研究, 2023, 40(7): 1117-1130.
	ZHUANG H R, FENG K P, XU D H. Changes, influencing factors and sensitivity of water use efficiency in maize farmland ecosystems based on evapotranspiration separation in the Ningxia irrigated area. Arid Zone Research, 2023, 40(7): 1117-1130. (in Chinese)
[15]	周青云, 燕琪琦, 张宝忠, 尹林萍. 冬小麦不同冠层叶片光合蒸腾和水分利用效率变化特征及对灌溉的响应. 麦类作物学报, 2021, 41(10): 1247-1255.
	ZHOU Q Y, YAN Q Q, ZHANG B Z, YIN L P. Variation characteristics of photosynthesis, transpiration and WUE of winter wheat leaves in different canopy layers of winter wheat and their response to irrigation. Journal of Triticeae Crops, 2021, 41(10): 1247-1255. (in Chinese)
[16]	JIN N, REN W, TAO B, HE L, REN Q F, LI S Q, YU Q. Effects of water stress on water use efficiency of irrigated and rainfed wheat in the Loess Plateau, China. The Science of the Total Environment, 2018, 642: 1-11. doi: S0048-9697(18)32090-4 pmid: 29886197
[17]	YUAN M, ZHANG L, GOU F, SU Z, SPIERTZ J H J, VAN DER WERF W. Assessment of crop growth and water productivity for five C3 species in semi-arid Inner Mongolia. Agricultural Water Management, 2013, 122(2): 28-38. doi: 10.1016/j.agwat.2013.02.006
[18]	CAMPOS I, GONZÁLEZ-GÓMEZ L, VILLODRE J, GONZÁLEZ- PIQUERAS J, SUYKER A E, CALERA A. Remote sensing-based crop biomass with water or light-driven crop growth models in wheat commercial fields. Field Crops Research, 2018, 216(2): 175-188. doi: 10.1016/j.fcr.2017.11.025
[19]	韩文霆, 汤建栋, 张立元, 牛亚晓, 王彤华. 基于无人机遥感的玉米水分利用效率与生物量监测. 农业机械学报, 2021, 52(5): 129-141.
	HAN W T, TANG J D, ZHANG L Y, NIU Y X, WANG T H. Maize water use efficiency and biomass estimation based on unmanned aerial vehicle remote sensing. Transactions of the Chinese Society for Agricultural Machinery, 2021, 52(5): 129-141. (in Chinese)
[20]	孙现军, 姜奇彦, 胡正, 张惠媛, 徐长兵, 邸一桓, 韩龙植, 张辉. 水稻资源全生育期耐盐性鉴定筛选. 作物学报, 2019, 45(11): 1656-1663. doi: 10.3724/SP.J.1006.2019.92012
	SUN X J, JIANG Q Y, HU Z, ZHANG H Y, XU C B, DI Y H, HAN L Z, ZHANG H. Screening and identification of salt-tolerant rice germplasm in whole growth period. Acta Agronomica Sinica, 2019, 45(11): 1656-1663. (in Chinese)
[21]	贺佳, 刘冰锋, 李军. 不同生育时期冬小麦叶面积指数高光谱遥感监测模型. 农业工程学报, 2014, 30(24): 141-150.
	HE J, LIU B F, LI J. Monitoring model of leaf area index of winter wheat based on hyperspectral reflectance at different growth stages. Transactions of the Chinese Society of Agricultural Engineering, 2014, 30(24): 141-150. (in Chinese)
[22]	李合生. 植物生理生化实验原理和技术. 北京: 高等教育出版社, 2000:184-197.
	LI H S. Principles and techniques of plant physiological biochemical experiment. Beijing: Higher Education Press, 2000: 184-197. (in Chinese)
[23]	MAEHLY A C, CHANCE B. The assay of catalases and peroxidases. Methods of Biochemical Analysis, 1954, 1: 357-424. pmid: 13193536
[24]	GIANNOPOLITIS C N, RIES S K. Superoxide dismutases: I. Occurrence in higher plants. Plant Physiology, 1977, 59(2): 309-314. doi: 10.1104/pp.59.2.309 pmid: 16659839
[25]	张智韬, 边江, 韩文霆, 付秋萍, 陈硕博, 崔婷. 无人机热红外图像计算冠层温度特征数诊断棉花水分胁迫. 农业工程学报, 2018, 34(15): 77-84.
	ZHANG Z T, BIAN J, HAN W T, FU Q P, CHEN S B, CUI T. Cotton moisture stress diagnosis based on canopy temperature characteristics calculated from UAV thermal infrared image. Transactions of the Chinese Society of Agricultural Engineering, 2018, 34(15): 77-84. (in Chinese)
[26]	张智韬, 许崇豪, 谭丞轩, 李宇, 宁纪锋. 基于无人机热红外遥感的玉米地土壤含水率诊断方法. 农业机械学报, 2020, 51(3): 180-190.
	ZHANG Z T, XU C H, TAN C X, LI Y, NING J F. Diagnosing method of soil moisture content in corn field based on thermal infrared remote sensing of UAV. Transactions of the Chinese Society for Agricultural Machinery, 2020, 51(3): 180-190. (in Chinese)
[27]	JONES H G. Use of infrared thermometry for estimation of stomatal conductance as a possible aid to irrigation scheduling. Agricultural and Forest Meteorology, 1999, 95(3): 139-149. doi: 10.1016/S0168-1923(99)00030-1
[28]	ROSENBERG N J, BLAD B L, VERMA S B. Microclimate: The Biological Environment. John Wiley & Sons, 1983.
[29]	STEDUTO P, HSIAO T C, RAES D, FERERES E. AquaCrop-The FAO crop model to simulate yield response to water: I. concepts and underlying principles. Agronomy Journal, 2009, 101(3): 426-437. doi: 10.2134/agronj2008.0139s
[30]	STEDUTO P, ALBRIZIO R. Resource use efficiency of field-grown sunflower, sorghum, wheat and chickpea. Agricultural and Forest Meteorology, 2005, 130(3/4): 269-281. doi: 10.1016/j.agrformet.2005.04.003
[31]	GONZÁLEZ-DUGO M P, MATEOS L. Spectral vegetation indices for benchmarking water productivity of irrigated cotton and sugarbeet crops. Agricultural Water Management, 2008, 95(1): 48-58. doi: 10.1016/j.agwat.2007.09.001
[32]	BANNARI A, MORIN D, BONN F, HUETE A R. A review of vegetation indices. Remote Sensing Reviews, 1995, 13(1/2): 95-120. doi: 10.1080/02757259509532298
[33]	冯禹, 崔宁博, 龚道枝, 王罕博, 郝卫平, 梅旭荣. 基于叶面积指数改进双作物系数法估算旱作玉米蒸散. 农业工程学报, 2016, 32(9): 90-98.
	FENG Y, CUI N B, GONG D Z, WANG H B, HAO W P, MEI X R. Estimating rainfed spring maize evapotranspiration using modified dual crop coefficient approach based on leaf area index. Transactions of the Chinese Society of Agricultural Engineering, 2016, 32(9): 90-98. (in Chinese)
[34]	赵娜娜, 刘钰, 蔡甲冰. 夏玉米作物系数计算与耗水量研究. 水利学报, 2010, 41(8): 953-959, 969.
	ZHAO N N, LIU Y, CAI J B. Calculation of crop coefficient and water consumption of summer maize. Journal of Hydraulic Engineering, 2010, 41(8): 953-959, 969. (in Chinese)
[35]	付元元, 王纪华, 杨贵军, 宋晓宇, 徐新刚, 冯海宽. 应用波段深度分析和偏最小二乘回归的冬小麦生物量高光谱估算. 光谱学与光谱分析, 2013, 32(5): 1315-1319.
	FU Y Y, WANG J H, YANG G J, SONG X Y, XU X G, FENG H K. Band depth analysis and partial least square regression based winter wheat biomass estimation using hyperspectral measurements. Spectroscopy and Spectral Analysis, 2013, 32(5): 1315-1319. (in Chinese)
[36]	丁世飞, 齐丙娟, 谭红艳. 支持向量机理论与算法研究综述. 电子科技大学学报, 2011, 40(1): 2-10.
	DING S F, QI B J, TAN H Y. An overview on theory and algorithm of support vector machines. Journal of University of Electronic Science and Technology of China, 2011, 40(1): 2-10. (in Chinese)
[37]	ZHANG L Y, ZHANG H H, NIU Y X, HAN W T. Mapping maize water stress based on UAV multispectral remote sensing. Remote Sensing, 2019, 11(6): 605.
[38]	RAES D, STEDUTO P, HSIAO T C, FERERES E. AquaCrop version 3.1 plus: FAO cropwater productivity model to simulate yield response to water. Reference Manual. FAO, Rome, 2011.
[39]	ALBRIZIO R, STEDUTO P. Resource use efficiency of field-grown sunflower, sorghum, wheat and chickpea. Agricultural and Forest Meteorology, 2005, 130(3/4): 254-268. doi: 10.1016/j.agrformet.2005.03.009
[40]	裴浩杰, 冯海宽, 李长春, 金秀良, 李振海, 杨贵军. 基于综合指标的冬小麦长势无人机遥感监测. 农业工程学报, 2017, 33(20): 74-82.
	PEI H J, FENG H K, LI C C, JIN X L, LI Z H, YANG G J. Remote sensing monitoring of winter wheat growth with UAV based on comprehensive index. Transactions of the Chinese Society of Agricultural Engineering, 2017, 33(20): 74-82. (in Chinese)
[41]	李敏, 苏慧, 李阳阳, 李金鹏, 李金才, 朱玉磊, 宋有洪. 黄淮海麦区小麦耐热性分析及其鉴定指标的筛选. 中国农业科学, 2021, 54(16): 3381-3393. doi: 10.3864/j.issn.0578-1752.2021.16.002.
	LI M, SU H, LI Y Y, LI J P, LI J C, ZHU Y L, SONG Y H. Analysis of heat tolerance of wheat with different genotypes and screening of identification indexes in Huang-Huai-Hai Region. Scientia Agricultura Sinica, 2021, 54(16): 3381-3393. doi: 10.3864/j.issn.0578-1752.2021.16.002. (in Chinese)
[42]	孟雨, 田文仲, 温鹏飞, 丁志强, 张学品, 贺利, 段剑钊, 刘万代, 郭天财, 冯伟. 基于不同发育阶段协同的小麦品种抗旱性综合评判. 作物学报, 2023, 49(2): 570-582. doi: 10.3724/SP.J.1006.2023.21008
	MENG Y, TIAN W Z, WEN P F, DING Z Q, ZHANG X P, HE L, DUAN J Z, LIU W D, GUO T C, FENG W. Comprehensive evaluation of drought resistance of wheat varieties based on synergy of different developmental stages. Acta Agronomica Sinica, 2023, 49(2): 570-582. (in Chinese) doi: 10.3724/SP.J.1006.2023.21008
[43]	孟雨, 温鹏飞, 丁志强, 田文仲, 张学品, 贺利, 段剑钊, 刘万代, 冯伟. 基于热红外图像的小麦品种抗旱性鉴定与评价. 中国农业科学, 2022, 55(13): 2538-2551. doi: 10.3864/j.issn.0578-1752.2022.13.005.
	MENG Y, WEN P F, DING Z Q, TIAN W Z, ZHANG X P, HE L, DUAN J Z, LIU W D, FENG W. Identification and evaluation of drought resistance of wheat varieties based on thermal infrared image. Scientia Agricultura Sinica, 2022, 55(13): 2538-2551. doi: 10.3864/j.issn.0578-1752.2022.13.005. (in Chinese)
[44]	胡程达, 刘荣花, 王秀萍, 刘忠阳, 李彤宵. 干旱对冬小麦光合、渗透调节物质和抗氧化酶活性的影响. 中国农业气象, 2015, 36(5): 602-610.
	HU C D, LIU R H, WANG X P, LIU Z Y, LI T X. Effects of drought stress on photosynthetic, osmotic adjustment substance and antioxidase activities of winter wheat level. Chinese Journal of Agrometeorology, 2015, 36(5): 602-610. (in Chinese)
[45]	杨宝华, 陈建林, 陈林海, 曹卫星, 姚霞, 朱艳. 基于敏感波段的小麦冠层氮含量估测模型. 农业工程学报, 2015, 31(22): 176-182.
	YANG B H, CHEN J L, CHEN L H, CAO W X, YAO X, ZHU Y. Estimation model of wheat canopy nitrogen content based on sensitive bands. Transactions of the Chinese Society of Agricultural Engineering, 2015, 31(22): 176-182. (in Chinese)
[46]	李彦彬, 冯娅, 边泽鹏, 李道西, 朱亚南. 花前干旱胁迫对冬小麦生长指标的影响. 灌溉排水学报, 2021, 40(3): 23-30.
	LI Y B, FENG Y, BIAN Z P, LI D X, ZHU Y N. Effect of drought stress before anthesis on growth indexes of winter wheat. Journal of Irrigation and Drainage, 2021, 40(3): 23-30. (in Chinese)
[47]	张鑫, 孔祥, 李勇, 骆永丽, 黄翠, 金敏. 外源ABA对干旱条件下小麦冠层温度及光合同化物积累与分配的调控效应. 麦类作物学报, 2019, 39(9): 1080-1094.
	ZHANG X, KONG X, LI Y, LUO Y L, HUANG C, JIN M. Effect of exogenous ABA on the canopy temperature and accumulation and distribution of photoassimilates in wheat under drought conditions. Journal of Triticeae Crops, 2019, 39(9): 1080-1094. (in Chinese)
[48]	李君艳, 姚得秀, 郭晓磊, 王志敏, 张英华. 花后干旱对冬小麦光合、抗氧化特性和C4光合酶活性的影响. 生态学杂志, 2023, 42(1): 49-57.
	LI J Y, YAO D X, GUO X L, WANG Z M, ZHANG Y H. Effects of post-anthesis drought on photosynthesis, antioxidant properties, and C 4 photosynthetic enzyme activity in winter wheat. Chinese Journal of Ecology, 2023, 42(1): 49-57. (in Chinese)
[49]	武晓玲, 梁海媛, 杨峰, 刘卫国, 佘跃辉, 杨文钰. 大豆苗期耐荫性综合评价及其鉴定指标的筛选. 中国农业科学, 2015, 48(13): 2497-2507. doi: 10.3864/j.issn.0578-1752.2015.13.002.
	WU X L, LIANG H Y, YANG F, LIU W G, SHE Y H, YANG W Y. Comprehensive evaluation and screening identification indexes of shade tolerance at seedling in soybean. Scientia Agricultura Sinica, 2015, 48(13): 2497-2507. doi: 10.3864/j.issn.0578-1752.2015.13.002. (in Chinese)
[50]	樊意广, 冯海宽, 刘杨, 边明博, 孟炀, 杨贵军. 基于冠层光谱特征和株高的马铃薯植株氮含量估算. 农业机械学报, 2022, 53(6): 202-208,294.
	FAN Y G, FENG H K, LIU Y, BIAN M B, MENG Y, YANG G J. Estimation of potato plant nitrogen content based on canopy spectral characteristics and plant height. Transactions of the Chinese Society for Agricultural Machinery, 2022, 53(6): 202-208,294. (in Chinese)
[51]	LI Z, NIE C, WEI C, XU X, SONG X, WANG J. Comparison of four chemometric techniques for estimating leaf nitrogen concentrations in winter wheat (Triticum aestivum) based on hyperspectral features. Journal of Applied Spectroscopy, 2016, 83(2): 240-247. doi: 10.1007/s10812-016-0276-3

响应变量 Response variable	步骤 Step	拔节期 Jointing stage		孕穗期 Booting stage		灌浆期 Filling stage
响应变量 Response variable	步骤 Step	入选变量 Variable entered	R²	入选变量 Variable entered	R²	入选变量 Variable entered	R²
标准化水分利用效率 WP*	S₁	MTD	0.798	CRTD	0.861	SSC	0.694
	S₂	LWC	0.829	CWSI	0.916	CTSD	0.816
	S₃	G_s	0.862	EWT	0.927	LWC	0.888
	S₄	POD	0.886	SSC	0.939	G_s	0.913

生育时期 Growing stage	逐步回归方程 Stepwise regression equation	决定系数 R²
拔节期Jointing stage	Y= 6.546-0.228 X1+0.006 X5+13.259 X9+8.001 X11	0.886
孕穗期Booting stage	Y=19.390-5.983 X3-1.593 X4+11.730 X10-0.007 X7	0.939
灌浆期Filling stage	Y=18.642-0.476 X2-0.010 X7+2.808 X9+1.761 X11	0.913
