不同马铃薯品种挥发性风味成分及代谢产物相关性分析

doi:10.3864/j.issn.0578-1752.2021.04.011

摘要/Abstract

摘要：

【目的】考察与马铃薯挥发性风味组分变化规律相关的代谢化合物,寻找潜在的挥发性风味组分代谢前体,为马铃薯风味品质改良提供参考。【方法】使用气相色谱仪质谱联用法（GC-MS）非靶向检测青薯9号、华颂7号、希森6号、后旗红、冀张薯12号、D545、D727七个品种（系）中,块茎代谢组和熟化后的挥发性风味组分。【结果】在7个马铃薯主要栽培品种中,品种间差异显著的挥发性风味化合物共22种,多数在冀张薯12号中含量较高,华颂7号中相对较低。利用检出化合物进行聚类分析,可将7个品种分为特征风味强弱不同的两组;组1中,品种华颂7号在空气炸制的熟化方式下香味更为浓郁;组2中,冀张薯12号马铃薯烘烤风味最为明显。对7个品种块茎进行非靶标代谢物测定,共检出69种代谢化合物,其中19种化合物在两个品种分组间差异显著。主要代谢产物和挥发性风味化合物间存在一定相关性,蛋氨酸、丙氨酸、苏氨基酸和蔗糖等与甲硫基丙醛和2-甲基呋喃显著正相关（P＜0.05）,脯氨酸、异丝氨酸等与反, 顺-2,6-壬二烯醛、反, 反-2,4-癸二烯醛显著负相关（P＜0.05）。【结论】挥发性风味化合物含量变化受品种因素影响;蛋氨酸、丙氨酸、苏氨基酸和蔗糖是最有可能影响马铃薯特征风味构成的代谢化合物;相关性分析结果可为寻找潜在代谢途径提供参考。

关键词: 马铃薯, 空气炸制, 风味物质, 代谢化合物, 聚类分析, 相关性分析

Abstract:

【Objective】 This paper was aimed to investigate the metabolic compounds related to the change rules of volatile flavour components and to find out the potential metabolic precursor of the volatile flavour components in potato, so as to providing references to the flavour and quality improvement of potatoes. 【Method】 The gas chromatography-mass spectrometry (GC-MS) was used for the non-target detection of the tuber metabolome and post-curing volatile flavour components in the potato varieties (lines), including as Qingshu No.9, Huasong No. 7, Xisen No. 6, Houqihong and Jizhangshu No.12, D545, and D7277.【Result】 There were 22 significantly different volatile flavour compounds between the varieties among 7 main cultivation varieties of potatoes, most of which were found with high content in Jizhangshu No.12, and relatively low content in Huasong No.7. The clustering analysis with the compounds detected could classify the 7 varieties into 2 groups with distinct intensity of typical flavour; in group 1, the fragrance of Huasong No.7 after the curing method of Hot-air fry might be denser; in group 2, the baking flavour of potatoes of the variety of Jizhangshu No.12 was the most obvious. 69 metabolic compoundswere detected through the non-target metabolism detection of the 7 varieties of tubers, including 19 compounds differing significantly between the 2 variety groups. The main metabolite was related to the volatile flavour compounds to a certain extent. Methionine, alanine, threonine and sucrose were significantly and positively correlated with the methional and 2-methylfuran; while the proline and isoserine were significantly and negatively correlated with the E, Z-2, 6-nonadienaldehyde and E, E-2, 4-decadienal. 【Conclusion】 The content change of volatile flavour compounds was affected by the varieties, and methionine, alanine, threonine and sucrose were the metabolic compounds that were most likely to influence the constitution of the typical flavour of potatoes. The correlation analysis results could provide references for seeking the potential metabolic pathways.

Key words: potato, hot-air frying, volatile flavor compounds, metabolic compounds, cluster analysis, correlation analysis

李凯峰,尹玉和,王琼,林团荣,郭华春. 不同马铃薯品种挥发性风味成分及代谢产物相关性分析[J]. 中国农业科学, 2021, 54(4): 792-803.

LI KaiFeng,YIN YuHe,WANG Qiong,LIN TuanRong,GUO HuaChun. Correlation Analysis of Volatile Flavor Components and Metabolites Among Potato Varieties[J]. Scientia Agricultura Sinica, 2021, 54(4): 792-803.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2021.04.011

https://www.chinaagrisci.com/CN/Y2021/V54/I4/792

图/表 7

表1

六个马铃薯品种中差异挥发性化合物"

化合物 Compound	品种 Variety
化合物 Compound	希森6号 Xisen No.6	冀张薯12号 Jizhangshu No.12	后旗红 Houqihong	华颂7号 Huasong No.7	D548	D727	青薯9号 Qingshu No.9
反-2-癸烯醛（E）-2-Decenal	0.01±0.01A	0.08±0.02C	0.01±0.01A	—	0.03±0.01AB	0.04±0.02B	0.03±0.02AB
反-十二烯醛（E）-2-Dodecenal	0.03±0.01a	0.67±0.38b	0.27±0.14a	0.03±0.03a	0.13±0.01a	0.24±0.37a	0.09±0.02a
2-庚酮 2-Heptanone	0.06±0.02D	0.01±0.01A	0.01±0.01A	0.03±0.01C	0.01±0.01A	—	0.02±0.01AB
反-2-庚烯醛（E）-2-Heptenal	0.02±0.02A	2.03±1.07B	0.36±0.48A	0.04±0.03A	0.26±0.38A	0.25±0.27A	0.06±0.02A
反-2-辛烯醛（E）-2-Octenal	0.22±0.04a	0.75±0.36b	0.4±0.11ab	0.21±0.06a	0.41±0.09ab	0.55±0.29ab	0.19±0.16a
2-十一烯醛 2-Undecenal	0.03±0.01A	0.26±0.15B	0.07±0.03A	0.03±0.01A	0.08±0.03A	0.11±0.08A	0.06±0.01A
反,反-2,4-癸二烯醛（E,E）-2,4-Decadienal	2.12±0.49bc	1.08±1.28ab	2.95±0.16c	2.21±1.01bc	1.85±0.61abc	0.56±0.48a	2.54±0.28c
反,反-2,6-壬二烯醛（E,E）-2,6-Nonadienal	0.38±0.07AB	0.87±0.21CD	0.28±0.1A	0.32±0.07A	1.17±0.32D	0.78±0.29BCD	0.67±0.28ABC
反,顺-2,6-壬二烯醛（E,Z）-2,6-Nonadienal	0.06±0.02A	2.26±0.88B	0.16±0.1A	0.03±0.1A	0.72±0.65A	0.74±0.21A	0.08±0.03A
3-辛烯-2-酮 3-Octen-2-one	0.01±0.01a	0.03±0.01b	—	0.01±0.01a	0.02±0.01ab	0.01±0.01a	0.03±0.02b
3,5-辛二烯-2-醇 3,5-Octadien-2-ol	0.02±0.01A	0.22±0.15B	0.07±0.04A	0.01±0.01A	0.13±0.05AB	0.11±0.01A	0.04±0.02A
1-辛醇 1-Octanol	0.04±0.04A	0.33±0.17B	0.04±0.04A	0.09±0.02A	0.14±0.06A	0.16±0.04A	0.09±0.04A
苯乙醛Benzeneacetaldehyde	31.4±9.36a	66.11±19.06b	51.71±17.02ab	33.13±1.43a	66.54±19.91b	51.7±13.9ab	54.4±2ab
异戊醛3-Methylbutanal	7.26±4.18A	31.7±5.41B	12.48±3.32A	7.07±0.1A	10.54±3.42A	15.17±7.2A	9.81±0.22A
2-甲基呋喃2-Methylfuran	0.28±0.2A	7.41±5.09B	0.6±0.21A	0.12±0.04A	1.43±0.99A	2.18±1.4A	0.09±0.06A
2-甲基丙醛2-Methylpropanal	9.39±3.79A	148.69±77.63B	41.5±16.95A	14.52±2.22A	33.49±36.19A	52.79±21.74A	15.13±7.3A
2,6-二甲基吡嗪 2,6-Dimethylpyrazine	0.34±0.09a	2.25±1.84b	0.42±0.06a	0.24±0.01a	0.41±0.06a	0.54±0.1a	0.22±0.15a
2,3,5-三甲基吡嗪 2,3,5-Trimethylpyrazine	34.77±9.95c	21.08±13.76abc	28.52±4.03bc	27.26±7.55abc	16.69±4.49ab	12.77±7.07a	30.74±5.07bc
2,5-二甲基吡嗪 2,5-Dimethylpyrazine	103.87±33.75C	12.16±9.72A	28.64±49.61AB	74.26±13.02BC	5.27±4.32A	8.27±10.04A	43.43±43.43AB
甲硫基丙醛Methional	6.76±1.19AB	16.68±4.22D	8.5±0.8ABC	6.05±0.53A	12.71±5.92BCD	13.83±3.74CD	11.74±1.56ABCD
2-甲氧基苯酚 2-Methoxyphenol	0.52±0.19BC	0.25±0.1AB	0.73±0.38C	1.23±0.06D	0.14±0.05A	0.44±0.19ABC	2.25±0.17E
1,6-二甲基萘 1,6-Dimethylnaphthalene	—	0.03±0.02b	0.01±0.01a	0.01±0.01a	0.01±0.01a	0.01±0.01a	0.01±0.01a

表1

图1

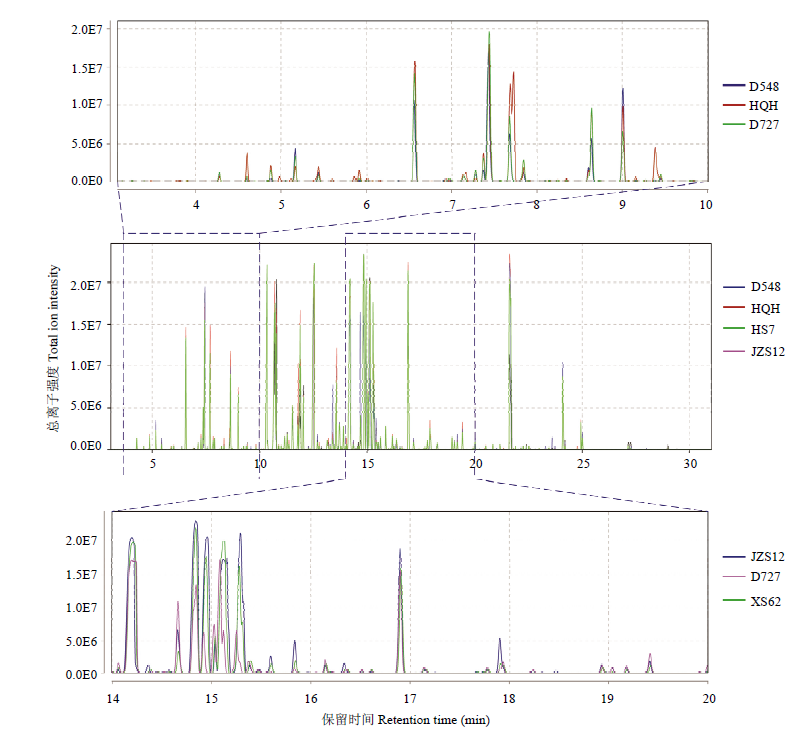

图2

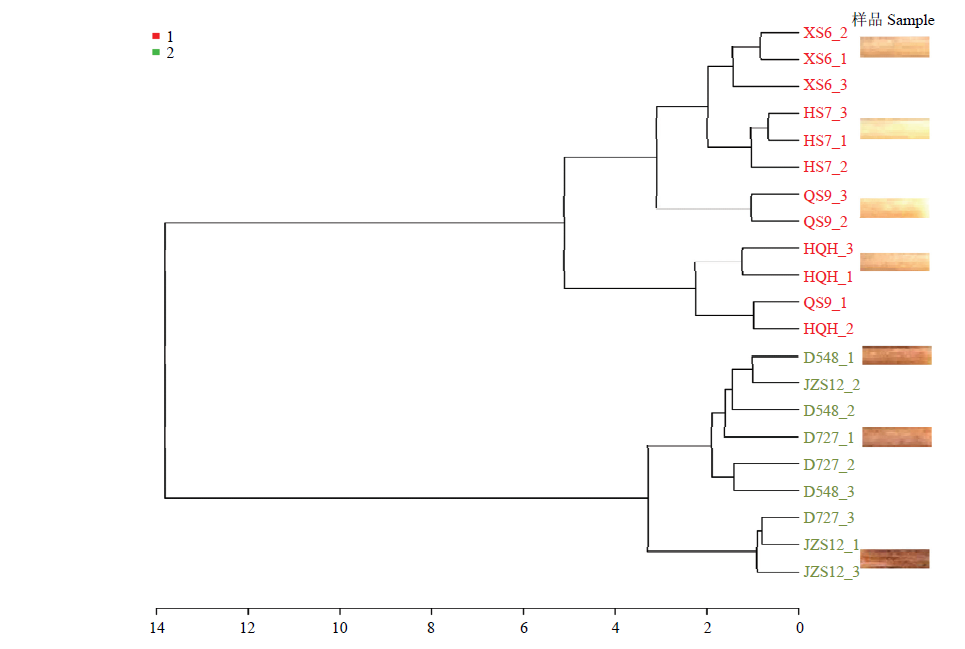

图3

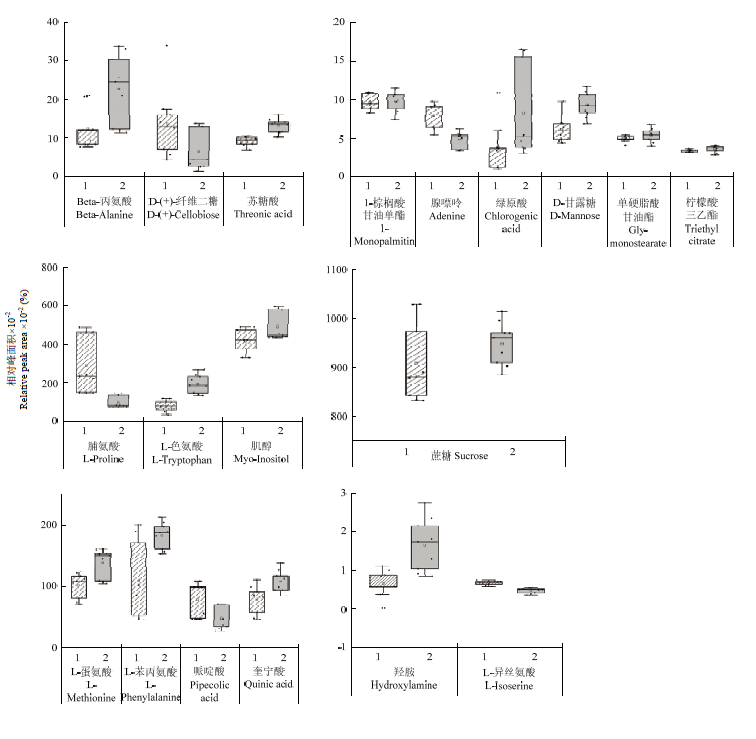

图4

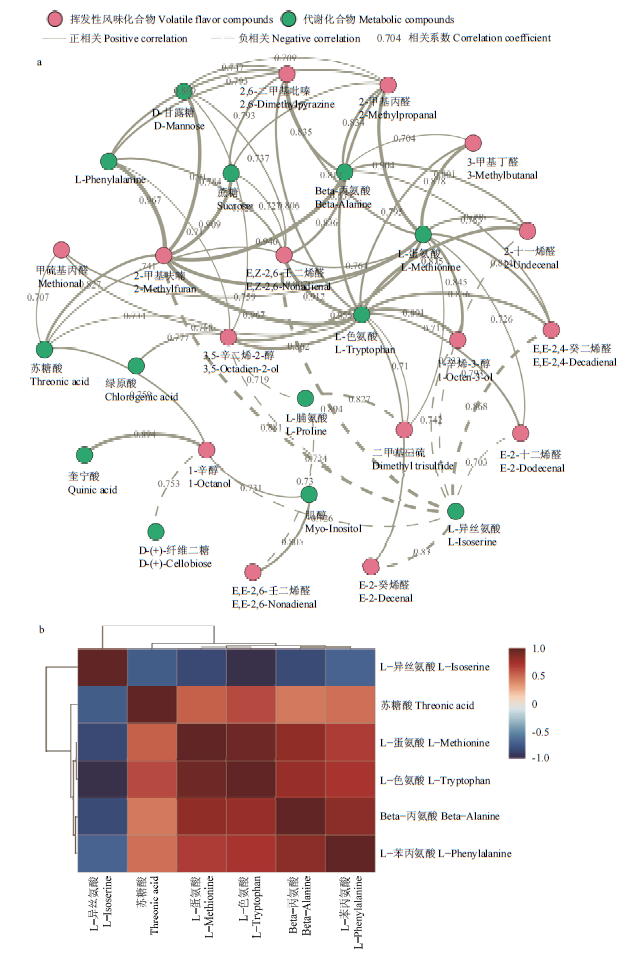

图5

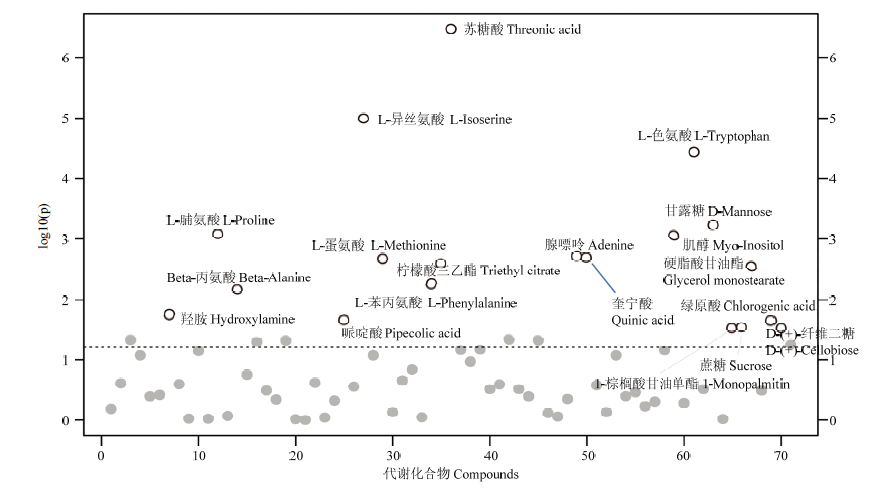

图6

参考文献 30

[1]	MORRIS W L, TAYLOR M A. Improving flavor to increase consumption. American Journal of Potato Research, 2019,96(2):195-200.
[2]	MCKENZIE M, CORRIGAN V. Potato Flavor//Marian Advances in Potato Chemistry and Technology. Acadmic Press, 2016: 339-368.
[3]	JANSKY S H. Potato flavor. American Journal of Potato Research, 2010,87(2):209-217.
[4]	ORUNA-CONCHA M J, BAKKER J, AMES J. Comparison of the volatile components of two cultivars of potato cooked by boiling, conventional baking and microwave baking. Journal of the Science of Food and Agriculture, 2002,82(9):1080-1087.
[5]	赵兵, 张敏, 梁杉. 过度蒸煮对马铃薯风味化合物组成的影响. 食品科学, 2017,38(22):200-204.
	ZHAO B, ZHANG M, LIANG S. Effect of overcooking on flavor compounds of potato. Food Science, 2017,38(22):200-204. (in Chinese)
[6]	CREMER D R, EICHNER K. The reaction kinetics for the formation of Strecker aldehydes in low moisture model systems and in plant powders. Food Chemistry, 2000,71(1):37-43.
[7]	MORRIS W L, SHEPHERD T, VERRALL S R, MCNICOL J W, TAYLOR M A. Relationships between volatile and non-volatile metabolites and attributes of processed potato flavour. Phytochemistry, 2010,71(14):1765-1773.
[8]	BOUGH R A, HOLM D G, JAYANTY S S. Evaluation of cooked flavor for fifteen potato genotypes and the correlation of sensory analysis to instrumental methods. American Journal of Potato Research, 2020,97(1):63-77.
[9]	DUCKHAM S C, DODSON A T, BAKKER J, AMES J M. Effect of cultivar and storage time on the volatile flavor components of baked potato. Journal of Agricultural and Food Chemistry, 2002,50(20):5640-5648.
[10]	THYBO A K, CHRISTIANSEN J, KAACK K, PETERSEN M A. Effect of cultivars, wound healing and storage on sensory quality and chemical components in pre-peeled potatoes. LWT-Food Science and Technology, 2006,39(2):166-176.
[11]	ORUNA-CONCHA M J, BAKKER J, AMES J M. Comparison of the volatile components of eight cultivars of potato after microwave baking. LWT-Food Science and Technology, 2002,35(1):80-86.
[12]	DI R, KIM J, MARTIN M N, LEUSTEK T, JHOO J, HO C T, TUMER N E. Enhancement of the primary flavor compound methional in potato by increasing the level of soluble methionine. Journal of Agricultural & Food Chemistry, 2003,51(19):5695-5702.
[13]	MORRIS W L, DUCREUX L J M, SHEPHERD T, LEWINSOHN E, DAVIDOVICH-RIKANATI R, SITRIT Y, TAYLOR M A. Utilisation of the MVA pathway to produce elevated levels of the sesquiterpene α-copaene in potato tubers. Phytochemistry, 2011,72(18):2288-2293.
[14]	龚兴旺, 肖继坪, 王婷婷, 郭华春. 马铃薯芳香物质的初步研究. 西南农业学报, 2019,32(3):516-521.
	GONG X W, XIAO J P, WANG T T, GUO H C. Primary research of the aroma compounds of potatoes. Southwest China Journal of Agricultural Sciences, 2019,32(3):516-521. (in Chinese)
[15]	ZHANG L Y, YU Y B, WANG C Y, ZHANG D J. Isolation and identification of metabolites in Chinese Northeast potato (Solanum tuberosum L.) tubers using gas chromatography-mass spectrometry. Food Analytical Methods, 2019,12(1):51-58.
[16]	GAO X X, LOCKE S, ZHANG J Z, JOSHI J. Metabolomics profile of potato tubers after phosphite treatment. American Journal of Plant Sciences, 2018,9(4):845.
[17]	曾著莉, 魏晋梅, 牛黎莉, 汪月, 赖兴娟, 张盛贵. HS-SPME- GC-MS分析马铃薯挥发性风味物质. 食品与生物技术学报, 2019,38(6):123-130.
	ZENG Z L, WEI J M, NIU L L, WANG Y, LAI X J, ZHANG S G. Analysis of flavor in potato by Headspace-Solid Phase Microextration- Gas Chromatography-Mass Spectrometry. Journal of Food Science and Biotechnology, 2019,38(6):123-130. (in Chinese)
[18]	詹萍, 李卫国, 马永光, 田洪磊, 张德庆. 风味指纹图谱研究现状及其在食品中的应用. 食品工业, 2014,35(4):175-179.
	ZHAN P, LI W G, MA Y G, TIAN H L, ZHANG D Q. Study on flavor fingerprint and its application in food. The Food Industry, 2014,35(4):175-179. (in Chinese)
[19]	LV S D, WU Y S, LI C W, XU Y Q, LIU L, MENG Q Y. Comparative analysis of Pu-erh and Fuzhuan teas by fully automatic headspace solid-phase microextraction coupled with gas chromatography-mass spectrometry and chemometric methods. Journal of Agricultural and Food Chemistry, 2014,62(8):1810-1818.
[20]	耿友玲. 黄瓜果实几种主要芳香物质含量的遗传分析[D]. 扬州: 扬州大学, 2009.
	GENG Y L. Genetic analysis for several aromatic substance contents in cucumber (Cucumis sativus L.) fruit[D]. Yangzhou: Yangzhou University, 2009. (in Chinese)
[21]	ROESSNER U, WAGNER C, KOPKA J, TRETHEWEY R N, WILLMITZER L. Simultaneous analysis of metabolites in potato tuber by gas chromatography-mass spectrometry. The Plant Journal, 2000,23(1):131-142.
[22]	PATRIZIA C, LORENZO C, GIAMPAOLO B. Characterization of potato flavours: An overview of volatile profiles and analytical procedures. Food, 2011,5(1):1-14.
[23]	MANDIN O, DUCKHAM S C, AMES J M. Volatile compounds from potato-like model systems. Journal of Agricultural and Food Chemistry, 1999,47(6):2355-2359.
[24]	LIMACHER A, KERLER J, DAVIDEK T, SCHMALZRIED F, BLANK I. Formation of furan and methylfuran by Maillard-type reactions in model systems and food. Journal of Agricultural and Food Chemistry, 2008,56(10):3639-3647.
[25]	URSEM R, TIKUNOV Y, BOVY A, VAN BERLOO R, VAN EEUWIJK F. A correlation network approach to metabolic data analysis for tomato fruits. Euphytica, 2008,161(1/2):181-193.
[26]	LIU J B, LIU M Y, HE C C, SONG H L, CHEN F. Effect of thermal treatment on the flavor generation from Maillard reaction of xylose and chicken peptide. LWT-Food Science and Technology, 2015,64(1):316-325.
[27]	陈佳华. 甘薯采后主要病原真菌分离鉴定及其与块根互作机制的研究[D]. 杭州: 浙江农林大学, 2019.
	CHEN J H. Isolation and identification of main pathogenic fungi from sweet potato after harvest and its interaction with roots and roots[D]. Hangzhou: Zhejiang A&F University, 2019. (in Chinese)
[28]	DION H W, WOO P W K, WILLMER N E, KERN D L, ONAGA J, FUSARI S A. BUTIROSIN, a new aminoglycosidic antibiotic complex: isolation and characterization. Antimicrobial Agents & Chemotherapy, 1972,2(2):84-88.
[29]	HETTINGER T P CRAIG L C. EDEINE. IV. Structures of the antibiotic peptides edeines A1 and B1. Biochemistry, 1970,9(5):1224-1232.
[30]	单治国, 张春花, 满红平, 魏朝霞, 强继业, 张乃明, 唐嘉义. 茶饼病侵染对茶树游离氨基酸组分及含量的影响. 现代食品科技, 2017,33(5):240-246, 318.
	SHAN Z G, ZHANG C H, MAN H P, WEI Z X, QIANG J Y, ZHANG N M, TANG J Y. Effects of exobasidium vexans massee on free amino acid composition and content of Camellia sinensis (Linn) var. Assamica (Masters) Kitamura. Modern Food Science and Technology, 2017,33(5):240-246, 318. (in Chinese)
