马铃薯Y病毒衣壳蛋白抗原表位分析及其快速ELISA检测方法的建立

doi:10.3864/j.issn.0578-1752.2021.06.007

中国农业科学 ›› 2021, Vol. 54 ›› Issue (6): 1154-1162.doi: 10.3864/j.issn.0578-1752.2021.06.007

马铃薯Y病毒衣壳蛋白抗原表位分析及其快速ELISA检测方法的建立

梁雨欣^1,²(),吴建祥³,李小宇²,张春雨²,侯吉超¹,周雪平^3,⁴,王永志^2,⁴()

¹吉林农业大学植物保护学院,长春130118
²吉林省农业科学院植物保护研究所,长春 130033
³浙江大学生物技术研究所,杭州 310058
⁴中国农业科学院植物保护研究所,北京 100193

收稿日期:2020-06-11 接受日期:2020-08-14 出版日期:2021-03-16 发布日期:2021-03-25
通讯作者: 王永志
作者简介:梁雨欣,E-mail：lyx6620@163.com。
基金资助:
国家重点研发计划(2017YFD0201604);吉林省农业科技创新工程人才基金(c92070813);吉林省科技厅重点项目(20180201013NY)

Mapping of Epitopes and Establishment of Rapid DAS-ELISA for Potato Virus Y Coat Protein

YuXin LIANG^1,²(),JianXiang WU³,XiaoYu LI²,ChunYu ZHANG²,JiChao HOU¹,XuePing ZHOU^3,⁴,YongZhi WANG^2,⁴()

¹College of Plant Protection, Jilin Agricultural University, Changchun 130118
²Institute of Plant Protection, Jilin Academy of Agricultural Sciences, Changchun 130033
³Institute of Biotechnology, Zhejiang University, Hangzhou 310058
⁴Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing 100193

Received:2020-06-11 Accepted:2020-08-14 Online:2021-03-16 Published:2021-03-25
Contact: YongZhi WANG

摘要/Abstract

摘要：

【目的】马铃薯Y病毒（potato virus Y,PVY）是影响马铃薯产量和品质的主要病毒之一,目前尚未发现有效的防治药剂,脱毒种薯的应用是预防PVY危害的主要防治措施。建立灵敏度高、特异性强的PVY快速检测方法,为脱毒种薯质量控制提供技术支撑。【方法】将PVY衣壳蛋白（coat protein,CP）分段表达为有重叠部分的小段多肽,以其为抗原通过Western blot分析PVY-CP的抗原表位。以P/N值最大为标准,通过常规双抗夹心ELISA（DAS-ELISA）对识别不同抗原表位的单克隆抗体（monoclonal antibody,MAb）进行配对试验,筛选一组检测效果最优的配对单克隆抗体,并确认捕获抗体和检测抗体。通过方阵滴定法确定捕获抗体及检测抗体的最佳工作浓度,通过控制变量法确定检测抗体与抗原的最佳共同孵育时间。以不同浓度的PVY-CP蛋白为抗原,检验快速DAS-ELISA的灵敏度。以感染不同病毒的马铃薯样品为抗原,检测快速DAS-ELISA的特异性。同时通过快速DAS-ELISA与RT-PCR检测50份田间采集的疑似感染PVY的马铃薯样品,将二者结果相比较检验检测方法的符合率。运用建立的快速DAS-ELISA对不同株系PVY感染的马铃薯样品进行检测。【结果】利用PVY-CP的6条分段表达多肽筛选到一组能进行DAS-ELISA的配对单克隆抗体（9G6和3D3）,并以这对单抗为基础建立了PVY快速DAS-ELISA检测方法。以9G6为捕获抗体包被酶标板,检测抗体3D3经辣根过氧化物酶（horseradish peroxidase,HRP）标记后以2 μg·mL^-1的工作浓度与抗原在37℃共同孵育5 min。该检测方法检测限为0.5 ng·mL^-1,特异性分析结果显示该法仅在检测感染PVY的马铃薯样品时呈阳性反应,检测马铃薯S病毒（potato virus S,PVS）、马铃薯M病毒（potato virus M,PVM）、马铃薯卷叶病毒（potato leaf-roll virus,PLRV）等其他常见马铃薯病毒样品均呈阴性反应。通过快速DAS-ELISA与RT-PCR同时对50份田间采集的马铃薯样品进行检测,有48份样品检测结果一致,符合率达96%,且对PVY^N及PVY^O样品检测结果均呈阳性。【结论】建立的PVY检测方法灵敏度高、特异性强,30 min即可完成检测,方便快捷,为PVY的高通量检测、脱毒种薯的生产提供了关键技术支持。

关键词: 马铃薯Y病毒, 单克隆抗体, 抗原表位, 双抗夹心ELISA

Abstract:

【Objective】Potato virus Y (PVY) is one of the most serious viruses that affect the yield and quality of potato. At present, no effective virus treatment agent has been found, and application of virus-free seed potato is the main control measure to prevent PVY damage. The objective of this study is to establish a rapid detection method with high sensitivity and specificity, and to provide technical support for quality control of virus-free seed potato. 【Method】PVY coat protein (CP) was expressed as small polypeptides with overlapping parts, and the epitopes of PVY-CP were analyzed by Western blot. Matching experiments were performed on monoclonal antibodies that recognized different epitopes by conventional double antibody sandwich ELISA (DAS-ELISA), and a pair of monoclonal antibodies with the best detection effect was screened. At the same time, the captured and detected antibodies were confirmed. According to the standard of maximum P/N value, the working concentration of antibody was determined by square titration. The optimal co-incubation time of antibody and antigen was determined by control variable method. The sensitivity of rapid DAS-ELISA was tested with different concentrations of PVY-CP protein as antigen. Potato samples infected with different viruses were used as antigens to detect the specificity of rapid DAS-ELISA. Through rapid DAS-ELISA and RT-PCR detection of 50 samples of potato samples with suspected infection PVY collected in the field, the coincidence rate was tested. Finally, the established rapid DAS-ELISA was used to detect potato samples infected by different PVY strains. 【Result】A panel of monoclonal antibodies (9G6 and 3D3) that can be used for DAS-ELISA were screened using the expressed peptides of PVY CP, and a rapid DAS-ELISA was established based on this panel of MAbs. The ELISA plate coated with the capture antibody 9G6, and then co-incubated with detector antibody HRP labeled 3D3 (2 μg·mL^-1) and samples for 5 min at 37℃ after blocking the plate. The detection limit was 0.5 ng·mL^-1. The results of specific analysis showed that the established method was only positive for potato samples infected with PVY, and negative for potato virus S (PVS), potato virus M (PVM) and potato leaf-roll virus (PLRV). In comparison with RT-PCR, DAS-ELSIA had the coincidence rate of 96% through testing 50 potato simples, and the results of PVY^N and PVY^O potato samples were positive. 【Conclusion】 The established PVY detection method has high sensitivity and specificity, and can be completed within 30 min, which is convenient and fast, and provides key technical support for high-throughput detection of PVY and the production of virus-free seed potato.

Key words: potato virus Y (PVY), monoclonal antibody, antigen epitope, double antibody sandwich ELISA (DAS-ELISA)

梁雨欣,吴建祥,李小宇,张春雨,侯吉超,周雪平,王永志. 马铃薯Y病毒衣壳蛋白抗原表位分析及其快速ELISA检测方法的建立[J]. 中国农业科学, 2021, 54(6): 1154-1162.

YuXin LIANG,JianXiang WU,XiaoYu LI,ChunYu ZHANG,JiChao HOU,XuePing ZHOU,YongZhi WANG. Mapping of Epitopes and Establishment of Rapid DAS-ELISA for Potato Virus Y Coat Protein[J]. Scientia Agricultura Sinica, 2021, 54(6): 1154-1162.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2021.06.007

https://www.chinaagrisci.com/CN/Y2021/V54/I6/1154

图/表 8

表1

图1

表2

图2

表3

图3

图4

图5

参考文献 35

[1]	屈冬玉, 谢开云, 金黎平, 庞万福, 卞春松, 段绍光. 中国马铃薯产业发展与食物安全. 中国农业科学, 2005,38(2):358-362.
	QU D Y, XIE K Y, JIN L P, PANG W F, BIAN C S, DUAN S G. Development of potato industry and food security in China. Scientia Agricultura Sinica, 2005,38(2):358-362. (in Chinese)
[2]	徐建飞, 金黎平. 马铃薯遗传育种研究: 现状与展望. 中国农业科学, 2017,50(6):990-1015.
	XU J F, JIN L P. Advances and perspectives in research of potato genetics and breeding. Scientia Agricultura Sinica, 2017,50(6):990-1015. (in Chinese)
[3]	路秉翰, 汤亚飞, 于琳, 佘小漫, 邓铭光, 何自福. 基于小RNA深度测序和RT-PCR检测侵染广东省冬种马铃薯的病毒. 植物保护学报, 2019,46(3):604-610.
	LU B H, TANG Y F, YU L, SHE X M, DENG M G, HE Z F. Identification of viruses infecting potato planted in winter in Guangdong using small RNA deep sequencing and RT-PCR. Journal of Plant Protection, 2019,46(3):604-610. (in Chinese)
[4]	GRAY S, DE BOER S, LORENZEN J, KARASEV A, WHITWORTH J, NOLTE P, SINGH R, BOUCHER A, XU H M. Potato virus Y: An evolving concern for potato crops in the United States and Canada. Plant Disease, 2010,94(12):1384-1397. pmid: 30743397
[5]	SINGH R P, VALKONEN J P T, GRAY S M, BOONHAM N, JONES R A C, KERLAN C, SCHUBERT J. Discussion paper: The naming of potato virus Y strains infecting potato. Archives of Virology, 2008,153(1):1-13. doi: 10.1007/s00705-007-1059-1
[6]	SMITH K M. On the composite nature of certain potato virus diseases of the mosaic group as revealed by the use of plant indicators and selective methods of transmission. Proceedings of the Royal Society B: Biological Sciences, 1931,109:251-267.
[7]	BECZNER L, HORVÁTH J, ROMHÁNYI I, FÖRSTER H. Studies on the etiology of tuber necrotic ringspot disease in potato. Potato Research, 1984,27(3):339-352.
[8]	SPETZ C, TABOADA A M, DARWICH S, RAMSELL J, SALAZAR L F, VALKONEN J P T. Molecular resolution of a complex of potyviruses infecting solanaceous crops at the center of origin in Peru. Journal of General Virology, 2003,84(9):2565-2578.
[9]	OGAWA T, NAKAGAWA A, HATAYA T, OHSHIMA K. The genetic structure of populations of potato virus Y in Japan; Based on the analysis of 20 full genomic sequences. Journal of Phytopathology, 2012,160(11/12):661-673.
[10]	OHSHIMA K, SAKO K, HIRAISHI C, NAKAGAWA A, MATSUO K, OGAWA T, SHIKATA E, SAKO N. Potato tuber necrotic ringspot disease occurring in Japan: Its association with potato virus Y necrotic strain. Plant Disease, 2000,84(10):1109-1115. pmid: 30831903
[11]	WANG B, JIA J L, WANG X Q, WANG Z Y, YANG B H, LI X D, ZHU X P. Molecular characterization of two recombinant potato virus Y isolates from China. Archives of Virology, 2012,157(2):401-403. doi: 10.1007/s00705-011-1182-x pmid: 22139355
[12]	NOLTE P, WHITWORTH J L, THORNTON M K, MCINTOSH C S. Effect of seedborne potato virus Y on performance of Russet Burbank, Russet Norkotah, and Shepody potato. Plant Disease, 2004,88(3):248-252. pmid: 30812355
[13]	RAHMAN M S, AKANDA A M. Performance of seed potato produced from sprout cutting, stem cutting and conventional tuber against PVY and PLRV. Bangladesh Journal of Agricultural Research, 2009,34(4):609-622.
[14]	CHIKH-ALI M, MAOKA T, NATSUAKI T, NATSUAKI K T. PVY^NTN-NW, a novel recombinant strain of potato virus Y predominating in potato fields in Syria. Plant Pathology, 2010,59(1):31-41.
[15]	白艳菊, 韩树鑫, 高艳玲, 张威, 范国权, 邱彩玲, 申宇, 张抒, 尚慧, 聂先舟, 文景芝. 马铃薯Y病毒对不同马铃薯品种的致病力. 西北农业学报, 2017,26(11):1713-1720.
	BAI Y J, HAN S X, GAO Y L, ZHANG W, FAN G Q, QIU C L, SHEN Y, ZHANG S, SHANG H, NIE X Z, WEN J Z. Pathogenicity of potato virus Y strains in different potato varieties. Acta Agriculturae Boreali- Occidentalis Sinica, 2017,26(11):1713-1720. (in Chinese)
[16]	刘玲玲, 韩黎明, 张尚智, 禹娟红. 马铃薯病毒的常用检测方法. 中国马铃薯, 2013,27(4):239-242.
	LIU L L, HAN L M, ZHANG S Z, YU J H. Common test methods for potato virus detection. Chinese Potato Journal, 2013,27(4):239-242. (in Chinese)
[17]	李玉琦, 李秋丽, 王雅丽, 黄珊珊, 胡超, 肖婉露, 黄雅敏, 赵鹏飞, 黄伟. 马铃薯Y病毒实时荧光定量RT-PCR检测体系的建立及应用. 中国蔬菜, 2020(12):22-27.
	LI Y Q, LI Q L, WANG Y L, HUANG S S, HU C, XIAO W L, HAUNG Y M, ZHAO P F, HUANG W. Establishment and application of a quantitative RT-PCR detection system for potato virus Y. China Vegetables, 2020(12):22-27. (in Chinese)
[18]	张鹤龄, 郭素华, 张秀华, 马德芳, 杨希才, 赵娥英. 马铃薯种薯生产的研究—Ⅲ. 马铃薯Y病毒抗血清制备和诊断方法. 微生物学报, 1981,21(2):208-213.
	ZHANG H L, GUO S H, ZHANG X H, MA D F, YANG X C, ZHAO E Y. Studies on the techniques of seed-potato production III. The preparation of antisera against potato virus Y and methods of diagnosis. Acta Microbiologica Sinica, 1981,21(2):208-213. (in Chinese)
[19]	SINGH R P, BOUCHER A, SOMERVILLE T H, DHAR A K. Selection of a monoclonal antibody to detect PVY^N and its use in ELISA and DIBA assays. Canadian Journal of Plant Pathology, 1993,15(4):293-300.
[20]	高方方, 吴忠义, 黄丛林, 孙惠生, 曾申明. 马铃薯Y病毒脉坏死株系(PVY^N)外壳蛋白基因的克隆、表达及其间接ELISA方法的建立. 中国农学通报, 2008,24(3):82-86.
	GAO F F, WU Z Y, HUANG C L, SUN H S, ZENG S M. Clone, expression of coat protein gene of potato virus Y-vein necrosis (PVY^N) and its establishment of indirect ELISA method. Chinese Agricultural Science Bulletin, 2008,24(3):82-86. (in Chinese)
[21]	宋革, 郭玉双, 饶黎霞, 周雪平, 吴建祥. 马铃薯Y病毒单克隆抗体的制备及其检测应用. 浙江大学学报(农业与生命科学版), 2016,42(5):517-526.
	SONG G, GUO Y S, RAO L X, ZHOU X P, WU J X. Preparation and detection application of monoclonal antibodies against potato virus Y. Journal of Zhejiang University (Agriculture and Life Sciences), 2016,42(5):517-526. (in Chinese)
[22]	徐晶晶, 李迪, 曹永生, 高明春, 王君伟. 辣根过氧化物酶标记兔抗丝状噬菌体衣壳蛋白抗体的制备与初步应用. 黑龙江畜牧兽医, 2013(5):114-116.
	XU J J, LI D, CAO Y S, GAO M C, WANG J W. Preparation and preliminary application of the rabbit antibody against capsid protein of the filamentous phage labeled with horseradish peroxidase. Heilongjiang Animal Science and Veterinary Medicine, 2013(5):114-116. (in Chinese)
[23]	马宇聪, 刘增素, 王书博, 周晗, 姜艳萍, 崔文, 王丽, 乔薪瑗, 唐丽杰, 徐义刚, 李一经. PEDV双抗体夹心ELISA检测方法的建立. 中国兽医科学, 2019,49(9):1152-1159.
	MA Y C, LIU Z S, WANG S B, ZHOU H, JIANG Y P, CUI W, WANG L, QIAO X Y, TANG L J, XU Y G, LI Y J. Establishment of a double antibody sandwich ELISA for the detection of PEDV. Chinese Veterinary Science, 2019,49(9):1152-1159. (in Chinese)
[24]	GIBBS A, OHSHIMA K. Potyviruses and the digital revolution. Annual Review of Phytopathology, 2010,48:205-223. pmid: 20438367
[25]	LEFKOWITZ E J, DEMPSEY D M, HENDRICKSON R C, ORTON R J, SIDDELL S G, SMITH D B. Virus taxonomy: The database of the International Committee on Taxonomy of Viruses (ICTV). Nucleic Acids Research, 2018,46:D708-D17.
[26]	KEŽAR A, KAVČIČ L, POLÁK M, NOVÁČEK J, GUTIÉRREZ- AGUIRRE I, ŽNIDARIČ M T, COLL A, STARE K, GRUDEN K, RAVNIKAR M, PAHOVNIK D, ŽAGAR E, MERZEL F, ANDERLUH G, PODOBNIK M. Structural basis for the multitasking nature of the potato virus Y coat protein. Science Advances, 2019, 5(7): eaaw3808. doi: 10.1126/sciadv.aau4202 pmid: 31392261
[27]	DUNOYER P, THOMAS C, HARRISON S, REVERS F, MAULE A. A cysteine-rich plant protein potentiates potyvirus movement through an interaction with the virus genome-linked protein VPg. Journal of Virology, 2004,78(5):2301-2309. pmid: 14963126
[28]	达尔肯·托肯, 张渝疆, 孙素荣. 病毒抗原表位研究方法进展及其多表位疫苗的应用. 疾病预防控制通报, 2016,31(4):83-87.
	DAERKEN TUOKEN, ZHANG Y J, SUN S R. Progress of research methods of viral antigen epitope and application of multi-epitope vaccines. Bulletin of Disease Control and Prevention, 2016,31(4):83-87. (in Chinese)
[29]	谢联辉, 林奇英. 植物病毒学. 3版. 北京: 中国农业出版社, 2011: 154-155.
	XIE L H, LIN Q Y. Plant Virology. 3rd ed. Beijing: China Agriculture Press, 2011: 154-155. (in Chinese)
[30]	高芳銮, 沈建国, 史凤阳, 方治国, 谢联辉, 詹家绥. 中国马铃薯Y病毒的检测鉴定及CP基因的分子变异. 中国农业科学, 2013,46(15):3125-3133.
	GAO F L, SHEN J G, SHI F Y, FANG Z G, XIE L H, ZHAN J S. Detection and molecular variation of potato virus Y CP gene in China. Scientia Agricultura Sinica, 2013,46(15):3125-3133. (in Chinese)
[31]	路平. 马铃薯三种主要病毒的ELISA和RT-PCR检测技术的研究[D]. 兰州: 甘肃农业大学, 2005.
	LU P. Study on technology of detecting of three main viruses of potato with ELISA and RT-PCR[D]. Lanzhou: Gansu Agricultural University, 2005. (in Chinese)
[32]	秦艳红. 河南省烟草马铃薯Y病毒体外特性及血清学检测技术的研究[D]. 郑州: 河南农业大学, 2004.
	QIN Y H. Characteristics in vitro of PVY isolated from tobacco in Henan Province and serological detection method[D]. Zhengzhou: Henan Agricultural University, 2004. (in Chinese)
[33]	QUENOUILLE J, VASSILAKOS N, MOURY B. Potato virus Y: A major crop pathogen that has provided major insights into the evolution of viral pathogenicity. Molecular Plant Pathology, 2013,14(5):439-452. doi: 10.1111/mpp.2013.14.issue-5
[34]	高芳銮, 常飞, 沈建国, 谢联辉, 詹家绥. PVY^NTN-NW榆林分离物的全基因组序列测定与分析. 中国农业科学, 2015,48(2):270-279.
	GAO F L, CHANG F, SHEN J G, XIE L H, ZHAN J S. Complete genome analysis of a PVY^NTN-NW recombinant isolate from Yulin of China. Scientia Agricultura Sinica, 2015,48(2):270-279. (in Chinese)
[35]	TIAN Y P, HEPOJOKI J, RANKI H, LANKINEN H, VALKONEN J P T. Analysis of potato virus Y coat protein epitopes recognized by three commercial monoclonal antibodies. PLoS ONE, 2014,9(12):e115766. doi: 10.1371/journal.pone.0115766 pmid: 25542005

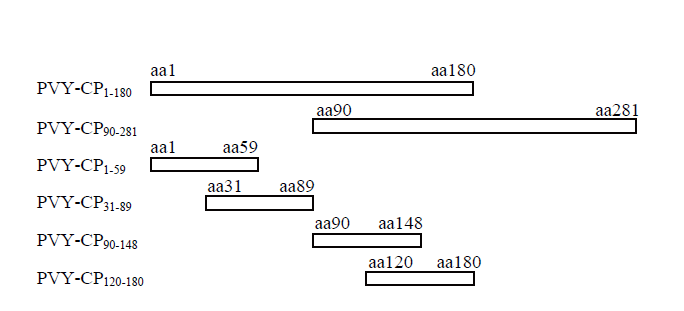

片段 Segment	引物 Primer	引物序列Primer sequence (5′-3′)
PVY-CP_1-180	PVY-AF	GGGATCCCCGGAATTCATGGGAAATGACACAATCGATG
PVY-CP_1-180	PVY-AR	GATGCGGCCGCTCGAGTTAGTGGTGGTGGTGGTGGTGCGGTTCCTTTTTGTTGCGC
PVY-CP_90-281	PVY-BF	GGGATCCCCGGAATTCCAGTTTGATACGTGGTATGAAGC
PVY-CP_90-281	PVY-BR	GATGCGGCCGCTCGAGTTAGTGGTGGTGGTGGTGGTGTGCGGCCGCAAGCTTGTCGA
PVY-CP_1-59	PVY-CF	GGGATCCCCGGAATTCATGGGAAATGACACAATCGATG
PVY-CP_1-59	PVY-CR	GATGCGGCCGCTCGAGTTAGTGGTGGTGGTGGTGGTGCTTAGGCATCCTCATTTTGGAC
PVY-CP_31-89	PVY-DF	GGGATCCCCGGAATTCAAGGAAAAGGACGTGAATGTTGG
PVY-CP_31-89	PVY-DR	GATGCGGCCGCTCGAGTTAGTGGTGGTGGTGGTGGTGTGATTGAGTTGCTCGAGTATTTG
PVY-CP_90-148	PVY-EF	GGGATCCCCGGAATTCCAGTTTGATACGTGGTATGAAGC
PVY-CP_90-148	PVY-ER	GATGCGGCCGCTCGAGTTAGTGGTGGTGGTGGTGGTGTGGTTTCAGTGGGTATTCGAC
PVY-CP_120-180	PVY-GF	GGGATCCCCGGAATTCTGCATTGAAAATGGAACCTCG
PVY-CP_120-180	PVY-GR	GATGCGGCCGCTCGAGTTAGTGGTGGTGGTGGTGGTGCGGTTCCTTTTTGTTGCGC

分段表达蛋白 Segmented expression protein	单克隆抗体Monoclonal antibody
分段表达蛋白 Segmented expression protein	3D3	9G6	3E4
PVY-CP_1-180	+	+	+
PVY-CP_90-281	+	+	-
PVY-CP_1-59	-	-	+
PVY-CP_31-89	-	-	+
PVY-CP_90-148	+	+	-
PVY-CP_120-180	+	-	-

检测抗体浓度 Concentration of detection antibody (μg·mL^-1)	捕获抗体浓度Concentration of capture antibody (μg·mL^-1)
检测抗体浓度 Concentration of detection antibody (μg·mL^-1)	4	2	1	0.5
2	12.72±0.95*	7.56±0.93	5.10±0.53	4.05±0.13
1	7.44±0.77	4.42±0.07	2.82±0.12	2.46±0.01
0.5	5.17±0.36	3.31±0.04	2.34±0.19	2.03±0.07
0.25	2.87±0.25	2.14±0.01	1.81±0.18	1.59±0.15
