Scientia Agricultura Sinica ›› 2025, Vol. 58 ›› Issue (2): 387-400.doi: 10.3864/j.issn.0578-1752.2025.02.012

• ANIMAL SCIENCE·VETERINARY SCIENCE • Previous Articles

Post-Freezing Quality and Targeted Lipidomics Analysis of Rongchang Pig Spermatozoa with Different Freezing Tolerance

GAO XiaoPing1,4(), PAN HongMei1,4, GUO ZongYi1,4, ZHANG JunJie2, LIN Yan3(), ZHANG Liang1,4()

  1. 1 Chongqing Academic of Animal Science, Chongqing 402460
    2 College of Life Sciences, Sichuan Agricultural University, Ya’an 625000, Sichuan
    3 Department of Animal Nutrition Institute, Sichuan Agricultural University, Chengdu 215500
    4 Pig Technology Innovation Center (Chongqing), Chongqing 402460
  • Received:2024-09-30 Accepted:2024-11-20 Online:2025-01-21 Published:2025-01-21
  • Contact: LIN Yan, ZHANG Liang

RichHTML

7

PDF

91

Abstract:

【Background】Rongchang pig is one of the excellent local pig breeds in China, but the number of purebred Rongchang pigs is decreasing with the introduction of foreign-bred pigs as well as the shift of the market demand, and this trend seriously threatens the diversity of the genetic resources of pigs in China and the sustainable development of the pig breeding industry. In the process of frozen semen production in local pigs, the differences in post-freezing quality of spermatozoa from different boars are all related to their freezing tolerances, while the sperm lipid composition is one of the key factors affecting their freezing tolerance. 【Objective】The aim of this study was deeply analyze the quality characteristics of spermatozoa of Rongchang pigs with different freezing tolerances and their lipid compositions, and to screen out the candidate markers of sperm freezing tolerance. 【Method】Fourteen Rongchang pig semen were collected for freezing and preservation, and their post-freezing motilities were detected. Relative Motility (post-freezing motility / pre-freezing motility) was used as the criterion for freezing tolerance, and Rongchang pig spermatozoa were screened and grouped into groups for high and low freezing tolerance. Plasma membrane integrity, mitochondrial membrane potential, reactive oxygen species level, apoptosis level and in vitro oocyte penetration ability of spermatozoa from different freezing tolerance groups were detected after freezing, and the extent of freezing damages on the surface and internal microstructure of spermatozoa were observed by scanning electron microscopy and transmission electron microscopy. The medium- and long-chain fatty acid composition of fresh spermatozoa from different freeze-resistant groups was detected by targeted lipidomics technology, and differential fatty acids were screened out. 【Result】5 Rongchang pigs with high freezing tolerance spermatozoa and 5 Rongchang pigs with low freezing tolerance spermatozoa were screened by relative motility; the plasma membrane integrity, mitochondrial activity and in vitro oocyte penetration rate of spermatozoa in the high freezing tolerance group were significantly higher than that of spermatozoa in the low freezing tolerance group after freezing (P<0.05); the apoptosis rate of spermatozoa in the high freezing tolerance group after freezing was significantly lower than that of spermatozoa in the low freezing tolerance group (P<0.05). The surface and internal structural integrity of spermatozoa in the high tolerance group was higher than that of spermatozoa in the low tolerance group after freezing. Targeted lipidomics showed that at least 36 fatty acids were present in Rongchang pig spermatozoa. The content of 11 fatty acids, including palmitic acid and pentadecanoic acid, were significantly different between the sperm of the high and low freezing tolerance groups (P<0.05), and all of them were more abundant in the high freezing tolerance group. 【Conclusion】The spermatozoa of Rongchang pigs with high freezing tolerance were significantly better than those of low freezing tolerance in terms of physiological status, morphology and structure, and in vitro oocyte penetration function, and there were significant differences in fatty acid composition. The differential fatty acids screened in this study, such as palmitic acid, pentadecanoic acid, and arachidonic acid, could be used as candidate markers of freezing tolerance in Rongchang pig spermatozoa. These findings not only provided a new perspective for an in-depth understanding of the biological mechanism of sperm cryoinjury, but also laid a theoretical foundation for the development of efficient and safe cryoprotectants.

Key words: Rongchang pig, sperm freezing tolerance, targeted lipidomics

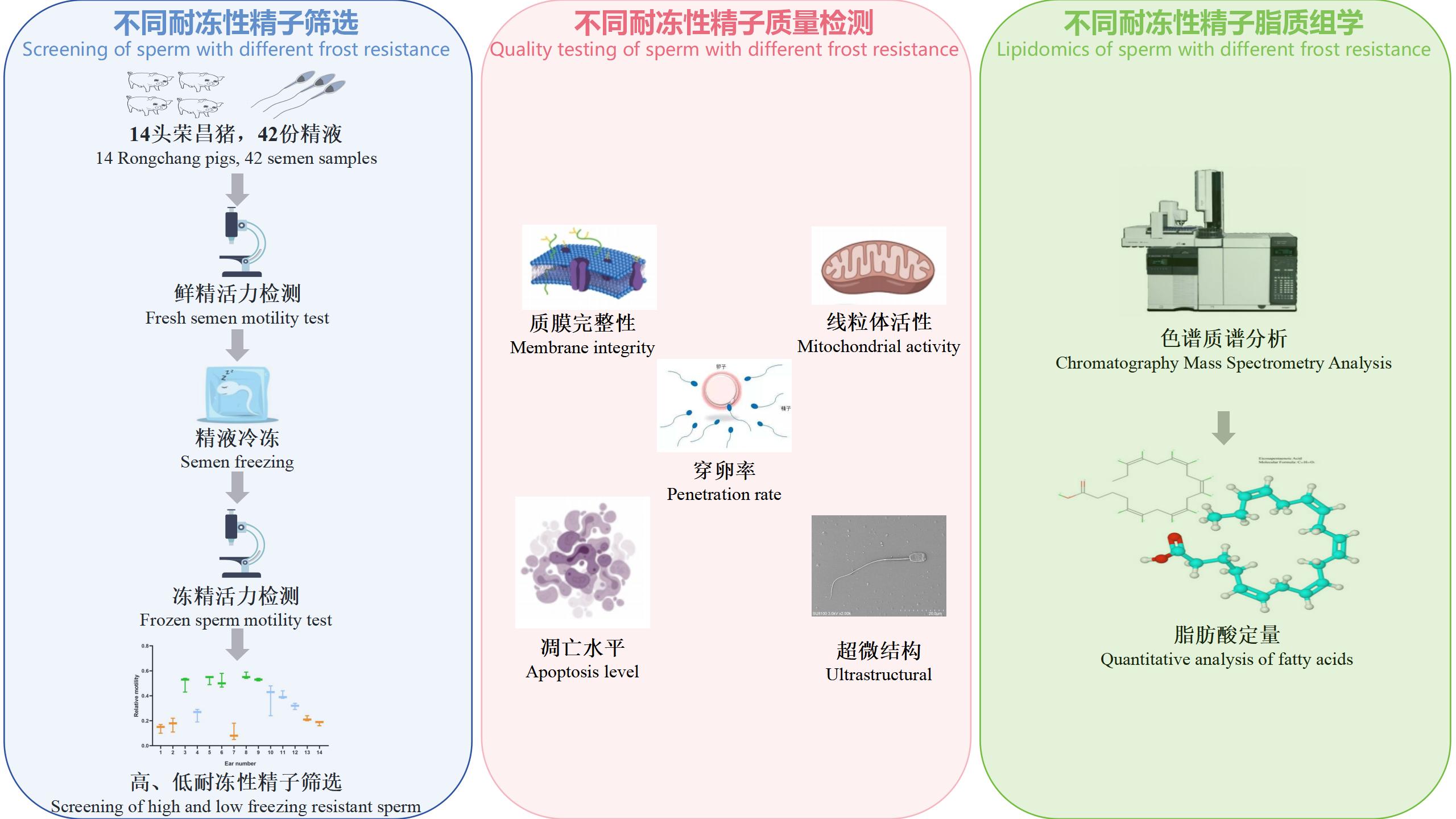

Fig. 1

Test flow chart"

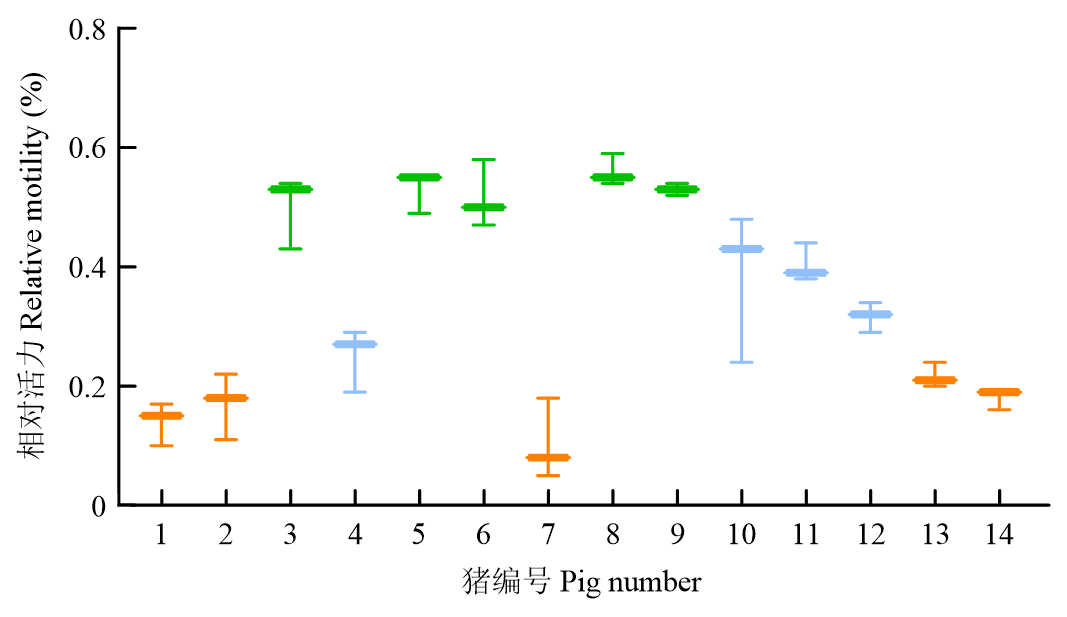

Fig. 2

Relative motility screening for high and low freeze resistant semen"

Table 1

Comparison of sperm motility between GFE and PFE groups"

分组 Cluster 冻前活力 Pre-freeze motility (%) 解冻后活力 Post-thaw motility (%) 相对活力 Relative motility (%)
GFE 83.00±6.64 44.10±3.54a 0.53±0.02a
PFE 84.35±6.31 15.74±4.74b 0.19±0.06b

Table 2

Comparison of sperm quality after freezing in GFE and PFE groups"

分组
Cluster		 质膜完整性
Plasma membrane integrity（%）		 线粒体膜电位
Mitochondrial membrane potential（%）		 凋亡率
Apoptosis rate
（%）		 活性氧水平
Activated oxygen levels（%）		 穿卵率
Penetration rate
（%）
GFE 36.25±5.58a 43.37±5.88a 34.86±0.67b 27.70±1.96 37.61±2.11a
PFE 21.74±5.14b 20.57±7.68b 44.44±3.38a 26.69±2.54 16.14±1.36b

Fig. 3

Different fertilization results of oocytes A1-A2: Status of oocytes before and after washing; A3: Fluorescence map of unpenetrating oocytes; B1-B3: Bright field and fluorescence images of sperm embedded in the transparent zone of oocytes; C1-C3: Light field and fluorescence images of sperm entering the cytoplasm of oocytes"

Fig. 4

Scanning electron microscopic observation of spermatozoa in GFE and PFE groups A, B: Scanning electron micrographs of spermatozoa in the GFE group; C, D: Scanning electron micrographs of spermatozoa in the PFE group"

Fig. 5

Morphological classification of porcine spermatozoa by post-freezing transmission electron microscopy A: Longitudinal plane of sperm head; B: Longitudinal cross-section of sperm neck; C: Sperm tail longitudinal section; D: Cross section of sperm tail"

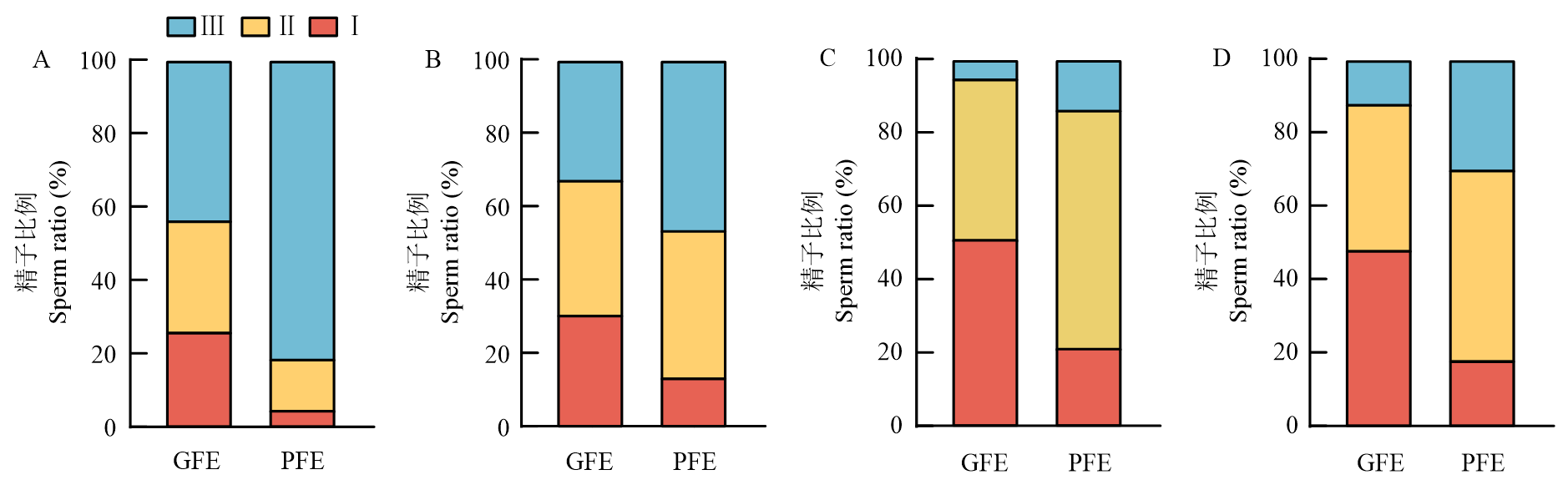

Fig. 6

Statistical analysis of different grades of spermatozoa in GFE and PFE groups A: Statistics of spermatozoa of different head types; B: Statistics of spermatozoa of different neck types; C: Statistics of spermatozoa of different mid-tail types; D: Statistics of spermatozoa of different tail cross sections"

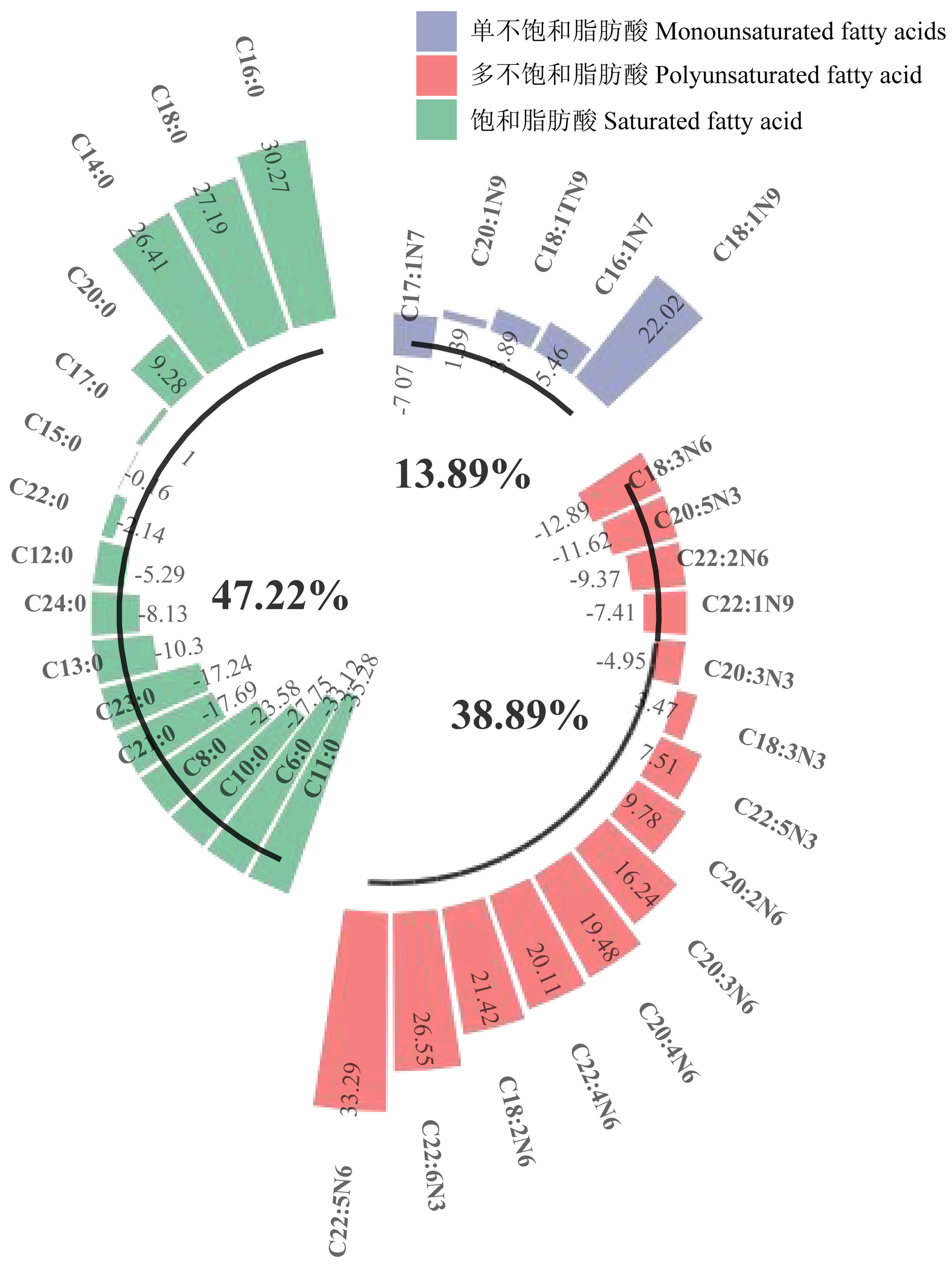

Fig. 7

Bar chart of the proportion of fatty acid classification in Rongchang pig sperm"

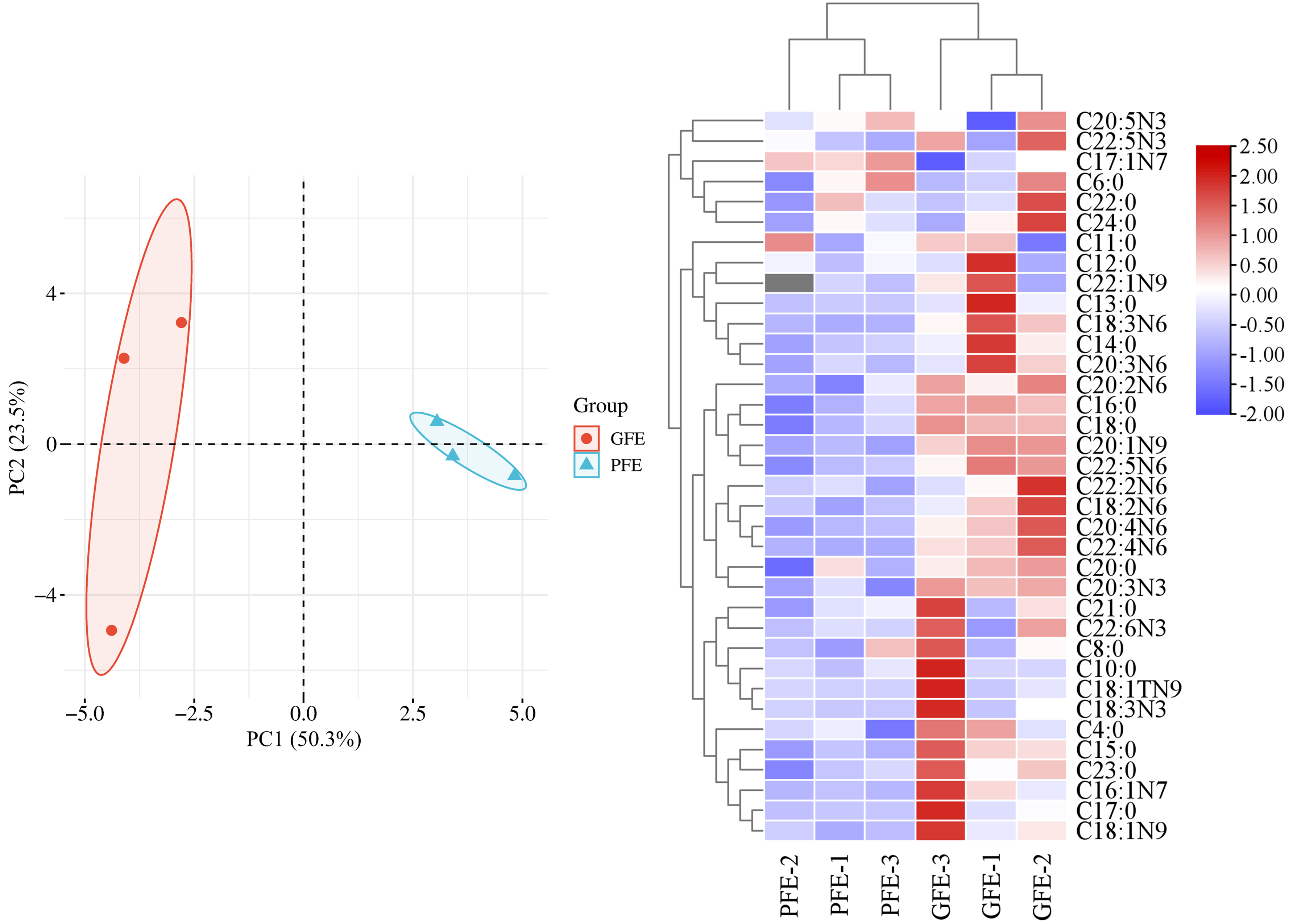

Fig. 8

Detection and analysis of long-chain fatty acids in sperm of GFE and PFE groups A: the results of principal component analysis show that the red dots represent the GFE group and the blue dots represent the PFE group; B: fatty acid clustering heatmap"

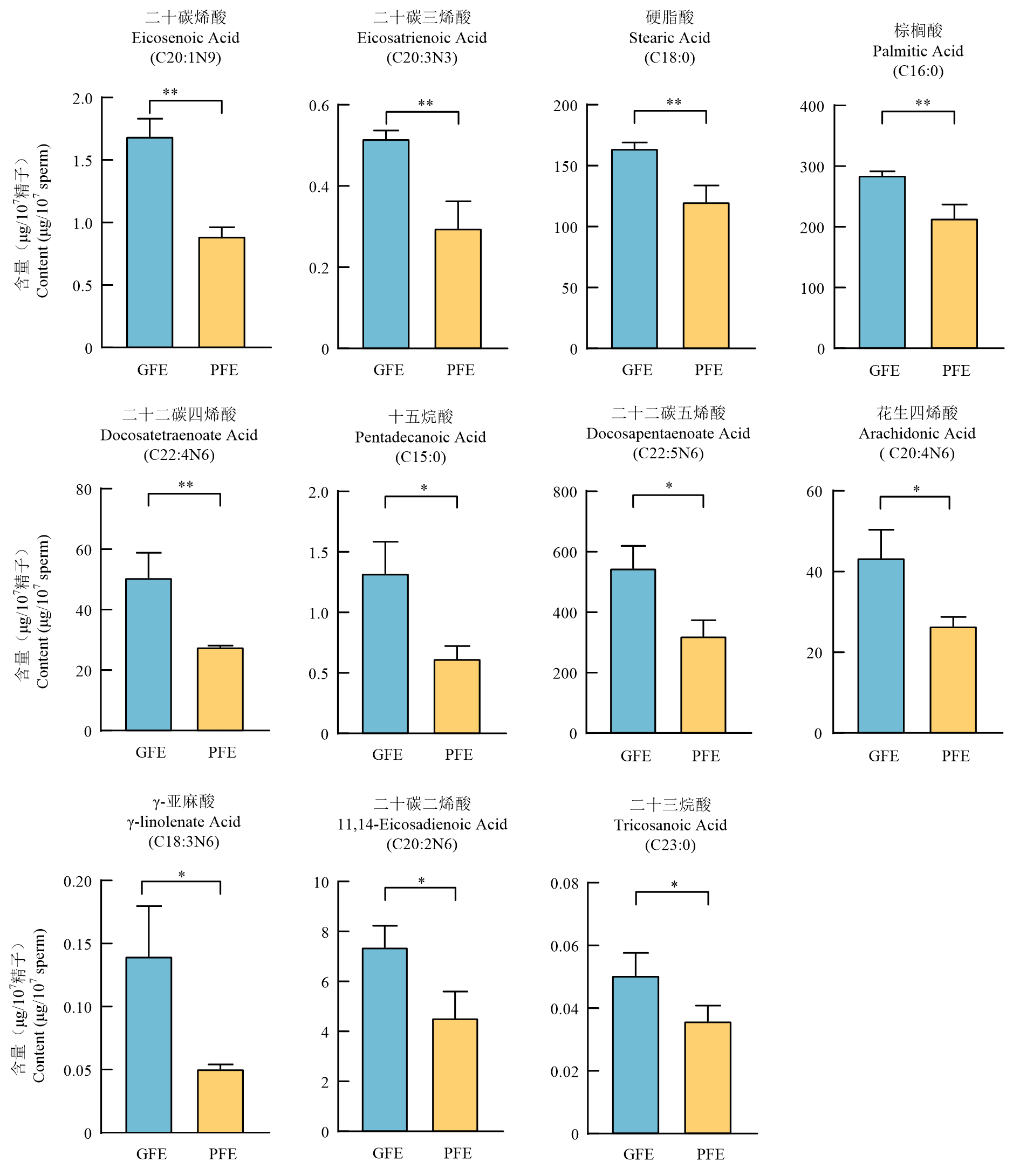

Fig. 9

Significantly different fatty acids in spermatozoa of GFE and PFE group"

[1]
FICKEL J, WAGENER A, LUDWIG A. Semen cryopreservation and the conservation of endangered species. European Journal of Wildlife Research, 2007, 53(2): 81-89.
[2]
潘红梅, 彭刚, 吴玲, 肖杰秋, 徐荣. 猪冷冻精液在我国的应用现状和存在的问题. 猪业科学. 2020, 37(06): 44-48.
PAN H M, PENG G, WU L, XIAO J Q, XU R. The current application status and existing problems of frozen pig semen in China Pig Science 2020, 37(06): 44-48. (in Chinese)
[3]
WATSON P F. Recent developments and concepts in the cryopreservation of spermatozoa and the assessment of their post-thawing function. Reproduction, Fertility, and Development, 1995, 7(4): 871-891.
[4]
THURSTON L M, SIGGINS K, MILEHAM A J, WATSON P F, HOLT W V. Identification of amplified restriction fragment length polymorphism markers linked to genes controlling boar sperm viability following cryopreservation. Biology of Reproduction, 2002, 66(3): 545-554.

doi: 10.1095/biolreprod66.3.545 pmid: 11870056
[5]
FRASER L, BRYM P, PAREEK C S, MOGIELNICKA-BRZOZOWSKA M, PAUKSZTO Ł, JASTRZĘBSKI J P, WASILEWSKA-SAKOWSKA K, MAŃKOWSKA A, SOBIECH P, ŻUKOWSKI K. Transcriptome analysis of boar spermatozoa with different freezability using RNA-Seq. Theriogenology, 2020, 142: 400-413.

doi: S0093-691X(19)30495-9 pmid: 31711689
[6]
童世锋, 任智彬, 林斐, 葛雨竹, 陶景丽, 刘杨. 二花脸公猪不同耐冻性精子的蛋白质组学分析. 中国农业科学, 2022, 55(23): 4743-4752. doi:10.3864/j.issn.0578-1752.2022.23.01410.3864/j. issn.0578-1752.2022.23.014. TONG S F, REN Z B, LIN F, GE Y Z, TAO J L, LIU Y. Proteomic analysis of sperm with different freezing tolerance in Erhualian boar. Scientia Agricultura Sinica, 2022, 55(23): 4743-4752. doi:10.3864/j.issn.0578-1752.2022.23.01410.3864/j. issn.0578-1752.2022.23.014. (in Chinese)
TONG S F, REN Z B, LIN F, GE Y Z, TAO J L, LIU Y. Proteomic analysis of sperm with different freezing tolerance in Erhualian boar. Scientia Agricultura Sinica, 2022, 55(23): 4743-4752. doi:10.3864/j.issn.0578-1752.2022.23.01410.3864/j. issn.0578-1752.2022.23.014. (in Chinese)
[7]
EVANS H C, DINH T T N, UGUR M R, HITIT M, SAJEEV D, KAYA A, TOPPER E, NICODEMUS M C, SMITH G D, MEMILI E. Lipidomic markers of sperm cryotolerance in cattle. Scientific Reports, 2020, 10(1): 20192.

doi: 10.1038/s41598-020-77089-9 pmid: 33214639
[8]
ODDI S, CARLUCCIO A, CIARAMELLANO F, MASCINI M, BUCCI R, MACCARRONE M, ROBBE D, DAINESE E. Cryotolerance of equine spermatozoa correlates with specific fatty acid pattern: a pilot study. Theriogenology, 2021, 172: 88-94.

doi: 10.1016/j.theriogenology.2021.06.004 pmid: 34146973
[9]
ZHANG Y T, YUAN W J, LIU Y C, LIU Y, LIANG H L, XU Q Q, LIU Z H, WENG X G. Plasma membrane lipid composition and metabolomics analysis of Yorkshire boar sperms with high and low resistance to cryopreservation. Theriogenology, 2023, 206: 28-39.

doi: 10.1016/j.theriogenology.2023.04.016 pmid: 37178672
[10]
GIRAUD M N, MOTTA C, BOUCHER D, GRIZARD G. Membrane fluidity predicts the outcome of cryopreservation of human spermatozoa. Human Reproduction, 2000, 15(10): 2160-2164.

pmid: 11006192
[11]
ZALBA S, TEN HAGEN T L M. Cell membrane modulation as adjuvant in cancer therapy. Cancer Treatment Reviews, 2017, 52: 48-57.

doi: S0305-7372(16)30115-3 pmid: 27889637
[12]
ALVAREZ J G, STOREY B T. Evidence for increased lipid peroxidative damage and loss of superoxide dismutase activity as a mode of sublethal cryodamage to human sperm during cryopreservation. Journal of Andrology, 1992, 13(3): 232-241.

pmid: 1601742
[13]
KOU Z Y, HU B Y, LI Y Q, CAI R, GAO L, CHU G Y, YANG G S, PANG W J. Boar seminal plasma improves sperm quality by enhancing its antioxidant capacity during liquid storage at 17℃. Zygote, 2022, 30(5): 695-703.
[14]
PINART E, YESTE M, BONET S. Acrosin activity is a good predictor of boar sperm freezability. Theriogenology, 2015, 83(9): 1525-1533.

doi: 10.1016/j.theriogenology.2015.02.005 pmid: 25748245
[15]
CATALÁN J, YÁNEZ-ORTIZ I, TORRES-GARRIDO M, RIBAS- MAYNOU J, LLAVANERA M, BARRANCO I, YESTE M, MIRÓ J. Impact of seminal plasma antioxidants on DNA fragmentation and lipid peroxidation of frozen-thawed horse sperm. Antioxidants, 2024, 13(3): 322.
[16]
YESTE M, ESTRADA E, CASAS I, BONET S, RODRÍGUEZ-GIL J E. Good and bad freezability boar ejaculates differ in the integrity of nucleoprotein structure after freeze-thawing but not in ROS levels. Theriogenology, 2013, 79(6): 929-939.

doi: 10.1016/j.theriogenology.2013.01.008 pmid: 23398739
[17]
TONG S F, YIN C, GE Y Z, REN Z B, TAO J L, LIU Y. Albumin (ALB) and protein disulfide isomerase family A member 4 (PDIA4) are novel markers to predict sperm freezability of Erhualian boar. Cryobiology, 2022, 109: 37-43.
[18]
TORRES M A, PEDROSA A C, NOVAIS F J, ALKMIN D V, COOPER B R, YASUI G S, FUKUMASU H, MACHATY Z, DE ANDRADE A F C. Metabolomic signature of spermatozoa established during holding time is responsible for differences in boar sperm freezability. Biology of Reproduction, 2022, 106(1): 213-226.
[19]
BAILEY J L, BILODEAU J F, CORMIER N. Semen cryopreservation in domestic animals: a damaging and capacitating phenomenon. Journal of Andrology, 2000, 21(1): 1-7.
[20]
BUHR M M, FISER P, BAILEY J L, CURTIS E F. Cryopreservation in different concentrations of glycerol alters boar sperm and their membranes. Journal of Andrology, 2001, 22(6): 961-969.

pmid: 11700860
[21]
GUTHRIE H D, WELCH G R. Impact of storage prior to cryopreservation on plasma membrane function and fertility of boar sperm. Theriogenology, 2005, 63(2): 396-410.

pmid: 15626407
[22]
MARTIN G, SABIDO O, DURAND P, LEVY R. Cryopreservation induces an apoptosis-like mechanism in bull sperm. Biology of Reproduction, 2004, 71(1): 28-37.

pmid: 14973261
[23]
THOMSON L K, FLEMING S D, AITKEN R J, DE IULIIS G N, ZIESCHANG J A, CLARK A M. Cryopreservation-induced human sperm DNA damage is predominantly mediated by oxidative stress rather than apoptosis. Human Reproduction, 2009, 24(9): 2061-2070.
[24]
CHEN Z Y, HAUSER R, TRBOVICH A M, SHIFREN J L, DORER D J, GODFREY-BAILEY L, SINGH N P. The relationship between human Semen characteristics and sperm apoptosis: a pilot study. Journal of Andrology, 2006, 27(1): 112-120.
[25]
GRUNEWALD S, SAID T M, PAASCH U, GLANDER H J, AGARWAL A. Relationship between sperm apoptosis signalling and oocyte penetration capacity. International Journal of Andrology, 2008, 31(3): 325-330.

pmid: 17573851
[26]
ILICETO M, STENSEN M H, ANDERSEN J M, HAUGEN T B, WITCZAK O. Levels of L-carnitine in human seminal plasma are associated with sperm fatty acid composition. Asian Journal of Andrology, 2022, 24(5): 451-457.

doi: 10.4103/aja2021107 pmid: 35017387
[27]
SINGH M, MOLLIER R T, PONGENER N, BORDOLOI L J, KUMAR R, CHAUDHARY J K, KATIYAR R, KHAN M H, RAJKHOWA D J, MISHRA V K. Linseed oil in boar’s diet during high temperature humidity index (THI) period improves sperm quality characteristics, antioxidant status and fatty acid composition of sperm under hot humid sub-tropical climate. Theriogenology, 2022, 189: 127-136.
[28]
ROOKE J A, SHAO C C, SPEAKE B K. Effects of feeding tuna oil on the lipid composition of pig spermatozoa and in vitro characteristics of Semen. Reproduction, 2001, 121(2): 315-322.
[29]
KOGAN T, GROSSMAN DAHAN D, LAOR R, ARGOV- ARGAMAN N, ZERON Y, KOMSKY-ELBAZ A, KALO D, ROTH Z. Association between fatty acid composition, cryotolerance and fertility competence of progressively motile bovine spermatozoa. Animals, 2021, 11(10): 2948.
[30]
SAMADIAN F, TOWHIDI A, REZAYAZDI K, BAHREINI M. Effects of dietary n-3 fatty acids on characteristics and lipid composition of ovine sperm. Animal, 2010, 4(12): 2017-2022.

doi: 10.1017/S1751731110001308 pmid: 22445376
[31]
PROCHOWSKA S, BONARSKA-KUJAWA D, BOBAK Ł, EBERHARDT M, NIŻAŃSKI W. Fatty acid composition and biophysical characteristics of the cell membrane of feline spermatozoa. Scientific Reports, 2024, 14(1): 10214.

doi: 10.1038/s41598-024-61006-5 pmid: 38702489
[32]
AM-IN N, KIRKWOOD R N, TECHAKUMPHU M, TANTASUPARUK W. Lipid profiles of sperm and seminal plasma from boars having normal or low sperm motility. Theriogenology, 2011, 75(5): 897-903.
[33]
KELSO K A, REDPATH A, NOBLE R C, SPEAKE B K. Lipid and antioxidant changes in spermatozoa and seminal plasma throughout the reproductive period of bulls. Journal of Reproduction and Fertility, 1997, 109(1): 1-6.
[34]
LENZI A, GANDINI L, MARESCA V, RAGO R, SGRÒ P, DONDERO F, PICARDO M. Fatty acid composition of spermatozoa and immature germ cells. Molecular Human Reproduction, 2000, 6(3): 226-231.

pmid: 10694269
[35]
MARTÍNEZ-SOTO J C, LANDERAS J, GADEA J. Spermatozoa and seminal plasma fatty acids as predictors of cryopreservation success. Andrology, 2013, 1(3): 365-375.
[36]
ISLAM M M, UMEHARA T, TSUJITA N, SHIMADA M. Saturated fatty acids accelerate linear motility through mitochondrial ATP production in bull sperm. Reproductive Medicine and Biology, 2021, 20(3): 289-298.

doi: 10.1002/rmb2.12381 pmid: 34262396
[37]
ZHU Z D, LI R N, FENG C W, LIU R F, ZHENG Y, MASUDUL HOQUE S A, WU D, LU H Z, ZHANG T, ZENG W X. Exogenous oleic acid and palmitic acid improve boar sperm motility via enhancing mitochondrial Β-oxidation for ATP generation. Animals, 2020, 10(4): 591.
[38]
KIERNAN M, FAHEY A G, FAIR S. The effect of the in vitro supplementation of exogenous long-chain fatty acids on bovine sperm cell function. Reproduction, Fertility, and Development, 2013, 25(6): 947-954.
[39]
VENN-WATSON S, LUMPKIN R, DENNIS E A. Efficacy of dietary odd-chain saturated fatty acid pentadecanoic acid parallels broad associated health benefits in humans: could it be essential? Scientific Reports, 2020, 10(1): 8161.
[40]
SKEAFF C M, HODSON L, MCKENZIE J E. Dietary-induced changes in fatty acid composition of human plasma, platelet, and erythrocyte lipids follow a similar time course. The Journal of Nutrition, 2006, 136(3): 565-569.
[41]
PFEUFFER M, JAUDSZUS A. Pentadecanoic and heptadecanoic acids: multifaceted odd-chain fatty acids. Advances in Nutrition, 2016, 7(4): 730-734.

doi: 10.3945/an.115.011387 pmid: 27422507
[42]
LENZI A, PICARDO M, GANDINI L, DONDERO F. Lipids of the sperm plasma membrane: from polyunsaturated fatty acids considered as markers of sperm function to possible scavenger therapy. Human Reproduction Update, 1996, 2(3): 246-256.

doi: 10.1093/humupd/2.3.246 pmid: 9079417
[43]
SAFARINEJAD M R, HOSSEINI S Y, DADKHAH F, ALI ASGARI M. Relationship of omega-3 and omega-6 fatty acids with Semen characteristics, and anti-oxidant status of seminal plasma: a comparison between fertile and infertile men. Clinical Nutrition, 2010, 29(1): 100-105.
[44]
尤悦, 张文静, 许睿, 周义方, 吕彦锟, 张晖, 吴港城, 王兴国. γ-亚麻酸的富集及其生理功效研究进展. 粮油食品科技. 2024, 32(03): 101-108.
YOU Y, ZHANG W J, XU R, ZHOU Y F, LV Y K, ZHANG H, WU G C, WANG X G. Research progress on enrichment and physiological effects of gamma linolenic acid Grain and oil food technology 2024, 32(03): 101-108. (in Chinese)
[45]
YUAN Y X, WANG G, ZOU J H, ZHANG Y T, LI D X, YU M Q, CHEN L, LI G. Study on comparative analysis of differential metabolites in Guanzhong dairy goat Semen before and after freezing. Theriogenology, 2023, 197: 232-239.
[46]
BÖRJESSON S I, HAMMARSTRÖM S, ELINDER F. Lipoelectric modification of ion channel voltage gating by polyunsaturated fatty acids. Biophysical Journal, 2008, 95(5): 2242-2253.

doi: 10.1529/biophysj.108.130757 pmid: 18502799
[47]
MARCHESINI N, HANNUN Y A. Acid and neutral sphingomyelinases: roles and mechanisms of regulation. Biochemistry and Cell Biology, 2004, 82(1): 27-44.

pmid: 15052326
[48]
BRASH A R. Arachidonic acid as a bioactive molecule. The Journal of Clinical Investigation, 2001, 107(11): 1339-1345.
[49]
ANDERSEN J M, RØNNING P O, HERNING H, BEKKEN S D, HAUGEN T B, WITCZAK O. Fatty acid composition of spermatozoa is associated with BMI and with Semen quality. Andrology, 2016, 4(5): 857-865.
[50]
VAZQUEZ J M, ROLDAN E R. Phospholipid metabolism in boar spermatozoa and role of diacylglycerol species in the de novo formation of phosphatidylcholine. Molecular Reproduction and Development, 1997, 47(1): 105-112.
[51]
MUSSA N J, RATCHAMAK R, RATSIRI T, VONGPRALUB T, BOONKUM W, SEMAMING Y, CHANKITISAKUL V. Lipid profile of sperm cells in Thai native and commercial roosters and its impact on cryopreserved Semen quality. Tropical Animal Health and Production, 2021, 53(2): 321.
[52]
DÍAZ R, QUIÑONES J, SHORT S, CONTRERAS P, ULLOA- RODRÍGUEZ P, CANCINO-BAIER D, SEPÚLVEDA N, VALDEBENITO I, FARÍAS J G. Effect of exogenous lipids on cryotolerance of Atlantic salmon (Salmo salar) spermatozoa. Cryobiology, 2021, 98: 25-32.

doi: 10.1016/j.cryobiol.2021.01.004 pmid: 33412157
[53]
HOSSAIN M S, TAREQ K M A, HAMMANO K I, TSUJII H. Effect of fatty acids on boar sperm motility, viability and acrosome reaction. Reproductive Medicine and Biology, 2007, 6(4): 235-239.

doi: 10.1111/j.1447-0578.2007.00191.x pmid: 29699281
[54]
LAHNSTEINER F, MANSOUR N, MCNIVEN M A, RICHARDSON G F. Fatty acids of rainbow trout (Oncorhynchus mykiss) Semen: composition and effects on sperm functionality. Aquaculture, 2009, 298(1/2): 118-124.
