中国农业科学 ›› 2020, Vol. 53 ›› Issue (8): 1583-1593.doi: 10.3864/j.issn.0578-1752.2020.08.008

• 植物保护 • 上一篇    下一篇

小西葫芦黄花叶病毒dsRNA的原核表达及其对ZYMV的防治效果

解昆仑,刘莉铭,刘美,彭斌,吴会杰,古勤生()

  1. 中国农业科学院郑州果树研究所,郑州450009
  • 收稿日期:2019-09-09 接受日期:2019-11-04 出版日期:2020-04-16 发布日期:2020-04-29
  • 通讯作者: 古勤生
  • 作者简介:解昆仑,E-mail: xiekunlun1994@163.com。
  • 基金资助:
    国家重点研发计划(2018YFD0201300);国家西甜瓜产业技术体系(CARS-26-13);中国农业科学院基本科研业务费专项(1610192019503)

Prokaryotic Expression of dsRNA of Zucchini yellow mosaic virus and Its Control Efficacy on ZYMV

XIE KunLun,LIU LiMing,LIU Mei,PENG Bin,WU HuiJie,GU QinSheng()

  1. Zhengzhou Fruit Research Institute, Chinese Academy of Agricultural Sciences, Zhengzhou 450009
  • Received:2019-09-09 Accepted:2019-11-04 Online:2020-04-16 Published:2020-04-29
  • Contact: QinSheng GU

摘要:

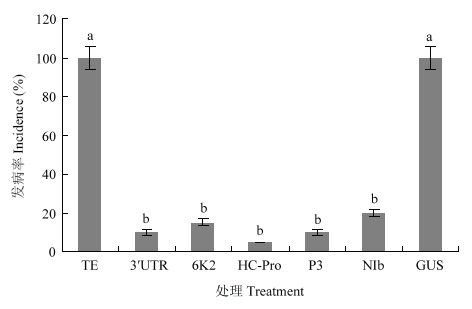

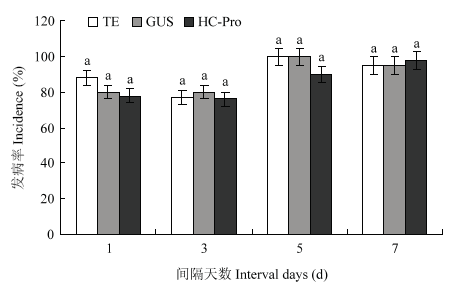

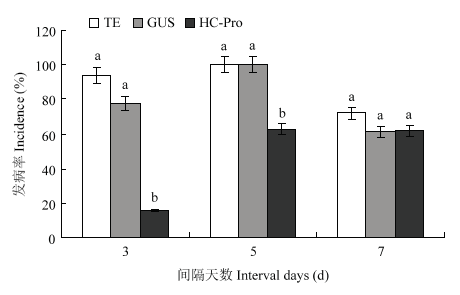

【目的】小西葫芦黄花叶病毒(Zucchini yellow mosaic virus,ZYMV)是危害西瓜最为普遍的病毒,在西瓜上利用外源喷施病毒基因dsRNA的方法实现对ZYMV的预防和治疗。【方法】首先以实验室已有的ZYMV病毒序列为依据,针对其不同的基因片段,利用NCBI数据库找出与其相似的序列。随后利用软件DNAMAN8对序列进行多重比对分析,找出其保守区域,根据分析结果选择长度介于200—350 bp的ZYMV 3′UTR、6K2、HC-Pro、P3、NIb 5个基因片段,同时选择长度为190 bp的GUS基因片段作为对照。PCR扩增得到这6个片段后,利用同源重组的方法将它们插入到含有双T7启动子的L4440载体中,并利用RNAⅢ酶缺陷型大肠杆菌HT115建立原核表达系统生产dsRNA,采用超声波破碎的方法释放dsRNA,利用TE(10 mmol·L -1 Tris-HCl和1 mmol·L -1 EDTA)缓冲液溶解dsRNA,最后比较和分析IPTG使用浓度、诱导时间以及超声波破碎时间对dsRNA表达和释放的影响。在西瓜植株上采用喷施的方法施用dsRNA,设计先喷施dsRNA后接种病毒的预防试验和先接种病毒后喷施dsRNA的治疗试验,通过统计分析接种病毒后21 d发病率的方法评价dsRNA预防和治疗ZYMV的效果。【结果】针对ZYMV的3′UTR、6K2、HC-Pro、P3、NIb 5个基因片段以及GUS基因片段建立了能够高效稳定表达和释放dsRNA的生产体系。在IPTG诱导浓度为8 mmol·L -1,诱导时间为7 h,在宁波新芝牌超声波细胞破碎仪3ø的档位和60%的输出功率条件下破碎15 min,细胞可以有效产生和释放dsRNA。在对ZYMV的预防试验中发现,喷施GUS基因片段的dsRNA以及TE缓冲液的西瓜植株发病率均为100%的情况下,对ZYMV防治效果最好的是HC-Pro基因片段,接种ZYMV 21 d后防治效果可达到95%,防治效果相对较差的是NIb基因片段,但也可达到80%。在此基础上对HC-Pro片段预防和治疗ZYMV的效果进行了深入分析,结果发现在喷施HC-Pro片段的dsRNA后第3、5、7天接种ZYMV,植株发病率分别为16%、63%、63%,在接种ZYMV后第1、3、5、7天分别喷施HC-Pro片段的dsRNA,无明显的治疗效果,仅起到延迟植株发病的效果。【结论】建立了针对ZYMV不同基因片段的dsRNA原核表达体系,并发现基于HC-Pro基因片段产生的dsRNA对ZYMV防治效果最好,可显著降低植株的发病率、延迟植株发病时间,具有应用潜力。

关键词: 西瓜, 小西葫芦黄花叶病毒, 原核表达, 外源喷施, 双链RNA, 防治效果

Abstract:

【Objective】Zucchini yellow mosaic virus (ZYMV) is the most prevalent virus that harms watermelon. The objective of this study is to realize the prevention and treatment of ZYMV by external application of viral gene dsRNA on watermelon. 【Method】Based on the existing ZYMV virus sequence in the laboratory, the NCBI database was used to find the similar sequences for different gene fragments. Then the software DNAMAN8 was used to perform multiple alignment analysis to find the conserved regions. Based on the analysis results, 5 gene fragments of ZYMV 3′UTR, 6K2, HC-Pro, P3 and NIb with a length range of 200-350 bp were selected, at the same time, a GUS gene fragment with a length of 190 bp was selected as a control. After the 6 fragments were amplified by PCR, they were inserted into the vector L4440 containing double T7 promoters by homologous recombination method. The RNAIII enzyme-deficient strain E. coli-HT115 was used to construct a prokaryotic expression system for dsRNA production, dsRNA was released by ultrasonic disruption and dissolved in TE buffer (10 mmol·L -1 Tris-HCl and 1 mmol·L -1 EDTA). The concentration of IPTG, induction time and ultrasonic breaking time in the production process were compared and analyzed. The dsRNA was applied on watermelon plants by spraying method, two experiments for spraying dsRNA first, then inoculating virus (prevention), and inoculating virus first, then spraying dsRNA (treatment) were designed, and the efficacy of dsRNA prevention and treatment against ZYMV was evaluated by statistical comparison and analysis of the incidence at 21 days after virus inoculation. 【Result】The production system for ZYMV 3′UTR, 6K2, HC-Pro, P3, NIb 5 gene fragments and GUS gene fragment was established, which could express and release dsRNA efficiently and stably. The cells could efficiently produce and release dsRNA after IPTG induced concentration of 8 mmol·L -1, induction time of 7 h, and disruption for 15 min under the condition of Ningbo Xinzhi brand ultrasonic cell disrupter 3ø and 60% output power. In the prevention experiment, it was found that the disease incidence of both GUS gene fragment dsRNA and TE buffer spraying treatments was 100%. The best control efficacy on ZYMV was HC-Pro gene fragment, after 21 days of virus inoculation, the efficacy reached 95%, the control efficacy of NIb gene fragment (80%) was relatively poor. On this basis, the efficacy of prevention and treatment of HC-Pro fragment on ZYMV was analyzed in depth. When the ZYMV was inoculated on the 3rd, 5th and 7th day after spraying the dsRNA of HC-Pro fragment, the incidence of disease was 16%, 63% and 63%, respectively. The dsRNA of the HC-Pro fragment was sprayed on the 1st, 3rd, 5th, and 7th day after inoculation of ZYMV, the results show that there is no obvious therapeutic efficacy, and only the onset of disease was delayed.【Conclusion】A prokaryotic expression system was established for dsRNA targeting different gene fragments of ZYMV, and it was found that dsRNA based on HC-Pro gene fragment has the best control efficacy on ZYMV, which can reduce the incidence of disease, delay the onset time of disease, and have the potential for application.

Key words: watermelon, Zucchini yellow mosaic virus (ZYMV), prokaryotic expression, external application, double- stranded RNA (dsRNA), control efficacy
