中国农业科学 ›› 2018, Vol. 51 ›› Issue (22): 4328-4338.doi: 10.3864/j.issn.0578-1752.2018.22.011

• 园艺 • 上一篇    下一篇

甘蓝BoSPx的克隆与表达分析

王玉奎1(),白晓璟1,廉小平2,张贺翠1,罗绍兰1,蒲敏1,左同鸿1,刘倩莹1,朱利泉1()

  1. 1 西南大学农学与生物科技学院,重庆 400715
    2 西南大学园艺园林学院,重庆 400715
  • 收稿日期:2018-04-21 接受日期:2018-07-21 出版日期:2018-11-16 发布日期:2018-11-16
  • 基金资助:
    国家自然科学基金(31572127)

Cloning and Expression Analysis of BoSPx in Brassica oleracea

WANG YuKui1(),BAI XiaoJing1,LIAN XiaoPing2,ZHANG HeCui1,LUO ShaoLan1,PU Min1,ZUO TongHong1,LIU QianYing1,ZHU LiQuan1()

  1. 1 College of Agronomy and Biotechnology, Southwest University, Chongqing 400715
    2 College of Horticulture and Landscape Architecture, Southwest University, Chongqing 400715
  • Received:2018-04-21 Accepted:2018-07-21 Online:2018-11-16 Published:2018-11-16

摘要:

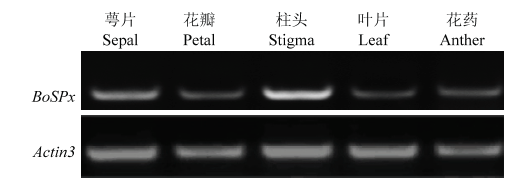

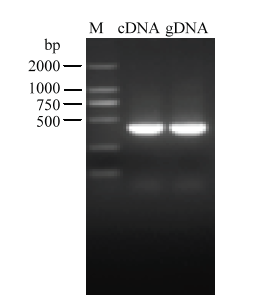

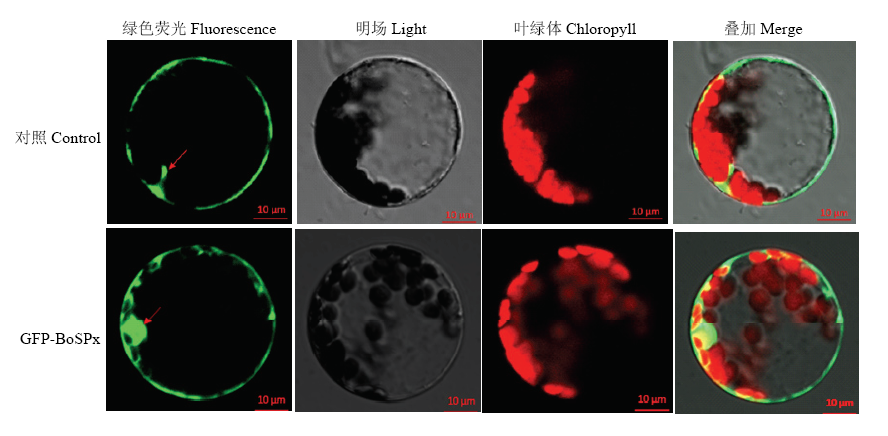

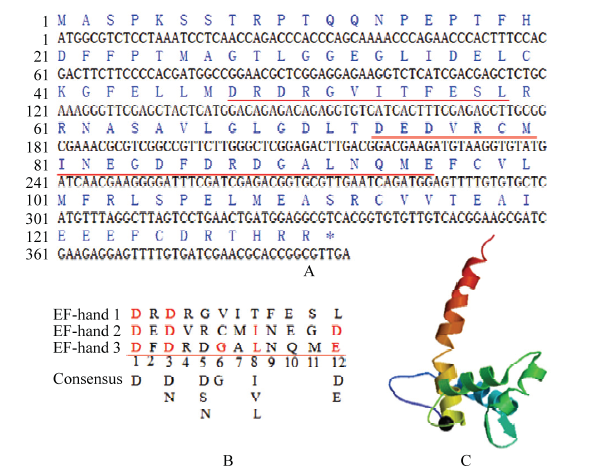

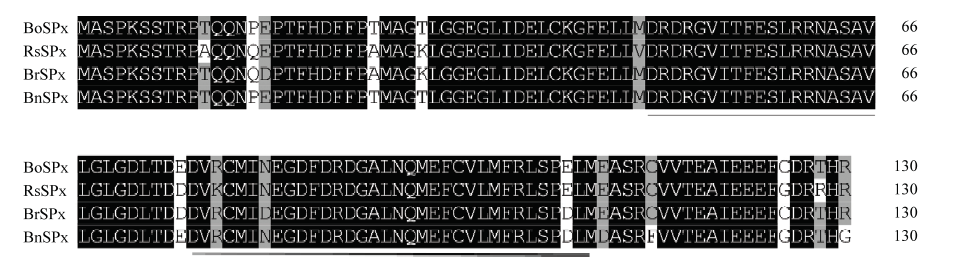

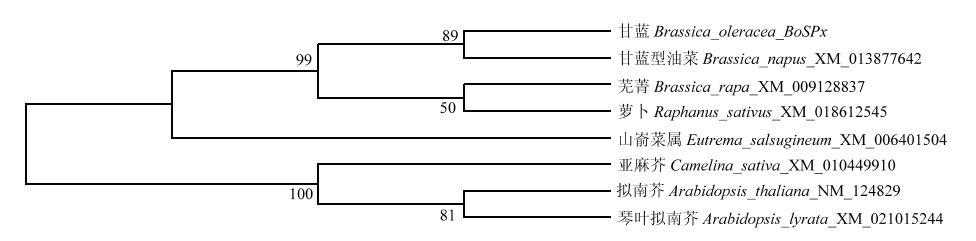

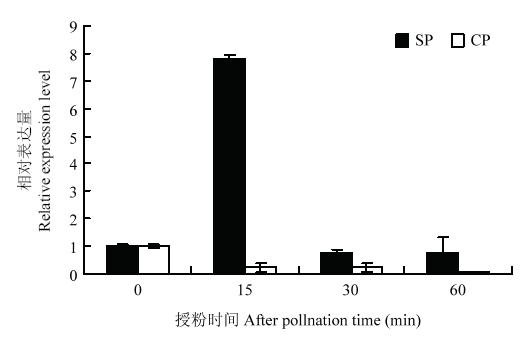

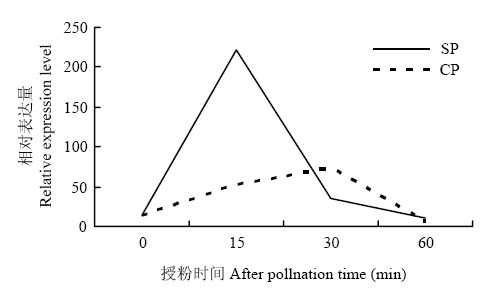

【目的】自交不亲和性(self-incompatibility,SI)是显花植物在长期进化过程中形成的限制自交衰退、促进杂交优势的一种复杂而完善的重要遗传机制。通过对SI与钙共响应新基因BoSPx的克隆、时空特异性表达分析和筛选与其互作的蛋白,并对BoSPx在自花授粉后刺激柱头的响应机制进行研究,以期为甘蓝SI的深入研究提供依据。【方法】采用转录组测序、自花和异花授粉后差异筛选以及PCR克隆获得BoSPx。利用DNAMAN软件和Smart软件进行氨基酸序列比对和保守结构域分析,通过Expasy在线软件预测BoSPx蛋白分子量、等电点、二级结构和跨膜结构域;采用MEGA6.0软件中的邻接法构建BoSPx蛋白的系统发育树,并推测BoSPx蛋白在甘蓝自花授粉后的功能。利用RT-PCR技术进行组织特异性表达分析,通过qRT-PCR检测自花和异花授粉后BoSPx的相对表达量。构建GFP表达载体,共聚焦显微镜观察BoSPx的亚细胞定位;酵母双杂交技术寻找其相互作用的蛋白。【结果】克隆获得一个新基因——BoSPx,其含有1个外显子,无内含子,是单外显子结构。BoSPx的开放阅读框为396 bp,编码具有131个氨基酸残基的蛋白质。理论等电点pI为4.54,是一种亲水性蛋白,没有信号肽和跨膜域,含有3个保守的EF-hand模体(第48—60、64—80和81—96位)。BoSPx起始密码子上游启动子序列500 bp左右含有生长素响应应答元件。BoSPx在开花前1—2 d的柱头、萼片、叶片、花药、花瓣中均有表达,在柱头中表达量最高,并且在自花和异花授粉的柱头中表达量都是先升高后降低,在自花授粉15 min时表达量达到最高,而后急剧下降,下降的低值与开花前1—2 d的柱头峰值相当。亚细胞定位分析表明BoSPx蛋白定位于细胞核和细胞质中。酵母双杂交结果表明BoSPx与SRKARC1之间无相互作用,但与生长素家族蛋白BoSAUR71和BoPID均能互作。【结论】BoSPx受自花授粉显著诱导表达,可能是受生长素调节的钙结合蛋白,对SI和钙产生共响应;该蛋白具有多组织表达和核质同在的特性,表明BoSPx可能参与SRK-ARC1-ExO70A1途径以外的未知信号通路。

关键词: 甘蓝, BoSPx, 酵母双杂交, 生长素, 自花授粉, 自交不亲和

Abstract:

【Objective】Self-incompatibility (SI) is a genetic barrier to inhibit self-pollination and promote hybridization in flowering plants. Here, cloning of a novel gene co-responsive to SI and calcium production during pollination, and spatio-temporal specific expression analysis of the novel gene BoSPx under self-pollination conditions, screening its interaction proteins were conducted to explore. The responding mechanism of BoSPx to self-pollination stimulated stigma in order to provide some further insights into SI process in Brassica oleracea.var.Capitata.【Method】BoSPx was cloned by using transcriptome sequencing, self-pollination and cross-pollination differential screening, and PCR cloning. Amino acid sequence alignment and conserved domain analysis were performed by DNAMAN and Smart software. Expasy online software was used to predict BoSPx protein molecular weight, isoelectric point, secondary structure and transmembrane domain. Phylogenetic tree that constructed by the neighboring method in MEGA6.0 software was used to speculate on the function of BoSPx protein after self-pollination. RT-PCR and qRT-PCR were used to detect BoSPx tissue-specific expression and the relative expression of BoSPx after self-pollination and cross-pollination. The BoSPx-GFP expression vector was constructed and the subcellular localization of BoSPx was observed under confocal microscopy; The interaction proteins were searched by using yeast two-hybrid system. 【Result】A novel gene, which contains a single exon without any introns, named BoSPx was cloned. The open reading frame of BoSPx is 396 bp, encodes a protein with 131 amino acid residues. BoSPx is a hydrophilic protein, no signal peptide and transmembrane, and the theoretical isoelectric point is 4.54. Conserved domains analysis found BoSPx contains three conserved EF-hand motifs (48-60, 64-80, and 81-96). About 500 bp up-stream of BoSPx translation start code contains an auxin response element. RT-PCR analysis found that BoSPx was expressed highest in stigma, BoSPx was also expressed in sepals, leaves, anthers and petals in flowering stage. The BoSPx expression levels in both self-pollinated and cross-pollinated stigma showed “up-down-up” expression pattern. Moreover, The expression of BoSPx in the stigma of self-pollination and cross-pollination increased at first and then decreased down to the highest expression level in stigma in flowering stage. The expression of BoSPx increased rapidly after self-pollination at 15 min and then decreased sharply so that result in SI progress. The decreased value of BoSPx was 1-2 days before flowering. Subcellular location analysis found that BoSPx expression in both the nucleus and cytoplasm. Yeast two-hybrid system did not detect interaction between BoSPx and SRK and ARC1, but BoSPx interacted with auxin family proteins BoSAUR71 and BoPID. 【Conclusion】BoSPx is highly expressed by self-pollination, which may be an auxin-regulated calcium-binding protein, which has a common response to SI and calcium. The protein has multi-tissue expression and nuclear and cytoplasmic properties, indicating that BoSPx may be involved in unknown signaling pathways other than the SRK-ARC1-ExO70A1 pathway.

Key words: Brassica oleracea, BoSPx, yeast two-hybrid, auxin, self-pollination, self-incompatibility
