Determination of 146S Antigen in Inactivated Foot-and-Mouth Disease Vaccine by Size-Exclusion High-performance Liquid Chromatography and Quality Evaluation of Vaccine

YuanYuan ZHU1,Yuan XU1,XingQi ZOU1,YanLi YANG2,LiLi LIU2,JianQing WAN1,Cui LI1,Lu XU1,QianYi ZHANG1,YingJu XIA1,Zhao WANG1,HongWu LANG1,Qin WANG1,SongPing ZHANG2,QiZu ZHAO1()

  1. 1 China Institute of Veterinary Drug Control, Beijing 100081
    2 National Key Laboratory of Biochemical Engineering/Institute of Process Engineering, Chinese Academy of Sciences, Beijing 100190
  • Received:2019-01-28 Accepted:2019-05-08 Online:2019-10-16 Published:2019-10-28
  • Contact: QiZu ZHAO E-mail:zhaoqizu@163.com

RichHTML

30

PDF

246

Abstract:

【Background】 As vaccine manufacturers and regulatory departments, the quality evaluation method of foot-and-mouth disease (FMD) vaccine is particularly important in quality control, where the 146S antigen is the key index. For the quantification of 146S antigen in FMD vaccine, sucrose gradient density centrifugation (SGDC) is recognized as a classical method but the process is complex, time-consuming and poorly repeatable, which affect the quality monitor of vaccines. Size-exclusion high-performance liquid chromatography (SE-HPLC) is previously reported as a simple, rapid, highly automated and efficient technology for analysis of 146S content. 【Objective】 A method of 146S antigen determination in inactivated FMD vaccine by SE-HPLC has been preliminarily established. However, the applicability, repeatability and effectiveness of this method are unknown in the FMD vaccines produced by different manufacturers with different concentration and purification processes. Hence, it is imperative to confirm the universality of the SE-HPLC method.【Method】 Here, the standard curve and regression equation of SE-HPLC method were established with FMD 146S antigen standard, which were used for 146S antigen detection of samples. Moreover, using five samples with 1, 2, 4, 8 and 16 times dilution of 146S antigen standard and 22 batches of vaccine randomly selected in the market, the 146S antigen was detected by SE-HPLC and SDGC respectively, and the correlation between the two methods was analyzed. Further, 134 batches of inactivated FMD vaccines products from different manufacturers in the market were detected three times each for 146S content by SE-HPLC. By analysis of chromatogram specificity of SE-HPLC method and relative standard deviation of 146S content, we confirmed its repeatability and reliability in evaluating all types of vaccine. Finally, 146s content was operated for the quality of FMD vaccines in the market. 【Result】 The standard curve of SE-HPLC method showed good linearity between peak area and concentration of FMD 146S antigen standard (R 2=0.9981, n=8).The detection results of 146S content in 5 diluted 146S antigen standards and 22 batches of FMD vaccine demonstrated that there was a highly positive correlation between SDGC and SE-HPLC methods (RS 2=0.9994, nS=5;Rv 2= 0.9602, nv=22). Among 134 batches of vaccines, the vaccine batches with 146S content relative standard deviation RSD＜5% accounted for 81.34%, 72.22%, 85.53% and 80.00% of the total vaccine batches (134 batches), total monovalent vaccine batches (18 batches), total bicomponent and bivalent vaccine batches (76 batches) and total trivalent vaccine batches (40 batches), respectively. The vaccine batches with 146S content RSD≤10% accounted for 97.76% of the total vaccine batches (134 batches). The SE-HPLC method for detection 146S content in FMD vaccines performed good repeatability, and best repeatability appeared in 2-4μg·mL -1146S content of the vaccines. Target peaks could be detected in all batches of vaccine, the average peak starting time, peak and peak falling time of objective chromatographic peaks were 11.58 min, 12.90 min and 14.93 min after HPLC sampling. The average retention of peak was 3.36min. The average 146S content was 1.11-80.36μg·mL -1 in all vaccines, 2.07 μg·mL -1 in monovalent vaccines, 2.40 μg·mL -1 in bivalent vaccines, 2.85 μg·mL -1in bicomponent vaccines and 13.14 μg·mL -1 in trivalent vaccines respectively.【Conclusion】 These results provided proof that SE-HPLC assay was universal, highly repeatable, reliable, rapid and simple for detection 146S content in various types of current inactivated FMD vaccines in the market, which could be used to monitor and evaluate the quality of the vaccine. FMD vaccines in the market had high 146S content and good vaccine quality.

Key words: size-exclusion high-performance liquid chromatography, inactivated foot-and-mouth disease vaccine, 146S, quality of the vaccine

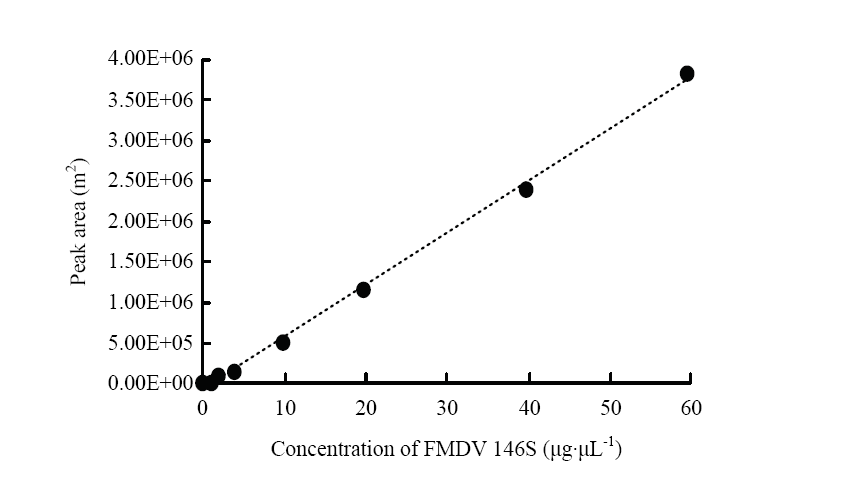

Fig. 1

Calibration curve for qualification of inactivated FMDV 146S antigen"

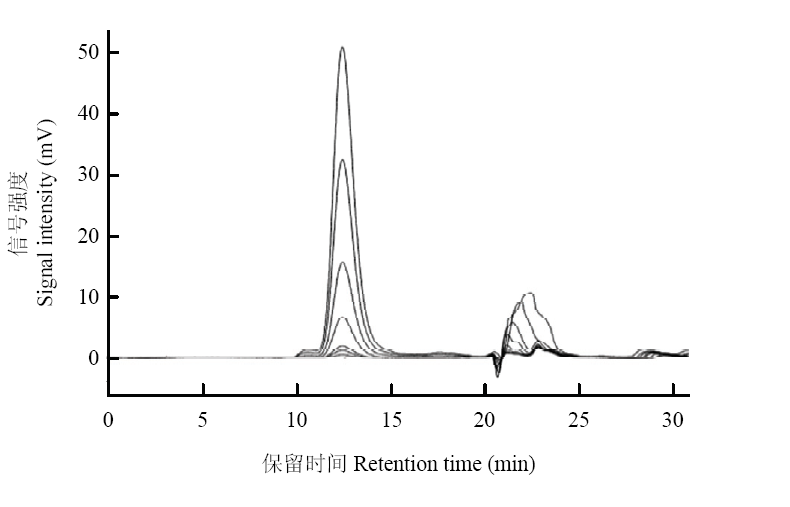

Fig. 2

Chromatograms of FMDV 146S antigen standard"

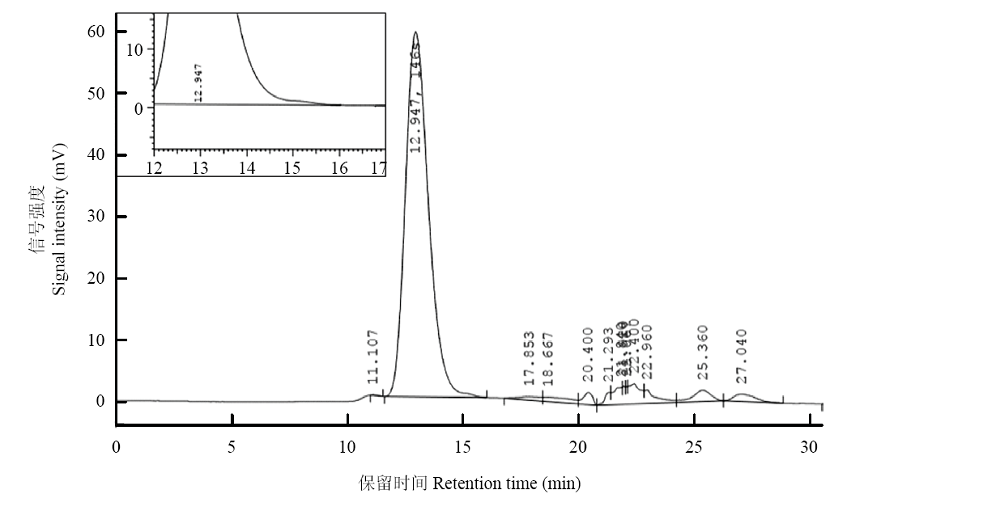

Fig. 3

Chromatograms of FMDV 146S antigen standard"

Table 1

Comparison of FMDV 146S antigen standard by SE- HPLC and SDGC"

方法Method 146S抗原含量
Content of 146S（μg·mL-1）
SE-HPLC 59.50 39.67 19.83 9.91 3.97
SDGC 38.26 26.12 13.64 6.67 2.69

Table 2

Comparison of 146S content of FMDV vaccines by SE-HPLC and SDGC"

批次Batch SE-HPLC (μg·mL-1) SDGC (μg·mL-1) 批次Batch SE-HPLC (μg·mL-1) SDGC (μg·mL-1)
1 10.30+0.01 10.10+0.22 12 85.61+0.05 58.43+3.01
2 10.82+0.06 10.66+1.38 13 2.88+0.00 1.96+0.22
3 7.29+0.02 5.59+0.05 14 1.36+0.02 1.29+0.15
4 8.89+0.01 5.55+0.06 15 2.77+0.00 1.45+0.13
5 6.70+0.03 4.88+0.19 16 2.49+0.03 1.55+0.18
6 7.20+0.01 5.52+0.21 17 2.18+0.01 1.76+0.17
7 15.83+0.02 11.12+1.38 18 2.03+0.01 1.21+0.16
8 59.17+0.02 30.07+2.54 19 2.60+0.02 1.46+0.09
9 44.92+0.02 21.35+1.96 20 2.76+0.00 1.62+0.11
10 8.66+0.07 5.67+0.91 21 2.75+0.14 1.63+0.13
11 24.58+0.02 14.90+1.85 22 10.3+0.01 10.10+1.96

Table 3

Repeatability analysis of 146S content of inactivated FMDV vaccine by SE-HPLC"

类型
Type		 RSD（X）
Relative standard deviation		 疫苗批次
Batches of vaccine		 所占比例
Percentage (%)
疫苗（总）
Total batches of vaccines
134批		 X＞10% 3 2.24
5%≤X≤10% 22 16.42
X＜5% 109 81.34
单价苗
Monovalent vaccine
18批		 X＞10% 0.0 0
5%≤X≤10% 5 27.78
X＜5% 13 72.22
双组分苗及双价苗
Bivalent and bicomponent vaccines
76批		 X＞10% 3 3.95
5%≤X≤10% 8 10.52
X＜5% 65 85.53
三价苗
Trivalent vaccines
40批		 X＞10% 0 0
5%≤X≤10% 8 20.00
X＜5% 32 80.00

Table 4

146S antigen content of inactivated FMDV vaccine and detection analysis"

疫苗类型及批次
Types and batches of vaccines		 146S平均含量
Average content of 146S		 146S含量Y
Content of 146S (μg·mL-1)		 所占比例(%) Percentage
占疫苗批次比例
Percentage of total batches of vaccines		 RSD≥5% RSD＜5%
疫苗总批次
Total batches of vaccines
134批		 5.70 Y＞6 22.39 20.00 80.00
4＜Y≤6 11.19 20.00 80.00
2≤Y≤4 40.30 11.11 88.89
Y＜2 26.12 28.57 71.43
单价苗Monovalent vaccines
18批		 2.07 2≤Y≤4 61.11 9.09 90.91
＜2 38.89 57.14 42.86
双价苗Bivalent vaccines
37批		 2.40 2≤Y≤4 78.38 13.79 86.21
Y＜2 21.62 37.50 62.50
双组分苗
Bicomponent vaccines
39批		 2.85 Y＞6 15.38 0.00 0.00
4＜Y ≤6 7.69 33.33 66.67
2≤Y≤4 35.90 7.14 92.86
Y＜2 41.03 18.75 81.25
三价苗
Trivalent vaccine
40批		 13.14 Y＞6 60.000 25.000 75.00
4＜Y≤6 25.000 20.000 80.00
2≤Y≤4 5.000 0.000 100.00
Y＜2 10.000 0.000 100.00

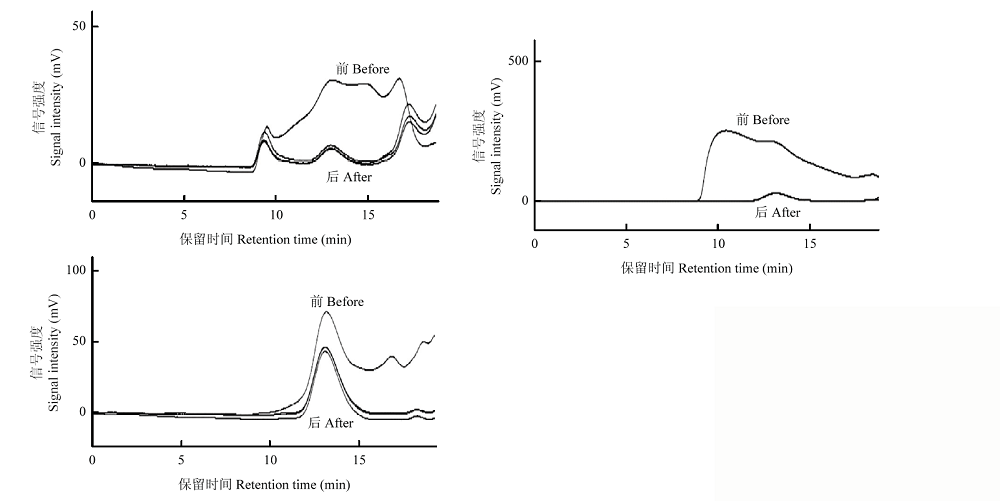

Fig. 4

Typical chromatograms of inactivated FMDV vaccine by SE-HPLC Before means before processing by Benzonase;After means after processing by Benzonase"

[1] The World Organisation for Animal Health (OIE). Terrestrial Animal Health Code. Foot and mouth disease, Chapter 2.1.8. 2017. website:. http://www.oie.int/fileadmin/Home/eng/Health_standards/tahm/2.01. 08_FMD.pdf.
[2] European Pharmacopoeia Commission. European Pharmacopoeia (5th ed) : Foot-and-mouth disease ( ruminants) vaccine ( inactivated). Paris: Pabalogh Scientific Books, 2006: 875-876.
[3] GORIS N, MARADEI E, D'ALOIA R . Foot-and-mouth disease vaccine potency testing in cattle using homologous and heterologous challenge strains: precision of the “Protection against Pedal Generalization” test. Vaccine, 2008,26(27-28) : 3432-3437.
[4] LEVINGS R L, HENDERSON L M, METZ C A . In vitro potency assays for no replicating veterinary vaccines: comparison to in vivo assays and considerations in assay development. Veterinary Microbiology, 1993,37:201-219.
[5] RAN M G, BUTCHAIAH G, SEN A K . Antibody-response to 146S particle, 12s protein subunit and isolated Vp1 polypeptide of foot-and- mouth-disease virus type Asia-1. Veterinary Microbiology, 1994,39:135-143.
[6] HARMSEN M M, FIJEN H P, WESTRA D F, COCO-MARTIN J M . Effect of thiomersal on dissociation of intact (146S) foot-and-mouth disease virions into 12S particles as assessed by novel ELISAs specific for either 146S or 12S particles. Vaccine, 2011,29:2682-2690.
[7] BARTELING S J, MELOEN R H . A simple method for the quantification of 140S particles of foot-and-mouth disease virus (FMDV). Arch Gesamte Virusforsch, 1974,45:362-364.
[8] DOEL T R, FLETTON B W, STAPLE R F . Further developments in the quantification of small RNA viruses by U. V. photometry of sucrose density gradients. Developments in Biological Standardization, 1981,50:209-219.
[9] JUNSUKE S, ARINEE C, WACHAREE S, ET A L . Estimation of 140S particles in foot-and-mouth disease virus ( FMDV) vaccine by using the computer analyzing system. Japanese Journal of Veterinary Science, 1990,52(3):621-630.
[10] SOBRINO F, DOMINGO E. Foot and Mouth Disease Virus. CRC Press Inc, 2017: 292-293.
[11] SPITTELER M A, FERNANDEZ I, SCHABES E, KRIMER A, REGΜLIER E G, GUINZBURG M . Foot and mouth disease (FMD) virus: quantification of whole virus particles during the vaccine manufacturing process by size exclusion chromatography. Vaccine, 2011,29:7182-7187.
[12] 徐嫄, 邹兴启, 李翠, 朱元源, 何天慈, 杨延丽, 林旋, 宋艳民, 郑金来, 张松平, 赵启祖 . 应用体积排阻色谱法测定口蹄疫灭活疫苗中的 146S 抗原含量. 生物工程学报, 2018,34(5):676-684.
XU Y, ZOU X Q, LI C, ZHU Y Y, HE T C, YANG Y L, LIN X, SONG Y M, ZHENG J L, ZHANG S P, ZHAO Q Z . Using size-exclusion chromatography to quantify the 146S antigen in inactivated foot-and- mouth disease vaccine. Chinese Journal of Biotechnology, 2018,34(5):676-684.(in Chinese)
[13] 徐嫄, 邹兴启, 刘晓东, 李翠, 朱元源, 李阳, 万建青, 何天慈, 徐璐, 张乾义, 王琴, 郑金来 , 赵启祖应用高效体积排阻色谱法测定市场抽检口蹄疫灭活疫苗中的抗原(146S)含量. 中国兽药杂志, 2018,52(1):7-12.
XU Y, ZOU X Q, LIU X D, LI C, ZHU Y Y, LI Y, WAN J Q, HE T C, XU L, ZHANG Q Y, WANG Q, ZHENG J L, ZHAO Q Z . Using high performance size exclusion chromatography to determine antigen(146S) conten in foot-and-mouth disease vaccine of quality supervision. Chinese Journal of Veterinary Drug, 2018,52(1):7-12. (in Chinese)
[14] BROWN F, CARTWRIGHT B . Dissociation of foot-and-mouth disease virus into its nucleic acid and protein components. Nature, 1961,192(4808):1163-1164.
[15] BROWN F, CRICK J . Application of agar-gel diffusion analysis to a study of the antigenic structure of inactivated vaccines prepared from the virus of foot-and-mouth disease. Journal of Immunology, 1959,82(5):444-447.
[16] CEGLOWSKI W S . Antibody response to the noninfectious 7 Mu component of the virus of foot-and-mouth disease. Virology, 1965,25:328-330.
[17] MELOEN R H, ROWLANDS D J, BROWN F . Comparison of the antibodies elicited by the individual structural polypeptides of foot-and mouth disease and polio viruses. Journal of General Virology, 1979,45(3):761-763.
[18] DOEL T R, CHONG W K . Comparative immunogenicity of 146S, 75S and 12S particles of foot-and-mouth disease virus. Archives of Virology, 1982,73(2):185-191.
[19] RAO M G, BUTCHAIAH G, SEN A K . Antibody response to 146S particle, 12S protein subunit and isolated VP1 polypeptide of foot-and-mouth disease virus type Asia-1. Veterinary Microbiology, 1994,39(1-2):135-143.
[20] Patent applications US20150355147A1 and CN105158130A “High throµghput quantification and characterization of foot and mouth disease virus and products thereof”. 2015.
[21] Patent applications WO2015186113A1, CN106461625A, EP3152302A1, KR20170015482A and US2017198332A1. “High throµghput quantification and characterization of virus and products thereof”. 2015.
[22] Patent applications AR085877A1, BR102013012689. “Cuantificación exacta de partículas enteras de VFA mediante un método cromatográfico de exclusión molecular”. [Accurate quantification of intact FMDV using a molecular exclusion chromatographic method]. 2012.
[23] YANG Y L, LI H, LI Z J, ZHANG Y, ZHANG S P, CHEN Y, YU M R, MA G H, SU Z G . Size-exclusion HPLC provides a simple, rapid, and versatile alternative method for quality control of vaccines by characterizing the assembly of antigens. Vaccine, 2015,33(9):1143-1150.
[24] YANG Y L, ZHAO Q Z, LI Z J, SUN L J, MA G H, ZHANG S P, SU Z G . Stabilization study of inactivated foot and mouth disease virus vaccine by size-exclusion HPLC and differential scanning calorimetry. Vaccine, 2017,35 : 2413-2419.
[25] PATRICIA A S, SAMUEL R F . Characterization of virus adsorption by using DEAE-sepharose and octyl-sepharose. Applied and Environmental Microbiology, 2002,68(8):3965-3968.
[26] 黄炯, 马文戈, 朱刚 . 浓缩和纯化操作对口蹄疫 A 型弱毒病毒含量的影响. 中国兽药杂志, 2007,41(10):13-15.
HUANG J, MA W G, ZHU G . Effects of concentration and purification on the content of FMDV type A attenuated virus. Chinese Journal of Veterinary Drug, 2007,41(10):13-15. (in Chinese)
[27] BISWAL J K, BISHT P, SUBRAMANIAM S, ET A L . Engineering foot-and-mouth disease virus serotype O IND R2 /1975 for one-steppurification by immobilized metal affinity chromatography. Biologicals, 2015,43(5):390-398.
[28] CAPOZZO A V, MARTÍNEZ M R, SCHIELEN W J . Development of an in process control filtration-assisted chemiluminometric immunoassay to quantify foot and mouth disease virus( FMDV) non- capsid proteins in vaccine-antigen batches. Vaccine, 2010,28(40):6647-6652.
[29] 中国兽药典委员会. 中华人民共和国兽药典. 2015 年版(三部). 北京: 中国农业出版社, 2016.
Commission of Chinese Veterinary Pharmacopeia. Veterinary Pharmacopoeia of the People’s Republic of China . 2015 (3). Beijing: China Agriculture Press, 2016. (in Chinese)
[30] LU Z, CAO Y, GUO J, ET A L . Development and validation of a 3ABC indirect E LISA f or diff erentiation of foot-and-mouth disease virus infected from vaccinated animals. Veterinary Microbiology, 2007,125(1-2):157-169.
[31] BERGMANN I E, MALIRAT V, NEITZERT E, ET A L . Improvement of a serodiagnostic strategy f or foot-and-mouth disease virus surveillance in cattle under systematic vaccination :a combined system of an indirect E LISA-3ABC with an enzyme-linked immune electrotransfer blot assay. Arch Virology, 2000,145(3):473-489.
[32] SORENSEN K J, MADSEN K G, M ADSEN E S, ET A L . Differentiation of infection from vaccinati on in foot-and-mouth disease by the detection of antibodies to the non-structural proteins 3D, 3AB and 3ABC in E LISA u sing antigens expressed in baculovirus. Arch Virology, 1998,143(8):1461-1476.
[33] DE DIEGO M, BROCCHI E, MACKAY D, ET A L . The non- structural polyprotein 3ABC of foot-and-mouth disease virus as a diagnostic antigen in ELISA to differentiate infected from vaccinated cattle. Arch Virology, 1997,142(10):2021-2033.
