小麦苗期根系性状的全基因组关联分析与优异位点挖掘

doi:10.3864/j.issn.0578-1752.2023.05.001

摘要/Abstract

摘要：

【目的】植物根系对水分及营养的获取、作物的生长发育和产量的形成至关重要。挖掘小麦苗期根系性状显著关联的SNP位点，预测相关候选基因，为解析小麦根系建成遗传机制及选育具有优良根系构型的小麦品种奠定基础。【方法】以189份小麦品种组成的自然群体为供试材料，调查2种培养条件（霍格兰营养液和去离子水）下培育21 d的苗期根系总长度（TRL）、根系总表面积（TRA）、根系总体积（TRV）、根系平均直径（ARD）及根系干重（RDW）等5个根系性状，试验进行2次重复，同时结合小麦660K SNP芯片的分型结果进行全基因组关联分析（genome-wide association study，GWAS）。此外，通过序列比对、结构域分析和注释信息预测候选基因，并采用竞争性等位基因特异性PCR（kompetitive allele specific PCR，KASP）技术开发根系性状的分子标记。【结果】霍格兰营养液培养条件下的根系性状变异范围较大，根系整体粗短；而去离子水条件下的根系细长、侧根较多。选用贝叶斯信息与连锁不平衡迭代嵌套式模型（BLINK）、压缩式混合线性模型（CMLM）、固定随机循环概率模型（FarmCPU）以及混合线性模型（MLM）4个模型，结合2种培养条件下的根系性状进行全基因关联分析，共检测到95个与小麦苗期根系性状显著关联的QTL位点（P<10^-3），其中，有18个QTL在2个条件下同时被检测到，分布在7A、1B、2B、3B、7B、1D、2D及3D染色体，可解释8.68%—14.07%的表型变异。筛选获得的显著性位点中，有4个与前人的研究相近或一致，其余为新发现QTL位点。对共定位的SNP进行单倍型分析，有10个SNP能够将供试材料分为2种单倍型，且单倍型间的根系性状具有显著差异，同时，基于这些SNP开发KASP标记，筛选到与根系总体积及根系干重相关的2个KASP标记（XNR7143和XNR3707）。进一步挖掘共定位SNP位点上下游区间内的基因，筛选到12个可能与根系发育相关的候选基因，其中，TraesCS7A02G160600编码酰基载体蛋白合成酶，参与根系脂肪酸的合成；TraesCS1B02G401800编码突触融合蛋白，对植物重力向性具有重要作用；TraesCS7B02G417900编码醛脱氢酶，参与脱落酸的合成，从而调控作物根系发育。【结论】小麦根系性状在不同基因型间差异显著，在2个条件下同时检测到18个显著QTL位点，开发了2个根系分子标记（XNR7143和XNR3707），并筛选出12个与根系性状相关的候选基因。

关键词: 小麦, 根系性状, 全基因组关联分析, 共定位SNP位点, KASP标记, 候选基因

Abstract:

【Objective】Plant roots are critical for water and nutrient acquisition, crop growth and development as well as yield formation. Exploring SNP loci significantly associated with root traits in wheat at seedling stage and mining candidate genes, will lay a foundation for understanding the genetic mechanism of wheat root system architecture and breeding wheat elite varieties with better root architecture.【Method】In this study, 189 diverse wheat cultivars were assembled as an association-mapping panel, five root traits including total root length (TRL), total root area (TRA), total root volume (TRV), average root diameter (ARD) and root dry weight (RDW) were investigated by growing in two culture conditions (Hoagland nutrient solution and pure water), and the experiments were repeated twice. Then, genome-wide association studies (GWAS) were performed for the five root traits with genotypic data derived from Wheat 660K SNP Array. Candidate genes were predicted by sequence alignment, domain analysis, and annotation information. Futhermore, kompetitive allele specific PCR (KASP) markers were developed for root traits. 【Result】The root traits varied greatly among the 189 cultivars, and the roots were thick and short cultured under Hoagland nutrient solution, while slender seminal roots and more lateral roots were observed under pure water. A total of 95 QTLs significantly associated with root traits cultured in two conditions (P<10^-3) were identified by genome-wide association studies with four models of BLINK (bayesian-information and linkage-disequilibrium iteratively nested keyway), CMLM (compressed mixed linear model), FarmCPU (fixed and random model circulating probability unification) and MLM (mixed linear model). Among them, 18 QTLs were detected in both culture conditions and distributed on chromosomes of 7A, 1B, 2B, 3B, 7B, 1D, 2D, and 3D, which explained 8.68%-14.07% of phenotypic variation. Of those significant loci, 4 QTLs were similar or consistent with that reported previously, and the rest were novel ones. Haplotype analysis conducted for co-localization QTLs of 10 SNPs revealed significant differences in root traits between the two haplotypes of wheat cultivars. Based on these SNPs, KASP markers XNR7143 and XNR3707 were developed for total root volume and root dry weight, respectively. In addition, 12 candidate genes possibly regulating root development were found by mining the genes within the interval of co-localization significant SNPs. Of them, TraesCS7A02G160600, encoding 3-oxoacyl-[acyl-carrier-protein] synthase, is involved in the synthesis of root fatty acids; TraesCS1B02G401800, encoding syntaxin, plays an important role in plant tropism; TraesCS7B02G417900, encoding aldehyde oxidase, contributes to the synthesis of abscisic acid and regulation of crop root development. 【Conclusion】The root traits of wheat varied significantly among the wheat genotypes. Genome-wide association studies detected 18 significant QTLs linked with root traits simultaneously in two culture conditions, two KASP markers were developed for root traits, and 12 candidate genes related to root development were screened, which might provide reference for understanding the regulation mechanism of wheat root traits and molecular marker-assisted breeding for wheat improvement.

Key words: wheat, root traits, genome-wide association study, co-localization SNPs, KASP (kompetitive allele specific PCR) markers, candidate genes

王脉, 董清峰, 高珅奥, 刘德政, 卢山, 乔朋放, 陈亮, 胡银岗. 小麦苗期根系性状的全基因组关联分析与优异位点挖掘[J]. 中国农业科学, 2023, 56(5): 801-820.

WANG Mai, DONG QingFeng, GAO ShenAo, LIU DeZheng, LU Shan, QIAO PengFang, CHEN Liang, HU YinGang. Genome-Wide Association Studies and Mining for Favorable Loci of Root Traits at Seedling Stage in Wheat[J]. Scientia Agricultura Sinica, 2023, 56(5): 801-820.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2023.05.001

https://www.chinaagrisci.com/CN/Y2023/V56/I5/801

图/表 16

表1

图1

表2

表3

图2

图3

表4

图4

图5

表5

图6

图7

表6

图8

图9

表7

参考文献 49

[1]	RAY D K, MUELLER N D, WEST P C, FOLEY J A. Yield trends are insufficient to double global crop production by 2050. PLoS ONE, 2013, 8(6): e66428.
[2]	SHARMA I, TYAGI B, SINGH G, VENKATESH K, GUPTA O. Enhancing wheat production-A global perspective. Indian Journal of Agricultural Sciences, 2015, 85(1): 3-13.
[3]	郭海宇. 植物根系图像的特征分析方法研究与实现. 电子科技大学计算机软件与理论, 2013.
	GUO H Y. Research and implementation of feature analysis method of plant root images. Computer Software and Theory of University of Electronic Science and Technology, 2013.(in Chinese)
[4]	CHEN X X, DING Q S, BŁASZKIEWICZ Z, SUN J A, SUN Q, HE R Y, LI Y N. Phenotyping for the dynamics of field wheat root system architecture. Scientific Reports, 2017, 7: 37649. doi: 10.1038/srep37649 pmid: 28079107
[5]	ATKINSON J A, POUND M P, BENNETT M J, WELLS D M. Uncovering the hidden half of plants using new advances in root phenotyping. Current Opinion in Biotechnology, 2019, 55: 1-8. doi: S0958-1669(18)30052-1 pmid: 30031961
[6]	LI X K, GUO Z L, LV Y, CEN X, DING X P, WU H, LI X H, HUANG J P, XIONG L Z. Genetic control of the root system in rice under normal and drought stress conditions by genome-wide association study. PLoS Genetics, 2017, 13(7): e1006889.
[7]	MACCAFERRI M, EL-FEKI W, NAZEMI G, SALVI S, CANÈ M A, COLALONGO M C, STEFANELLI S, TUBEROSA R. Prioritizing quantitative trait loci for root system architecture in tetraploid wheat. Journal of Experimental Botany, 2016, 67(4): 1161-1178. doi: 10.1093/jxb/erw039 pmid: 26880749
[8]	XIE Q, FERNANDO K M C, MAYES S, SPARKES D L. Identifying seedling root architectural traits associated with yield and yield components in wheat. Annals of Botany, 2017, 119(7): 1115-1129. doi: 10.1093/aob/mcx001 pmid: 28200109
[9]	MAN J G, SHI Y, YU Z W, ZHANG Y L. Dry matter production, photosynthesis of flag leaves and water use in winter wheat are affected by supplemental irrigation in the Huang-Huai-Hai plain of China. PLoS ONE, 2015, 10(9): e0137274.
[10]	MA J H, ZHAO D Y, TANG X X, YUAN M, ZHANG D J, XU M Y, DUAN Y Z, REN H Y, ZENG Q D, WU J H, HAN D J, LI T, JIANG L N. Genome-wide association study on root system architecture and identification of candidate genes in wheat (Triticum aestivum L.). International Journal of Molecular Sciences, 2022, 23(3): 1843. doi: 10.3390/ijms23031843
[11]	陈贵菊, 靳义荣, 刘彩云, 贾德新, 樊庆琦, 刘金栋, 刘鹏. 普通小麦根系建成相关性状的全基因组关联分析. 植物遗传资源学报, 2020, 21(4): 975-983.
	CHEN G J, JIN Y R, LIU C Y, JIA D X, FAN Q Q, LIU J D, LIU P. Genome-wide association study of root system architecture related traits in common wheat (Triticum aestivum L.). Journal of Plant Genetic Resources, 2020, 21(4): 975-983.(in Chinese)
[12]	HUANG F, CHEN Z Y, DU D J, GUAN P F, CHAI L L, GUO W L, HU Z R, XIN M M, PENG H R, YAO Y Y, NI Z F. Genome-wide linkage mapping of QTL for root hair length in a Chinese common wheat population. The Crop Journal, 2020, 8(6): 1049-1056. doi: 10.1016/j.cj.2020.02.007
[13]	KHODAEE S M M, HASHEMI M, MIRLOHI A, MAJIDI M M, SUKUMARAN S, ESMAELZAEH MOGHADDAM M, ABDOLLAHI M. Root characteristics of an elite spring wheat panel under contrasting water treatments and their genome-wide association study. Rhizosphere, 2021, 19: 100413. doi: 10.1016/j.rhisph.2021.100413
[14]	杨青青, 唐家琪, 张昌泉, 高继平, 刘巧泉. KASP标记技术在主要农作物中的应用及展望. 生物技术通报, 2022, 38(4): 58-71. doi: 10.13560/j.cnki.biotech.bull.1985.2021-1378
	YANG Q Q, TANG J Q, ZHANG C Q, GAO J P, LIU Q Q. Application and prospect of KASP marker technology in main crops. Biotechnology Bulletin, 2022, 38(4): 58-71.(in Chinese)
[15]	DELANNAY X, MCLAREN G, RIBAUT J M. Fostering molecular breeding in developing countries. Molecular Breeding, 2012, 29(4): 857-873. doi: 10.1007/s11032-011-9611-9
[16]	KUMAR S, BANKS T W, CLOUTIER S. SNP discovery through next-generation sequencing and its applications. International Journal of Plant Genomics, 2012, 2012: 831460.
[17]	QURESHI N, BARIANA H S, ZHANG P, MCINTOSH R, BANSAL U K, WONG D, HAYDEN M J, DUBCOVSKY J, SHANKAR M. Genetic relationship of stripe rust resistance genes Yr34 and Yr48 in wheat and identification of linked KASP markers. Plant Disease, 2018, 102(2): 413-420. doi: 10.1094/PDIS-08-17-1144-RE
[18]	FANG T L, LEI L, LI G Q, POWERS C, HUNGER R M, CARVER B F, YAN L L. Development and deployment of KASP markers for multiple alleles of Lr34 in wheat. Theoretical and Applied Genetics, 2020, 133(7): 2183-2195. doi: 10.1007/s00122-020-03589-x
[19]	REHMAN S U, ALI SHER M, SADDIQUE M A B, ALI Z, KHAN M A, MAO X G, IRSHAD A, SAJJAD M, IKRAM R M, NAEEM M, JING R L. Development and exploitation of KASP assays for genes underpinning drought tolerance among wheat cultivars from Pakistan. Frontiers in Genetics, 2021, 12: 684702. doi: 10.3389/fgene.2021.684702
[20]	王志伟, 乔祥梅, 王志龙, 杨金华, 程加省, 程耿, 于亚雄. 云南小麦品种(系)抗逆性相关基因的KASP标记检测. 西南农业学报, 2020, 33(8): 1601-1607.
	WANG Z W, QIAO X M, WANG Z L, YANG J H, CHENG J S, CHENG G, YU Y X. Identification of genes associated with stress resistance in Yunnan wheat cultivars (lines) by KASP assays. Southwest China Journal of Agricultural Sciences, 2020, 33(8): 1601-1607.(in Chinese)
[21]	BRADBURY P J, ZHANG Z W, KROON D E, CASSTEVENS T M, RAMDOSS Y, BUCKLER E S. TASSEL: Software for association mapping of complex traits in diverse samples. Bioinformatics, 2007, 23(19): 2633-2635. doi: 10.1093/bioinformatics/btm308 pmid: 17586829
[22]	YIN L L, ZHANG H H, TANG Z S, XU J Y, YIN D, ZHANG Z W, YUAN X H, ZHU M J, ZHAO S H, LI X Y, LIU X L. rMVP: A memory-efficient, visualization-enhanced, and parallel-accelerated tool for genome-wide association study. Genomics, Proteomics & Bioinformatics, 2021, 19(4): 619-628.
[23]	LIU K J, MUSE S V. PowerMarker: An integrated analysis environment for genetic marker analysis. Bioinformatics, 2005, 21(9): 2128-2129. doi: 10.1093/bioinformatics/bti282 pmid: 15705655
[24]	ALEXANDER D H, NOVEMBRE J, LANGE K. Fast model-based estimation of ancestry in unrelated individuals. Genome Research, 2009, 19(9): 1655-1664. doi: 10.1101/gr.094052.109 pmid: 19648217
[25]	ZHANG C, DONG S S, XU J Y, HE W M, YANG T L. PopLDdecay: A fast and effective tool for linkage disequilibrium decay analysis based on variant call format files. Bioinformatics, 2019, 35(10): 1786-1788. doi: 10.1093/bioinformatics/bty875 pmid: 30321304
[26]	YU S Z, WU J H, WANG M, SHI W M, XIA G M, JIA J Z, KANG Z S, HAN D J. Haplotype variations in QTL for salt tolerance in Chinese wheat accessions identified by marker-based and pedigree- based kinship analyses. The Crop Journal, 2020, 8(6): 1011-1024. doi: 10.1016/j.cj.2020.03.007
[27]	CHEN C J, CHEN H, ZHANG Y, THOMAS H R, FRANK M H, HE Y H, XIA R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Molecular Plant, 2020, 13(8): 1194-1202. doi: S1674-2052(20)30187-8 pmid: 32585190
[28]	HAO C Y, WANG L F, GE H M, DONG Y C, ZHANG X Y. Genetic diversity and linkage disequilibrium in Chinese bread wheat (Triticum aestivum L.) revealed by SSR markers. PLoS ONE, 2011, 6(2): e17279. doi: 10.1371/journal.pone.0017279
[29]	PFLUGFELDER D, KOCHS J, KOLLER R, JAHNKE S, MOHL C, PARIYAR S, FASSBENDER H, NAGEL K A, WATT M, VAN DUSSCHOTEN D. The root system architecture of wheat establishing in soil is associated with varying elongation rates of seminal roots: Quantification using 4D magnetic resonance imaging. Journal of Experimental Botany, 2022, 73(7): 2050-2060. doi: 10.1093/jxb/erab551
[30]	FAN Y, MIGUEZ-MACHO G, JOBBÁGY E G, JACKSON R B, OTERO-CASAL C. Hydrologic regulation of plant rooting depth. Proceedings of the National Academy of Sciences of the United States of America, 2017, 114(40): 10572-10577.
[31]	MA S C, XU B C, LI F M, LIU W Z, HUANG Z B. Effects of root pruning on competitive ability and water use efficiency in winter wheat. Field Crops Research, 2008, 105(1/2): 56-63. doi: 10.1016/j.fcr.2007.07.005
[32]	陈德扬. 植物营养元素功能及缺乏和过剩症状(一). 农家之友, 2000(10): 13.
	CHEN D Y. Function of plant nutrient elements and symptoms deficiency and excess(Ⅰ). Farmer's Home, 2000(10): 13.(in Chinese)
[33]	王博华, 任毅, 时晓磊, 王继庆, 谢磊, 加娜尔·拜合提, 耿洪伟. 干旱胁迫下小麦苗期根系性状的全基因组关联分析. 植物遗传资源学报, 2022, 23(4): 1111-1123.
	WANG B H, REN Y, SHI X L, WANG J Q, XIE L, JIANAER B H T, GENG H W. Genome-wide association analysis of seedling root traits in wheat under drought stress. Journal of Plant Genetic Resources, 2022, 23(4): 1111-1123.(in Chinese)
[34]	XU F D, CHEN S L, YANG X W, ZHOU S M, CHEN X, LI J, ZHAN K H, HE D X. Genome-wide association study on seminal and nodal roots of wheat under different growth environments. Frontiers in Plant Science, 2021, 11: 602399. doi: 10.3389/fpls.2020.602399
[35]	LIU W B, NI J, SHAH F A, YE K Q, HU H, WANG Q J, WANG D D, YAO Y Y, HUANG S W, HOU J Y, LIU C H, WU L F. Genome-wide identification, characterization and expression pattern analysis of APYRASE family members in response to abiotic and biotic stresses in wheat. PeerJ, 2019, 7: e7622. doi: 10.7717/peerj.7622
[36]	ABBADI A, BRUMMEL M, SCHÜTT B S, SLABAUGH M B, SCHUCH R, SPENER F. Reaction mechanism of recombinant 3-oxoacyl-(acyl-carrier-protein) synthase III from Cuphea wrightii embryo, a fatty acid synthase type II condensing enzyme. The Biochemical Journal, 2000, 345(Pt1): 153-160. doi: 10.1042/bj3450153
[37]	DING W N, LIN L, ZHANG B T, XIANG X B, WU J, PAN Z C, ZHU S H. OsKASI, a β-ketoacyl-[acyl carrier protein] synthase I, is involved in root development in rice (Oryza sativa L.). Planta, 2015, 242(1): 203-213. doi: 10.1007/s00425-015-2296-2
[38]	鲍永美, 王州飞, 张红生. 植物SNARE蛋白的结构与功能. 植物学通报, 2005, 22(6): 715-722.
	BAO Y M, WANG Z F, ZHANG H S. Structure and function of SNAREs in plant. Chinese Bulletin of Botany, 2005, 22(6): 715-722.(in Chinese)
[39]	张孝廉, 张吉顺, 雷波, 余婧, 赵德刚. 植物MLO蛋白研究进展. 植物生理学报, 2018, 54(7): 1159-1171.
	ZHANG X L, ZHANG J S, LEI B, YU J, ZHAO D G. Research progress of MLO proteins in plants. Plant Physiology Journal, 2018, 54(7): 1159-1171.(in Chinese)
[40]	LI Z, LIU D, XIA Y, LI Z L, JING D D, DU J J, NIU N, MA S C, WANG J W, SONG Y L, YANG Z Q, ZHANG G S. Identification of the WUSCHEL-related homeobox (WOX) gene family, and interaction and functional analysis of TaWOX9 and TaWUS in wheat. International Journal of Molecular Sciences, 2020, 21(5): 1581. doi: 10.3390/ijms21051581
[41]	ZHAO Y, HU Y F, DAI M Q, HUANG L M, ZHOU D X. The WUSCHEL-related homeobox gene WOX11 is required to activate shoot-borne crown root development in rice. The Plant Cell, 2009, 21(3): 736-748. doi: 10.1105/tpc.108.061655
[42]	刘文博. 小麦APYRASE家族成员鉴定及功能研究[D]. 合肥: 中国科学技术大学, 2019.
	LIU W B. Identification and characterization of wheat APYRASE gene family members[D]. Hefei: University of Science and Technology of China, 2019.(in Chinese)
[43]	YUO T, TOYOTA M, ICHII M, TAKETA S. Molecular cloning of a root hairless gene rth1 in rice. Breeding Science, 2009, 59(1): 13-20. doi: 10.1270/jsbbs.59.13
[44]	ZAREPOUR M, SIMON K, WILCH M, NIELÄNDER U, KOSHIBA T, SEO M, LINDEL T, BITTNER F. Identification of superoxide production by Arabidopsis thaliana aldehyde oxidases AAO1 and AAO3. Plant Molecular Biology, 2012, 80(6): 659-671. doi: 10.1007/s11103-012-9975-1
[45]	黄守程, 叶梅荣, 刘爱荣, 张远兵. DnaJ-like蛋白在植物胁迫应答中的作用及机制研究进展. 长江大学学报(自科版), 2015, 12(9): 57-62.
	HUANG S C, YE M R, LIU A R, ZHANG Y B. Research progress on the role and mechanism of DnaJ-like protein in plant stress response. Journal of Yangtze University (Natural Science Edition), 2015, 12(9): 57-62.(in Chinese)
[46]	CHANG C C, SILVA B B I, HUANG H Y, TSAI C Y, FLORES R J D, TAYO L L, TYAN Y C, TSAI M A, CATULIN G E M, CHUANG K P, YANG J L. Development and validation of KASP assays for the genotyping of racing performance-associated single nucleotide polymorphisms in pigeons. Genes, 2021, 12(9): 1383. doi: 10.3390/genes12091383
[47]	AYALEW H, TSANG P W, CHU C G, WANG J Z, LIU S Y, CHEN C F, MA X F. Comparison of TaqMan, KASP and rhAmp SNP genotyping platforms in hexaploid wheat. PLoS ONE, 2019, 14(5): e0217222.
[48]	LANDOULSI Z, BENROMDHAN S, BEN DJEBARA M, DAMAK M, DALLALI H, KEFI R, ABDELHAK S, GARGOURI-BERRECHID A, MHIRI C, GOUIDER R. Using KASP technique to screen LRRK2 G2019S mutation in a large Tunisian cohort. BMC Medical Genetics, 2017, 18(1): 70. doi: 10.1186/s12881-017-0432-5
[49]	HIREMATH P J, KUMAR A, PENMETSA R V, FARMER A, SCHLUETER J A, CHAMARTHI S K, WHALEY A M, CARRASQUILLA-GARCIA N, GAUR P M, UPADHYAYA H D, KAVI KISHOR P B, SHAH T M, COOK D R, VARSHNEY R K. Large-scale development of cost-effective SNP marker assays for diversity assessment and genetic mapping in chickpea and comparative mapping in legumes. Plant Biotechnology Journal, 2012, 10(6): 716-732. doi: 10.1111/j.1467-7652.2012.00710.x pmid: 22703242

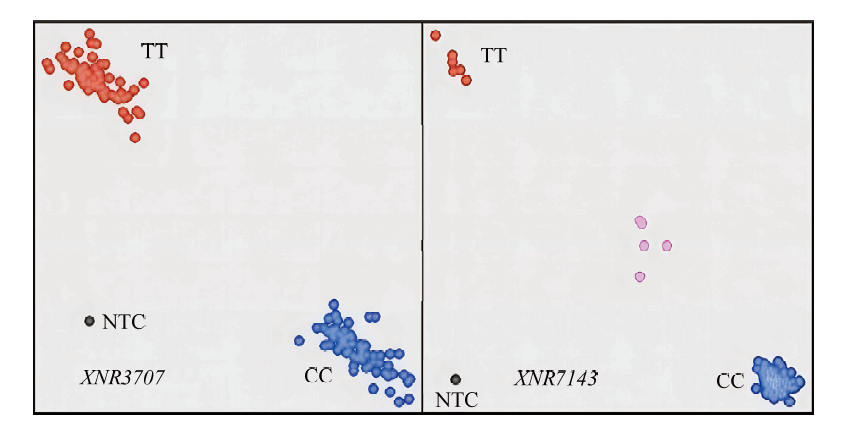

标记名称 KASP name		引物序列 Primer sequence (5′-3′)
XNR7143	F-P	GAAGGTGACCAAGTTCATGCTgtgacatggaggacgctgc
	V-P	GAAGGTCGGAGTCAACGGATTgtgacatggaggacgctgt
	R-P	tcgtggagaacatcttgcgt
XNR3707	F-P	GAAGGTGACCAAGTTCATGCTtgcatcatagtacataccactgc
	V-P	GAAGGTCGGAGTCAACGGATTtgcatcatagtacataccactgt
	R-P	aattggcgacattgggagac

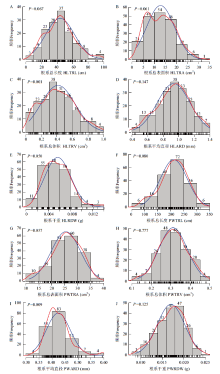

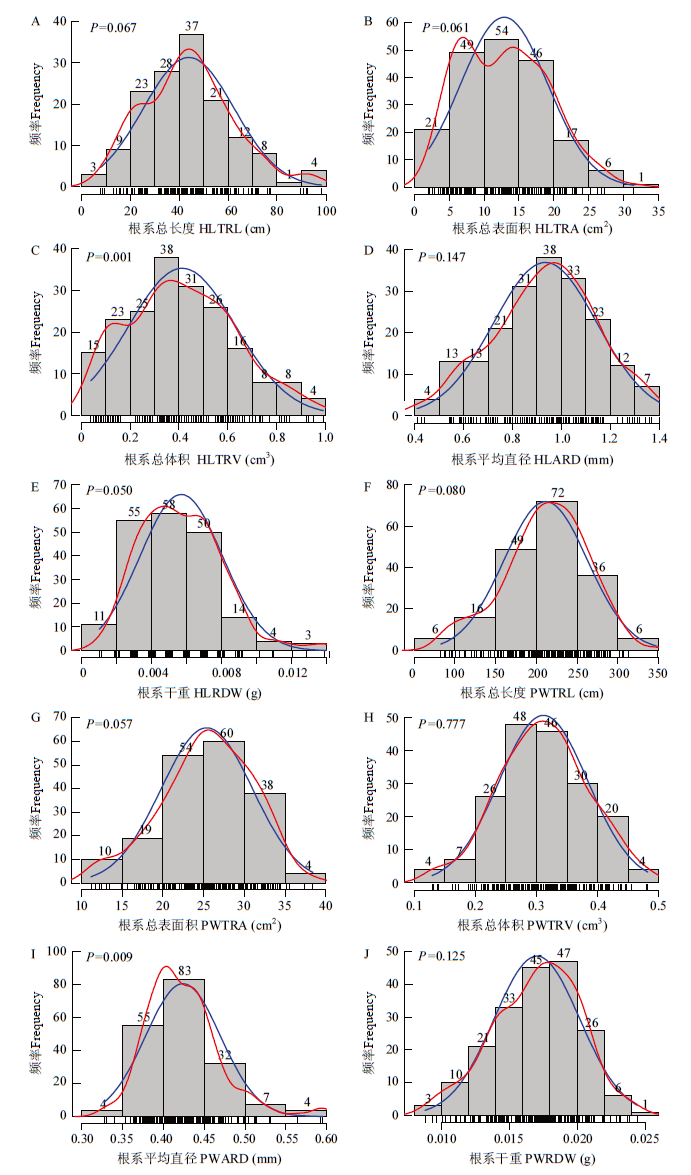

培养条件 Environment	性状 Traits	变异范围 Range	均值 Mean	标准差 SD	变异系数 CV (%)
霍格兰营养液 HL	根系总长度TRL (cm)	8.42—141.54	43.73	23.57	52.69
	根系总表面积TRA (cm²)	2.09—33.15	12.53	6.47	51.62
	根系总体积TRV (cm³)	0.03—1.37	0.41	0.27	66.38
	根系平均直径ARD (mm)	0.43—1.40	0.95	0.21	22.13
	根系干重RDW (g)	0.0010—0.0180	0.0061	0.0025	40.31
去离子水 PW	根系总长度TRL (cm)	49.45—348.24	211.01	51.68	24.49
	根系总表面积TRA (cm²)	10.20—39.22	25.27	5.62	22.26
	根系总体积TRV (cm³)	0.13—0.61	0.32	0.08	25.52
	根系平均直径ARD (mm)	0.33—1.09	0.4304	0.07	15.43
	根系干重RDW (g)	0.0088—0.0244	0.0171	0.0030	17.76

性状 Traits	基因型 Genotype		处理 Treatment		基因型×处理 Genotype×Treatment		广义遗传力（H²） Broad-sense heritability (%)
性状 Traits	F	<BOLD>P</BOLD>	<BOLD>F</BOLD>	<BOLD>P</BOLD>	<BOLD>F</BOLD>	<BOLD>P</BOLD>	广义遗传力（H²） Broad-sense heritability (%)
根系总长度 TRL (cm)	7.35	4.79E-79***	10443.99	5.35E-45***	6.74	3.99E-72***	62.40
根系总表面积 TRA (cm²)	6.19	1.47E-65***	2328.39	1.61E-220***	5.26	4.72E-54***	64.24
根系总体积 TRV (cm³)	4.55	9.65E-45***	83.44	7.64E-19***	4.15	2.06E-39***	62.88
根系平均直径 ARD (mm)	5.14	1.59E-52***	5089.04	3.69E-56***	5.07	1.35E-51***	60.41
根系干重 RDW (g)		24.51	5.27E-221***	33559.75	4.19E-40***	18.23	2.19E-183***	65.30

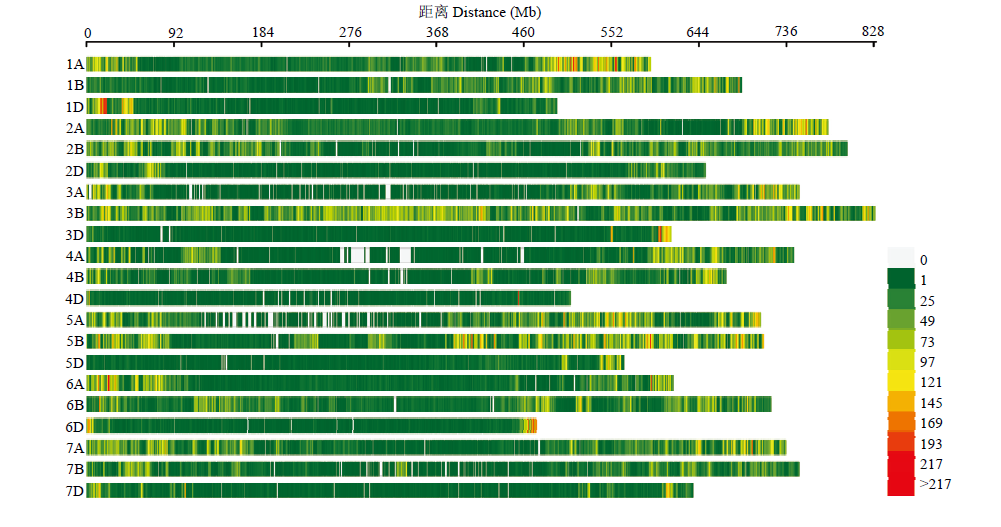

染色体 Chromosome	标记数目 No. of markers	长度 Length (Mb)	标记密度 Density of markers	遗传多样性 Genetic diversity	多态信息含量 PIC
1A	19003	594.10	0.03	0.3251	0.2642
1B	16540	689.99	0.04	0.3851	0.3036
1D	7935	495.45	0.06	0.3349	0.2713
2A	22510	780.80	0.03	0.3567	0.2892
2B	19755	801.26	0.04	0.3651	0.2906
2D	7174	651.85	0.09	0.3689	0.2930
3A	12754	750.84	0.06	0.3687	0.2927
3B	36612	830.83	0.02	0.3518	0.2870
3D	4883	615.55	0.13	0.3463	0.2802
4A	12345	744.59	0.06	0.3522	0.2836
4B	10959	673.62	0.06	0.3449	0.2799
4D	2408	509.86	0.21	0.3654	0.2900
5A	17658	709.77	0.04	0.3912	0.3083
5B	26618	713.15	0.03	0.3743	0.2972
5D	5628	566.08	0.10	0.3430	0.2747
6A	12934	618.08	0.05	0.3799	0.3004
6B	17890	720.99	0.04	0.3635	0.2911
6D	4997	473.59	0.09	0.3378	0.2728
7A	18490	736.71	0.04	0.3287	0.2639
7B	12260	750.62	0.06	0.3776	0.2985
7D	6758	638.69	0.09	0.3359	0.2706
A基因组A genome	115694	4934.89	0.04	0.3575	0.2860
B基因组B genome	140634	5180.46	0.04	0.3660	0.2926
D基因组D genome	39783	3951.07	0.10	0.3475	0.2789
总计Total	296111	14066.42	0.05	0.3570	0.2858

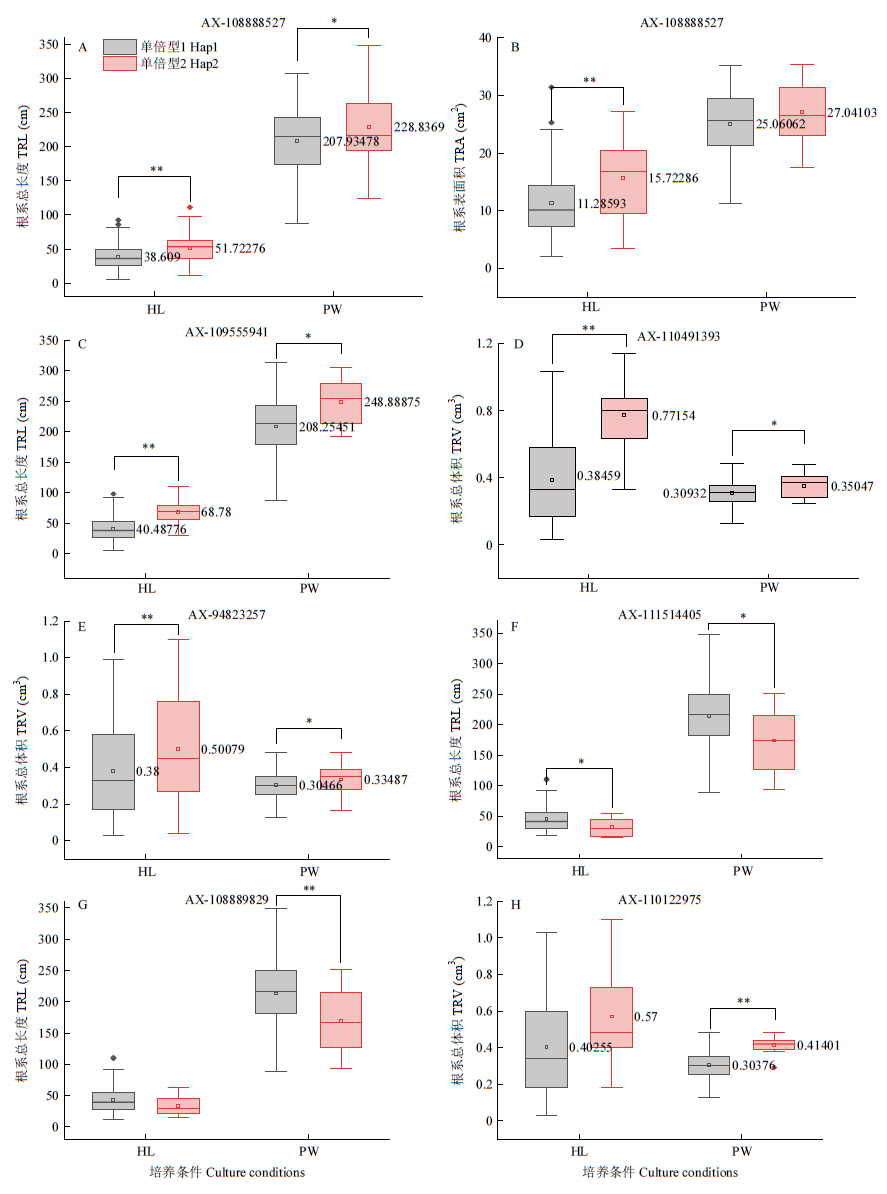

显著性标记 SNP	关联性状 Related traits	染色体 Chromosome	位置 Position (Mb)	<BOLD>P</BOLD>值 -log₁₀(<BOLD>P</BOLD>)	贡献率 R² (%)
AX-109555941	TRL	1B	689.00	4.63	14.07
AX-108888527	TRL	2D	556.05	4.12	11.73
AX-108888527	TRA	2D	556.05	4.11	10.64
AX-94581300	TRL	3D	239.36	3.56	10.83
AX-108889829	TRL	2B	85.25	4.15	11.52
AX-111514405	TRL	2B	81.55	3.57	9.33
AX-109029863	RDW	3B	416.69	4.13	11.18
AX-109029863	TRA	3B	416.69	4.28	11.11

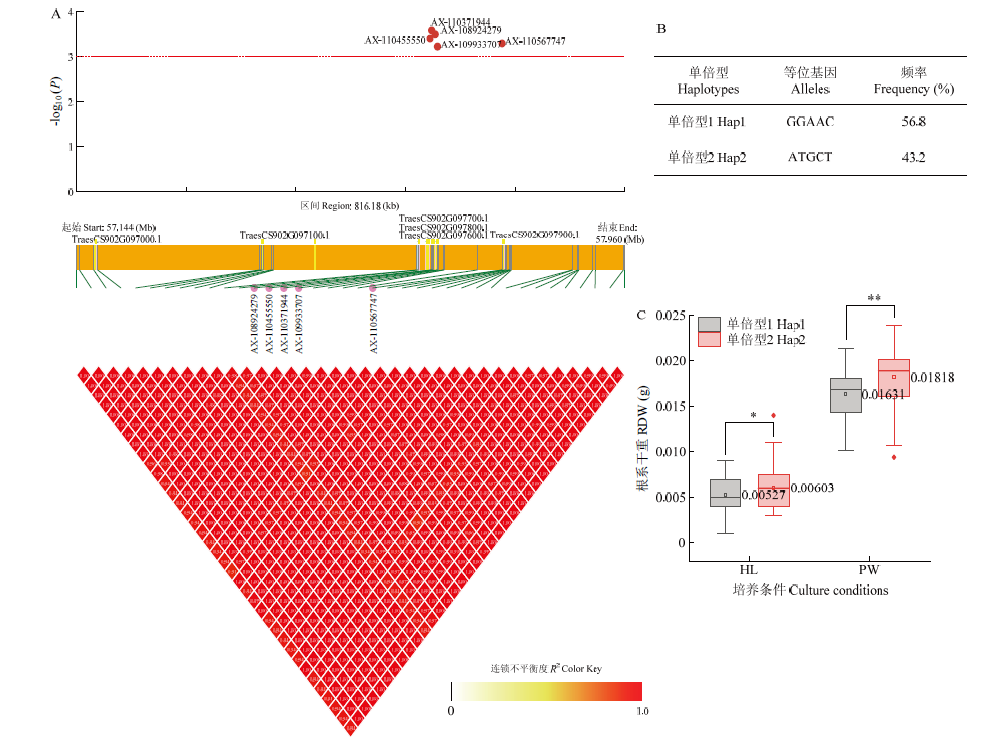

AX-108924279	RDW	2B	57.67	3.36	9.02
AX-110371944	RDW	2B	57.68	3.43	9.01
AX-110455550	RDW	2B	57.67	3.43	9.01
AX-110567747	RDW	2B	57.78	3.36	8.68
AX-109933707	RDW	2B	57.68	3.49	9.09
AX-108792070	TRA	7A	638.24	3.79	11.19
AX-108792070	TRV	7A	638.24	3.70	11.13
AX-110097055	TRA	7A	638.52	3.79	11.19
AX-110097055	TRV	7A	638.52	3.70	11.13
AX-110497143	TRV	7A	116.76	4.28	11.19
AX-110491393	TRV	1B	632.00	5.11	13.93
AX-111564445	TRV	3B	757.93	4.10	10.60
AX-94823257	TRV	1D	460.79	4.14	10.75
AX-110122975	TRV	7B	686.14	3.54	9.82
