不同来源ATP表征冷鲜羊肉新鲜度

doi:10.3864/j.issn.0578-1752.2022.19.013

摘要/Abstract

摘要：

【目的】通过系统研究冷鲜羊肉不同来源的三磷酸腺苷（adenosine triphosphate,ATP。包括肉中ATP、微生物ATP、肉表面ATP）在贮藏期间的变化规律,筛选能够表征冷鲜羊肉新鲜度变化的ATP指标,构建菌落总数和挥发性盐基氮预测模型,探究冷鲜羊肉新鲜度的预测新方法。【方法】以小尾寒羊背最长肌为试验材料,在空气密封包装0℃条件下分别贮藏0、1、3、5、7、9、11、13、15、17和21 d,分析冷鲜羊肉贮藏期间新鲜度指标（pH、色泽、挥发性盐基氮、菌落总数）与3种来源ATP（肉中ATP、微生物ATP、肉表面ATP）的变化,利用数据统计评价不同来源ATP的变化规律,并构建新鲜度指标的预测模型。【结果】冷鲜羊肉贮藏期间新鲜度指标菌落总数、挥发性盐基氮均呈现上升趋势,并均在贮藏17 d时超过国家标准限值;肉中ATP呈现不断下降趋势,微生物ATP与肉表面ATP均呈现上升趋势,与新鲜度指标变化趋势保持一致;冷鲜羊肉贮藏期间,肉中ATP、微生物ATP、肉表面ATP含量与菌落总数、挥发性盐基氮的相关系数（R）分别为-0.399、0.910、0.943和-0.357、0.725、0.907。肉表面ATP预测冷鲜羊肉菌落总数的最优模型为Boltzmann拟合模型,其公式为TVC（lg cfu/g）=7.649-4.069/(1+exp(x-5.807)/0.632)（R²=0.903,P<0.001）,肉表面ATP预测冷鲜羊肉挥发性盐基氮的最优模型为Expedc1拟合模型,其公式为TVB-N（mg/100 g）=2.493*exp(x/3.745)+3.057（R²=0.888,P<0.001）。【结论】本研究明确了冷鲜羊肉表面ATP与菌落总数、挥发性盐基氮存在显著正相关性,确证了肉表面ATP可以作为冷鲜羊肉新鲜度表征指标;并构建了菌落总数和挥发性盐基氮最优预测模型,为冷鲜羊肉新鲜度快速检测提供了新的思路。

关键词: 冷鲜羊肉, 肉表面ATP, 预测模型, 新鲜度

Abstract:

【Objective】 In order to explore a new method for predicting the freshness of chilled mutton, the changes of adenosine triphosphate (ATP in meat, microbial ATP and ATP of meat surface) from different sources during storage were systematically studied, then the ATP that could characterize the change of chilled mutton was screened, and finally the prediction models for the total viable counts and volatile base nitrogen were established. 【Method】 The longissimus dorsi muscle of Small Tailed Han sheep was stored in air sealed packaging at 0℃ for 0, 1, 3, 5, 7, 9, 11, 13, 15, 17, and 21 days, respectively. The freshness indexes (pH, color, volatile base nitrogen, and total viable counts) and ATP from three sources (ATP in meat, microbial ATP, and ATP of meat surface) of chilled mutton were analyzed during storage. The changes of ATP from different sources were evaluated, and the predictive models of freshness indicators were built. 【Result】 The freshness index of total viable counts and volatile base nitrogen in chilled mutton showed an upward trend during storage, and both of them exceeded the national standard limit after 17 days; the ATP in meat showed a decreasing trend, while the microbial ATP and the ATP of meat surface were increased, which was consistent with the change trend of the freshness index; the correlation coefficients (R) between ATP in meat, microbial ATP, ATP of meat surface and total viable counts, total volatile base nitrogen were -0.399, 0.910, 0.943 and -0.357, 0.725, 0.907, respectively. The optimal model for predicting the total viable counts in chilled mutton by ATP of meat surface was Boltzmann, which the formula was TVC (lg cfu/g)=7.649-4.069/(1+exp(x-5.807)/0.632), (R²=0.903, P<0.001); the optimal model for predicting total volatile base nitrogen in chilled mutton by ATP of meat surface was Expedc1, which the formula was TVB-N (mg/100 g)=2.493*exp(x/3.745)+ 3.057 (R²=0.888, P<0.001). 【Conclusion】 The results showed that the ATP of meat surface of chilled mutton had the significant positive correlations with the total viable counts and volatile basic nitrogen, and then confirmed that the ATP of meat surface could be used as an indicator to characterize the freshness of chilled mutton. The optimal prediction model of the total viable counts and volatile base nitrogen could provide a new idea for rapid detection of chilled mutton freshness.

Key words: chilled mutton, ATP of meat surface, prediction model, freshness

苏媛媛,张德权,古明辉,张春娟,李少博,郑晓春,陈丽. 不同来源ATP表征冷鲜羊肉新鲜度[J]. 中国农业科学, 2022, 55(19): 3841-3853.

SU YuanYuan,ZHANG DeQuan,GU MingHui,ZHANG ChunJuan,LI ShaoBo,ZHENG XiaoChun,CHEN Li. Characterization of Chilled Mutton by ATP from Different Sources[J]. Scientia Agricultura Sinica, 2022, 55(19): 3841-3853.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2022.19.013

https://www.chinaagrisci.com/CN/Y2022/V55/I19/3841

图/表 12

表1

图1

图2

图3

图4

图5

图6

表2

表3

图7

表4

图8

参考文献 34

[1]	中国冷藏肉行业发展现状分析与投资趋势研究报告(2022-2029年). 观研报告网, https://www.sohu.com/a/521800223_121222943, 2022-02-10.
	Development and investment trends of frozen meat industry in China (2022-2029). https://www.sohu.com/a/521800223_121222943, 2022-02-10.
[2]	张晋豪, 王浩东, 邵良婷, 徐幸莲, 王虎虎. 生鲜肉新鲜度快速新型表征技术研究进展. 食品科学, 2022, 43(13): 210-217.
	ZHANG J H, WANG H D, SHAO L T, XU X L, WANG H H. Progress and trends in rapid novel technologies for characterization of fresh meat freshness: A review. Food Science, 2022, 43(13): 210-217. (in Chinese)
[3]	HYUN B, CHA H G, LEE N, YUM S, BAEK S H, SHIN K. Development of an ATP assay for rapid onboard testing to detect living microorganisms in ballast water. Journal of Sea Research, 2018, 133: 73-80. doi: 10.1016/j.seares.2017.03.003. doi: 10.1016/j.seares.2017.03.003
[4]	TRŠAN M, VEHOVC M, SEME K, SRČIČ S. Evaluation of ATP bioluminescence for monitoring surface hygiene in a hospital pharmacy cleanroom. Journal of Microbiological Methods, 2020, 168: 105785. doi: 10.1016/j.mimet.2019.105785. doi: 10.1016/j.mimet.2019.105785
[5]	SCIORTINO C V, GILES R A. Validation and comparison of three adenosine triphosphate luminometers for monitoring hospital surface sanitization: A Rosetta Stone for adenosine triphosphate testing. American Journal of Infection Control, 2012, 40(8): e233-e239. doi: 10.1016/j.ajic.2012.04.318. doi: 10.1016/j.ajic.2012.04.318
[6]	SHAMA G, MALIK D J. The uses and abuses of rapid bioluminescence-based ATP assays. International Journal of Hygiene and Environmental Health, 2013, 216(2): 115-125. doi: 10.1016/j.ijheh.2012.03.009. doi: 10.1016/j.ijheh.2012.03.009 pmid: 22541898
[7]	AMODIO E, DINO C. Use of ATP bioluminescence for assessing the cleanliness of hospital surfaces: A review of the published literature (1990-2012). Journal of Infection and Public Health, 2014, 7(2): 92-98. doi: 10.1016/j.jiph.2013.09.005. doi: 10.1016/j.jiph.2013.09.005 pmid: 24231159
[8]	ROADY L. The role of ATP luminometers in infection control. Infection Control and Hospital Epidemiology, 2015, 36(11): 1367. doi: 10.1017/ice.2015.209. doi: 10.1017/ice.2015.209 pmid: 26387800
[9]	ZHANG K J, PAN R J, ZHANG T Q, XU J, ZHOU X Y, YANG Y L. A novel method: Using an adenosine triphosphate (ATP) luminescence- based assay to rapidly assess the biological stability of drinking water. Applied Microbiology and Biotechnology, 2019, 103(11): 4269-4277. doi: 10.1007/s00253-019-09774-3. doi: 10.1007/s00253-019-09774-3
[10]	HAMMES F, GOLDSCHMIDT F, VITAL M, WANG Y, EGLI T. Measurement and interpretation of microbial adenosine tri-phosphate (ATP) in aquatic environments. Water Research, 2010, 44(13): 3915-3923. doi: 10.1016/j.watres.2010.04.015. doi: 10.1016/j.watres.2010.04.015 pmid: 20605621
[11]	BAUTISTA D A. ATP Bioluminescence. Encyclopedia of Food Microbiology. 2nd ed. 2014: 97-104. doi: 10.1016/B978-0-12-384730-0.00013-6. doi: 10.1016/B978-0-12-384730-0.00013-6
[12]	舒柏华, 孙丹陵, 王胜利, 徐顺清. 肉类食品细菌污染生物发光快速分析技术研究. 中国公共卫生, 2003, 19(4): 483-484. doi: 10.3321/j.issn:1001-0580.2003.04.049. doi: 10.3321/j.issn:1001-0580.2003.04.049
	SHU B H, SUN D L, WANG S L, XU S Q. Rapid bioluminescent technique to detect bacteria in meat. Chinese Journal of Public Health, 2003, 19(4): 483-484. doi: 10.3321/j.issn:1001-0580.2003.04.049. (in Chinese) doi: 10.3321/j.issn:1001-0580.2003.04.049
[13]	RATPHITAGSANTI W, PARK E, LEE C S, WU R Y A, LEE J. High-throughput detection of spore contamination in food packages and food powders using tiered approach of ATP bioluminescence and real-time PCR. LWT-Food Science and Technology, 2012, 46(1): 341-348. doi: 10.1016/j.lwt.2011.09.003. doi: 10.1016/j.lwt.2011.09.003
[14]	WADHAWAN T, MVEVOY J, PRUSS B M, KHAN E. Assessing tetrazolium and ATP assays for rapid in situ viability quantification of bacterial cells entrapped in hydrogel beads. Enzyme and Microbial Technology, 2010, 47(4): 166-173. doi: 10.1016/j.enzmictec.2010.05.003. doi: 10.1016/j.enzmictec.2010.05.003
[15]	李海月. ATP荧光技术快速检测8种常见食源性致病菌研究[D]. 郑州: 河南工业大学, 2017.
	LI H Y. Study on rapid detection of eight kinds of food-born Pathogen by Luminescence method[D]. Zhengzhou: Henan University of Technology, 2017. (in Chinese)
[16]	BAUTISTA D A, SPRUNG D W, BARBUT S, GRIFFITHS M W. A sampling regime based on an ATP bioluminescence assay to assess the quality of poultry carcasses at critical control points during processing. Food Research International, 1997, 30(10): 803-809. doi: 10.1016/S0963-9969(98)00049-0. doi: 10.1016/S0963-9969(98)00049-0
[17]	OTO N, OSHITA S, MAKINO Y, KAWAGOE Y, SUGIYAMA J, YOSHIMURA M.Non-destructive evaluation of ATP content and plate count on pork meat surface by fluorescence spectroscopy. Meat Science, 2013, 93(3): 579-585. doi: 10.1016/j.meatsci.2012.11.010. doi: 10.1016/j.meatsci.2012.11.010 pmid: 23273467
[18]	SZERMAN N, RAO W L, LI X, YANG Y, VAUDAGNA S R, DE QUAN ZHANG. Effects of the application of dense phase carbon dioxide treatments on technological parameters, physicochemical and textural properties and microbiological quality of lamb sausages. Food Engineering Reviews, 2015, 7(2): 241-249. doi: 10.1007/s12393-014-9092-9. doi: 10.1007/s12393-014-9092-9
[19]	LI X, ZHANG Y, LI Z, LI M, LIU Y, ZHANG D. The effect of temperature in the range of -0.8 to 4℃ on lamb meat color stability. Meat Science, 2017, 134: 28-33. doi: 10.1016/j.meatsci.2017.07.010. doi: 10.1016/j.meatsci.2017.07.010
[20]	王柏辉, 韩利伟, 王德宝, 杜瑞, 刘畅, 要铎, 任军, 靳烨. 绒山羊宰后成熟过程中羊肉品质和风味的变化分析. 食品工业科技, 2020(8): 230-235.
	WANG B H, HAN L W, WANG D B, DU R, LIU C, YAO D, REN J, JIN Y. Analysis of change of quality and flavor in cashmere goat meat during postmortem aging. Science and Technology of Food Industry, 2020(8): 230-235. (in Chinese)
[21]	罗晓蓉, 陈晨枫, 丁欲晓, 徐炜新. 基于Origin软件正确评定韧脆性转变温度. 物理测试, 2010, 28(2): 37-39, 43. doi: 10.13228/j.boyuan.issn1001-0777.2010.02.005. doi: 10.13228/j.boyuan.issn1001-0777.2010.02.005
	LUO X R, CHEN C F, DING Y X, XU W X. Evaluation of ductile-brittle transition temperature based on origin software. Physics Examination and Testing, 2010, 28(2): 37-39, 43. doi: 10.13228/j.boyuan.issn1001-0777.2010.02.005. (in Chinese) doi: 10.13228/j.boyuan.issn1001-0777.2010.02.005
[22]	柏松, 杨英. 食品微生物检验检测中的新技术研究. 现代食品, 2019(10): 173-175.
	BAI S, YANG Y. Study on new technologies in food microbial inspection and detection. Modern Food, 2019(10): 173-175. (in Chinese)
[23]	SKOTTRUP P D, NICOLAISEN M, JUSTESEN A F.Towards on-site pathogen detection using antibody-based sensors. Biosensors & Bioelectronics, 2008, 24(3): 339-348. doi: 10.1016/j.bios.2008.06.045. doi: 10.1016/j.bios.2008.06.045
[24]	胡斐斐, 钱书意, 黄峰, 姜薇, 强宇, 江峰, 胡海梅, 李侠, 张春晖. 低压静电场辅助短期冻藏对猪肉品质的影响. 中国农业科学, 2021, 54(9): 1993-2005.
	HU F F, QIAN S Y, HUANG F, JIANG W, QIANG Y, JIANG F, HU H M, LI X, ZHANG C H. Effect of low voltage electrostatic field-assisted short-term frozen storage on quality of pork. Scientia Agricultura Sinica, 2021, 54(9): 1993-2005. (in Chinese)
[25]	杜曼婷, 李培迪, 李欣, 李铮, 陈丽, 田建文, 张德权. 冰温贮藏结合不同包装方式对羊肉品质的影响. 食品工业科技, 2016, 37(14): 324-328, 343.
	DU M T, LI P D, LI X, LI Z, CHEN L, TIAN J W, ZHANG D Q. Effects of controlled freezing point combined with package on mutton quality during storage. Science and Technology of Food Industry, 2016, 37(14): 324-328, 343. (in Chinese)
[26]	HUDSON N J. Mitochondrial treason: A driver of pH decline rate in post-mortem muscle? Animal Production Science, 2012, 52(12): 1107-1110. doi: 10.1071/AN12171. doi: 10.1071/AN12171
[27]	HUFF LONERGAN E, ZHANG W G, LONERGAN S M. Biochemistry of postmortem muscle-lessons on mechanisms of meat tenderization. Meat Science, 2010, 86(1): 184-195. doi: 10.1016/j.meatsci.2010.05.004. doi: 10.1016/j.meatsci.2010.05.004
[28]	ALIANI M, FARMER L J, KENNEDY J T, MOSS B W, GORDON A. Post-slaughter changes in ATP metabolites, reducing and phosphorylated sugars in chicken meat. Meat Science, 2013, 94(1): 55-62. doi: 10.1016/j.meatsci.2012.11.032. doi: 10.1016/j.meatsci.2012.11.032 pmid: 23376434
[29]	任驰. 贮藏温度和时间对宰后羊肉蛋白质磷酸化的影响[D]. 北京: 中国农业科学院, 2019.
	REN C. Effects of storage temperature and time on protein phosphorylation in postmortem ovine muscle[D]. Beijing: Chinese Academy of Agricultural Sciences, 2019. (in Chinese)
[30]	YOSHIHIRO Y, MORIHIKO S, FUMIO K, MASAO K. Effects of storage temperature on postmortem changes of ATP and its related compounds and freshness indices in oyster tissues. Fisheries Science, 1994, 60(2): 217-223. doi: 10.2331/fishsci.60.217. doi: 10.2331/fishsci.60.217
[31]	LIU Z N, ZHONG Y H, HU Y, YUAN L, LUO R, CHEN D, WU M, HUANG H, LI Y X. Fluorescence strategy for sensitive detection of adenosine triphosphate in terms of evaluating meat freshness. Food Chemistry, 2019, 270: 573-578. doi: 10.1016/j.foodchem.2018.07.041. doi: S0308-8146(18)31180-4 pmid: 30174088
[32]	OSHITA S, AL-HAQ M, KAWAGISHI S, MAKINO Y, KAWAGOE Y, YE X J, SHINOZAKI S, HIRUMA N. Monitoring of ATP and viable cells on meat surface by UV-Vis reflectance spectrum analysis. Journal of Food Engineering, 2011, 107(2): 262-267. doi: 10.1016/j.jfoodeng.2011.06.007. doi: 10.1016/j.jfoodeng.2011.06.007
[33]	SHIRAI H, OSHITA S, MAKINO Y. Detection of fluorescence signals from ATP in the second derivative excitation-emission matrix of a pork meat surface for cleanliness evaluation. Journal of Food Engineering, 2016, 168: 173-179. doi: 10.1016/j.jfoodeng.2015.07.032. doi: 10.1016/j.jfoodeng.2015.07.032
[34]	OTO N, OSHITA S, KAWAGISHI S, MAKINO Y, KAWAGOE Y, AL-HAQ M, SHINOZAKI S, HIRUMA N. Non-destructive estimation of ATP contents and plate count on pork meat surface by UV-Vis reflectance spectrum analysis. Journal of Food Engineering, 2012, 110(1): 9-17. doi: 10.1016/j.jfoodeng.2011.12.017. doi: 10.1016/j.jfoodeng.2011.12.017

贮藏天数 Storage time (d)	指标 Index
贮藏天数 Storage time (d)	L*	a*	b*	pH
0	36.72±1.99b	11.09±0.66ef	9.75±0.98b	5.54±0.02c
1	42.41±2.02b	11.25±0.80def	13.61±1.53a	5.56±0.03c
3	38.32±0.74b	14.27±0.44ab	11.42±1.96ab	5.66±0.04bc
5	40.89±0.6b	12.47±0.22bcde	12.86±0.52a	5.69±0.15bc
7	41.02±0.82b	14.53±1.05a	12.58±0.75a	5.73±0.07bc
9	41.36±0.76b	13.60±1.04abc	12.89±1.27a	5.85±0.10b
11	41.78±0.96b	13.20±2.26abcd	12.06±0.61ab	5.98±0.17a
13	41.85±0.41b	12.17±0.44cde	12.89±1.31a	5.75±0.17bc
15	45.55±0.01a	11.57±1.19de	13.71±1.89a	6.01±0.13a
17	38.43±2.54b	9.52±0.50f	11.98±1.94ab	6.01±0.26a
19	41.08±0.83b	10.84±1.21ef	11.77±0.82ab	5.69±0.08bc
21	37.68±0.60b	10.51±1.58ef	11.83±1.79ab	6.02±0.14a

指标 Index	菌落总数 TVC	挥发性盐基氮 TNB-N	微生物ATP Microbial ATP	表面ATP ATP of meat surface	肉中ATP ATP in meat
菌落总数 TVC	1
挥发性盐基氮 TVB-N	0.965**	1
微生物ATP Microbial ATP	0.910**	0.725**	1
表面ATP ATP of meat surface	0.943**	0.907**	0.979**	1
肉中ATP ATP in meat	-0.399	-0.357	-0.371	-0.455	1

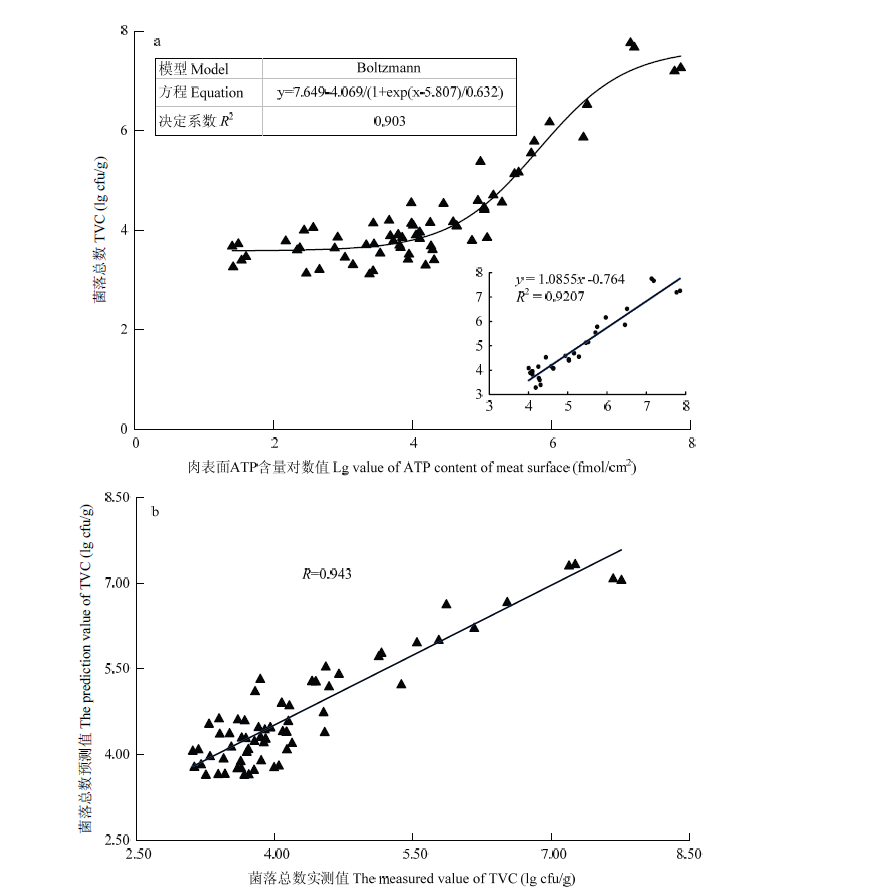

预测名称 Forecast name	拟合模型 Fitted model	模型公式 Model formula	决定系数 R²
表面ATP预测 TVC（n=72）	Boltzmann	y=A₂+(A₁-A₂)/(1+exp((x-x₀)/dx))	0.903
	Logistic	y=A₁+Section1+Section2	0.897
	Line	y=ax+b	0.694
	DoseResp	y=A₁+(A₂-A₁)/(1+10^((LOGx₀-x)*p))	0.899

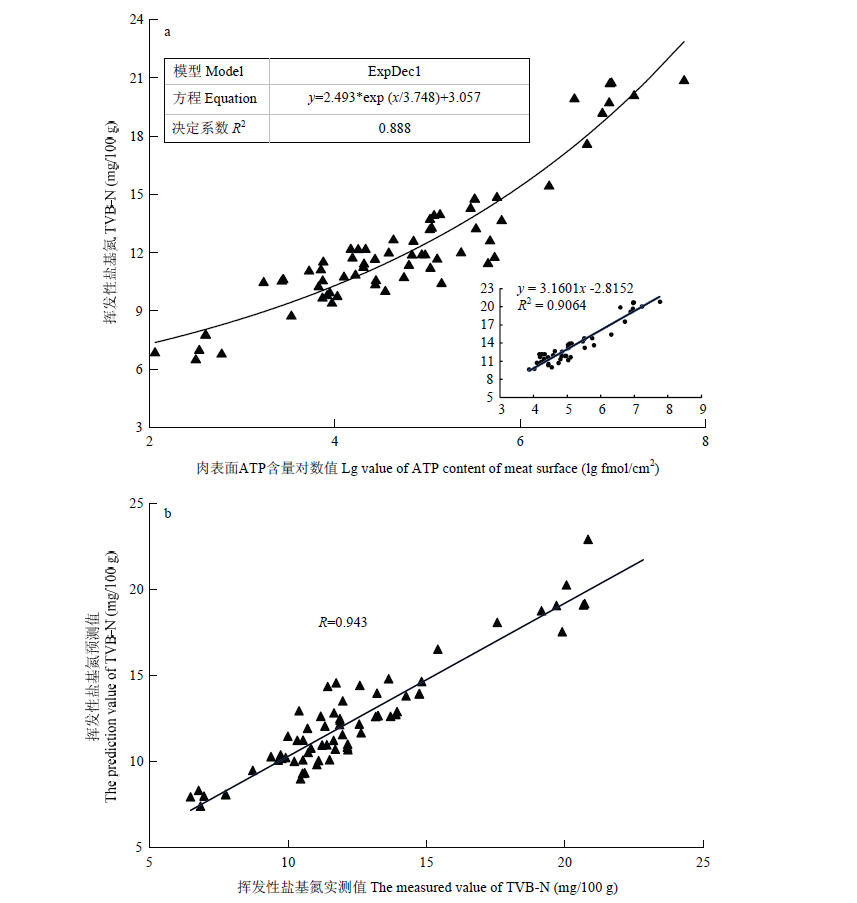

预测名称 Forecast name	拟合模型 Fitted model	模型公式 Model formula	决定系数 R²
表面ATP预测 TVB-N（n=72）	Line	y=ax+b	0.852
	ExpDec1	y=a*exp(x/b)+c	0.888
	Exp2P	y=a*x^b	0.885
	Exponential	y=y₀+Aexp(R0x)	0.885
