3种粳稻籽粒水分解吸过程中的裂纹变化

doi:10.3864/j.issn.0578-1752.2022.02.013

摘要/Abstract

摘要：

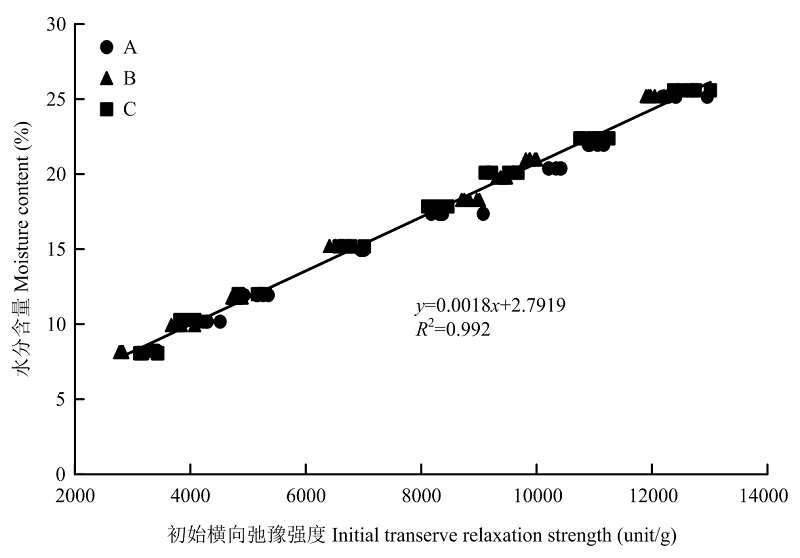

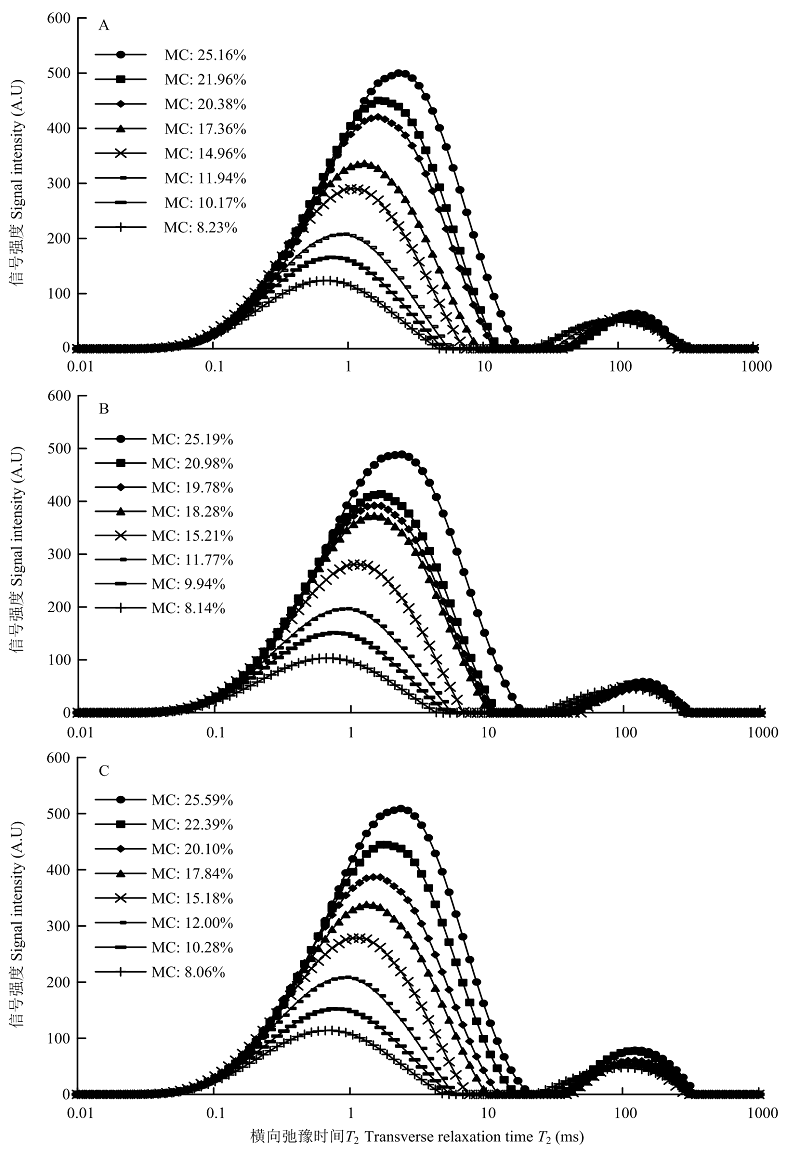

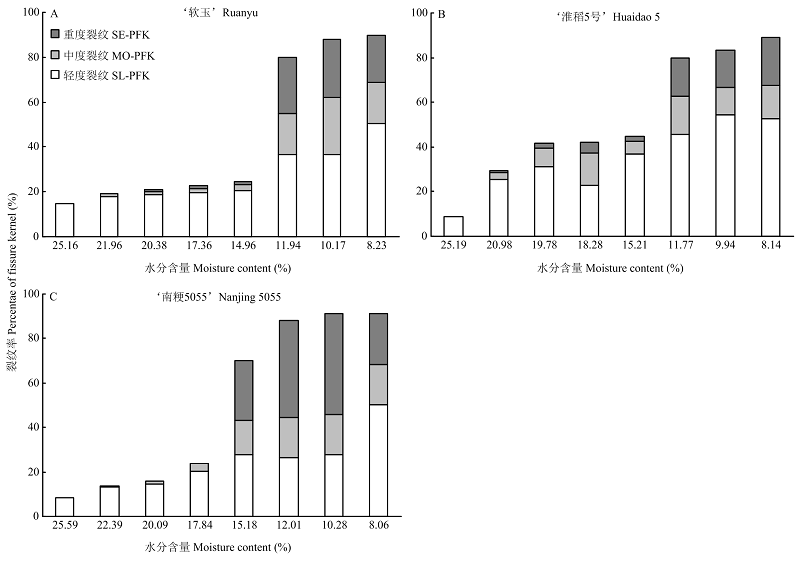

【目的】基于食品水分吸附解吸理论,检测粳稻裂纹与水分含量,探讨籽粒裂纹的发展变化原因,总结粳稻裂纹的发展规律。【方法】以‘软玉’‘淮稻5号’和‘南粳5055’3种粳稻作为研究对象,利用X射线成像技术检测粳稻籽粒的裂纹粒及裂纹程度;采用扫描电镜观察‘南粳5055’籽粒裂纹断裂面的微观结构;使用LF-NMR技术检测粳稻籽粒的水分在解吸过程中的特征变化,分析粳稻籽粒水分解吸过程中裂纹数据和水分分布的相关关系。【结果】利用LF-NMR技术可以准确地预测不同品种粳稻籽粒的水分含量。裂纹率随籽粒的水分解吸程度而上升,‘软玉’‘淮稻5号’和‘南粳5055’籽粒裂纹率分别在水分含量低于14.96%、15.21%和17.84%后明显增加。低水分籽粒内裂纹数量高于高水分籽粒。粳稻裂纹粒与非裂纹粒内部断裂面的淀粉和细胞结构差异明显。水分解吸导致淀粉粒间断裂面发展为细胞间断裂面,即初期裂纹。当裂纹数量继续增加,初期裂纹发展成为可被观察到的裂纹,裂纹类型从轻度发展到中度或重度。水分解吸导致籽粒横向弛豫时间T₂₁和T₂₂缩短;结合水含量减少,“自由水”含量先减少后增多,各状态水分间存在迁移和转化现象。部分“自由水”在水分解吸过程中挥发离开籽粒,同时部分“结合水”转化为“自由水”。总体表现为“结合水”面积和相对面积比例随水分解吸过程逐渐减小,而“自由水”的面积有增有减,但相对面积比例呈上升趋势。因此,在稻谷水分解吸过程中,除了含水量下降,各组分水分流动性下降,“结合水”含量降低也是水分变化的重要特征。裂纹与水分数据相关分析表明,裂纹变化与各组分水的横向弛豫时间和“结合水”含量的变化相关,与“自由水”含量不相关。【结论】本研究提出了一种将稻谷籽粒按照裂纹数量和种类分成4类裂纹粒的方法。粳稻水分解吸过程中裂纹类型变化与水分分布密切相关,籽粒水分的迁移和转化,特别是“结合水”下降,是籽粒裂纹变化的重要原因。

关键词: 粳稻, 水分解吸, 裂纹, X射线成像, 低场核磁共振, 扫描电镜

Abstract:

【Objective】 Based on the explanation of food moisture adsorption/desorption, were used to detect fissures and moisture in japonica rice. The aim of this study was to investigate the change of grain kernel fissures and to summarize the development law for the fissures in grain kernels. 【Method】Three japonica rice, Ruanyu, Huaidao 5 and Nanjing 5055 were investigated. The japonica rice kernels with fissures and the degree of fissures were detected by X-ray imaging technology. The microstructure of fissures in Nanjing 5055 was observed by scanning electron microscope. Water characteristics in three japonica rice grains were measured by LF-NMR technology. The relationship between kernel fissure and water characteristics was analyzed. 【Result】 A model based on the low-field nuclear magnetic data accurately predicted the moisture content of three japonica rice. The number of fissures increased with increasing the degree of water desorption of the grains. The percentage of fissure kernel for the rice varieties Ruanyu, Huaidao 5, and Nanjing 5055 increased significantly when the moisture content was lower than 14.96%, 15.21%, and 17.84%, respectively. The percentage of fissure kernel decreased with moisture content in paddy rice kernels. The microstructure of starch and cell on the internal fracture surface of cracked kernels were very different from that of the control sample. The water desorption led to the production of starch granules and cell fracture surfaces, and this fracture surface was the initial fissure. When the number of fissures continued to increase, the initial fissures developed into observable fissures. These fissures were developed from slight level to moderate and even severe level. The water desorption led to the shortening of the transverse relaxation time T₂₁ and T₂₂ of the grain kernel. The content of “bounded water” decreased, whereas the content of “free water” initially decreased and then increased. There was a migration and transformation of water molecules between the bounded and free water. Therefore, in addition to the decrease of moisture content, the molecular mobility of each water component decreased, and the decrease of “bound water” content was also an important feature of water change in the process of water desorption of paddy rice. Correlation analysis between fissures and moisture showed that fissures changes were related to changes in the transverse relaxation time of each water component and “bound water” content, but not related to the “free water” content. 【Conclusion】This study proposed a method to classify grain kernel into four types based on the number and types of cracks. The change of crack type in the process of water decomposition was closely related to water distribution. The migration and transformation of grain moisture, especially the decrease of bound water, were the important factors affecting the changes of grain fissures.

Key words: Japonica rice, moisture desorption, fissure, X-ray imaging, nuclear magnetic resonance, scanning electron microscope

邵小龙,徐文,王潇,杨晓静,沈飞,刘琴. 3种粳稻籽粒水分解吸过程中的裂纹变化[J]. 中国农业科学, 2022, 55(2): 390-402.

SHAO XiaoLong,XU Wen,WANG Xiao,YANG XiaoJing,SHEN Fei,LIU Qin. Fissure Development of Three Japonica Rice Grain during Water Desorption[J]. Scientia Agricultura Sinica, 2022, 55(2): 390-402.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2022.02.013

https://www.chinaagrisci.com/CN/Y2022/V55/I2/390

图/表 8

图1

图2

图3

图4

图5

图6

表1

表2

参考文献 31

[1]	李阳. 稻谷吸附解吸和玻璃化转变对裂纹的影响研究[D]. 吉林: 吉林大学, 2016.
	LI Y. The research of the effection of adsorption and desorption and glass transition of rough rice to fissures[D]. Jilin: Jilin University, 2016. (in Chinese)
[2]	ZHANG Q, YANG W Q, HOWARD L, EARP C F. Tracing fissure information by scanning electron microscopy characterization of naturally fissured surfaces of rice kernels. Transactions of the ASAE, 2003, 46(6):1583-1588. doi: 10.13031/2013.15619
[3]	BUGGENHOUT J, BRIJS K, CELUS I, DELCOUR J A. The breakage susceptibility of raw and parboiled rice: A review. Journal of Food Engineering, 2013, 117(3):304-315. doi: 10.1016/j.jfoodeng.2013.03.009
[4]	BANASZEK M M, SIEBENMORGEN T J. Moisture adsorption rates of rough rice. Transactions of the ASAE, 1990, 33(4):1257-1262. doi: 10.13031/2013.31465
[5]	LAN Y, KUNZE O R. Moisture adsorption rates by different forms of rice. Transactions of the ASAE, 1996, 39(3):1035-1038. doi: 10.13031/2013.27593
[6]	杨国峰. 稻谷裂纹产生机理的探讨. 食品科学, 2004, 25(10):384-387.
	YANG G F. A summary of mechanism about fissure formation in rice kernel. Food Science, 2004, 25(10):384-387. (in Chinese)
[7]	KONDŌ MANTARŌ, OKAMURA TAMOTSU. Untersuchungen der verschiedenen Reiskörner geringerer Qualität. IV. Der durch die Feuchtigkeitszunahme verursachte Querriss (Doware) des Reiskornes. Berichte Des Ohara Instituts Für Landwirtschaftliche Forschungen, 1930, 4:429-446. (in Japanese)
[8]	SHIMIZU N, HAQUE M A, ANDERSSON M, KIMURA T. Measurement and fissuring of rice kernels during quasi-moisture sorption by image analysis. Journal of Cereal Science, 2008, 48(1):98-103. doi: 10.1016/j.jcs.2007.08.009
[9]	BORISJUK, ROLLETSCHEK, NEUBERGER. Surveying the plant's world by magnetic resonance imaging. The Plant Journal, 2012, 70(1):129-146. doi: 10.1111/j.1365-313X.2012.04927.x
[10]	杨慧萍, 李冬珅, 乔琳, 苏安祥, 胡婉君. 基于低场核磁研究稻谷吸附/解吸过程水分分布变化. 中国粮油学报, 2016, 31(12):6-11.
	YANG H P, LI D S, QIAO L, SU A X, HU W J. The change of water distribution in the process of adsorption /desorption in japonica by LF-NMR. Journal of the Chinese Cereals and Oils Association, 2016, 31(12):6-11. (in Chinese)
[11]	邵小龙, 汪楠, 时小转, 沈飞, 宋伟, 张强. 水稻生长过程中籽粒水分状态和横向弛豫特性分析. 中国农业科学, 2017, 50(2):240-249.
	SHAO X L, WANG N, SHI X Z, SHEN F, SONG W, ZHANG Q. Analysis of moisture state and transverse relaxation characteristics of grains during the growth process of rice. Scientia Agricultura Sinica, 2017, 50(2):240-249. (in Chinese)
[12]	汪楠, 邵小龙, 时小转, 沈飞, 宋伟. 稻谷低温低湿干燥特性与水分迁移分析. 食品工业科技, 2017, 38(5):114-119.
	WANG N, SHAO X L, SHI X Z, SHEN F, SONG W. Analysis of drying characteristics and moisture migration for paddy rice under low temperatures and low relative humidities. Science and Technology of Food Industry, 2017, 38(5):114-119. (in Chinese)
[13]	李东, 谭书明, 陈昌勇, 邓毅, 张程榕, 王建明. LF-NMR对稻谷干燥过程中水分状态变化的研究. 中国粮油学报, 2016, 31(7):1-5.
	LI D, TAN S M, CHEN C Y, DENG Y, ZHANG C R, WANG J M. LF-NMR study on variations of different moisture states during the process of rice drying. Journal of the Chinese Cereals and Oils Association, 2016, 31(7):1-5. (in Chinese)
[14]	郑先哲, 周修理, 夏吉庆. 干燥条件对稻谷加工品质影响的研究. 东北农业大学学报, 2001, 32(1):48-52.
	ZHENG X Z, ZHOU X L, XIA J Q. The study on drying condition influcing paddy mill quality. Journal of Northeast Agricultural University, 2001, 32(1):48-52. (in Chinese)
[15]	张习军, 熊善柏, 赵思明. 微波处理对稻谷品质的影响. 中国农业科学, 2009, 42(1):224-229.
	ZHANG X J, XIONG S B, ZHAO S M. Effect of microwave on paddy quality. Scientia Agricultura Sinica, 2009, 42(1):224-229. (in Chinese)
[16]	万忠民, 马佳佳, 鞠兴荣, 许进田, 张荣广. 流化床和薄层热风干燥对稻谷品质的影响. 食品科学, 2014, 35(6):6-11.
	WAN Z M, MA J J, JU X R, XU J T, ZHANG R G. Effect of fluidized-bed drying and thin layer-hot-air drying on the quality of rice. Food Science, 2014, 35(6):6-11. (in Chinese)
[17]	吴中华, 刘兵, 王丹丹, 康宁, 赵丽娟. 稻谷干燥缓苏特性与裂纹产生规律研究. 农业机械学报, 2018, 49(5):368-374.
	WU Z H, LIU B, WANG D D, KANG N, ZHAO L J. Drying- tempering characteristics and fissuring law of paddy rice kernel. Transactions of the Chinese Society for Agricultural Machinery, 2018, 49(5):368-374. (in Chinese)
[18]	夏宝林, 杨国峰, 刘强, 闻韬. 不同缓苏条件对稻谷爆腰率影响的研究. 粮食储藏, 2013, 42(5):44-48.
	XIA B L, YANG G F, LIU Q, WEN T. The influence of different tempering condition on fissure ratio of rice. Grain Storage, 2013, 42(5):44-48. (in Chinese)
[19]	HOGAN J T, LARKIN R A, MACMASTERS M M. Cereal Quality Measurement, X-Ray and photomicrographic examination of rice. Journal of Agricultural and Food Chemistry, 1954, 2(24):1235-1239. doi: 10.1021/jf60044a007
[20]	MENEZES N L D, CICERO S M, VILLELA F A, BORTOLOTTO P B. Using X rays to evaluate fissures in rice seeds dried artificially. Revista Brasileira De Sementes, 2012, 34(1):70-77. doi: 10.1590/S0101-31222012000100009
[21]	ODEK Z R, PRAKASH B, SIEBENMORGEN T J. X-Ray detection of fissures in rough rice kernels. Applied Engineering in Agriculture, 2017, 33(5):721-728. doi: 10.13031/aea.12369
[22]	郑华东, 刘木华, 吴彦红, 黎静. 基于计算机视觉的大米裂纹检测研究. 农业工程学报, 2006, 22(7):129-133.
	ZHENG H D, LIU M H, WU Y H, LI J. Rice fissure detection using computer vision. Transactions of the Chinese Society of Agricultural Engineering, 2006, 22(7):129-133. (in Chinese)
[23]	MARCONE M F, WANG S, ALBABISH W, NIE S P, SOMNARAIN D, HILL A. Diverse food-based applications of nuclear magnetic resonance (NMR) technology. Food Research International, 2013, 51(2):729-747. doi: 10.1016/j.foodres.2012.12.046
[24]	邵小龙, 李云飞. 用低场核磁研究烫漂对甜玉米水分布和状态影响. 农业工程学报, 2009, 25(10):302-306.
	SHAO X L, LI Y F. Effects of blanching on water distribution and water status in sweet corn investigated by using MRI and NMR. Transactions of the Chinese Society of Agricultural Engineering, 2009, 25(10):302-306. (in Chinese)
[25]	宋平, 杨涛, 王成, 潘大宇, 任鹏. 利用低场核磁共振分析水稻种子浸泡过程中的水分变化. 农业工程学报, 2015, 31(15):279-284.
	SONG P, YANG T, WANG C, PAN D Y, REN P. Analysis of moisture changes during rice seed soaking process using low-field NMR. Transactions of the Chinese Society of Agricultural Engineering, 2015, 31(15):279-284. (in Chinese)
[26]	袁建, 赵腾, 丁超, 邢常瑞, 张斌, 陈尚兵, 何荣, 鞠兴荣. 微波处理对稻谷品质及脂肪酶活性的影响. 中国农业科学, 2018, 51(21):4131-4142.
	YUAN J, ZHAO T, DING C, XING C R, ZHANG B, CHEN S B, HE R, JU X R. Effects of microwave treatments on rice quality and lipase activity. Scientia Agricultura Sinica, 2018, 51(21):4131-4142. (in Chinese)
[27]	SHAO X L, XU W, XU S H, XING C R, DING C, LIU Q. Time-Domain NMR applied to Sitophilus zeamais motschulsky/wheat detection. Journal of Agricultural and Food Chemistry, 2019, 67:12565-12575. doi: 10.1021/acs.jafc.9b04007
[28]	邵小龙, 宋伟, 李云飞. 粮油食品低场核磁共振检测技术研究进展. 中国粮油学报, 2013, 28(7):114-118.
	SHAO X L, SONG W, LI Y F. Research process of low-field nuclear magnetic resonance (LF-NMR) detection technology in grain and oil food. Journal of the Chinese Cereals and Oils Association, 2013, 28(07):114-118. (in Chinese)
[29]	COURTOIS F, FAESSEL M, BONAZZI C. Assessing breakage and cracks of parboiled rice kernels by image analysis techniques. Food Control, 2010, 21(4):567-572. doi: 10.1016/j.foodcont.2009.08.006
[30]	KUNZE O R. Moisture adsorption influences on rice. Journal of Food Process Engineering, 1977, 1(2):167-181.
[31]	KUNZE O R, PRASAD S. Grain Fissuring Potentials in Harvesting and Drying of Rice. Transactions of the ASAE, 1978, 21(2):361-366. doi: 10.13031/2013.35304

水分含量 Moisture content (%)	‘软玉’Ruanyu		‘淮稻5号’Huaidao 5		‘南粳5055’Nanjing 5055
水分含量 Moisture content (%)	T₂₁ (ms)	T₂₂ (ms)	T₂₁ (ms)	T₂₂ (ms)	T₂₁ (ms)	T₂₂ (ms)
25	2.42±0.13a	138.49±0.00a	2.31±0.12a	135.45±6.78a	2.36±0.00a	132.41±8.32a
22	1.71±0.09b	123.29±0.00b	1.67±0.00b	123.29±0.00bc	1.83±0.09b	126.33±6.79ab
20	1.67±0.00b	123.29±0.00b	1.49±0.00c	132.41±8.33ab	1.52±0.08c	117.87±7.41bc
18	1.32±0.00c	117.87±7.41bc	1.42±0.09c	123.29±0.00bc	1.32±0.00d	117.87±7.41bc
15	1.07±0.06d	112.46±6.05cd	1.05±0.00d	117.87±7.41cd	1.10±0.07e	115.16±7.41c
12	0.91±0.46e	107.34±5.39de	0.93±0.00e	112.46±6.05cde	0.93±0.00f	107.34±5.38cd
10	0.76±0.04f	100.38±9.61ef	0.74±0.00f	110.05±9.05de	0.76±0.04g	102.79±10.26d
8	0.74±0.00f	96.68±10.12f	0.66±0.00g	103.08±13.87e	0.74±0.00g	97.97±8.06d

	品种 Variety	水分含量 MC	横向弛豫时间 T₂₁	横向弛豫时间 T₂₂	峰面积 A₂₁	峰面积 A₂₂	峰比例 P₂₁	峰比例 P₂₂	裂纹率 The percentage of fissured kernel	轻度裂纹率 SL-PFK	中度裂纹率 MO-PFK	重度裂纹率 SE-PFK
品种 Variety	1
水分含量 MC	0.012	1
横向弛豫时间 T₂₁	-0.003	0.967**	1
横向弛豫时间 T₂₂	0.004	0.830**	0.802**	1
峰面积 A₂₁	-0.025	0.997**	0.964**	0.824**	1
峰面积 A₂₂	0.057	-0.139	-0.050	-0.335**	-0.123	1
峰比例 P₂₁	-0.021	-0.913**	-0.959**	-0.726**	-0.903**	-0.025	1
峰比例 P₂₂	0.020	0.913**	0.959**	0.726**	0.903**	0.024	-1.000**	1
裂纹率 The percentage of fissured kernel (PFK)	0.068	-0.929**	-0.864**	-0.743**	-0.932**	0.107	0.793**	-0.793**	1
轻微裂纹率 SL-PFK	-0.100	-0.847**	-0.789**	-0.628**	-0.840**	-0.025	0.751**	-0.750**	0.850**	1
中度裂纹率 MO-PFK	0.043	-0.877**	-0.831**	-0.719**	-0.883**	0.101	0.780**	-0.780**	0.946**	0.727**	1
重度裂纹率 SE-PFK	0.231*	-0.766**	-0.703**	-0.648**	-0.777**	0.210*	0.605**	-0.604**	0.886**	0.528**	0.854**	1
