施用石灰降低污染稻田上双季稻镉积累的效果

doi:10.3864/j.issn.0578-1752.2021.04.010

摘要/Abstract

摘要：

【目的】研究在不同镉（Cd）污染程度稻田上施用石灰（CaO）的效果以及双季稻稻米Cd积累的差异,为早、晚稻季下不同污染程度稻田上的稻米安全生产提供参考。【方法】在湖南省选取43个县（区）的典型Cd污染稻田作为试验点,以常规栽培作为对照,研究施用石灰（1 200 kg·hm^-2）后,轻度污染（土壤有效镉≤0.2 mg·kg^-1）、中度污染（0.2 mg·kg^-1土壤有效镉≤0.4 mg·kg^-1）、重度污染（0.4 mg·kg^-1土壤有效镉≤0.6 mg·kg^-1）和严重污染（土壤有效镉>0.6 mg·kg^-1）稻田土壤pH、土壤有效镉含量、稻米Cd含量以及稻米富集系数的变化。【结果】（1）从Cd污染稻田整体的角度分析,相比常规栽培,施用石灰能够极显著降低早、晚稻米Cd含量均值,降幅分别为31.0%和28.6%。（2）从不同稻季下不同污染程度稻田的角度分析,相比常规栽培,施用石灰能够降低早稻季中度、重度和严重污染稻田的稻米Cd含量均值,降幅分别为37.0%、38.7%（P＜0.05）和22.6%;施用石灰能够降低晚稻季轻度、中度、重度和严重污染稻田的稻米Cd含量均值,降幅分别为2.0%、31.3%（P＜0.05）、31.8%和22.9%。不同污染程度稻田施用石灰后能够提高土壤pH,降低土壤有效镉含量,使稻米Cd富集系数明显下降,实现对稻米Cd含量的调控。【结论】施用石灰能够有效调控早稻季的轻度、中度、重度以及晚稻季的轻度Cd污染稻田的稻米Cd含量均值,降至限量标准（0.2 mg·kg^-1）以下。因此,以石灰施用为基础,结合其他降Cd措施,实施“分稻季分污染程度”和“晚稻优先于早稻”的治理思路,能提高大田生产上稻米Cd含量调控的稳定性并降低治理成本。

关键词: 石灰, 双季稻, Cd, 稻米Cd富集系数

Abstract:

【Objective】The purpose of this study was to explore the effects of applicating liming in the double-season rice in paddy fields with varying degrees of cadmium pollution, and then to provide a reference for rice safety production in different polluted paddy fields with early and late rice seasons.【Method】43 typical cadmium polluted paddy fields in counties (districts) of Hunan province were used as experimental sites, and the lime was applied according to the standard of 1 200 kg·hm^-2, to explore the change of four values such as soil pH, soil available Cd content, rice Cd content and rice enrichment coefficient, that were respectively researched in lightly polluted paddy fields (soil available Cd≤0.2 mg·kg^-1), moderately polluted paddy fields (0.2 mg·kg^-1soil available Cd≤0.4 mg·kg^-1), severely polluted paddy fields (0.4 mg·kg^-1soil available Cd≤0.6 mg·kg^-1), and super severely polluted paddy fields (soil available Cd>0.6 mg·kg^-1). The conventional cultivation was used as control.【Result】The multi-point experiment results showed that: (1) From the perspective of integral Cd polluted paddy fields, compared with conventional cultivation, the average Cd content in early and late rice was significantly reduced by applying lime, with a decrease of 31.0% and 28.6%, respectively. (2) From the perspective of different rice seasons in diverse pollution levels rice fields, the mean rice Cd content in paddy fields with moderately, severely, and seriously polluted rice fields in early rice seasons was decreased by 37.0%, 38.7% (P＜0.05) and 22.6%, respectively, compared with that in conventional cultivation. Application of lime could also reduce the mean Cd content of rice in lightly, moderately, severely and super severely polluted paddy fields in late rice season by 2.0% ,31.3% (P＜0.05), 31.8% and 22.9%, respectively. The lime could regulate Cd content in rice, because it could lower the Cd enrichment coefficient of rice in paddy fields with different degrees of pollution and the available Cd content in soil, ,and increase the soil pH. 【Conclusion】The application of lime could effectively control the mean Cd content of rice in the paddy fields polluted by light, moderate and severe Cd in early rice season and lightly Cd polluted paddy fields in late rice season to below the limit standard (0.2 mg·kg^-1). Therefore, on the basis of lime application and in combination with other measures to reduce Cd as the main ideas of “separating the degree of pollution in rice season” and “ late rice is prior to early rice” could improve the stability of controlling rice Cd content in field production and the economy of governance costs.

Key words: lime, double-season rice, cadmium, Cd enrichment coefficient

周亮,肖峰,肖欢,张玉盛,敖和军. 施用石灰降低污染稻田上双季稻镉积累的效果[J]. 中国农业科学, 2021, 54(4): 780-791.

ZHOU Liang,XIAO Feng,XIAO Huan,ZHANG YuSheng,AO HeJun. Effects of Lime on Cadmium Accumulation of Double-Season Rice in Paddy Fields with Different Cadmium Pollution Degrees[J]. Scientia Agricultura Sinica, 2021, 54(4): 780-791.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2021.04.010

https://www.chinaagrisci.com/CN/Y2021/V54/I4/780

图/表 6

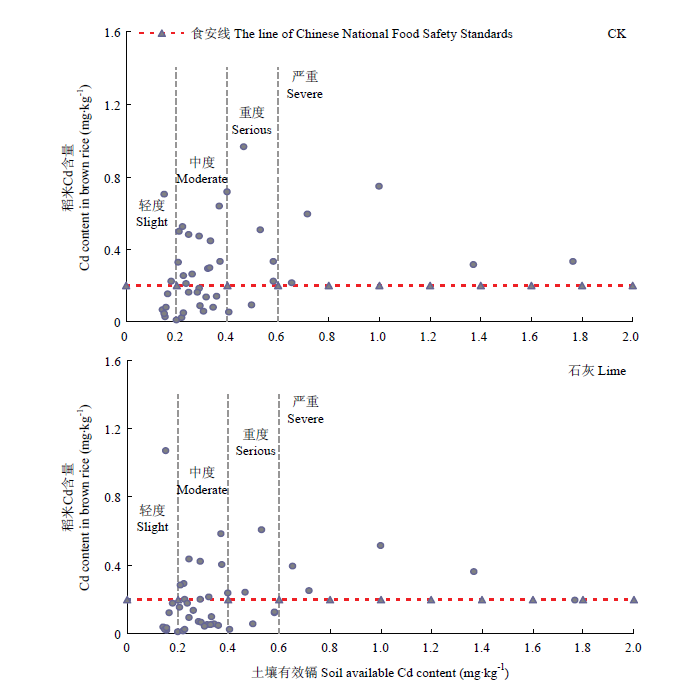

图1

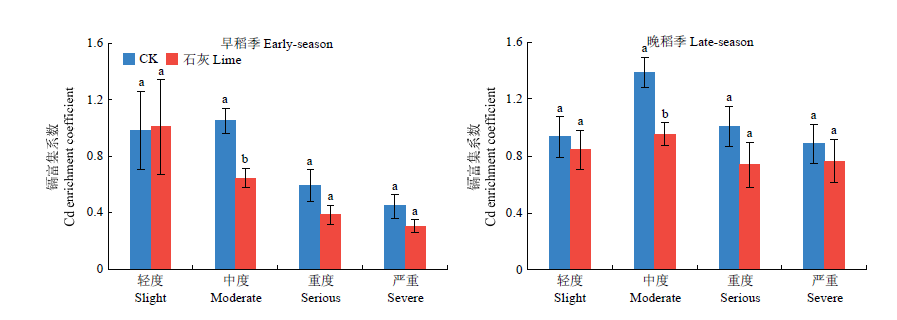

图2

图3

图4

图5

图6

参考文献 39

[1]	CAO F B, WANG R F, CHENG W D, ZENG F R, AHMED I, HU X N, ZHANG G P, WU F B. Genotypic and environmental variation in cadmium, chromium, lead and copper in rice and approaches for reducing the accumulation. Science of the Total Environment, 2014,496:275-281.
[2]	WEI S H, LI Y M, ZHOU Q X, SRIVASTAVA M, CHIU S, ZHAN J, WU Z J, SUN T H. Effect of fertilizer amendments on phytoremediation of Cd-contaminated soil by a newly discovered hyperaccumulator Solanum nigrum L. Journal of Hazardous Materials, 2010,176(1/3):269-273.
[3]	傅龙波, 钟甫宁, 徐志刚. 中国粮食进口的依赖性及其对粮食安全的影响. 管理世界, 2001(3):135-140.
	FU L B, ZHONG F N, XU Z G. Dependence of China's grain import and its impact on grain security. Manage World, 2001(3):135-140. (in Chinese)
[4]	于焕云, 崔江虎, 乔江涛, 刘传平, 李芳柏. 稻田镉砷污染阻控原理与技术应用. 农业环境科学学报, 2018,37(7):1418-1426.
	YU H Y, CUI J H, QIAO J T, LIU C P, LI F B. Principle and technique of arsenic and cadmium pollution control in paddy field. Journal of Agro-Environment Science, 2018,37(7):1418-1426. (in Chinese)
[5]	薛涛, 廖晓勇, 王凌青, 张扬珠. 农艺强化措施治理稻田镉污染的效果评价. 农业环境科学学报, 2018,37(7):1537-1544.
	XUE T, LIAO X Y, WANG L Q, ZHANG Y Z. Evaluation on effect of strengthening agronomic measures in cadmium-contaminated paddy field. Journal of Agro-Environment Science, 2018,37(7):1537-1544. (in Chinese)
[6]	彭鸥, 周靖恒, 喻崴伦, 铁柏清, 刘玉玲, 李丹阳. 硅硫材料对复合污染土壤镉砷赋存形态的影响. 农业环境科学学报, 2020,39(2):294-303.
	PENG O, ZHOU J H, YU W L, TIE B Q, LIU Y L, LI D Y. Effects of silicon- and sulfur-containing materials on the dynamics of cadmium and arsenic species in compound polluted soil. Journal of Agro-Environment Science, 2020,39(2):294-303. (in Chinese)
[7]	李超, 艾绍英, 唐明灯, 李林峰, 王艳红, 李义纯. 矿物调理剂对稻田土壤镉形态和水稻镉吸收的影响. 中国农业科学, 2018,51(11):2143-2154.
	LI C, AI S Y, TANG M D, LI L F, WANG Y H, LI Y C. Effects of a mineral conditioner on the forms of Cd in paddy soil and Cd uptake by rice. Scientia Agricultura Sinica, 2018,51(11):2143-2154. (in Chinese)
[8]	陈江民, 杨永杰, 黄奇娜, 胡培松, 唐绍清, 吴立群, 王建龙, 邵国胜. 持续淹水对水稻镉吸收的影响及其调控机理. 中国农业科学, 2017,50(17):3300-3310.
	CHEN J M, YANG Y J, HUANG Q N, HU P S, TANG S Q, WU L Q, WANG J L, SHAO G S. Effects of continuous flooding on cadmium absorption and its regulation mechanisms in rice. Scientia Agricultura Sinica, 2017,50(17):3300-3310. (in Chinese)
[9]	谢晓梅, 方至萍, 廖敏, 黄宇, 黄小辉. 低积累水稻品种联合腐殖酸、海泡石保障重镉污染稻田安全生产的潜力. 环境科学, 2018,39(9):4348-4358.
	XIE X M, FANG Z P, LIAO M, HUANG Y, HUANG X H. Potential to ensure safe production from rice fields polluted with heavy cadmium by combining a rice variety with low cadmium accumulation, humic acid and Sepiolite. Environmental Science, 2018,39(9):4348-4358. (in Chinese)
[10]	彭鸥, 刘玉玲, 铁柏清, 叶长城, 张淼, 李园星露, 周俊驰, 许蒙, 张燕, 龙涌. 调理剂及农艺措施对污染稻田中水稻吸收镉的影响. 中国农业科学, 2020,53(3):574-584.
	PENG O, LIU Y L, TIE B Q, YE Z C, ZHANG M, LI Y X L, ZHOU J C, XU M, ZHANG Y, LONG Y. Effects of conditioning agents and agronomic measures on cadmium uptake by rice in polluted rice fields. Scientia Agricultura Sinica, 2020,53(3):574-584. (in Chinese)
[11]	杨小粉, 刘钦云, 袁向红, 吴勇俊, 郑海飘, 聂凌利, 李翊君, 张文, 敖和军. 综合降镉技术在不同污染程度稻田土壤下的应用效果研究. 中国稻米, 2018,24(2):37-41.
	YANG X F, LIU Q Y, YUAN X H, WU Y J, ZHENG H P, NIE L L, LI Y J, ZHENG W, AO H J. Effects of VIP technology on reducing cadmium under different cadmium pollution degree paddy soil. China Rice, 2018,24(2):37-41. (in Chinese)
[12]	BOLAN N, ADRIANO D, MANI P, DURAISAMY A. Immobilization and phytoavailability of cadmium in variable charge soils. II. Effect of lime addition. Plant and Soil, 2003,251(2):187-198.
[13]	张迪, 吴晓霞, 丁爱芳, 李婷, 方炫. 生物炭和熟石灰对土壤镉铅生物有效性和微生物活性的影响. 环境化学, 2019,38(11):2526-2534.
	ZHANG D, WU X X, DING A F, LI T, FANG X. Effects of hydrated lime and biochar on the bioavailability of Cd and Pb and microbial activity in a contaminated soil. Environmental Chemistry, 2019,38(11):2526-2534. (in Chinese)
[14]	史磊, 郭朝晖, 梁芳, 彭驰, 肖细元, 封文利. 水分管理和施用石灰对水稻镉吸收与运移的影响. 农业工程学报, 2017,33(24):111-117.
	SHI L, GUO C H, LIANG F, PENG C, XIAO X Y, FENG W L. Effects of lime and water management on uptake and translocation of cadmium in rice. Transactions of the Chinese Society of Agricultural Engineering, 2017,33(24):111-117. (in Chinese)
[15]	鄢德梅, 郭朝晖, 黄凤莲, 冉洪珍, 张鹂. 钙镁磷肥对石灰、海泡石组配修复镉污染稻田土壤的影响. 环境科学, 2020,41(3):1491-1497.
	YAN D M, GUO C H, HUANG F L, RAN H Z, ZHANG L. Effect of calcium magnesium phosphate on remediation paddy soil contaminated with cadmium using lime and sepiolite. Environmental Science, 2020,41(3):1491-1497. (in Chinese)
[16]	YANG Y J, CHEN J M, HUANG Q N, TANG S Q, WANG J L. Can liming reduce cadmium (Cd) accumulation in rice (Oryza sativa) in slightly acidic soils? A contradictory dynamic equilibrium between Cd uptake capacity of roots and Cd immobilisation in soils. Chemosphere Environmental Toxicology & Risk Assessment, 2018.
[17]	刘仲齐, 张长波, 黄永春. 水稻各器官镉阻控功能的研究进展. 农业环境科学学报, 2019,38(4):721-727.
	LIU Z Q, ZHANG C B, HUANG Y C. Research advance on the functions of rice organsin cadmium inhibition :A review. Journal of Agro-Environment Science, 2019,38(4):721-727. (in Chinese)
[18]	王学华, 戴力. 作物根系镉滞留作用及其生理生化机制. 中国农业科学, 2016,49(22):4323-4341.
	WANG X H, DAI L. Immobilization effect and its physiology and biochemical mechanism of the cadmium in crop roots. Scientia Agricultura Sinica, 2016,49(22):4323-4341. (in Chinese)
[19]	廖敏, 黄昌勇, 谢正苗. pH对镉在土水系统中的迁移和形态的影响. 环境科学学报, 1999(1):83-88.
	LIAO M, HUANG C Y, XIE Z M. Effect of pH on transport and transformation of cadmium in soil-water system. Acta Scientiae Circumstantiae, 1999(1):83-88. (in Chinese)
[20]	周歆, 周航, 曾敏, 胡淼, 杨文弢, 刘丽, 廖柏寒. 石灰石和海泡石组配对水稻糙米重金属积累的影响. 土壤学报, 2014,51(3):555-563.
	ZHOU X, ZHOU H, ZENG M, HU M, YANG W T, LIU L, LIAO B H. Effects of combined amendment (limestone+sepiolite) on heavy metal accumulation in brown rice. Acta Pedologica Sinica, 2014,51(3):555-563. (in Chinese)
[21]	董霞, 李虹呈, 陈齐, 李欣阳, 蒋凯, 黄敬, 龙坚, 侯红波, 彭佩钦, 廖柏寒. 石灰、硅钙镁改良剂对不同土壤-水稻系统Cd吸收累积的影响. 环境化学, 2019,38(6):1298-1306.
	DONG X, LI H C, CHEN Q, LI X Y, JIANG K, HUANG J, LONG J, HOU H B, PENG P Q, LIAO B H. Effects of lime, silicon-calcium- magnesium amendments on Cd absorption and accumulation in different soil-rice systems. Environmental Chemistry, 2019,38(6):1298-1306. (in Chinese)
[22]	张振兴, 纪雄辉, 谢运河, 官迪, 彭华, 朱坚, 田发祥. 水稻不同生育期施用生石灰对稻米镉含量的影响. 农业环境科学学报, 2016,35(10):1867-1872.
	ZHANG Z X, JI X H, XIE Y H, GUAN D, PENG H, ZHU J, TIAN F X. Effects of quicklime application at different rice growing stage on the cadmium contents in rice grain. Journal of Agro-Environment Science, 2016,35(10):1867-1872. (in Chinese)
[23]	胡敏, 向永生, 鲁剑巍. 石灰用量对酸性土壤pH值及有效养分含量的影响. 中国土壤与肥料, 2017(4):72-77.
	HU M, XIANG Y S, LU J W. Effects of lime application rates on soil pH and available nutrient content in acidic soils. Soil and Fertilizer Sciences in China, 2017(4):72-77. (in Chinese)
[24]	闫志浩, 胡志华, 王士超, 槐圣昌, 武红亮, 王瑾瑜, 邢婷婷, 余喜初, 李大明, 卢昌艾. 石灰用量对水稻油菜轮作区土壤酸度、土壤养分及作物生长的影响. 中国农业科学, 2019,52(23):4285-4295.
	YAN Z H, HU Z H, WANG S C, HUAI S C, WU H L, WANG J Y, XING T T, YU X C, LI D M, LU C A. Effects of lime content on soil acidity, soil nutrients and crop growth in rice-rape rotation system. Scientia Agricultura Sinica, 2019,52(23):4285-4295. (in Chinese)
[25]	胡敏, 向永生, 鲁剑巍. 石灰用量对酸性土壤酸度及大麦幼苗生长的影响. 中国农业科学, 2016,49(20):3896-3903.
	HU M, XIANG Y S, LU J W. Effects of lime application rates on soil acidity and barley seeding growth in acidic soils. Scientia Agricultura Sinica, 2016,49(20):3896-3903. (in Chinese)
[26]	温娜, 王景安, 刘仲齐. 利用AMMI模型分析稻米镉含量的基因型与环境互作效应. 农业环境科学学报, 2015,34(5):817-823.
	WEN N, WANG J A, LIU Z Q. Analysis of genotypic and environmental effects on cadmium content in rice by AMMI model. Journal of Agro-Environment Science, 2015,34(5):817-823. (in Chinese)
[27]	帅泽宇, 谷子寒, 王元元, 陈基旺, 陈平平, 易镇邪. 土壤耕作方式对双季稻产量构成与穗镉积累的影响. 水土保持学报, 2019,33(3):348-357.
	SHUAI Z Y, GU Z H, WANG Y Y, CHEN J W, CHEN P P, YI Z X. Effects of soil tillage methods on yield components and cadmium accumulation in panicles of double-cropping rice. Journal of Soil and Water Conservation, 2019,33(3):348-357. (in Chinese)
[28]	李义纯, 王艳红, 唐明灯, 巫彬芳, 李林峰, 艾绍英, 凌志祥. 改良剂对根际土壤-水稻系统中镉运移的影响. 环境科学, 2019,40(7):3331-3338.
	LI Y C, WANG Y H, TANG M D, WU B F, LI L F, AI S Y, LING Z X. Effects of an amendment on cadmium transportation in the rhizosphere soil-rice system. Environmental Science, 2019,40(7):3331-3338. (in Chinese)
[29]	PENG S B, HUANG J L, SHEEHY J E, LAZA R C, VISPERAS R M, ZHONG X H, CENTENO G S, KHUSH G S, CASSMAN K G. Rice yields decline with higher night temperature from global warming. PNAS, 2004,101(27):9971-9975.
[30]	GE L Q, CANG L, YANG J, ZHOU D M. Effects of root morphology and leaf transpiration on Cd uptake and translocation in rice under different growth temperature. Environmental Science and Pollution Research, 2016,23(23):24205-24214.
[31]	GE L Q, CANG L, LIU H, ZHOU D M. Effects of warming on uptake and translocation of cadmium (Cd) and copper (Cu) in a contaminated soil-rice system under Free Air Temperature Increase (FATI). Chemosphere, 2016,155:1-8.
[32]	LIU H J, ZHANG J L, CHRISTIE P, ZHANG F S. Influence of iron plaque on uptake and accumulation of Cd by rice (Oryza sativa L.) seedlings grown in soil. Science of The Total Environment, 2008,394(2/3):361-368.
[33]	邵国胜, 陈铭学, 王丹英, 徐春梅, 牟仁祥, 曹赵云, 章秀福. 稻米镉积累的铁肥调控. 中国科学(C辑:生命科学), 2008(2):180-187.
	SHAO G S, CHEN M X, WANG D Y, XU C M, MOU R X, CAO Z Y, ZHANG X F. Regulation of iron fertilizer on cadmium accumulation in rice. Scientia Sinica(Vitae), 2008(2):180-187. (in Chinese)
[34]	GE L Q, CANG L, ATA-UL-KARIM S T, YANG J, ZHOU D M. Effects of various warming patterns on Cd transfer in soil-rice systems under Free Air Temperature Increase (FATI) conditions. Ecotoxicology and Environmental Safety, 2019,168:80-87.
[35]	罗伯良, 李易芝. 湖南双季晚稻寒露风初日的气候演变特征及其预测模型. 中国农业气象, 2015,36(3):338-345.
	LUO B L, LI Y Z. Climatic characteristics and prediction of autumn low temperature during late rice growth stage in Hunan. Chinese Journal of Agrometeorology, 2015,36(3):338-345. (in Chinese)
[36]	李娜, 贺红周, 冯爱煊, 李伟, 蒋珍茂, 魏世强. 渝西地区镉轻度污染稻田安全利用技术. 环境科学, 2019,40(10):4637-4646.
	LI N, HE H Z, FENG A X, LI W, JIANG Z M, WEI S Q. Safe utilization of paddy soils lightly polluted with cadmium in western chongqing. Environmental Science, 2019,40(10):4637-4646. (in Chinese)
[37]	封文利, 郭朝晖, 史磊, 肖细元, 韩晓晴, 冉洪珍, 薛清华. 控源及改良措施对稻田土壤和水稻镉累积的影响. 环境科学, 2018,39(1):399-405.
	FENG W L, GUO C H, SHI L, XIAO X Y, HAN X Q, RAN H Z, XUE Q H. Distribution and accumulation of cadmium in paddy soil and rice affected by pollutant sources control and improvement measures. Environmental Science, 2018,39(1):399-405. (in Chinese)
[38]	YU H, WANG J L, FANG W, YUAN J G, YANG Z Y. Cadmium accumulation in different rice cultivars and screening for pollution- safe cultivars of rice. Science of the Total Environment, 2006,370(2/3):302-309.
[39]	CATTANI I, ROMANI M, BOCCELLI R. Effect of cultivation practices on cadmium concentration in rice grain. Agronomy for Sustainable Development, 2008,28(2):265-271.
