紫花苜蓿MsSQE1的克隆及对皂甙合成的功能分析

doi:10.3864/j.issn.0578-1752.2020.02.003

摘要/Abstract

摘要：

【目的】鲨烯环氧酶（squalene epoxidases,SQE）是苜蓿皂甙合成途径中的一种限速酶,与苜蓿皂甙的合成密切相关。通过对苜蓿鲨烯环氧酶（MsSQE1）基因的克隆及在苜蓿中过表达,探究鲨烯环氧酶对皂甙合成的作用机制。【方法】以模式植物蒺藜苜蓿鲨烯环氧酶基因序列设计引物,同源克隆苜蓿MsSQE1。对MsSQE1进行生物信息学分析;通过基因枪轰击技术,使MsSQE1在洋葱表皮瞬时表达,进行亚细胞定位。利用qRT-PCR方法分析该基因在根、茎、叶中的表达水平,以及在紫外辐射、ABA和GA₃条件下的表达模式。在茉莉酸甲酯（MeJA）的诱导下,分析MsSQE1的转录水平,及对苜蓿皂甙含量的影响。利用根癌农杆菌转化体系,获得过表达MsSQE1的阳性转基因植株,并测定转基因植株的皂甙含量。【结果】克隆了MsSQE1的cDNA序列,开放阅读框1 578 bp,编码525个氨基酸,等电点为8.59。同源性比对分析,其氨基酸序列与蒺藜苜蓿中SQE1氨基酸序列同源性为98.6%,与拟南芥的同源性为80%。亚细胞定位显示,MsSQE1可能定位于细胞膜。组织特异性表达分析显示,MsSQE1在叶中的表达量最高,茎中次之,根中的表达量最低。在紫外辐射、ABA和GA₃的诱导表达显示,紫外辐射诱导24 h,叶中表达量最高; GA₃（50 μmol·L ^-1）和 ABA（100 μmol·L ^-1）处理,均为8 h叶中表达量最高;MeJA处理能诱导MsSQE1表达量上调的同时苜蓿总皂甙含量也随着MsSQE1表达的上调而增加。分析过表达MsSQE1转基因苜蓿和转空载体苜蓿株系发现,MsSQE1的表达水平和总皂甙含量均升高,其中MsSQE1的表达水平是对照的3.11—9.45倍,总皂甙含量比对照提高14.26%—28.05%,暗示MsSQE1是苜蓿皂甙合成途径中的一种关键调节酶。【结论】从豆科牧草紫花苜蓿中克隆了MsSQE1并进行功能分析。在苜蓿中过表达MsSQE1能增加苜蓿总皂甙含量,暗示MsSQE1的表达影响苜蓿皂甙的生物合成,可能对皂甙的合成有重要的调节作用。

关键词: 紫花苜蓿, 鲨烯环氧酶基因（MsSQE1）, 苜蓿皂甙, 实时荧光定量PCR

Abstract:

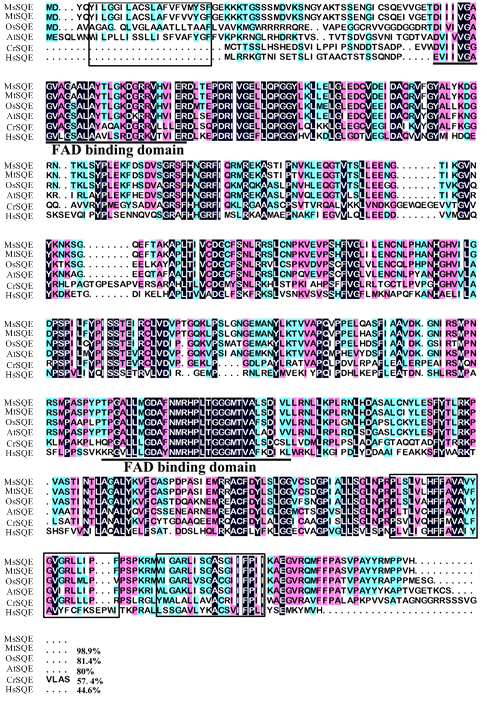

【Objective】Squalene epoxidase (SQE) is a rate-limiting enzyme in sterols and triterpenoids biosynthesis pathway, which is closely related to the synthesis of saponins. This study focused on the regulatory function of MsSQE1 on saponin biosynthesis in alfalfa,【Method】MsSQE1 was isolated from alfalfa based on SQE sequence of model plant Medicago truncatula. MEGA software was used for bioinformatic analysis of MsSQE1. Subcellular localization of MsSQE1 protein was examined by micro projectile bombardment. qRT-PCR was used to examine tissue-specific expression and the expression patterns of MsSQE1 under UV radiation, MeJA, ABA and GA₃ treatments. The MsSQE1 overexpressing transgenic alfalfa was obtained by Agrobacterium-mediated transformation, and the saponins content of the transgenic plants was determined by spectrophotometer【Result】The cDNA sequence of MsSQE1 was cloned, which contained an ORF of 1 578 bp encoding a protein of 525 amino acids with an isoelectric point of 8.59. Bioinformatic analysis showed that the deduced of MsSQE1 shared high sequence homology with SQE1 from M. truncatula (98.6%) and Arabidopsis thaliana (80%). Subcellular localization indicated that MsSQE1 may be located in the cell membrane of onion epidermis. The expression level of MsSQE1 was highest in leaves compared with stems and roots. MsSQE1 was enhanced by the simulation of UV radiation, ABA and GA₃. The expression level of MsSQE1 in leaves was highest in 24 h treated by UV, and in 8 h treated of GA₃ (50 μmol·L ^-1) and ABA(100 μmol·L ^-1). Moreover, MsSQE1 was upregulated by MeJA, and the enhanced expression of MsSQE1 resulted in the increase of total saponins. Overexpression of MsSQE1 in alfalfa led to the accumulation of total saponins in the transgenic plants and MsSQE1 expression level was correlated with the contents of saponins. The expression level of MsSQE1 in transgenic alfalfa was 3.11-9.45 times of control, and the content of saponins was 14.26%-28.05% higher than control. These findings suggested that the novel identified MsSQE1 encodes epoxidase and it contributes to the synthesis of saponins in alfalfa.【Conclusion】This study reported the cloning and functional characterization of squalene epoxidase (SQE) encoding gene from legume forage alfalfa (MsSQE). Overexpression MsSQE1 in alfalfa improved the content of total saponins suggesting that MsSQE affects the saponin biosynthesis.

Key words: Medicago sativa L.(alfalfa), squalene epoxidase(SQE), saponins, qRT-PCR

康俊梅,张俏燕,蒋旭,王珍,张铁军,龙瑞才,崔会婷,杨青川. 紫花苜蓿MsSQE1的克隆及对皂甙合成的功能分析[J]. 中国农业科学, 2020, 53(2): 247-260.

KANG JunMei,ZHANG QiaoYan,JIANG Xu,WANG Zhen,ZHANG TieJun,LONG RuiCai,CUI HuiTing,YANG QingChuan. Cloning MsSQE1 from Alfalfa and Functional Analysis in Saponin Synthesis[J]. Scientia Agricultura Sinica, 2020, 53(2): 247-260.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2020.02.003

https://www.chinaagrisci.com/CN/Y2020/V53/I2/247

图/表 10

表1

图1

图2

图3

图4

图5

图6

图7

图8

图9

参考文献 32

[1]	GHOLAMI A, GEYTER D N, POLLIER J, GOORMACHTIG S, GOOSSENS A . Natural product biosynthesis inMedicago species. Natural Product Reports, 2014,31(3):356-380.
[2]	GAIDI G, CORREIA M, CHAUFFERT B, BELTRAMO J L, WAGNER H, LACAILLE-DUBOIS M A . Saponins-mediated potentiation of cisplatin accumulation and cytotoxicity in human colon cancer cells. Planta Medica, 2002,68(1):70-72.
[3]	SYLWIA G, LESZCZYNSKI B, WIESLAW O . Effect of low and high-saponin lines of alfalfa on pea aphid. Journal of Insect Physiology, 2006,52(7):737-743.
[4]	WANG J K, YE J A, LIU J X . Effects of tea saponins on rumen microbiota, rumen fermentation, methane production and growth performance-A review. Tropical Animal Health & Production, 2012,44(4):697-706.
[5]	VINCKEN J P, HENG L, GROOT A D, GRUPPEN H . Saponins, classification and occurrence in the plant kingdom. Phytochemistry, 2007,68(3):275-297.
[6]	SUZUKI H, ACHNINE L, XU R, MATSUDA S P, DIXON R A . A genomics approach to the early stages of triterpene saponin biosynthesis in Medicago truncatula. Plant Journal for Cell and Molecular Biology, 2002,32(6):1033-1048.
[7]	JURZYSTA M, WALLER G R . Antifungal and hemolytic activity of aerial parts of alfalfa (Medicago) species in relation to saponin composition. Advances in Experimental Medicine and Biology. 1996,404:565-574.
[8]	BELTER A, SKUPINSKA M, GIEL-PIETRASZUK M, GRABARKIEWICZ T, RYCHLEWSKI L, BARCISZEWSKI J . Squalene monooxygenase- A target for hypercholesterolemic therapy. Biological Chemistry, 2011,392:1053-1075.
[9]	NOWOSIELSKI M, HOFFMANN M, WYRWICZ L S, STEPNIAK P, PLEWCZYNSKI D M, LAZNIEWSKI M, GINALSKI K, RYCHLEWSKI L . Detailed mechanism of squalene epoxidase inhibition by terbinafine. Journal of Chemical Information and Modeling, 2011,51(2):455-462.
[10]	HIDENOBU U, KOREMITSU S, EMMANUEL F V M, KENJI I, KIYOTAKA S, KENICHI F, SHIGEKI M, SHIGERU O . Isolation and characterization of two squalene epoxidase genes from Botryococcus braunii, Race B. PLOS ONE, 2015,10(4):e0122649.
[11]	HOAGLAND R E, ZABLOTOWICZ R M, OLESZEK W A . Effects of alfalfa saponins on in vitro physiological activity of soil and rhizosphere bacteria. Journal of Crop Production, 2001,4:349-361.
[12]	LARANJEIRA S, AMORIM-SILVA V, ESTEBAN A, ARRO M, FERRER A, TAVARES M R, BOTELLA M A, ROSADO A, AZEVEDO H . Arabidopsis squalene epoxidase 3 (SQE3) complements SQE1 and is important for embryo development and bulk squalene epoxidase activity. Molecular Plant, 2015,8:1090-1102.
[13]	RASBERY J M, SHAN H, LECLAIR R J, NORMAN M, MATSUDA S P, BARTEL B . Arabidopsis thaliana squalene epoxidase 1 is essential for root and seed development. Journal of Biological Chemistry, 2007,282(23):17002-17013.
[14]	HAN J Y, IN J G, KWON Y S, CHOI Y E . Regulation of ginsenoside and phytosterol biosynthesis by RNA interferences of squalene epoxidase gene in Panax ginseng. Phytochemistry, 2010,71(1):36-46.
[15]	CHOI D W, JUNG J D, HA Y I, PARK H W, IN D S, CHUNG H J, JANG R L . Analysis of transcripts in methyl jasmonate-treated ginseng hairy roots to identify genes involved in the biosynthesis of ginsenosides and other secondary metabolites. Plant Cell Reports, 2005,23(8):557-566.
[16]	LI J, WANG J, WU X, LIU D, LI J, LI J, LIU S, GAO W . Jasmonic acid and methyl dihydrojasmonate enhance saponin biosynthesis as well as expression of functional genes in adventitious roots of Panax notoginseng F.H. Chen. Biotechnology and Applied Biochemistry, 2017,64(2):225-238.
[17]	HE F, ZHU Y, HE M, ZHANG Y . Molecular cloning and characterization of the gene encoding squalene epoxidase in Panax notoginseng. DNA Sequence, 2008,19(3):270-273.
[18]	NIU Y, LUO H, SUN C, YANG, T J, DONG L, HUANG L, CHEN S L . Expression profiling of the triterpene saponin biosynthesis genes FPS, SS, SE, and DS in the medicinal plant Panax notoginseng. Gene, 2014,533(1):295-303.
[19]	RAZDAN S, BHAT W W, RANA S, DHAR N, LATTOO S K, DHAR R S, VISHWAKARMA R A . Molecular characterization and promoter analysis of squalene epoxidase gene from Withania somnifera (L.) Dunal. Molecular Biology Reports, 2013,40:905-916.
[20]	ZHOU J W, ZHANG Y, HU T Y, SU P, ZHANG Y F, LIU Y J, HUANG L Q, GAO W . Functional characterization of squalene epoxidase genes in the medicinal plant Tripterygium wilfordii. International Journal of Biological Macromolecules, 2018,120:203-212.
[21]	祝传书, 刘艳, 陈蒙蒙, 蒲时, 冯俊涛, 张兴 . 雷公藤鲨烯环氧酶基因克隆与表达分析. 西北植物学报, 2018,38(5):785-791.
	ZHU C S, LIU Y, CHEN M M, PU S, FENG J T, ZHANG X . Cloning and expression analysis of squalene epoxidase genes in Tripterygium wilfordii. Acta Botanica Boreali-Occidentalia Sinica, 2018,38(5):785-791. (in Chinese)
[22]	HIROAKI H, PENGYU H, KENICHIRO I . Up-regulation of soyasaponin biosynthesis by methyl jasmonate in cultured cells of Glycyrrhiza glabra. Plant & Cell Physiology, 2003,44(4):404-411.
[23]	GUO H, LI R, LIU S, ZHAO N, HAN S, LU M, LIU X, XIA X . Molecular characterization, expression, and regulation of Gynostemma pentaphyllum squalene epoxidase gene 1. Plant Physiology and Biochemistry, 2016,109:230-239.
[24]	ZHANG M Y, WANG S Y, YIN J, LI C X, ZHAN Y G, XIAO J L, LIANG T, LI X . Molecular cloning and promoter analysis of squalene synthase and squalene epoxidase genes from Betula platyphylla. Protoplasma, 2016,253:1347-1363.
[25]	赵欢, 郭娟, 唐其, 郭兰萍, 黄璐琦, 马小军 . 罗汉果角鲨烯环氧酶基因的克隆及表达分析. 中国中药杂志, 2018,43(16):3255-3262.
	ZHAO H, GUO J, TANG Q, GUO L P, HUANG L Q, MA X J . Cloning and expression analysis of squalene epoxidase genes from Siraitia grosvenorii. China Journal of Chinese Materia Medica, 2018,43(16):3255-3262. (in Chinese)
[26]	LIPINSKI M, SCHOLZ M, PIEPER K, FISCHER R, PRüFER D, MüLLER K J . A squalene epoxidase from Nigella sativa participates in saponin biosynthesis and mediates terbinafine resistance in yeast. Central European Journal of Biology, 2009,4(2):163-169.
[27]	RUCKENSTUHL C, POSCHENEL A, POSSERT R, BARAL P K, GRUBER K, TURNOWSKY F . Structure-function correlations of two highly conserved motifs in saccharomyces cerevisiae squalene epoxidase. Antimicrobial Agents and Chemotherapy, 2008: 1496-1499.
[28]	李晶, 林雄杰, 王泽辉, 刘艳玲, 林占熺 . 牛樟芝鲨烯环氧酶基因的克隆、生物信息学及表达分析. 中草药, 2018,49(10):2440-2446.
	LI J, LIN X J, WANG Z H, LIU Y L, LIN Z X . Cloning, bioinformatics, and expression analysis of squalene epoxidase in Antrodia cinnamomea. Chinese Traditional and Herbal Drugs, 2018,49(10):2440-2446. (in Chinese)
[29]	MICHIHARA A, MIDO M, MATSUOKA H, MIZUTANI Y . Lower squalene epoxidase and higher scavenger receptor Class B type 1 protein levels are involved in reduced serum cholesterol levels in stroke-prone spontaneously hypertensive rats. Biological and Pharmaceutical Bulletin, 2015,38:1879-1890.
[30]	徐琅, 宋晓峰, 龚祝南 . 3种苜蓿不同部位皂苷含量的测定研究. 安徽农业科学, 2010,38(28):15566-15567.
	XU L, SONG X F, GONG Z N . Determination of saponin content in different parts of 3 kinds of alfalfa. Journal of Anhui Agricultural Sciences, 2010,38(28):15566-15567. (in Chinese)
[31]	COSSON V, DURAND P D'ERFURTH I, KONDOROSI A, RATET P, . Medicago truncatula transformation using leaf explants. Methods in Molecular Biology, 2015,343:115-127.
[32]	GAO K, XU J S, SUN J, XU Y H, WEI J H, SUI C . Molecular cloning and expression of squalene epoxidase from a medicinal plant, Bupleurum chinense. Chinese Herbal Medicines, 2016,8(1):67-74.

引物名称 Primer name	引物序列 Sequence of primer (5′-3′)	用途 Function
P1	GTTCTTTGAGATGGATTATCAGTAT	ORF分离 ORF isolation
P2	AAATGACATGAATACTACAGTGACA	ORF分离 ORF isolation
SQE1-PE-SPt-f	GAAAAGAAGAAAACAGGTTCAAGTT	原核表达 Prokaryotic expression
SQE1-PE-f	ATGGATTATCAGTATATTCTTGGAGGG
SQE1-PE-r	ATGGACAGGAGGCATTCTGTAATAT
SQE1-GFP-f	CCctcgagATGGATTATCAGTATATTCTTGGAGGG	亚细胞定位 Subcellular localization
SQE1-GFP-r	TGgtcgacATGGACAGGAGGCATTCTGTAATAT	亚细胞定位 Subcellular localization
SQE1-RTf-1	GCAAAGGCTCCTCTCACCATAG	实时荧光定量 PCR/qRT-PCR
SQE1-RTr-1	GCACATCAACCAAACAGCGAAT	实时荧光定量 PCR/qRT-PCR
Actin-s	CAAAAGATGGCAGATGCTGAGGAT	内参基因 House-keeping gene
Actin-a	CATGACACCAGTATGACGAGGTCG	内参基因 House-keeping gene
SQE1-P1	tctagaATGGATTATCAGTATATTCTTGGAGGG	扩增目的基因 Amplification of target genes
SQE1-P2	ggatccTTAATGGACAGGAGGCATTCTGTAATATGC	扩增目的基因 Amplification of target genes
35S-f	ACTATCCTTCGCAAGACCCTTCCTC	转基因株系的鉴定 Identification of transgenic lines
SQE1-r	TTAATGGACAGGAGGCATTCTGTAAT	转基因株系的鉴定 Identification of transgenic lines
