黑龙江省稻瘟病菌无毒基因AVR-Pib、AVR-Pik和AvrPiz-t的检测与分析

doi:10.3864/j.issn.0578-1752.2019.23.007

摘要/Abstract

摘要：

【目的】检测黑龙江省稻瘟病菌（Magnaporthe oryzae）无毒基因AVR-Pib、AVR-Pik和AvrPiz-t在不同地区、年份间流行菌株的分布情况与变异机制,了解其等位基因的致病表型,为黑龙江省抗瘟品种布局提供参考依据。【方法】利用NCBI中公布的无毒基因序列对3个无毒基因AVR-Pib、AVR-Pik和AvrPiz-t的基因全长和编码序列（coding sequence,CDS）分别设计特异性引物,将2016年和2017年采自黑龙江省不同地区335个稻瘟病菌单孢分离菌株的DNA进行PCR扩增,通过琼脂糖凝胶电泳检测分析,并挑选不同带型和不同地区代表菌株的PCR产物进行测序。测序结果与相应无毒基因序列进行碱基与氨基酸序列的比较分析,并利用水稻抗性单基因系,对不同变异类型的稻瘟病菌菌株进行致病型测定。【结果】在PCR电泳检测中AVR-Pib、AVR-Pik和AvrPiz-t均出现特异性条带,说明这3个无毒基因在黑龙江省均有分布,并以不同分布频率与突变类型出现。3个无毒基因平均扩增频率分别为75.52％、87.16％和85.67％。其中AVR-Pib通过电泳检测与PCR产物测序检测出4种带型（无带、高带、中高带与低带）和5种变异类型AVR-Pib（1-1、1-2、2、3、3-1）,基因型AVR-Pib-1-1、AVR-Pib-1-2、AVR-Pib-2和AVR-Pib-3-1为新发现的变异类型,其中基因型AVR-Pib-1-1和AVR-Pib-1-2均为转座子Pot2的插入,但插入位点不同;基因型AVR-Pib-2在阅读框上游存在小片段的插入;基因型AVR-Pib-3-1碱基序列与原序列比对有4处差异,即32（C/G）35（T/A）36（T/A）38（T/A）,导致氨基酸翻译提前终止。对检测到的5种等位基因型进行致病型测定,分析发现除正常基因型AVR-Pib-3外,其他变异基因型无毒功能均已丧失。而AVR-Pik经PCR产物测序检测出7种等位基因型,AVR-Pik（D、A、B、C、E、F、F2）,碱基序列的变化均导致氨基酸错义突变,7种等位基因型均已见报道。无毒基因AvrPiz-t通过电泳检测和PCR产物测序分析,发现2种带型（高带和正常带型）与4种基因型AvrPiz-t（A、B、C、D）,其中AvrPiz-t-A为正常基因型;基因型AvrPiz-t-B在191位处有碱基A的插入,导致氨基酸翻译提前终止;基因型AvrPiz-t-C为新发现的等位基因型,其特点在于与A类型存在17（T/C）和19位处碱基C的插入,发生移码突变翻译提前终止;高带型对应的无毒基因型AvrPiz-t-D经测序验证为Pot3转座子的插入。4种基因型菌株分别接种水稻单基因系发现,AvrPiz-t-A可以被Piz-t识别表现无毒,AvrPiz-t（B、C、D）均不能被Piz-t所识别而表现为有毒性。【结论】黑龙江省稻瘟病菌无毒基因AVR-Pib、AVR-Pik和AvrPiz-t分布较为广泛,且变异类型丰富,研究结果可为选育和推广携带相应抗病基因的水稻品种提供参考。

关键词: 黑龙江省, 稻瘟病菌, 无毒基因, AVR-Pib, AVR-Pik, AvrPiz-t

Abstract:

【Objective】The objective of this study is to investigate the distribution and variation mechanism of avirulence genes AVR-Pib, AVR-Pik and AvrPiz-t in Magnaporthe oryzae strains from different regions and years in Heilongjiang Province, to understand the pathogenic phenotypes of different avirulence gene alleles, and to provide a reference for utilization and distribution of resistance cultivars in Heilongjiang Province.【Method】Based on the avirulence gene sequences published in NCBI, specific primers were designed to amplify full length and the coding sequence (CDS) regions of three genes, respectively. From 2016 to 2017, 335 M. oryzae strains in different regions of Heilongjiang Province were collected and isolated, and their DNA was PCR-amplified using avirulence genes primers and analyzed by agarose gel electrophoresis. The PCR products with different band patterns and from representative strains of different regions were selected for sequencing. The sequencing results were compared with the corresponding avirulence gene sequences for base and amino acid. The pathogenic phenotype of M. oryzae strains with different variant types was determined based on the rice resistance to single-gene lines.【Result】The specific bands of AVR-Pib, AVR-Pik and AvrPiz-t were detected in PCR detection and appeared in different distribution frequencies and mutation types, indicating that these 3 avirulence genes were all distributed in Heilongjiang Province. The average amplification frequency of the 3 avirulence genes was 75.52%, 87.16% and 85.67%, respectively. Among them, 4 types of band (bandless, high band, mid to high band and low band) of AVR-Pib were detected by electrophoresis analysis and 5 variant types AVR-Pib (1-1, 1-2, 2, 3, 3-1) were detected by PCR product sequencing. The genotypes AVR-Pib-1-1, AVR-Pib-1-2, AVR-Pib-2 and AVR-Pib-3-1 are newly discovered variant types, of which genotypes AVR-Pib-1-1 and AVR-Pib-1-2 are insertions of transposon Pot2 but with different insertion sites. The genotype AVR-Pib-2 has a small fragment insertion in the upstream of CDS region. The genotype AVR-Pib-3-1 base sequence has 4 differences from the original sequence, namely 32 (C/G) 35 (T/A) 36 (T/A) 38 (T/A), and the amino acid translation was terminated prematurely. Pathogenic analysis showed that except for the normal genotype AVR-Pib-3, the other alleles lost their avirulence functions. Seven AVR-Pik alleles (D, A, B, C, E, F, F2) were detected after PCR product sequencing, and the alterations in the nucleotide sequences of these alleles all resulted in amino acid missense mutations. The 7 AVR-Pik alleles have been reported previously. The avirulence gene AvrPiz-t was analyzed by electrophoresis and sequencing of PCR products, and 2 types of band (high band and normal band type) and 4 genotypes of AvrPiz-t (A, B, C, D) were revealed. Among them, AvrPiz-t-A is the original genotype, while AvrPiz-t-B has a base A insertion at position 191, causing premature termination of amino acid translation. Genotype AvrPiz-t-C is a newly discovered allelic type, characterized by the presence of a nucleotide variation at position 17 (T/C) and the insertion of base C at position 19 compared with type A, leading to the frameshift mutation and premature translation termination. The high band type avirulent genotype AvrPiz-t-D was sequenced and verified as having an insertion of the Pot3 transposon. Rice single-gene lines infection showed that the strains with AvrPiz-t-A were avirulent to Piz-t line due to Piz-t recognition, whereas the strains with AvrPiz-t (B, C, D) were virulent to Piz-t line due to lost the ability recognized by Piz-t.【Conclusion】The avirulence genes AVR-Pib, AVR-Pik and AvrPiz-t of M. oryzae in Heilongjiang Province are widely distributed and the types of variation are abundant. The results of this study can provide a reference for breeding and popularizing rice cultivars with corresponding disease-resistance genes.

Key words: Heilongjiang Province, Magnaporthe oryzae, avirulence gene, AVR-Pib, AVR-Pik, AvrPiz-t

孟峰,张亚玲,靳学慧,张晓玉,姜军. 黑龙江省稻瘟病菌无毒基因AVR-Pib、AVR-Pik和AvrPiz-t的检测与分析[J]. 中国农业科学, 2019, 52(23): 4262-4273.

MENG Feng,ZHANG YaLing,JIN XueHui,ZHANG XiaoYu,JIANG Jun. Detection and Analysis of Magnaporthe oryzae Avirulence Genes AVR-Pib, AVR-Pik and AvrPiz-t in Heilongjiang Province[J]. Scientia Agricultura Sinica, 2019, 52(23): 4262-4273.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2019.23.007

https://www.chinaagrisci.com/CN/Y2019/V52/I23/4262

图/表 13

表1

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

表2

参考文献 33

[1]	COUCH B C, KOHN L M . A multilocus gene genealogy concordant with host preference indicates segregation of a new species, Magnaporthe oryzae, from M. grisea. Mycologia, 2002,94(4):683-693. doi: 10.1080/15572536.2003.11833196 pmid: 21156541
[2]	OU S H . Rice Diseases. 2nd ed. Kew, UK: Commonwealth Mycological Institute, 1985.
[3]	FLOR H H . Current status of the gene-for-gene concept. Annual Review of Phytopathology, 1971,9:275-296. doi: 10.1146/annurev-phyto-072910-095339 pmid: 21599495
[4]	MARCEL S, SAWERS R, OAKELEY E, ANGLIKER H, PASZKOWSKI U . Tissue-adapted invasion strategies of the rice blast fungus Magnaporthe oryzae. The Plant Cell, 2010,22(9):3177-3187. doi: 10.1105/tpc.110.078048 pmid: 20858844
[5]	LIU W, ZHOU X, LI G, LI L, KONG L, WANG C, ZHANG H, XU J R . Multiple plant surface signals are sensed by different mechanisms in the rice blast fungus for appressorium formation. PLoS Pathogens, 2011,7(1):e1001261. doi: 10.1371/journal.ppat.1001261 pmid: 21283781
[6]	MA J H, WANG L, FENG S J, LIN F, XIAO Y, PAN Q H . Identification and fine mapping of AvrPi15, a novel avirulence gene of Magnaporthe grisea. Theoretical and Applied Genetics, 2006,113(5):875-883. doi: 10.1007/s00122-006-0347-6
[7]	SWEIGARD J A, CARROLL A M, KANG S, FARRALL L, CHUMLEY F G, VALENT B . Identification, cloning, and characterization of PWL2, a gene for host species specificity in the rice blast fungus. The Plant Cell, 1995,7(8):1221-1233. doi: 10.1105/tpc.7.8.1221 pmid: 7549480
[8]	KANG S, SWEIGARD J A, VALENT B . The PWL host specificity gene family in the blast fungus Magnaporthe grisea. Molecular Plant-Microbe Interactions, 1995,8(6):939-948. doi: 10.1094/mpmi-8-0939 pmid: 8664503
[9]	ORBACH M J, FARRALL L, SWEIGARD J A, CHUMLEY F G, VALENT B . A telomeric avirulence gene determines efficacy for the rice blast resistance gene Pi-ta. The Plant Cell, 2000,12(11):2019-2032. doi: 10.1105/tpc.12.11.2019 pmid: 11090206
[10]	COLLEMARE J, PIANFETTI M, HOULLE A E, MORIN D, CAMBORDE L, GAGEY M J, BARBISAN C, FUDAL I, LEBRUN M H, BŐHNERT H U . Magnaporthe grisea avirulence gene ACE1 belongs to an infection-specific gene cluster involved in secondary metabolism. New Phytologist, 2008,179(1):196-208. doi: 10.1111/j.1469-8137.2008.02459.x pmid: 18433432
[11]	FARMAN M L, LEONG S A . Chromosome walking to the AVR1-CO39 avirulence gene of Magnaporthe grisea: discrepancy between the physical and genetic maps. Genetics, 1998,150(3):1049-1058. pmid: 9799257
[12]	LI W, WANG B, WU J, LU G, HU Y, ZHANG X, ZHANG Z G, ZHAO Q, ZHANG H Y, WANG Z Y, WANG G L, HAN B, WANG Z H, ZHOU B . The Magnaporthe oryzae avirulence gene AvrPiz-t encodes a predicted secreted protein that triggers the immunity in rice mediated by the blast resistance gene Piz-t. Molecular Plant-Microbe Interactions, 2009,22(4):411-420. doi: 10.1094/MPMI-22-4-0411 pmid: 19271956
[13]	YOSHIDA K, SAITOH H, FUJISAWA S, KANZAKI H, MATSUMURA H, YOSHIDA K, TOSA Y, CHUMA I, TAKANO Y, WIN J, KAMOUN S, TERAUCHI R . Association genetics reveals three novel avirulence genes from the rice blast fungal pathogen Magnaporthe oryzae. The Plant Cell, 2009,21(5):1573-1591. doi: 10.1105/tpc.109.066324 pmid: 19454732
[14]	WU J, KOU Y, BAO J, LI Y, TANG M, ZHU X, PONAYA A, XIAO G, LI J, LI C, SONG M Y, CUMAGUN C J, DENG Q, LU G, JEON J S, NAQVI N I, ZHOU B . Comparative genomics identifies the Magnaporthe oryzae avirulence effector Avr-Pi9 that triggers Pi9-mediated blast resistance in rice. New Phytologist, 2015,206(4):1463-1475. doi: 10.1111/nph.13310 pmid: 25659573
[15]	SCHNEIDER D R, SARAIVA A M, AZZONI A R, MIRANDA H R, DE TOLEDO M A, PELLOSO A C, SOUZA A P . Overexpression and purification of PWL2D, a mutant of the effector protein PWL2 from Magnaporthe grisea. Protein Expression and Purification, 2010,74(1):24-31. doi: 10.1016/j.pep.2010.04.020
[16]	ZHANG S, WANG L, WU W, HE L, YANG X, PAN Q . Function and evolution of Magnaporthe oryzae avirulence gene Avr-Pib responding to the rice blast resistance gene Pib. Scientific Reports, 2015,5:11642. doi: 10.1038/srep11642 pmid: 26109439
[17]	李祥晓, 王倩, 罗生香, 何云霞, 朱苓华, 周永力, 黎志康 . 黑龙江省稻瘟病菌无毒基因分析及抗病种质资源筛选. 作物学报, 2012,38(12):2192-2197. doi: 10.3724/SP.J.1006.2012.02192
	LI X X, WANG Q, LUO S X, HE Y X, ZHU L H, ZHOU Y L, LI Z K . Analyzing avirulence genes of Magnaporthe oryzae from Heilongjiang province and screening rice germplasm with resistance to blast fungus. Acta Agronomica Sinica, 2012,38(12):2192-2197. (in Chinese) doi: 10.3724/SP.J.1006.2012.02192
[18]	王世维, 郑文静, 赵家铭, 魏松红, 王妍, 赵宝海, 刘志恒 . 辽宁省稻瘟病菌无毒基因型鉴定及分析. 中国农业科学, 2014,47(3):462-472. doi: 10.3864/j.issn.0578-1752.2014.03.006
	WANG S W, ZHENG W J, ZHAO J M, WEI S H, WANG Y, ZHAO B H, LIU Z H . Identification and analysis of Magnaporthe oryzae avirulence genes in Liaoning Province. Scientia Agricultura Sinica, 2014,47(3):462-472. (in Chinese) doi: 10.3864/j.issn.0578-1752.2014.03.006
[19]	汪文娟, 苏菁, 杨健源, 韦小燕, 陈凯玲, 陈珍, 陈深, 朱小源 . 源于广8 A杂交稻组合的稻瘟病菌无毒基因型分析. 中国农业科学, 2018,51(24):4633-4646. doi: 10.3864/j.issn.0578-1752.2018.24.005
	WANG W J, SU J, YANG J Y, WEI X Y, CHEN K L, CHEN Z, CHEN S, ZHU X Y . Analysis of Magnaporthe oryzae avirulent genes in the infected hybrid rice combinations derived from a sterile line of Guang 8 A. Scientia Agricultura Sinica, 2018,51(24):4633-4646. (in Chinese) doi: 10.3864/j.issn.0578-1752.2018.24.005
[20]	刘华招, 刘延, 刘化龙, 徐正进, 陈温福 . 黑龙江省种植品种中稻瘟病抗性基因Pib和Pita的分布. 东北农业大学学报, 2011,42(4):27-31.
	LIU H Z, LIU Y, LIU H L, XU Z J, CHEN W F . Distribution of two rice blast resistance genes Pib and Pita in major rice cultivars in Heilongjiang Province in China. Journal of Northeast Agricultural University, 2011,42(4):27-31. (in Chinese)
[21]	于连鹏 . 黑龙江省主栽水稻品种Pita、Pia和Piz-t抗瘟基因检测和抗性评价[D]. 大庆: 黑龙江八一农垦大学, 2017.
	YU L P . Pita, Pia and Piz-t genes detection and blast resistance evaluation of main rice varieties in Heilongjiang Province[D]. Daqing: Heilongjiang Bayi Agricultural University, 2017. (in Chinese)
[22]	蒋金芬, 韩红萍, 梁友方 . 滤纸片法低温冷冻保存菌种的实验室应用. 中国公共卫生, 2006,22(3):310. doi: 10.11847/zgggws2006-22-03-30 pmid: 19443872
	JIANG J F, HAN H P, LIANG Y F . Laboratory application of filter paper method for cryopreservation. Chinese Journal of Public Health, 2006,22(3):310. (in Chinese) doi: 10.11847/zgggws2006-22-03-30 pmid: 19443872
[23]	连兆煌 . 无土栽培原理与技术. 北京: 农业出版社, 1994.
	LIAN Z H. Principles and Techniques of Soilless Cultivation. Beijing: Agriculture Press, 1994. (in Chinese)
[24]	靳学慧, 马汇泉 . 农业植物病理学. 赤峰: 内蒙古科学技术出版社, 1999.
	JIN X H, MA H Q . Agricultural Plant Pathology. Chifeng: Inner Mongolia Science and Technology Press, 1999. (in Chinese)
[25]	LONGYA A, CHAIPANYA C, FRANCESCHETTI M, MAIDMENT J H.R, BANFIELD M J, JANTASURIYARAT C, . Gene duplication and mutation in the emergence of a novel aggressive allele of the AVR-Pik effector in the rice blast fungus. Molecular Plant-Microbe Interactions, 2019,32(6):740-749. doi: 10.1094/MPMI-09-18-0245-R pmid: 30601714
[26]	孙强, 张三元, 张俊国, 杨春刚 . 东北水稻生产现状及对策. 北方水稻, 2010,40(2):72-74.
	SUN Q, ZHANG S Y, ZHANG J G, YANG C G . Current situation of rice production in northeast of China and countermeasures. North Rice, 2010,40(2):72-74. (in Chinese)
[27]	时克, 雷财林, 程治军, 许兴涛, 王久林, 万建民 . 稻瘟病抗性基因Pita和Pib在我国水稻主栽品种中的分布. 植物遗传资源学报, 2009,10(1):21-26.
	SHI K, LEI C L, CHENG Z J, XU X T, WANG J L, WAN J M . Distribution of two blast resistance genes Pita and Pib in major rice cultivars in China. Journal of Plant Genetic Resources, 2009,10(1):21-26. (in Chinese)
[28]	KANZAKI H, YOSHIDA K, SAITOH H, FUJISAKI H, HIRABUCHI A, ALAUX L, FOURNIER E, THARREAU D, TERAUCHI R . Arms race co-evolution of Magnaporthe oryzae Avr-Pik and rice Pik genes driven by their physical interactions. The Plant Journal, 2012,72(6):894-907. doi: 10.1111/j.1365-313X.2012.05110.x pmid: 22805093
[29]	姜华, 余欢, 王艳丽, 孙国昌 . 稻瘟病菌无毒基因序列变异研究进展. 浙江农业学报, 2015,27(3):512-520.
	JIANG H, YU H, WANG Y L, SUN G C . Progress on sequence variation of avirulence gene in the rice blast fungus Magnaporthe grisea. Acta Agriculturae Zhejiangensis, 2015,27(3):512-520. (in Chinese)
[30]	ZHANG S, WANG L, WU W, HE L, YANG X, PAN Q . Function and evolution of Magnaporthe oryzae avirulence gene Avr-Pib responding to the rice blast resistance gene Pib. Scientific Reports, 2015,5:11642. doi: 10.1038/srep11642 pmid: 26109439
[31]	WU W H, WANG L, ZHANG S, LIANG Y Q, ZHENG X L, YI K X, HE C P . Assessment of sensitivity and virulence fitness costs of the AvrPik alleles from Magnaporthe oryzae to isoprothiolane. Genetics and Molecular Research, 2014,13(4):9701-9709. doi: 10.4238/2014.November.24.1
[32]	陈美莲 . 稻瘟病菌无毒基因AvrPiz-t的遗传变异分析[D]. 福州: 福建农林大学, 2014.
	CHEN M L . Genetic variation of avirulence gene AvrPiz-t in Magnaporthe oryzae[D]. Fuzhou: Fujian Agriculture and Forestry University, 2014. (in Chinese)
[33]	刘殿宇 . 黑龙江省稻瘟病菌致病性与无毒基因检测及遗传多样性分析[D]. 大庆: 黑龙江八一农垦大学, 2017.
	LIU D Y . Pathogenicity avirulent gene detection and genetic diversity analysis of Magnaporthe oryzae in Heilongjiang Province[D]. Daqing: Heilongjiang Bayi Agricultural University, 2017. (in Chinese)

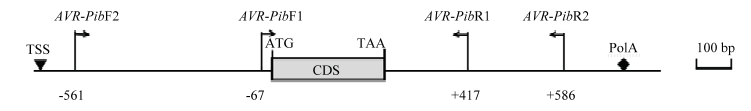

无毒基因 Avirulence gene	引物序列 Primer sequence (5′-3′)	目的片段长度 Length of targeted fragments (bp)	目的 Purpose
AVR-Pib	F1: AAGTCCTTCCCATTACCCTA R1: GCAATAACCATCCAGCCATA	484	检测AVR-Pib CDS Detection of AVR-Pib CDS
AVR-Pib	F2: GAAGTACCCACCCATAACCC R2: CAAGGGAGGCAAATCTAACC	1147	检测AVR-Pib基因全长 Detection of AVR-Pib gene full length
AVR-Pik	F1: AATTTATTCAACTGCCACTCTG R1: AACCTCGTCAAACCTCCCTA	526	检测AVR-Pik CDS Detection of AVR-Pik CDS
AVR-Pik	F2: GACAAACAGGATGGGATT R2: AGGTCGTAGGTCGGAAAC	1929	检测AVR-Pik基因全长 Detection of AVR-Pik gene full length
AvrPiz-t	F1: ATCAAATGAACACCAGGAA R1: CCAGCCGAAGATACAAAA	450	检测AvrPiz-t CDS Detection of AvrPiz-t CDS
AvrPiz-t	F2: AATCTCCCAATGGTTCGC R2: AAAGTGGCTCGTTCCTAA	1965	检测AvrPiz-t基因全长 Detection of AvrPiz-t gene full length

无毒基因 Avirulence gene	2016（127^a）		2017（208^b）		总计Total（335^c）
无毒基因 Avirulence gene	出现个数 Number of occurrences	出现频率 Frequency of occurrence (%)	出现个数 Number of occurrences	出现频率 Frequency of occurrence (%)	出现个数 Number of occurrences	出现频率 Frequency of occurrence (%)
AVR-Pib	104	81.89	149	71.63	253	75.52
AVR-Pik	105	82.68	187	89.90	292	87.16
AvrPiz-t	111	87.40	176	84.62	287	85.67
