中国农业科学 ›› 2025, Vol. 58 ›› Issue (6): 1210-1222.doi: 10.3864/j.issn.0578-1752.2025.06.012

• 食品科学与工程 • 上一篇    下一篇

细菌纤维素协同pH偏移处理对大豆分离蛋白凝胶特性与微观结构的影响

严孙辉(), 罗程, 陈银基, 庄昕波()

  1. 南京财经大学食品科学与工程学院/江苏省现代粮食流通与安全协同创新中心,南京 210023
  • 收稿日期:2024-08-26 接受日期:2024-10-08 出版日期:2025-03-25 发布日期:2025-03-25
  • 通信作者:
    庄昕波,E-mail:
  • 联系方式: 严孙辉,E-mail:2083168411@qq.com。
  • 基金资助:
    国家自然科学基金青年基金(32302124); 江苏高校优势学科建设工程资助项目(PAPD)

Effects of Bacterial Cellulose Combined pH Shifting Treatment on Gel Characteristics and Microstructure of Soy Protein Isolate

YAN SunHui(), LUO Cheng, CHEN YinJi, ZHUANG XinBo()

  1. College of Food Science and Engineering, Nanjing University of Finance and Economics, Nanjing/Jiangsu Modern Grain Circulation and Safety Collaborative Innovation Center, Nanjing 210023
  • Received:2024-08-26 Accepted:2024-10-08 Published:2025-03-25 Online:2025-03-25

摘要:

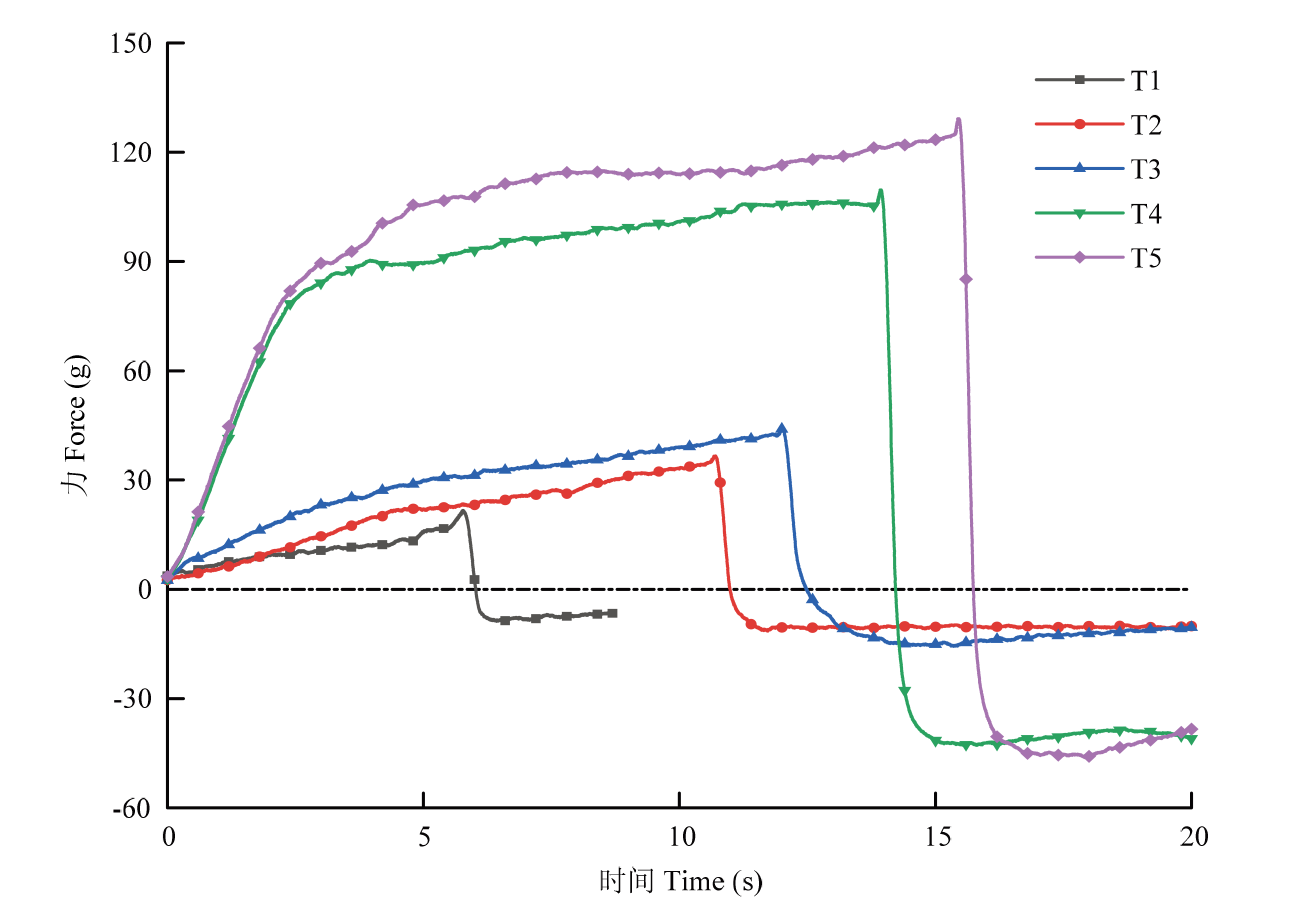

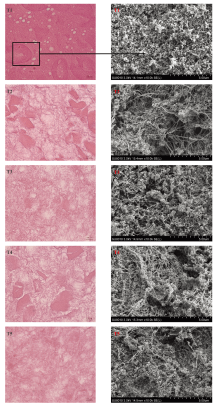

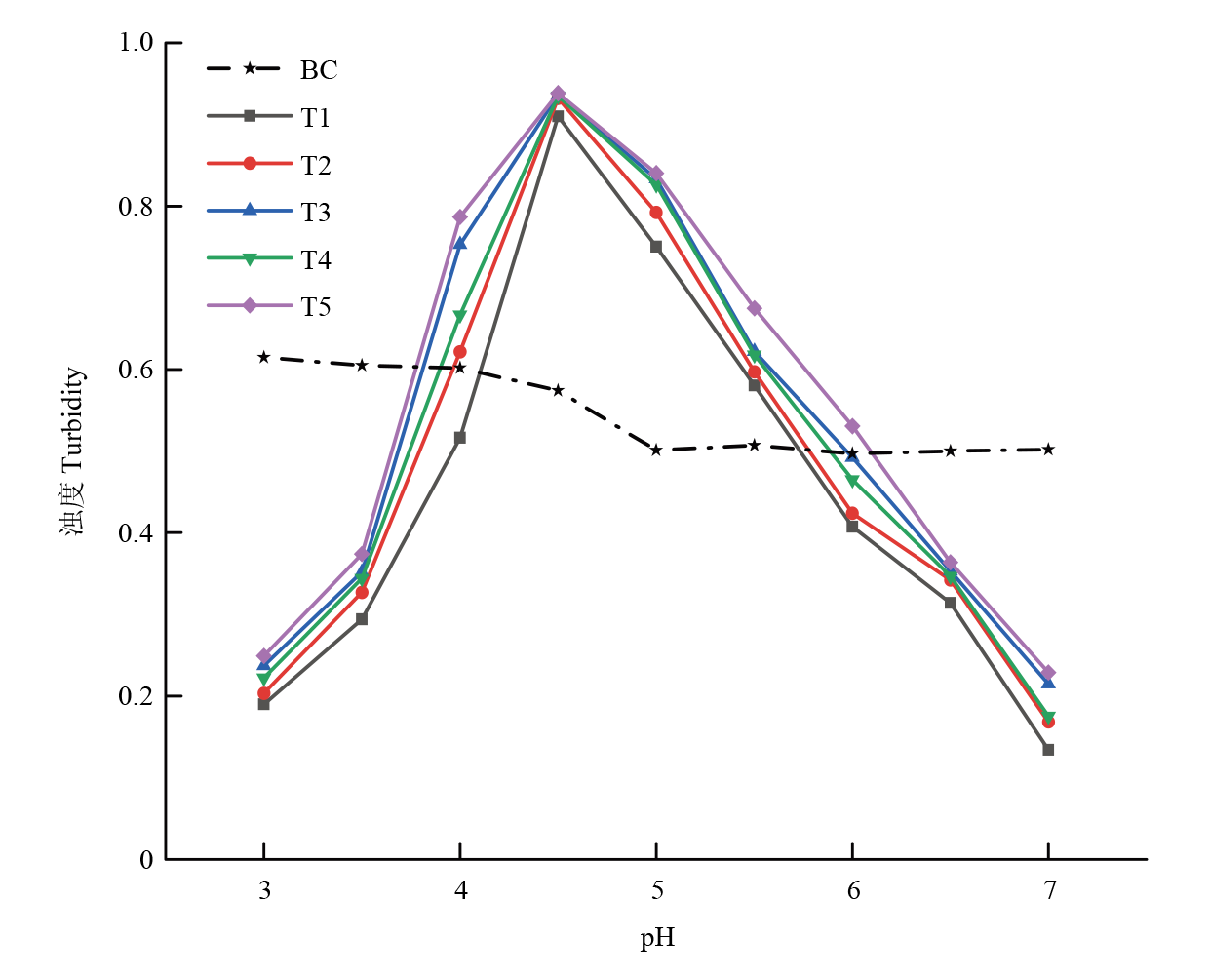

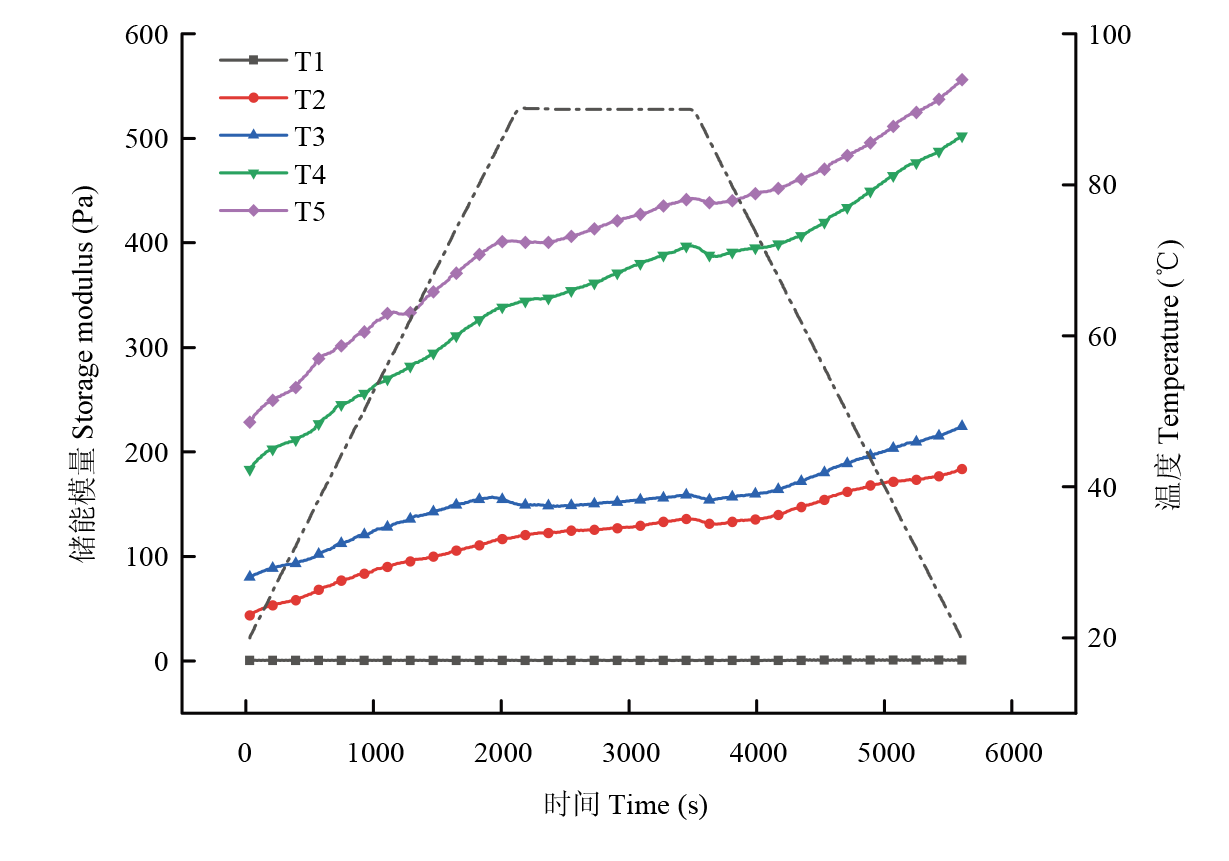

【目的】 研究细菌纤维素协同pH偏移处理对大豆分离蛋白凝胶特性与微观结构的影响,阐述其影响机制,为不溶性多糖与蛋白分子间相互作用提供理论支撑。【方法】 以不同比例细菌纤维素协同pH偏移处理制备大豆分离蛋白-细菌纤维素复合体系,研究pH偏移对大豆分离蛋白-细菌纤维素复合体系凝胶特性、流变特性和微观结构的影响。【结果】 经过细菌纤维素协同pH偏移处理后,粒径分布结果显示复合体系在4 145 nm附近出现新的复合峰,复合体的粒径增大,且当细菌纤维素添加比例提高后,粒径增大至4 801 nm附近。经过细菌纤维素协同pH偏移处理的复合体系溶液的浊度显著增大,并随着细菌纤维素添加比例的提高而增大。细菌纤维素协同pH偏移处理组的表面疏水性显著提高(P<0.05)。凝胶外观结果图显示,单纯添加细菌纤维素的处理组和细菌纤维素协同pH偏移处理组经过热诱导形成的复合凝胶都呈现出表面光滑且具有良好回弹性。细菌纤维素协同pH偏移处理组(15﹕1)的凝胶强度和流变特性也得到显著提高(P<0.05),分别从21.49 g和0.93 Pa显著提高到129.16 g和556.2 Pa(P<0.05)。同时,在二级结构中,β-折叠结构的含量从39.58%显著提高至42.05%(P<0.05)。石蜡切片结果显示单纯添加的细菌纤维素仅物理填充于蛋白凝胶网络中,与大豆分离蛋白存在明显的界线;而经过细菌纤维素协同pH偏移处理的复合体系凝胶网络分布均匀。扫描电镜结果显示大豆分离蛋白对照组显现多孔结构并存在大量团状结构,单纯添加的细菌纤维素与大豆分离蛋白在复合体系中表现出各自大面积富集,而细菌纤维素协同pH偏移处理中丝状细菌纤维素上附着大豆分离蛋白,蛋白交联紧密。激光共聚焦结果显示大豆分离蛋白对照组中存在大量孔洞结构;单纯添加细菌纤维素并未使孔洞结构减少且微观结构呈现相分离的结构;经过pH偏移处理后大豆分离蛋白与细菌纤维素发生更加紧密的缠绕连接,复合凝胶体系的微观结构由相分离结构转变为相均匀结构,且孔洞结构减少。【结论】 细菌纤维素协同pH偏移处理可以改善大豆分离蛋白的凝胶特性,同时促使相分离结构转变为相均匀结构,使复合凝胶体系的微观结构更加均匀致密。

关键词: 大豆分离蛋白, 细菌纤维素, pH偏移, 微观结构, 凝胶特性

Abstract:

【Objective】 This study aimed to investigate the effects of bacterial cellulose combined pH shifting treatment on the gel properties and microstructure of soy protein isolate, and to elucidate the underlying mechanisms, so as to provide the theoretical support for the interactions between insoluble polysaccharides and protein molecules.【Method】 Soy protein isolate-bacterial cellulose composite systems were prepared with varying ratios of bacterial cellulose, with and without pH shifting treatment. Then, the effects of bacterial cellulose combined with pH shift treatment the gel properties, rheological characteristics, and microstructure of the soy protein isolate composite systems were study.【Result】 After the bacterial cellulose combined with pH shifting treatment, the particle size distribution analysis revealed a new composite peak around 4 145 nm, indicating an increase in the particle size of the soy protein isolate composite system. Additionally, as the ratio of bacterial cellulose increased, the particle size further rose to approximately 4 801 nm. The turbidity of the soy protein isolate with bacterial cellulose combined pH shifting treatment significantly increased, and this turbidity also rose with the higher addition of bacterial cellulose. Notably, the surface hydrophobicity of the group with bacterial cellulose combined pH shifting treatment was significantly enhanced (P<0.05). The visual appearance of the composite gel indicated that both the group with bacterial cellulose addition and the group with bacterial cellulose combined pH shifting treatment exhibited a smooth surface and good elasticity following the thermal process. The gel strength and rheological properties of the group with bacterial cellulose combined pH shifting treatment (15:1) showed significant improvement (P<0.05), with values increasing from 21.49 g and 0.93 Pa to 129.16 g and 556.2 Pa, respectively (P<0.05). Furthermore, the content of the β-sheet structure in the secondary structure increased significantly from 39.58% to 42.05% (P<0.05). Paraffin section results indicated that the bacterial cellulose physically filled the protein gel network, showing a distinct boundary with the soy protein isolate. In contrast, the gel network of the composite system treated with bacterial cellulose combined pH shifting treatment was uniformly distributed. Scanning electron microscopy (SEM) analysis showed that the soy protein isolate exhibited a porous structure with numerous aggregated formations, while the group with bacterial cellulose addition demonstrated extensive areas of accumulation. In the group bacterial cellulose combined pH shifting treatment, the filamentous bacterial cellulose was found to be embedded within the soy protein isolate, resulting in a tightly cross-linked protein structure. Laser confocal microscopy results indicated the presence of numerous pore structures in the control group, while the addition of bacterial cellulose did not reduce these pore structures and exhibited a phase-separated microstructure. However, after the pH shifting treatment, a tighter intertwined connection was formed between the soy protein isolate and bacterial cellulose, leading to a microstructure transformation from phase separation to phase uniformity, accompanied by a decrease in pore structure.【Conclusion】 The combination of bacterial cellulose with pH shift treatment could improve the gel properties of soybean protein isolate, and promote the phase separation structure to a uniform phase structure, which made the microstructure of the composite gel system more uniform and dense.

Key words: soy protein isolate, bacterial cellulose, pH shifting treatment, microstructure, gel properties
