分子动力学模拟解析脉冲电场对类PSE鸡肉肌球蛋白凝胶特性作用规律

doi:10.3864/j.issn.0578-1752.2023.04.012

中国农业科学 ›› 2023, Vol. 56 ›› Issue (4): 741-753.doi: 10.3864/j.issn.0578-1752.2023.04.012

分子动力学模拟解析脉冲电场对类PSE鸡肉肌球蛋白凝胶特性作用规律

郭雨晨¹(), 董铭¹, 曾宪明¹, 田惠鑫¹, 尹家琪¹, 侯钰柯¹, 白云¹, 唐长波¹, 韩敏义¹^,²(), 徐幸莲¹

¹南京农业大学食品科技学院/江苏省肉类生产与加工质量安全控制协同创新中心/农业部肉品加工重点实验室，南京 210095
²温氏食品集团股份有限公司，广东云浮 527400

收稿日期:2022-04-13 接受日期:2022-11-10 出版日期:2023-02-16 发布日期:2023-02-24
通信作者: 韩敏义，E-mail：myhan@njau.edu.cn
联系方式: 郭雨晨，E-mail：guoycnjau@163.com。
基金资助:
国家自然科学基金(32272252); 兵团重点领域科技攻关项目(2022AB001); 国家重点研发计划(2019YFC1606200); 现代农业产业技术体系专项资金资助(CARS-41)

Effects of Pulsed Electric Field on Gelation Properties of PSE-Like Chicken Myosin: A Molecular Dynamics Simulation Analysis

GUO YuChen¹(), DONG Ming¹, ZENG XianMing¹, TIAN HuiXin¹, YIN JiaQi¹, HOU YuKe¹, BAI Yun¹, TANG ChangBo¹, HAN MinYi¹^,²(), XU XingLian¹

¹College of Food Science and Technology, Nanjing Agricultural University/Collaborative Innovation Center for Meat Production and Processing Quality and Safety Control of Jiangsu Province/Key Laboratory for Meat Processing, Ministry of Agriculture, Nanjing 210095
²Wens Foodstuff Group Co., Ltd., Yunfu 527400, Guangdong

Received:2022-04-13 Accepted:2022-11-10 Published:2023-02-16 Online:2023-02-24

摘要/Abstract

摘要：

【目的】以类PSE鸡肉肌原纤维蛋白为研究对象，通过分子动力学模拟技术研究脉冲电场处理对其凝胶特性和构象修饰的影响，并对凝胶特性改变的潜在机制进行阐述，以此拓宽这种新兴食品加工技术的工业应用，为禽类加工方向提高异常肉制品的经济效益提供一种新的方法。【方法】本试验选取类PSE鸡肉为原料并提取其肌原纤维蛋白，对比8、18和28 kV·cm^-1电场强度下脉冲电场（脉冲电场频率为800 Hz，占空比47%）处理及非脉冲电场处理的类PSE鸡肉肌原纤维蛋白不稳定动力学指数、流变学特性及通过分子动力学技术建立电场强度18 kV·cm^-1的脉冲电场模拟体系，通过收集模拟过程中的均方根偏差（RMSD）、均方根波动（RMSF）和对蛋白质总体构象的观察的变化来阐明在该条件下脉冲电场处理对类 PSE 鸡肉肌原纤维蛋白分子构象动态变化的作用机制。研究脉冲电场作用对类PSE鸡肉肌原纤维蛋白构象稳定性、保水性、流变特性的影响。【结果】不同电场强度的脉冲电场处理后的类PSE鸡肉肌原纤维蛋白体系不稳定动力学曲线斜率更小，蛋白体系相较于未经处理的样品更加稳定。蛋白凝胶的保水性结果为18 kV·cm^-1（81.42%）>28 kV·cm^-1（79.46%）>8 kV·cm^-1（77.82%）>0 kV·cm^-1（76.15%），流变学特性研究表明储能模量（G′）和损耗模量（G″）的变化与保水性变化具有相同的趋势，且18 kV·cm^-1的脉冲电场处理显著提高了蛋白凝胶的G′和G″（P<0.05）。18 kV·cm^-1电场强度下进行30 ns的分子动力学模拟结果显示，多聚体蛋白模型在处理后显示出更高的RMSD值及更为显著的RMSF波动，体现为蛋白质分子二级结构发生解螺旋和解折叠，α-螺旋转变为无规则卷曲，蛋白质分子多肽链展开，氨基酸残基暴露，同时蛋白质分子表现出更高的柔韧性。蛋白质-蛋白质和蛋白质-水之间的相互作用，如静电相互作用、氢键、二硫键、疏水相互作用等发生改变。但电场强度继续增加至28 kV·cm^-1时，肌球蛋白因蛋白质间的相互作用增强而聚集使脉冲电场对蛋白质特性改善的作用降低。【结论】18 kV·cm^-1的脉冲电场处理改变了类PSE鸡肉肌原纤维蛋白原有的空间结构，疏水基团的外露和氢键的形成增强蛋白质与水分子的结合及蛋白质分子间的相互作用从而提高类PSE鸡肉肌球蛋白凝胶的稳定性和流变特性，表现出更优的凝胶保水性和弹性网络结构。

关键词: 类PSE鸡肉, 肌原纤维蛋白质, 脉冲电场, 凝胶特性, 分子动力学模拟

Abstract:

【Objective】In the present study, the effects of pulsed electric field (PEF) on pale soft exudative-like (PSE-like) chicken myofibrillar protein gel properties and conformational modification were investigated by molecular dynamics simulation. The potential mechanism of gel properties change was explored, so as to broaden the industrial application of this emerging food processing technology and to provide a novel method for enhancing abnormal meat products economic benefit in poultry processing. 【Method】Myofibrillar protein was extracted from PSE-like chicken. Effect of PEF under 8, 18 and 28 kV·cm^-1 electric field intensity (800 Hz, duty cycle 47%) were compared with untreated samples of PSE-like chicken myofibrillar for turbiscan stability index (TSI) and rheological properties, and the PEF simulation system of 18 kV·cm^-1 electric field strength was established by molecular dynamics simulation technology. The root mean square deviation (RMSD), root mean square fluctuation (RMSF) and the overall conformational changes of proteins were collected to explore the mechanism of PEF treatment on the molecular conformational changes of myofibrillar proteins in PSE-like chicken, and the effects of PEF on the conformational stability, water holding capacity (WHC) and rheological properties of myofibrillar protein extracted from PSE-like chicken were also evaluated. 【Result】The TSI of the PSE-like chicken myofibrillar protein system treated by PEF with various field strengths had a smaller slope, which indicated that the protein system was more stable than the untreated sample. The results of WHC of protein gel were 18 kV·cm^-1 (81.42%)>28 kV·cm^-1 (79.46%)>8 kV·cm^-1 (77.82%)>0 kV·cm^-1 (76.15%). The rheological properties demonstrated that the changes of storage modulus (G') and loss modulus (G") had the same trend as that of WHC, and the treatment of 18 kV·cm^-1 significantly improved the G 'and G" of myofibrillar protein gel (P<0.05). The molecular dynamics simulation result of 30 ns under 18 kV·cm^-1 PEF revealed the polymer protein model acted higher RMSD value and more obvious RMSF fluctuation after treatment, which reflected that the secondary structure of protein molecule was uncoiled and unfolded, α-helix was transformed into irregular crimp, protein polypeptide chain was expanded, amino acid residues were exposed, and protein molecules displayed higher flexibility. Interactions of protein-protein and protein-water have been modified, such as electrostatic interaction, hydrogen bond, disulfide bond, hydrophobic interaction. However, when the electric field intensity increased to 28 kV·cm^-1, myosin aggregated due to the enhancement of protein-protein interaction, which reduced the effect of PEF on protein property. 【Conclusion】The 18 kV·cm^-1 PEF changed the inherent spatial structure of PSE-like chicken myofibrillar protein, the exposure of hydrophobic groups and the formation of hydrogen bonds enhanced the binding of protein and water molecules and the interaction between protein molecules, thus improving the stability and rheological properties of PSE-like chicken myosin gel, which contribute to better gel WHC and elastic network structure.

Key words: PSE-like chicken, myofibrillar protein, pulsed electric field, gel properties, molecular dynamics simulation

郭雨晨, 董铭, 曾宪明, 田惠鑫, 尹家琪, 侯钰柯, 白云, 唐长波, 韩敏义, 徐幸莲. 分子动力学模拟解析脉冲电场对类PSE鸡肉肌球蛋白凝胶特性作用规律[J]. 中国农业科学, 2023, 56(4): 741-753.

GUO YuChen, DONG Ming, ZENG XianMing, TIAN HuiXin, YIN JiaQi, HOU YuKe, BAI Yun, TANG ChangBo, HAN MinYi, XU XingLian. Effects of Pulsed Electric Field on Gelation Properties of PSE-Like Chicken Myosin: A Molecular Dynamics Simulation Analysis[J]. Scientia Agricultura Sinica, 2023, 56(4): 741-753.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2023.04.012

https://www.chinaagrisci.com/CN/Y2023/V56/I4/741

图/表 6

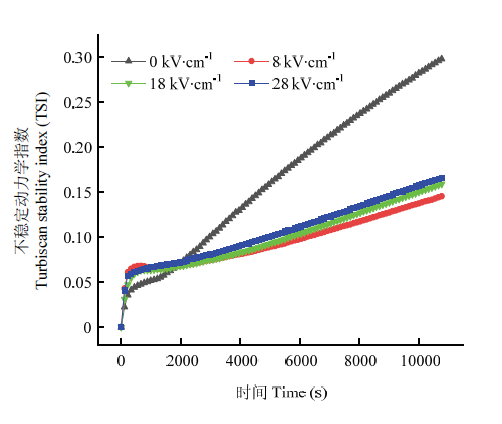

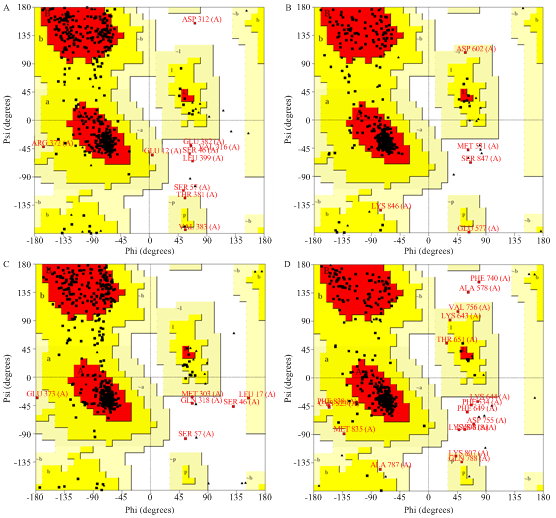

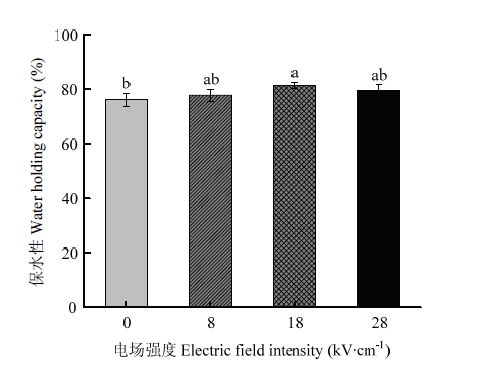

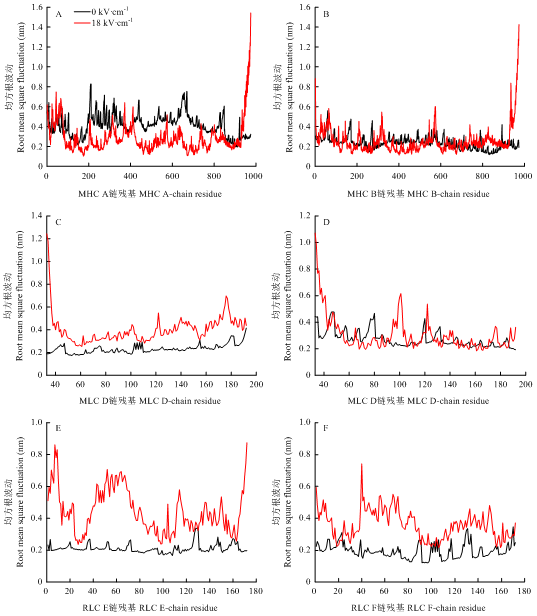

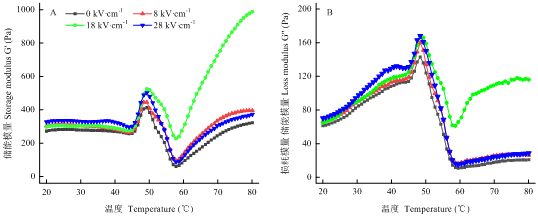

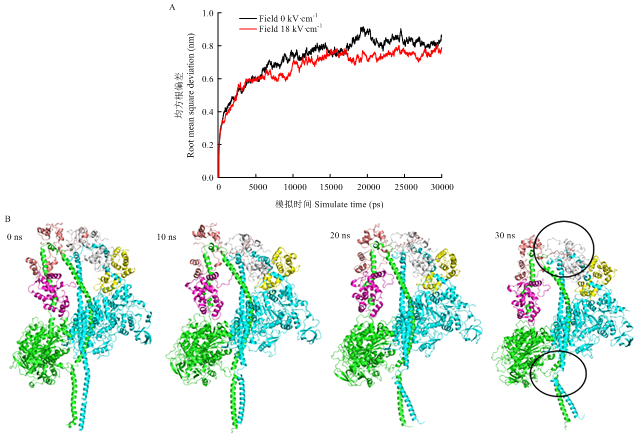

图1

图2

图3

图4

图5

图6

参考文献 37

[1]	ZHAO X, CHEN X, HAN M Y, QIAN C, XU X L, ZHOU G H. Application of isoelectric solubilization/precipitation processing to improve gelation properties of protein isolated from pale, soft, exudative (PSE)-like chicken breast meat. LWT-Food Science and Technology, 2016, 72: 141-148. doi: 10.1016/j.lwt.2016.04.045
[2]	DONG M, CHEN H Q, ZHANG Y M, XU Y J, HAN M Y, XU X L, ZHOU G H. Processing properties and improvement of pale, soft, and exudative-like chicken meat: A review. Food and Bioprocess Technology, 2020, 13(8): 1280-1291. doi: 10.1007/s11947-020-02464-3
[3]	农业农村部畜牧兽医局. 2021年肉鸡产业发展形势及2022年展望. 中国畜牧业, 2022(3): 43-46.
	Ministry of Agriculture and Rural Affairs of the People’s Republic of China. Development situation of broiler industry in 2021 and prospect in 2022. China Animal Industry, 2022(3): 43-46. (in Chinese)
[4]	彭晓龙, 李琳, 李冰, 焦文娟, 万力婷, 张霞. 花生油对类PSE鸡肉糜凝胶特性及微观结构的影响. 食品科技, 2018, 43(9): 158-165.
	PENG X L, LI L, LI B, JIAO W J, WAN L T, ZHANG X. Effects of peanut oil on gel properties and microstructure of PSE-like chicken meat. Food Science and Technology, 2018, 43(9): 158-165. (in Chinese)
[5]	CARVALHO R H, SOARES A L, HONORATO D C B, GUARNIERI P D, PEDRAO M R, PAIAO F G, OBA A, IDA E I, SHIMOKOMAKI M. The incidence of pale, soft, and exudative (PSE) turkey meat at a Brazilian commercial plant and the functional properties in its meat product. Food Science and Technology, 2014, 59(2): 883-888.
[6]	KARUNANAYAKA D S, JAYASENA D D, JO C. Prevalence of pale, soft, and exudative (PSE) condition in chicken meat used for commercial meat processing and its effect on roasted chicken breast. Journal of Animal Science and Technology, 2016, 58: 1-8. doi: 10.1186/s40781-015-0081-1
[7]	LIU J, ARNER A, PUOLANNE E, ERTBJERG P. On the water- holding of myofibrils: Effect of sarcoplasmic protein denaturation. Meat Science, 2016, 119: 32-40. doi: 10.1016/j.meatsci.2016.04.020
[8]	BIAN G L, XUE S W, XU Y J, XU X L, HAN M Y. Improved gelation functionalities of myofibrillar protein from pale, soft and exudative chicken breast meat by nonenzymatic glycation with glucosamine. International Journal of Food Science and Technology, 2018, 53(8): 2006-2014. doi: 10.1111/ijfs.13789
[9]	LI K, KANG Z L, ZHAO Y Y, XU X L, ZHOU G H. Use of high-intensity ultrasound to improve functional properties of batter suspensions prepared from PSE-like chicken breast meat. Food and Bioprocess Technology, 2014, 7(12): 3466-3477. doi: 10.1007/s11947-014-1358-y
[10]	BHAT Z F, MORTON J D, MASON S L, EL-DIN A BEKHIT A. Current and future prospects for the use of pulsed electric field in the meat industry. Critical Reviews in Food Science and Nutrition, 2019, 59(10): 1660-1674. doi: 10.1080/10408398.2018.1425825. doi: 10.1080/10408398.2018.1425825 pmid: 29393666
[11]	张若兵, 陈杰, 肖健夫, 廖小军, 王黎明, 关志成. 高压脉冲电场设备及其在食品非热处理中的应用. 高电压技术, 2011, 37(3): 777-786.
	ZHANG R B, CHEN J, XIAO J F, LIAO X J, WANG L M, GUAN Z C. Pulsed electric fields system and its application in non-thermal food processing. High Voltage Engineering, 2011, 37(3): 777-786. (in Chinese)
[12]	BARBA F J, PARNIAKOV O, PEREIRA S A, WIKTOR A, GRIMI N, BOUSSETTA N, SARAIVA J A, RASO J, MARTIN-BELLOSO O, WITROWA-RAJCHERT D, LEBOVKA N, VOROBIEV E. Current applications and new opportunities for the use of pulsed electric fields in food science and industry. Food Research International, 2015, 77: 773-798. doi: 10.1016/j.foodres.2015.09.015
[13]	XIANG B Y, NGADI M O, SIMPSON B K, SIMPSON M V. Pulsed electric field induced structural modification of soy protein isolate as studied by fluorescence spectroscopy. Journal of Food Processing and Preservation, 2011, 35(5): 563-570. doi: 10.1111/j.1745-4549.2010.00501.x
[14]	金声琅, 殷涌光, 王莹. 脉冲电场协同加热对乳清蛋白凝胶质构特性的影响. 农业机械学报, 2013, 44(1): 142-146. doi: 10.6041/j.issn.1000-1298.2013.01.027. doi: 10.6041/j.issn.1000-1298.2013.01.027.
	JIN S L, YIN Y G, WANG Y. Effects of combined pulsed electric field and heat treatment on texture characteristics of whey protein gels. Transactions of the Chinese Society for Agricultural Machinery, 2013, 44(1): 142-146. doi: 10.6041/j.issn.1000-1298.2013.01.027. (in Chinese) doi: 10.6041/j.issn.1000-1298.2013.01.027.
[15]	涂宗财, 李雪, 王辉, 杨文华, 田明, 马达. 高压脉冲电场对β-乳球蛋白结构和抗原性的影响. 食品与发酵工业, 2016, 42(5): 62-67. doi:10.13995/j.cnki.11-1802/ts.201605011. doi: 10.13995/j.cnki.11-1802/ts.201605011.
	TU Z C, LI X, WANG H, YANG W H, TIAN M, MA D. Effect of pulsed electric fields on structure and antigenicity of β-lactoglobulin. Food and Fermentation Industries, 2016, 42(5): 62-67. doi: 10.13995/j.cnki.11-1802/ts.201605011. (in Chinese) doi: 10.13995/j.cnki.11-1802/ts.201605011.
[16]	DONG M, XU Y J, ZHANG Y M, HAN M Y, WANG P, XU X L, ZHOU G H. Physicochemical and structural properties of myofibrillar proteins isolated from pale, soft, exudative (PSE)-like chicken breast meat: Effects of pulsed electric field (PEF). Innovative Food Science & Emerging Technologies, 2020, 59: 102277.
[17]	DONG M, TIAN H X, XU Y J, HAN M Y, XU X L. Effects of pulsed electric fields on the conformation and gelation properties of myofibrillar proteins isolated from pale, soft, exudative (PSE)-like chicken breast meat: A molecular dynamics study. Food Chemistry, 2021, 342: 128306. doi: 10.1016/j.foodchem.2020.128306
[18]	HARISH VAGADIA B, VANGA S K, SINGH A, RAGHAVAN V. Effects of thermal and electric fields on soybean trypsin inhibitor protein: A molecular modelling study. Innovative Food Science & Emerging Technologies, 2016, 35: 9-20.
[19]	梁荣蓉, 李楠, 王仁欢, 朱立贤, 毛衍伟, 牛乐宝, 张一敏, 罗欣.夏季类PSE鸡肉判定标准的建立及其品质特征. 食品与发酵工业, 2014, 40(8): 231-237.
	LIANG R R, LI N, WANG R H, ZHU L X, MAO Y W, NIU L B, ZHANG Y M, LUO X. The establishment of evaluating PSE-like chicken meat in summer. Food and Fermentation Industries, 2014, 40(8): 231-237. (in Chinese)
[20]	HAN M Y, WANG P, XU X, ZHOU G H. Low-field NMR study of heat-induced gelation of pork myofibrillar proteins and its relationship with microstructural characteristics. Food Research International, 2014, 62: 1175-1182. doi: 10.1016/j.foodres.2014.05.062
[21]	ZHAO L, ZHANG S W, ULUKO H, LIU L, LU J, XUE H X, KONG F H, LV J P. Effect of ultrasound pretreatment on rennet-induced coagulation properties of goat’s milk. Food Chemistry, 2014, 165: 167-174. doi: 10.1016/j.foodchem.2014.05.081
[22]	SONG S Y, PARK M S, LEE J W, YUN J S. A Study on the Rheological and Mechanical Properties of Photo-Curable Ceramic/ Polymer Composites with Different Silane Coupling Agents for SLA 3D Printing Technology. Nanomaterials (Basel, Switzerland), 2018, 8(2): E93.
[23]	CHEN X, LI Y, ZHOU R Y, LIU Z M, LU F, LIN H, XU X L, ZHOU G H. l-histidine improves water retention of heat-induced gel of chicken breast myofibrillar proteins in low ionic strength solution. International Journal of Food Science and Technology, 2016, 51(5): 1195-1203. doi: 10.1111/ijfs.13086
[24]	AMIRI A, MOUSAKHANI-GANJEH A, SHAFIEKHANI S, MANDAL R, SINGH A P, KENARI R E. Effect of high voltage electrostatic field thawing on the functional and physicochemical properties of myofibrillar proteins. Innovative Food Science and Emerging Technologies, 2019, 56: 102191. doi: 10.1016/j.ifset.2019.102191
[25]	ZHANG L, WANG P, YANG Z Y, DU F F, LI Z, WU C L, FANG A H, XU X L, ZHOU G H. Molecular dynamics simulation exploration of the interaction between curcumin and myosin combined with the results of spectroscopy techniques. Food Hydrocolloids, 2020, 101: 105455. doi: 10.1016/j.foodhyd.2019.105455
[26]	SINGH A, ORSAT V, RAGHAVAN V. Soybean hydrophobic protein response to external electric field: A molecular modeling approach. Biomolecules, 2013, 3(1): 168-179. doi: 10.3390/biom3010168 pmid: 24970163
[27]	ZHANG B, HAO G J, CAO H J, TANG H, ZHANG Y Y, DENG S G. The cryoprotectant effect of xylooligosaccharides on denaturation of peeled shrimp (Litopenaeus vannamei) protein during frozen storage. Food Hydrocolloids, 2018, 77: 228-237. doi: 10.1016/j.foodhyd.2017.09.038
[28]	ENGLISH N J, SOLOMENTSEV G Y, O’BRIEN P. Nonequilibrium molecular dynamics study of electric and low-frequency microwave fields on hen egg white lysozyme. The Journal of Chemical Physics, 2009, 131(3): 035106. doi: 10.1063/1.3184794. doi: 10.1063/1.3184794.
[29]	王丽娟. 脉冲电场处理对双低油菜出油率及油脂和蛋白性质的影响[D]. 扬州: 扬州大学, 2016.
	WANG L J. Effects of pulsed electric field treatment on oil yield, oil and protein properties of double-low rapeseed[D]. Yangzhou: Yangzhou University, 2016. (in Chinese)
[30]	ZHANG Z Y, YANG Y L, TANG X Z, CHEN Y J, YOU Y. Chemical forces and water holding capacity study of heat-induced myofibrillar protein gel as affected by high pressure. Food Chemistry, 2015, 188: 111-118. doi: 10.1016/j.foodchem.2015.04.129 pmid: 26041172
[31]	ZHAO W, TANG Y L, LU L X, CHEN X, LI C Y. Review: Pulsed electric fields processing of protein-based foods. Food and Bioprocess Technology, 2014, 7(1): 114-125. doi: 10.1007/s11947-012-1040-1
[32]	GUO J J, ZHOU Y H, YANG K, YIN X L, MA J, LI Z S, SUN W Q, HAN M Y. Effect of low-frequency magnetic field on the gel properties of pork myofibrillar proteins. Food Chemistry, 2019, 274: 775-781. doi: S0308-8146(18)31597-8 pmid: 30373007
[33]	CHEN X, QIU Q Y, CHEN K W, LI D, LIANG L. Water-soluble myofibrillar protein-pectin complex for enhanced physical stability near the isoelectric point: Fabrication, rheology and thermal property. International Journal of Biological Macromolecules, 2020, 142: 615-623. doi: S0141-8130(19)36195-1 pmid: 31622714
[34]	AZARIKIA F, ABBASI S. Mechanism of soluble complex formation of milk proteins with native gums (tragacanth and Persian gum). Food Hydrocolloids, 2016, 59: 35-44. doi: 10.1016/j.foodhyd.2015.10.018
[35]	STONE A K, CHEUNG L, CHANG C, NICKERSON M T. Formation and functionality of soluble and insoluble electrostatic complexes within mixtures of canola protein isolate and (κ-, ι- and λ-type) carrageenan. Food Research International, 2013, 54(1): 195-202. doi: 10.1016/j.foodres.2013.06.009
[36]	ZHANG L, WANG L J, JIANG W, QIAN J Y. Effect of pulsed electric field on functional and structural properties of canola protein by pretreating seeds to elevate oil yield. LWT-Food Science and Technology, 2017, 84: 73-81. doi: 10.1016/j.lwt.2017.05.048
[37]	金声琅, 王莹, 殷涌光. 高压脉冲电场对淀粉和肌原纤维蛋白混合凝胶强度的影响. 吉林大学学报(工学版), 2014, 44(2): 573-578. doi: 10.13229/j.cnki.jdxbgxb201402046. doi: 10.13229/j.cnki.jdxbgxb201402046.
	JIN S L, WANG Y, YIN Y G. Effect of high intensity pulsed electric field pretreatment on elasticity of starch-myofibril protein mixed gelatin. Journal of Jilin University (Engineering and Technology Edition), 2014, 44(2): 573-578. doi: 10.13229/j.cnki.jdxbgxb201402046. (in Chinese) doi: 10.13229/j.cnki.jdxbgxb201402046.
