苹果U6启动子的克隆及功能分析

doi:10.3864/j.issn.0578-1752.2019.23.016

摘要/Abstract

摘要：

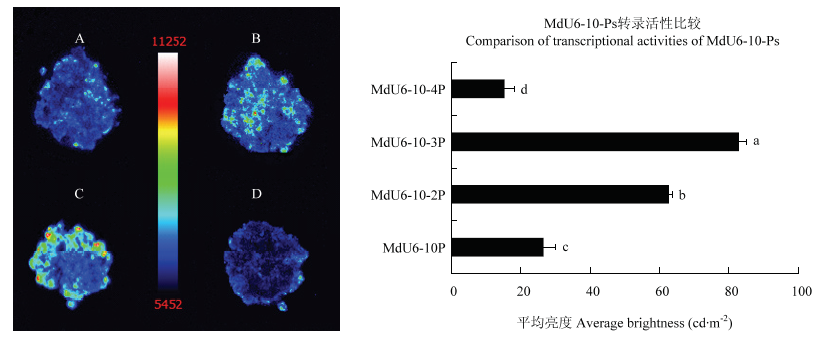

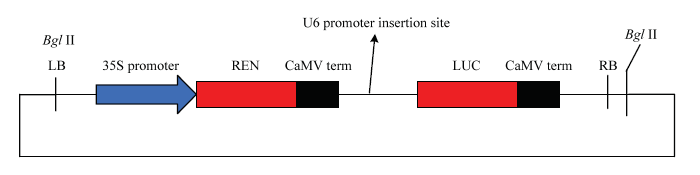

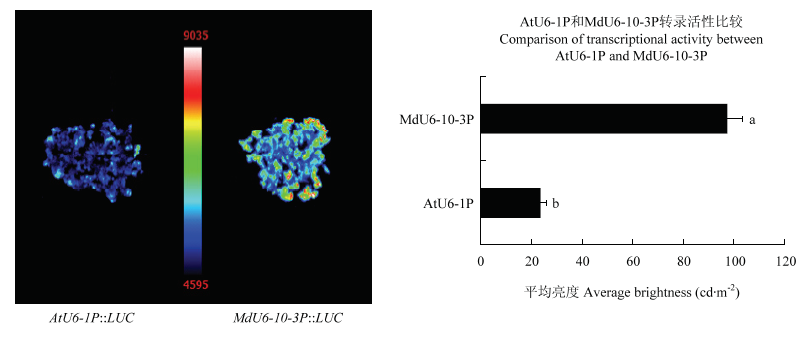

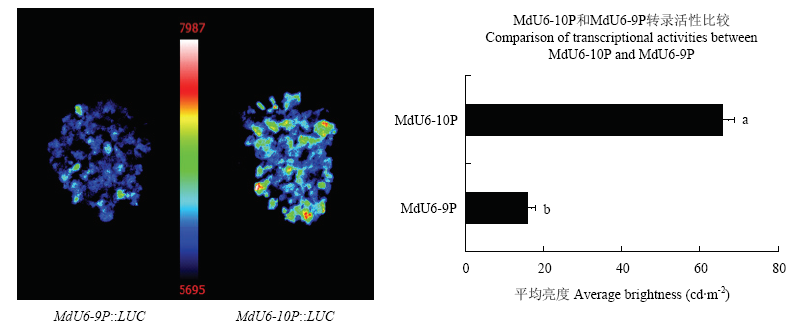

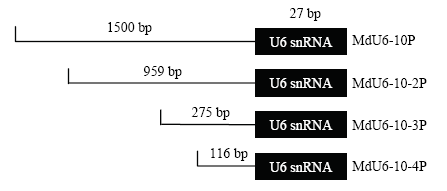

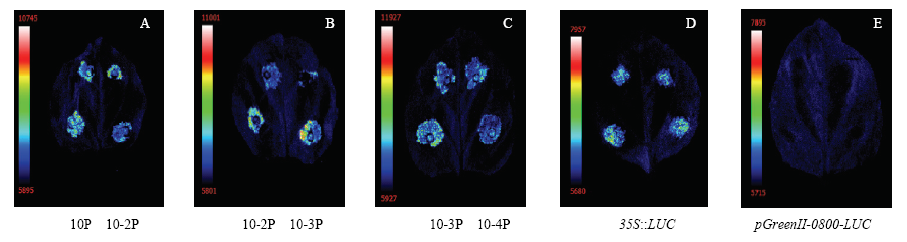

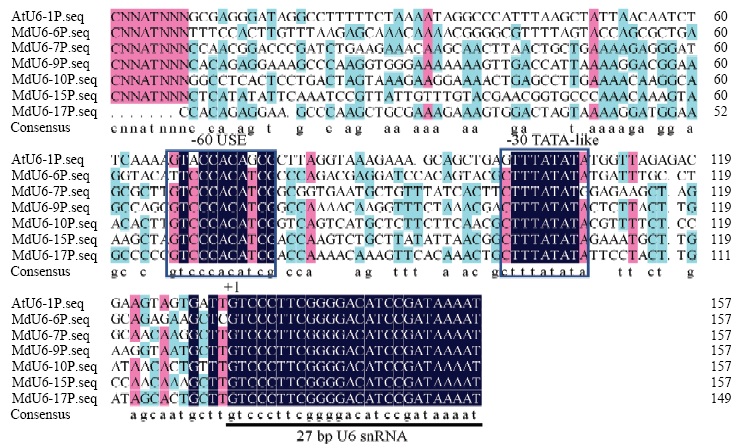

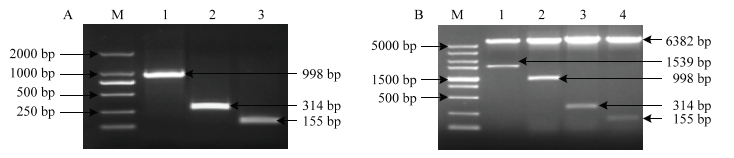

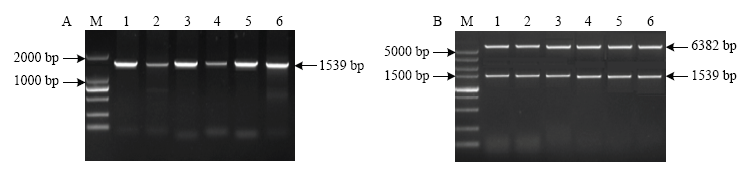

【目的】U6启动子是CRISPR/Cas9基因组编辑载体系统中驱动sgRNA转录的重要元件,其可能存在物种特异性因子,且长度不同转录活性存在差异。迄今在苹果（Malus×domestica）上对U6启动子尚缺乏研究。因此,筛选出转录活性高且片段大小合适的苹果U6启动子,可以优化苹果CRISPR/Cas9基因编辑体系。【方法】利用软件DNAMAN以及启动子元件在线分析网站PLACE和plant CARE对苹果U6启动子进行比对分析;克隆并构建U6启动子驱动萤火虫荧光素酶基因（Firefly luciferase,LUC）的融合表达载体,利用农杆菌介导的瞬时转化法分别转染苹果愈伤组织和本氏烟草（Nicotiana benthamiana）叶片;通过检测荧光素酶活性对各U6启动子进行转录活性比较。【结果】苹果基因组中共检索到6条U6 snRNA（E-value<3e ^-40）,分别位于第6、7、9、10、15和17号染色体上,取5′端27 bp snRNA及其上游1 500 bp作为候选U6启动子。序列比对结果显示,苹果U6启动子与拟南芥相同,均具有两个保守的元件,包括上游序列元件（Upstream sequence element,USE）和TATA-Like box。瞬时转化后荧光素酶活性检测结果显示,10号染色体上的U6启动子转录活性最高,10号染色体上5′端截短的U6启动子（长度分别为1 500、959、275和116 bp）中275 bp的启动子活性最强。另外,在苹果愈伤组织中,苹果U6启动子的转录活性要显著高于拟南芥U6启动子。【结论】从苹果基因组克隆6条U6启动子,并筛选出一条转录活性高且片段长度较短的U6启动子。

关键词: 苹果, U6启动子, 荧光素酶, 本氏烟草, 愈伤组织

Abstract:

【Objective】U6 promoter is an important element for the transcription of sgRNA in the CRISPR/Cas9 genome editing system. There may be species-specific factors in U6 promoter, and the activity of U6 promoter would be altered when its length changed. So far, in apple (Malus×domestica), the transcriptional characterization of U6 promoters has not been reported. Therefore, selecting an apple U6 promoter with high transcriptional activity and suitable fragment size would provide a basis for optimizing apple CRISPR/Cas9 gene editing technology system. 【Method】 DNAMAN, promoter cis element online predicting website PLACE and plant CARE were used to do the comparative analysis of apple U6 promoters; U6 promoters were cloned and constructed into firefly luciferase vector; the apple callus and tobacco (Nicotiana benthamiana) leaves were transformed via Agrobacterium-mediated transient transformation; the transcriptional activity of U6 promoter was determined according to the luciferase activity. 【Result】 There were six alternative U6 promoters in apple genome (E-value<3e ^-40), which were located on chr 6, chr 7, chr 9, chr 10, chr 15 and chr 17, respectively. 27 bp snRNA at 5′ end and its upstream 1 500 bp were selected as candidate U6 promoter. Sequence analysis results showed that the upstream sequence element (USE) and TATA-like elements were contained in six U6 promoters of apple, the same as Arabidopsis. After transient transformation, the luciferase activity assay showed that, the U6 promoter on chromosome 10 had the highest transcriptional activity. Among all U6 promoters which were shortened at 5′ end (1 500 bp, 959 bp, 275 bp, and 116 bp) on chromosome 10, the 275 bp one had the highest transcriptional activity. In addition, compared with the Arabidopsis U6 promoter, in apple callus, the transcriptional activity of the apple U6 promoter was higher. 【Conclusion】Six U6 promoters were cloned from the apple genome, and a U6 promoter with high transcriptional activity and suitable sequence fragment was obtained.

Key words: Malus×domestica, U6 promoter, luciferase, Nicotiana benthamiana, callus

卞书迅,韩晓蕾,袁高鹏,张利义,田义,张彩霞,丛佩华. 苹果U6启动子的克隆及功能分析[J]. 中国农业科学, 2019, 52(23): 4364-4373.

BIAN ShuXun,HAN XiaoLei,YUAN GaoPeng,ZHANG LiYi,TIAN Yi,ZHANG CaiXia,CONG PeiHua. Cloning and Functional Analysis of U6 Promoter in Apple[J]. Scientia Agricultura Sinica, 2019, 52(23): 4364-4373.

图/表 12

表1

图1

表2

图2

图3

图4

图5

图6

图7

图8

图9

图10

参考文献 32

[1]	CHEN K L, GAO C X . Targeted genome modification technologies and their applications in crop improvements. Plant Cell Report, 2014,33(4):575-583. doi: 10.1007/s00299-013-1539-6 pmid: 24277082
[2]	RAN F A, HSU P D, WRIGHT J, AGARWALA V, SCOTT D A, ZHANG F . Genome engineering using the CRISPR-Cas9 system. Nature Protocols, 2013,8(11):2281-2308. doi: 10.1038/nprot.2013.143
[3]	LI J F, NORVILLE J E, AACH J, MCCORMACK M, ZHANG D D, BUSH J, CHURCH G M, SHEEN J . Multiplex and homologous recombination-mediated genome editing in Arabidopsis and Nicotiana benthamiana using guide RNA and Cas9. Nature Biotechnology, 2013,31(8):688-691. doi: 10.1038/nbt.2654 pmid: 23929339
[4]	LIU X J, XIE C X, SI H J, YANG J X . CRISPR/Cas9-mediated genome editing in plants. Methods, 2017,12(1):94-102. doi: 10.1111/pbi.13315 pmid: 31821678
[5]	XING H L, DONG L, WANG Z P, ZHANG H Y, HAN C Y, LIU B, WANG X C, CHEN Q J . A CRISPR/Cas9 toolkit for multiplex genome editing in plants. BMC Plant Biology, 2014,14(1):327. doi: 10.1186/s12870-014-0327-y
[6]	DAS G, HENNING D, REDD R . Structure, organization, and transcription of Drosophila U6 small nuclear RNA genes. Biological Chemistry, 1987,262(25):1187-1193. pmid: 3027083
[7]	TAZI J, FORNE T, JEANTEUR P, CATHALA G, BRUNEL C . Mammalian U6 small nuclear RNA undergoes 3' end modifications within the spliceosome. Molecular & Cellular Biology, 1993,13(3):1641-1650. doi: 10.1055/s-0039-3400233 pmid: 31842235
[8]	BERGET S M, ROBBERSON B L . U1, U2, and U4/U6 small nuclear ribonucleoproteins are required for in vitro splicing but not polyadenylation. Cell, 1986,46(5):691-696. doi: 10.1016/0092-8674(86)90344-2 pmid: 2427201
[9]	BLACK D L, STEITZ J A . Pre-mRNA splicing in vitro requires intact U4/U6 small nuclear ribonucleoprotein. Cell, 1986,46(5):697-704. doi: 10.1016/0092-8674(86)90345-4 pmid: 2427202
[10]	WAIBEL F, FILIPOWICZ W . U6 snRNA genes of Arabidopsis are transcribed by RNA polymerase III but contain the same two upstream promoter elements as RNA polymerase ll-transcribed U-snRNA genes. Nucleic Acids Research, 1990,18(12):3451-3458. doi: 10.1093/nar/18.12.3451 pmid: 2362802
[11]	BOGENHAGEN D F, SAKONJU S, BROWN D D . A control region in the center of the 5S RNA gene directs specific initiation of transcription: II. The 3' border of the region. Cell, 1980,19(1):27-35. doi: 10.1016/0092-8674(80)90385-2 pmid: 7357604
[12]	GEIDUSCHEK E P, TOCCHINI-VALENTINI G P . Transcription by RNA polymerase III. Annual Review of Biochemistry, 1988,57(59):873-914.
[13]	MALI P, YANG L H, ESVELT K M, AACH J, GUELL M, DICARLO J E, NORVILLE J E, CHURCH J M . RNA-guided human genome engineering via Cas9. Science, 2013,339(6121):823-826. doi: 10.1126/science.1232033
[14]	MA H M, WU Y G, DANG Y, CHOI J G, ZHANG J L, WU H Q . Pol III promoters to express small RNAs: Delineation of transcription initiation. Molecular Therapy-Nucleic Acids, 2014,3(5):e161. doi: 10.1038/mtna.2014.12 pmid: 24803291
[15]	PAUL C P, GOOD P D, WINER I, ENGELKE D R . Effective expression of small interfering RNA in human cells. Nature Biotechnology, 2002,20(5):505-508. doi: 10.1038/nbt0502-505 pmid: 11981566
[16]	KWAK Y D, KOIKE H, SUGAYA K . RNA interference with small hairpin RNAs transcribed from a human U6 promoter-driven DNA vector. Journal of Pharmacological Sciences, 2003,93(2):214-217. doi: 10.1254/jphs.93.214 pmid: 14578591
[17]	JIANG W Z, ZHOU H B, BI H H, FROMM M, YANG B, WEEKS D P . Demonstration of CRISPR/Cas9/sgRNA-mediated targeted gene modification in Arabidopsis, tobacco, sorghum and rice. Nucleic Acids Research, 2013,41(20):e188. doi: 10.1093/nar/gkt780 pmid: 23999092
[18]	LI X, JIANG D H, YONG K, ZHANG D B . Varied transcriptional efficiencies of multiple Arabidopsis U6 small nuclear RNA genes. Plant Biology, 2007,49(2):222-229. doi: 10.1093/nar/gkg331 pmid: 12711679
[19]	SHAN Q W, WANG Y P, LI J, ZHANG Y, CHEN K L, LIANG Z, ZHANG K, LIU J X . Targeted genome modification of crop plants using a CRISPR-Cas system. Nature Biotechnology, 2013,31(8):686-688. doi: 10.1038/nbt.2650 pmid: 23929338
[20]	李继洋, 雷建峰, 代培红, 姚瑞, 曲延英, 陈全家, 李月, 刘晓东 . 基于棉花U6 启动子的海岛棉CRISPR/Cas9基因组编辑体系的建立. 作物学报, 2018,44(2):227-235.
	LI J Y, LEI J F, DAI P H, YAO R, QU Y Y, CHEN Q J, LI Y, LIU X D . Establishment of CRISPR/Cas9 genome editing system based on GbU6 promoters in cotton ( Gossypium barbadense L.). The Crop Journal, 2018,44(2):227-235. (in Chinese)
[21]	蒲艳, 刘超, 李继洋, 阿尔祖古丽·塔什, 胡燕, 刘晓东 . 番茄 U6 启动子的克隆及 CRISPR/Cas9 基因编辑体系的建立. 中国农业科学, 2018,51(2):315-326. doi: 10.3864/j.issn.0578-1752.2018.02.011
	PU Y, LIU C, LI J Y, ALZU G T, HU Y, LIU X D . Different SlU6 promoters cloning and establishment of CRISPR/Cas9 mediated gene editing system in tomato. Agricultural Sciences in China, 2018,51(2):315-326. (in Chinese) doi: 10.3864/j.issn.0578-1752.2018.02.011
[22]	FENG Z Y, ZHANG B T, DING W N, LIU X D, YANG D L, WEI P L . Efficient genome editing in plants using a CRISPR/Cas system. Cell Research, 2013,23(10):1229-1232. doi: 10.1038/cr.2013.114 pmid: 23958582
[23]	JACOBS T B, LAFAYETTE P R, SCHMITZ R J, PARROTT W A . Targeted genome modifications in soybean with CRISPR/Cas9. BMC Biotechnology, 2015,15(1):1-10. doi: 10.1371/journal.pone.0136064 pmid: 26284791
[24]	NISHITANI C, HIRAI N, KOMORI S, WADA M, OKADA K, OSAKABE K, YAMAMOTO T, OSAKABE Y . Efficient genome editing in apple using a CRISPR/Cas9 system. Scientific Reports, 2016,6:31481. doi: 10.1038/srep31481 pmid: 27530958
[25]	朱金洁 . CRISPR_Cas9介导的玉米基因组定点编辑研究[D]. 北京: 中国农业大学, 2015.
	ZHU J J . Targeted genome editing in maize using CRISPR-Cas9[D]. Beijing: China Agricultural University, 2015. (in Chinese)
[26]	WANG M B, HELLIWELL C A, WU L M, WATERHOUSE P M, PEACOCK W J, DENNIS E S . Hairpin RNAs derived from RNA polymerase II and polymerase III promoter-directed transgenes are processed differently in plants. Rna-a Publication of the Rna Society, 2008,14(5):903-913. doi: 10.1261/rna.760908 pmid: 18367720
[27]	JEFFERSON R A, KAVANAGH T A, BEVAN M W . GUS fusions: Beta-glucuronidase as a sensitive and versatile gene fusion marker in higher plants. THE EMBO Journal, 1987,6(13):3901-3907. pmid: 3327686
[28]	CHIU W L, NIWA Y, ZENG W K, HIRANO T, KOBAYASHI H, SHEEN J . Engineered GFP as a vital reporter in plants. Current Biology, 1996,6(3):325-330. doi: 10.1016/s0960-9822(02)00483-9 pmid: 8805250
[29]	ZHANG G H, GURTU V, KAIN S R . An enhanced green fluorescent protein allows sensitive detection of gene transfer in mammalian cells. Biochemical and Biophysical Research Communications, 1996,227(3):707-711. doi: 10.1006/bbrc.1996.1573 pmid: 8885998
[30]	WELSH S, KAY S A . Reporter gene expression for monitoring gene transfer. Current Opinion in Biotechnology, 1997,8(5):617-622. doi: 10.1016/s0958-1669(97)80038-9 pmid: 9353237
[31]	雷建峰 . 棉花U6启动子克隆与功能分析及拟南芥GGB突变体的创制[D]. 乌鲁木齐: 新疆农业大学, 2016.
	LEI J F . Cloning and functional analysis of U6 promoters in cotton and creation of Arabidopsis GGB mutant[D]. Urumqi: Xinjiang Agricultural University, 2016. (in Chinese)
[32]	KHAOULA B, ANGELA C G, SOPHIEN K, NEKRASOV V . Plant genome editing made easy: Targeted mutagenesis in model and crop plants using the CRISPR/Cas system. Plant Methods, 2013,9(1):39. doi: 10.1186/1746-4811-9-39 pmid: 24112467

引物名称 Prime name	上游引物 Forward sequence (5′-3′)	下游引物 Reverse sequence (5′-3′)
MdU6-6P	F：ggtaccTTTGGAGTTGAAGGATTT	R;aagcttAATTTTATCGGATGTCCC
MdU6-7P	F：ggtaccCCCCCGTTTGGATGACCCA	R：aagcttAATTTTATCGGATGTCCC
MdU6-9P	F：aagcttATGCTTCTCCCATGGAAAT	R：ggatccAATTTTATCGGATGTCCC
MdU6-10P	F：ggtaccTGGTGACATTGAGGTTCT	R：aagcttAATTTTATCGGATGTCCC
MdU6-15P	F：ggtaccTTTGGCGTTGCATTAG	R：ggatccAATTTTATCGGATGTCCC
MdU6-17P	F：ggtaccCTCCCCGGAAATGAC	R：ggatccAATTTTATCGGATGTCCC
MdU6-10-2P	F：ggtaccTGATATGTGGTGTTTCTAGG	R：aagcttAATTTTATCGGATGTCCC
MdU6-10-3P	F：ggtaccGGCGAAAGGTTTATGTTC	R：aagcttAATTTTATCGGATGTCCC
MdU6-10-4P	F：ggtaccCTCCTGACTAGTAAAGAAGG	R：aagcttAATTTTATCGGATGTCCC
AtU6-1	F;ggtaccAGAAATCTCAAAATTCCGGCAG	R：aagcttCAATCACTACTTCGTCTCTAACCATAT

基因名称 Gene names	基因ID Gene ID	染色体定位 Chromosome：Location
MdU6-06	MD06G1040500	Chr06: 5202556..5202455
MdU6-07	MD07G1079000	Chr07: 7617645..7617544
MdU6-09	MD09G1120900	Chr09: 9346234..9346335
MdU6-10	MD10G1255200	Ch10: 34716072..34715971
MdU6-15	MD15G1130400	Chr15: 9427466..9427365
MdU6-17	MD17G1111900	Chr17: 9588121..9588222
