超声辅助玉米醇溶蛋白基乙烯吸附膜的制备及其香蕉保鲜性能

doi:10.3864/j.issn.0578-1752.2023.08.012

摘要/Abstract

摘要：

【目的】乙烯是影响水果品质及货架期的关键植物激素。本研究利用高场强超声波（HIU）对玉米醇溶蛋白（zein）进行物理改性处理，使其蛋白结构舒展，内部活性官能团暴露；利用超声改性zein膜中的活性官能团（如巯基等）与乙烯发生“点击反应”吸附乙烯，从而达到延长水果货架期的目的。【方法】将5 g zein溶于80%醋酸溶液中，选用频率为20 kHz、功率为400 W的超声波经不同时长（0、5、15和30 min）的预处理后，分别取2 mL蛋白溶液移至培养皿（55.0 cm²）中，放置于40℃烘箱干燥24 h，分别得到zein-0膜、zein-5膜、zein-15膜、zein-30膜，通过圆二光谱、内源性荧光、粒径电位仪和扫描电镜分析不同条件超声处理后蛋白结构及形貌的变化；借助物性分析仪和VOC检测仪表征zein膜的力学性能和乙烯吸附性能。以香蕉为研究对象，将超声处理后的zein膜与香蕉放置于同一塑封袋中，室温密闭放置10 d，基于香蕉表皮的褐变程度、香蕉果肉的硬度变化和香蕉失重率分析zein膜延长水果货架期的性能。【结果】高场强超声波处理对蛋白质的高级结构具有修饰作用，频率为20 kHz、功率为400 W超声处理15 min后，zein的平均粒径降低（1 013.3±6.9 nm），α-螺旋结构的比例降低（45.86%），β-折叠结构的比例升高（12.20%），上述现象表明适度超声处理使zein结构舒展。同时，zein-15膜的乙烯吸附性能与zein-0膜（未经超声处理）相比增加了9.486 mg·m^-3·h^-1，阻氧性能与zein-0膜相比增加了0.75×10^-16 kg·m·m^-2·s^-1·Pa^-1。本研究以呼吸跃变型水果的香蕉为代表，zein-15膜能有效降低香蕉的失重率，延缓香蕉表皮的褐变和香蕉果肉硬度的降低，延长了香蕉的货架期。【结论】一定条件的超声处理（20 kHz、400 W、15 min）能够诱导zein结构舒展，暴露出更多的活性官能团，提高其乙烯吸附性能。zein-15膜具有良好的阻氧性和力学性能，有效延长了香蕉的货架期和乙烯吸附膜的使用寿命。

关键词: 超声处理, 结构修饰, 玉米醇溶蛋白膜, 乙烯吸附剂, 货架期

Abstract:

【Objective】 Ethylene is an important plant hormone that has a key influence on the quality and shelf life of fruit. In this study, zein was modified to transform into a stretched structure and consequently expose its internal active functional groups by the high-field intensity ultrasound treatment (HIU). Numerous functional groups (-SH) exposed in modified zein film could rapidly react with ethylene via a click reaction, resulting in an extended shelf life of the fruit. 【Method】 The 5 g zein was dissolved in acetic acid-DI water (4:1) solution. The zein solutions were sonicated for 0, 5, 15, and 30 min at an ultrasonic power of 400 W and dried in a drying oven at 40℃ for 24 h to obtain the zein-0 film, zein-5 film, zein-15 film, and zein-30 film. The structures of zein before and after HIU treatment were analyzed by circular dichroism spectroscopy, endogenous fluorescence, particle size potentiometer, and scanning electron microscope. The mechanical and ethylene adsorption properties of zein-based films were characterized by the texture analyzer and the VOC detector. Bananas were used as the climacteric fruit samples to investigate the effectiveness of the zein films as ethylene scavengers. The ultrasonic treated zein film and banana samples were placed in the same plastic sealing bag and then stored at room temperature for 10 d. The performance for extending shelf life was evaluating by browning rate, the flesh hardness, and the weight loss rate of bananas. 【Result】 The HIU treatment (20 kHz, 400 W, 15 min) could effectively stretch the structure of zein. The particle size of the zein and the content of the α-helix were decreased to 1 013.3±6.9 nm, and 45.86%, respectively, and the content of the β-sheet increased to 12.20%. Compared with the zein-0 film, the ethylene adsorption capacity and oxygen resistance of the zein-15 film were increased by 9.486 mg·m^-3·h^-1and 0.75×10^-16 kg·m·m^-2·s^-1·Pa^-1, respectively. The results including the browning rate, the flesh hardness, and the weight loss rate of bananas indicated that the zein-15 film could effectively extend the shelf-life of bananas. 【Conclusion】 The HIU treatment (20 kHz, 400 W, 15 min) could effectively induce to stretch the zein structure and expose more functional groups, resulting in an improved ethylene adsorption performance of zein. The zein-15 film presented a better ethylene adsorption capacity, oxygen permeability, and mechanical property, leading to an extended shelf life of bananas and its life as the ethylene scavenger.

Key words: ultrasonic treatment, structural modification, zein film, ethylene scavenger, shelf life

范鑫, 李宇鑫, 邝吉卫, 杨婷, 刘苗苗, 曹云刚, 黄峻榕. 超声辅助玉米醇溶蛋白基乙烯吸附膜的制备及其香蕉保鲜性能[J]. 中国农业科学, 2023, 56(8): 1574-1584.

FAN Xin, LI YuXin, KUANG JiWei, YANG Ting, LIU MiaoMiao, CAO YunGang, HUANG JunRong. Preparation of Ultrasound-Assisted Zein Ethylene Scavenger Film and Its Preservation Property of Bananas[J]. Scientia Agricultura Sinica, 2023, 56(8): 1574-1584.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2023.08.012

https://www.chinaagrisci.com/CN/Y2023/V56/I8/1574

图/表 5

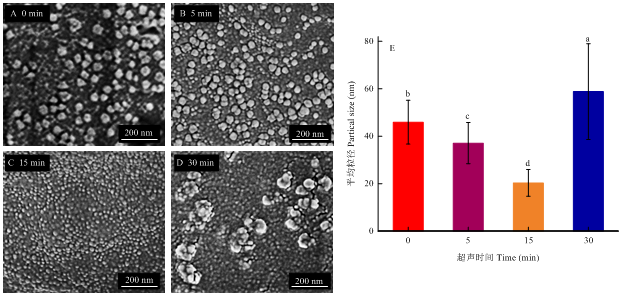

图1

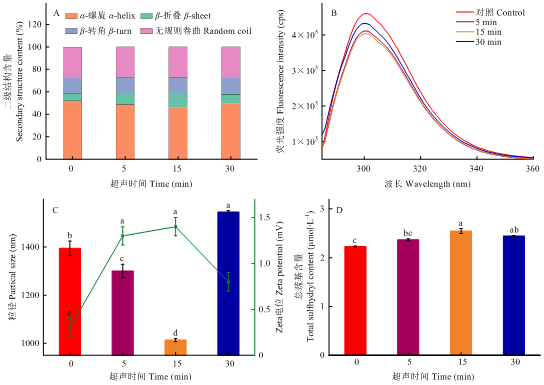

图2

图3

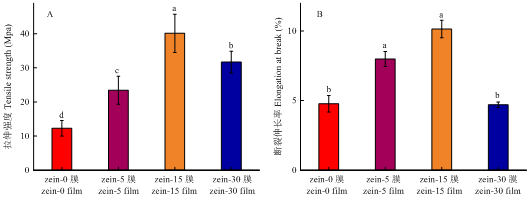

图4

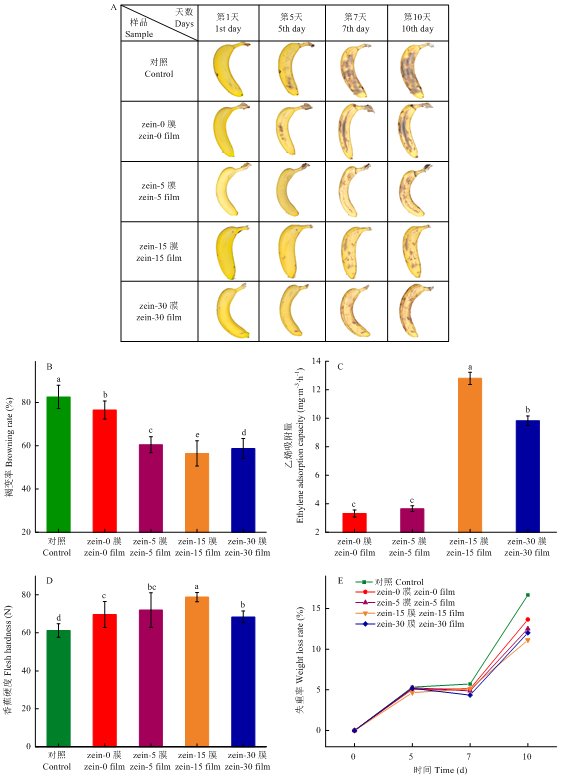

图5

参考文献 39

[1]	何艳秋. 壳寡糖对草莓保鲜作用及机制研究[D]. 大连: 大连海洋大学, 2017.
	HE Y Q. Effect of chitooligosaccharides on strawberry preservation and its mechanism[D]. Dalian: Dalian Ocean University, 2017. (in Chinese)
[2]	HYUN J E, LEE S Y. Effect of modified atmosphere packaging on preserving various types of fresh produce. Journal of Food Safety, 2018, 38(1): e12376.
[3]	GlUSAC J, FISHMAN A. Enzymatic and chemical modification of zein for food application. Trends in Food Science & Technology, 2021, 112: 507-517.
[4]	朱慧, 李运通, 陈桂芸, 陈野. 挤压喷雾生产香菇粉工艺优化及产品理化性质. 食品科学, 2017, 38(14): 250-255. doi: 10.7506/spkx1002-6630-201714039
	ZHU H, LI Y T, CHEN G Y, CHEN Y. Optimization of blasting extrusion processing for production of Lentinus edodes powder and its physicochemical properties. Food Science, 2017, 38(14): 250-255. (in Chinese) doi: 10.7506/spkx1002-6630-201714039
[5]	XIANG F, XIA Y T, WANG Y, WANG Y X, WU K, NI X W. Preparation of konjac glucomannan based films reinforced with nanoparticles and its effect on cherry tomatoes preservation. Food Packaging and Shelf Life, 2021, 29: 100701. doi: 10.1016/j.fpsl.2021.100701
[6]	林燕, 张平, 任朝辉, 朱志强, 封丽. 适合果蔬流通乙烯吸收剂的研究. 食品工业科技, 2010, 31(6): 296-297, 309.
	LIN Y, ZHANG P, REN Z H, ZHU Z Q, FENG L. Study on the ethylene absorbent that fit for fruit and vegetables circulate. Science and Technology of Food Industry, 2010, 31(6): 296-297, 309. (in Chinese)
[7]	XUAN H Y, ZHU Y X, REN J Y, GE L Q. Intrinsic self-healing and biocompatibility of carbon nitride coatings via inhibiting or degrading ethylene for fruit preservation. Journal of Materials Science, 2019, 54(12): 9282-9290. doi: 10.1007/s10853-019-03383-1
[8]	DO NASCIMENTO SOUSA S D, SANTIAGO R G, SOARES MAIA D A, DE OLIVEIRA SILVA E, VIEIRA R S, BASTOS-NETO M. Ethylene adsorption on chitosan/zeolite composite films for packaging applications. Food Packaging and Shelf Life, 2020, 26: 100584. doi: 10.1016/j.fpsl.2020.100584
[9]	HU H, WU J H, LI C, EUNICE C Y, ZHU L, ZHANG F, XU X Y, FAN G, WANG L F, HUANG X J, PAN S Y. Effects of ultrasound on structural and physical properties of soy protein isolate (SPI) dispersions. Food Hydrocolloids, 2013, 30(2): 647-655. doi: 10.1016/j.foodhyd.2012.08.001
[10]	任晓锋. 扫频超声预处理对玉米醇溶蛋白特性及其酶法制备ACE抑制肽的影响[D]. 镇江: 江苏大学, 2014.
	REN X F. Effects of sweeping frequency ultrasound on properties of zein and preparation of ACE-inhibitory peptides on enzymatic from zein[D]. Zhenjiang: Jiangsu University, 2014. (in Chinese)
[11]	REN X F, HOU T, LIANG Q F, ZHANG X, HU D, XU B G, CHEN X X, CHALAMAIAH M, MA H L. Effects of frequency ultrasound on the properties of zein-chitosan complex coacervation for resveratrol encapsulation. Food Chemistry, 2019, 279: 223-230. doi: S0308-8146(18)31963-0 pmid: 30611484
[12]	侯婷. 玉米醇溶蛋白/纳米二氧化硅复合膜的超声波制备技术研究[D]. 镇江: 江苏大学, 2020.
	HOU T. Study on ultrasonic preparation technology of zein/nano- silica composite film[D]. Zhenjiang: Jiangsu University, 2020. (in Chinese)
[13]	CAO Y G, LI Z R, FAN X, LIU M M, HAN X R, HUANG J R, XIONG Y L. Multifaceted functionality of L-arginine in modulating the emulsifying properties of pea protein isolate and the oxidation stability of its emulsions. Food & Function, 2022, 13(3): 1336-1347.
[14]	ZHANG L M, LIU Z L, WANG X Y, DONG S, SUN Y, ZHAO Z T. The properties of chitosan/zein blend film and effect of film on quality of mushroom (Agaricus bisporus). Postharvest Biology and Technology, 2019, 155: 47-56. doi: 10.1016/j.postharvbio.2019.05.013
[15]	FAN X, RONG L S, LI Y X, CAO Y G, KONG L S, ZHU Z B, HUANG J R. Fabrication of bio-based hierarchically structured ethylene scavenger films via electrospraying for fruit preservation. Food Hydrocolloids, 2022, 133: 107837. doi: 10.1016/j.foodhyd.2022.107837
[16]	LI M, YANG R, FENG X C, FAN X J, LIU Y P, XU X L, ZHOU G H, ZHU B W, ULLAH N, CHEN L. Effects of low-frequency and high-intensity ultrasonic treatment combined with curdlan gels on the thermal gelling properties and structural properties of soy protein isolate. Food Hydrocolloids, 2022, 127: 107506. doi: 10.1016/j.foodhyd.2022.107506
[17]	ZHAO H B, CHEN J, HEMAR Y, CUI B. Improvement of the rheological and textural properties of calcium sulfate-induced soy protein isolate gels by the incorporation of different polysaccharides. Food Chemistry, 2020, 310: 125983. doi: 10.1016/j.foodchem.2019.125983
[18]	LI H, XU Y, SUN X, WANG S H, WANG J W, ZHU J X, WANG D F, ZHAO L L. Stability, bioactivity, and bioaccessibility of fucoxanthin in zein-caseinate composite nanoparticles fabricated at neutral pH by antisolvent precipitation. Food Hydrocolloids, 2018, 84: 379-388. doi: 10.1016/j.foodhyd.2018.06.032
[19]	YUAN Y K, MA M J, XU Y, WANG D F. Surface coating of zein nanoparticles to improve the application of bioactive compounds: a review. Trends in Food Science & Technology, 2022, 120: 1-15.
[20]	CHEN W Q, MA H L, WANG Y Y. Recent advances in modified food proteins by high intensity ultrasound for enhancing functionality: Potential mechanisms, combination with other methods, equipment innovations and future directions. Ultrasonics Sonochemistry, 2022, 85: 105993. doi: 10.1016/j.ultsonch.2022.105993
[21]	LAVOISIER A, AGUILERA J M. Effect of a whey protein network formed by cold gelation on starch digestibility. Food Biophysics, 2019, 14(2): 214-224. doi: 10.1007/s11483-019-09573-3
[22]	CAZÓN P, VÁZQUEZ M, VELAZQUEZ G. Novel composite films based on cellulose reinforced with chitosan and polyvinyl alcohol: effect on mechanical properties and water vapour permeability. Polymer Testing, 2018, 69: 536-544. doi: 10.1016/j.polymertesting.2018.06.016
[23]	孙烨, 李英浩, WULANDARI, 吕丽爽, 张秋婷. 超声波预处理对玉米醇溶蛋白结构及其Pickering乳液稳定性的影响. 食品与发酵工业, 2021, 47(1): 97-106.
	SUN Y, LI Y H, WULANDARI, LÜ L S, ZHANG Q T. Ultrasonic pretreatment improves the stability of zein and Pickering emulsion. Food and Fermentation Industries, 2021, 47(1): 97-106. (in Chinese)
[24]	ZOU H N, ZHAO N, SUN S, DONG X R, YU C P. High-intensity ultrasonication treatment improved physicochemical and functional properties of mussel sarcoplasmic proteins and enhanced the stability of oil-in-water emulsion. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2020, 589: 124463. doi: 10.1016/j.colsurfa.2020.124463
[25]	JIANG L Z, WANG J, LI Y, WANG Z J, LIANG J, WANG R, CHEN Y, MA W J, QI B K, ZHANG M. Effects of ultrasound on the structure and physical properties of black bean protein isolates. Food Research International, 2014, 62: 595-601. doi: 10.1016/j.foodres.2014.04.022
[26]	李朝蕊, 韩馨蕊, 范鑫, 黄峻榕, 曹云刚, 熊幼翎. 超声对豌豆分离蛋白结构及乳化性能的调控效应. 中国农业科学, 2021, 54(22): 4894-4905. doi: 10.3864/j.issn.0578-1752.2021.22.015. doi: 10.3864/j.issn.0578-1752.2021.22.015
	LI Z R, HAN X R, FAN X, HUANG J R, CAO Y G, XIONG Y L. Regulation effects of ultrasound on the structure and emulsification properties of pea protein isolate. Scientia Agricultura Sinica, 2021, 54(22): 4894-4905. doi: 10.3864/j.issn.0578-1752.2021.22.015. (in Chinese) doi: 10.3864/j.issn.0578-1752.2021.22.015
[27]	MOORE J, CERASOLI E. Particle light scattering methods and applications. Encyclopedia of Spectroscopy and Spectrometry. Amsterdam: Elsevier, 2010: 2077-2088.
[28]	MIRMOGHTADAIE L, SHOJAEE ALIABADI S, HOSSEINI S M. Recent approaches in physical modification of protein functionality. Food Chemistry, 2016, 199: 619-627. doi: 10.1016/j.foodchem.2015.12.067 pmid: 26776016
[29]	TIAN R, FENG J R, HUANG G, TIAN B, ZHANG Y, JIANG L Z, SUI X N. Ultrasound driven conformational and physicochemical changes of soy protein hydrolysates. Ultrasonics Sonochemistry, 2020, 68: 105202. doi: 10.1016/j.ultsonch.2020.105202
[30]	ZOU Y, XU P P, WU H H, ZHANG M H, SUN Z L, SUN C, WANG D Y, CAO J X, XU W M. Effects of different ultrasound power on physicochemical property and functional performance of chicken actomyosin. International Journal of Biological Macromolecules, 2018, 113: 640-647. doi: S0141-8130(18)30022-9 pmid: 29428384
[31]	KAZYBAYEVA D S, IRMUKHAMETOVA G S, KHUTORYANSKIY V V. Thiol-ene “click reactions” as a promising approach to polymer materials. Polymer Science, Series B, 2022, 64(1): 1-16. doi: 10.1134/S1560090422010055
[32]	ALAVI F, CHEN L Y, EMAM-DJOMEH Z. Effect of ultrasound- assisted alkaline treatment on functional property modifications of faba bean protein. Food Chemistry, 2021, 354: 129494. doi: 10.1016/j.foodchem.2021.129494
[33]	MA S, WANG C N, GUO M R. Changes in structure and antioxidant activity of β-lactoglobulin by ultrasound and enzymatic treatment. Ultrasonics Sonochemistry, 2018, 43: 227-236. doi: 10.1016/j.ultsonch.2018.01.017
[34]	SOLIMAN E A, KHALIL A A, DERAZ S F, EL-FAWAL G, ELRAHMAN S A. Synthesis, characterization and antibacterial activity of biodegradable films prepared from Schiff bases of zein. Journal of Food Science and Technology, 2014, 51(10): 2425-2434. doi: 10.1007/s13197-012-0792-y pmid: 25328181
[35]	孙旸, 孙春玉, 陈光, 张广智. 不同功率超声波处理对大豆分离蛋白膜性能和结构的影响. 吉林农业大学学报, 2010, 32(6): 693-696.
	SUN Y, SUN C G, CHEN G, ZHANG G Z. Study on effects of properties and structure of soy protein isolate films by ultrasonic power. Journal of Jilin Agricultural University, 2010, 32(6): 693-696. (in Chinese)
[36]	梁栋, 张华江, 王旭, 王胜男, 李亮, 魏春丽, 孟灵楠. 超声改性对可食性壳聚糖-大豆分离蛋白复合膜的影响. 食品工业科技, 2014, 35(19): 49-53.
	LIANG D, ZHANG H J, WANG X, WANG S N, LI L, WEI C L, MENG L N. Effect of ultrasonic modification on edible chitosan-soy protein isolated membrane. Science and Technology of Food Industry, 2014, 35(19): 49-53. (in Chinese)
[37]	FAN X, RONG L S, KONG L S, LI Y X, HUANG J R, CAO Y G, ZHONG W H. Tug-of-war-inspired bio-based air filters with advanced filtration performance. ACS Applied Materials & Interfaces, 2021, 13(7): 8736-8744.
[38]	XAVIER L O, SGANZERLA W G, ROSA G B, DA ROSA C G, AGOSTINETTO L, DE LIMA VEECK A P, BRETANHA L C, MICKE G A, DALLA COSTA M, BERTOLDI F C, BARRETO P L M, NUNES M R. Chitosan packaging functionalized with Cinnamodendron dinisii essential oil loaded zein: a proposal for meat conservation. International Journal of Biological Macromolecules, 2021, 169: 183-193. doi: 10.1016/j.ijbiomac.2020.12.093
[39]	ZHANG S K, HE Z Y, XU F Z, CHENG Y, WATERHOUSE G I N, SUN-WATERHOUSE D, WU P. Enhancing the performance of konjac glucomannan films through incorporating zein-pectin nanoparticle-stabilized oregano essential oil pickering emulsions. Food Hydrocolloids, 2022, 124: 107222. doi: 10.1016/j.foodhyd.2021.107222
