短小芽孢杆菌AR03挥发性有机物的抑菌活性及其组分分析

doi:10.3864/j.issn.0578-1752.2018.10.010

摘要/Abstract

摘要：

目的对分离自烟草根际土壤中的一株短小芽孢杆菌（Bacillus pumilus）AR03菌株产生的挥发性有机物进行抑菌活性测定和组分分析。方法采用培养皿对扣熏蒸法和凹玻片孢子萌发法测定挥发性有机物对烟草黑胫病菌（Phytophthora parasitica var. nicotianae）和赤星病菌（Alternaria alternata）菌落、菌丝生长以及孢子萌发的影响,采用离体叶片接种法测定挥发性有机物对烟草黑胫病和赤星病的防治效果;采用顶空加热法收集抑菌挥发性有机物,对其进行气相色谱-质谱（GC-MS)检测,并结合保留指数（retention index,RI）和内标（internal standard,IS）1-十五烯对其组分进行定性和定量分析。结果短小芽孢杆菌AR03菌株分泌的挥发性有机物对供试的两种病原真菌均具有一定的抑制作用,表现为经处理后的烟草黑胫病菌菌丝生长稀疏缓慢变粗、分支增多且扭曲、断裂;赤星病菌菌丝生长畸形,其上不产生分生孢子梗,内含物大部分聚集成团导致菌丝干瘪、缢缩。对峙培养2、4、6和8 d时,挥发物对黑胫病菌和赤星病菌菌丝生长的抑制率分别为56.21%和59.23%、64.75%和59.86%、66.13%和61.10%、67.04%和70.00%;对黑胫病菌游动孢子和赤星病菌分生孢子的抑制作用表现为延迟萌发且萌发后的芽管生长缓慢;黑胫病菌产生孢子囊数明显减少,赤星病菌分生孢子各分隔处的细胞畸形肿胀成泡状。离体叶片抗病测定结果显示,挥发性有机物抑制黑胫病菌和赤星病菌病斑在叶片的扩展,对峙熏蒸40 h时,对照叶片黑胫病的发病率为92.50%,圆形坏死病斑直径是25.10 mm,经挥发物处理后叶片发病率为70.83%,病斑直径为9.45 mm,对黑胫病斑扩散的抑制率为62.35%;对峙熏蒸80 h时,对照叶片赤星病的发病率为88.33%,病斑扩散为近圆形的褐色坏死斑,平均直径为8.32 mm,经挥发物处理后赤星病的发病率为60.80%,病斑扩展较慢,平均直径为2.85 mm,挥发物对赤星病斑扩散的抑制率为65.75%。SPME GC-MS分析表明,AR03菌株胞外分泌7种组分挥发性物质,均为C₁₅H₂₄结构的倍半萜烯类化合物,分别是二氢姜黄烯、(E)-β-金合欢烯、γ-姜黄烯、α-姜烯、π-红没药烯、β-倍半萜水芹烯和γ-E-红没药烯;AR03培养1 d后,其中β-倍半萜水芹烯相对含量最高,为80.64%,其次为(E)-β-金合欢烯和α-姜烯,相对含量分别为7.20%和6.67%;随着AR03培养时间的延长,各组分种类相同,但相对含量差异较大,除二氢姜黄烯含量保持基本不变外,其他组分含量呈递减趋势,培养至第6天时,各组分含量下降超过50%。结论短小芽孢杆菌AR03菌株能够产生具有较强抑菌活性的挥发性有机物,有潜力作为开发抗真菌代谢物和新药物的重要微生物资源。

关键词: 短小芽孢杆菌AR03, 挥发性有机物, 烟草黑胫病菌, 烟草赤星病菌, 顶空-固相微萃取-气质联用

Abstract:

【Objective】 The objective of this study is to determine the antimicrobial activity of volatile organic compounds (VOCs), produced from tobacco rhizosphere soil Bacillus pumilus AR03 strain, and to analyze its main components.【Method】 The antifungal effect of VOCs on the colony, mycelium growth and spore germination of Phytophthora parasitica var. nicotianae and Alternaria alternata was determined by a double Petri dish assay and cavity slide method. The control effect of VOCs on tobacco black shank and brown spot by leaf inoculation was determined in vitro. VOCs were collected by head-space solid phase microextraction (HS-SPME) and identified by gas chromatography-mass spectrometry (GC-MS). Retention index (RI) and internal standard (IS) 1-pentadecence were used for qualitative and quantitative analysis.【Result】 VOCs released from B. pumilus AR03 strain had certain inhibitory effect on the two target pathogens, which showed that the mycelium of P. parasitica grew slowly and thinned, branches increased and twisted, and broke. The mycelium of A. alternata was deformed and no conidial pedicle was produced on the mycelium. Most of the inclusions gathered together and caused the mycelium to dry and constricted. Growth of exposed fungus colonies was inhibited by VOCs, the inhibition rates of VOCs were 56.21% and 59.23%, 64.75% and 59.86%, 66.13% and 61.10%, 67.04% and 70.00%, respectively, against P. parasitica and A. alternata cultured in sealed plates for 2, 4, 6 and 8 d. When the zoospores of P. parasitica and ascospores of A. alternata exposed to these volatile components for 6 h, the germination was delayed and the growth was slow. The number of sporocyst produced by P. parasitica obviously reduced. Most conidiophores of A. alternata expanded abnormally as cystic structure, indicating the fungicidal nature of the volatiles. Moreover, VOCs could significantly inhibit the disease severities of tobacco black shank and brown spot on leaves tests. Direct fumigation for 40 h and 80 h, black shank disease incidence was 92.50% on control and 70.83% on leaves treated by VOCs, the inhibitory of spot expansion was 62.35%. Brown spot disease incidence was 88.33% on control and 60.80% on leaves treated by VOCs, lesions expanded slowly and inhibitory rate was 65.75%. SPME GC-MS analysis showed that seven components of the volatiles were identified, all of which are sesquiterpenes with C₁₅H₂₄structure. They are dihydrocurcumene (CAS NO. 1461-02-5), (E)-β-famesene (CAS NO. 18794-84-8), γ-curcumene (CAS NO. 451-55-8), α-zingiberene (CAS NO. 495-60-3), π-bisabolene (CAS NO. 495-61-4), β-sesquiphellandrene (CAS NO. 20307-83-9) and γ-E-bisabolene (CAS NO. 53585-13-0). When AR03 was cultured for 1 d, the relative content of β-sesquiphellandrene was the highest (80.64%), followed by (E)-β-famesene and α-zingiberene, the relative content was 7.20% and 6.67%, respectively. With the extension of culturing time, the species of each component were the same, but the relative content was different. Except for dihydrocurcumene, the content of other components showed a decreasing trend, when cultured for 6 d, other ingredients decreased more than 50%, besides dihydrocurcumene keeping relatively stable. 【Conclusion】 VOCs produced by B. pumilus AR03 could develop an additive antifungal effect against fungal pathogens on tobacco. B. pumilus AR03 has potential as an important microbial resource for developing antifungal metabolites and new drugs.

Key words: Bacillus pumilus AR03, volatile organic compounds, Phytophthora parasitica var. nicotianae, Alternaria alternata, SPME GC-MS

王静, 曹建敏, 陈德鑫, 邱军, 王晓强, 冯超, 王文静. 短小芽孢杆菌AR03挥发性有机物的抑菌活性及其组分分析[J]. 中国农业科学, 2018, 51(10): 1908-1919.

Jing WANG, JianMin CAO, DeXin CHEN, Jun QIU, XiaoQiang WANG, Chao FENG, WenJing WANG. Antimicrobial Effect and Components Analysis of Volatile Organic Compounds from Bacillus pumilus AR03[J]. Scientia Agricultura Sinica, 2018, 51(10): 1908-1919.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2018.10.010

https://www.chinaagrisci.com/CN/Y2018/V51/I10/1908

图/表 7

图1

图2

图3

表1

图4

表2

表3

参考文献 43

[1]	CHACÓN O, HERNÁNDEZ I, PORTIELES R, LÓPEZ Y, PUJOL M, BORRÁS-HIDALGO O. Identification of defense-related genes in tobacco responding to black shank disease.Plant Science, 2009, 177(3): 175-180. doi: 10.1016/j.plantsci.2009.05.009
[2]	CARTWRIGHT D K, SPURR H W.Biological control of Phytophthora parasitica var. nicotianae on tobacco seedlings with non-pathogenic binucleate Rhizoctonia fungi. Soil Biology ＆ Biochemistry, 1998, 30(14): 1879-1884.
[3]	FRAVEL D R.Commercialization and implementation of biocontrol.Annual Review of Phytopathology, 2005, 43: 337-359. doi: 10.1146/annurev.phyto.43.032904.092924 pmid: 16078888
[4]	HANDELSMAN J, STABB E V.Biocontrol of soilborne plant pathogens.The Plant Cell, 1996, 8: 1855-1869.
[5]	COMPANT S, DUFFY B, NOWAK J, LÉMENT C, BARKA E A. Use of plant growth-promoting bacteria for biocontrol of plant diseases: Principles, mechanisms of action, and future prospects.Applied and Environmental Microbiology, 2005, 71(9): 4951-4959. doi: 10.1016/S0022-0248(00)00162-7 pmid: 16151072
[6]	RAN L X, LIU C Y, WU G J, VAN LOON L C, BAKKER P A.Suppression of bacterial wilt in Eucalyptus urophylla by fluorescent Pseudomonas spp. in China. Biological Control, 2005, 32: 111-120.
[7]	BRESSAN W.Biological control of maize seed pathogenic fungi by use of actinomycetes. Biocontrol, 2003, 48: 233-240. doi: 10.1023/A:1022673226324
[8]	BRUNNER K, ZEILINGER S, CILIENTO R, WOO S L, LORITO M, KUBICEK C P, MACH R L.Improvement of the fungal biocontrol agents Trichoderma atroviride to enhance both antagonism and induction of plant systemic disease resistance. Applied and Environmental Microbiology, 2005, 71(7): 3959-3965. doi: 10.1128/AEM.71.7.3959-3965.2005 pmid: 1168994
[9]	HUANG H C, HUANG J, SAINDON G, ERICKSON R S.Effect of allyl alcohol and fermented agricultural wastes on carpogenic germination of sclerotia of Sclerotinia sclerotiorum and colonization by Trichoderma spp. Canadian Journal of Plant Pathology, 1997, 19(1): 43-46.
[10]	PATIÑO-VERA M, JIMÉNEZ B, BALDRERAS K, ORTIZ M, ALLENDE R, CARRILLO A, GALINDO E. Pilot-scale production and liquid formulation of Rhodotorula minuta, a potential biocontrol agent of mango, anthracnose. Journal of Applied Microbiology, 2005, 99: 540-550. doi: 10.1111/j.1365-2672.2005.02646.x pmid: 16108795
[11]	KAI M, EFFMERT U, BERG G, PIECHULLA B.Volatiles of bacterial antagonists inhibit mycelial growth of the plant pathogen Rhizoctonia solani. Archives of Microbiology, 2007, 187: 351-360.
[12]	RAAIJMAKERS J M, VLAMI M, DE SOUZA J T. Antibiotic production by bacterial biocontrol agents.Antonie van Leeuwenhoek, 2002, 81: 537-547.
[13]	DIMKIĆ I, BERIĆ T, STEVIĆ T, PAVLOVIĆ S, ŠAVIKIN K, FIRA D, STANKOVIĆ S.Additive and synergistic effects of Bacillus spp. isolates and essential oils on the control of phytopathogenic and saprophytic fungi from medicinal plants and marigolds seeds. Biological Control, 2015, 87: 6-13. doi: 10.1016/j.biocontrol.2015.04.011
[14]	MARI M, BAUTISTA-BAŇOS S, SIVAKUMAR D. Decay control in the postharvest system: Role of microbial and plant volatile organic compounds.Postharvest Biology and Technology, 2016, 122: 70-81. doi: 10.1016/j.postharvbio.2016.04.014
[15]	FIDDAMAN P J, ROSSALL S.Effect of substrate on the production of antifungal volatiles from Bacillus subtilis. Journal of Applied Bacteriology, 1994, 76(4): 395-405. doi: 10.1111/j.1365-2672.1994.tb01646.x pmid: 8200865
[16]	GOTOR-VILA A, TEIXIDÓ N, DI FRANCESCO A D, USALL J, UGOLINI L, TORRES R, MARI M. Antifungal effect of volatile organic compounds produced by Bacillus amyloliquefaciens CPA-8 against fruit pathogen decays of cherry. Food Microbiology, 2017, 64: 219-225. doi: 10.1016/j.fm.2017.01.006 pmid: 28213029
[17]	RAZA W,WANG J C H, WU Y CH,LING N,WEI Z H,HUANG Q W,SHEN Q R.Effects of volatile organic compounds by Bacillus amyloliquefaciens on the growth and virulence traits of tomato bacterial wilt pathogen Ralstonia solanacearum. Applied Microbiology and Biotechnology, 2016, 100(17): 7639-7650.
[18]	王静, 赵廷昌, 孔凡玉, 何月秋, 张成省, 刘建华, 刘伟成. 拮抗细菌对烟草青枯病的温室防病及促生效果. 植物保护, 2007, 33(5): 103-106.
	WANG J, ZHAO T C, KONG F Y, HE Y Q, ZHANG C S, LIU J H, LIU W C.Disease-preventing and growth-promoting effect of antifungal against tobacco wilt.Plant Protection, 2007, 33(5): 103-106. (in Chinese)
[19]	王静, 孔凡玉, 秦西云, 张成省, 张秀玉. 短小芽孢杆菌AR03对烟草黑胫病菌的拮抗活性及其田间防效. 中国烟草学报, 2010, 16(5): 78-81. doi: 10.3969/j.issn.1004-5708.2010.05.015
	WANG J, KONG F Y, QIN X Y, ZHANG C S, ZHANG X Y.Inhibition and bio-control activity of Bacillus pumilus AR03 against tobacco black shank. Acta Tabacaria Sinica, 2010, 16(5): 78-81. (in Chinese) doi: 10.3969/j.issn.1004-5708.2010.05.015
[20]	王静, 孔凡玉, 陈晓红, 田华. 短小芽胞杆菌AR03对烟草炭疽病的抑制作用. 植物保护, 2015, 41(1): 104-107. doi: 10.3969/j.issn.0529-1542.2015.01.020
	WANG J, KONG F Y, CHEN X H, TIAN H.The inhibitory effect of Bacillus pumilus AR03 against tobacco anthracnose. Plant Protection, 2015, 41(1): 104-107. (in Chinese) doi: 10.3969/j.issn.0529-1542.2015.01.020
[21]	王静, 田华, 孔凡玉, 王贻鸿, 张成省, 冯超. 短小芽孢杆菌AR03对烟草赤星病菌和白粉病菌的防治. 应用生态学报, 2015, 26(10): 3167-3173.
	WANG J, TIAN H, KONG F Y, WANG Y H, ZHANG C S, FENG C.Inhibition of Bacillus pumilus AR03 on Alternaria alternata and Erysiphe cichoracearum on tobacco. Chinese Journal of Applied Ecology, 2015, 26(10): 3167-3173. (in Chinese)
[22]	周翠, 乔鲁芹, 金静, 马跃, 赵相涛, 刘会香. 一株枯草芽孢杆菌挥发性物质的抑菌作用初步研究. 农药学学报, 2011, 13(2): 201-204. doi: 10.3969/j.issn.1008-7303.2011.02.18
	ZHOU C, QIAO L Q, JIN J, MA Y, ZHAO X T, LIU H X.Preliminary study on the inhibitory effect of the volatile substances produced by Bacillus substilis.Chinese Journal of Pesticide Science, 2011, 13(2): 201-204. (in Chinese) doi: 10.3969/j.issn.1008-7303.2011.02.18
[23]	ZOU C S, MO M H, GU Y Q, ZHOU J P, ZHANG K Q.Possible contributions of volatile-producing bacteria to soil fungistasis.Soil Biology ＆ Biochemistry, 2007, 39(9): 2371-2379. doi: 10.1016/j.soilbio.2007.04.009
[24]	TAHIR H A S, GU Q, WU H J, RAZA W, HANIF A, WU L M, COLMAN M V, GAO X W. Plant growth promotion by Volatile organic compounds produced by Bacillus subtilis SYST 2. Frontiers in Microbiology, 2017, 8: Article 171.
[25]	FERNANDO W G D, RAMARATHNAM R, KRISHNAMOORTHY A S, SAVCHUK S C. Identification and use of potential bacterial organic antifungal volatiles in biocontrol.Soil Biology & Biochemistry, 2005, 37(5): 955-964. doi: 10.1016/j.soilbio.2004.10.021
[26]	WHEATLEY R E.The consequences of volatiles organic compound mediated bacterial and fungal interactions.Antonie Van Leeuwenhoek, 2002, 81: 357-364. doi: 10.1023/A:1020592802234 pmid: 202020022020208120357364
[27]	ROBINSON P M, MCKEE N D, THOMPSON L A A,HARPER D B, HAMILTON J T G. Autoinhibition of germination and growth in Geotrichum candidum. Mycological Research, 1989, 93(2): 214-222.
[28]	ALMENAR E, AURAS R, WHARTON P S, RUBINO M, HARTE B.Release of acetaldehyde from β-cyclodextrins inhibits postharvest decay fungi in vitro. Journal of Agricultural and Food Chemistry, 2007, 55(17): 7205-7212.
[29]	ARREBOLA E, SIVAKUMAR D, KORSTEN L.Effect of volatile compounds produced by Bacillus strains on postharvest decay in citrus. Biological Control, 2010, 53: 122-128. doi: 10.1016/j.biocontrol.2009.11.010
[30]	孙江伟, 王军. 生姜挥发油研究进展. 中医研究, 2016, 29(2): 75-77. doi: 10.3969/j.issn.1001-6910.2016.02.35
	SUN J W, WANG J.Advances on volatile oil of ginger.Traditional Chinese Medicinal Research, 2016, 29(2): 75-77. (in Chinese) doi: 10.3969/j.issn.1001-6910.2016.02.35
[31]	王慧, 刘再群, 王建辉, 洪哲, 林英杰, 罗旭阳, 孙允秀, 石磊, 王勇. 人参茎叶中挥发油中倍半萜烯化合物的分离与鉴定. 吉林大学自然科学学报, 2001(1): 88-90. doi: 10.3321/j.issn:1671-5489.2001.01.015
	WANG H, LIU Z Q, WANG J H, HONG Z, LIN Y J, LUO X Y, SUN Y X, SHI L, WANG Y.Isolation and identification of sesquiterpenes from the volatile oil in the stems and leaves ofPanax ginseng C. A. Mey. Acta Scientiarum Naturalium Universitatis Jilinensis, 2001(1): 88-90. (in Chinese) doi: 10.3321/j.issn:1671-5489.2001.01.015
[32]	HASHEMABADI D, KAVIANI B.Chemical constituents of essential oils extracted from the leaves and stems of Eryngium caucasicum Trautv. from Iran. Journal of Essential Oil Bearing Plants, 2011, 14(6): 693-698. doi: 10.1080/0972060X.2011.10643991
[33]	柴玲, 刘布鸣, 林霄, 白懋嘉, 赖茂祥. 假鹰爪果实挥发油化学成分研究. 香料香精化妆品, 2016(2): 13-16.
	CHAI L, LIU B M, LIN X, BAI M J, LAI M X.source>Study on the chemical constituents of volatile oil fromDesmoschinensis Lour. fruit.Flavour Fragrance Cosmetics, 2016(2): 13-16. (in Chinese)
[34]	NEWMAN D J, CRAGG G M.Natural products as sources of new drugs over the 30 years from 1980 to 2010.Journal of Natural Products, 2012, 75: 311-335. doi: 10.1021/np200906s pmid: 22316239
[35]	STAHL E.The essential oil from Thymus praecox ssp. arcticus growing in Iceland. Planta Medica, 1984, 50(2): 157-160.
[36]	MERCKE P, BENGTSSON M, BOUWMEESTER H J, POSTHUMUS M A, BRODELIUS P E.Molecular cloning, expression, and characterization of amorpha-4, 11-diene synthase, a key enzyme of artemisinin biosynthesis in Artemisia annua L. Archives of Biochemistry and Biophysics, 2000, 381(2): 173-180. doi: 10.1006/abbi.2000.1962 pmid: 11032404
[37]	VON RUDLOFF E, HUNT R S.Chemosystematic studies in the genus Abies. Ⅲ. Leaf and twig oil analysis of amabilis fir. Canadian Journal of Botany, 1977, 55: 3087-3092.
[38]	TYAGI A K, PRASAD S, YUAN W, LI S Y, AGGARWAL B B.Identification of a novel compounds (β-sesquiphellandrene) from turmeric(Curcuma longa) with anticancer potential: comparison with curcumin. Investigational New Drugs, 2015, 33: 1175-1186. doi: 10.1007/s10637-015-0296-5 pmid: 26521943
[39]	FRANCIS F, MARTIN T, LOGNAY G, HAUBRUGE E.Role of (E)-β-farnesene in systematic aphid prey location by Episyrphus balteatus larvae (Diptera: Syrphidae). Europe Journal of Entomology, 2005, 102: 431-436.
[40]	QIAO H L, TUCCORI E, HE X L, GAZZANO A, FIELD L, ZHOU J J, PELOSI P.Discrimination of alarm pheromone (E)-β-famesene by aphid odorant-binding proteins. Insect Biochemistry and Molecular Biology, 2009, 39: 414-419. doi: 10.1016/j.ibmb.2009.03.004 pmid: 19328854
[41]	BOU D D, LAGO J H G, FIGUEIREDO C R, MATSUO A L, GUADAGNIN R C, SOARES M G, SARTORELLI P. Chemical composition and cytotoxicity evaluation of essential oil from leaves of Casearia sylvestris, its main compound α-zingiberene and derivatives. Molecules, 2013, 18(8): 9477-9487.
[42]	周帅, 马楠, 林副平, 张汝民, 高岩. 樟树花挥发性有机化合物日动态变化分析. 浙江农林大学学报, 2011, 28(6): 986-991. doi: 10.3969/j.issn.2095-0756.2011.06.025
	ZHOU S, MA N, LIN F P, ZHANG R M, GAO Y.Diurnal variation of volatile organic compounds emitted from Cinnamomum camphora flowers. Journal of Zhejiang A & F University, 2011, 28(6): 986-991. (in Chinese) doi: 10.3969/j.issn.2095-0756.2011.06.025
[43]	李其利, 郭堂勋, 黄穗萍, 黄俊斌, 莫贱友. 细菌产生的挥发性物质及其生物学功能. 微生物学杂志, 2012, 32(5): 74-82.
	LI Q L, GUO T X, HUANG S P, HUANG J B, MO J Y.Volatile substances produced by bacteria and their biological functions.Journal of Microbiology, 2012, 32(5): 74-82. (in Chinese)

处理 Treatment	叶片Leave
	烟草黑胫病Tobacco black shank			烟草赤星病Tobacco brown spot
	病斑直径 Lesion diameter (mm)	发病率 Incidence (%)	抑制率 Inhibition rate (%)	病斑直径 Lesion diameter (mm)	发病率 Incidence (%)	抑制率 Inhibition rate (%)
挥发性有机物VOCs	9.45	70.83	62.35	2.85	60.80	65.75
CK	25.10	92.50	—	8.32	88.33	—

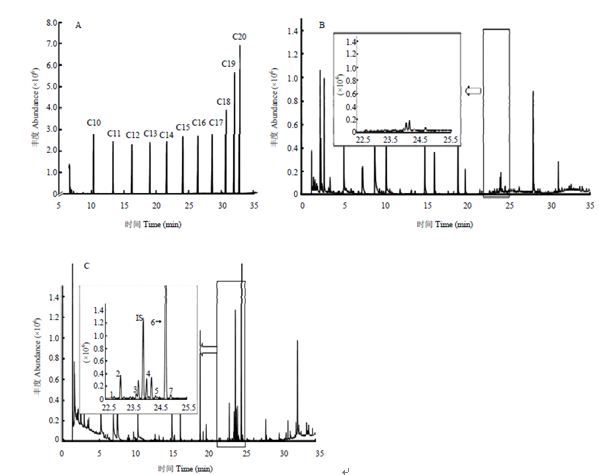

峰编号 Peak number	保留时间Retention time (min)	名称 Name	结构式 Structural formula	CAS编号 CAS number	保留指数（计算） RI (calculation)	保留指数（文献） RI (reference)
1	22.824	二氢姜黄烯Dihydrocurcumene	C₁₅H₂₄	1461-02-5	1449	1448
2	23.061	(E)-β-金合欢烯(E)-β-Famesene	C₁₅H₂₄	18794-84-8	1458	1457
3	23.642	γ-姜黄烯γ-Curcumene	C₁₅H₂₄	451-55-8	1482	1479
4	24.024	α-姜烯α-Zingiberene	C₁₅H₂₄	495-60-3	1497	1500
5	24.353	π-红没药烯π-Bisabolene	C₁₅H₂₄	495-61-4	1511	1509
6	24.720	β-倍半萜水芹烯β-Sesquiphellandrene	C₁₅H₂₄	20307-83-9	1526	1525
7	24.914	γ-E-红没药烯γ-E-Bisabolene	C₁₅H₂₄	53585-13-0	1535	1535
内标IS	23.906	1-十五烯1-Pentadecene	C₁₅H₃₀	13360-61-7	—	—

名称 Name	倍半萜烯代谢物含量 Relative contents of sesquiterpenes (ng)
名称 Name	1 d	3 d	6 d
二氢姜黄烯Dihydrocurcumene	1.07	1.10	1.13
(E)-β-金合欢烯(E)-β-Famesene	10.00	6.99	4.24
γ-姜黄烯γ-Curcumene	2.73	1.88	1.43
α-姜烯α-Zingiberene	9.27	6.32	4.60
π-红没药烯π-Bisabolene	1.74	1.35	1.05
β-倍半萜水芹烯β-Sesquiphellandrene	112.01	82.03	54.66
γ-E-红没药烯γ-E-Bisabolene	2.08	1.27	0.76
