藜麦蛋白Pickering乳液添加对鱼糜蛋白凝胶冻融稳定性的影响

doi:10.3864/j.issn.0578-1752.2022.10.013

摘要/Abstract

摘要：

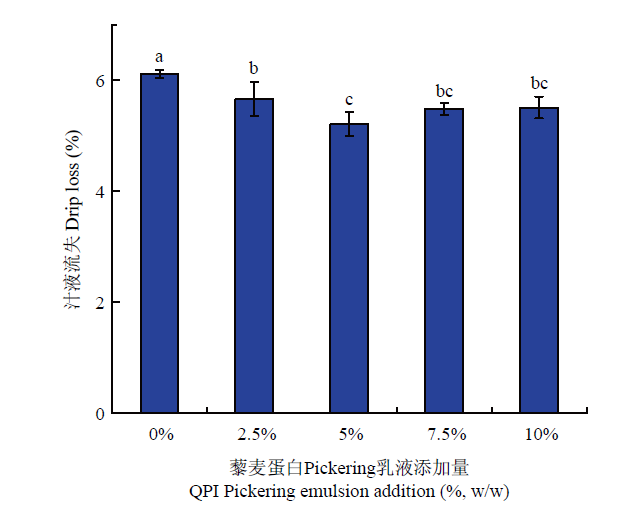

【目的】基于藜麦蛋白Pickering乳液的冻融稳定性,探究其加入到鱼糜蛋白凝胶中提高鱼肉蛋白凝胶冻融稳定性的可行性,拟解决运输存储中温度波动造成鱼糜蛋白凝胶产品质量受损的问题。【方法】制备藜麦蛋白Pickering乳液,分散于鱼糜中并加热制备成蛋白凝胶,然后对鱼糜蛋白凝胶进行3次冻融循环,分别测量冻融前后鱼糜蛋白凝胶的质构、色度和水分分布,测定3次冻融后的汁液流失以及凝胶中的冰晶分布。【结果】藜麦蛋白Pickering乳液添加在提高鱼糜凝胶亮度和白度的同时,抑制了冻融循环引起的色度变化,并且延缓了凝胶在冻融中硬度和咀嚼度的变化速率。藜麦蛋白Pickering乳液的添加对于冻融前鱼糜凝胶的水分分布没有影响,但是显著增加了冻融循环后鱼糜凝胶中不易流动水的比例,减少了自由水的比例,从而减少了鱼糜凝胶冻融后的汁液流失。冰晶结果显示,乳液的添加可以显著降低冰晶的直径,从而减少冰晶对肌肉组织造成的损害以及自由水的生成。【结论】藜麦蛋白Pickering乳液的添加削弱了冻融对凝胶颜色及质构的影响,保持了凝胶的网络结构,提高了鱼糜凝胶的冻融稳定性,保持了冷冻鱼糜产品的品质及营养价值。藜麦蛋白Pickering乳液有望成为新型的抗冻剂应用于冷冻食品中。

关键词: 藜麦蛋白, Pickering乳液, 冻融稳定性, 蛋白凝胶

Abstract:

【Objective】Based on the freeze-thaw stability of quinoa stabilized Pickering emulsion, it was incorporated evenly into surimi to generate surimi gels in this study, and its feasibility to improve the freeze-thaw stability of fish protein gel was evaluated. This research aimed to prevent the deterioration of fish protein gel, caused by the temperature fluctuation during storage and transportation.【Method】Quinoa protein Pickering emulsion was prepared and distributed in surimi, followed by heating process to generate surimi gels. The surimi gels with different contents of Pickering emulsion and without emulsion were subjected to three freeze-thaw cycles, and then, the texture, color, water and ice crystal distribution and drip loss of surimi gels were measured. 【Result】The quinoa protein Pickering emulsion improved the lightness and whiteness of fish surimi gel, and inhibited the changes of color after freeze-thaw cycles. Meanwhile, the Pickering emulsion addition delayed the changes of hardness and chewiness of surimi gels during freeze-thaw cycles. It was found that quinoa protein Pickering emulsion had no effect on the moisture distribution of surimi gels before freeze-thaw cycles, but significantly increased the proportion of immobile water and decreased free water content in surimi gels after freeze-thaw cycles. Therefore, the drip loss of surimi gel was decreased by emulsion addition. Furthermore, the emulsion addition decreased the diameter of ice crystals formed in surimi gel, reduced the damage to muscle tissues, and decreased the free water content. 【Conclusion】The Quinoa protein Pickering emulsion weakened the adverse impact of freeze-thaw cycles on the color and textural properties, maintained the gel structure, and improved the freeze-thaw stability of fish surimi gel, which maintained its quality and nutritional value. Quinoa protein Pickering emulsion was promising to become an innovative antifreeze to be applied in frozen food.

Key words: quinoa protein, Pickering emulsion, freeze-thaw stability, protein gel

冯潇,张帆,陈颖,成佳欣,岑凯悦,汤晓智. 藜麦蛋白Pickering乳液添加对鱼糜蛋白凝胶冻融稳定性的影响[J]. 中国农业科学, 2022, 55(10): 2038-2046.

FENG Xiao,ZHANG Fan,CHEN Ying,CHENG JiaXin,CEN KaiYue,TANG XiaoZhi. Effects of Adding Quinoa Protein Pickering Emulsion on Freeze- Thaw Stability of Fish Surimi Gel[J]. Scientia Agricultura Sinica, 2022, 55(10): 2038-2046.

0
/ 收藏文章 0 / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2022.10.013

https://www.chinaagrisci.com/CN/Y2022/V55/I10/2038

图/表 8

表1

图1

表2

图2

表3

图3

图4

表4

参考文献 30

[1]	FENG J H, CAO A L, CAI L Y, GONG L X, WANG J, LIU Y G, ZHANG Y H, LI J R. Effects of partial substitution of NaCl on gel properties of fish myofibrillar protein during heating treatment mediated by microbial transglutaminase. LWT-Food Science and Technology, 2018, 93: 1-8. doi: 10.1016/j.lwt.2018.03.018. doi: 10.1016/j.lwt.2018.03.018
[2]	FENG X, TJIA J Y Y, ZHOU Y G, LIU Q, FU C L, YANG H S. Effects of tocopherol nanoemulsion addition on fish sausage properties and fatty acid oxidation. LWT-Food Science and Technology, 2020, 118: 108737. doi: 10.1016/j.lwt.2019.108737. doi: 10.1016/j.lwt.2019.108737
[3]	JIA R, KATANO T, YOSHIMOTO Y, GAO Y P, NAKAZAWA N, OSAKO K, OKAZAKI E. Effect of small granules in potato starch and wheat starch on quality changes of direct heated surimi gels after freezing. Food Hydrocolloids, 2020, 104: 105732. doi: 10.1016/j.foodhyd.2020.105732. doi: 10.1016/j.foodhyd.2020.105732
[4]	TAN M Q, LIN Z Y, ZU Y X, ZHU B W, CHENG S S. Effect of multiple freeze-thaw cycles on the quality of instant sea cucumber: emphatically on water status of by LF-NMR and MRI. Food Research International, 2018, 109: 65-71. doi: 10.1016/j.foodres.2018.04.029. doi: 10.1016/j.foodres.2018.04.029
[5]	周纷. 大黄鱼加工副产物的白鲢鱼糜凝胶品质特性的研究[D]. 上海: 上海海洋大学, 2020.
	ZHOU F. Study on the quality characteristics of silver carp surimi gel prepared with large yellow croaker processing by-product[D]. Shanghai: Shanghai Ocean University, 2020. (in Chinese)
[6]	GAO W H, HUANG Y P, ZENG X A, BRENNAN M A. Effect of soluble soybean polysaccharides on freeze-denaturation and structure of myofibrillar protein of bighead carp surimi with liquid nitrogen freezing. International Journal of Biological Macromolecules, 2019, 135: 839-844. doi: 10.1016/j.ijbiomac.2019.05.186. doi: 10.1016/j.ijbiomac.2019.05.186
[7]	LIN J, HONG H, ZHANG L T, ZHANG C, LUO Y K. Antioxidant and cryoprotective effects of hydrolysate from gill protein of bighead carp (Hypophthalmichthys nobilis) in preventing denaturation of frozen surimi. Food Chemistry, 2019, 298: 124868. doi: 10.1016/j.foodchem.2019.05.142. doi: 10.1016/j.foodchem.2019.05.142
[8]	MARÍN-PEÑALVER D, ALEMÁN A, MONTERO P, GÓMEZ-GUILLÉN M C. Gelling properties of hake muscle with addition of freeze-thawed and freeze-dried soy phosphatidylcholine liposomes protected with trehalose. LWT-Food Science and Technology, 2018, 98: 46-53. doi: 10.1016/j.lwt.2018.08.018
[9]	肖旭华. 米渣及米渣蛋白对鲢鱼糜凝胶特性和冻融稳定性的影响[D]. 武汉: 华中农业大学, 2014.
	XIAO X H. Effects of rice dreg and protein isolate from rice dreg on the gel properties and freeze-thaw stability of silver carp surimi[D]. Wuhan: Huazhong Agricultural University, 2014. (in Chinese)
[10]	QIN X S, LUO Z G, PENG X C. Fabrication and characterization of quinoa protein nanoparticle-stabilized food-grade Pickering emulsions with ultrasound treatment: interfacial adsorption/arrangement properties. Journal of Agricultural and Food Chemistry, 2018, 66(17): 4449-4457. doi: 10.1021/acs.jafc.8b00225. doi: 10.1021/acs.jafc.8b00225
[11]	ZHU Y Q, MCCLEMENTS D J, ZHOU W, PENG S F, ZHOU L, ZOU L Q, LIU W. Influence of ionic strength and thermal pretreatment on the freeze-thaw stability of Pickering emulsion gels. Food Chemistry, 2020, 303: 125401. doi: 10.1016/j.foodchem.2019.125401. doi: 10.1016/j.foodchem.2019.125401
[12]	CEN K Y, YU X, GAO C C, FENG X, TANG X Z. Effects of different vegetable oils and ultrasonicated quinoa protein nanoparticles on the rheological properties of Pickering emulsion and freeze-thaw stability of emulsion gels. Journal of Cereal Science, 2021, 102: 103350. doi: 10.1016/J.JCS.2021.103350. doi: 10.1016/J.JCS.2021.103350
[13]	HAN K Y, FENG X, YANG Y L, WEI S M, TANG X Z, LI S S, CHEN Y M. Effects of camellia oil on the properties and molecular forces of myofibrillar protein gel induced by microwave heating. International Journal of Food Science & Technology, 2021, 56(11): 5708-5716. doi: 10.1111/IJFS.15089. doi: 10.1111/IJFS.15089
[14]	CAO Y, ZHAO L Y, HUANG Q L, XIONG S B, YIN T, LIU Z Y. Water migration, ice crystal formation, and freeze-thaw stability of silver carp surimi as affected by inulin under different additive amounts and polymerization degrees. Food Hydrocolloids, 2022, 124: 107267. doi: 10.1016/J.FOODHYD.2021.107267. doi: 10.1016/J.FOODHYD.2021.107267
[15]	JIA R, JIANG Q Q, KANDA M, TOKIWA J, NAKAZAWA N, OSAKO K, OKAZAKI E. Effects of heating processes on changes in ice crystal formation, water holding capacity, and physical properties of surimi gels during frozen storage. Food Hydrocolloids, 2019, 90: 254-265. doi: 10.1016/j.foodhyd.2018.12.029. doi: 10.1016/j.foodhyd.2018.12.029
[16]	徐祖东, 陈康, 涂丹, 王珏, 戴志远. 藜麦对鲷鱼鱼糜凝胶性能及挥发性风味的影响. 中国食品学报, 2020, 20(2): 212-220. doi: 10.16429/j.1009-7848.2020.02.026. (in Chinese) doi: 10.16429/j.1009-7848.2020.02.026
	XU Z D, CHEN K, TU D, WANG J, DAI Z Y. Effect of Chenopodium quinoa on properties and volatile components of surimi gels from Pagrosomus. Journal of Chinese Institute of Food Science and Technology, 2020, 20(2): 212-220. doi: 10.16429/j.1009-7848.2020.02.026. (in Chinese) doi: 10.16429/j.1009-7848.2020.02.026
[17]	宋春勇, 洪鹏志, 周春霞, 陈艾霖, 冯瑞. 大豆油和预乳化大豆油对金线鱼鱼糜凝胶品质的影响. 食品科学, 2021, 42(8): 90-97. doi: 10.7506/spkx1002-6630-20200820-275. doi: 10.7506/spkx1002-6630-20200820-275
	SONG C Y, HONG P Z, ZHOU C X, CHEN A L, FENG R. Effect of soybean oil and pre-emulsified soybean oil on the quality of Nemipterus virgatus surimi gel. Food Science, 2021, 42(8): 90-97. doi: 10.7506/spkx1002-6630-20200820-275. (in Chinese) doi: 10.7506/spkx1002-6630-20200820-275
[18]	NIAN L Y, CAO A L, CAI L Y, JI H W, LIU S C. Effect of vacuum impregnation of red sea bream (Pagrosomus major) with herring AFP combined with CS@Fe₃O₄ nanoparticles during freeze-thaw cycles. Food Chemistry, 2019, 291: 139-148. doi: 10.1016/j.foodchem.2019.04.017. doi: 10.1016/j.foodchem.2019.04.017
[19]	ZHU S C, YU J H, CHEN X, ZHANG Q, CAI X X, DING Y T, ZHOU X X, WANG S Y. Dual cryoprotective strategies for ice-binding and stabilizing of frozen seafood: A review. Trends in Food Science & Technology, 2021, 111: 223-232. doi: 10.1016/J.TIFS.2021.02.069. doi: 10.1016/J.TIFS.2021.02.069
[20]	ZHOU L, YANG Y L, WANG J Y, WEI S M, LI S S. Effects of low-fat addition on chicken myofibrillar protein gelation properties. Food Hydrocolloids, 2019, 90: 126-131. doi: 10.1016/j.foodhyd.2018.11.044
[21]	LU H, ZHANG L T, LI Q Z, LUO Y K. Comparison of gel properties and biochemical characteristics of myofibrillar protein from bighead carp (Aristichthys nobilis) affected by frozen storage and a hydroxyl radical-generation oxidizing system. Food Chemistry, 2017, 223: 96-103. doi: 10.1016/j.foodchem.2016.11.143. doi: 10.1016/j.foodchem.2016.11.143
[22]	BUAMARD N, BENJAKUL S. Effect of ethanolic coconut husk extract and pre-emulsification on properties and stability of surimi gel fortified with seabass oil during refrigerated storage. LWT-Food Science and Technology, 2019, 108: 160-167. doi: 10.1016/j.lwt.2019.03.038. doi: 10.1016/j.lwt.2019.03.038
[23]	ZHENG Y, ZHOU F, ZHANG L, WANG H L, WANG X C. Effect of different extent of protein oxidation on the frozen storage stability of muscle protein in obscure pufferfish (Takifugu obscurus). LWT, 2020, 137: 110416. doi: 10.1016/j.lwt.2020.110416. doi: 10.1016/j.lwt.2020.110416
[24]	WALAYAT N, XIONG Z Y, XIONG H G, MORENO H M, NAWAZ A, NIAZ N, HU C, TAJ M I, MUSHTAQ B S, KHALIFA I. The effect of egg white protein and β-cyclodextrin mixture on structural and functional properties of silver carp myofibrillar proteins during frozen storage. LWT-Food Science and Technology, 2021, 135: 109975. doi: 10.1016/j.lwt.2020.109975
[25]	LI F F, WANG B, KONG B H, SHI S, XIA X F. Decreased gelling properties of protein in mirror carp (Cyprinus carpio) are due to protein aggregation and structure deterioration when subjected to freeze-thaw cycles. Food Hydrocolloids, 2019, 97: 105223. doi: 10.1016/j.foodhyd.2019.105223. doi: 10.1016/j.foodhyd.2019.105223
[26]	WANG Y Y, YAN J K, DING Y H, TAYYAB R M, MA H L. Effect of sweep frequency ultrasound and fixed frequency ultrasound thawing on gelling properties of myofibrillar protein from quick- frozen small yellow croaker and its possible mechanisms. LWT-Food Science and Technology, 2021, 150: 111922. doi: 10.1016/J.LWT.2021.111922. doi: 10.1016/J.LWT.2021.111922
[27]	ZHANG M C, LI F F, DIAO X P, KONG B H, XIA X F. Moisture migration, microstructure damage and protein structure changes in porcine longissimus muscle as influenced by multiple freeze-thaw cycles. Meat Science, 2017, 133: 10-18. doi: 10.1016/j.meatsci.2017.05.019
[28]	张诗雯, 仪淑敏, 吕柯明, 李学鹏, 李远钊, 丁浩宸, 徐永霞, 米红波, 朱文慧, 励建荣. 水分含量对冻结金线鱼肉香肠品质的影响. 食品科学, 2019, 40(24): 21-26. doi: 10.7506/spkx1002-6630-20190122-266. doi: 10.7506/spkx1002-6630-20190122-266
	ZHANG S W, YI S M, LÜ K M, LI X P, LI Y Z, DING H C, XU Y X, MI H B, ZHU W H, LI J R. Effect of moisture content on quality of frozen Nemipterus virgatus sausages. Food Science, 2019, 40(24): 21-26. doi: 10.7506/spkx1002-6630-20190122-266. (in Chinese) doi: 10.7506/spkx1002-6630-20190122-266
[29]	XU L L, LÜ Y Q, SU Y J, CHANG C H, GU L P, YANG Y J, LI J H. Enhancing gelling properties of high internal phase emulsion-filled chicken gels: Effect of droplet fractions and salts. Food Chemistry, 2022, 367: 130663. doi: 10.1016/J.FOODCHEM.2021.130663. doi: 10.1016/J.FOODCHEM.2021.130663
[30]	ZHANG B, CAO H J, WEI W Y, YING X G. Influence of temperature fluctuations on growth and recrystallization of ice crystals in frozen peeled shrimp (Litopenaeus vannamei) pre-soaked with carrageenan oligosaccharide and xylooligosaccharide. Food Chemistry, 2020, 306: 125641. doi: 10.1016/j.foodchem.2019.125641. doi: 10.1016/j.foodchem.2019.125641

Metrics

Viewed

Full text

389

HTML			PDF

Just accepted	Online first	Issue	Just accepted	Online first	Issue
0	0	34	0	0	355

From	Others	local

Times	246	143
Rate	63%	37%

Abstract

475

Just accepted	Online first	Issue

0	0	475

From	Others	local

Times	381	94
Rate	80%	20%

Cited

Web of Science	Crossref	ScienceDirect	Search for Citations in Google Scholar >>


This page requires you have already subscribed to WoS.

Shared

乳液添加量 Emulsion addition amount	鱼糜 Surimi (g)	氯化钠 NaCl (g)	淀粉 Starch (g)	藜麦蛋白Pickering乳液 Quinoa protein Pickering emulsion (g)	水 Water (g)
0	500	5	10	0	12.50
2.5%	500	5	10	12.5	9.38
5%	500	5	10	25.0	6.25
7.5%	500	5	10	37.5	3.13
10%	500	5	10	50.0	0

	乳液添加比例 Emulsion addition amount (%, w/w)	F₀	F₃
L*	0	73.69±0.25c	71.95±0.52d
	2.5	73.74±0.54c	72.75±0.25cd
	5	78.01±2.58ab	74.70±2.55bc
	7.5	77.42±0.67b	76.72±0.52ab
	10	80.68±2.17a	77.14±0.66a
a*	0	-1.54±0.11c	-1.41±0.71a
	2.5	-0.79±0.03a	-0.98±0.04a
	5	-0.78±0.02a	-0.83±0.06a
	7.5	-1.00±0.06b	-1.16±0.10a
	10	-0.99±0.08b	-1.09±0.04a
b*	0	9.11±0.28c	8.95±0.08b
	2.5	9.00±0.12c	9.11±0.14ab
	5	9.29±0.34c	9.32±0.59ab
	7.5	9.40±0.12ab	9.63±0.39a
	10	10.21±0.92a	9.75±0.12a
W	0	72.11±0.33c	70.51±0.48d
	2.5	72.23±0.52c	71.24±0.27cd
	5	76.09±2.32ab	73.00±2.19bc
	7.5	75.52±0.58b	74.77±0.35ab
	10	78.08±1.53a	75.12±0.57a

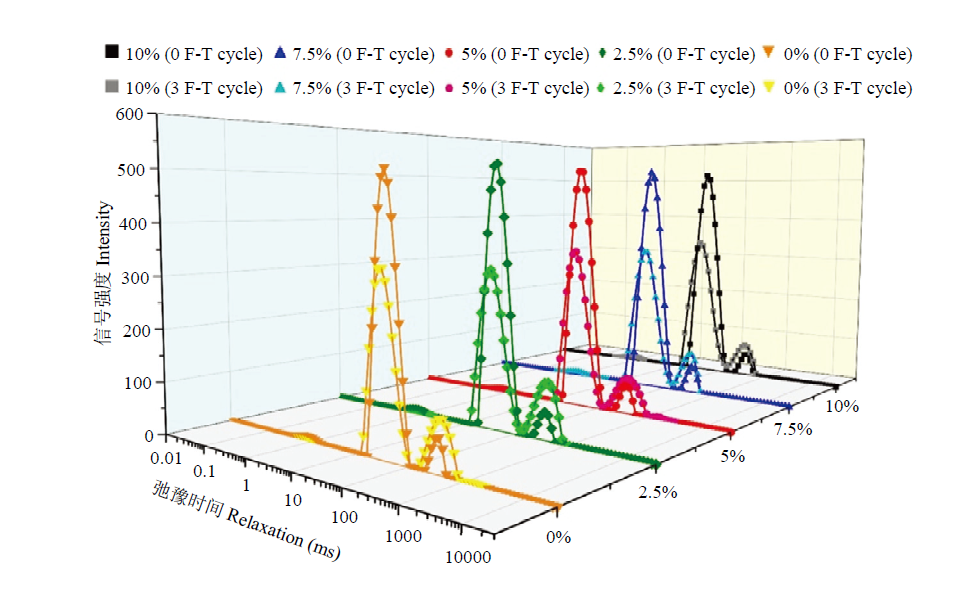

	乳液添加比例 Emulsion addition amount (%, w/w)	F₀	F₃
结合水 Bound water (%)	0	1.70±0.33ab	0.77±0.43a
	2.5	1.86±0.28ab	1.21±0.76ab
	5	1.40±0.34ab	0.86±0.94ab
	7.5	0.96±0.21ab	2.28±0.67b
	10	0.99±0.45ab	2.21±1.76ab
不易流动水 Immobilized water (%)	0	92.33±0.67e	79.71±0.25b
	2.5	93.04±0.68e	76.50±1.84a
	5	92.69±0.69e	81.73±2.05c
	7.5	93.76±0.35e	83.46±1.46cd
	10	93.82±0.27e	83.96±1.55d
自由水 Free water (%)	0	5.98±0.87a	19.53±0.45d
	2.5	5.10±0.65a	22.29±1.77e
	5	5.91±0.43a	17.40±1.20c
	7.5	5.28±0.56a	14.26±1.06b
	10	5.20±0.18a	13.83±0.51b

组别 Group	冰晶参数 Parameters for ice crystals
组别 Group	直径 Diameter (μm)	数目 Number	总面积 Total area (μm²)	面积百分比 Area percentage (%)
0	8.79±0.05a	19.33±0.58a	242.50±2.81a	40.36±0.47a
2.5%	6.84±0.81bc	25.33±2.08a	148.06±4.84bc	26.44±7.29bc
5.0%	7.29±0.83b	21.67±7.57a	168.31±36.70b	27.53±6.00b
7.5%	5.03±0.23d	23.33±8.96a	79.63±7.38d	13.73±2.13d
10%	5.91±0.66cd	28.67±3.06a	110.43±25.06cd	18.22±4.13cd
