中国农业科学 ›› 2023, Vol. 56 ›› Issue (24): 4956-4966.doi: 10.3864/j.issn.0578-1752.2023.24.013

• 畜牧・兽医 • 上一篇

新型鹅星状病毒ORF2蛋白纳米抗体的筛选及鉴定

王丹(), 吉艳红, 梁世蕊, 杨洁, 朱启运()

  1. 中国农业科学院兰州兽医研究所/动物疫病防控全国重点实验室,兰州 730046
  • 收稿日期:2023-04-07 接受日期:2023-09-20 出版日期:2023-12-16 发布日期:2023-12-21
  • 通信作者:
    朱启运,E-mail:
  • 联系方式: 王丹,E-mail:wangdan2622@163.com。
  • 基金资助:
    “十四五”国家重点研发计划(2022YFD1801003); 甘肃省科技重大专项计划(21ZD3NA001-13); 中央引导地方科技发展资金项目(23ZYQA295); 甘肃省陇原青年创新创业人才项目(202204190202)

Screening and Identification of Nanobodies Against Novel Goose Astrovirus ORF2 Protein

WANG Dan(), JI YanHong, LIANG ShiRui, YANG Jie, ZHU QiYun()

  1. State Key Laboratory for Animal Disease Control and Prevention/Lanzhou Veterinary Research Institute, Chinese Academy of Agricultural Sciences, Lanzhou 730046
  • Received:2023-04-07 Accepted:2023-09-20 Published:2023-12-16 Online:2023-12-21

摘要:

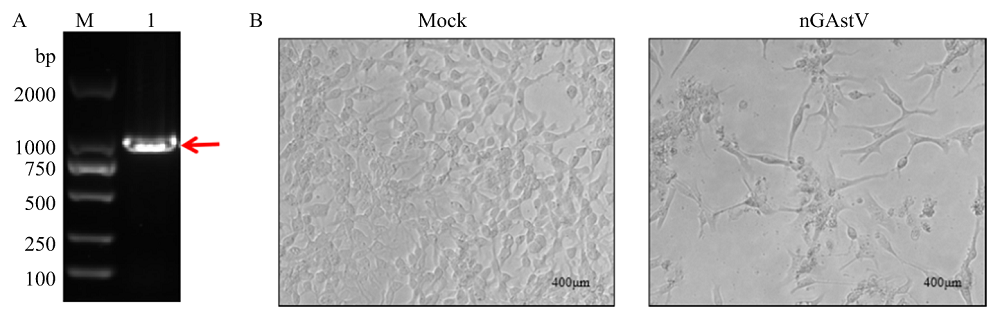

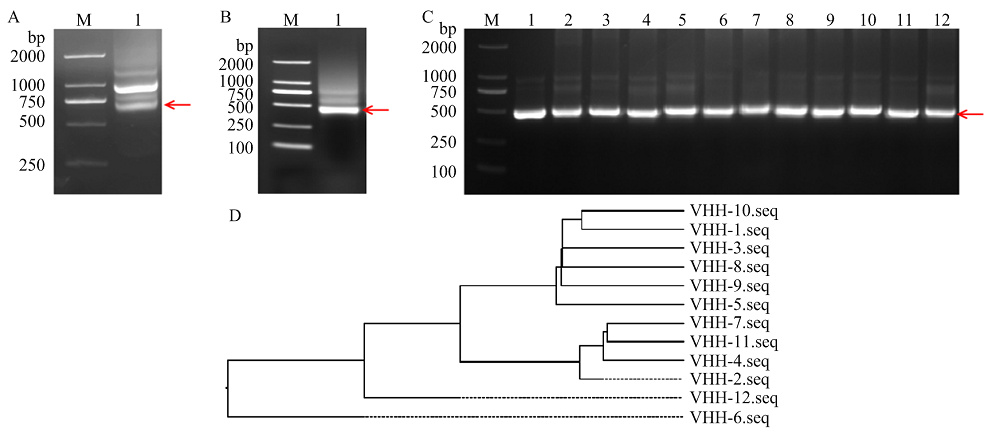

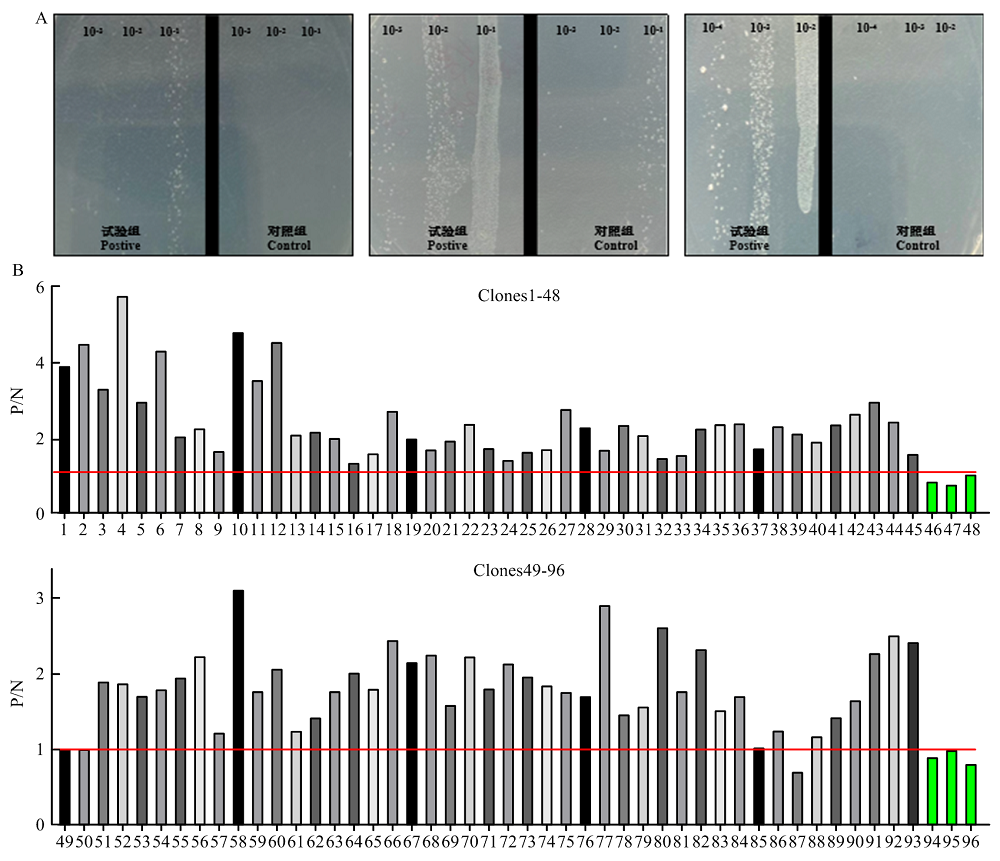

【目的】由新型鹅星状病毒(novel goose astrovirus, nGAstV)引起的雏鹅痛风病对我国养鹅业造成了重大经济损失。通过构建nGAstV纳米抗体(nanobody, Nb)噬菌体展示文库,获得识别nGAstV ORF2蛋白的特异性Nb,可为建立nGAstV抗体检测方法及研究nGAstV ORF2蛋白结构和功能奠定基础。【方法】使用蔗糖密度梯度离心方法纯化在LMH细胞中增殖的nGAstV,RT-PCR鉴定nGAstV并通过细胞病变测定nGAstV滴度。用0.06%甲醛溶液灭活纯化的nGAstV作为免疫原,免疫两周岁羊驼。首次免疫时用灭活纯化的nGAstV与等量弗氏完全佐剂乳化后免疫,第2—5次免疫用灭活纯化的nGAstV与等量弗氏不完全佐剂乳化。每间隔两周免疫一次,每次免疫剂量均为50 μg。第5次免疫14 d后,通过间接ELISA方法测定羊驼血清中针对nGAstV的IgG抗体效价。待IgG抗体效价达到构建噬菌体抗体展示文库标准时,分离羊驼外周血淋巴细胞(peripheral blood lymphocyte, PBL),然后提取PBL总RNA将其反转录为cDNA,利用巢氏PCR方法扩增重链抗体重链可变区(variable domain of the heavy chain of heavy chain antibodies, VHH)基因,将其构建至pComb噬菌体载体并结合噬菌体展示技术构建nGAstV Nb噬菌体展示文库,计算该文库库容量并分析其多样性。nGAstV作为靶抗原,通过三轮富集淘选初步获得与nGAstV反应的重组噬菌体Nb阳性克隆,将其克隆至pcDNA3.1-Fc真核表达载体并进行测序分析,将测序成功且序列不同的质粒转染至HEK-293F细胞中表达,并通过聚丙烯酰胺凝胶电泳(SDS-PAGE)鉴定表达情况。以nGAstV为靶标抗原,利用间接ELISA方法和Western blot试验对表达成功的Nb进行特异性、反应活性验证,并以nGAstV ORF2蛋白为靶标抗原,利用间接ELISA方法对Nb进行亲和力验证,获得生物学活性较好的Nb。【结果】 RT-PCR结果显示,nGAstV增殖成功;Reed-Muench法分析nGAstV滴度达4.38 Log10TCID50/mL。羊驼经5次免疫nGAstV后,通过间接ELISA方法测得其血清中针对nGAstV的抗体效价达到1:64 000;利用巢氏PCR方法扩增出VHH并成功构建库容量为3.8×108 CFU/mL的nGAstV Nb噬菌体展示文库;遗传进化树分析显示,该噬菌体Nb库多样性良好。三轮富集淘选后,初步获得39株与nGAstV反应的重组噬菌体纳米抗体阳性克隆,其中有25株序列不同;SDS-PAGE鉴定结果显示,共有10株Nb在HEK-293F细胞中表达成功。通过ELISA、Western blot验证进一步获得8株与nGAstV ORF2蛋白特异性反应的Nb,且1株Nb生物学活性最好。【结论】首次筛选到与nGAstV ORF2蛋白特异性反应的Nb,为nGAstV的基础研究和检测方法提供材料。

关键词: 新型鹅星状病毒, ORF2蛋白, 纳米抗体, 噬菌体展示技术

Abstract:

【Objective】 The gosling gout disease caused by the novel goose astrovirus (nGAstV) has brought significant economic losses to the goose industry. In this study, a nanobody phage display library for nGAstV was constructed to obtain the specific nanobodies (Nbs) that recognize the ORF2 protein of nGAstV, which could pave a way for the establishment of antibody-based detection methods and the study on the structure and function of nGAstV ORF2 protein. 【Method】 The proliferated nGAstV in LMH cells was purified by sucrose gradient centrifugation. nGAstV was identified by RT-PCR and the virus titer was determined by cytopathic effect. The two-year-old alpacas were immunized with purified nGAstV inactivated by 0.6% formaldehyde solution. For the first immunization, inactivated nGAstV was emulsified with an equal volume of Freund's complete adjuvant. For the second to fifth immunization, inactivated nGAstV was emulsified with an equal volume of Freund's incomplete adjuvant. The immunization was performed every two weeks with a dose of 50 μg. And the titer of IgG against nGAstV in alpaca serum collected at 14 days post the fifth immunization was determined by indirect ELISA. When the IgG titer reached the standard for constructing a library, the alpaca peripheral blood lymphocytes (PBL) were isolated. The total RNA of PBL was extracted and reverse-transcribed into cDNA. The variable region gene of the heavy chain was amplified by nested PCR. It was constructed into pComb phage vector and combined with phage display technology to construct nGAstV Nb phage display library. The capacity of the library was calculated and its diversity was analyzed. nGAstV was used as a target antigen for three rounds of enrichment and panning to obtain recombinant phage Nb positive clones. The positive clones were then cloned into pcDNA3.1-Fc eukaryotic expression vectors followed by sequencing analysis. The plasmids with different sequences were transfected into HEK-293F cells, and the expression level was identified by SDS-PAGE. The nGAstV was used as a target antigen to test the specificity and binding activity of the expressed Nb by ELISA and Western blot. The affinity of Nb was verified using indirect ELISA using nGAstV ORF2 protein as the target antigen and to screen Nbs with better biological activity. 【Result】 The results of RT-PCR showed that nGAstV was ready to be proliferated in LMH cells. The titer of nGAstV virus was 4.38 Log10 TCID50/mL by calculated by the Reed-Muench method. The titer of nGAstV antibodies in alpaca serum reached over 1:64 000 after five immunizations. The VHH gene was amplified by nested PCR and a phage display library of nGAstV Nb with a library capacity of 3.8×108 CFU/mL was successfully constructed. Phylogenetic tree analysis showed that the phage Nb library had an excellent diversity. 39 phage positive clones were acquired, which reacted with nGAstV post three rounds of enrichment and panning, including 25 Nbs with different sequences. The results of SDS-PAGE identification showed that a total of 10 Nbs were successfully expressed. Among them, 8 Nbs that reacted explicitly with nGAstV ORF2 protein were further confirmed by ELISA and western blot, among which one Nb showed the best biological activity. 【Conclusion】 In this study, Nbs that reacted specifically with nGAstV ORF2 protein were screened for the first time, which provided materials for basic research and developing nGAstV detection methods.

Key words: novel Goose Astrovirus, ORF2 Protein, nanobody, phage display
