转基因玉米MON87427梯度含量基体标准物质的研制

doi:10.3864/j.issn.0578-1752.2023.08.002

摘要/Abstract

摘要：

【目的】转基因检测标准物质是转基因生物安全监管、标识制度实施的物质基础，是实验室内检测数据溯源、实验室间检测数据可比的保证。中国于2017年批准进口转基因玉米MON87427用作加工原料，其安全监管和检测急需研制有证标准物质。【方法】以开发商提供的转基因玉米MON87427杂合种子和非转基因受体种子为原材料，对转基因玉米MON87427和其受体种子分别清洗、干燥、冷冻研磨、粒径及含水量检测，按质量分数（以干基计）称量配制得到质量分数分别为60.0、99.5和1 000.0 mg·g^-1的转基因玉米MON87427基体标准物质MON87427a、MON87427b和MON87427c。运用实时荧光定量PCR进行粉末的均匀性初检，初检合格后分装。用MON87427/zSSIIb二重微滴数字PCR（ddPCR）方法进行标准物质均匀性、稳定性评估和8家实验室联合定值。根据《标准物质定值的通用原则及统计学原理》（JJF 1343）进行标准物质均匀性评估、稳定性评估、联合定值数据的处理及不确定度评定。【结果】本批标准物质有MON87427a、MON87427b、MON87427c 3个浓度，粒径小于200 μm的粉末大于80%，含水量低于5%。用棕色玻璃瓶分装，不低于1.0 g/瓶，充氮后轧盖，3个浓度的标准物质各分装400瓶。3种标准物质均匀性检验的F值均小于临界值F_0.05(14,30)（2.04），在瓶内和瓶间具有良好的均匀性，使用时，最小取样量为100 mg。标准物质在25℃、37℃和60℃条件下可稳定储存14 d，表明在常温下运输14 d标准物质特性量值不发生趋势性变化；在4℃和-20℃条件下长期稳定性达到12个月；开盖取样5次，标准物质特性量值未发生显著偏离。8家实验室联合测定的标准物质拷贝数比值无异常值、呈正态分布、且等精度，标准物质MON87427a、MON87427b、MON87427c的标准值及扩展不确定度分别为（2.92±0.44）%、（4.89±0.57）%、（52.1±3.4）%。【结论】研制的转基因玉米MON87427梯度含量基体标准物质均匀性良好，可稳定运输和储存，满足转基因玉米MON87427定性、定量检测需求，为转基因玉米MON87427的安全监管、定量标识制度的实施提供了可靠的有证标准物质。

关键词: 转基因玉米MON87427, 基体标准物质, 二重微滴数字PCR, 特性量值, 不确定度

Abstract:

【Objective】The GMO (genetically modified organism) reference materials (RMs) are the material basis for GMO safety supervision and labeling policy implementation. During GMO detection the utilization of RMs guarantees the traceability of quantitative results within laboratory and the comparability of quantitative results between laboratories. GM (genetically modified) maize MON87427 has been approved to be imported as raw material in China, it’s urgent to develop certified reference materials (CRMs) for safety supervision and quantification. 【Method】 The GM maize MON87427 hybrid seeds and non-GM counterparts provided by the developer were used as raw materials to perform washing, drying, freeze-grinding, particle size measurement, and moisture content measurement, sequentially. The matrix RMs of MON87427a, MON87427b and MON87427c were produced by blending the seed powder of the GM maize MON87427 and a non-GM counterpart in GMO mass fractions of 60.0 mg·g^-1, 99.5 mg·g^-1 and 1 000.0 mg·g^-1 on a dry basis. The real-time quantitative PCR was used to conduct an initial assessment of homogeneity before packing. The MON87427/zSSIIb duplex digital PCR (ddPCR) was used to evaluate the homogeneity and stability of the RMs as well as the collaborative characterization by 8 qualified laboratories. The data processing of homogeneity, stability, collaborative characterization together with uncertainty evaluation of RMs were carried out according to the standard "General and Statistical Principles for Characterization of Reference Materials" (JJF 1343). 【Result】 This batch of RMs contains three RMs of MON87427a, MON87427b, and MON87427c in different mass fractions, with more than 80% of particle size of less than 200 μm and less than 5% of moisture content. The RMs were packed in brown glass bottles, nitrogen flushed before capping, bottling amount was not less than 1.0 g/bottle, a total of 400 bottles were produced for each mass fraction RM. The calculated F values of the homogeneity test were all less than the critical value of F_{0.05 (14, 30)} (2.04) for the three RMs, displaying good homogeneity within and between bottles, and the minimum intake was determined to be 100 mg. The RMs can be stored stably at 25℃, 37℃, and 60℃ for 14 days, the property value of the RMs does not change significantly after 14 days of transportation at room temperature; the long-term stability can reach 12 months at 4℃ and -20℃; The property value of the samples taken from the same bottle of RM after 5 opening-capping cycles, does not deviate significantly from that of the first taken sample. The collaborative characterization data by eight qualified laboratories displayed normal distribution without outliers and outlying standard deviations. The standard value and expanded uncertainty of MON87427a, MON87427b, Mon87427c were certified to be (2.92±0.44)%, (4.89±0.57)%, (52.1±3.4)%. 【Conclusion】The developed GM maize MON87427 matrix RMs in different mass fractions have good homogeneity, and can be stably transported and stored. This batch of RMs meets the requirements of qualitative and quantitative detection of MON87427 event, providing reliable CRMs for the safety supervision and implementation of quantitative labeling policy for GMO-derived products.

Key words: genetically modified maize MON87427, matrix reference material, duplex digital PCR, property value, uncertainty

李俊, 单露英, 肖芳, 李允静, 高鸿飞, 翟杉杉, 吴刚, 张秀杰, 武玉花. 转基因玉米MON87427梯度含量基体标准物质的研制[J]. 中国农业科学, 2023, 56(8): 1444-1455.

LI Jun, SHAN LuYing, XIAO Fang, LI YunJing, GAO HongFei, ZHAI ShanShan, WU Gang, ZHANG XiuJie, WU YuHua. Development of A Set of Matrix Reference Materials in Different Mass Fractions of Genetically Modified Maize MON87427[J]. Scientia Agricultura Sinica, 2023, 56(8): 1444-1455.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2023.08.002

https://www.chinaagrisci.com/CN/Y2023/V56/I8/1444

图/表 10

表1

表2

表3

表4

表5

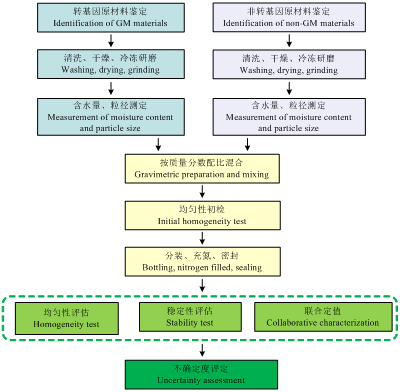

图1

表6

表7

表8

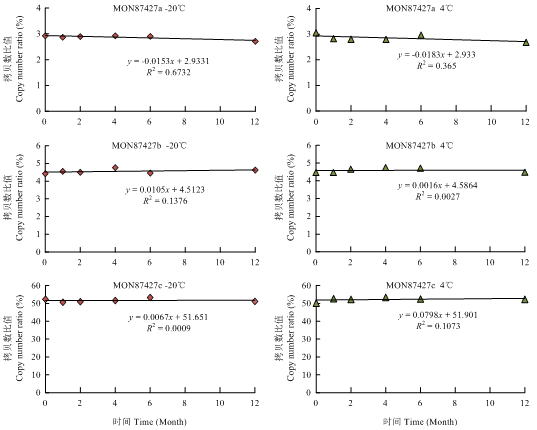

图2

参考文献 28

[1]	周云龙, 吴刚, 宋贵文. 转基因生物标准物质研制与应用. 北京: 中国质检出版社. 2014: 39-61.
	ZHOU Y L, WU G, SONG G W. Development and Application of Reference Materials for Genetically Modified Organisms. Beijing: China Quality Inspection Press, 2014: 39-61. (in Chinese)
[2]	WU Y, LI J, LI X, ZHAI S, GAO H, LI Y, ZHANG X, WU G. Development and strategy of reference materials for the DNA-based detection of genetically modified organisms. Analytical and Bioanalytical Chemistry, 2019, 411(9): 1729-1744. doi: 10.1007/s00216-019-01576-w pmid: 30707265
[3]	EUROPEAN COMMISSION. Certification report, the certification of different mass fractions of DAS-81419-2 in soya seed powder, certified reference materials ERM®-BF437a, ERM®-BF437b, ERM®-BF437c, ERM®-BF437d and ERM®-BF437e. EUR 26869 EN. Luxembourg: Publications Office of the European Union, 2014.
[4]	EUROPEAN COMMISSION. Certification report, certification of H7-1 Fraction and identity of non-modified and genetically modified sugar beet powder, certified reference materials ERM®-BF419a and ERM®-BF419b. EUR Report 22528 EN. Luxembourg: Office for Official Publications of the European Communities, 2006.
[5]	EUROPEAN COMMISSION. Certification report, certification of EH92-527-1 fraction and identity of non-modified and genetically modified potato powder, certified reference materials ERM®-BF421a and ERM®-BF421b. EUR Report 22291 EN. Luxembourg: Office for Official Publications of the European Communities, 2006.
[6]	DIRECTORATE F - HEALTH, CONSUMERS AND REFERENCE MATERIALS. Certified reference materials 2022, Version 12.07. 2022, https://crm.jrc.ec.europa.eu/graphics/cms_docs/rm_catalogue.pdf. [2022-07-04].
[7]	AOCS. Certified Reference Materials (CRMs). https://www.aocs.org/crm?SSO=True. [2022-07-04].
[8]	国家市场监督管理总局中国计量科学研究院. 国家标准物质资源共享平台. https://www.ncrm.org.cn/Web/Material/List?fenleiAutoID=14&pageIndex=1. [2022-07-04].
	STATE MARKET REGULATORY ADMINISTRATION, CHINA ACADEMY OF METROLOGY. National reference material resource sharing platform. https://www.ncrm.org.cn/Web/Material/List?fenleiAutoID=14&pageIndex=1. [2022-07-04]. (in Chinese)
[9]	LI J, ZHANG L, LI L, LI X, ZHANG X, ZHAI S, GAO H, LI Y, WU G, WU Y. Development of genomic DNA certified reference materials for genetically modified rice Kefeng 6. ACS Omega, 2020, 5(34): 21602-21609.
[10]	LI J, LI L, ZHANG L, ZHANG X, LI X, ZHAI S, GAO H, LI Y, WU G, WU Y. Development of a certified genomic DNA reference material for detection and quantification of genetically modified rice KMD. Analytical and Bioanalytical Chemistry, 2020, 412(25): 7007-7016.
[11]	李俊, 李夏莹, 李亮, 宋贵文, 沈平, 张丽, 翟杉杉, 柳方方, 吴刚, 张秀杰, 武玉花. 转基因大豆MON89788纯品粉末标准物质的研制及定值. 农业生物技术学报, 2020, 28(6): 1084-1095.
	LI J, LI X Y, LI L, SONG G W, SHEN P, ZHANG L, ZHAI S S, LIU F F, WU G, ZHANG X J, WU Y H. Development and characterization of pure matrix reference materials for detection of transgenic soybean (Glycine max) MON89788. Journal of Agricultural Biotechnology, 2020, 28(6): 1084-1095. (in Chinese)
[12]	李俊, 李亮, 李夏莹, 宋贵文, 沈平, 张丽, 翟杉杉, 柳芳芳, 吴刚, 张秀杰, 武玉花. 转基因玉米MIR604基体标准物质研制. 作物学报, 2020, 46(4): 473-483. doi: 10.3724/SP.J.1006.2020.93047
	LI J, LI L, LI X Y, SONG G W, SHEN P, ZHANG L, ZHAI S S, LIU F F, WU G, ZHANG X J, WU Y H. Development of genetically modified maize MIR604 matrix reference materials. Acta Agronomica Sinica, 2020, 46(4): 473-483. (in Chinese) doi: 10.3724/SP.J.1006.2020.93047
[13]	李夏莹, 武玉花, 李俊, 肖晓琳, 张飞燕, 梁晋刚, 王顥潜, 张旭冬, 张秀杰. 转基因玉米T25数字PCR方法的建立与验证. 中国农业科技导报, 2020, 22(2): 173-178. doi: 10.13304/j.nykjdb.2019.0154
	LI X Y, WU Y H, LI J, XIAO X L, ZHANG F Y, LIANG J G, WANG H Q, ZHANG X D, ZHANG X J. Establishment and testing of genetically modified T25 maize digital PCR method. Journal of Agricultural Science and Technology, 2020, 22(2): 173-178. (in Chinese) doi: 10.13304/j.nykjdb.2019.0154
[14]	International Organization for Standardization. Biotechnology requirements for evaluating the performance of quantification methods for nucleic acid target sequence-qPCR and dPCR , ISO 20395:2019 (E). https://www.iso.org/obp/ui/#iso:std:iso:20395:ed-1:v1:en.[2021-08-21].
[15]	EUROPEAN COMMISSION, JOINT RESEARCH CENTER. Guidance document on measurement uncertainty for GMO testing laboratories-3^rd edition . 2020 https://gmo-crl.jrc.ec.europa.eu/doc/MU-guidance-document-3rd-edition.pdf.[2021-02-16].
[16]	HUGGETT J F, FOY C A, BENES V, EMSLIE K, GARSON J A, HAYNES R, HELLEMANS J, KUBISTA M, MUELLER R D, NOLAN T, PFAFFL M W, SHIPLEY G L, VANDESOMPELE J, WITTWER C T, BUSTIN S A. The digital MIQE guidelines: minimum information for publication of quantitative digital PCR experiments. Clinical Chemistry, 2013, 59(6): 892-902. doi: 10.1373/clinchem.2013.206375 pmid: 23570709
[17]	史宗勇, 宋贵文, 尹海燕, 王金胜, 章秋燕, 高建华, 王文斌, 乔永刚, 袁建琴, 许冬梅, 李丽, 李飞武, 路超. 转基因植物及其产品成分检测耐除草剂玉米MON87427及其衍生品种定性PCR方法, 农业部2630号公告-6-2017. 北京: 中国农业出版社, 2017.
	SHI Z Y, SONG G W, YIN H Y, WANG J S, ZHANG Q Y, GAO J H, WANG W B, QIAO Y G, YUAN J Q, XU D M, LI L, LI F W, LU C. Detection of Genetically Modified Plants and Derived Products- Qualitative PCR Method for Herbicide-Tolerant Maize MON87427 and Its Derivates, Announcement No. 2630-6-2017 of the Ministry of Agriculture. Beijing: China Agricultural Press, 2017. (in Chinese)
[18]	EUROPEAN UNION REFERENCE LABORATORY FOR GENETICALLY MODIFIED FOOD AND FEED EURL GMFF. Event-specific method for the quantification of maize MON 87427 using real-time PCR, validated method. 2015. https://gmo-crl.jrc.ec.europa.eu/summaries/EURL-VL-03-12-VM.pdf. [2020-11-21].
[19]	杨立桃, 刘信, 张大兵, 沈平, 郭金超, 金芜军. 转基因植物及其产品成分检测玉米内标准基因定性PCR方法, 农业部1861号公告-3-2012. 北京: 中国农业出版社, 2012.
	YANG L T, LIU X, ZHANG D B, SHEN P, GUO J C, JIN W J. Detection of Genetically Modified Plants and Derived Products- Qualitative PCR Method for Maize Reference Gene, Announcement No. 1861-3-2012 of the Ministry of Agriculture, Beijing: China Agricultural Press, 2012. (in Chinese)
[20]	阚莹, 李红梅, 孟凡敏, 卢晓华, 郭敬, 胡晓燕, 王亚平. 标准物质定值的通用原则及统计学原理, JJF 1343-2012. 北京: 中国标准出版社, 2012: 1-66.
	KAN Y, LI H M, MENG F M, LU X H, GUO J, HU X Y, WANG Y P. General and Statistical Principles for Characterization of Reference Materials, JJF 1343-2012. Beijing: Standard Press of China, 2012: 1-66. (in Chinese)
[21]	肖芳, 张秀杰, 李俊, 王颢潜, 李允静, 单露英, 翟杉杉, 高鸿飞, 吴刚, 武玉花. 转基因玉米MON87427/zSSIIb 二重微滴数字PCR方法建立及应用. 中国油料作物学报, 2021, 43(1): 90-98.
	XIAO F, ZHANG X J, LI J, WANG H Q, LI Y J, SHAN L Y, ZHAI S S, GAO H F, WU G, WU Y H. Development and application of MON87427/zSSIIb duplex droplet digital PCR method. Chinese Journal of Oil Crop Sciences, 2021, 43(1): 90-98. (in Chinese)
[22]	周云龙, 卢长明, 刘信, 曹应龙, 宋贵文, 沈平, 吴刚, 杨立桃, 王晶, 王江, 李允静, 李飞武, 赵欣. 转基因植物及其产品成分检测基体标准物质制备技术规范, 农业部1782号公告-8-2012. 北京: 中国农业出版社, 2012.
	ZHOU Y L, LU C M, LIU X, CAO Y L, SONG G W, SHEN P, WU G, YAGN L T, WAGN J, WANG J, LI Y J, LI F W, ZHAO X. Detection of Genetically Modified Plants and Derived Products-Technical Specification for Manufacture of Matrix Reference Material, Announcement No. 1782-8-2012 of the Ministry of Agriculture. Beijing: China Agricultural Press, 2012. (in Chinese)
[23]	高宏伟, 相大鹏, 覃文, 朱水芳, 陈长法, 蔡颖, 许业莉, 庄逸林, 梁希扬, 甄宇江, 金芜军, 路兴波. 转基因产品检测核酸提取纯化方法, GB/T 19495. 3-2004. 北京: 中国标准出版社, 2004: 1-25.
	GAO H W, XIANG D P, QIN W, ZHU S F, CHEN C F, CAI Y, XU Y L, ZHUANG Y L, LIANG X Y, ZHEN Y J, JIN W J, LU X B. Detection of Genetically Modified Organisms and Derived Products- Nucleic Acid Extraction, GB/T 19495.3-2004. Beijing: China Standards Press 2004: 1-25. (in Chinese)
[24]	金芜军, 沈平, 张秀杰, 彭于发, 宋贵文, 黄昆仑, 张大兵, 宛煜嵩. 转基因植物及其产品成分检测DNA提取和纯化农业部, 1485号公告-4-2010. 北京: 中国农业出版社, 2010.
	JIN W J, SHEN P, ZHANGX J, PENG Y F, SONG G W, HUANG K L, ZHANG D B, WAN Y S. Detection of Genetically Modified Plants and Derived Products-DNA Extraction and Purification, Announcement No. 1485-4-2010 of the Ministry of Agriculture. Beijing: China Agricultural Press, 2010. (in Chinese)
[25]	DEPREZ L, CORBISIER P, KORTEKAAS A, MAZOUA S, HIDALGO R B, TRAPMANN S, EMONS H. Validation of a digital PCR method for quantification of DNA copy number concentrations by using a certified reference material. Biomolecular Detection and Quantification, 2016, 9: 29-39. doi: 10.1016/j.bdq.2016.08.002 pmid: 27617230
[26]	KLINE M C, ROMSOS E L, DUEWER D L. Evaluating digital PCR for the quantification of human genomic DNA: Accessible amplifiable targets. Analytical Chemistry, 2016, 88(4): 2132-2139. doi: 10.1021/acs.analchem.5b03692 pmid: 26751276
[27]	YOO H B, PARK S R, DONG L, WANG J, SUI Z, PAVŠIČ J, MILAVEC M, AKGOZ M, MOZIOĞLU E, CORBISIER P, JANKA M, COSME B, DE V CAVALCANTE J J, FLATSHART R B, BURKE D, FORBES-SMITH M, MCLAUGHLIN J, EMSLIE K, WHALE A S, HUGGETT J F, PARKES H, KLINE M C, HARENZA J L, VALLONE P M. International comparison of enumeration-based quantification of DNA copy concentration using flow cytometric counting and digital polymerase chain reaction. Analytical Chemistry, 2016, 88(24): 12169-12176. doi: 10.1021/acs.analchem.6b03076
[28]	LI J, ZHAI S, GAO H, XIAO F, LI Y, WU G, WU Y. Development and assessment of a duplex droplet digital PCR method for quantification of GM rice Kemingdao. Analytical and Bioanalytical Chemistry, 2021, 413(16): 4341-4351. doi: 10.1007/s00216-021-03390-9 pmid: 34023912

PCR类型 PCR type	靶标 Target	引物/探针序列 Sequence of primer/probe (5′-3′)	扩增片段大小 Amplicon size (bp)
实时荧光定量PCR Real-time PCR	MON87427	F: ACGGAAACGGTCGGGTCAAATG	95
		R: CCATGTAGATTTCCCGGTTTTCTC
		P: FAM- TCGGGACAATATGGAGAAAAAGAAAGAG -BHQ1
	zSSIIb	F: CGGTGGATGCTAAGGCTGATG	88
		R: AAAGGGCCAGGTTCATTATCCTC
		P: Hex-TAAGGAGCACTCGCCGCCGCATCTG-BHQ1
普通PCR Conventional PCR	MON87427	F: ACGGAAACGGTCGGGTCAAATG	95
	MON87427	R: CCATGTAGATTTCCCGGTTTTCTC	95
	插入位点 Insert site	87427CH-F: ATAAGTCCTCTCCCGTTTCCGT	416
	插入位点 Insert site	87427CH-R: TCGATGGGTCGAGAAGATTC	416

标准物质 Reference materials	拟称取质量 Proposed weighing mass (g)			实际称取质量 Practical weighing mass (g)			含水量 Water content (g)		转基因含量 GMO content (mg·g^-1)
标准物质 Reference materials	总重量 Total mass	转基因粉末 GM powder	非转基因粉末 Non-GM powder	总重量 Total mass	转基因粉末 GM powder	非转基因粉末 Non-GM powder	转基因粉末 GM powder	非转基因粉末 Non-GM powder	转基因含量 GMO content (mg·g^-1)
MON87427a	450	26.995	423.005	450.002	27.005	422.997	0.292	4.653	60.02
MON87427b	450	44.992	405.008	450.000	44.778	405.222	0.484	4.457	99.52

标准物质 Reference materials	MON87427a			MON87427b			MON87427c
标准物质 Reference materials	12 h	18 h	24 h	12 h	18 h	24 h	12 h	18 h	24 h
平均值 Mean	3.31	3.25	3.33	5.44	5.23	5.24	51.22	51.84	52.20
标准差 SD	0.21	0.12	0.08	0.63	0.35	0.17	1.77	1.34	2.09
相对标准差 Relative SD	6.40	3.54	2.51	11.55	6.68	3.26	3.45	2.59	4.01
统计量F Statistic F	1.60	1.73	2.18	2.17	0.56	0.74	1.31	2.32	1.89
临界值 F_0.05(8,18)	2.51	2.51	2.51	2.51	2.51	2.51	2.51	2.51	2.51
结论 Conclusion	均匀 Homogeneous			均匀 Homogeneous			均匀 Homogeneous

标准物质 <BOLD>R</BOLD>eference materials	差来源 Variance source	差方和（Q） Sum of squares of deviation	自由度（f） Degree of freedom	方差（S） Variance	统计量（F） Statistic F	F_{0.05 (14,30)}	比较结果 Comparison	结论 Conclusion
MON87427a	瓶间 Between-vial	0.25	14	0.018	1.70	2.04	F<F_{0.05 (14,30)}	均匀 Homogeneous
MON87427a	瓶内 Within-vial	0.31	30	0.010	1.70		F<F_{0.05 (14,30)}	均匀 Homogeneous
MON87427b	瓶间 Between-vial	0.56	14	0.040	1.40		F<F_{0.05 (14,30)}	均匀 Homogeneous
MON87427b	瓶内 Within-vial	0.85	30	0.028	1.40		F<F_{0.05 (14,30)}	均匀 Homogeneous
MON87427c	瓶间 Between-vial	11.97	14	0.855	1.63		F<F_{0.05 (14,30)}	均匀 Homogeneous
MON87427c	瓶内 Within-vial	15.75	30	0.525	1.63		F<F_{0.05 (14,30)}	均匀 Homogeneous

标准物质 <BOLD>R</BOLD>eference materials	MON87427a			MON87427b			MON87427c
标准物质 <BOLD>R</BOLD>eference materials	25℃	37℃	60℃	25℃	37℃	60℃	25℃	37℃	60℃
平均值Mean	2.77	2.76	2.87	4.80	4.63	4.63	49.73	50.53	50.14
斜率(β₁)Slope	-0.0122	0.0085	0.0031	-0.0095	-0.0127	-0.0045	-0.0666	0.0650	-0.0443
与斜率相关的不确定度s(β₁)	0.0092	0.0026	0.0129	0.0062	0.0051	0.0069	0.0284	0.0656	0.0882
t_0.95,_n-2	4.3027	4.3027	4.3027	4.3027	4.3027	4.3027	4.3027	4.3027	4.3027
t_0.95,_n-2* s(β₁)	0.0397	0.0111	0.0556	0.0268	0.0218	0.0297	0.1224	0.2823	0.3793
稳定性判断 Comparison	\|β₁\| <t_0.95_n_-2·s(β₁)
判断结果 Conclusion	稳定 Stable	稳定 Stable	稳定 Stable	稳定 Stable	稳定 Stable	稳定 Stable	稳定 Stable	稳定 Stable	稳定 Stable
