不同类型氮肥对东北春玉米土壤N2O和CO2昼夜排放的影响

doi:10.3864/j.issn.0578-1752.2021.17.010

摘要/Abstract

摘要：

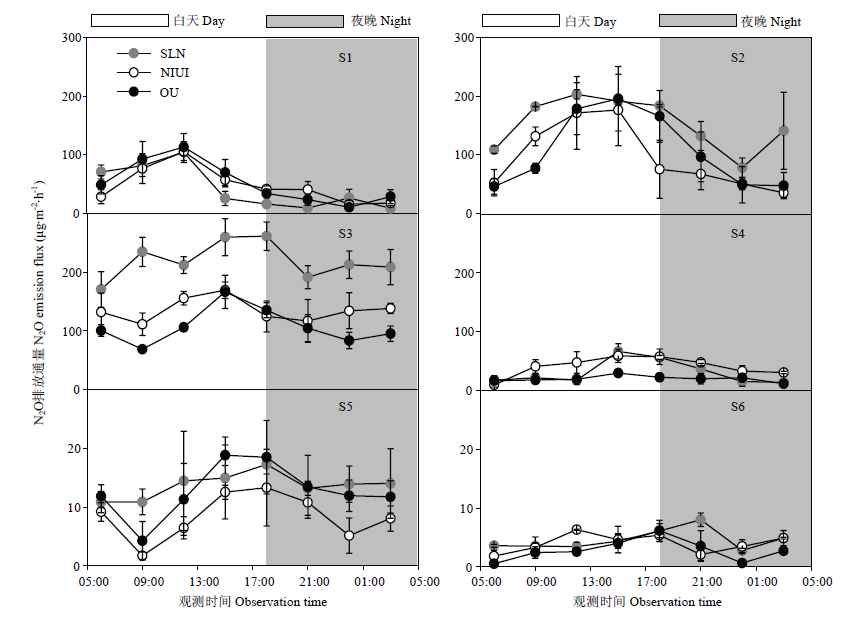

【目的】探明不同类型氮肥对高纬度春玉米土壤N₂O和CO₂昼夜排放的影响,以期为高纬度地区农田氮肥高效利用管理和温室气体减排提供参考依据。【方法】通过田间微区施用缓释肥（SLN）、尿素添加硝化抑制剂+脲酶抑制剂（NIUI）和普通尿素（OU）试验,采用静态箱-气相色谱法,分别在苗前（S1）、苗期（S2）、拔节期（S3）、灌浆期（S4）、蜡熟期（S5）和休闲期（S6）6个时期取样测定,比较分析农田N₂O和CO₂的昼夜排放特性。【结果】施用不同类型氮肥,田间N₂O和CO₂昼夜排放均呈单峰变化趋势,S1—S6时期,土壤N₂O排放高峰出现在12：00—19：00,排放低谷出现在下半夜（0：00—6：00）,而S2—S5同一时期白天或夜晚各观测时段之间CO₂排放通量差异不显著。S1和S2时期,N₂O和CO₂白天排放量分别占全天总排放量的56.2%—82.3%和53.6%—66.5%,而S3—S6时期,白天排放比例分别为40.6%—59.6%和43.7%—55.4%。SLN处理减少了S1时期土壤N₂O的全天总排放量,而NIUI处理减少了S1、S2和S5时期土壤N₂O的全天总排放量,其主要减排时段为S1时期的4：00—16：00和S2时期的12：00—22：00,其中S2时期18：00—19：00减排量占所有减排时段总量的57.3%,S5时期昼夜各时段均表现为减排作用,且昼夜减排比例相当;SLN对土壤CO₂的主要减排时段为S1时期的全天和S3时期的15：00—4：00,其中S1时期12：00—23：00减排比例高达76.8%,S3时期夜晚减排比例占所有减排时段总量的68.1%;NIUI处理在玉米生长季5个测定日都表现出对CO₂的减排作用,但昼夜减排比例存在差异,白天平均减排46.9%,最高减排达73.2%。同时发现,N₂O和CO₂排放通量日均值与9：00—10：00观测值存在极显著正相关关系（r_N2O=0.938**,r_CO2=0.977**）,9：00—10：00可作为东北春玉米农田N₂O和CO₂昼夜排放研究的代表性取样时段。【结论】不同类型氮肥对土壤N₂O和CO₂昼夜排放通量的影响在不同时期表现各异。与常规施氮相比,缓释氮肥抑制了玉米苗前期土壤N₂O昼夜排放,减排时段主要在9：00—22：00,而在其他测定日均促进了土壤N₂O昼夜排放;尿素添加硝化抑制剂和脲酶抑制剂抑制了玉米苗前白天、苗期夜晚以及收获期白天和夜晚的土壤N₂O排放,对拔节期至灌浆期土壤N₂O的昼夜排放均表现为促进作用。在苗前测定日全天和拔节期测定日的夜晚,缓释肥对土壤CO₂表现出减排作用;尿素添加硝化抑制剂和脲酶抑制剂降低了6个测定日土壤CO₂的排放。

关键词: 不同氮肥, 春玉米农田, N₂O和CO₂排放通量, 昼夜变化

Abstract:

【Objective】 The effects of different types of nitrogen fertilizers on the diurnal variation of N₂O and CO₂ fluxes from spring maize soil at high latitude were explored, in order to provide a reference for nitrogen fertilizer efficient utilization management and greenhouse gas emission reduction in farmland at high latitude. 【Method】 Field micro-plot trials and the static chamber-gas chromatography method were used to investigate the effects of slow release fertilizer (SLN), urea plus nitrification inhibitor and urease inhibitor (NIUI) and ordinary urea application (OU) on the diurnal variation of N₂O and CO₂ emissions from spring maize fields at high latitudes. The day-night emission characteristics of soil N₂O and CO₂ were compared and analyzed in 6 periods, including pre-emergence stage (S1), seedling stage (S2), jointing stage (S3), filling stage (S4), dough stage (S5), and fallow period (S6). 【Result】 The diurnal variation of N₂O and CO₂ emissions under different nitrogen fertilizers showed a single peak trend. From stage S1 to S6, the peak of N₂O emissions appeared in 13:00-19:00, and the peak valley occurred after midnight (0:00-6:00). However, there was no significant difference in CO₂ fluxes between observation periods during day or night at the same stage from S2 to S5. In stage S1 and S2, the daytime emissions of N₂O and CO₂ accounted for 56.2%-82.3% and 53.6%-66.5% of the total emissions of the whole day, respectively. From stage S3 to S5, the ratio of N₂O and CO₂ emission in the daytime was 40.6%-59.6% and 43.7%-55.4%, respectively. SLN treatment reduced the soil N₂O cumulative emission in stage S1, while NIUI treatment reduced the soil N₂O cumulative emission at stages S1, S2 and S5, and the emission reduction period was mainly from 4:00-16:00 in the daytime of stage S1 and 12:00 to 22:00 of stage S2, among which the emission reduction from 18:00-19:00 during stage S2 accounts for 57.3% of the total emission reduction period. All time periods of day and night showed the effect of emission reduction in stage S5, and the ratio of emission reduction during day and night was almost the same. The main emission reduction periods of SLN for soil CO₂ were the whole day in S1 stage and 15:00-4:00 in S3 stage, among which the emission reduction ratio of 12:00-23:00 during the S1 stage was as high as 76.8%, and the reduction ratio at night during S3 accounted for 68.1% of all emission reduction periods. NIUI treatment showed a reduction effect on CO₂ emission in five monitoring days of growing season of maize, but the ratio of day-night emission reduction was different, with an average reduction of 46.9% during the day and a maximum reduction of 73.2%. It was also found that there was an extremely significant positive correlation between the daily mean of N₂O and CO₂ fluxes, and the observed values of 9:00-10:00 (r_N2O=0.938**, r_CO2=0.977**). Therefore, 9:00-10:00 could be used as the representative sampling period when conducting long-term greenhouse gas emission research in spring maize fields in Northeast China. 【Conclusion】 The diurnal emission fluxes of soil N₂O and CO₂ responded differently to various nitrogen fertilizations at different maize growing stages. Compared with conventional nitrogen application, SLN inhibited the soil N₂O emission before maize seedling in day and night, and the emission reduction period was mainly between 9:00-22:00. SLN promoted the emission of N₂O in day and night in other monitoring days. NIUI inhibited the soil N₂O emission during the daytime before maize seedling, the night at the seedling stage, and the harvest stage day and night, while NIUI promoted the soil N₂O emission from jointing stage to filling stage. In the whole monitoring day before seedling and the night of the monitoring day at jointing stage, SLN had a reduction effect on soil CO₂. NIUI reduced soil CO₂ emissions in six monitoring days.

Key words: different nitrogen fertilizers, spring maize field, N₂O and CO₂ fluxes, day and night emission dynamics

姚凡云,刘志铭,曹玉军,吕艳杰,魏雯雯,吴兴宏,王永军,谢瑞芝. 不同类型氮肥对东北春玉米土壤N₂O和CO₂昼夜排放的影响[J]. 中国农业科学, 2021, 54(17): 3680-3690.

YAO FanYun,LIU ZhiMing,CAO YuJun,LÜ YanJie,WEI WenWen,WU XingHong,WANG YongJun,XIE RuiZhi. Diurnal Variation of N₂O and CO₂ Emissions in Spring Maize Fields in Northeast China Under Different Nitrogen Fertilizers[J]. Scientia Agricultura Sinica, 2021, 54(17): 3680-3690.

0
/ / 推荐

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: https://www.chinaagrisci.com/CN/10.3864/j.issn.0578-1752.2021.17.010

https://www.chinaagrisci.com/CN/Y2021/V54/I17/3680

图/表 7

图1

图2

图3

图4

图5

图6

图7

参考文献 33

[1]	WHITE D. Expert Review of the Intergovernmental Panel on Climate Change (IPCC) 2019 Special Report Global Warming of 1.5°C, 2019.
[2]	LI L, XU J H, HU J X, HAN J R. Reducing nitrous oxide emissions to mitigate climate change and protect the ozone layer. Environmental Science and Technology, 2014, 48(9): 5290-5297. doi: 10.1021/es404728s
[3]	THOMPSON R L, LASSALETTA L, PATRA P K, WILSON C, WELLS K C, GRESSENT A, KOFFI E N, CHIPPERDIELD M, WINIWARTER W, DAVIDSON E A, TIAN H, CANADELL J G. Acceleration of global N₂O emissions seen from two decades of atmospheric inversion. Nature Climate Change, 2019, 9(2): 1-6. doi: 10.1038/s41558-018-0385-5
[4]	GUDAPATY P, SRINIVAS I, RAO K V, SHANKER A K, RAJU B M K, CHOUDHARY D, RAO K S, SRINIVASRAO C, MANDAPAKA M. Net global warming potential and greenhouse gas intensity of conventional and conservation agriculture system in rainfed semi arid tropics of India. Atmospheric Environment, 2016, 145: 239-250. doi: 10.1016/j.atmosenv.2016.09.039
[5]	ZHANG J T, TIAN H Q, SHI H, ZHANG J F, WANG X K, PAN S F, YANG J. Increased greenhouse gas emission intensity of major croplands in China: Implications for food security and climate change mitigation. Global Change Biology, 2020, 26(11): 6116-6133. doi: 10.1111/gcb.v26.11
[6]	KANTER D R, SEARCHINGER T D. A technology-forcing approach to reduce nitrogen pollution. Nature Sustainability, 2018, 1(10): 544-552. doi: 10.1038/s41893-018-0143-8
[7]	MCGEOUGH K L, WATSON C J, MŰLLER C, LAUGHLIN R. Evidence that the efficacy of the nitrification inhibitor dicyandiamide (DCD) is affected by soil properties in UK soils. Soil Biology and Biochemistry, 2016, 94: 222-232. doi: 10.1016/j.soilbio.2015.11.017
[8]	赵迅, 郭李萍, 谢立勇, 孙雪, 赵洪亮, 许婧. 不同农作措施对棕壤玉米田N₂O排放及碳足迹的影响. 中国农业气象, 2016, 37(3): 270-280.
	ZHAO X, GUO L P, XIE L Y, SUN X, ZHAO H L, XU J. Impacts of different farming managements on N₂O emission and carbon footprint for maize from brown soil. Chinese Journal of Agrometeorology, 2016, 37(3): 270-280. (in Chinese)
[9]	李梓铭, 杜睿, 王亚玲, 梁宗敏, 钟磊, 吴红军. 中国草地N₂O通量日变化观测对比研究. 中国环境科学, 2012, 32(12): 2128-2133.
	LI Z M, DU R, WANG Y L, LIANG Z M, ZHONG L, WU H J. Comparison of diurnal variation of nitrous oxide fluxes from grassland of China. China Environmental Science, 2012, 32(12): 2128-2133. (in Chinese)
[10]	ALVES B J R, SMITH K A, FLORES R A, CARDOSO A S, OLIVEIRA W R D, JANTALIA C P, URQUIAGA S, BODDEY R. Selection of the most suitable sampling time for static chambers for the estimation of daily mean N₂O flux from soils. Soil Biology and Biochemistry, 2012, 46(46): 129-135. doi: 10.1016/j.soilbio.2011.11.022
[11]	李发东, 杜锟, 张秋英, 古丛珂, 冷佩芳, 乔云峰, 朱农, 郝帅, 黄勇彬, 施生锦. 华北平原农田N₂O排放通量的高频动态观测. 中国生态农业学报, 2018, 26(2): 195-202.
	LI F D, DU K, ZHANG Q Y, GU C K, LENG P F, QIAO Y F, ZHU N, HAO S, HUANG Y B, SHI S J. High-frequency dynamic observation of N₂O emission flux from cropland in the North China Plain. Chinese Journal of Eco-Agriculture, 2018, 26(2): 195-202. (in Chinese)
[12]	刘羽, 周婧, 李珂萍, 李欣瑜, 王朝元, 施正香, 李保明. 影响静态箱检测开放式气体排放源N₂O排放通量的关键因子. 农业工程学报, 2020, 36(8): 182-187.
	LIU Y, ZHOU J, LI K P, LI X Y, WANG C Y, SHI Z X, LI B M. Key factors affecting the measurement of N₂O emission from dairy farm using static-chamber method. Transactions of the Chinese Society of Agricultural Engineering, 2020, 36(8): 182-187. (in Chinese)
[13]	HILLEL D. Environmental Soil Physics. San Diego: Academic Press, 1998: 291-293.
[14]	秦小光, 蔡炳贵, 吴金水, 王国安, 刘东生. 土壤温室气体昼夜变化及其环境影响因素研究. 第四纪研究, 2005, 25(3): 376-388.
	QIN X G, CAI B G, WU J S, WANG G A, LIU D S. Diurnal variations of soil trace gases and related impacting factors. Quaternary Sciences, 2005, 25(3): 376-388. (in Chinese)
[15]	YANG H, LIU S R, LI Y D, XU H. Diurnal variations and gap effects of soil CO₂, N₂O and CH₄ fluxes in a typical tropical montane rainforest in Hainan Island, China. Ecological Research, 2018, 33(2): 379-392. doi: 10.1007/s11284-017-1550-4
[16]	田慎重, 宁堂原, 迟淑筠, 王瑜, 王丙文, 韩惠芳. 不同耕作措施的温室气体排放日变化及最佳观测时间. 生态学报, 2012, 32(3): 879-888. doi: 10.5846/stxb
	TIAN S Z, NING T Y, CHI S Y, WANG Y, WANG B W, HAN H F. Diurnal variations of the greenhouse gases emission and their optimal observation duration under different tillage systems. Acta Ecologica Sinica, 2012, 32(3): 879-888. (in Chinese) doi: 10.5846/stxb
[17]	LIVESLEY S J, KIESE R, GRAHAM J, WESTON C J, BUTTERBACH- BAHL K, ARNDT S K. Trace gas flux and the influence of short-term soil water and temperature dynamics in Australian sheep grazed pastures of differing productivity. Plant and Soil, 2008, 309(1/2): 89-103. doi: 10.1007/s11104-008-9647-8
[18]	AKIYAMA H, TSURUTA H, WATANABE T. N₂O and NO emissions from soils after the application of different chemical fertilizers. Chemosphere - Global Change Science, 2000, 2(3/4): 313-320. doi: 10.1016/S1465-9972(00)00010-6
[19]	周存宇, 张德强, 王跃思, 周国逸, 刘世忠, 唐旭利. 鼎湖山针阔叶混交林地表温室气体排放的日变化. 生态学报, 2004, 24(8): 1738-1741.
	ZHOU C Y, ZHANG D Q, WANG Y S, ZHOU G Y, LIU S Z, TANG X L. Diurnal variations of fluxes of the greenhouse gases from a coniferous and broad-leaved mixed forests oil in Dinghushan. Acta Ecologica Sinica, 2004, 24(8): 1738-1741. (in Chinese)
[20]	THOMSON P E, PARKER J P, ARAH J R M, CLAYTON H, SMITH K A. Automated soil monolith-flux chamber system for the study of trace gas fluxes. Soil Science Society of America Journal, 1997, 61(5): 1323-1330. doi: 10.2136/sssaj1997.03615995006100050006x
[21]	姚凡云, 王立春, 多馨曲, 刘志铭, 吕艳杰, 曹玉军, 魏雯雯, 王永军. 不同氮肥对东北春玉米农田温室气体周年排放的影响. 应用生态学报, 2019, 30(4): 1303-1311.
	YAO F Y, WANG L C, DUO X Q, LIU Z M, LÜ Y J, CAO Y J, WEI W W, WANG Y J. Effects of different nitrogen fertilizers on annual emissions of greenhouse gas from maize field in Northeast China. Chinese Journal of Applied Ecology, 2019, 30(4): 1303-1311. (in Chinese)
[22]	LIU Y N, LI Y C, PENG Z P, WANG Y Q, MA S Y, GUO L P, LIN E D, HAN X. Effects of different nitrogen fertilizer management practices on wheat yields and N₂O emissions from wheat fields in North China. Journal of Integrative Agriculture, 2015, 14(6): 1184-1191. doi: 10.1016/S2095-3119(14)60867-4
[23]	孙磊, 王丽华, 高中超, 佟玉欣, 张磊, 常本超, 王爽, 郝小雨. 减氮配合增效剂和缓释肥对玉米田土壤温室气体排放和产量的影响. 土壤通报, 2020, 51(1): 185-194. doi: 10.1046/j.1365-2389.2000.00297.x
	SUN L, WANG L H, GAO Z C, TONG Y X, ZHANG L, CHANG B C, WANG S, HAO X Y. Effects of reduction of nitrogen fertilizer combined with synergist and slow release fertilizer on greenhouse gas emissions and yield in corn field. Chinese Journal of Soil Science, 2020, 51(1): 185-194. (in Chinese) doi: 10.1046/j.1365-2389.2000.00297.x
[24]	马芬, 杨荣全, 郭李萍. 控制氮肥施用引起的活性氮气体排放: 脲酶/硝化抑制剂研究进展与展望. 农业环境科学学报, 2020, 39(4): 908-922.
	MA F, YANG R Q, GUO L P. Decrease the emission of active nitrogen gases in nitrogen fertilizer application: Research progresses and perspectives of urease/nitrification inhibitors. Journal of Agro-Environment Science, 2020, 39(4): 908-922. (in Chinese)
[25]	LI J, WANG M X, WANG Y S, HUANG Y, ZHENG X H, XU X. Advance of researches on greenhouse gases emission from Chinese agricultural ecosystem. Chinese Journal of Atmospheric Sciences, 2003, 27(4): 740-749.
[26]	BREMNER J M, ROBBINS S G, BLACKMER A M. Seasonal variability in emission of nitrous oxide from soil. Geophysical Research Letters, 2013, 7(9): 641-644. doi: 10.1029/GL007i009p00641
[27]	宋敏, 齐鹏, 蔡立群, STEPHEN Y, 张军, 张仁陟, 武均, 谢军红. 不同生物质炭输入水平下旱作农田温室气体排放研究. 2016, 24(10): 1185-1195.
	SONG M, QI P, CAI L Q, STEPHEN Y, ZHANG J, ZHANG R Z, WU J, XIE J H. Diurnal variations of greenhouse gases emissions under different biochar applications. Chinese Journal of Eco-Agriculture, 2016, 24(10): 1185-1195. (in Chinese)
[28]	张仲新, 李玉娥, 华珞, 万运帆, 姜宁宁. 不同施肥量对设施菜地N₂O排放通量的影响. 农业工程学报, 2010, 26(5): 269-275.
	ZHANG Z X, LI Y E, HUA L, WAN Y F, JIANG N N. Effects of different fertilizer levels on N₂O flux from protected vegetable land. Transactions of the Chinese Society of Agricultural Engineering, 2010, 26(5): 269-275. (in Chinese)
[29]	朱龙飞, 徐越, 张志勇, 于旭昊, 马新明, 闫广轩, 孔玉华. 不同施氮措施对冬小麦农田土壤温室气体通量的影响. 生态环境学报, 2019, 28(1): 143-151.
	ZHU L F, XU Y, ZHANG Z Y, YU X H, MA X M, YAN G X, KONG Y H. Effect of different nitrogen application measures on soil greenhouse gases fluxes in winter wheat cropland. Ecology and Environmental Sciences, 2019, 28(1): 143-151. (in Chinese)
[30]	李燕青, 唐继伟, 车升国, 温延臣, 孙文彦, 赵秉强. 长期施用有机肥与化肥氮对华北夏玉米N₂O和CO₂排放的影响. 中国农业科学, 2015, 48(21): 4381-4389.
	LI Y Q, TANG J W, CHE S G, WEN Y C, SUN W Y, ZHAO B Q. Effect of organic and inorganic fertilizer on the emission of CO₂ and N₂O from the summer maize field in the North China Plain. Scientia Agricultura Sinica, 2015, 48(21): 4381-4389. (in Chinese)
[31]	WANG C, LIU J Y, SHEN J L, CHEN D, LI Y, JIANG B S, WU J S. Effects of biochar amendment on net greenhouse gas emissions and soil fertility in a double rice cropping system: A 4-year field experiment. Agriculture Ecosystems and Environment, 2018, 262: 83-96. doi: 10.1016/j.agee.2018.04.017
[32]	REEVES S, WANG W J. Optimum sampling time and frequency for measuring N₂O emissions from a rain-fed cereal cropping system. Science of the Total Environment, 2015, 530/531: 219-226. doi: 10.1016/j.scitotenv.2015.05.117
[33]	徐钰, 刘兆辉, 石璟, 魏建林, 李国生, 王梅, 江丽华. 北方设施菜地土壤N₂O排放通量日变化及最佳观测时间确定. 中国农业气象, 2016, 37(5): 505-512.
	XU Y, LIU Z H, SHI J, WEI J L, LI G S, WANG M, JIANG L H. Diurnal variation characteristic of nitrous oxide from greenhouse vegetable soil during emission peak and its optimal observation duration. Chinese Journal of Agrometeorology, 2016, 37(5): 505-512. (in Chinese)
