苦荞VQ基因家族的全基因组鉴定及其在叶斑病原与激素处理下的表达谱分析
郑逢盛,王海华,邬清韬,申权,田建红,彭喜旭,唐新科

Genome-Wide Identification of VQ Gene Family in Fagopyrum tataricum and Its Expression Profiles in Response to Leaf Spot Pathogens
ZHENG FengSheng,WANG HaiHua,WU QingTao,SHEN Quan,TIAN JianHong,PENG XiXu,TANG XinKe

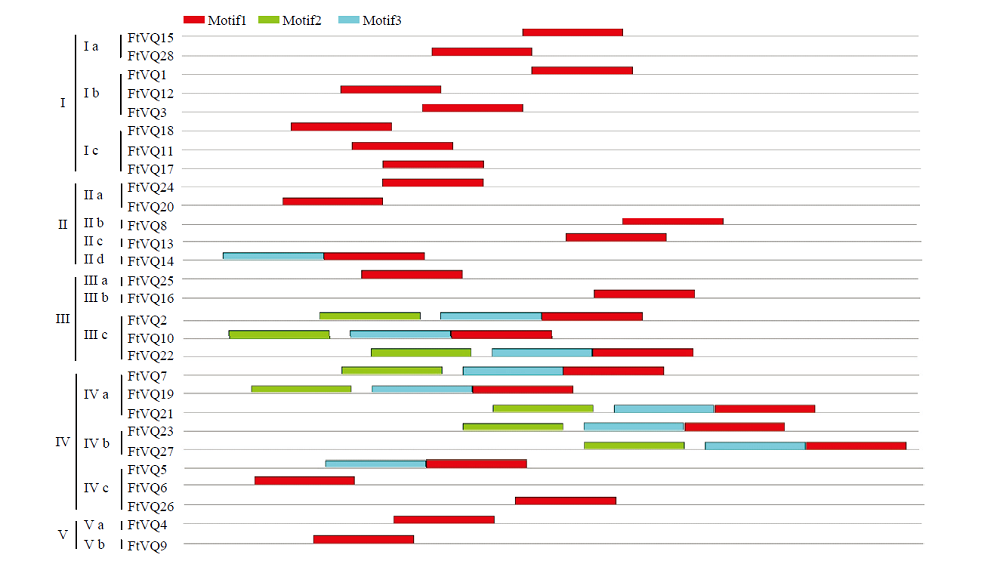

图3 苦荞VQ蛋白的保守基序模式图
图左为苦荞VQ蛋白的进化树。苦荞蛋白划分为5组,各组又划分不同亚组。图右为基于MEME分析得出的苦荞VQ蛋白的3种主要的保守基序,每一保守基序分别用不同颜色的矩形框表示,未按比例绘制
Fig. 3 Schematic diagram of conserved motifs of tartary buckwheat VQ proteins
Left panel is phylogenetic tree of FtVQ proteins, which are divided into five groups. Each group is further divided into subgroups. Right panel depicts the distribution of the 3 conserved motifs in the tartary buckwheat VQ protein family following analysis with MEME. Each specific motif is marked by a different colored box. The length of each box is not proportional to the actual size of the motif
