谷子抽穗时间基因SiTOC1的表达与单倍型变异分析

张林林,智慧,汤沙,张仁梁,张伟,贾冠清,刁现民

Characterizations of Transcriptional and Haplotypic Variations of SiTOC1 in Foxtail Millet

ZHANG LinLin,ZHI Hui,TANG Sha,ZHANG RenLiang,ZHANG Wei,JIA GuanQing,DIAO XianMin

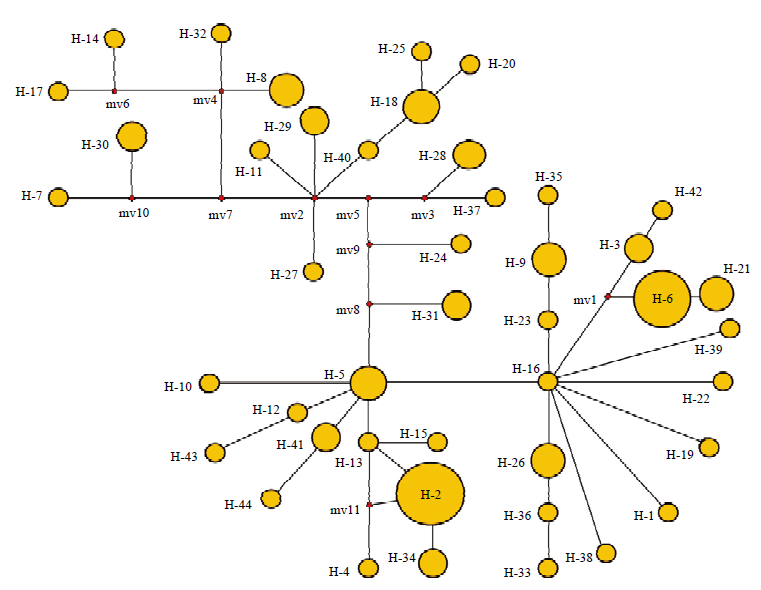

图6 SiTOC1编码区单倍型衍生关系 SiTOC1编码区单倍型Network图,不同实心圆代表不同单倍型,圆的面积和对应单倍型所包含的品种数量成正比,黑色连接线代表不同单倍型的突变步骤,连接线上的红色圆点代表大于一次的突变步骤

Fig. 6 Relationships between SiTOC1 haplotypes detected in coding region SiTOC1 haplotype network diagram of coding region, different solid circles represent different haplotypes, the area of the circle is proportional to the number of species contained in the corresponding haplotype, the black connecting lines represent the mutation steps of different haplotypes, and the red circles on the connecting lines dots represent mutation steps more than once
